Acura TL (1998 – 2000) – wiring diagrams – wiper/washer

Acura TL (1998 – 2000) – wiring diagrams – wiper/washer

Year of productions:  1998, 1999, 2000

Wiper/washer

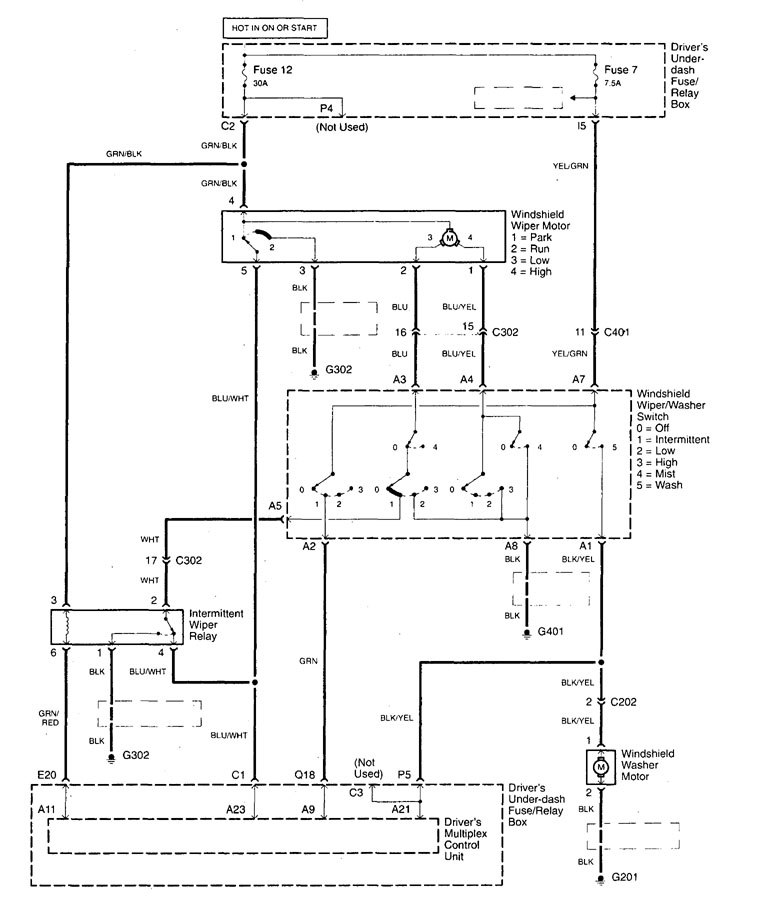

Acura TL – fuse box – wiper/washer (part 1)

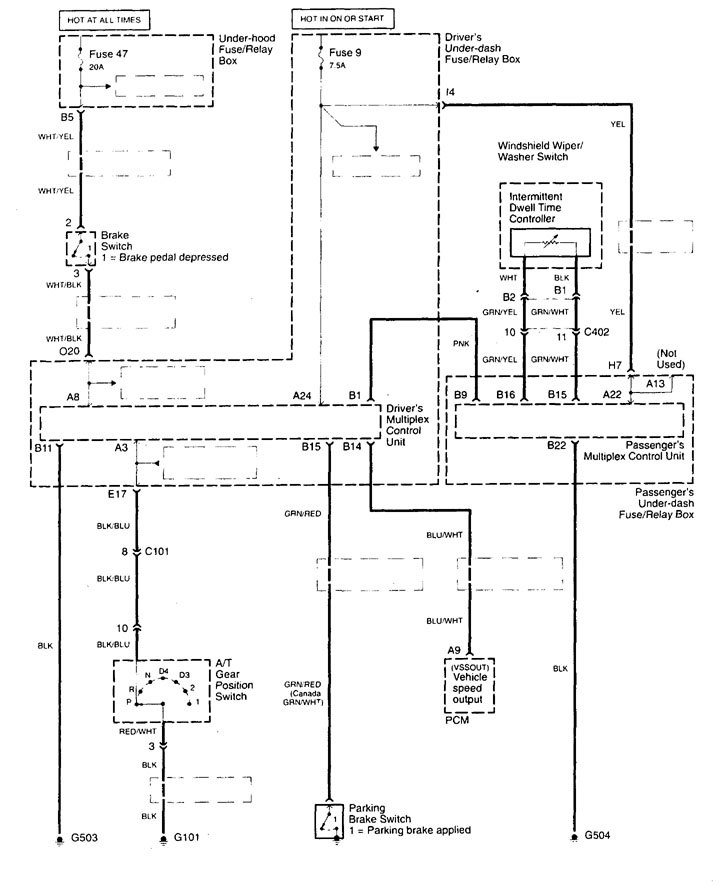

Acura TL – fuse box – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
