Acura TL (2002) – wiring diagrams – instrumentation

Acura TL (2002) – wiring diagrams – instrumentation

Year of productions:  2002

Instrumentation

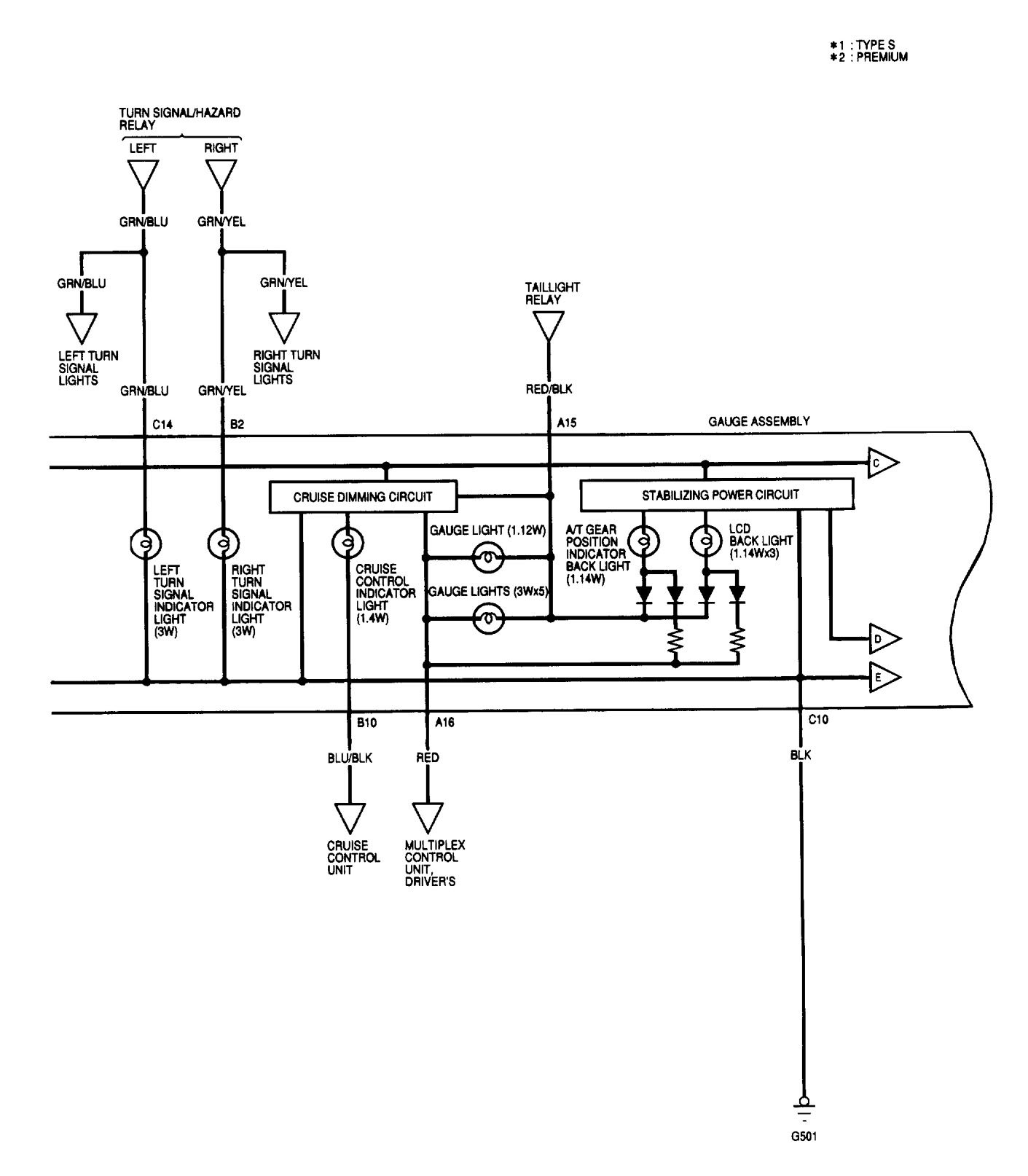

Acura TL – wiring diagram – instrumentation (part 1)

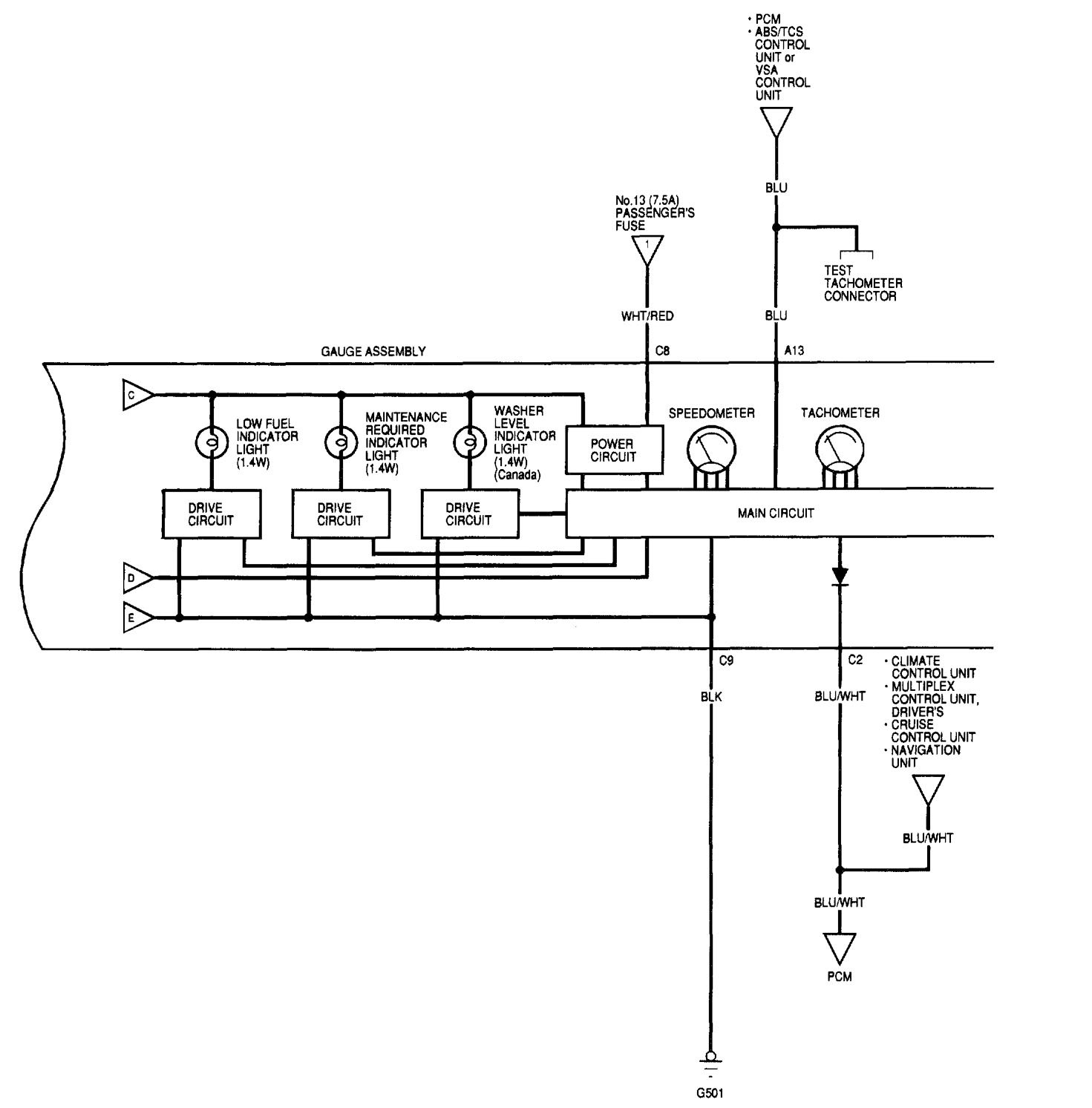

Acura TL – wiring diagram – instrumentation (part 2)

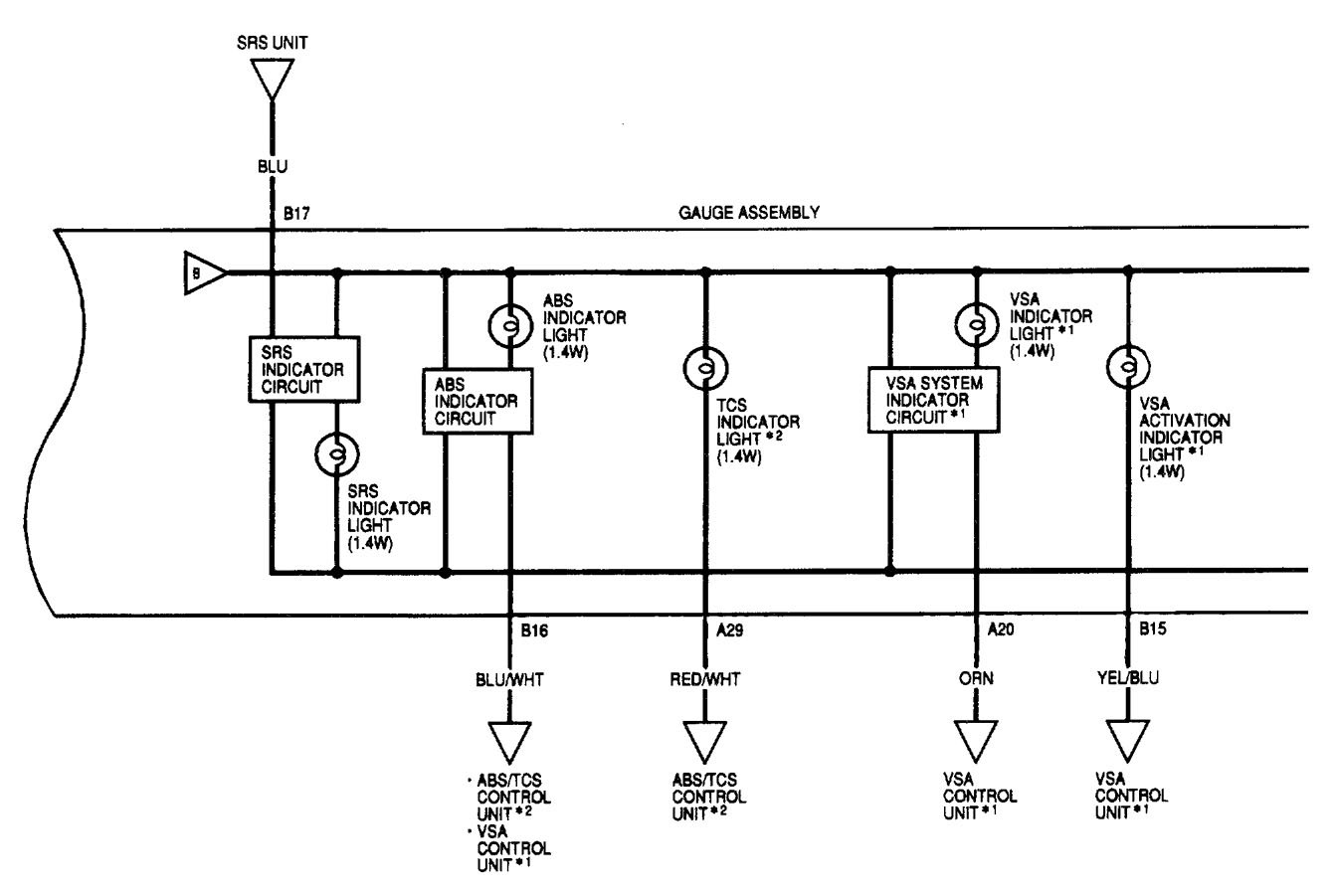

Acura TL – wiring diagram – instrumentation (part 3)

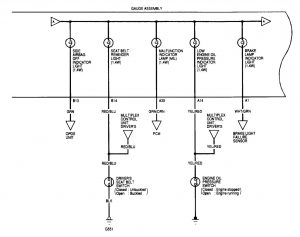

Acura TL – wiring diagram – instrumentation (part 4)

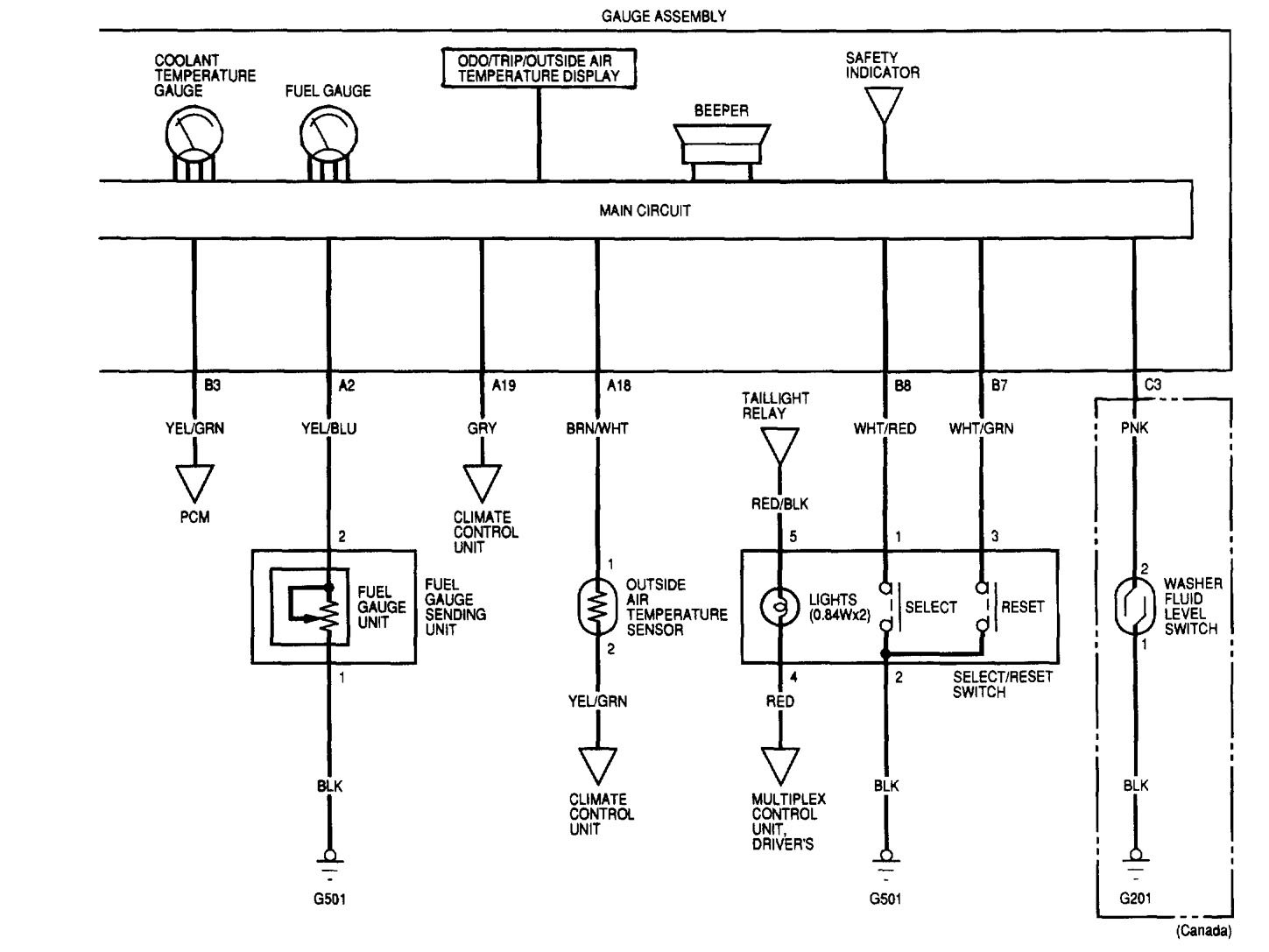

Acura TL – wiring diagram – instrumentation (part 5)

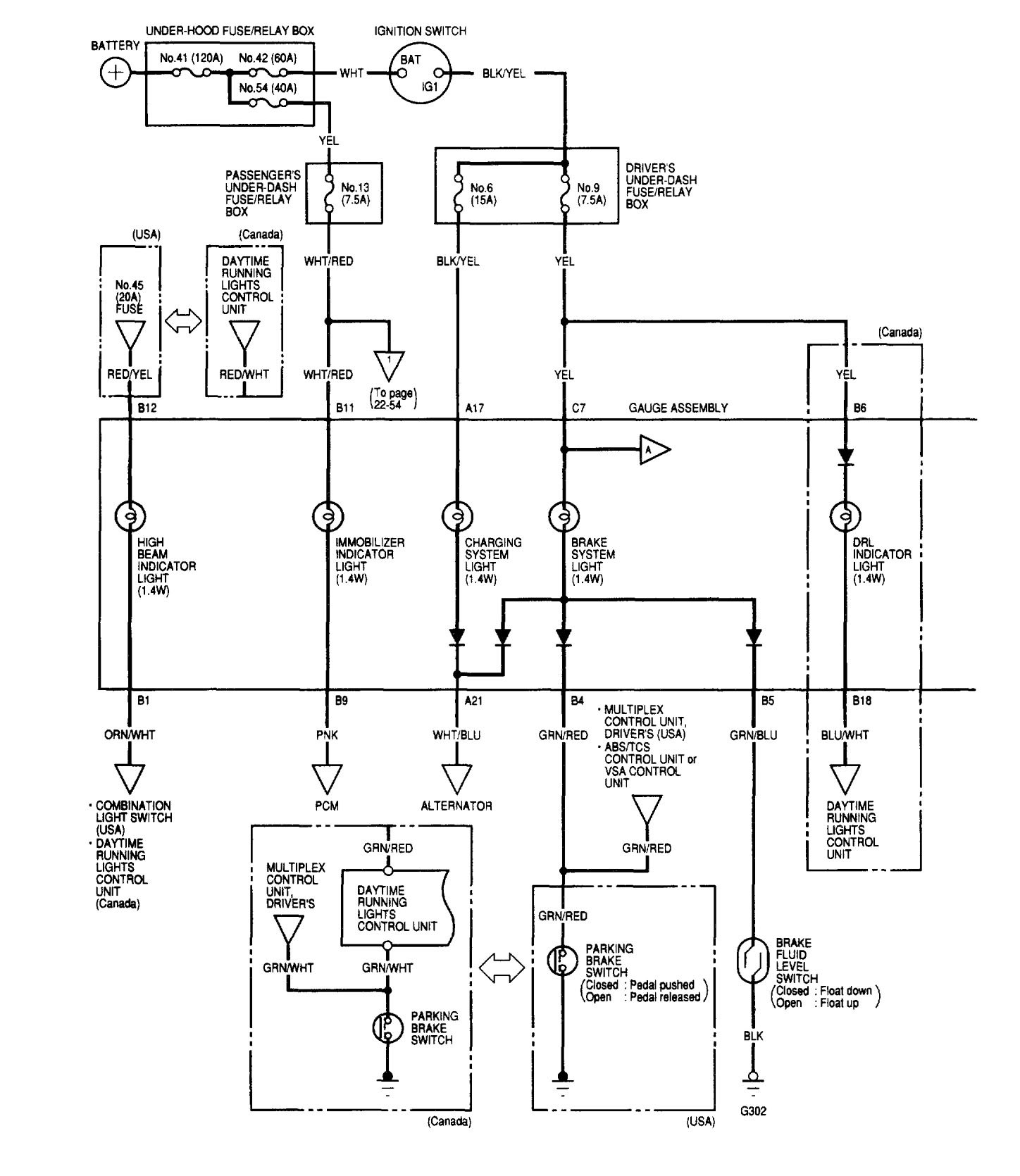

Acura TL – wiring diagram – instrumentation (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
