Acura TL (2003 – 2006) – wiring diagrams – headlamps

Acura TL (2003 – 2006) – wiring diagrams – headlamps

Year of productions:  2003, 2004, 2005, 2006

Headlamps

Version 1

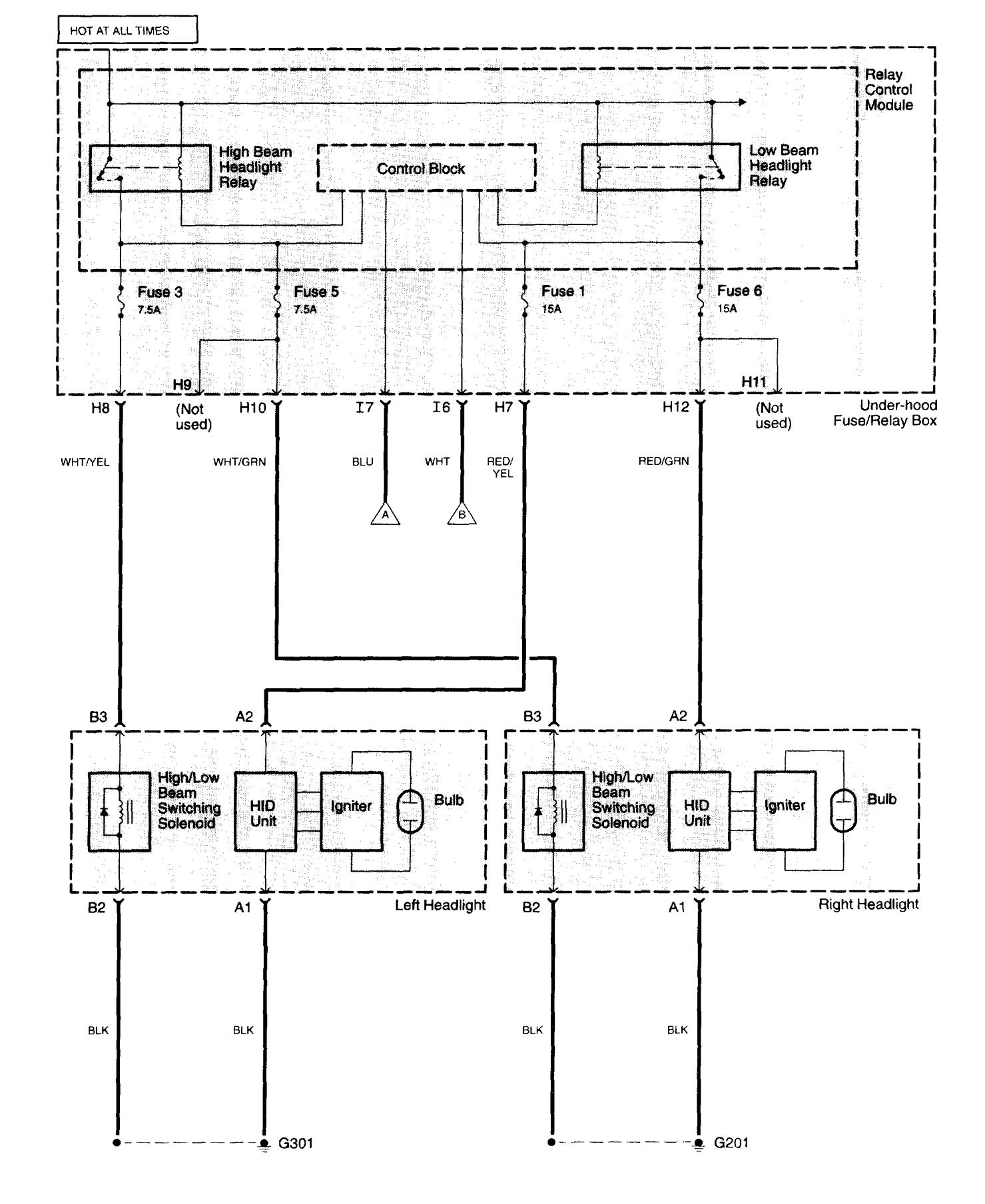

Acura TL - wiring diagram - headlamps (part 1)
Acura TL – wiring diagram – headlamps (part 1)

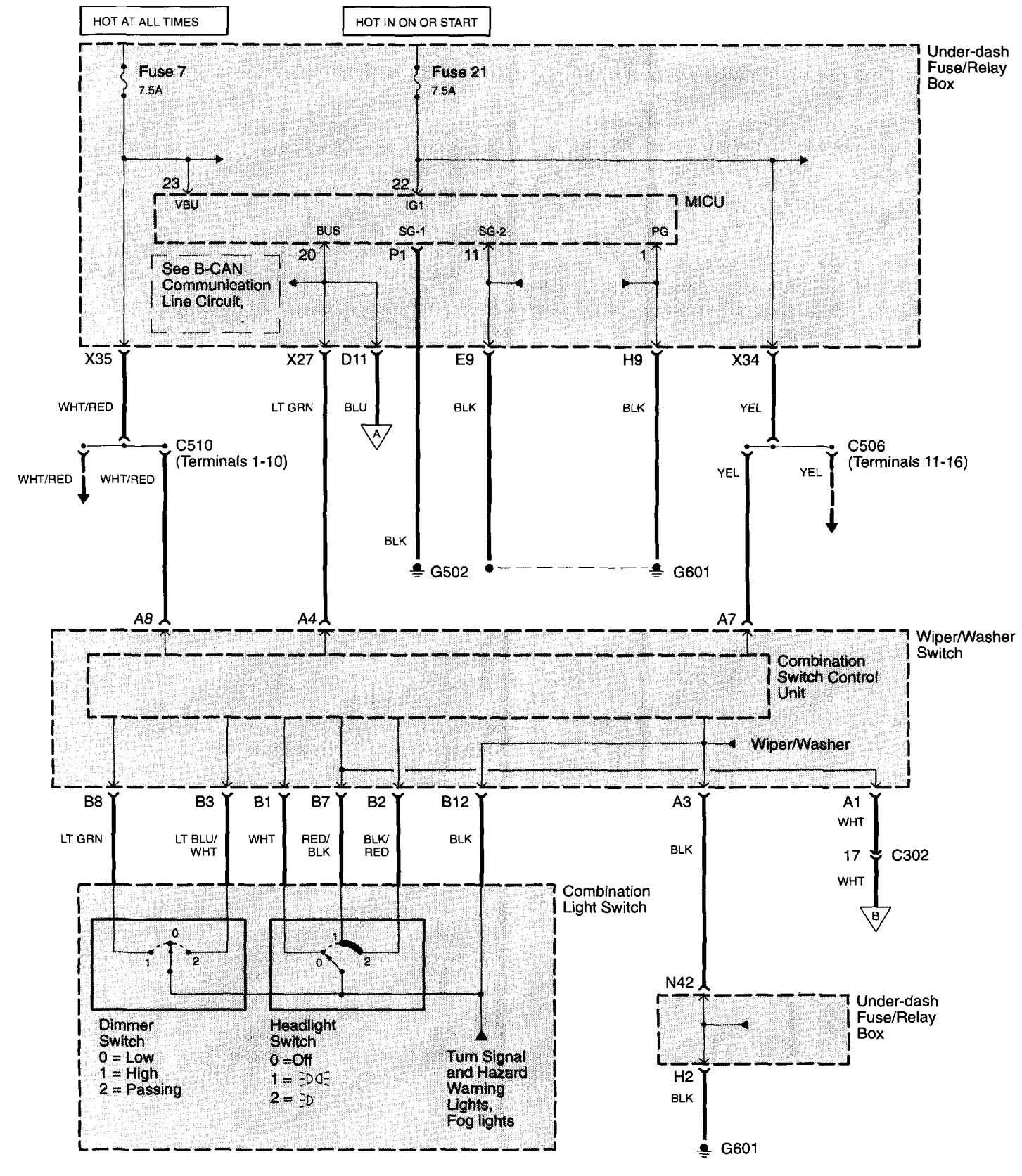

Acura TL - wiring diagram - headlamps (part 2)
Acura TL – wiring diagram – headlamps (part 2)

Version 2

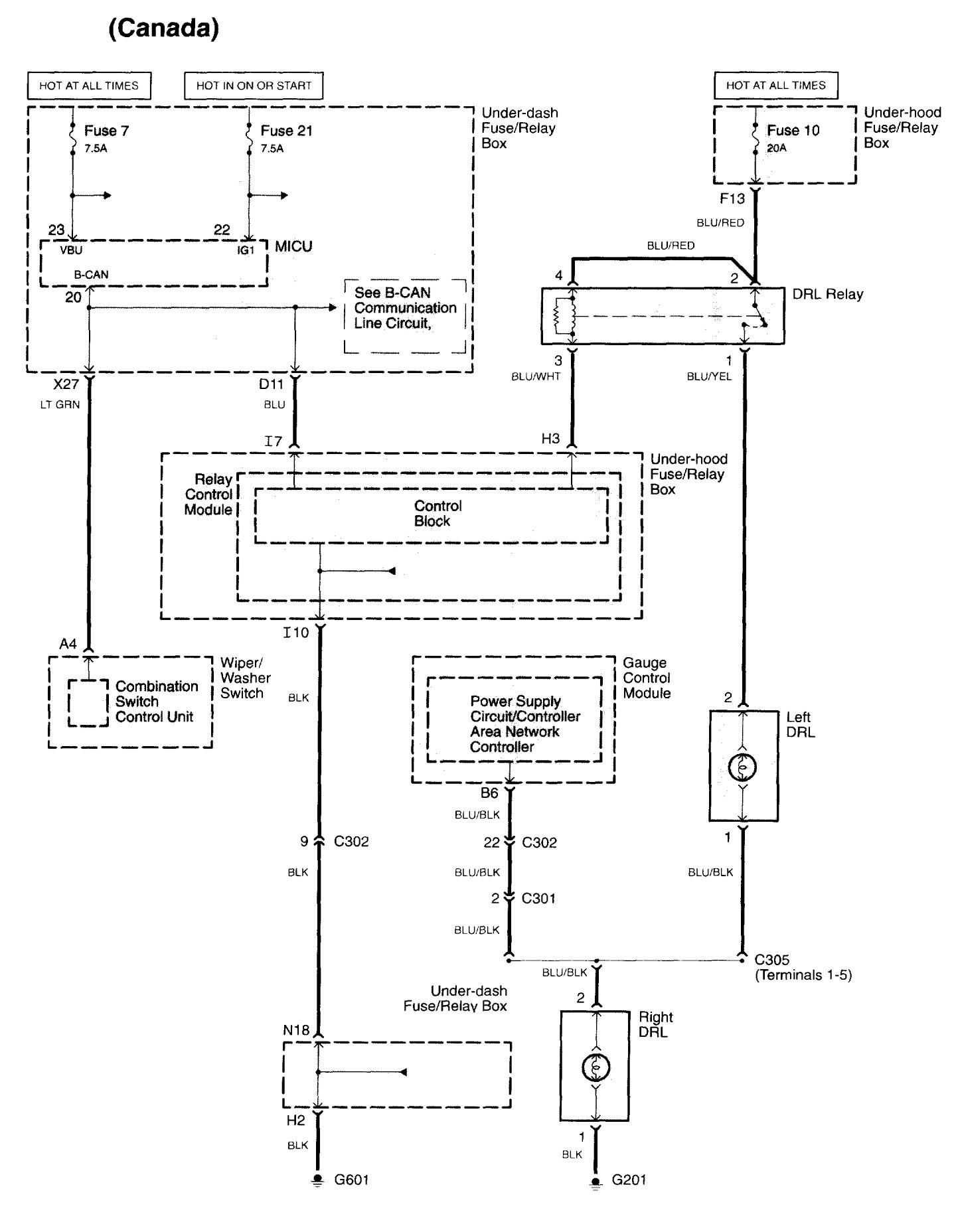

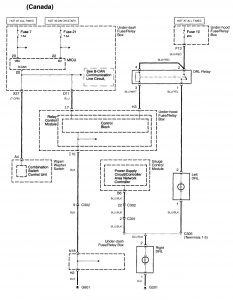

Acura TL - wiring diagram - headlamps
Acura TL – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
