Acura TL (2003 – 2008) – wiring diagrams – illuminated entry

Acura TL (2003 – 2008) – wiring diagrams – illuminated entry

Year of productions:  2003, 2004, 2005, 2006, 2007, 2008

Illuminated entry

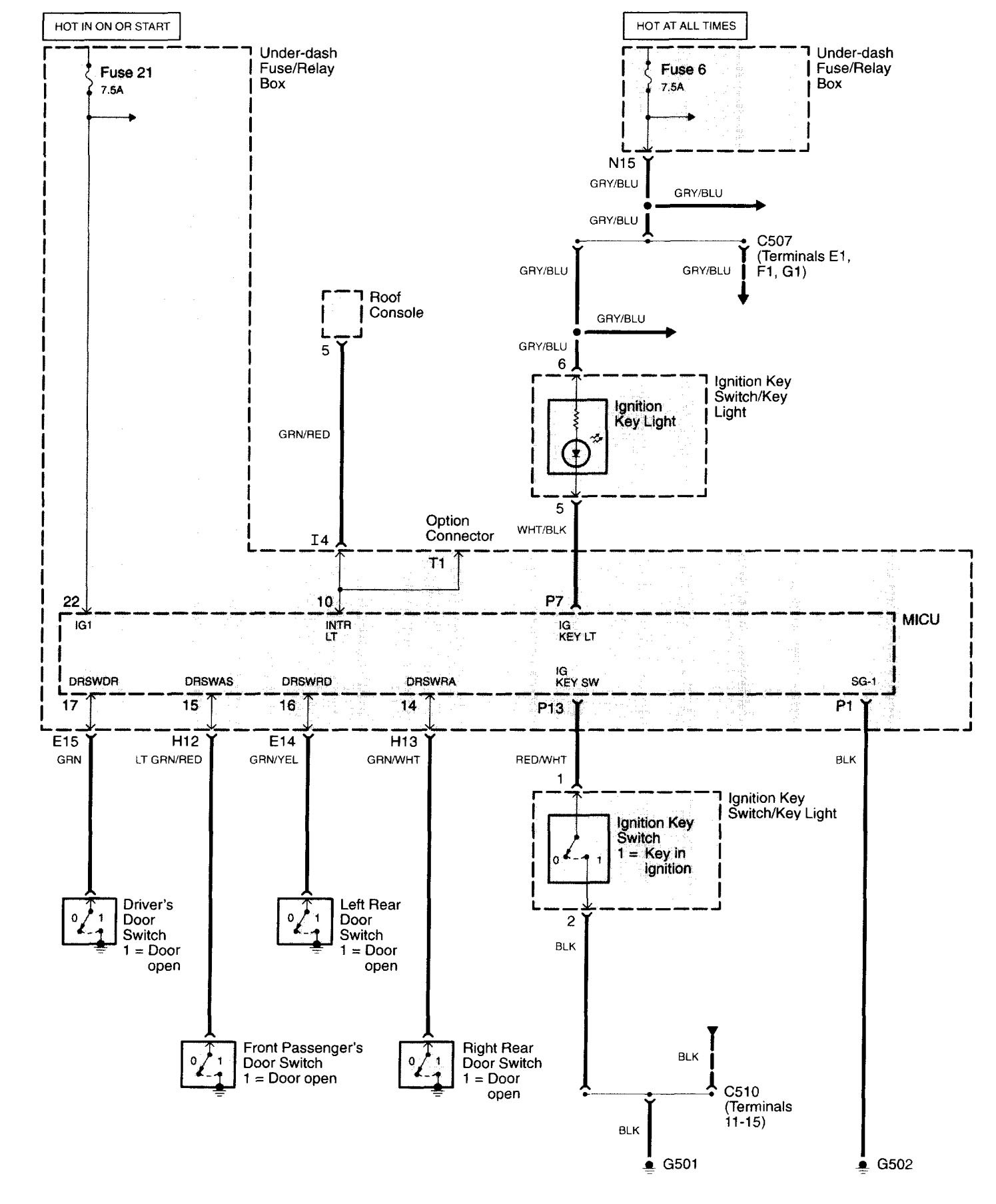

Acura TL - wiring diagram - illuminated entry (part 1)
Acura TL – wiring diagram – illuminated entry (part 1)

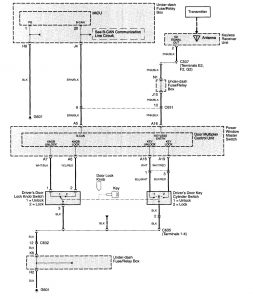

Acura TL - wiring diagram - illuminated entry (part 2)
Acura TL – wiring diagram – illuminated entry (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
