Year of productions:  2003, 2004, 2005

Instrumentation

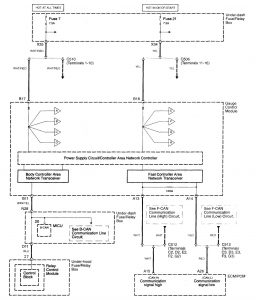

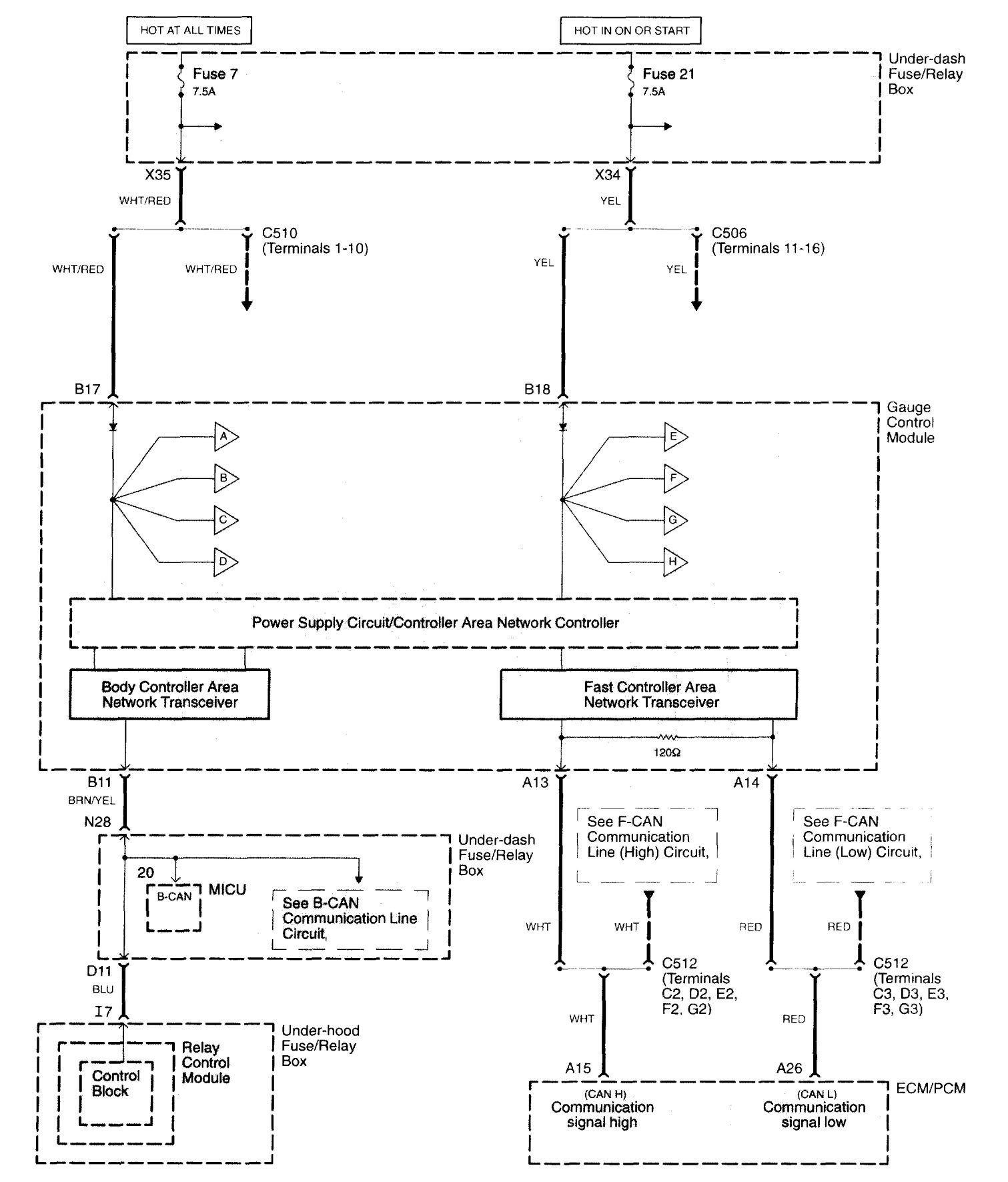

Acura TL – wiring diagram – instrumentation (part 1)

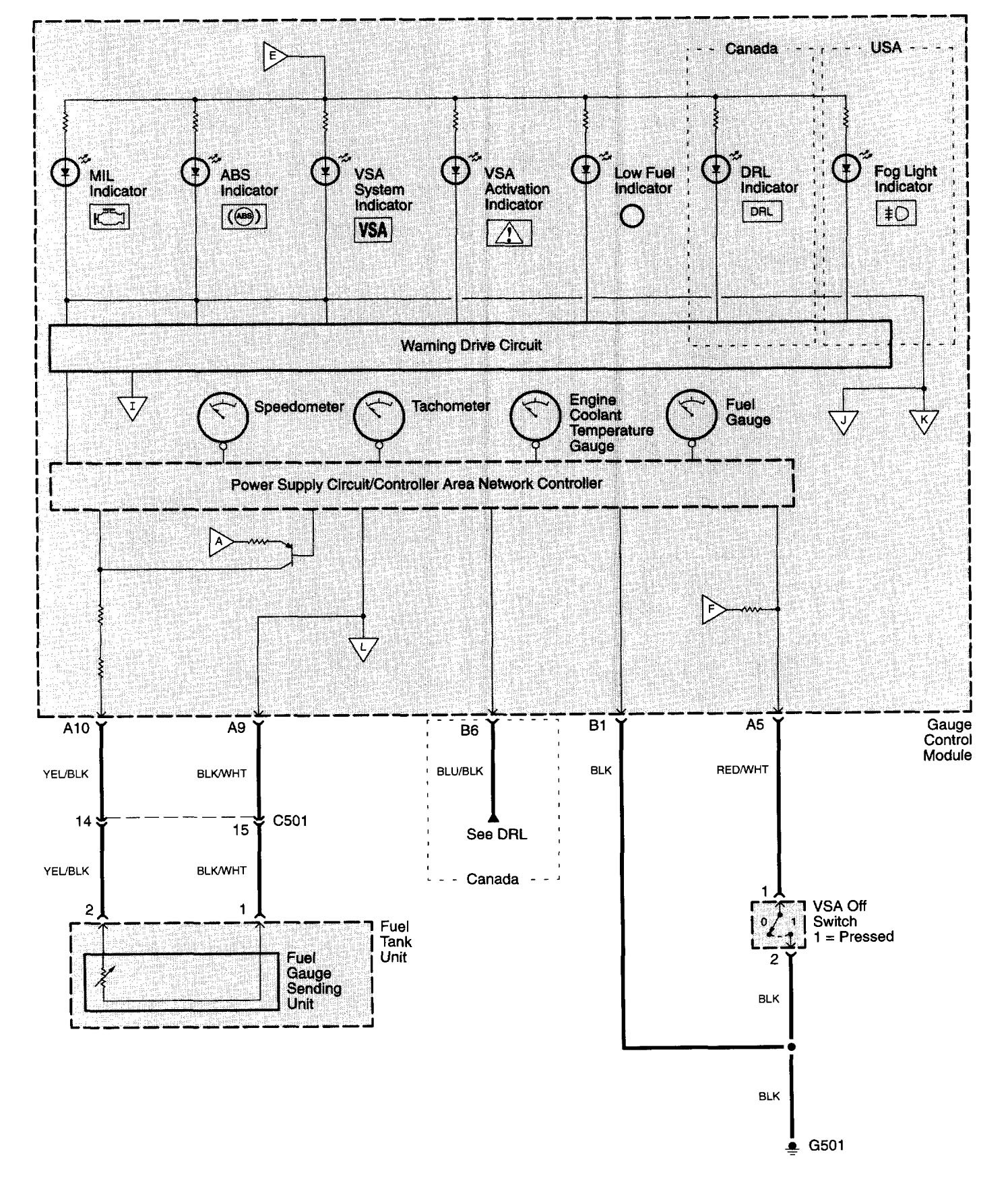

Acura TL – wiring diagram – instrumentation (part 2)

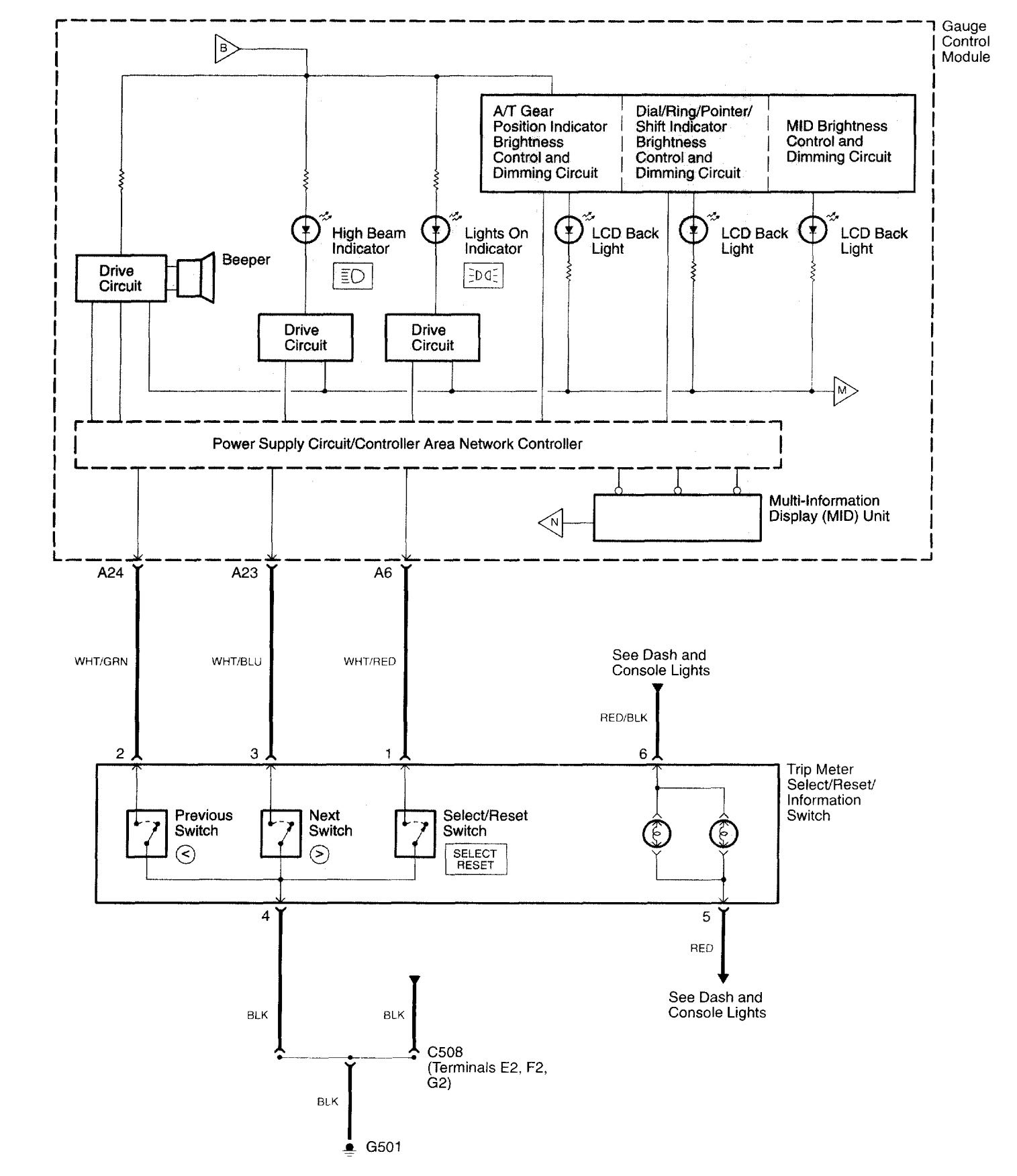

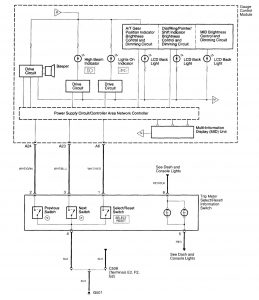

Acura TL – wiring diagram – instrumentation (part 3)

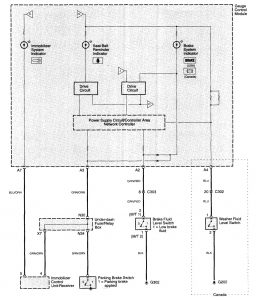

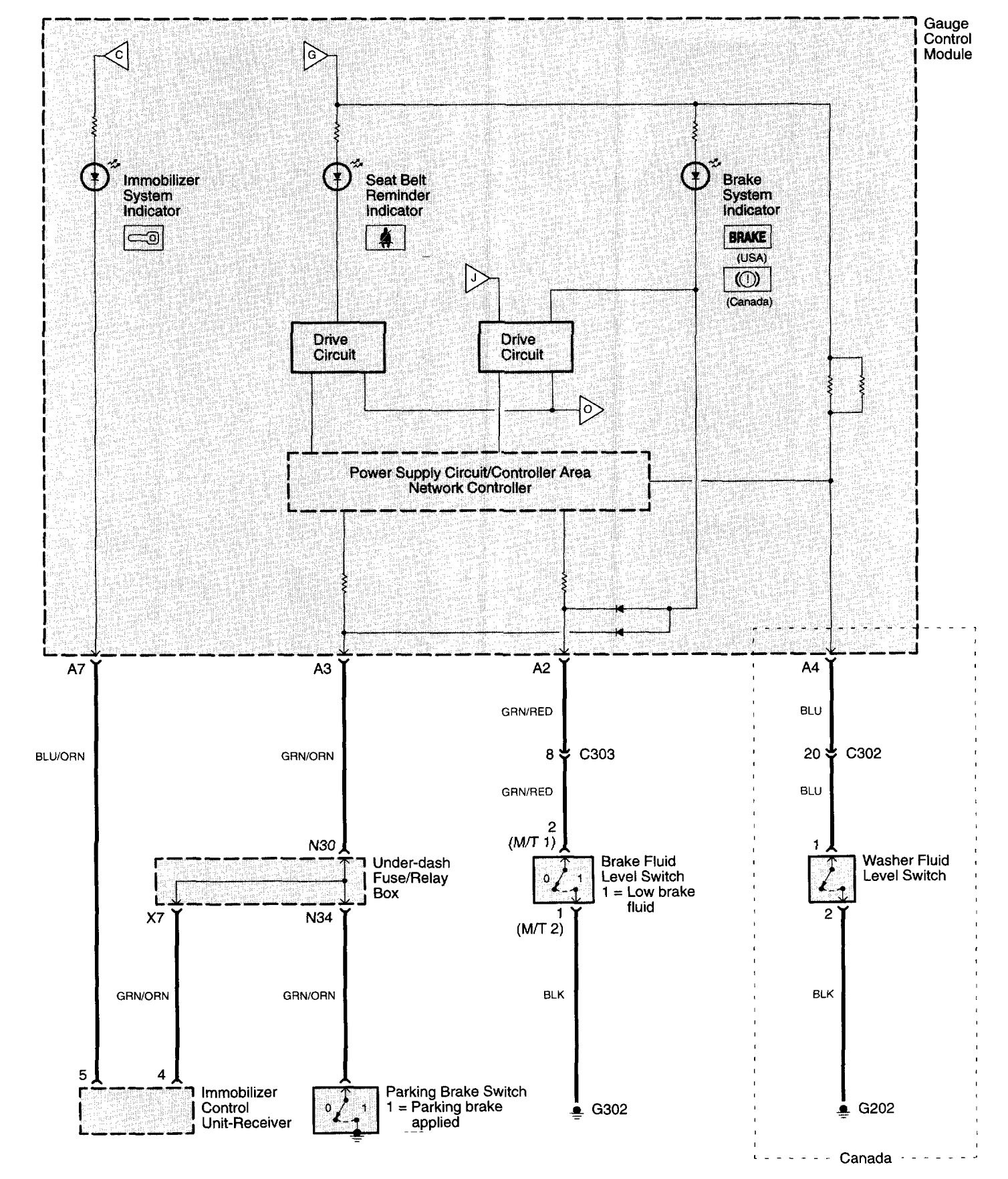

Acura TL – wiring diagram – instrumentation (part 4)

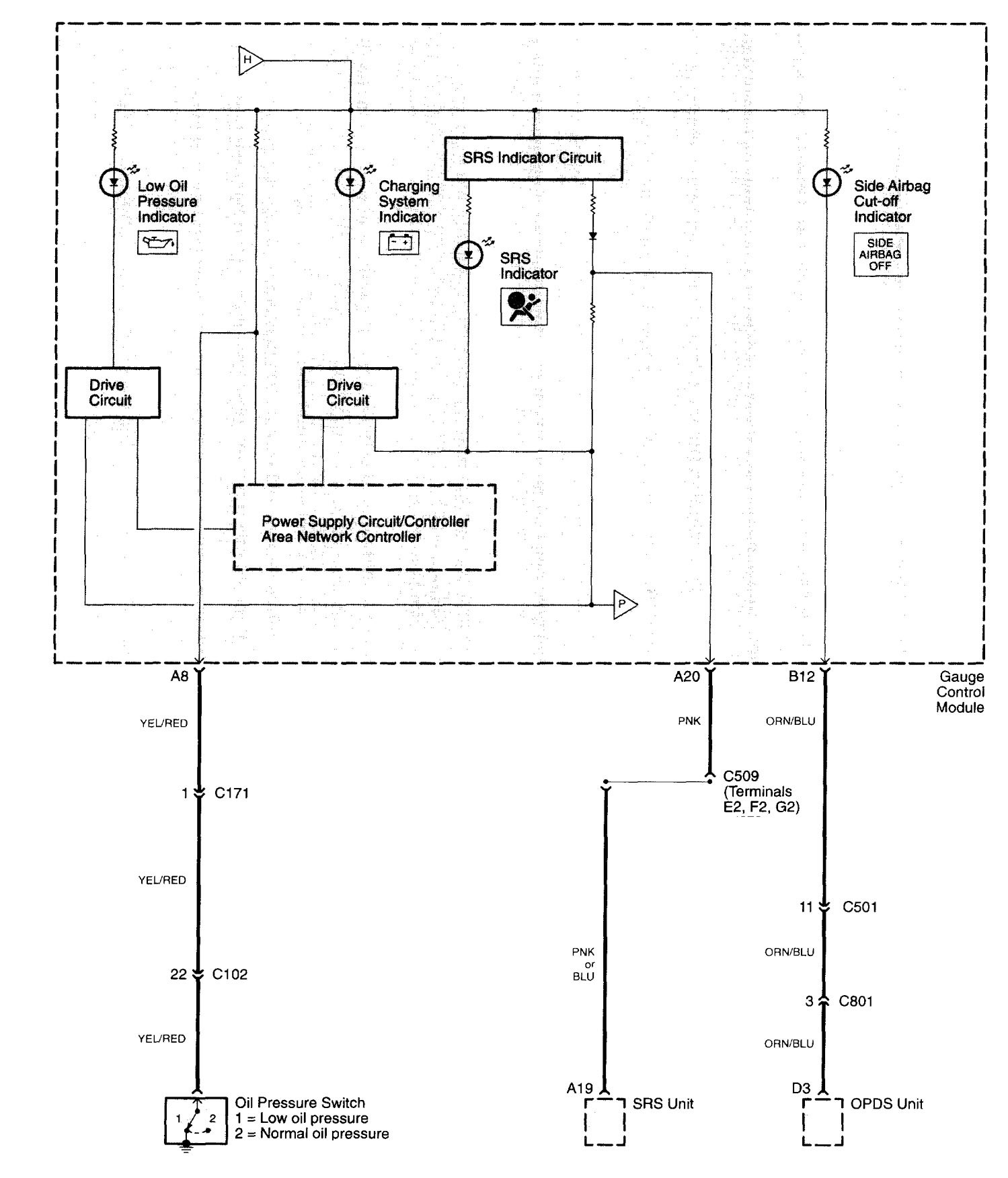

Acura TL – wiring diagram – instrumentation (part 5)

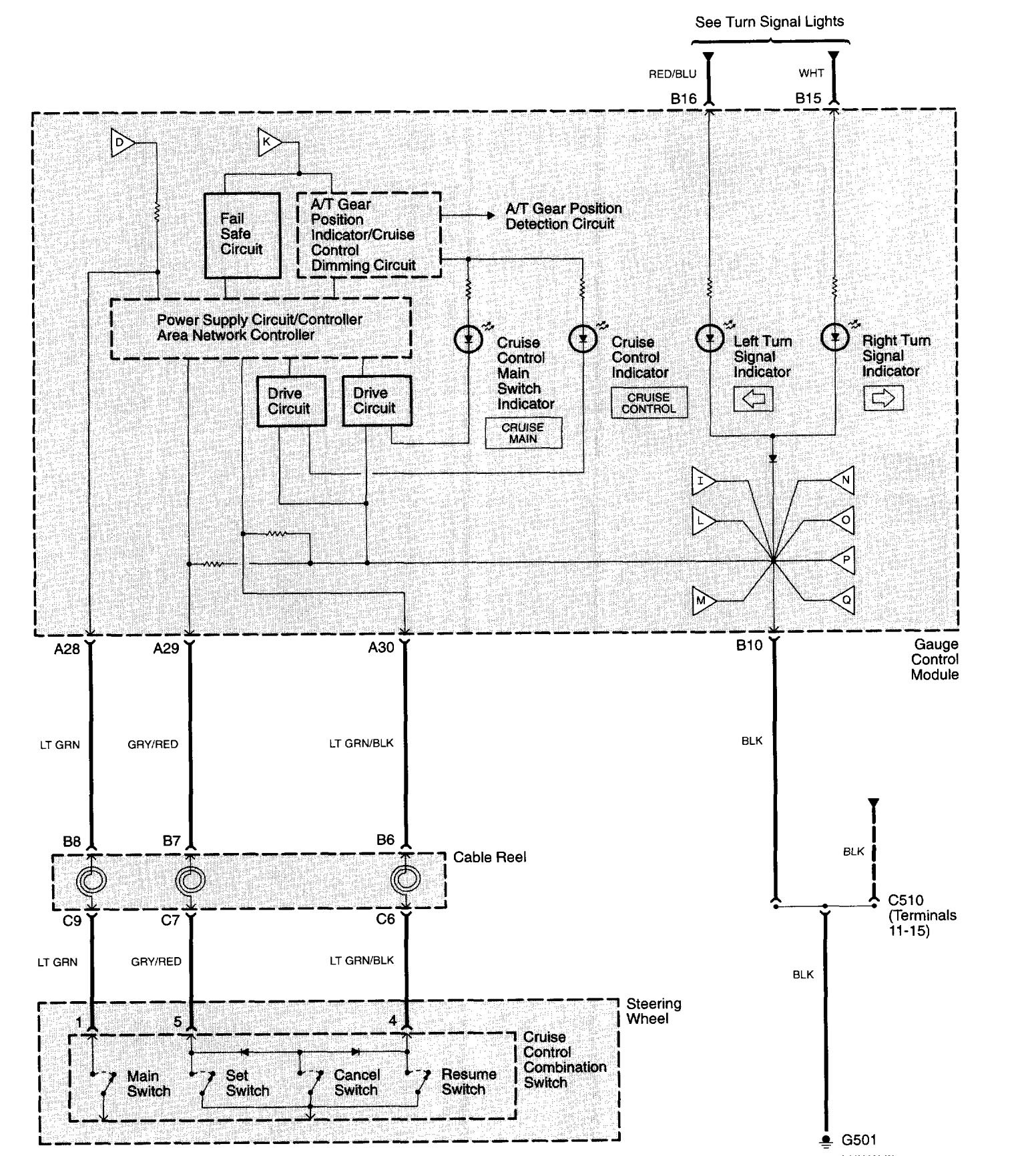

Acura TL – wiring diagram – instrumentation (part 6)

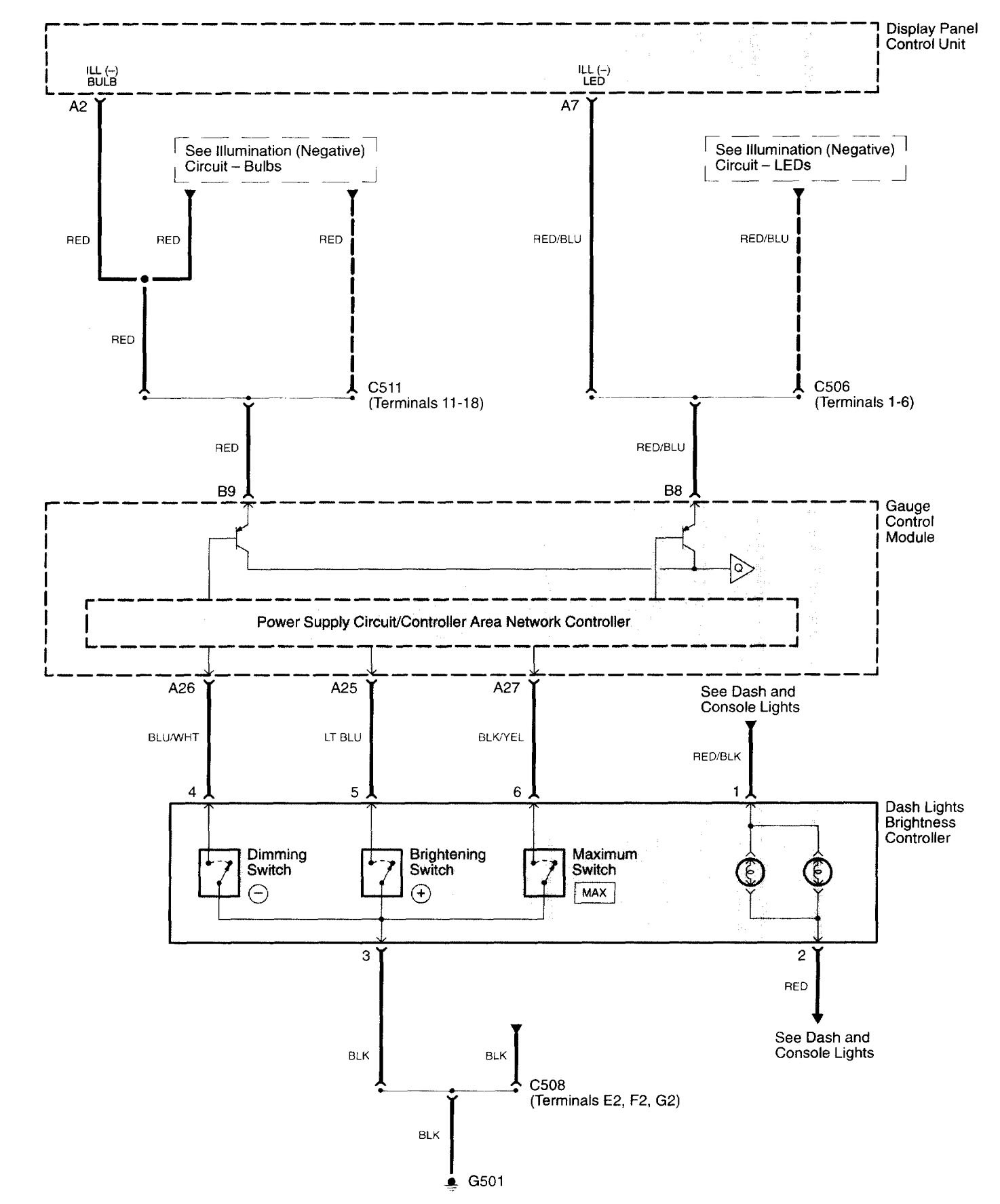

Acura TL – wiring diagram – instrumentation (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
