Acura TL (2003 – 2005) – wiring diagrams – power windows

Acura TL (2003 – 2005) – wiring diagrams – power windows

Year of productions:  2003, 2004, 2005

Power windows

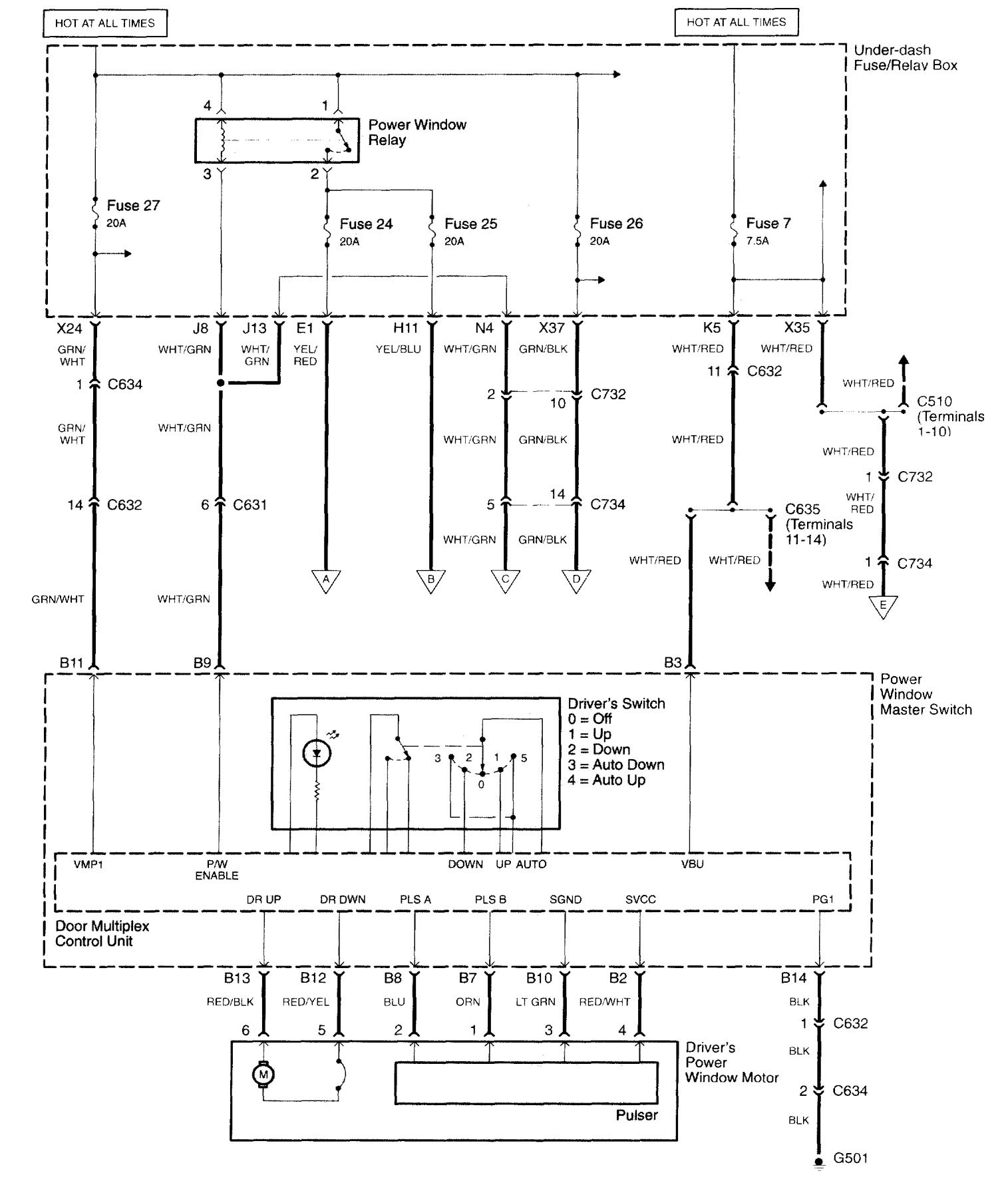

Acura TL – wiring diagram – power windows (part 1)

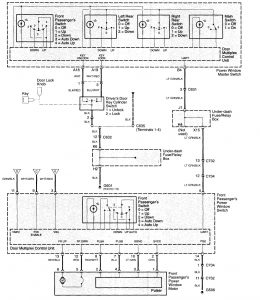

Acura TL – wiring diagram – power windows (part 2)

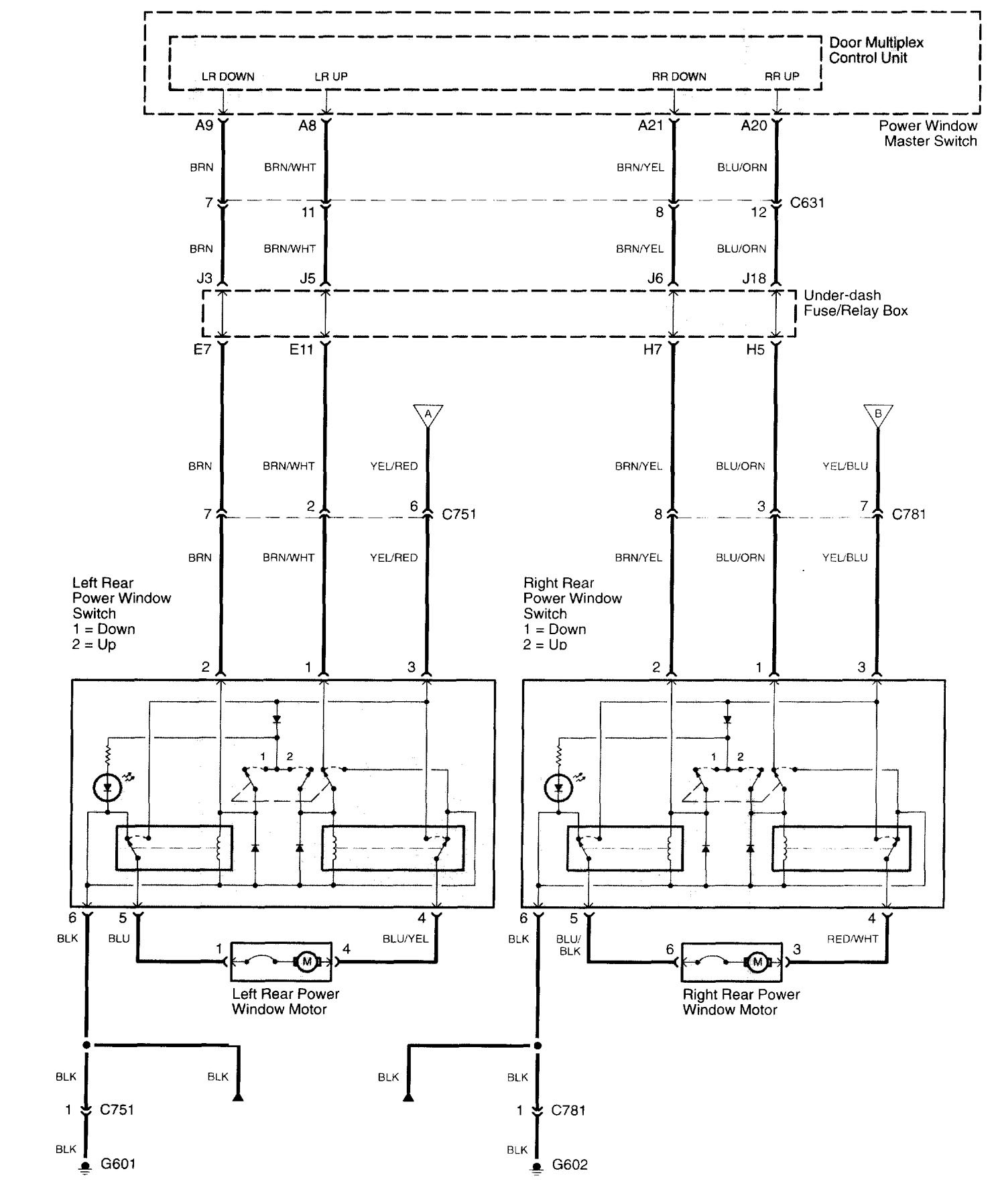

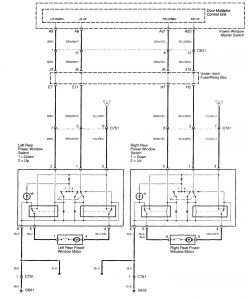

Acura TL – wiring diagram – power windows (part 3)

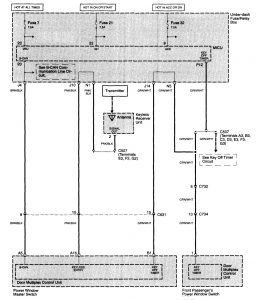

Acura TL – wiring diagram – power windows (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
