Acura TL (2003 – 2005) – wiring diagrams – wiper/washer

Acura TL (2003 – 2005) – wiring diagrams – wiper/washer

Year of productions:  2003, 2004, 2005

Wiper/washer

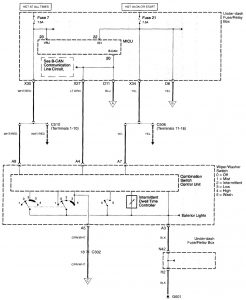

Acura TL – wiring diagram – wiper/washer (part 1)

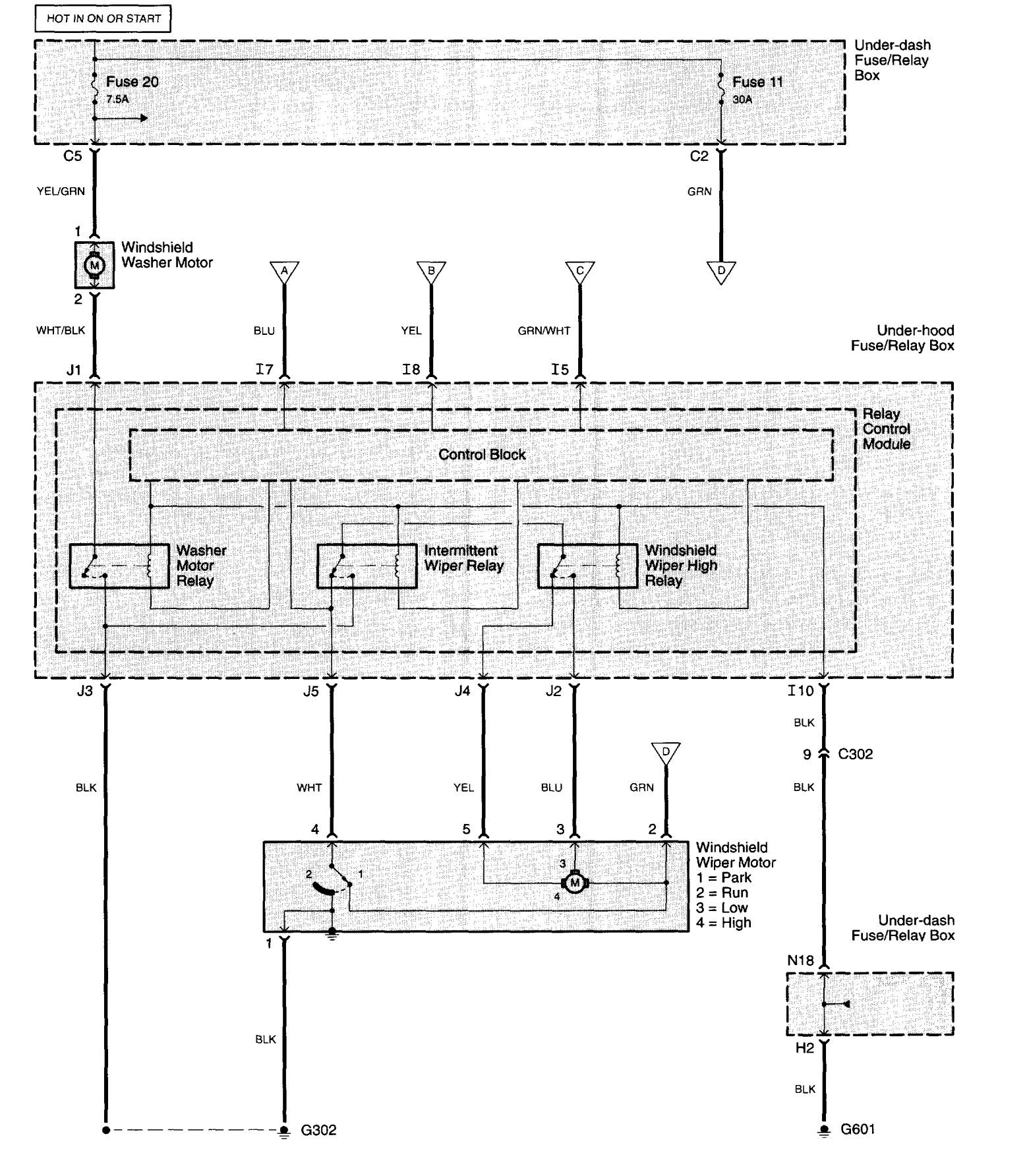

Acura TL – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
