Acura TL (2005 – 2006) – wiring diagrams – power locks

Acura TL (2005 – 2006) – wiring diagrams – power locks

Year of productions:  2005, 2006

Power locks

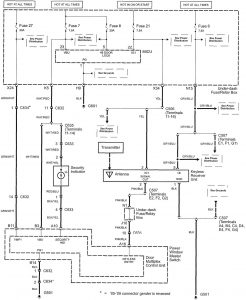

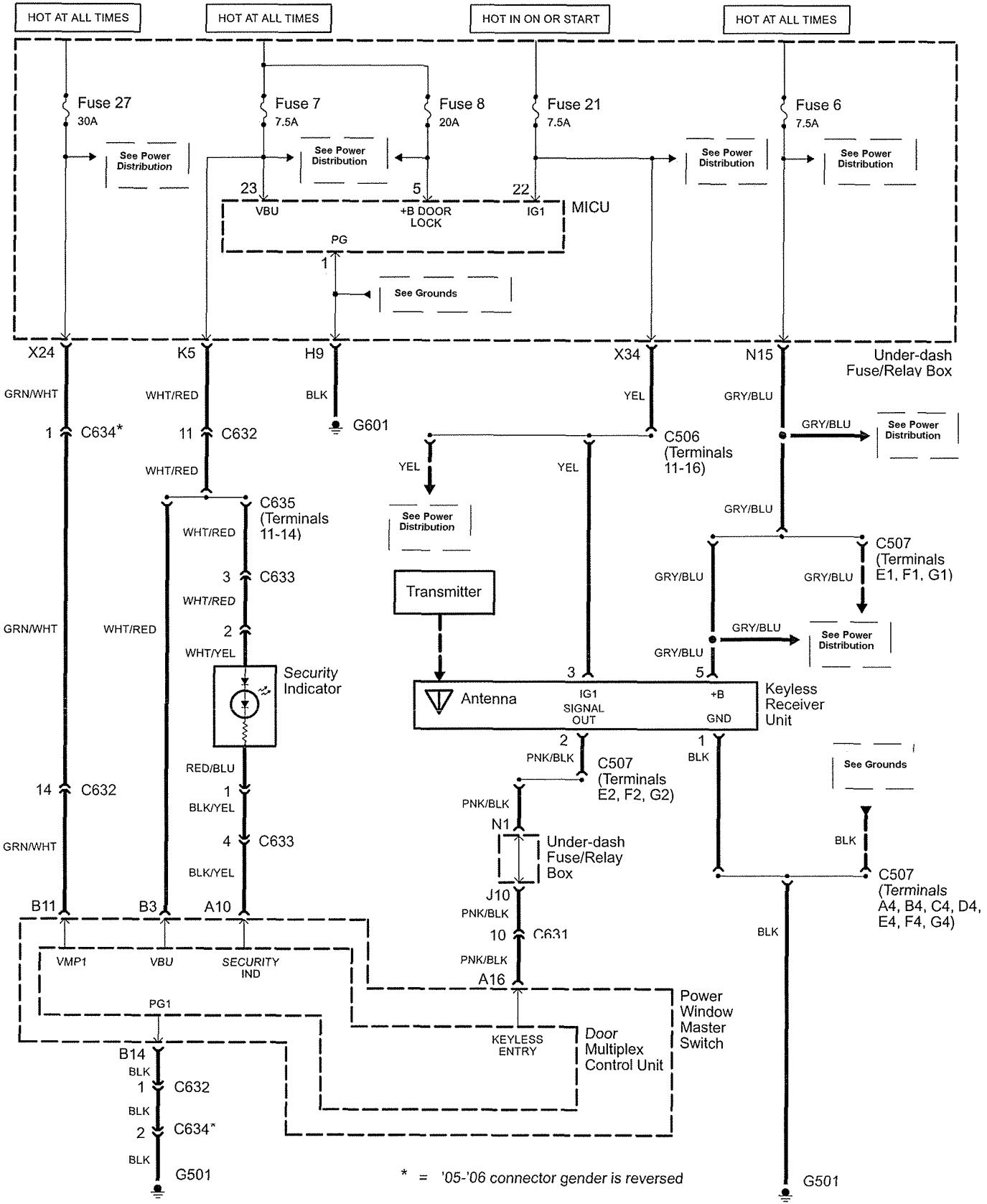

Acura TL - wiring diagram - power locks (part 1)
Acura TL – wiring diagram – power locks (part 1)

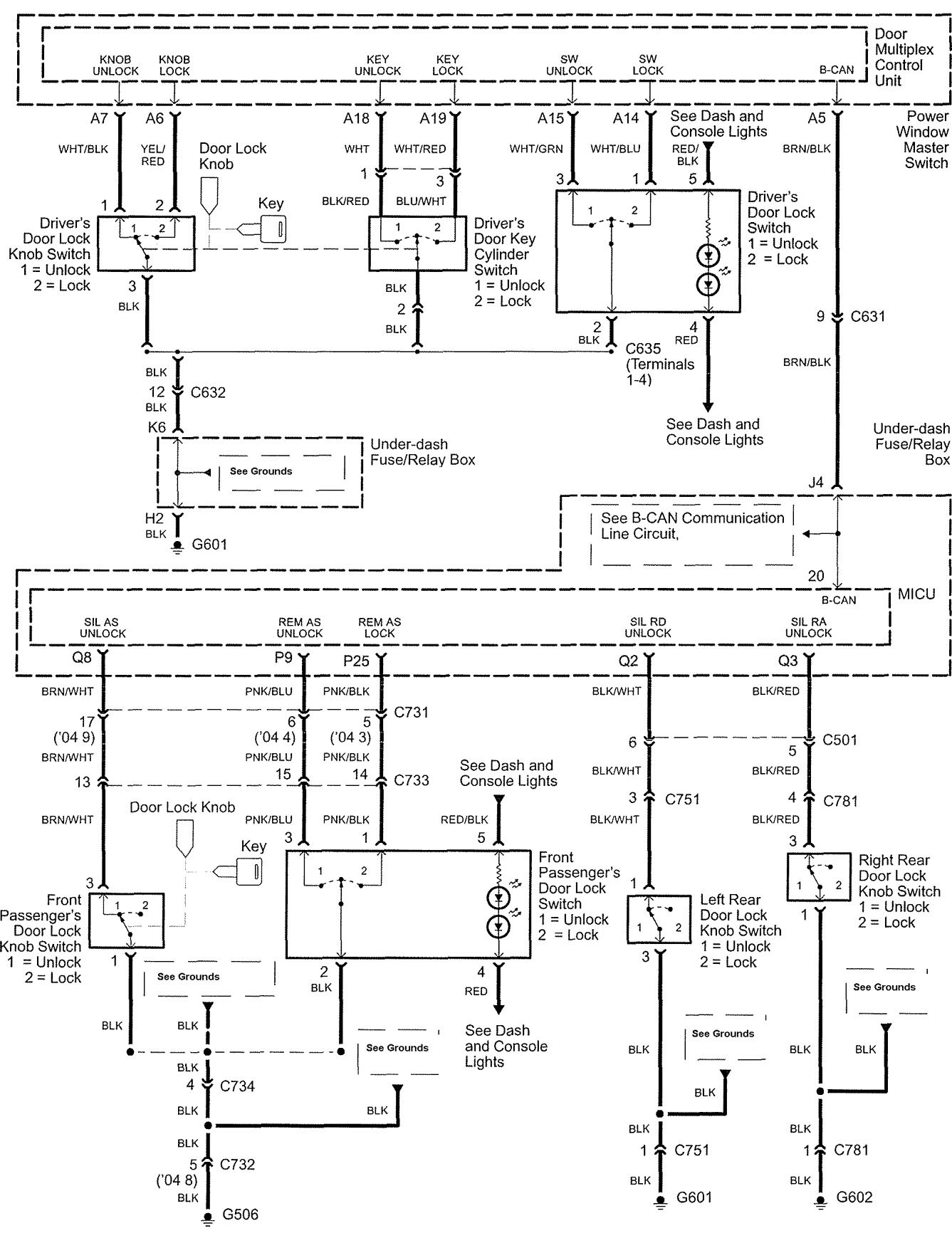

Acura TL - wiring diagram - power locks (part 2)
Acura TL – wiring diagram – power locks (part 2)

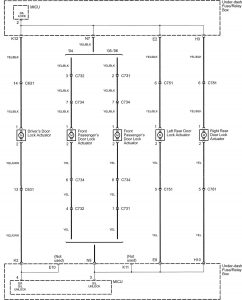

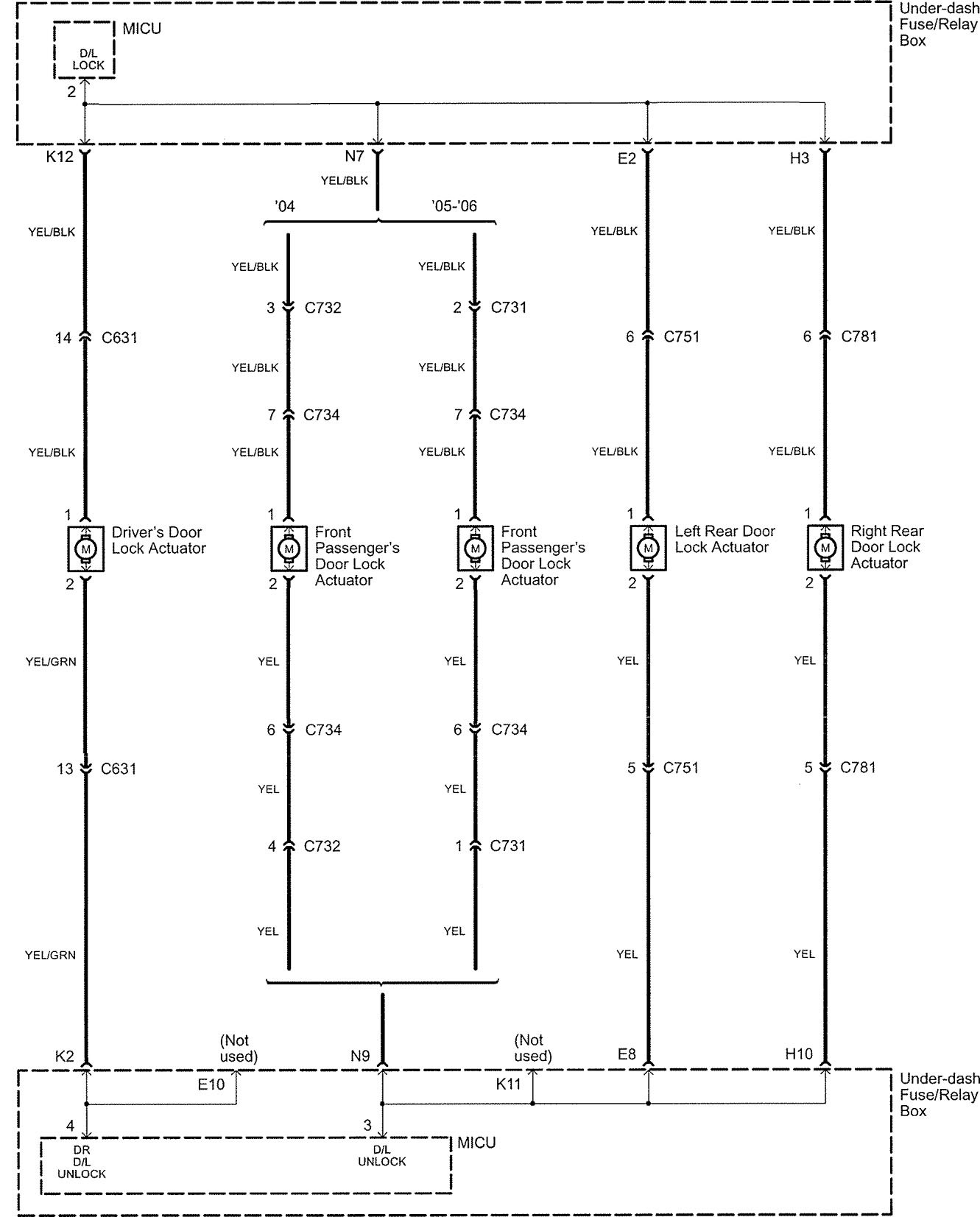

Acura TL - wiring diagram - power locks (part 3)
Acura TL – wiring diagram – power locks (part 3)

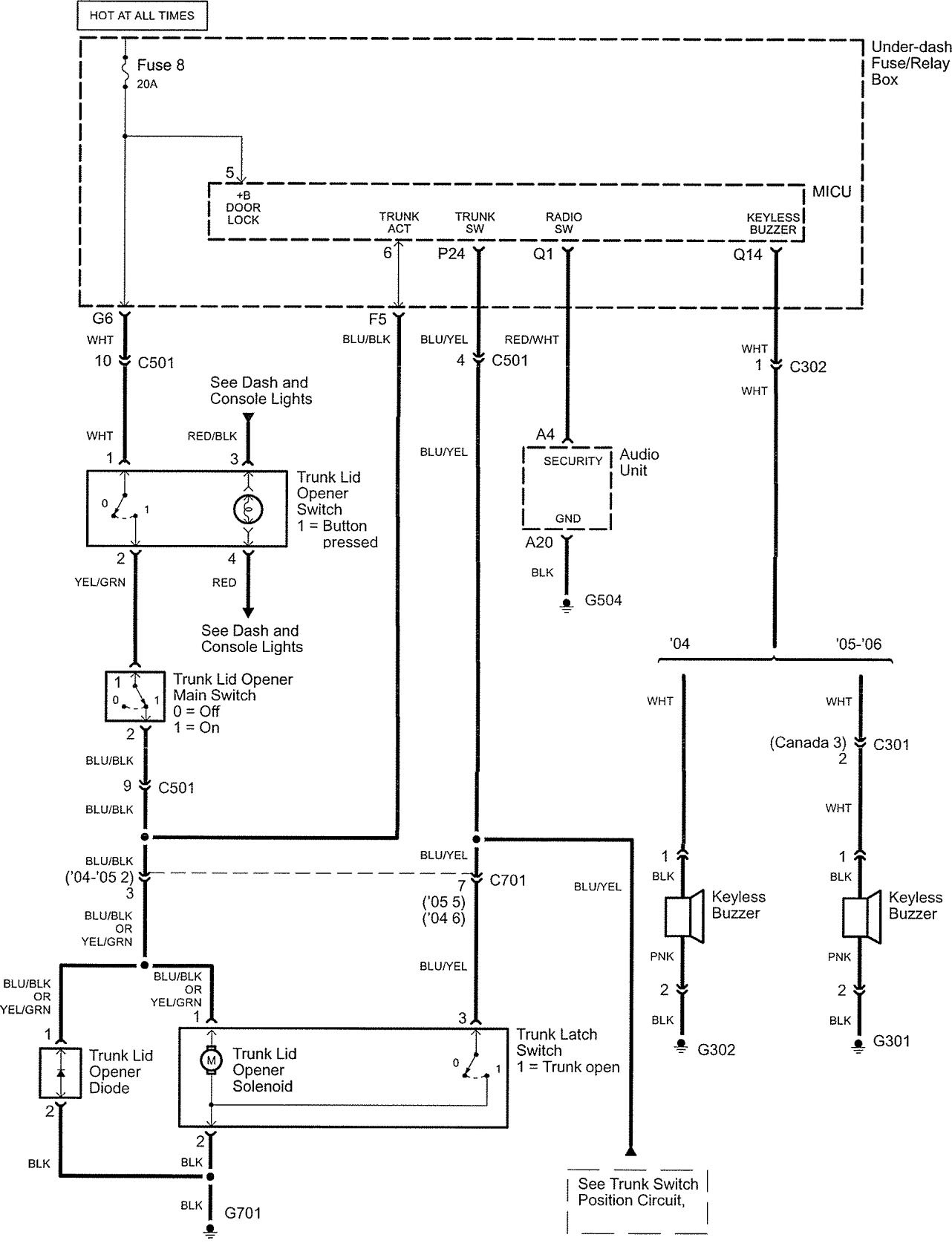

Acura TL - wiring diagram - power locks (part 4)
Acura TL – wiring diagram – power locks (part 4)

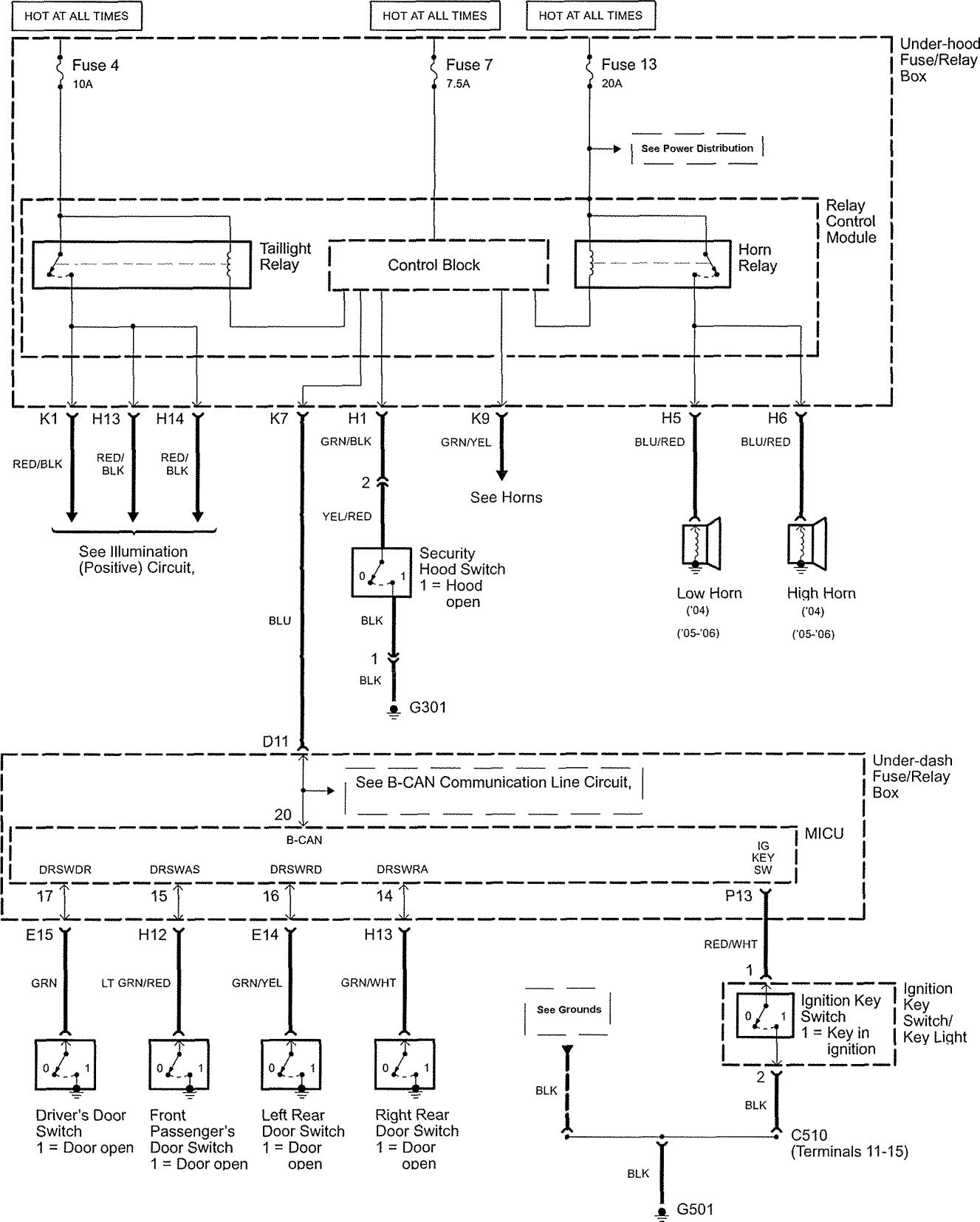

Acura TL - wiring diagram - power locks (part 5)
Acura TL – wiring diagram – power locks (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
