Acura TL (2006) – wiring diagrams – clock

Acura TL (2006) – wiring diagrams – clock

Year of productions:  2006

Clock

Acura TL – wiring diagram – clock (part 1)

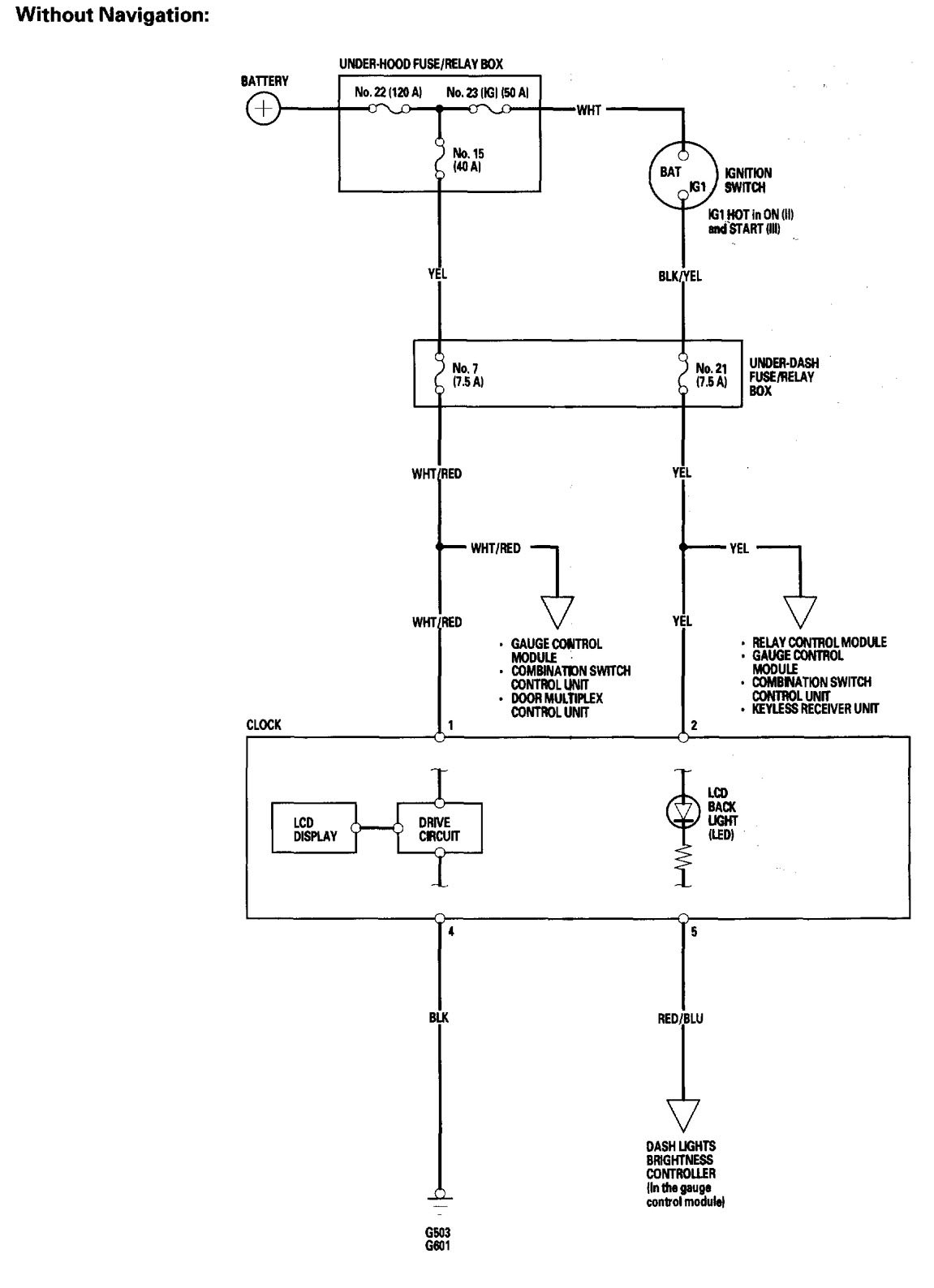

Acura TL – wiring diagram – clock (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
