Acura TL (2006) – wiring diagrams – HVAC controls

16 June 2017 admin Acura, TL 0

Acura TL (2006) – wiring diagrams – HVAC controls

Year of productions:  2006

HVAC controls

Version 1

Acura TL – wiring diagram – HVAC controls (part 1)
Acura TL – wiring diagram – HVAC controls (part 2)
Acura TL – wiring diagram – HVAC controls (part 3)
Acura TL – wiring diagram – HVAC controls (part 4)
Acura TL – wiring diagram – HVAC controls (part 5)
Acura TL – wiring diagram – HVAC controls (part 6)
Acura TL – wiring diagram – HVAC controls (part 7)
Acura TL – wiring diagram – HVAC controls (part 8)
Acura TL – wiring diagram – HVAC controls (part 9)
Acura TL – wiring diagram – HVAC controls (part 10)
Acura TL – wiring diagram – HVAC controls (part 11)
Acura TL – wiring diagram – HVAC controls (part 12)

Version 2

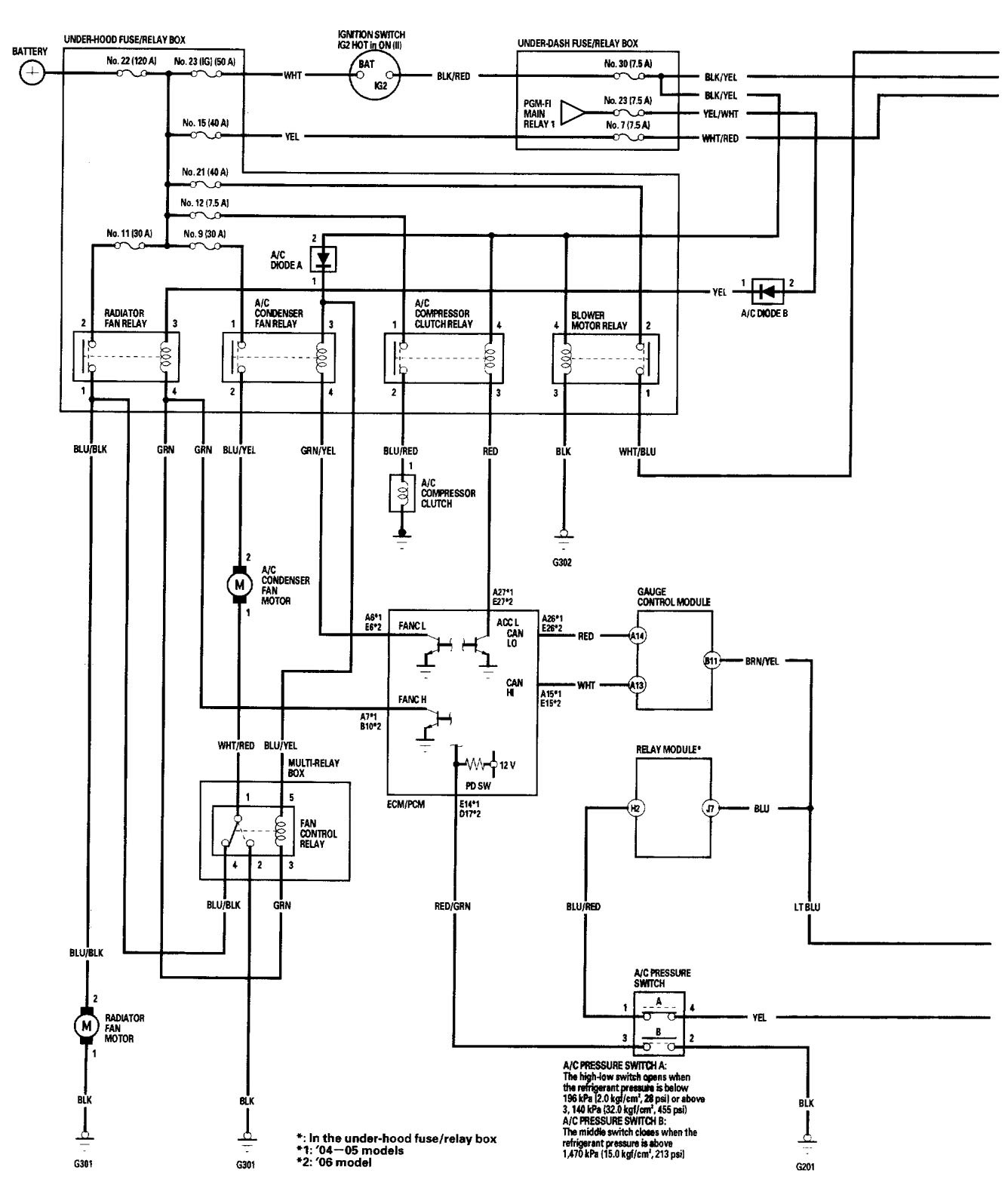

Acura TL – wiring diagram – HVAC controls (part 1)

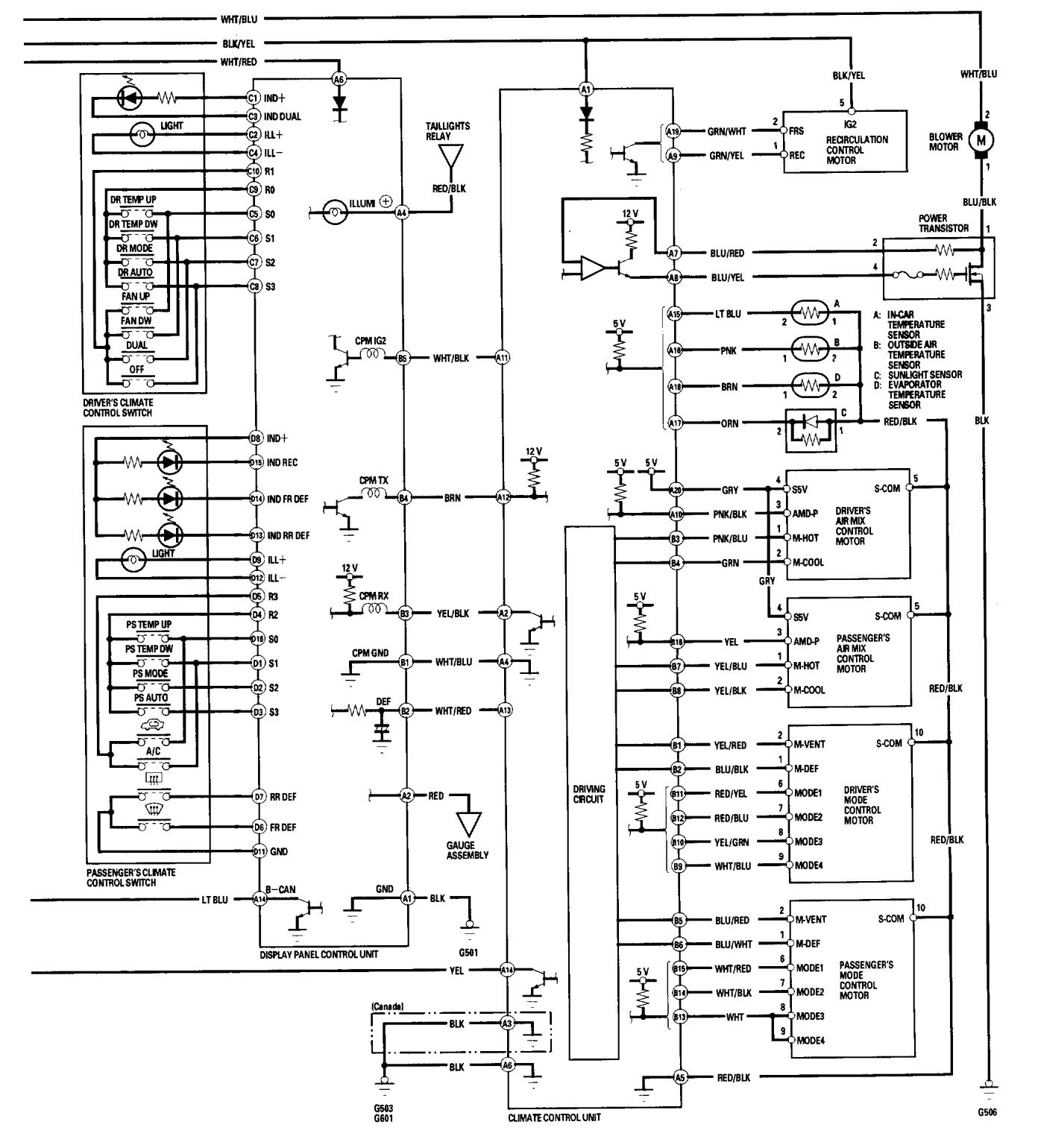

Acura TL – wiring diagram – HVAC controls (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
