Acura TL (2006) – wiring diagrams – power windows

Acura TL (2006) – wiring diagrams – power windows

Year of productions:  2006

Power windows

Version 1

Acura TL -wiring diagram - power windows (part 1)
Acura TL -wiring diagram – power windows (part 1)

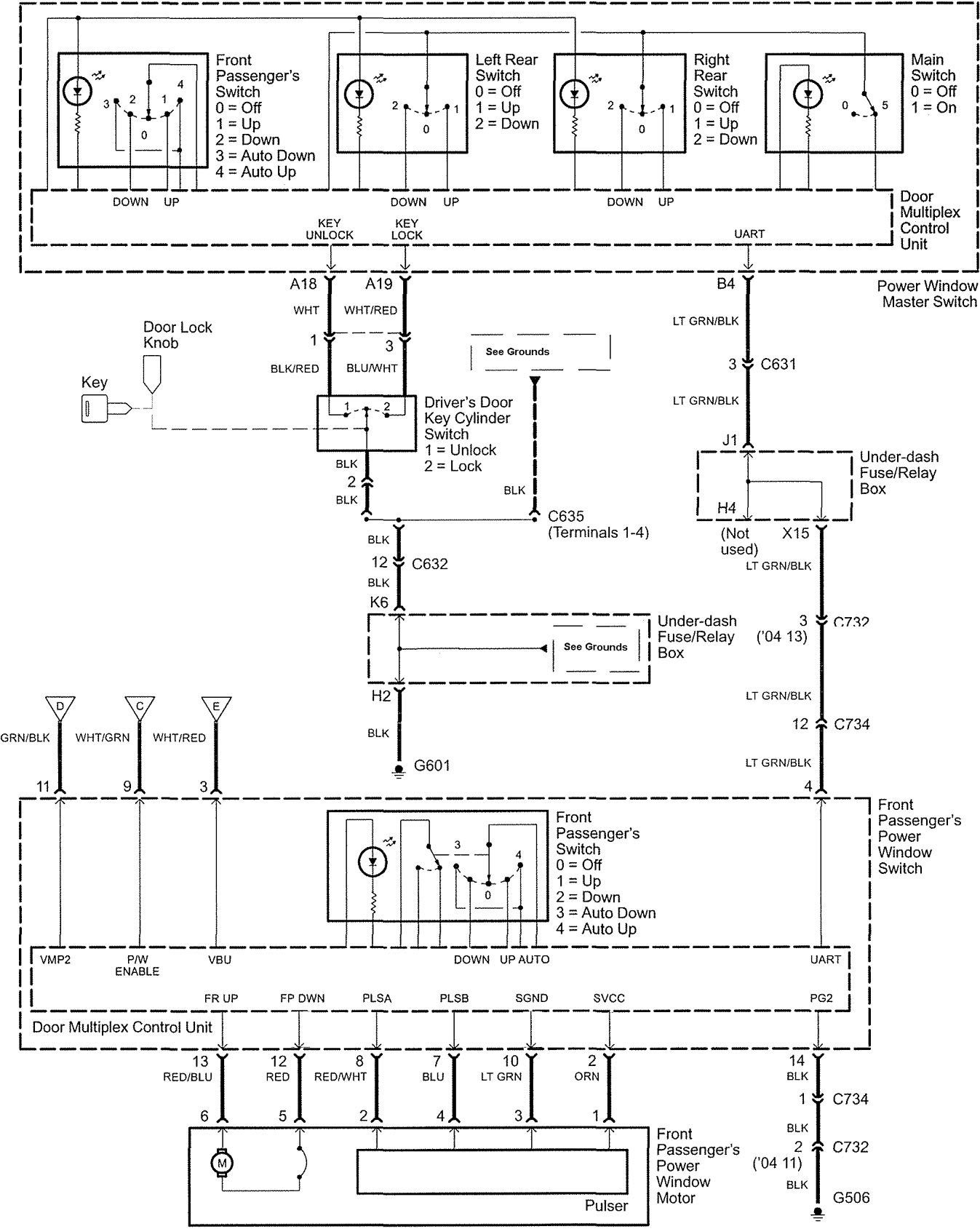

Acura TL -wiring diagram - power windows (part 2)
Acura TL -wiring diagram – power windows (part 2)

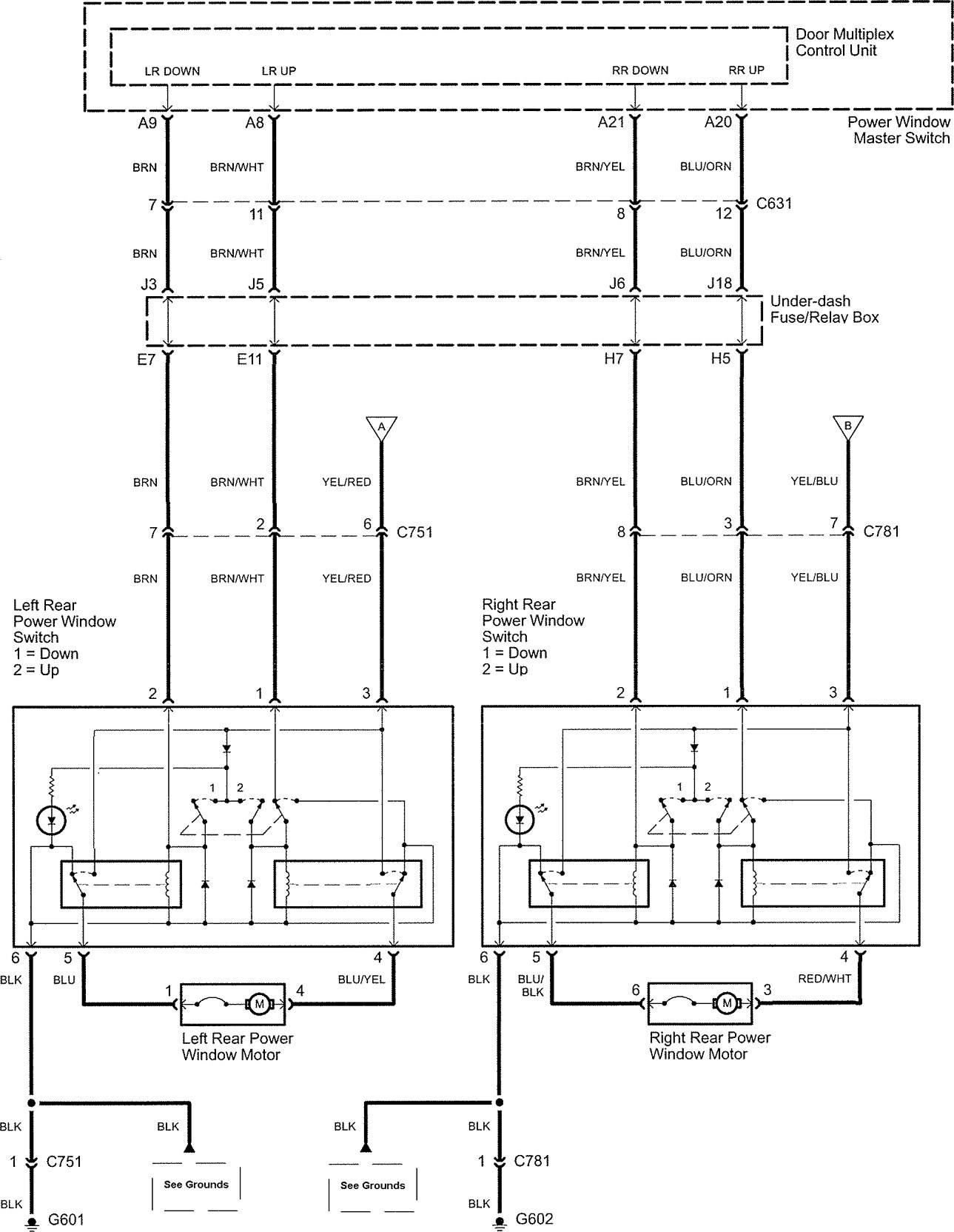

Acura TL -wiring diagram - power windows (part 3)
Acura TL -wiring diagram – power windows (part 3)

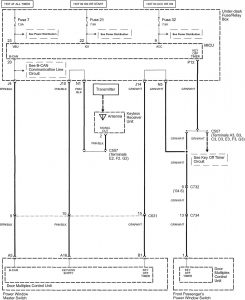

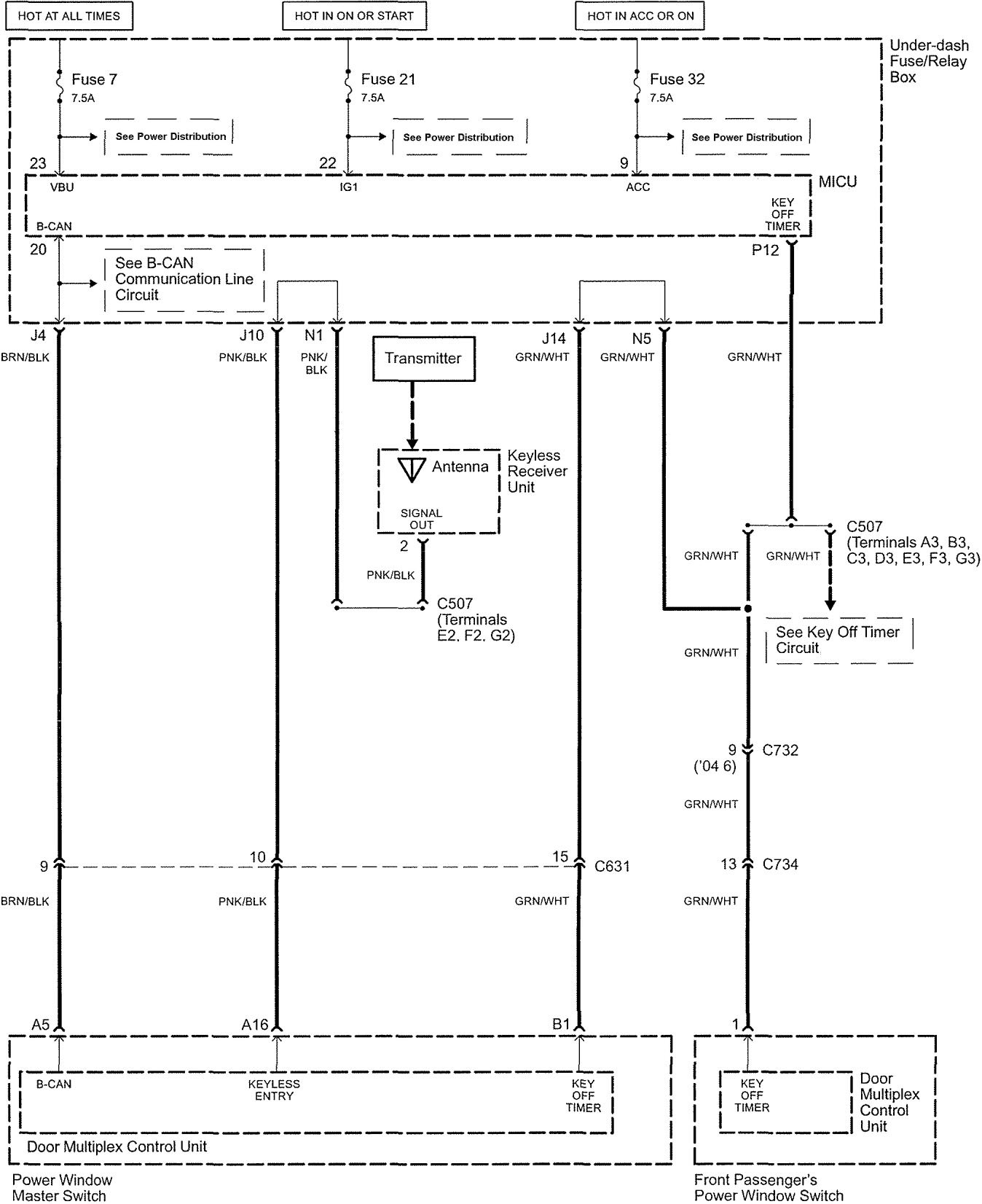

Acura TL -wiring diagram - power windows (part 4)
Acura TL -wiring diagram – power windows (part 4)

Version 2

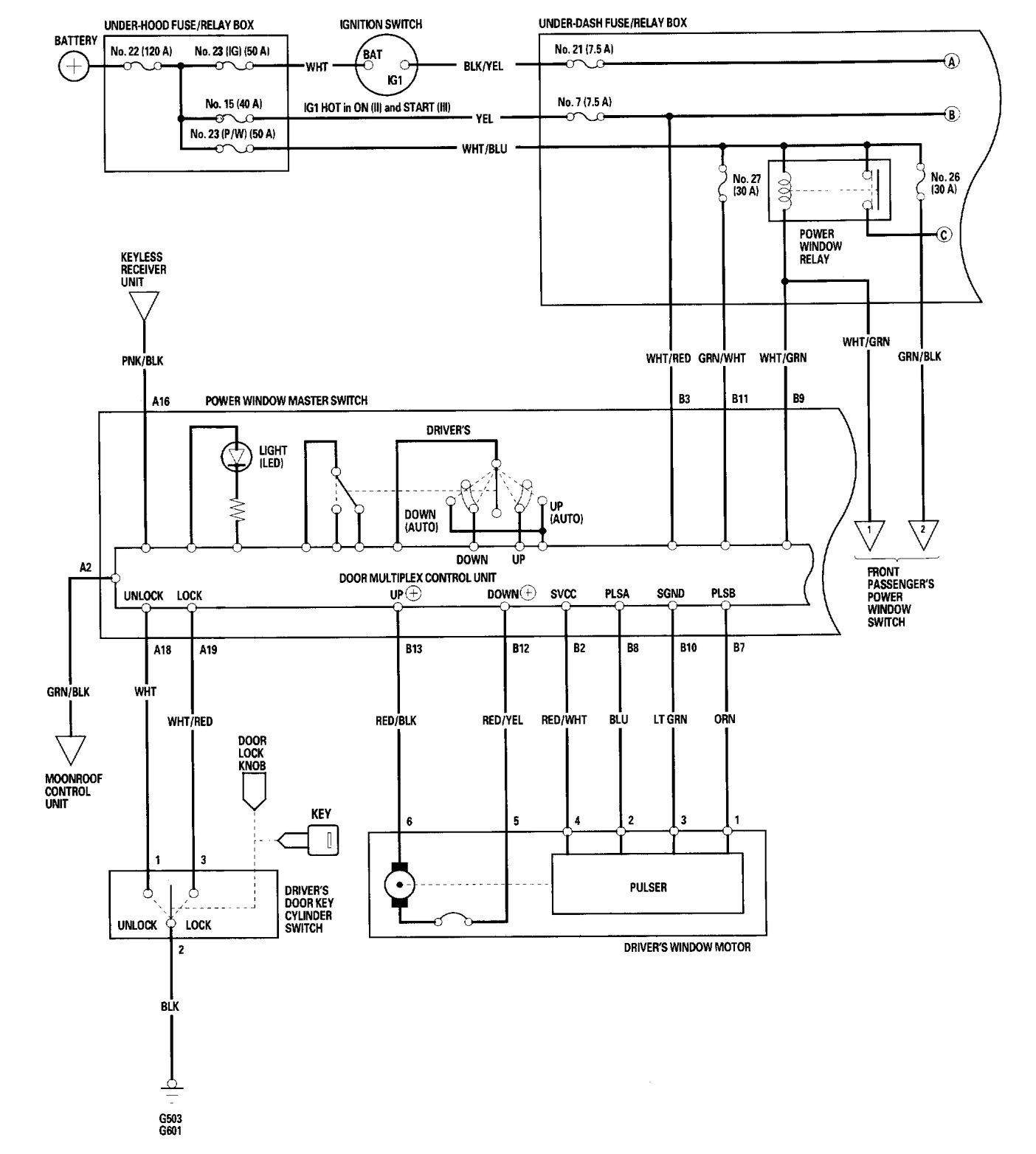

Acura TL -wiring diagram - power windows (part 1)
Acura TL -wiring diagram – power windows (part 1)

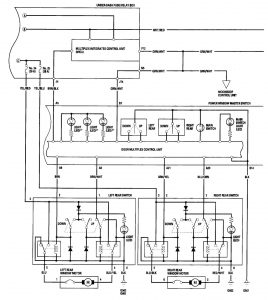

Acura TL -wiring diagram - power windows (part 2)
Acura TL -wiring diagram – power windows (part 2)

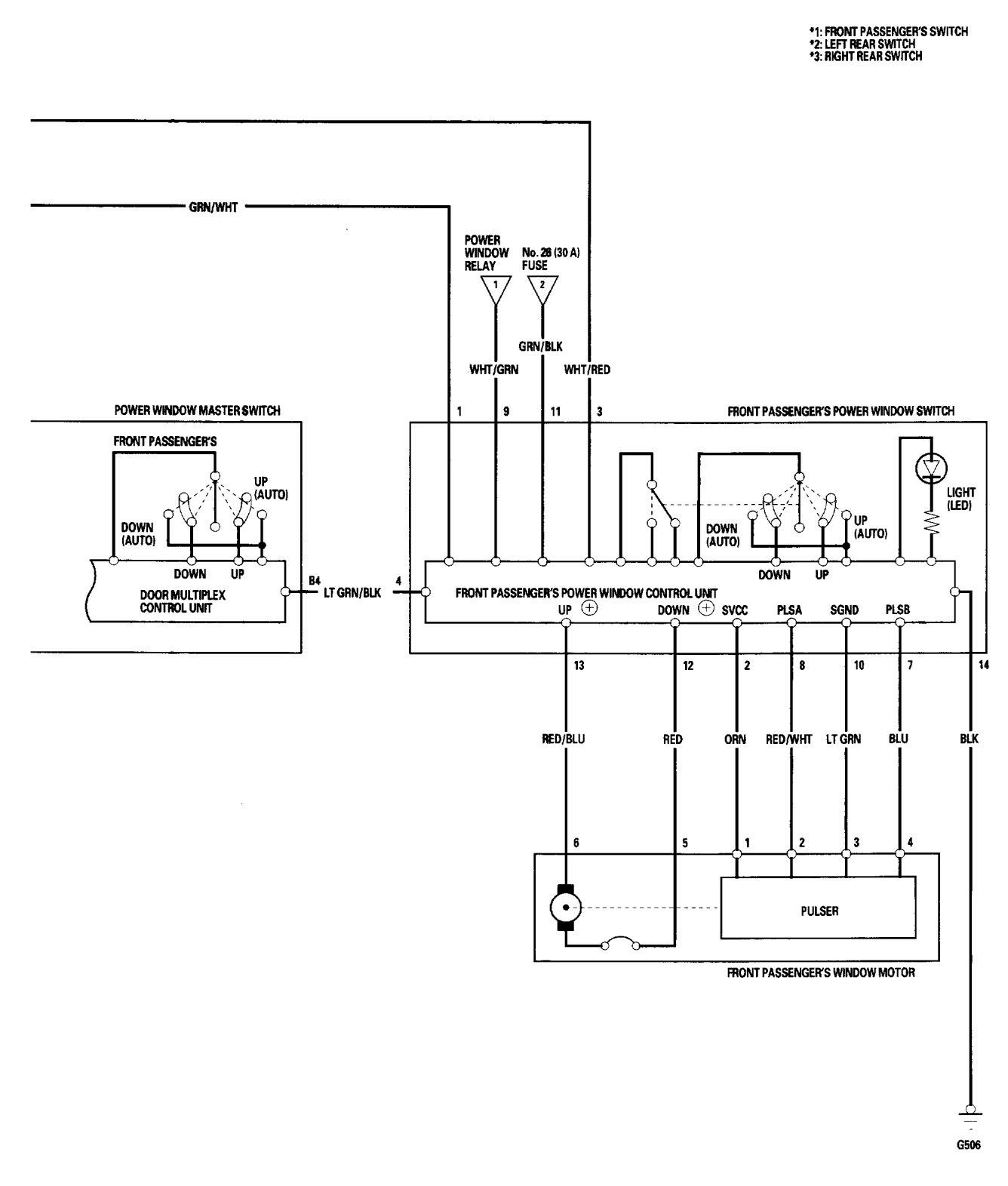

Acura TL -wiring diagram - power windows (part 3)
Acura TL -wiring diagram – power windows (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
