Year of productions:  2006

Wiper/washer

Version 1

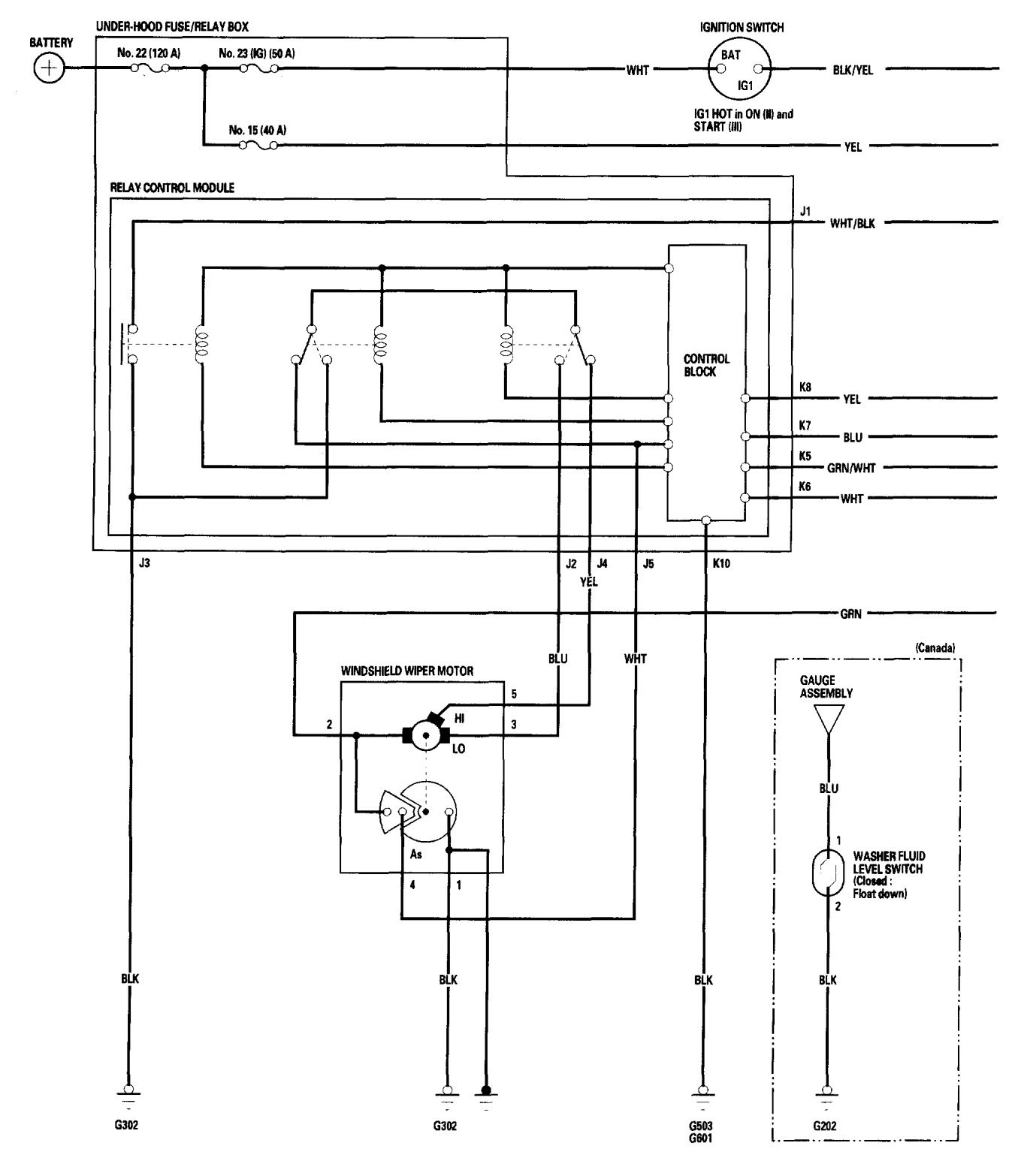

Acura TL - wiring diagram - wiper/washer (part 1)
Acura TL – wiring diagram – wiper/washer (part 1)

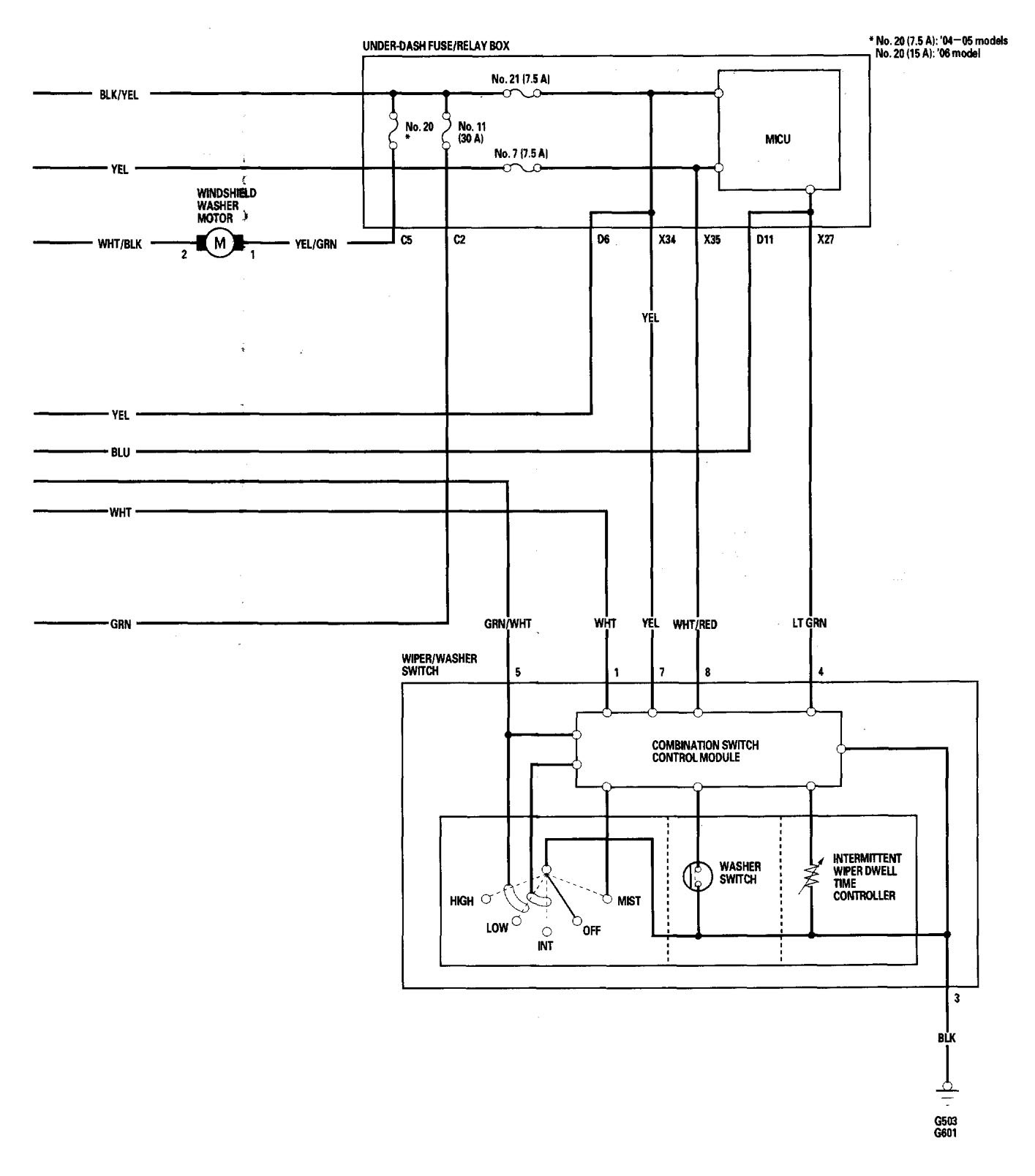

Acura TL - wiring diagram - wiper/washer (part 2)
Acura TL – wiring diagram – wiper/washer (part 2)

Version 2

Acura TL - wiring diagram - wiper/washer (part 1)
Acura TL – wiring diagram – wiper/washer (part 1)
Acura TL - wiring diagram - wiper/washer (part 2)
Acura TL – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
