Acura TL (2007) – wiring diagrams – fuse panel

Acura TL (2007) – wiring diagrams – fuse panel

Year of productions:  2007

Fuse panel

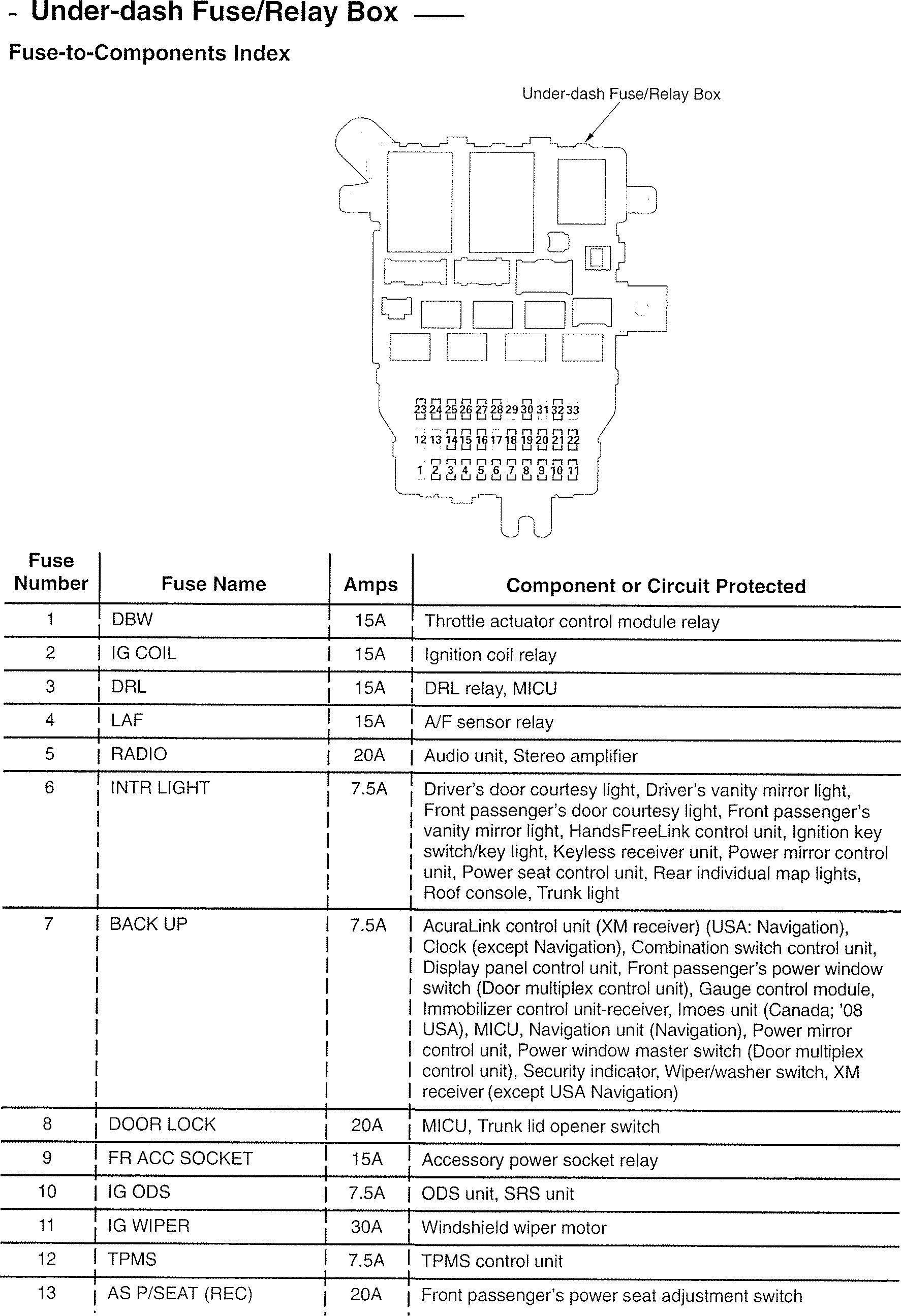

Acura TL - wiring diagram - fuse panel (part 1)
Acura TL – wiring diagram – fuse panel (part 1)

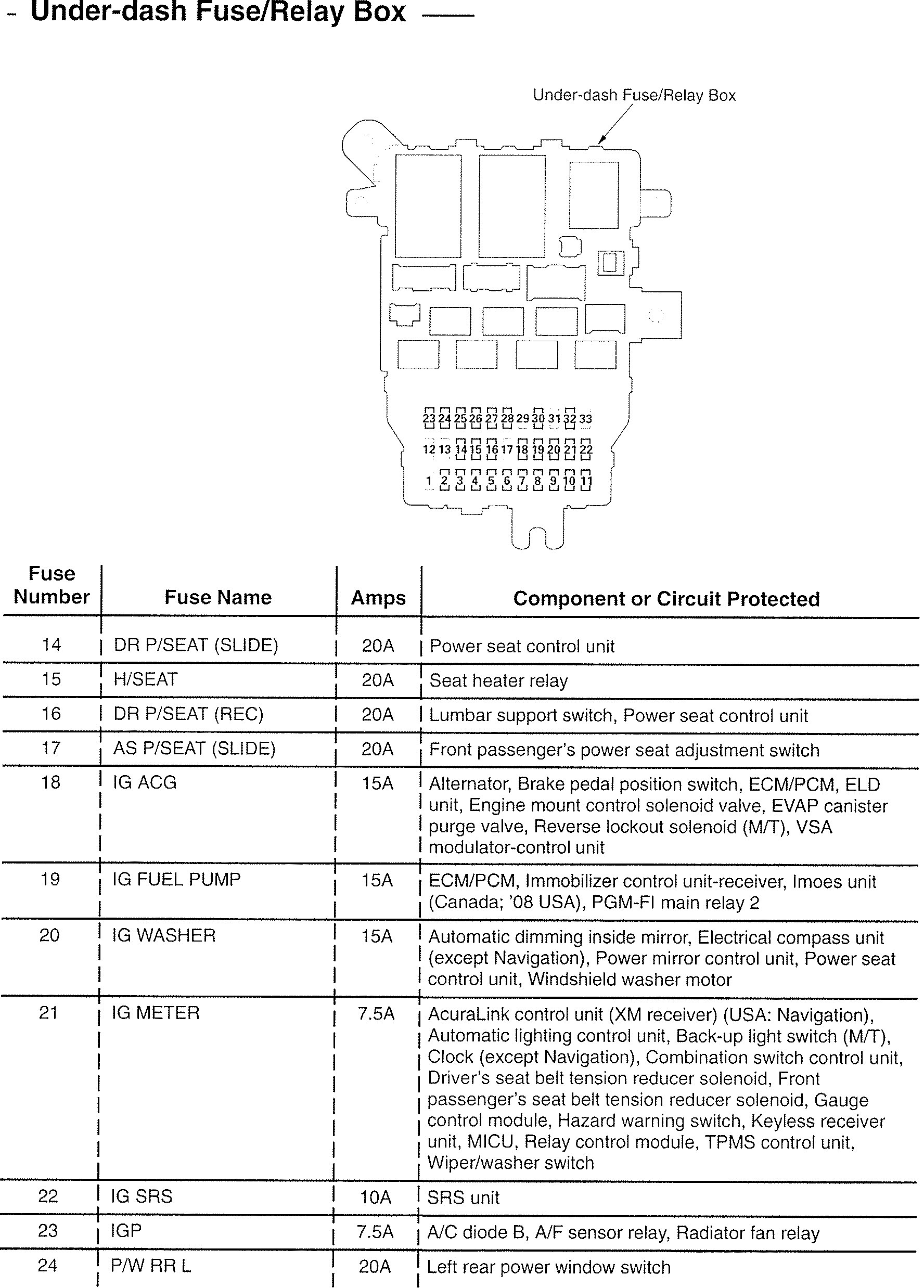

Acura TL - wiring diagram - fuse panel (part 2)
Acura TL – wiring diagram – fuse panel (part 2)

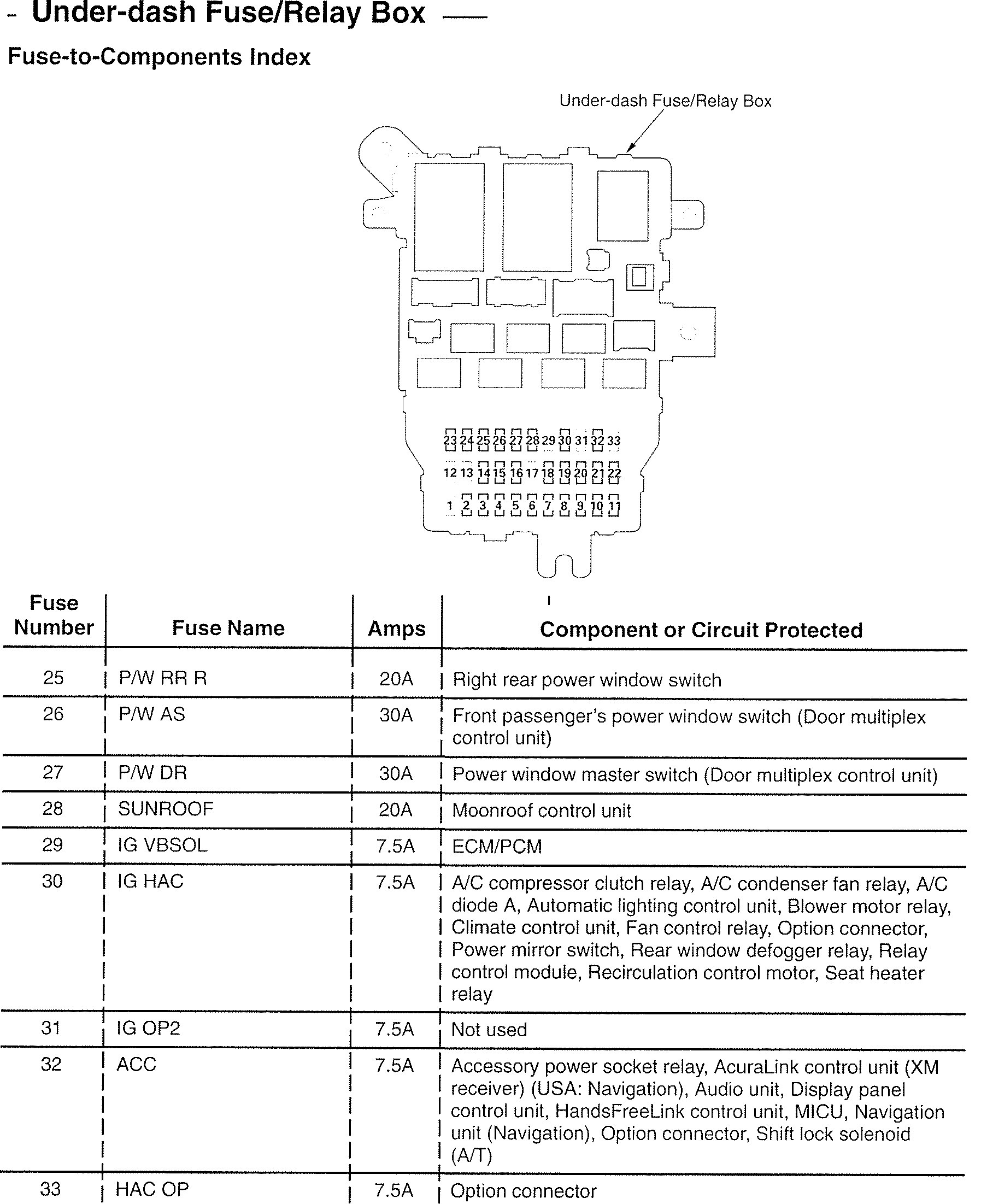

Acura TL - wiring diagram - fuse panel (part 3)
Acura TL – wiring diagram – fuse panel (part 3)

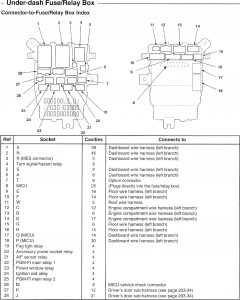

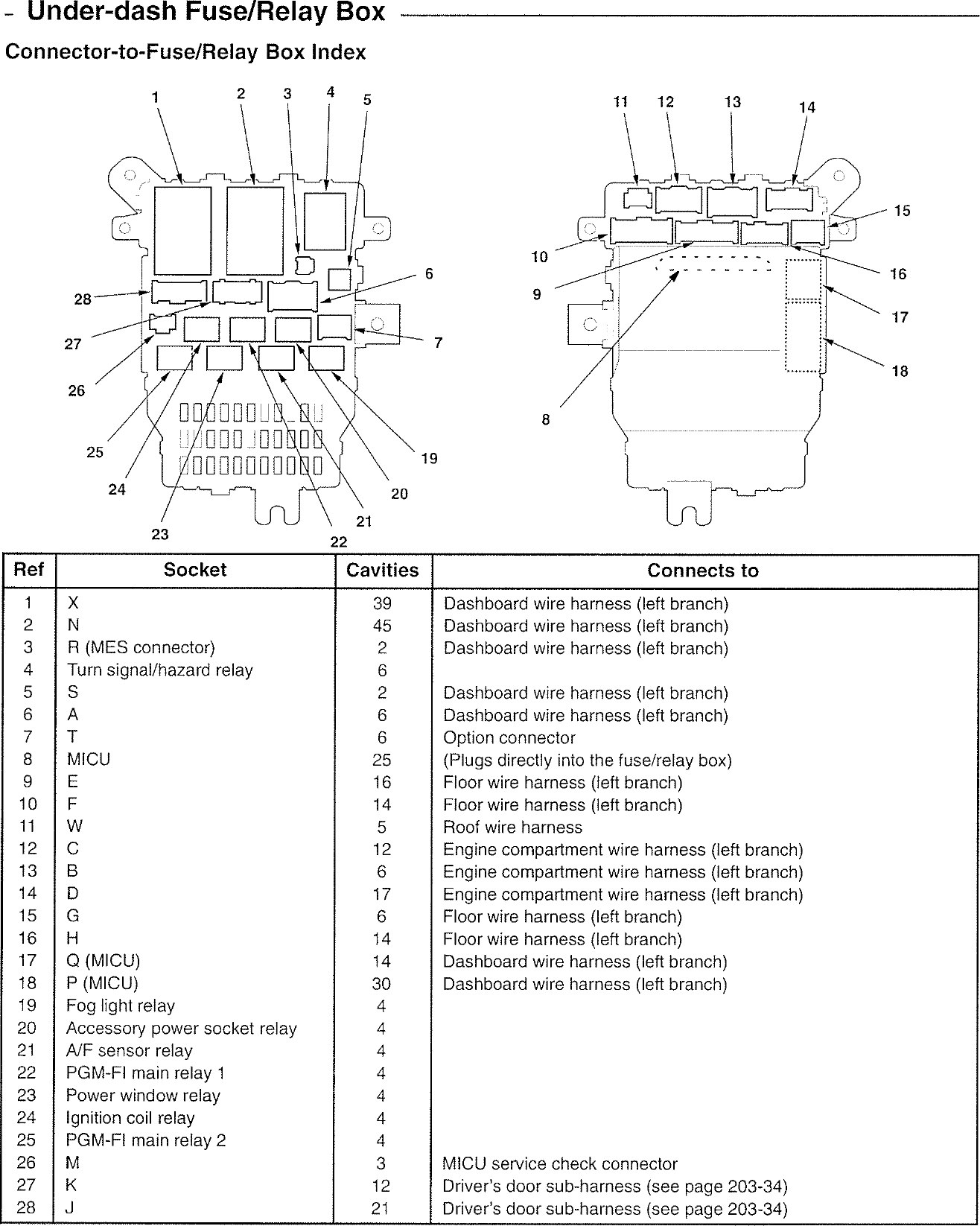

Acura TL - wiring diagram - fuse panel (part 4)
Acura TL – wiring diagram – fuse panel (part 4)

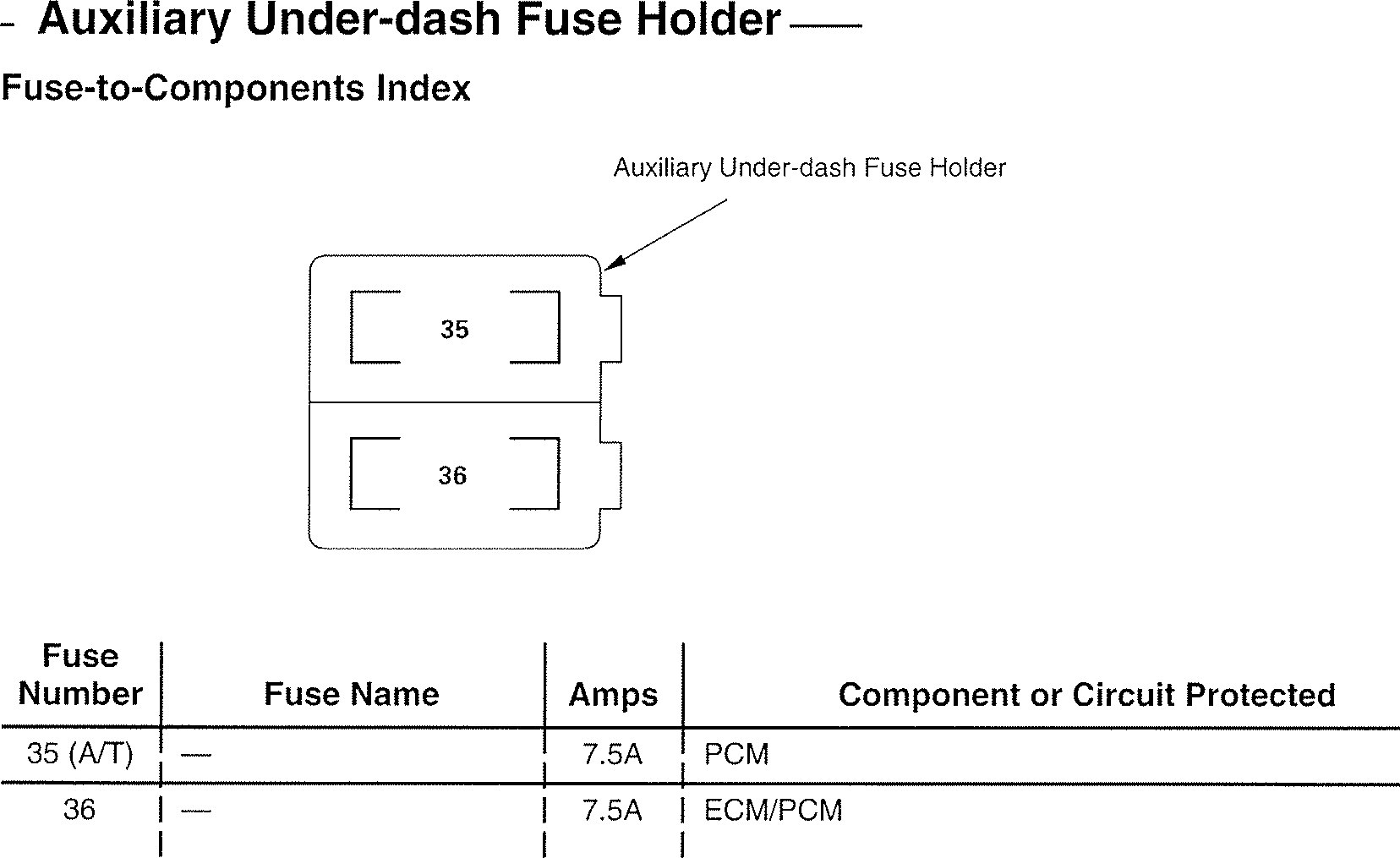

Acura TL - wiring diagram - fuse panel (part 5)
Acura TL – wiring diagram – fuse panel (part 5)

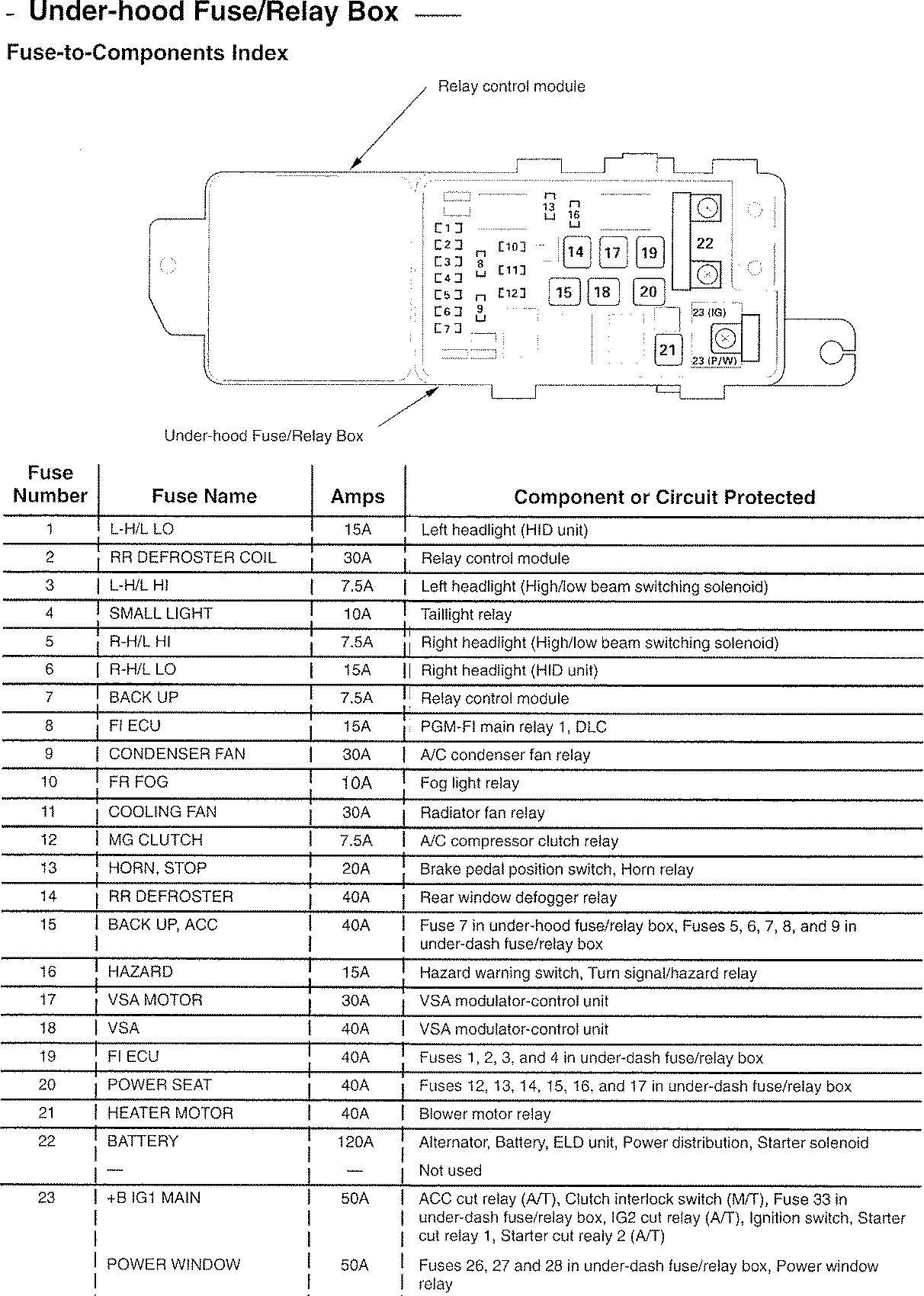

Acura TL - wiring diagram - fuse panel (part 6)
Acura TL – wiring diagram – fuse panel (part 6)
Acura TL - wiring diagram - fuse panel (part 7)
Acura TL – wiring diagram – fuse panel (part 7)

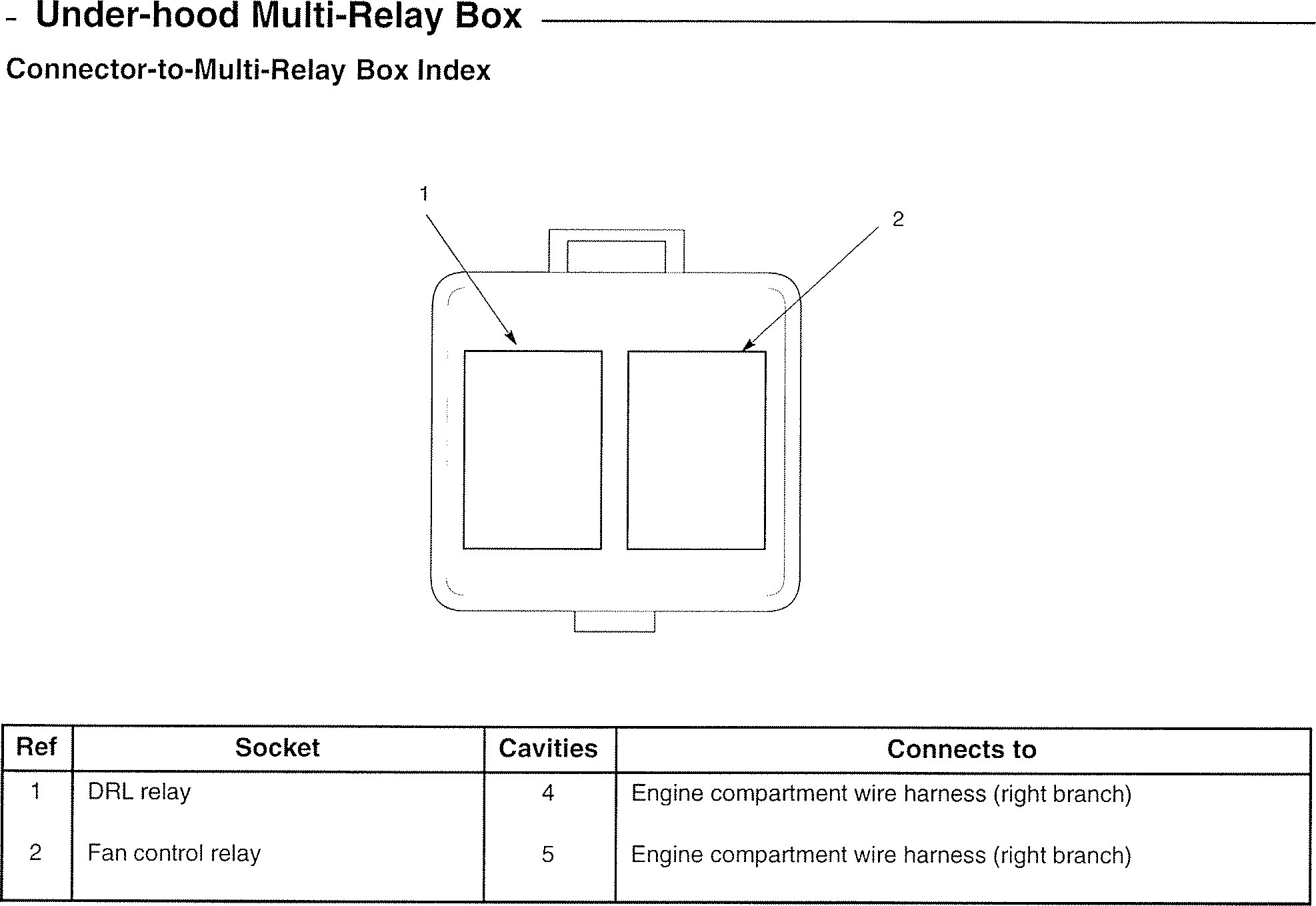

Acura TL - wiring diagram - fuse panel (part 8)
Acura TL – wiring diagram – fuse panel (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
