Year of productions:  2007

Hands free link system

Version 1

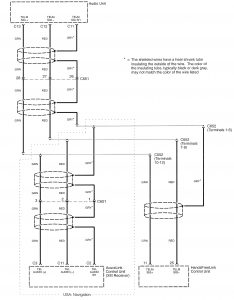

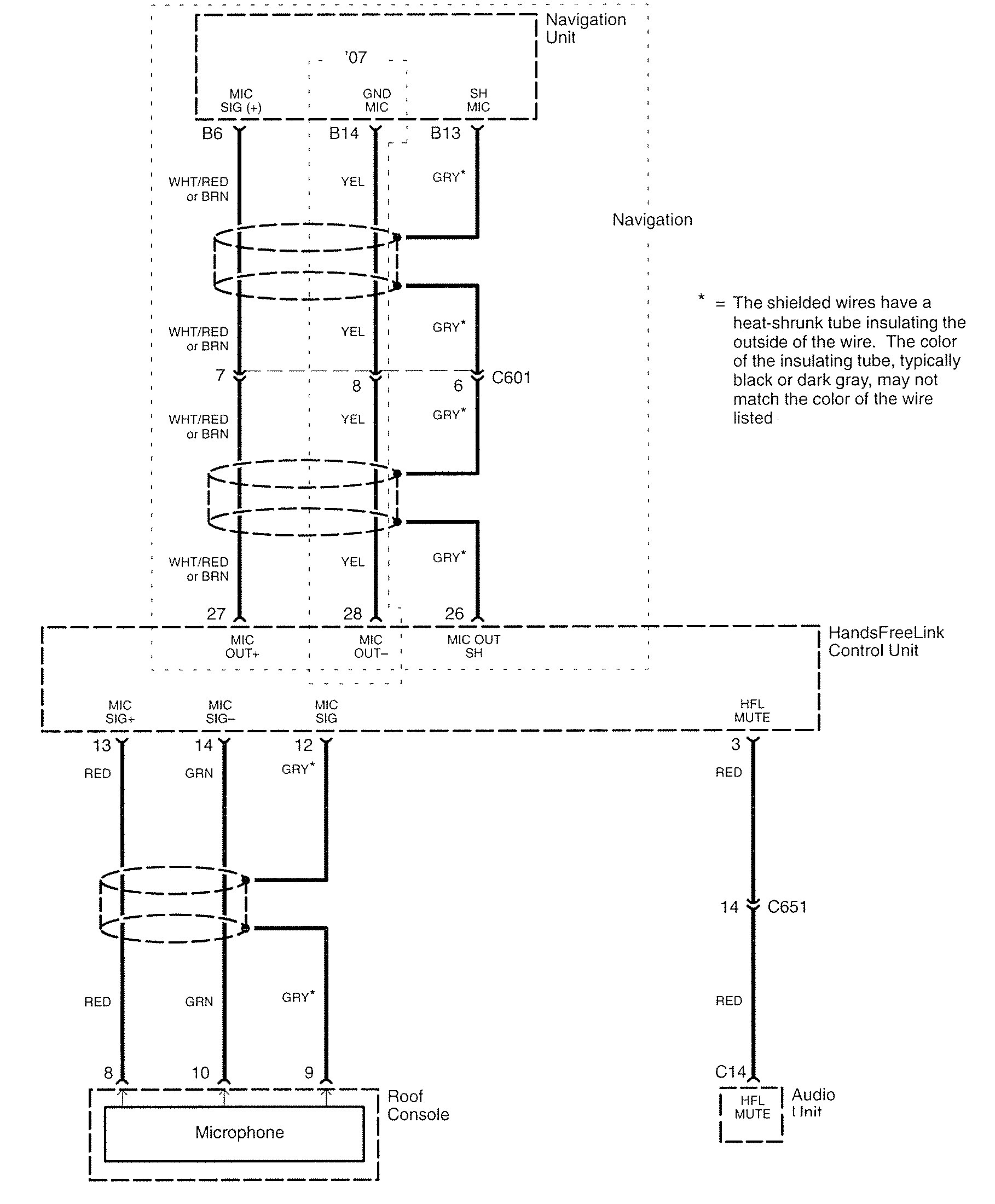

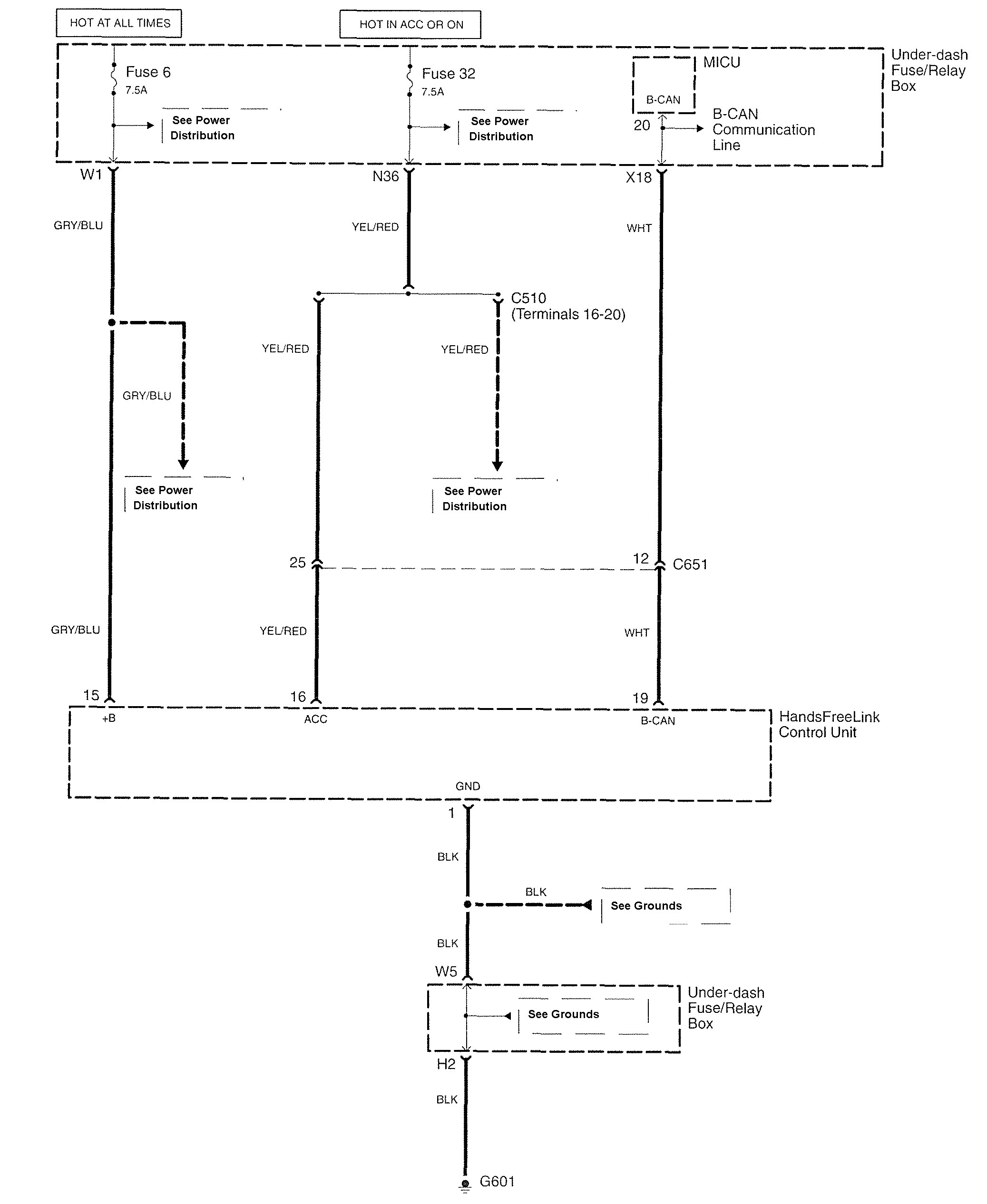

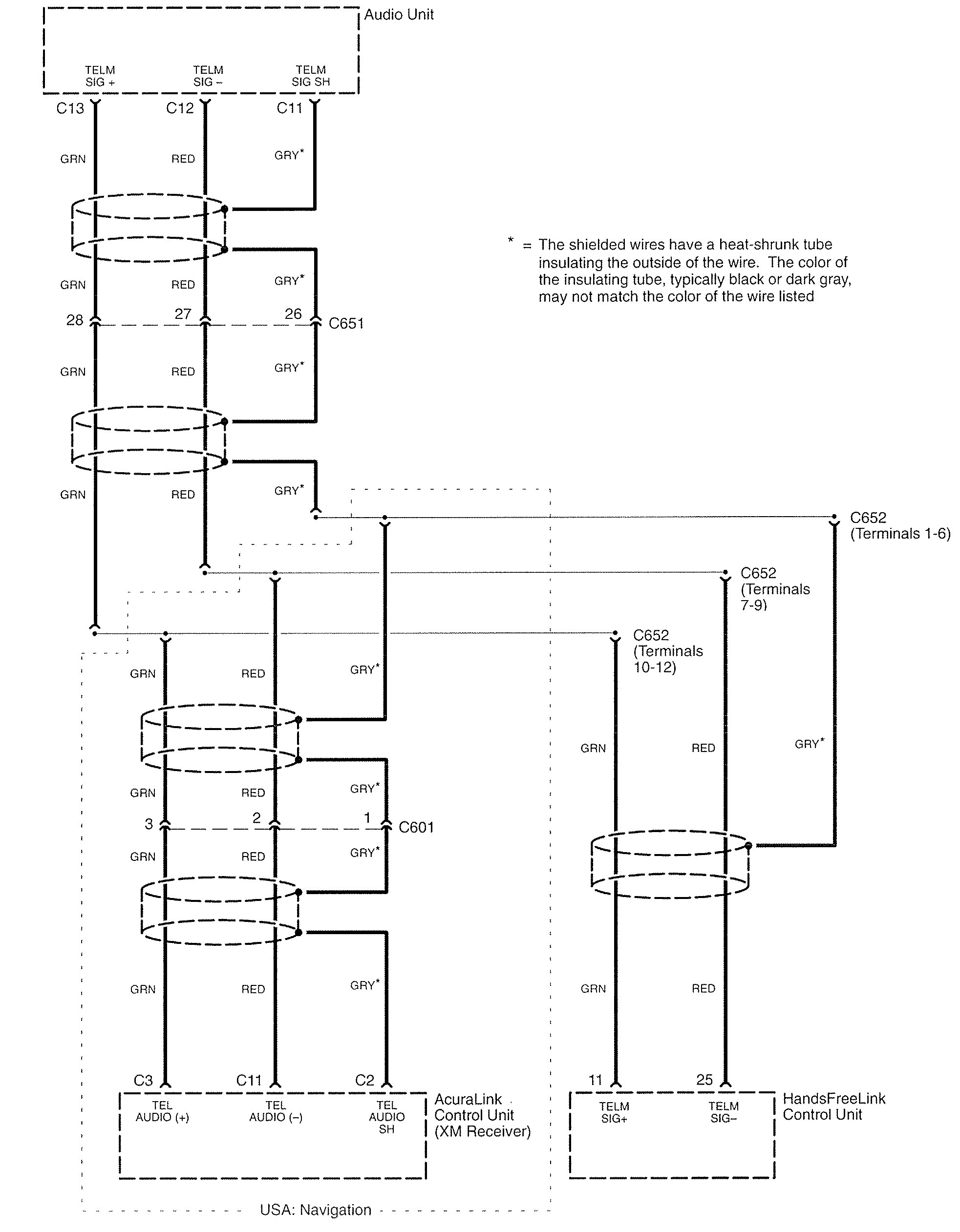

Acura TL - wiring diagram - hands free link system (part 1)
Acura TL – wiring diagram – hands free link system (part 1)

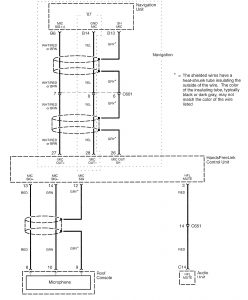

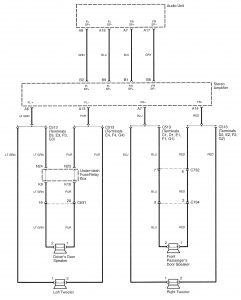

Acura TL - wiring diagram - hands free link system (part 2)
Acura TL – wiring diagram – hands free link system (part 2)

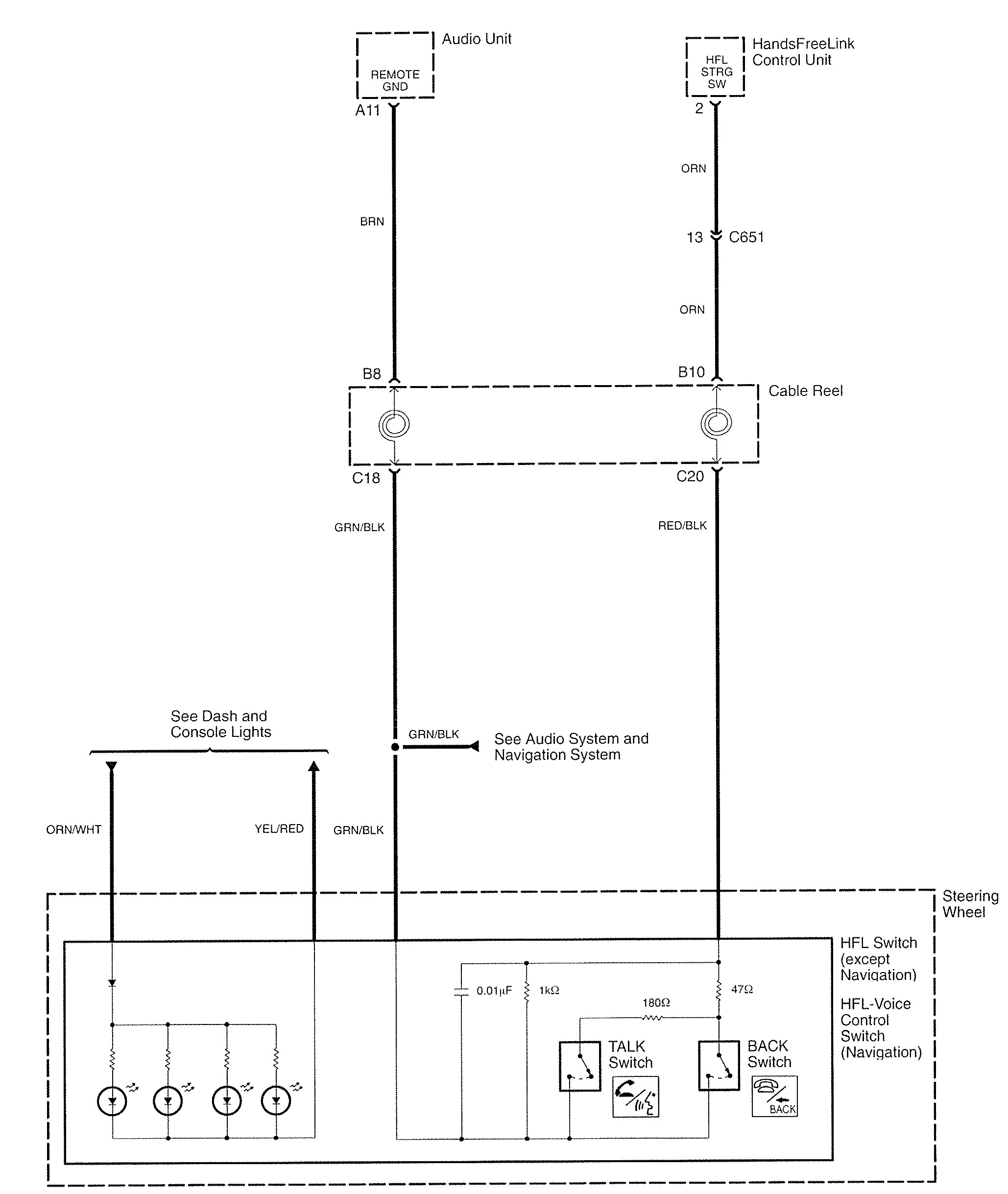

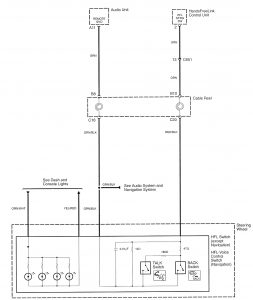

Acura TL - wiring diagram - hands free link system (part 3)
Acura TL – wiring diagram – hands free link system (part 3)

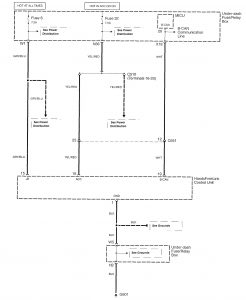

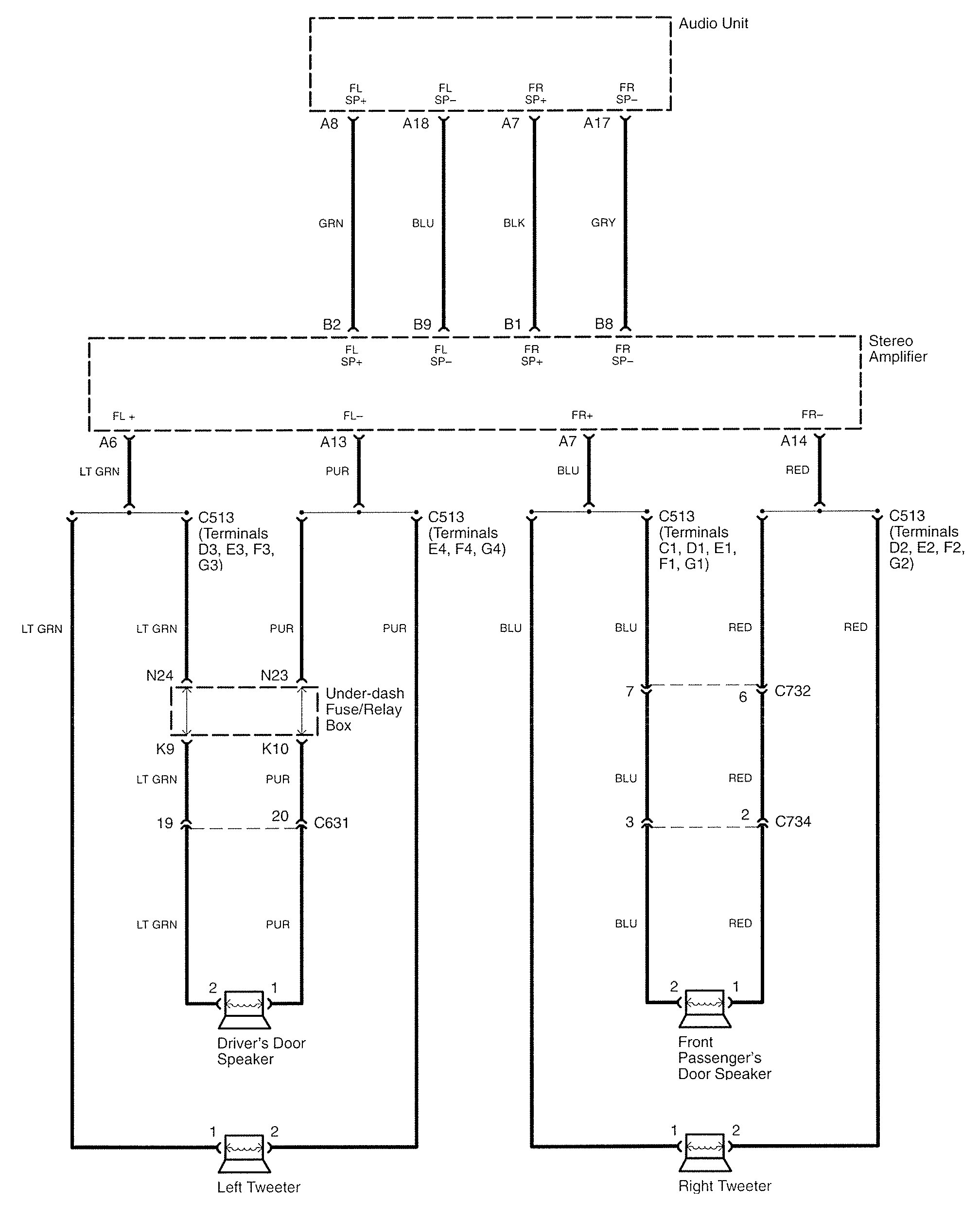

Acura TL - wiring diagram - hands free link system (part 4)
Acura TL – wiring diagram – hands free link system (part 4)

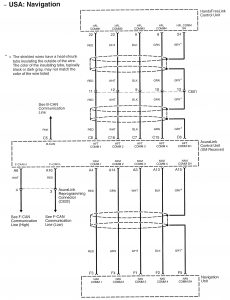

Version 2

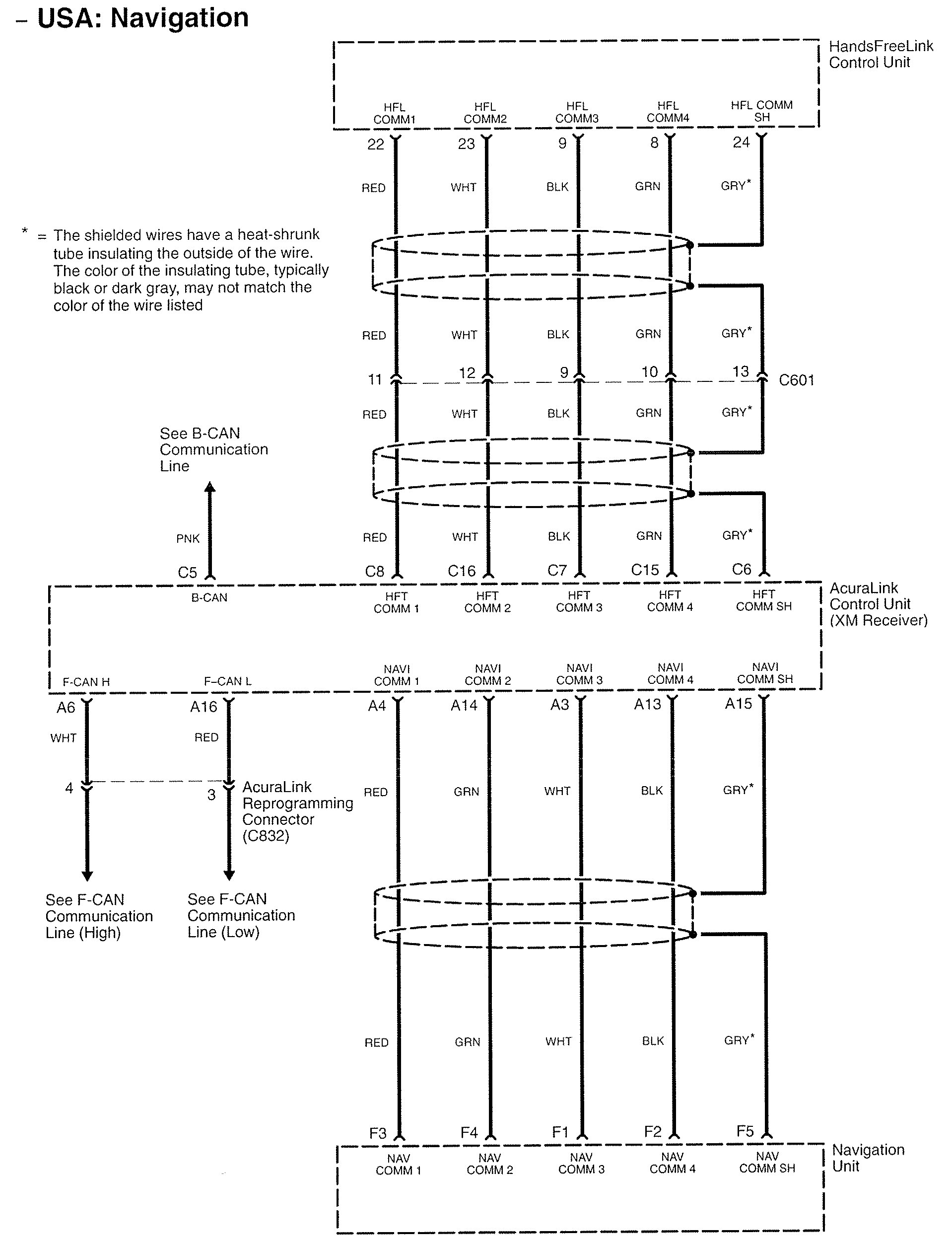

Acura TL - wiring diagram - hands free link system (part 1)
Acura TL – wiring diagram – hands free link system (part 1)
Acura TL - wiring diagram - hands free link system (part 2)
Acura TL – wiring diagram – hands free link system (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
