Ignition

Version 1

Acura TL - wiring diagram - ignition
Acura TL – wiring diagram – ignition

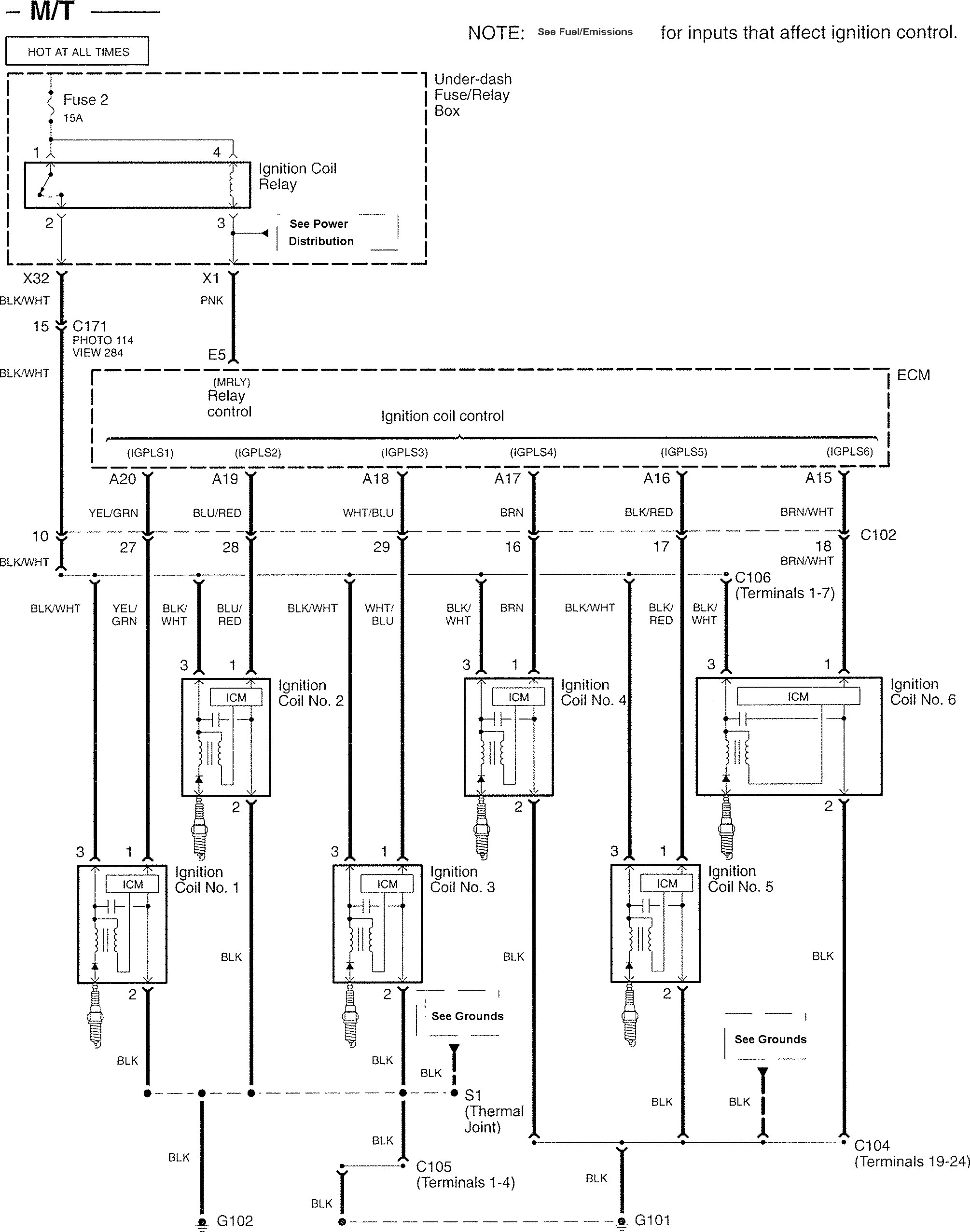

Version 2

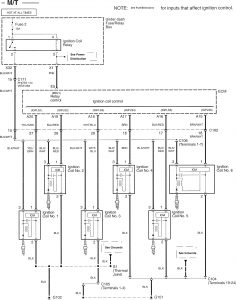

Acura TL - wiring diagram - ignition
Acura TL – wiring diagram – ignition

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
