Acura TL (2007) – wiring diagrams – instrumentation

Acura TL (2007) – wiring diagrams – instrumentation

Year of productions:  2007

Instrumentation

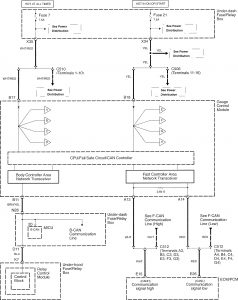

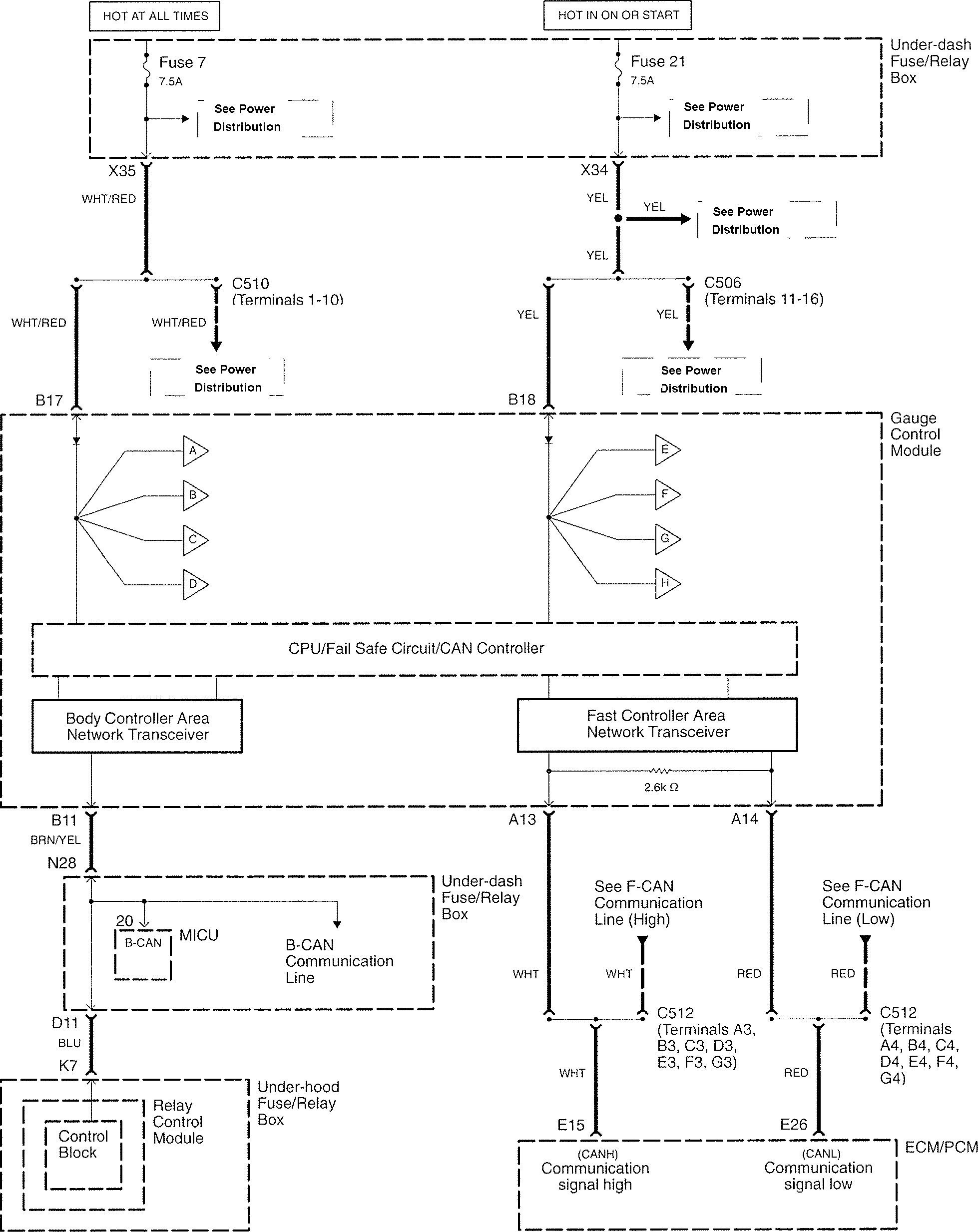

Acura TL - wiring diagram instrumentation (part 1)
Acura TL – wiring diagram instrumentation (part 1)

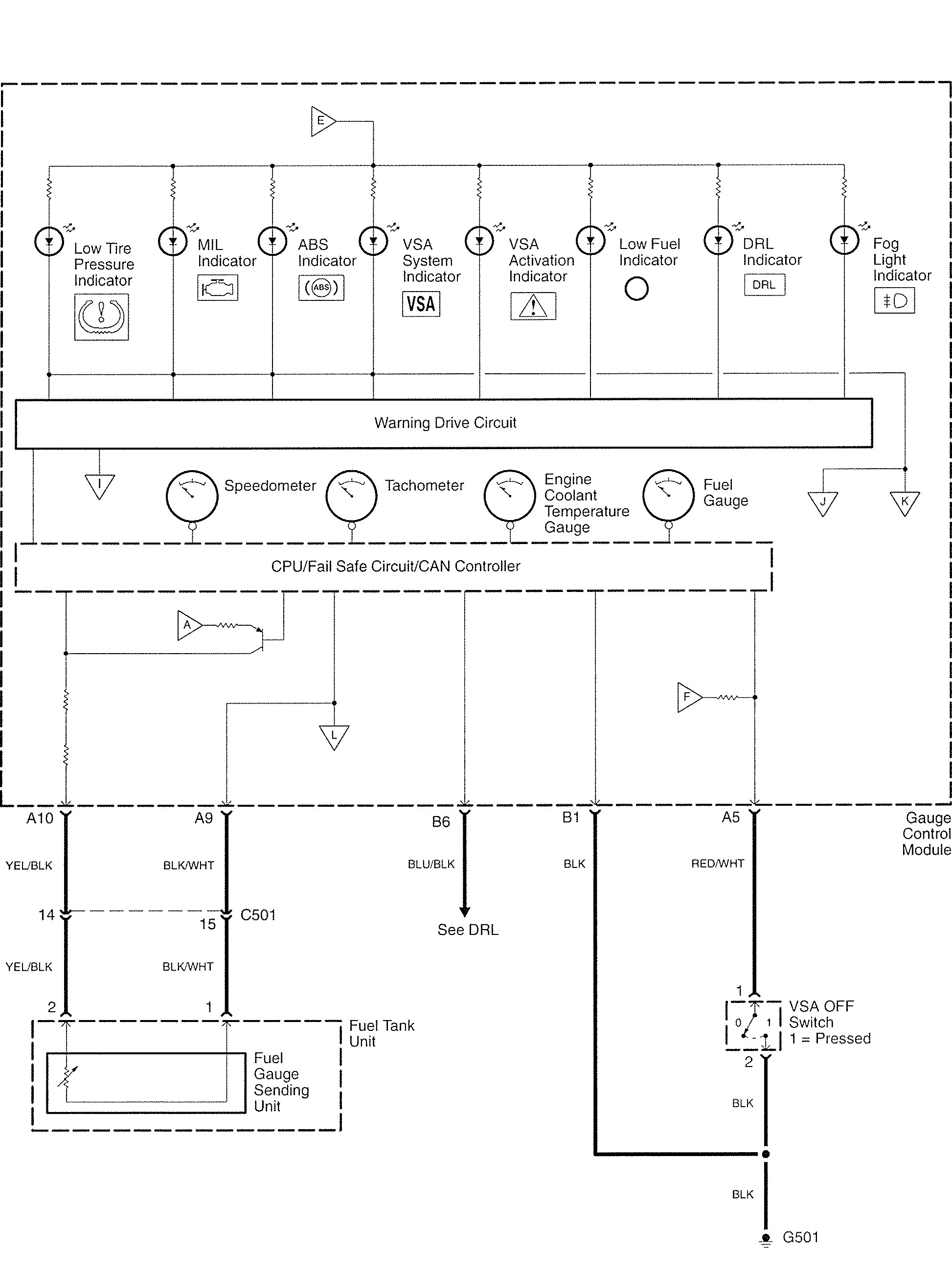

Acura TL - wiring diagram instrumentation (part 2)
Acura TL – wiring diagram instrumentation (part 2)

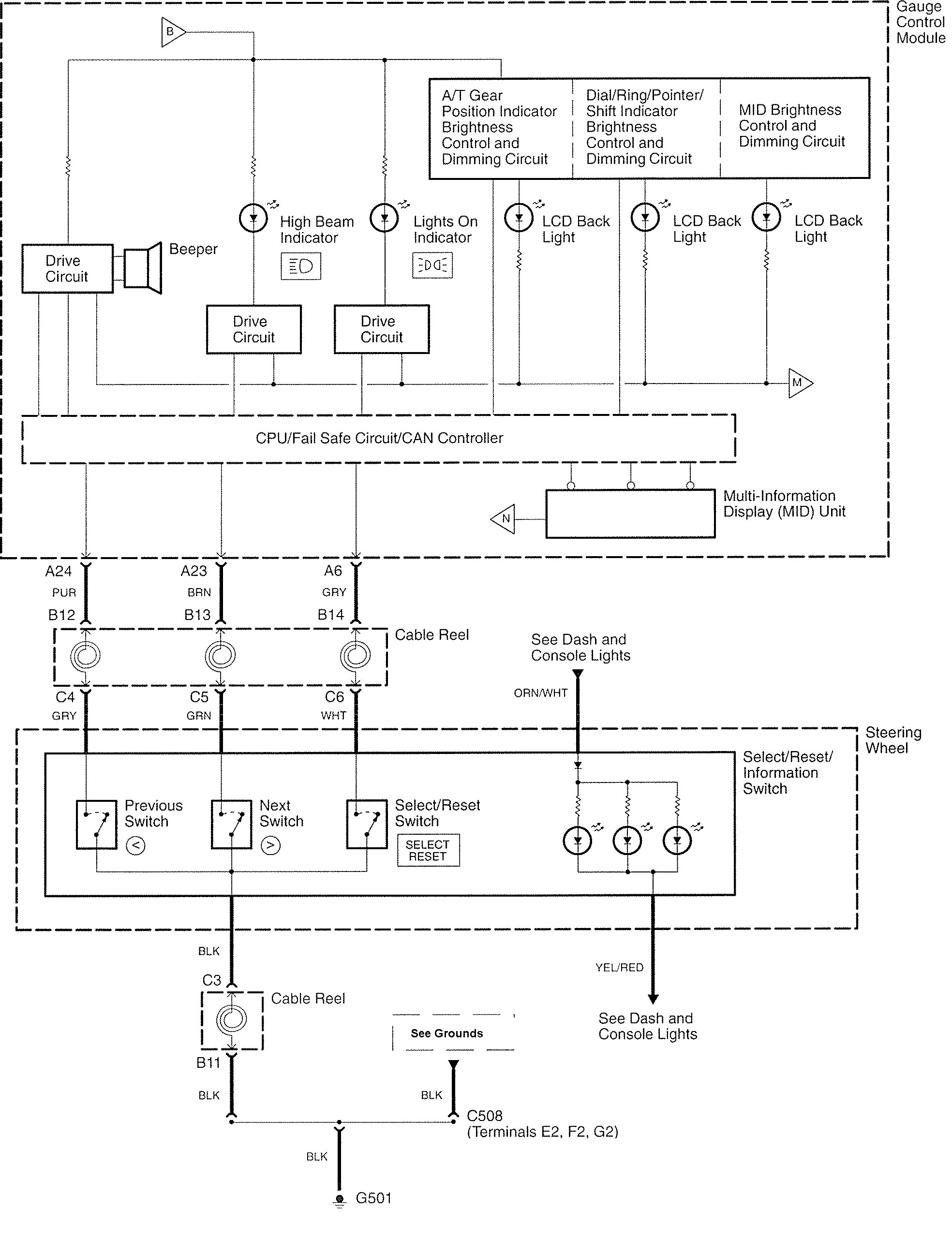

Acura TL - wiring diagram instrumentation (part 3)
Acura TL – wiring diagram instrumentation (part 3)

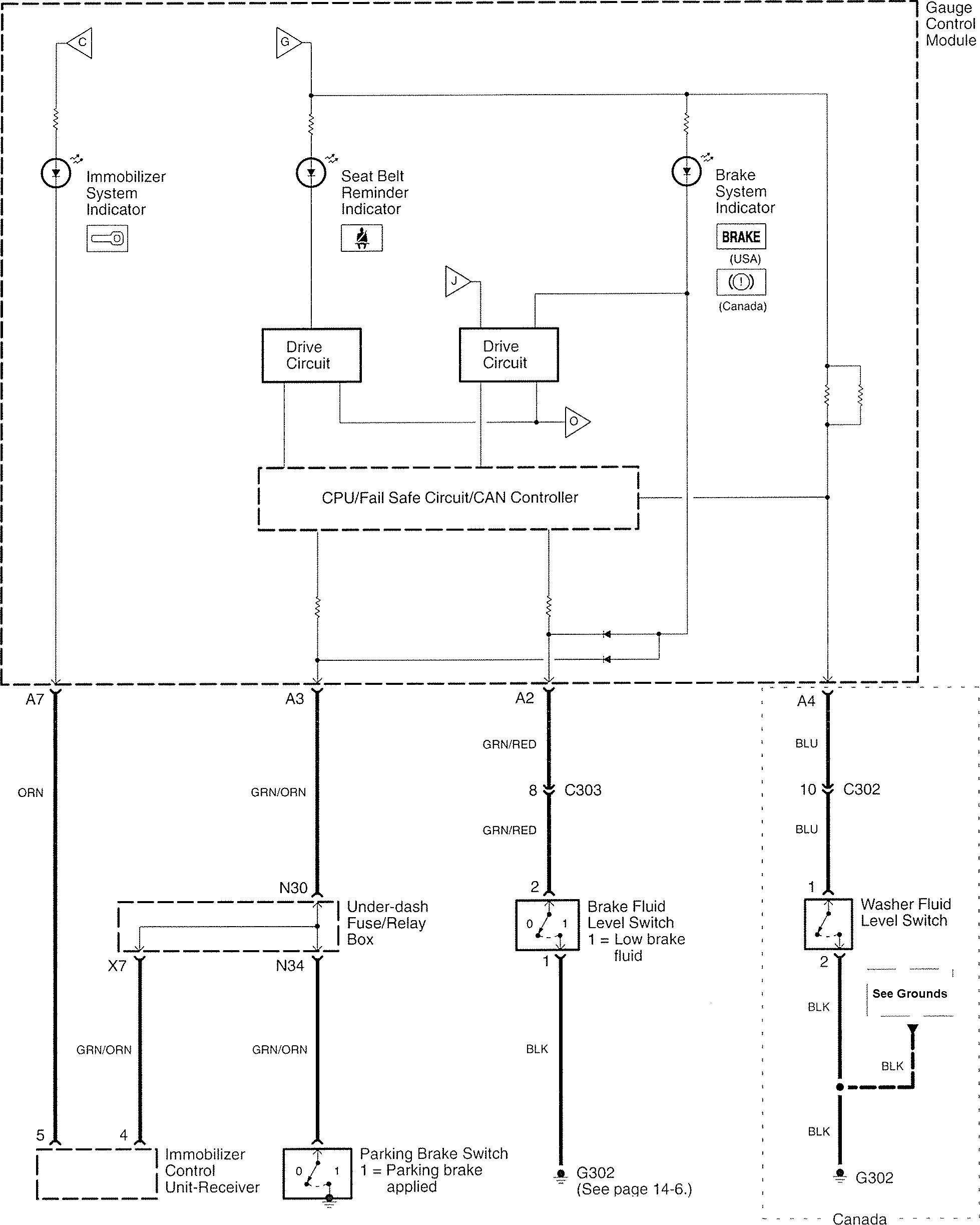

Acura TL - wiring diagram instrumentation (part 4)
Acura TL – wiring diagram instrumentation (part 4)

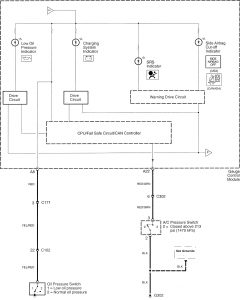

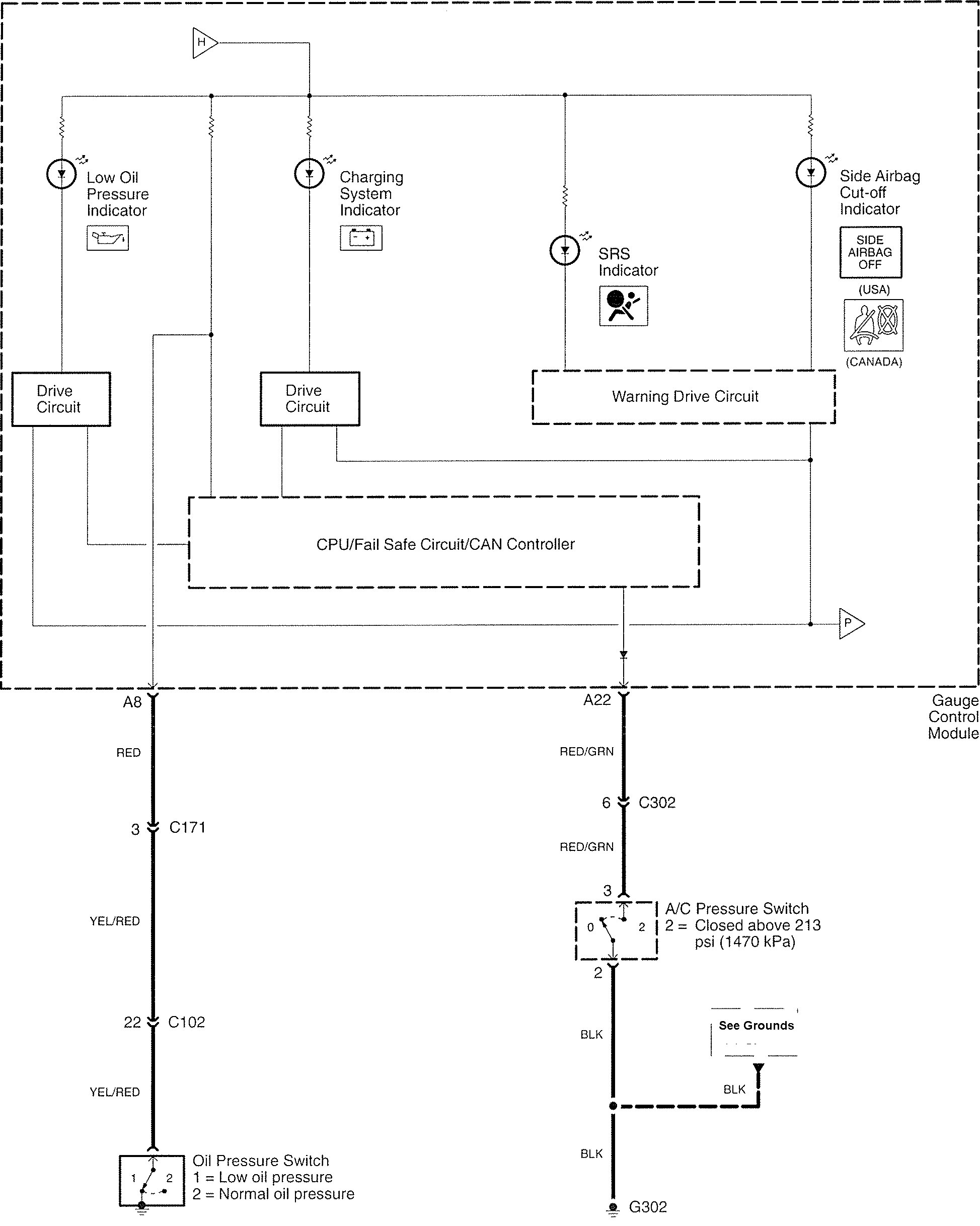

Acura TL - wiring diagram instrumentation (part 5)
Acura TL – wiring diagram instrumentation (part 5)

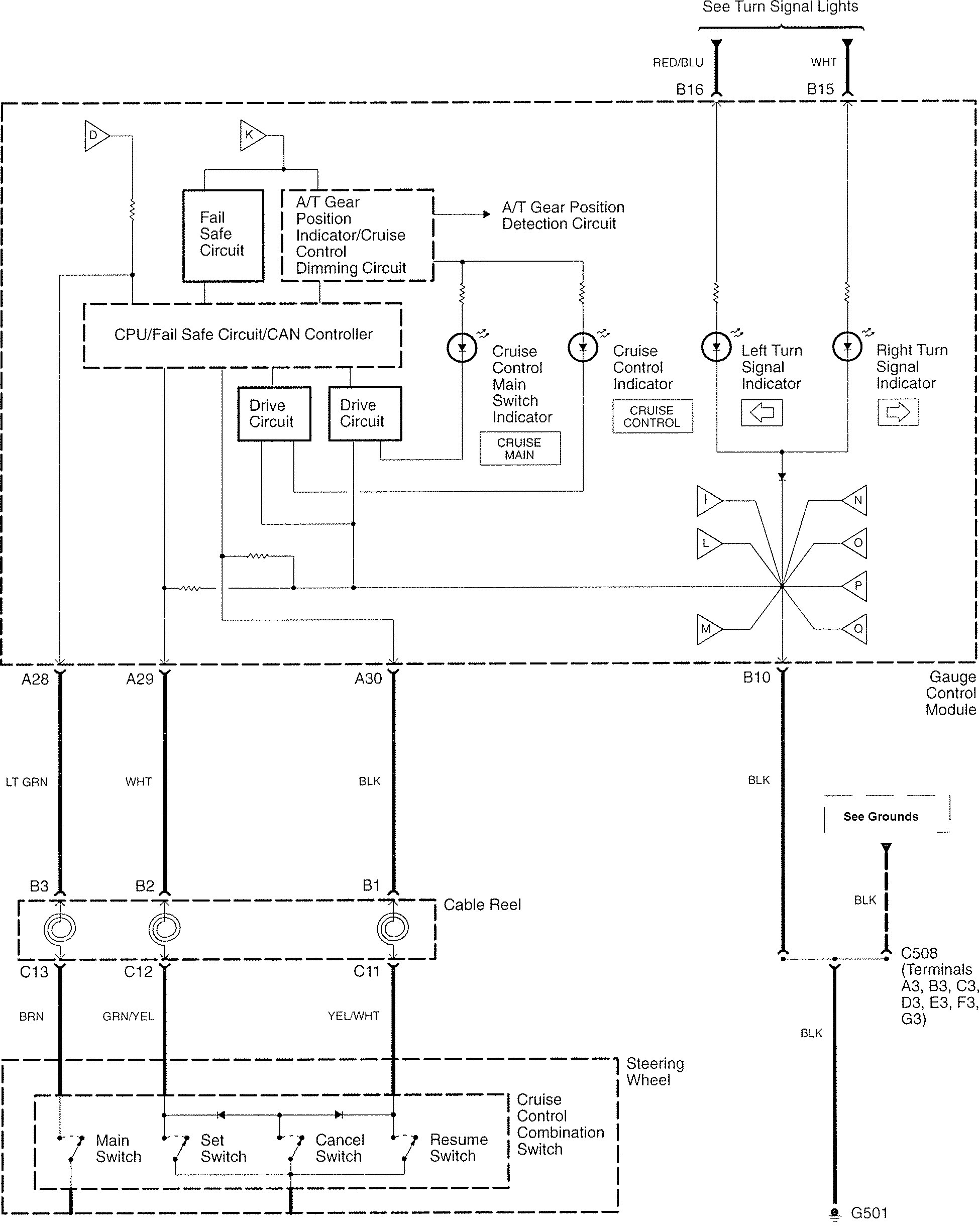

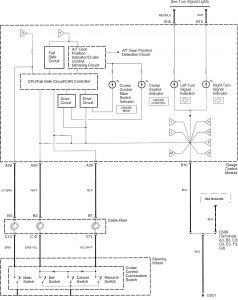

Acura TL - wiring diagram instrumentation (part 6)
Acura TL – wiring diagram instrumentation (part 6)

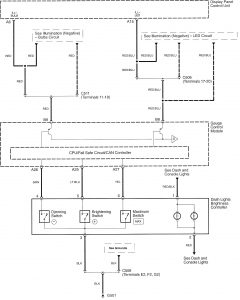

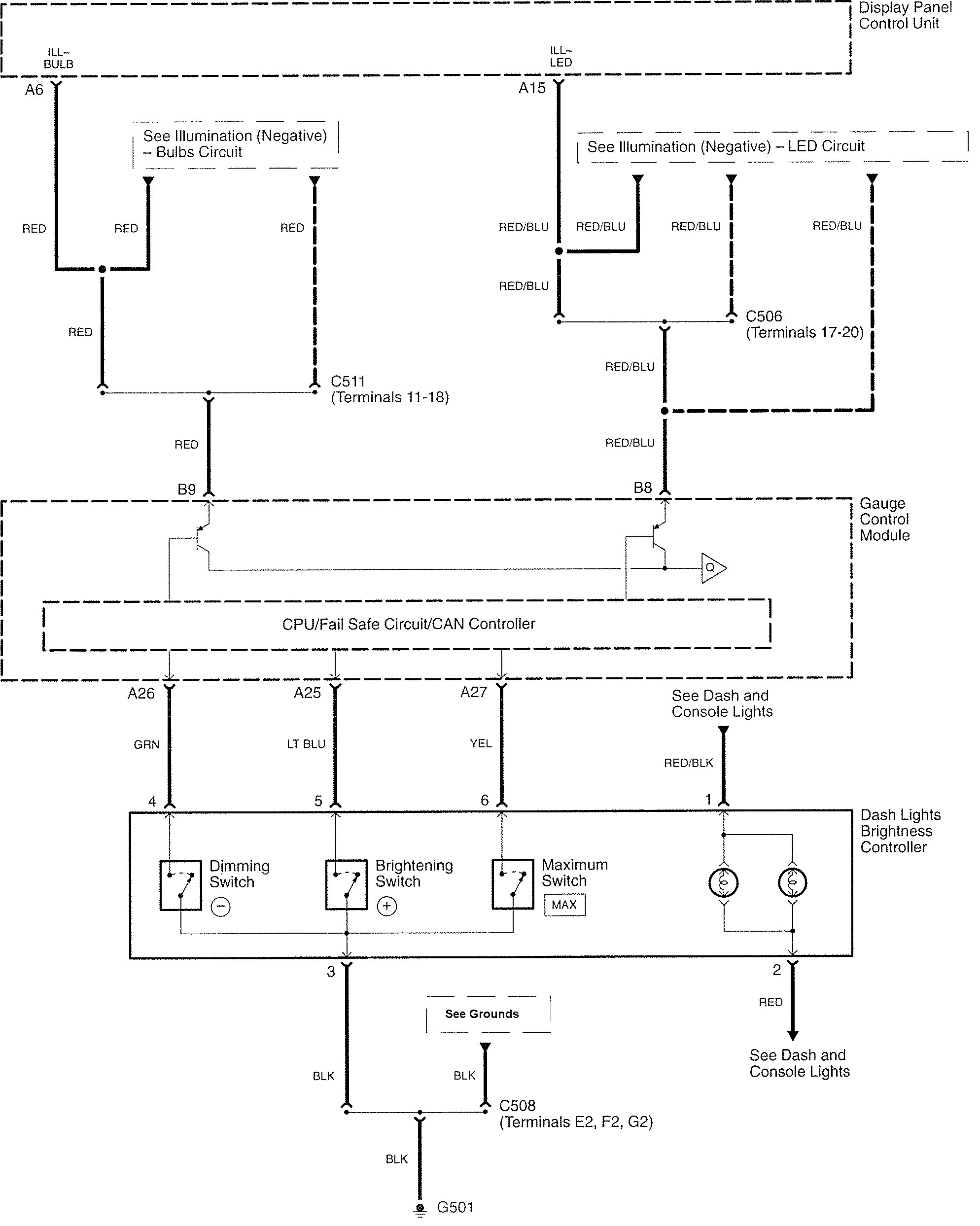

Acura TL - wiring diagram instrumentation (part 7)
Acura TL – wiring diagram instrumentation (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
