Acura TL (2007) – wiring diagrams – power mirrors

Acura TL (2007) – wiring diagrams – power mirrors

Year of productions:  2007

Power mirrors

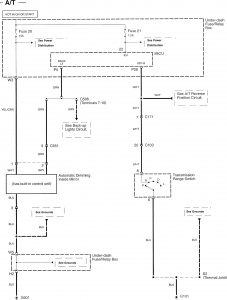

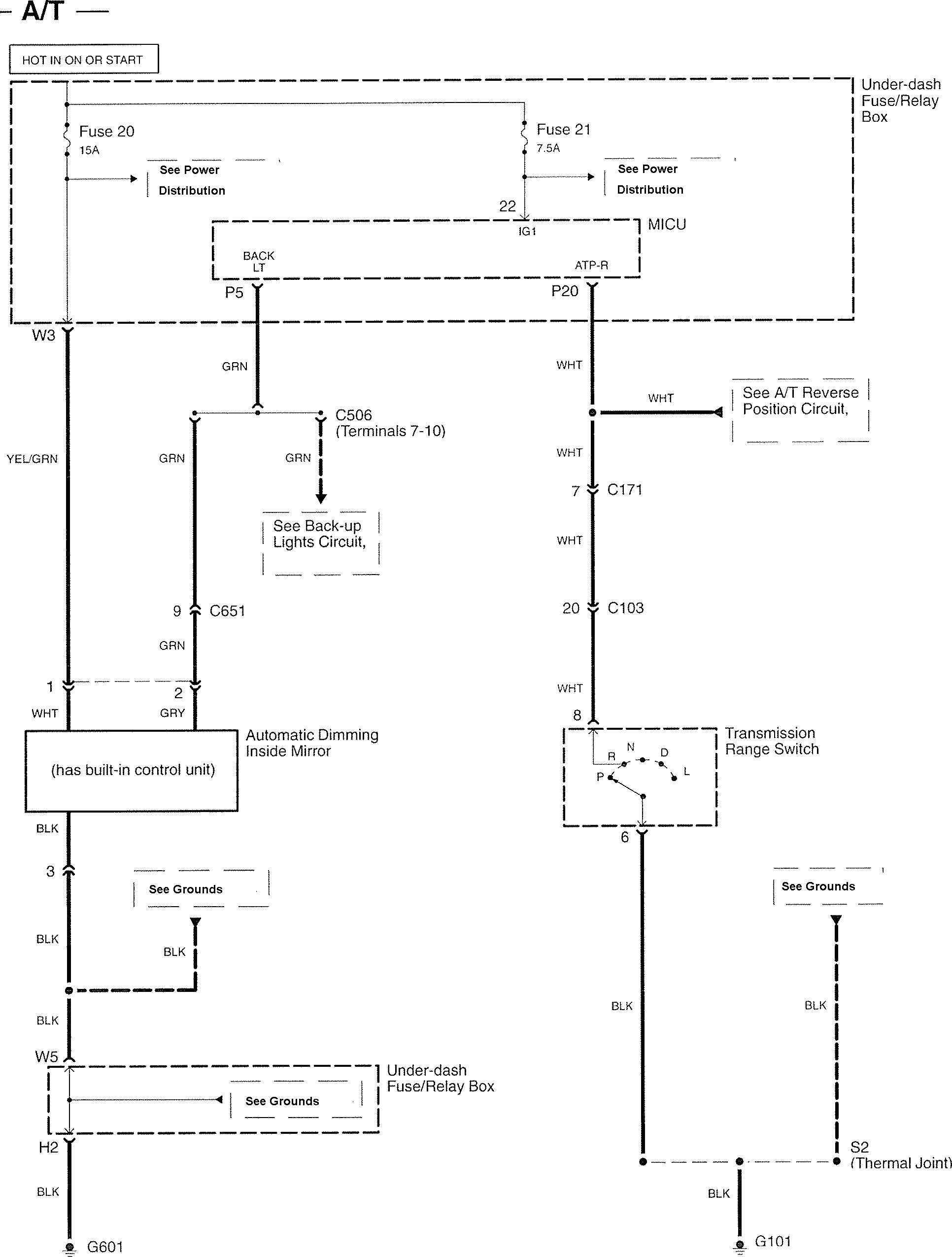

Version 1

Acura TL - wiring  diagram - power mirrors
Acura TL – wiring diagram – power mirrors

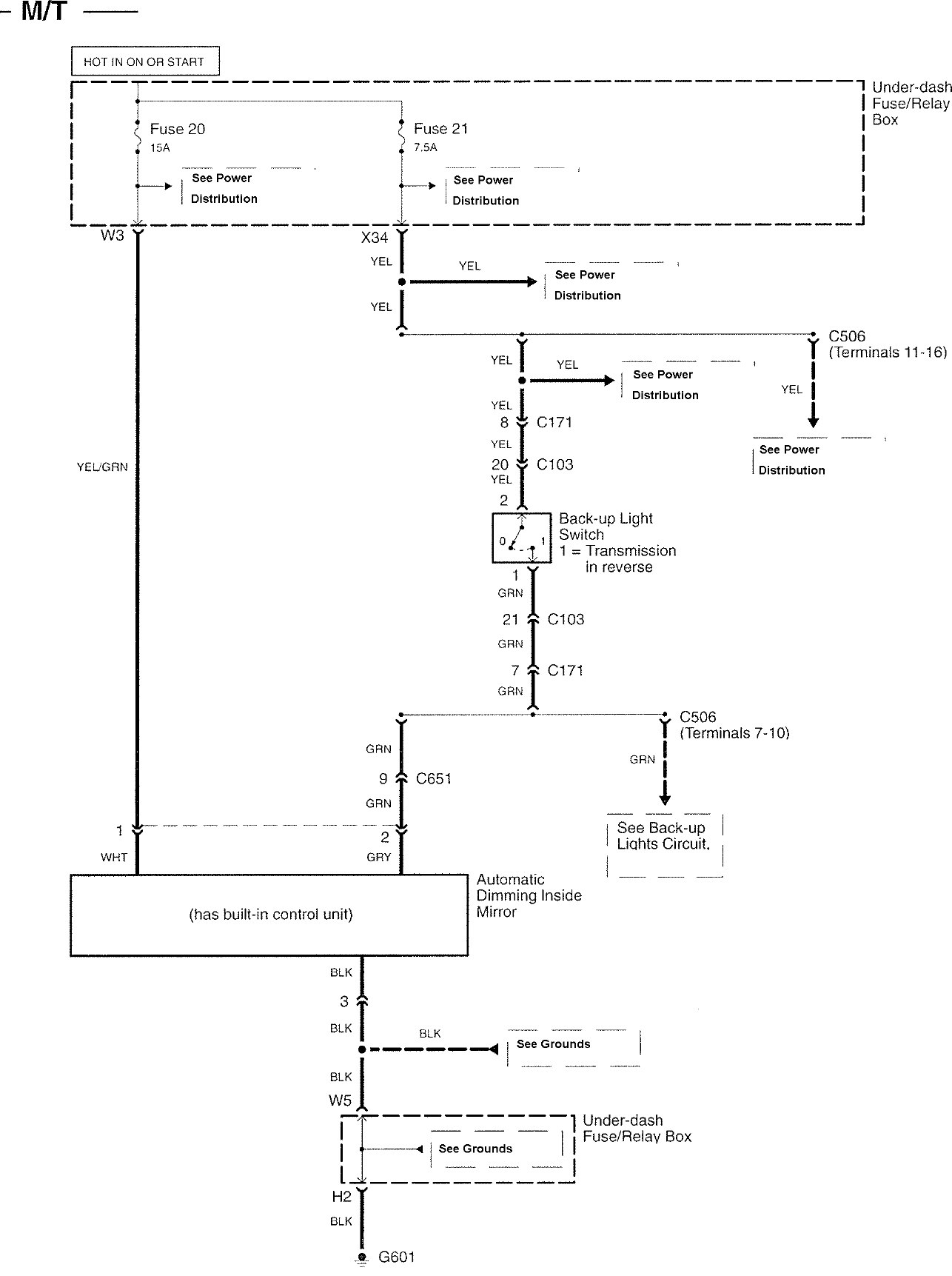

Version 2

Acura TL - wiring  diagram - power mirrors
Acura TL – wiring diagram – power mirrors

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
