Acura TL (2007 – 2008) – wiring diagrams – wiper/washer

Acura TL (2007 – 2008) – wiring diagrams – wiper/washer

Year of productions:  2007, 2008

Wiper/washer

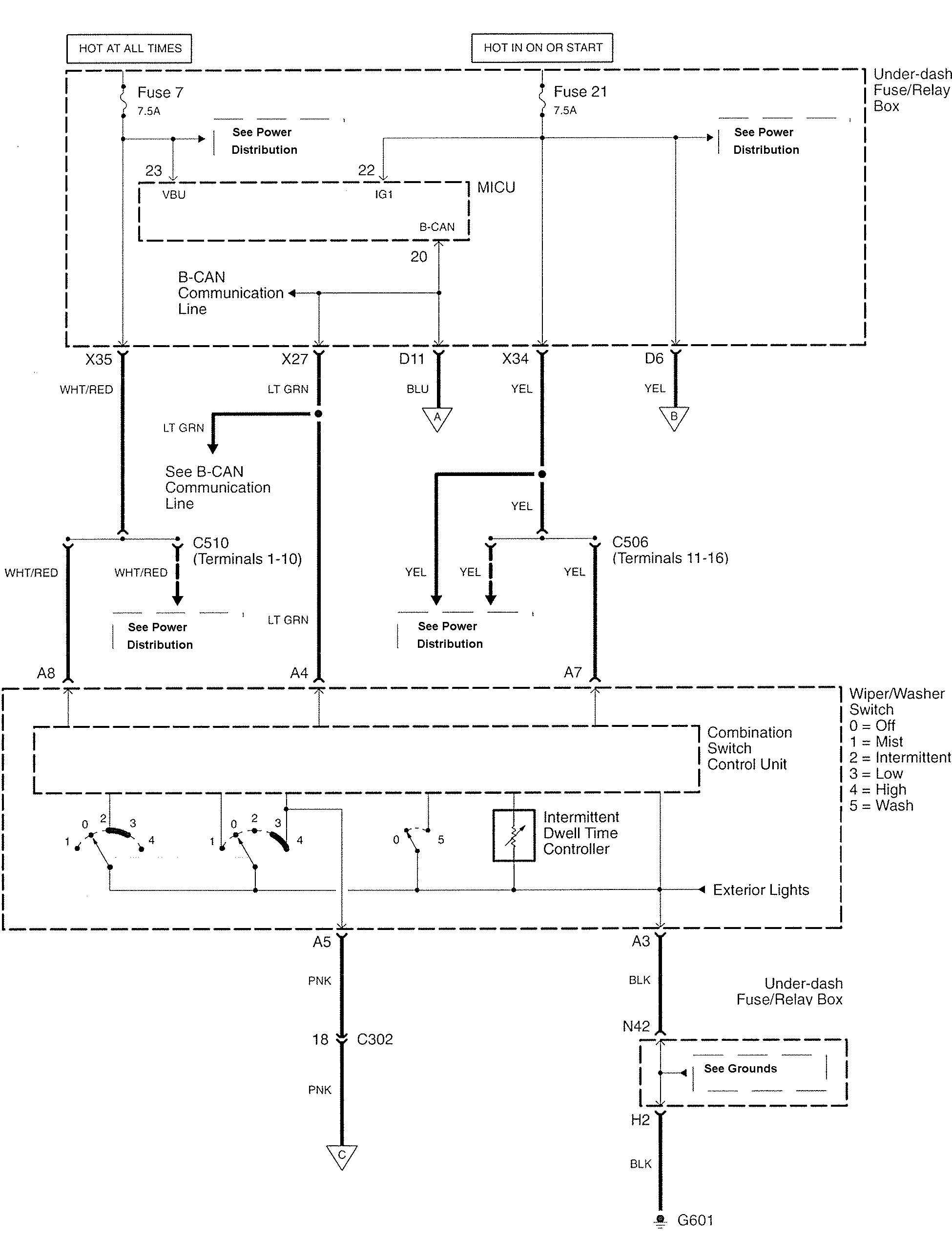

Acura TL - wiring diagram - wiper/washer (part 1)
Acura TL – wiring diagram – wiper/washer (part 1)

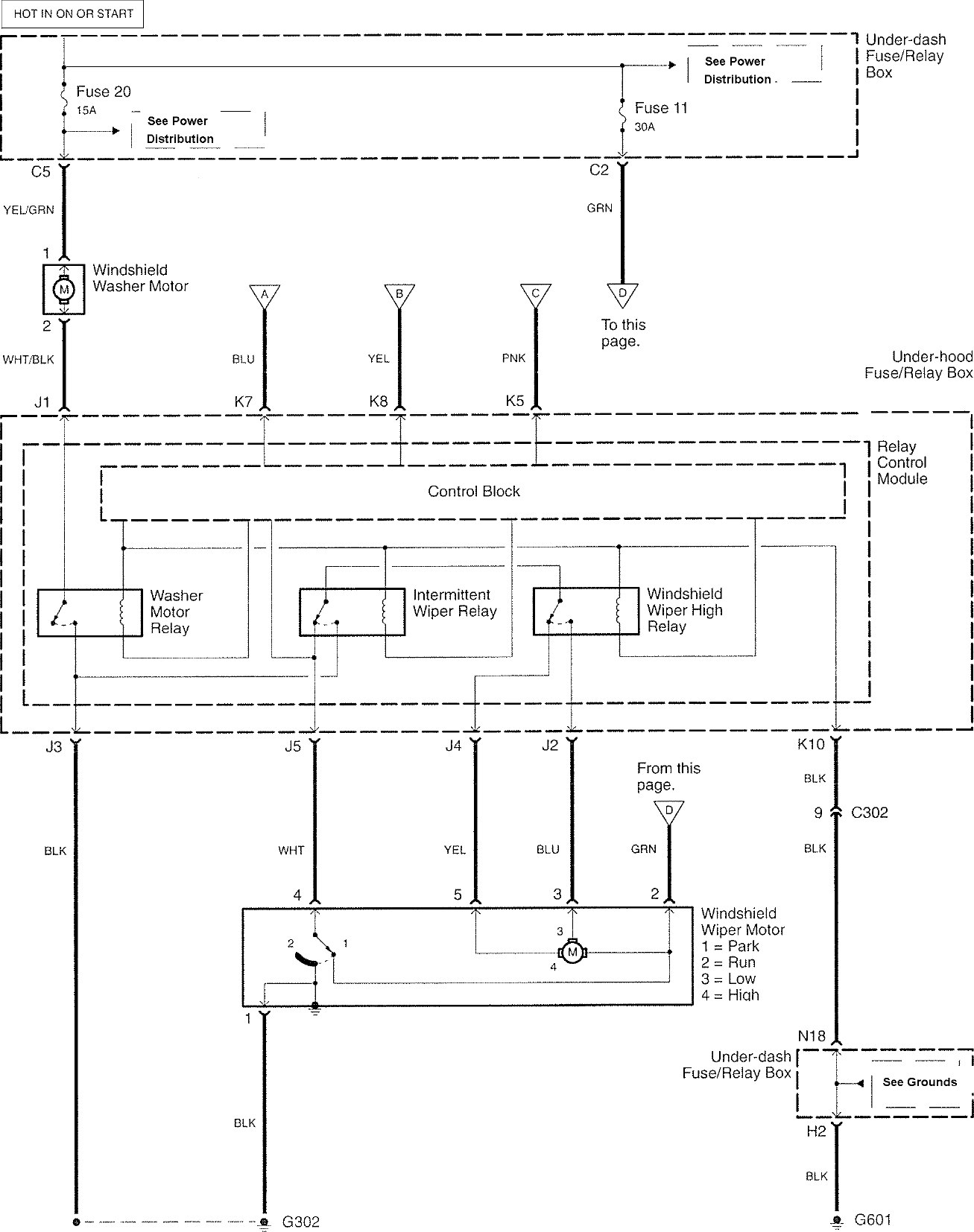

Acura TL - wiring diagram - wiper/washer (part 2)
Acura TL – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
