Acura TL (2008) – wiring diagrams – warning indicators

Acura TL (2008) – wiring diagrams – warning indicators

Year of productions:  2008

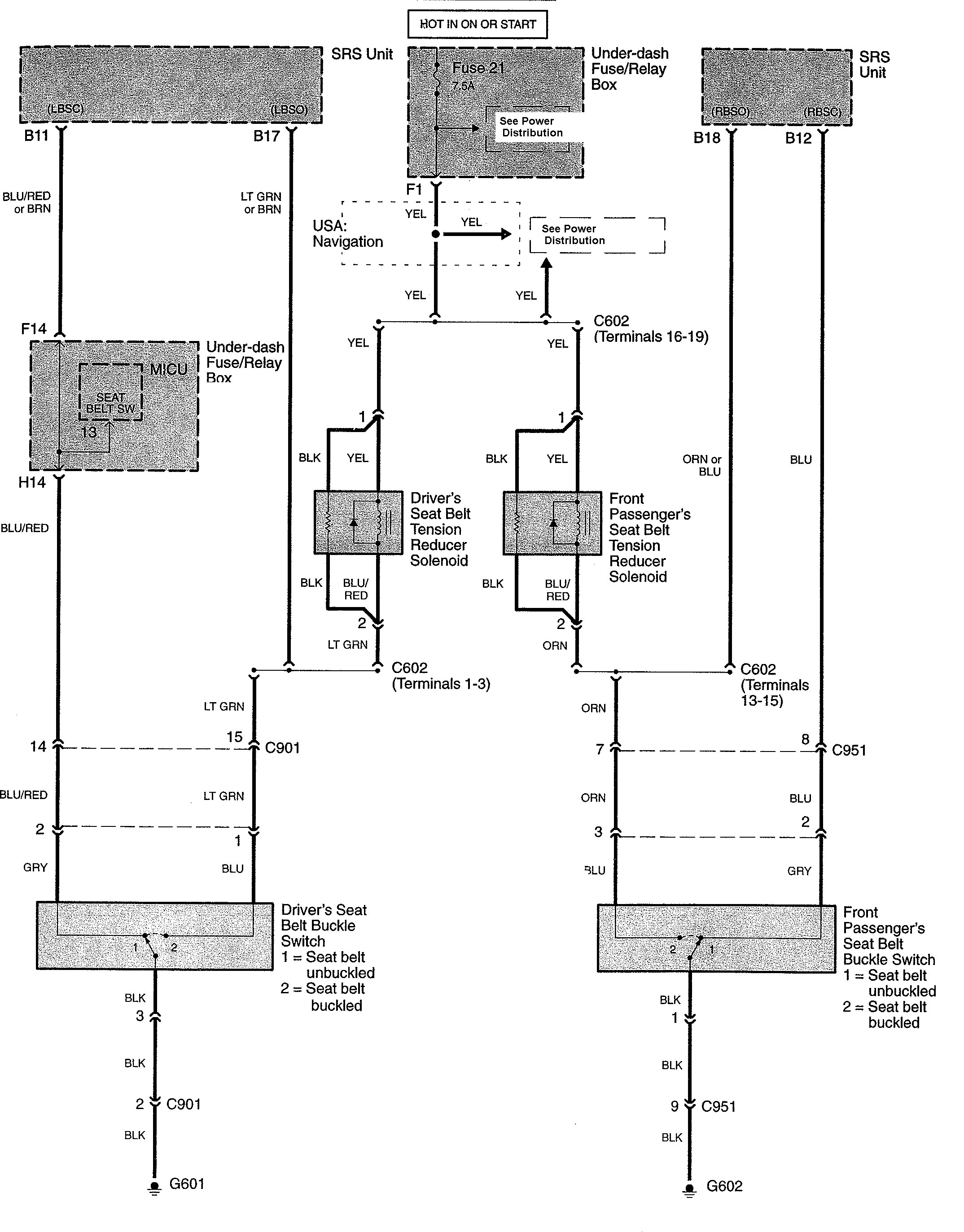

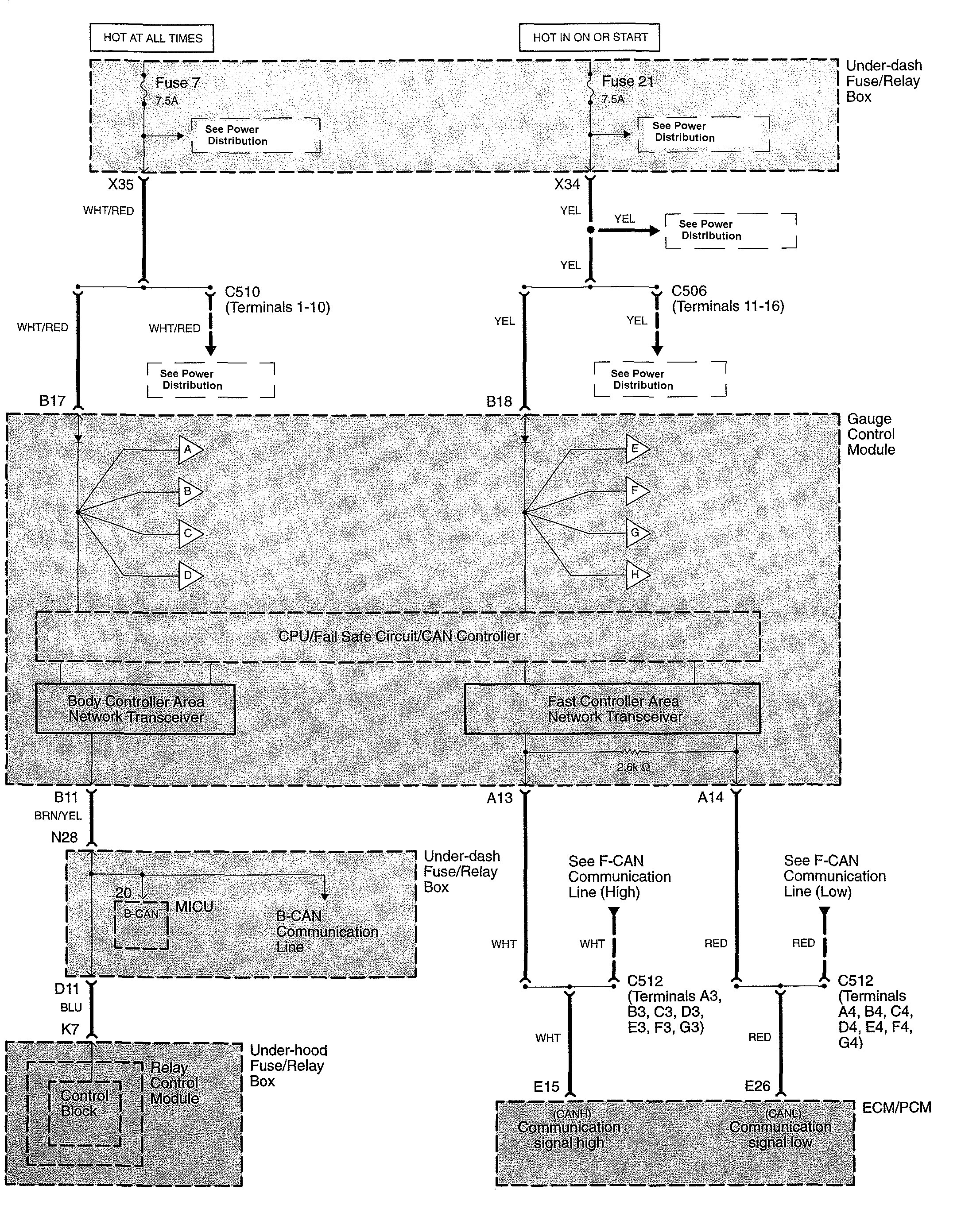

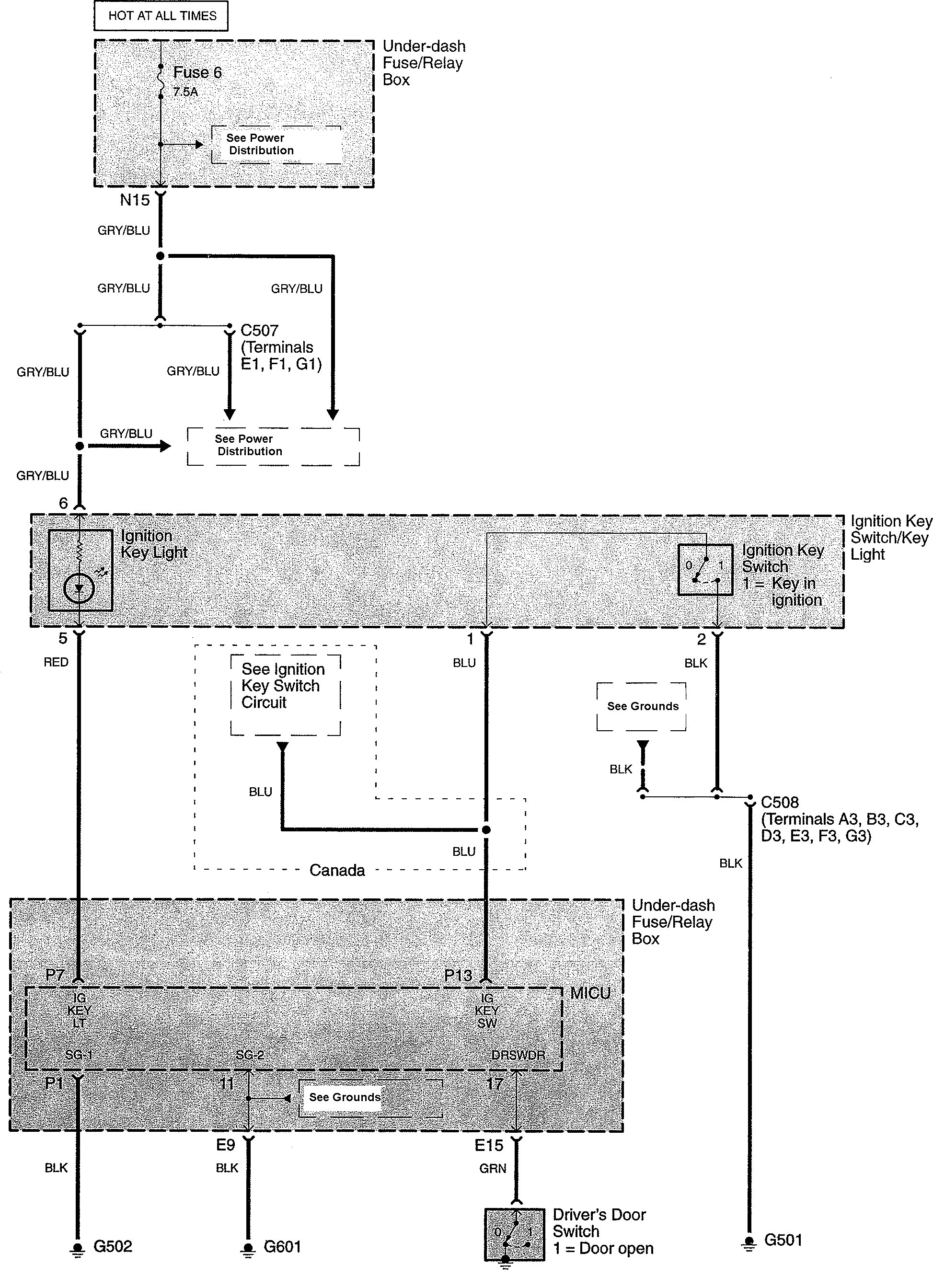

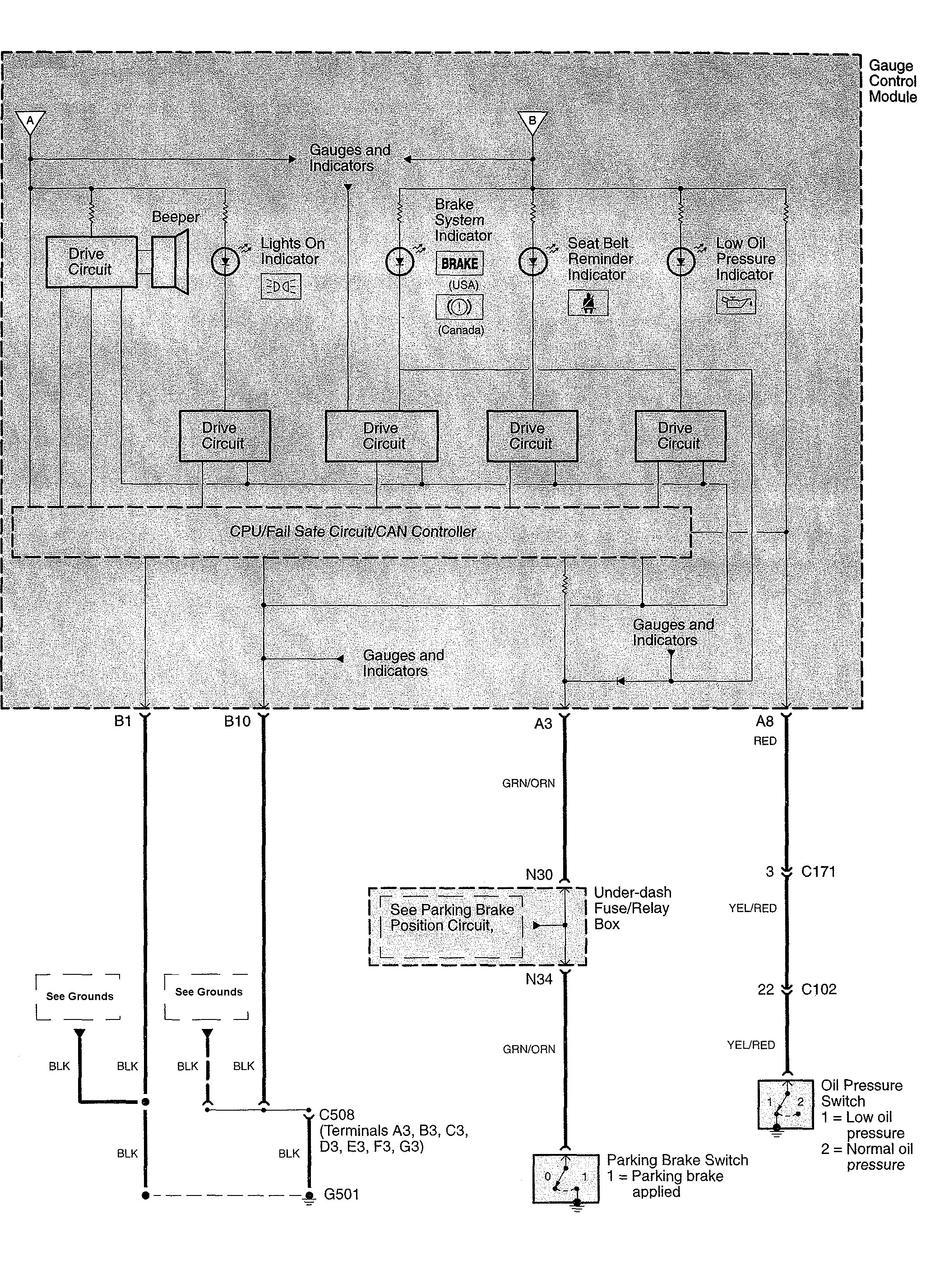

Warning indicators

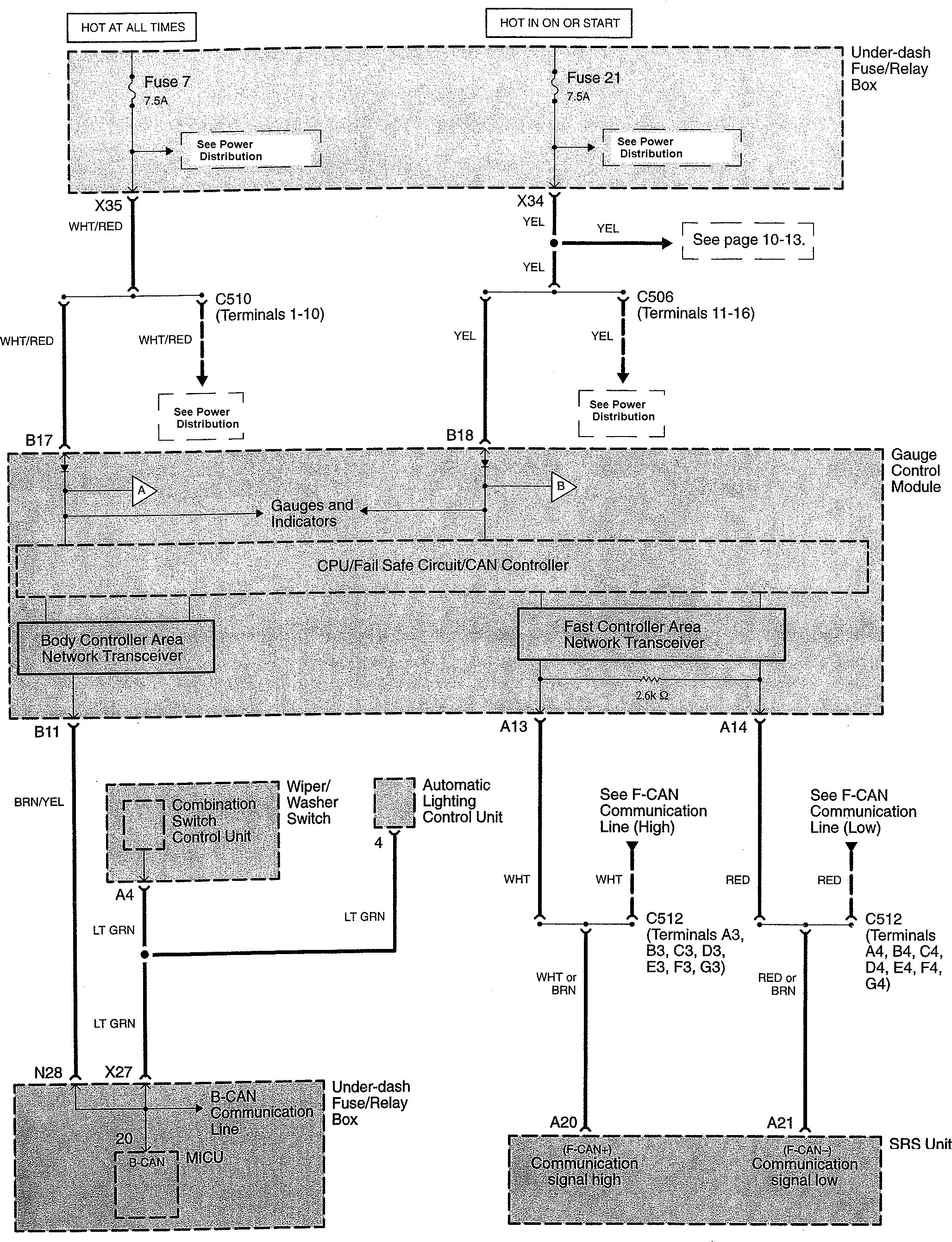

Acura TL - wiring diagram - warning indicators (part 1)
Acura TL – wiring diagram – warning indicators (part 1)
Acura TL - wiring diagram - warning indicators (part 2)
Acura TL – wiring diagram – warning indicators (part 2)

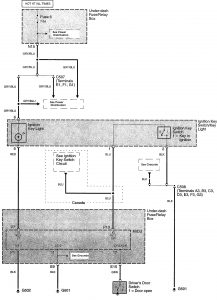

Acura TL - wiring diagram - warning indicators (part 3)
Acura TL – wiring diagram – warning indicators (part 3)
Acura TL - wiring diagram - warning indicators (part 4)
Acura TL – wiring diagram – warning indicators (part 4)
Acura TL - wiring diagram - warning indicators (part 5)
Acura TL – wiring diagram – warning indicators (part 5)

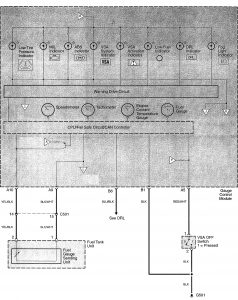

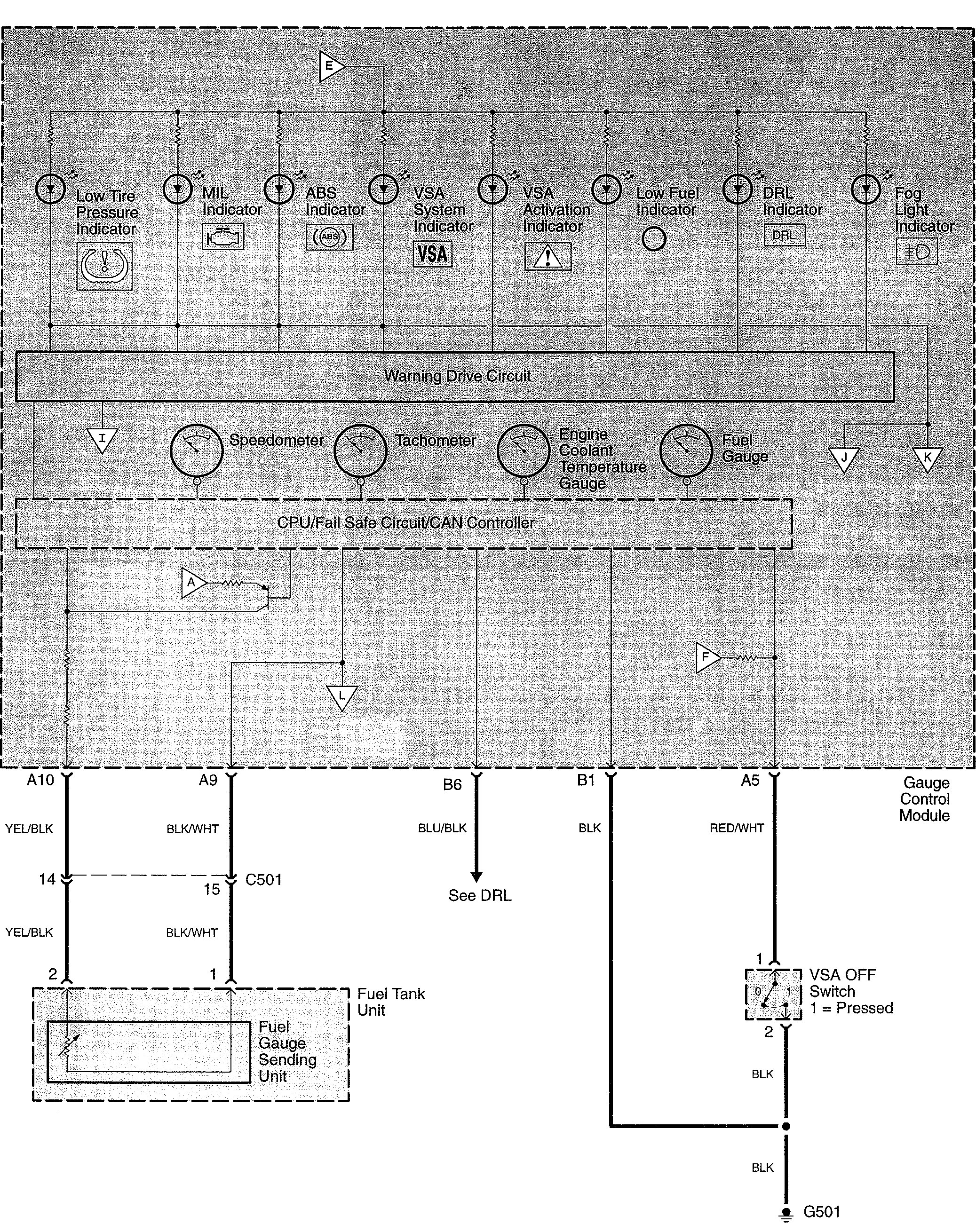

Acura TL - wiring diagram - warning indicators (part 6)
Acura TL – wiring diagram – warning indicators (part 6)

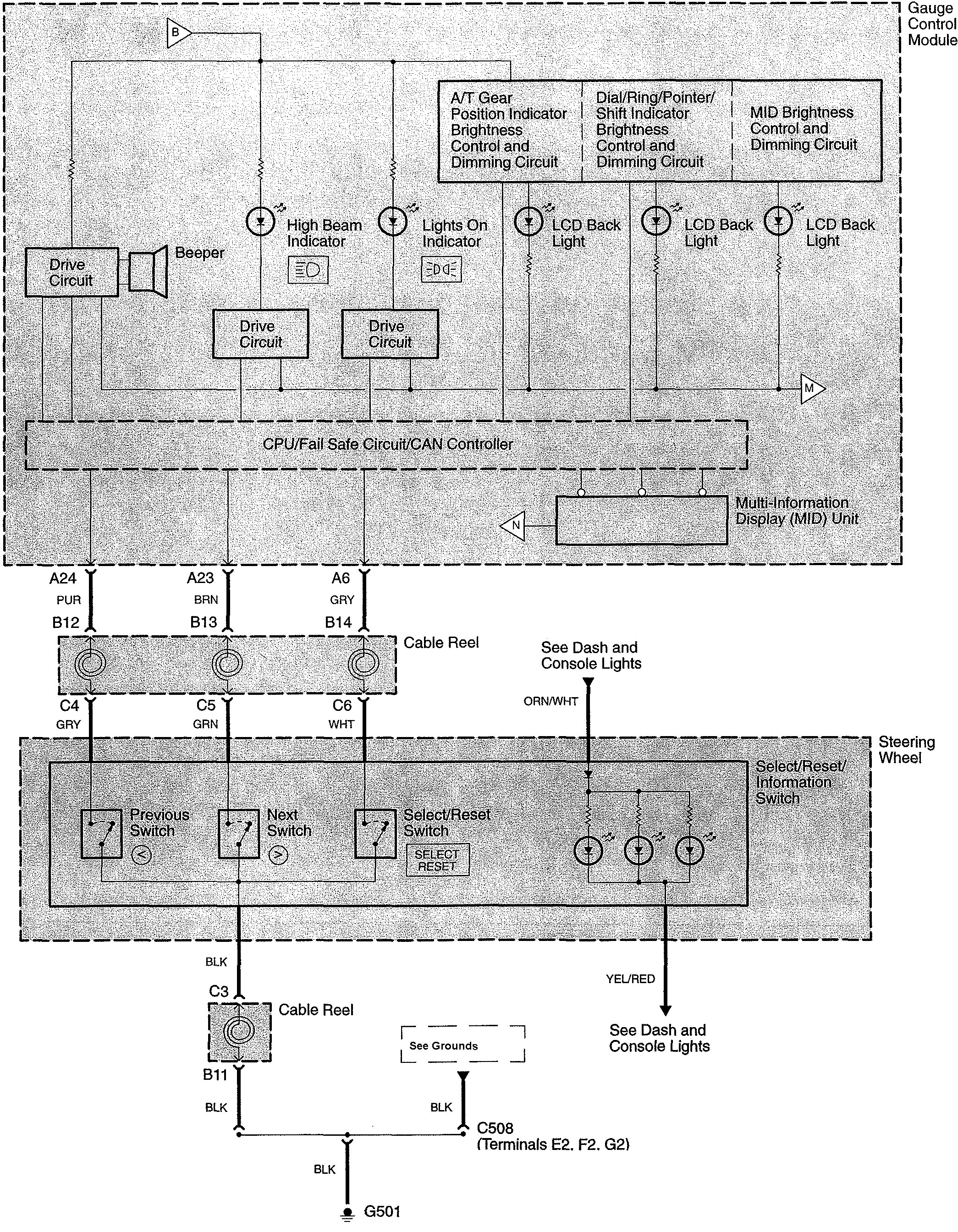

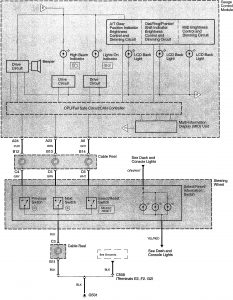

Acura TL - wiring diagram - warning indicators (part 7)
Acura TL – wiring diagram – warning indicators (part 7)

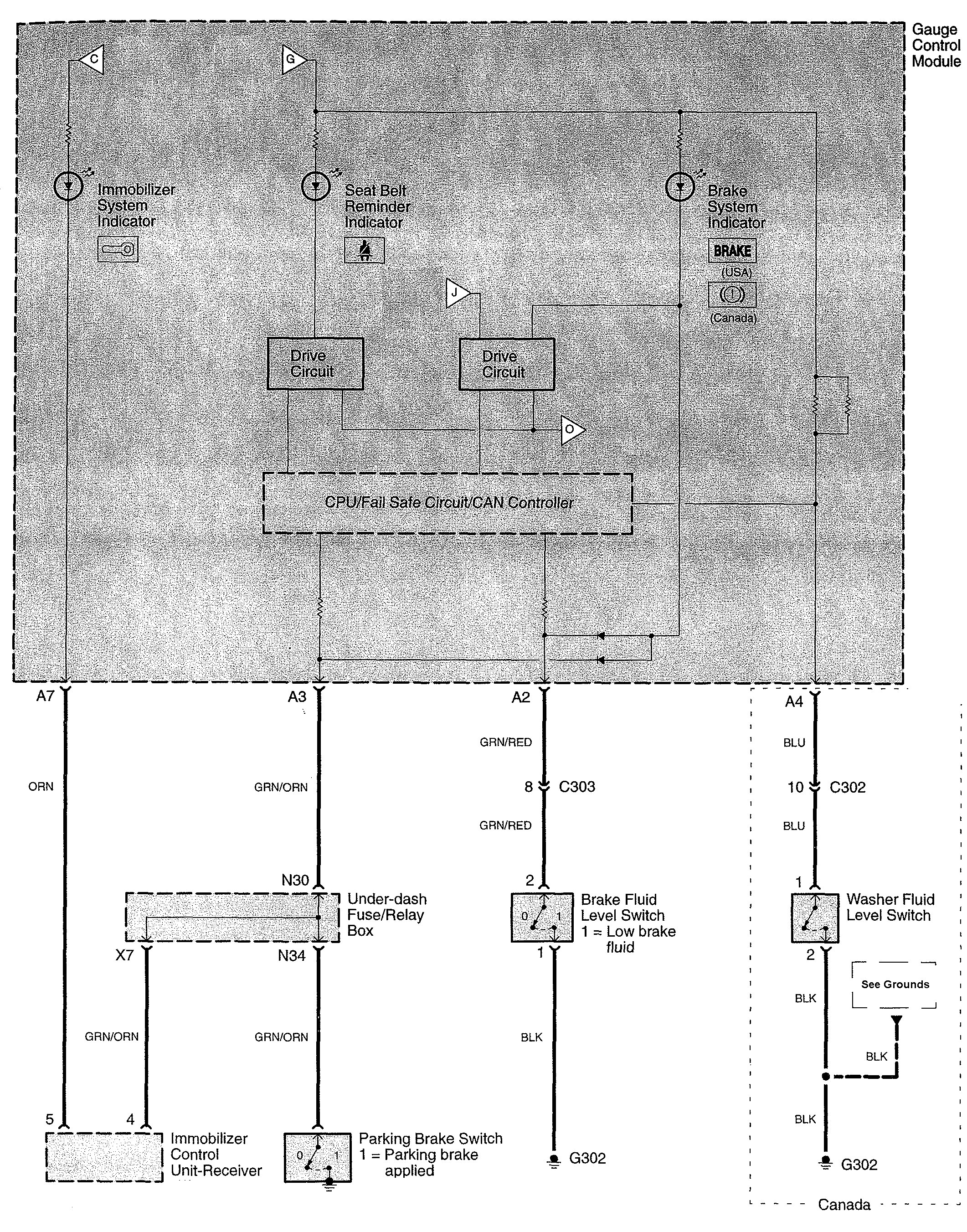

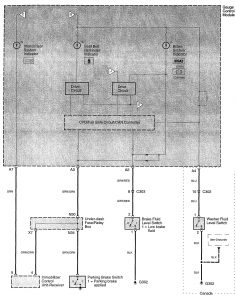

Acura TL - wiring diagram - warning indicators (part 8)
Acura TL – wiring diagram – warning indicators (part 8)

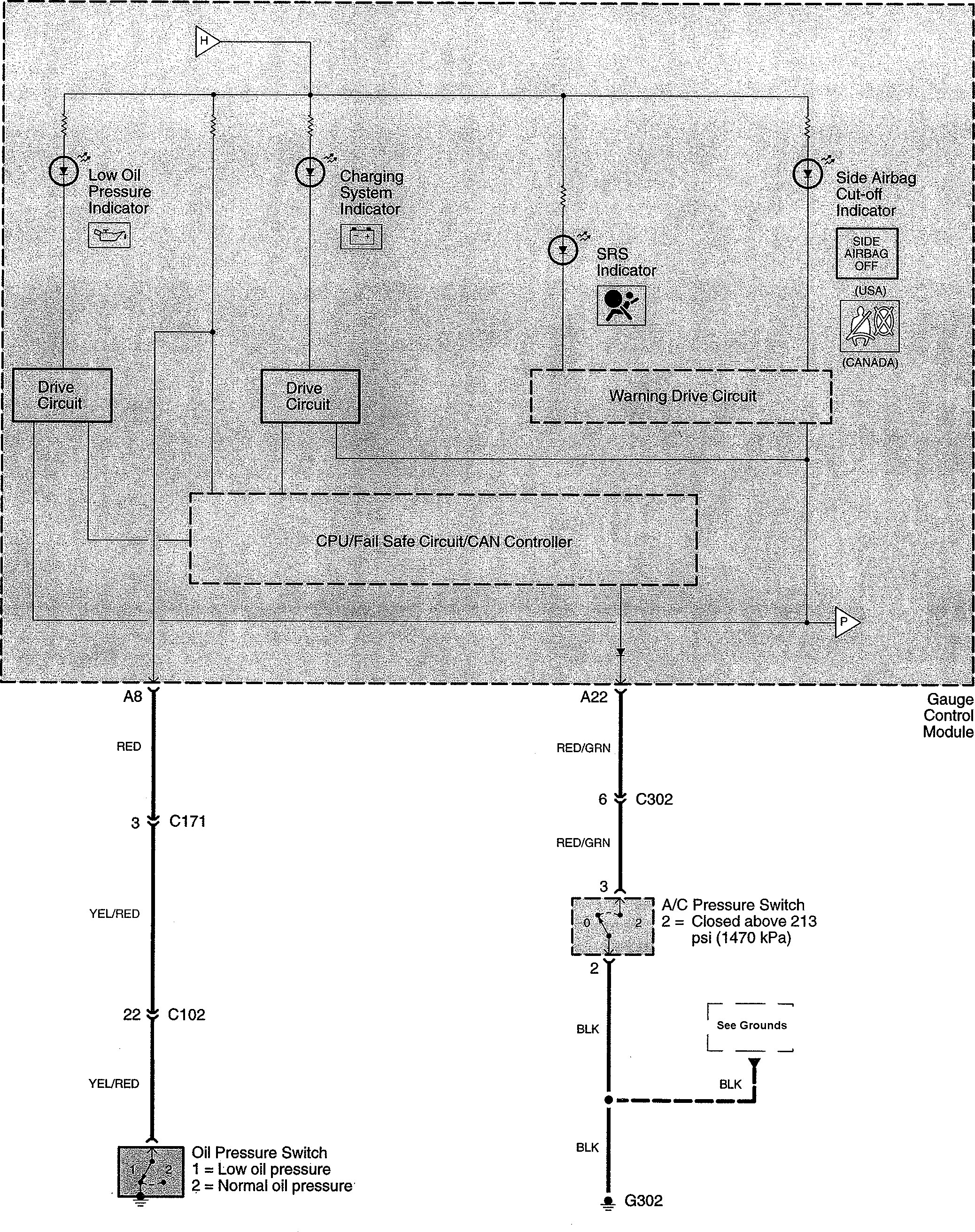

Acura TL - wiring diagram - warning indicators (part 9)
Acura TL – wiring diagram – warning indicators (part 9)

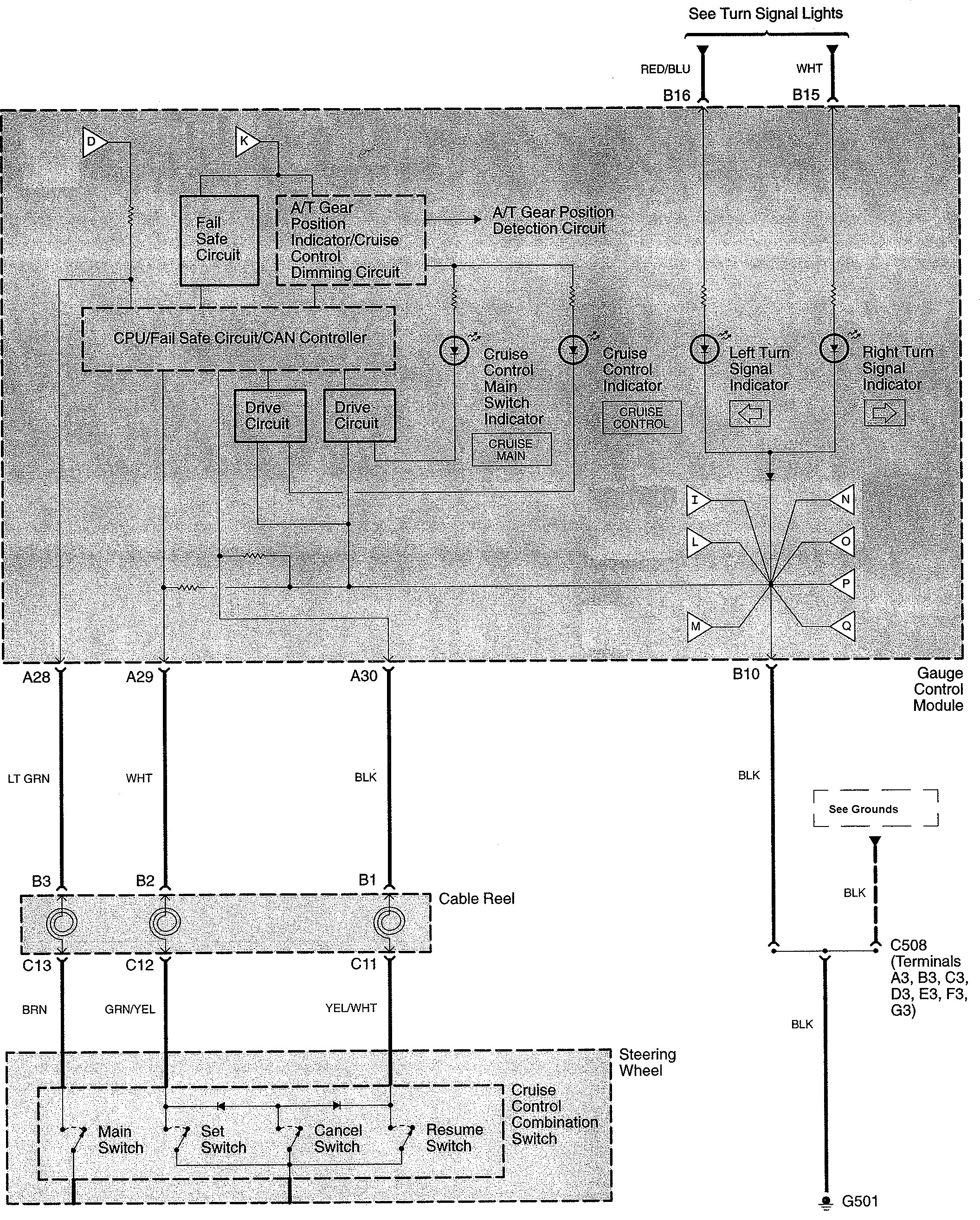

Acura TL - wiring diagram - warning indicators (part 10)
Acura TL – wiring diagram – warning indicators (part 10)

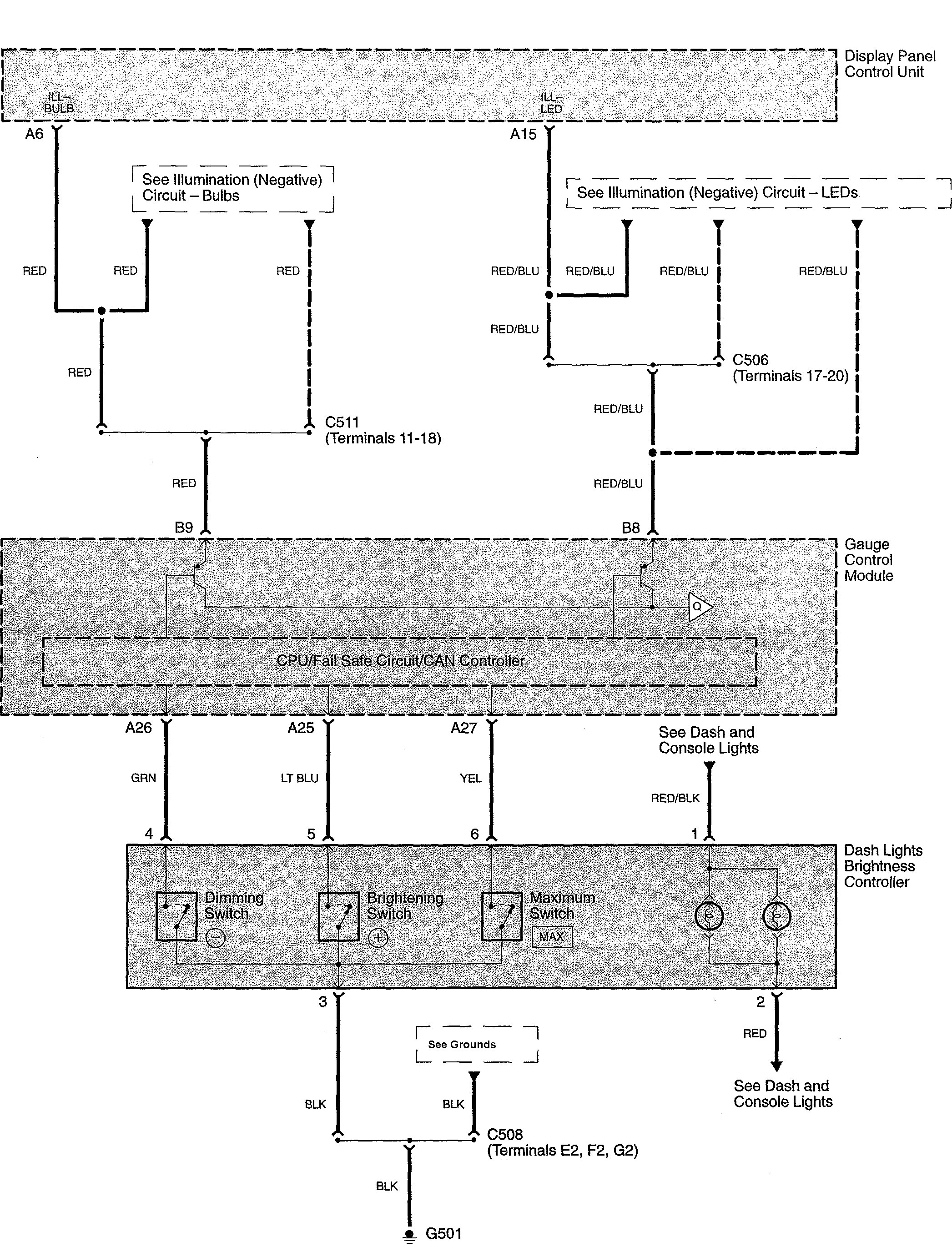

Acura TL - wiring diagram - warning indicators (part 11)
Acura TL – wiring diagram – warning indicators (part 11)

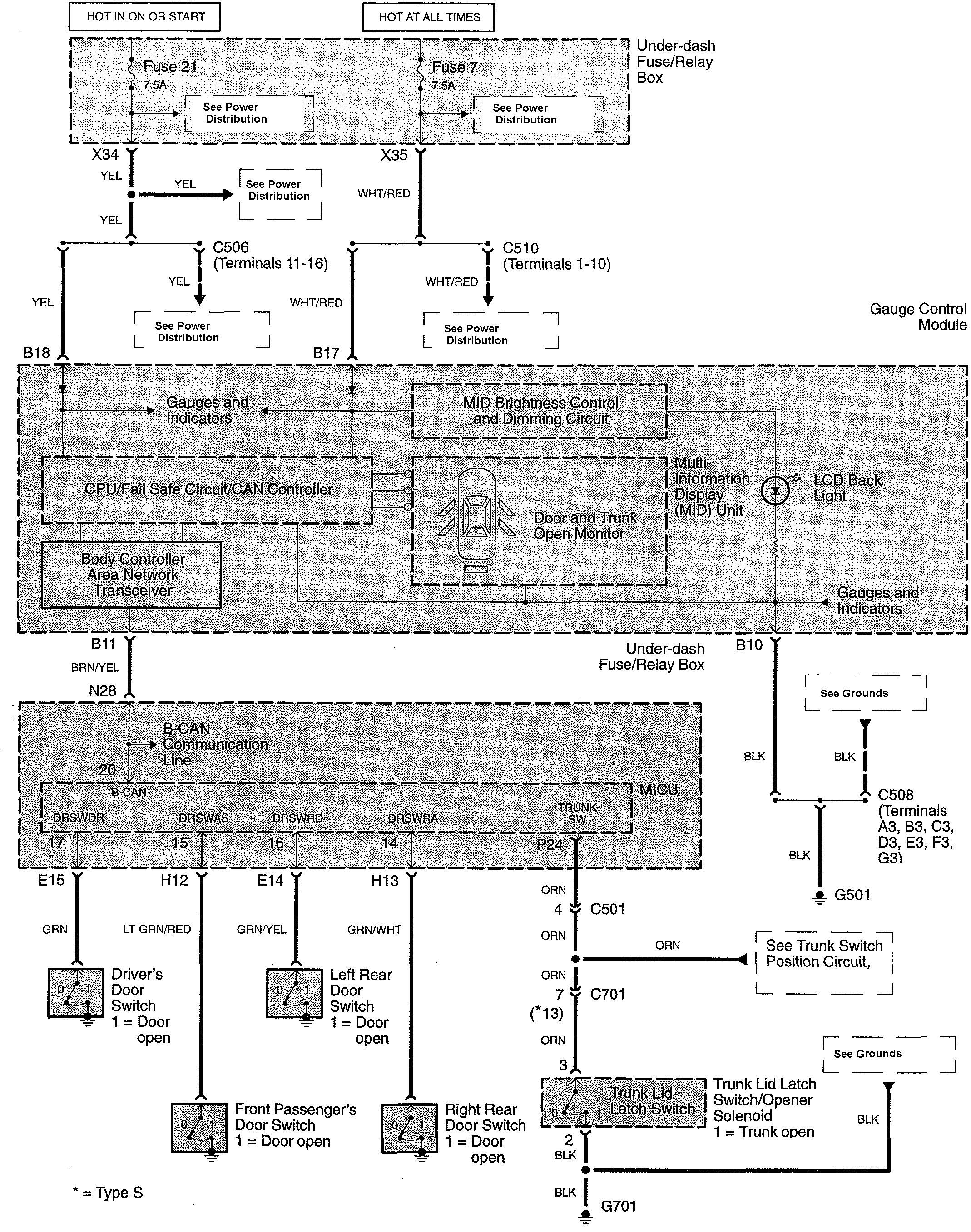

Acura TL - wiring diagram - warning indicators (part 12)
Acura TL – wiring diagram – warning indicators (part 12)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
