Acura TL (2009 – 2010) – wiring diagrams – cooling fans

Acura TL (2009 – 2010) – wiring diagrams – cooling fans

Year of productions:  2009, 2010

Cooling fans

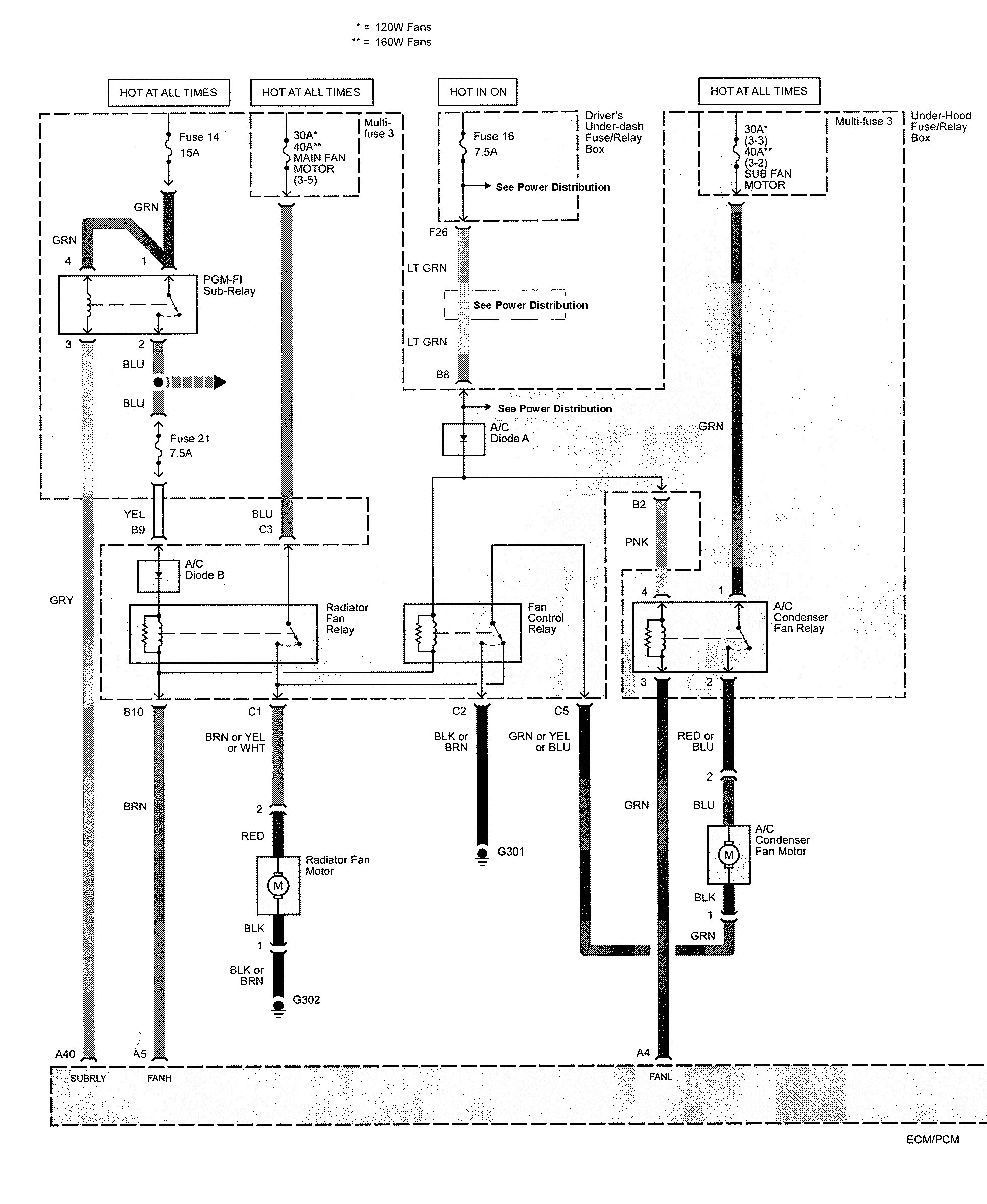

Acura TL - wiring diagram - cooling fans (part 1)
Acura TL – wiring diagram – cooling fans (part 1)

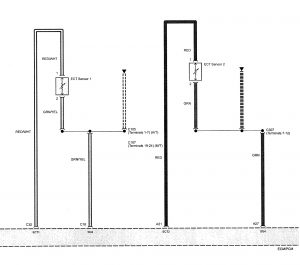

Acura TL - wiring diagram - cooling fans (part 2)
Acura TL – wiring diagram – cooling fans (part 2)

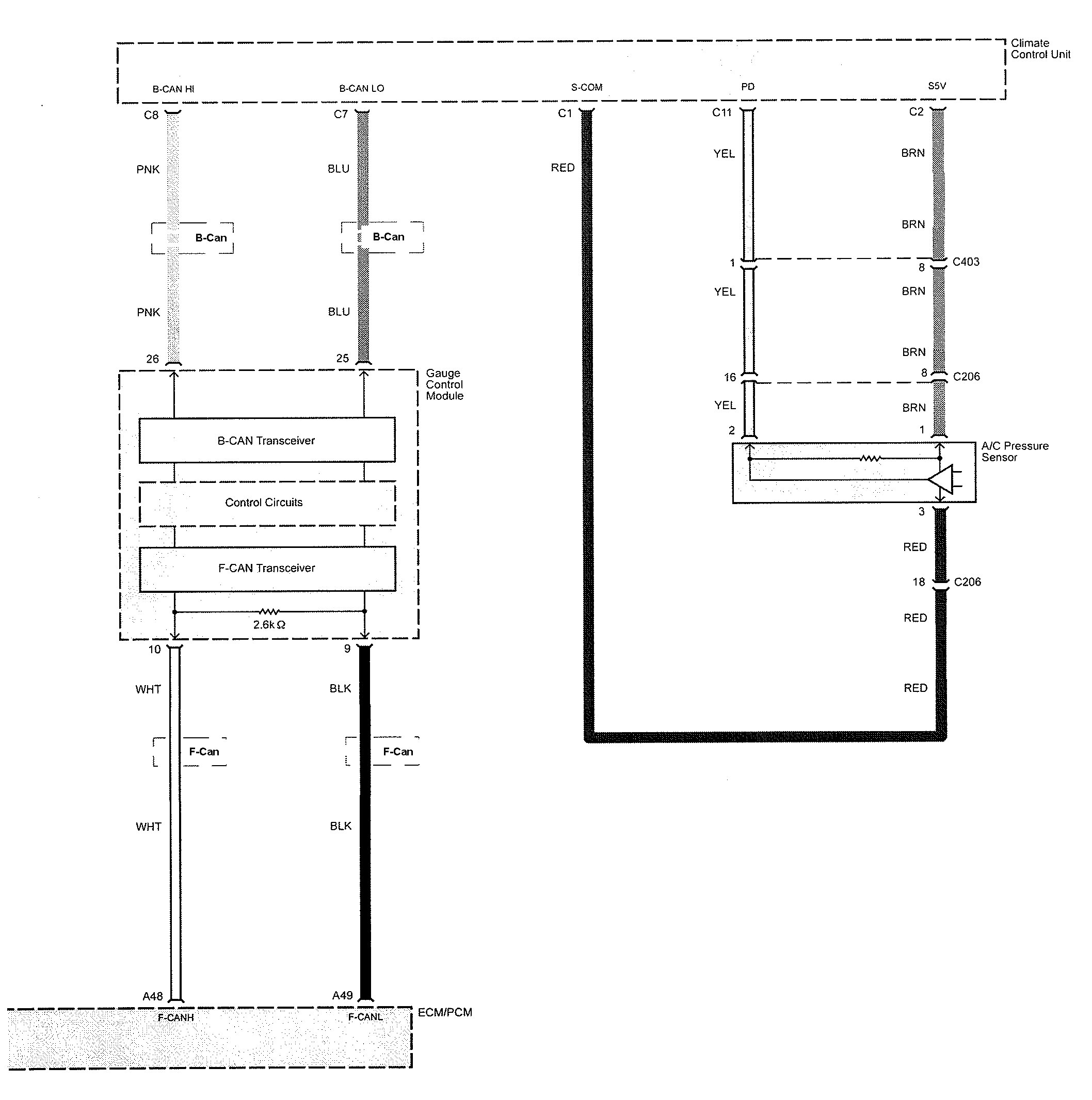

Acura TL - wiring diagram - cooling fans (part 3)
Acura TL – wiring diagram – cooling fans (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
