Acura TL (2009 – 2010) – wiring diagrams – ground distribution

27 July 2017 admin Acura, TL 0

Acura TL (2009 – 2010) – wiring diagrams – ground distribution

Year of productions: 2009, 2010

Ground distribution

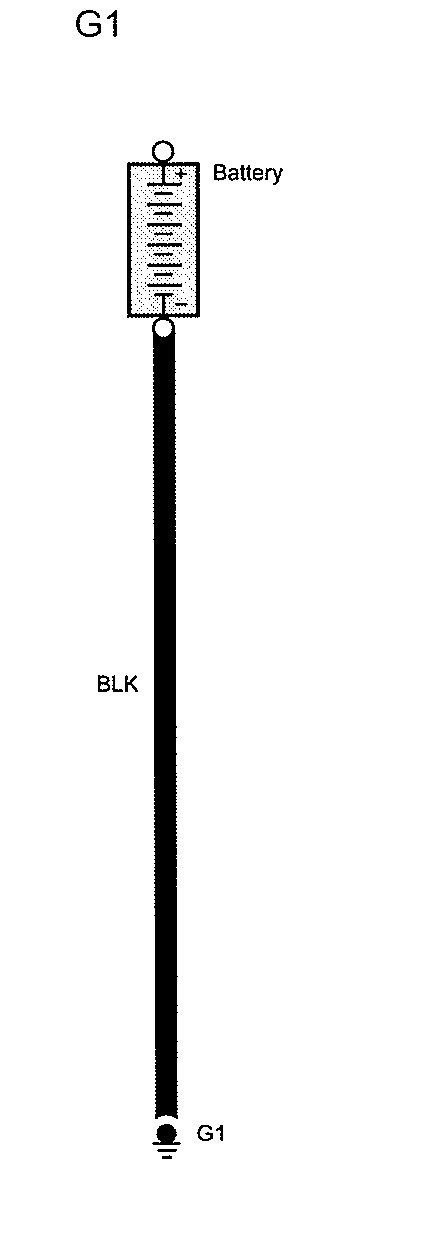

Acura TL - wiring diagram - ground distribution (part 1) — Acura TL – wiring diagram – ground distribution (part 1)

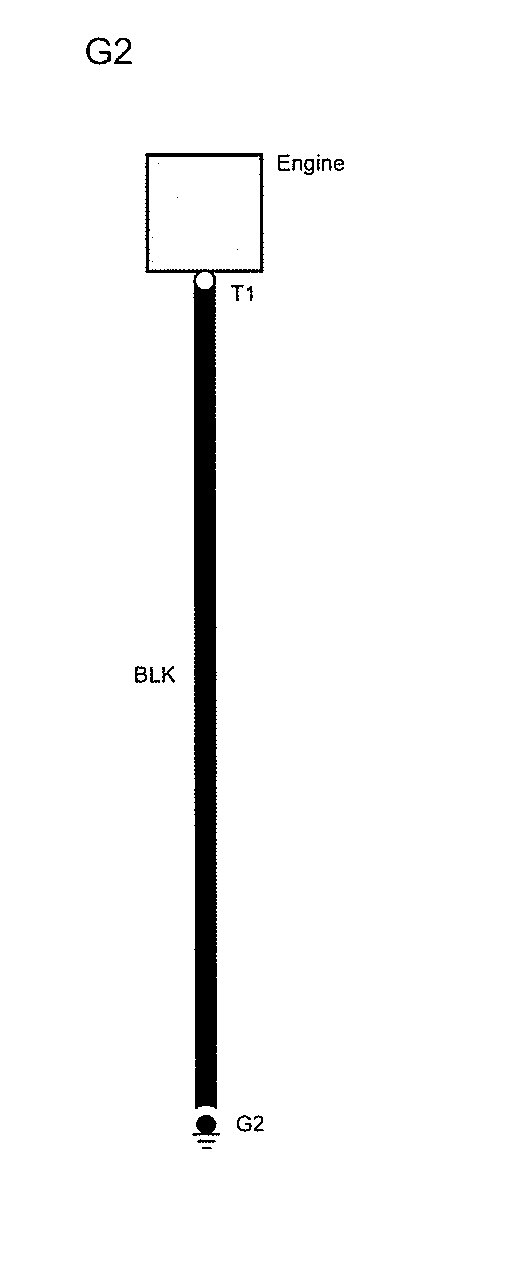

Acura TL - wiring diagram - ground distribution (part 2) — Acura TL – wiring diagram – ground distribution (part 2)

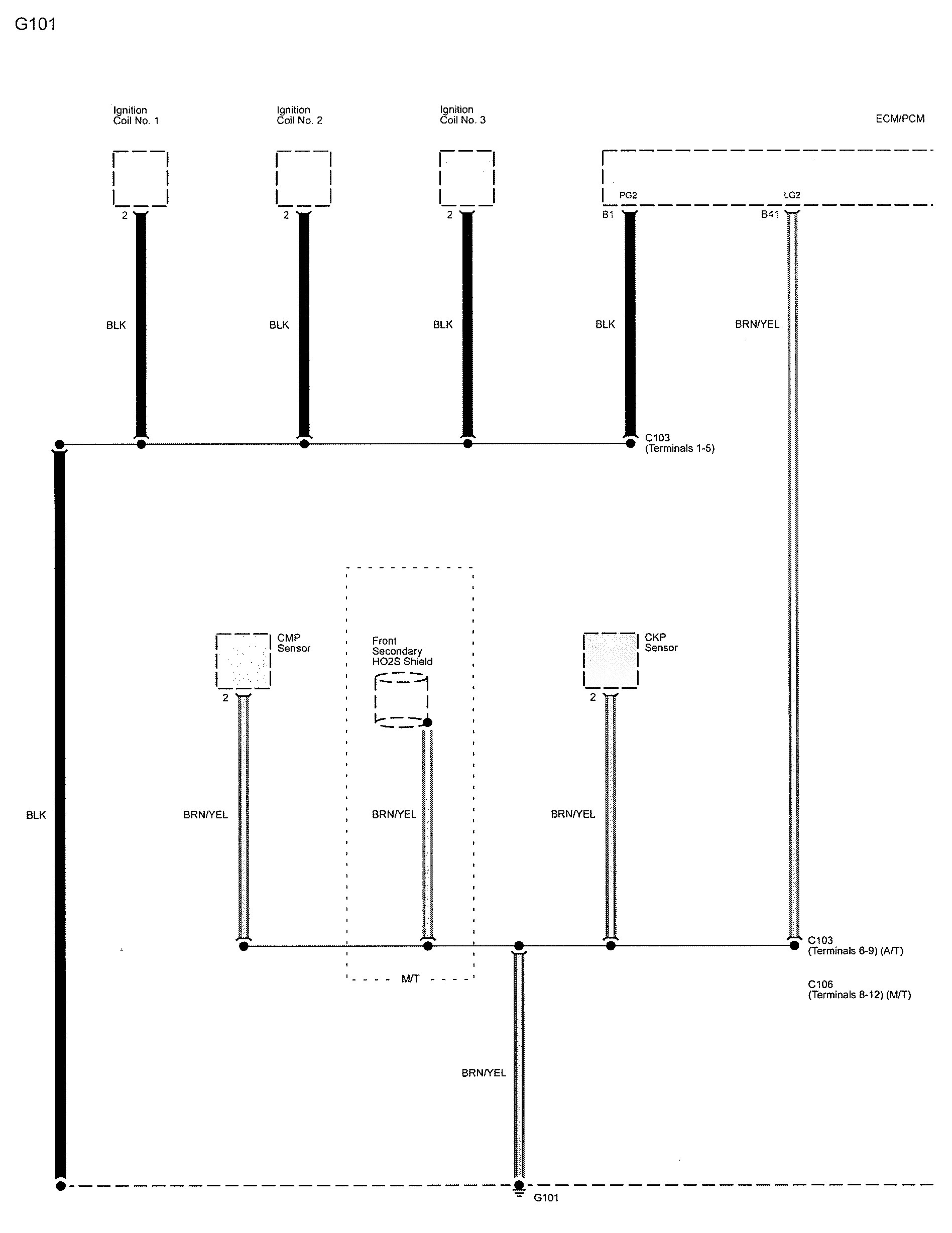

Acura TL - wiring diagram - ground distribution (part 3) — Acura TL – wiring diagram – ground distribution (part 3)

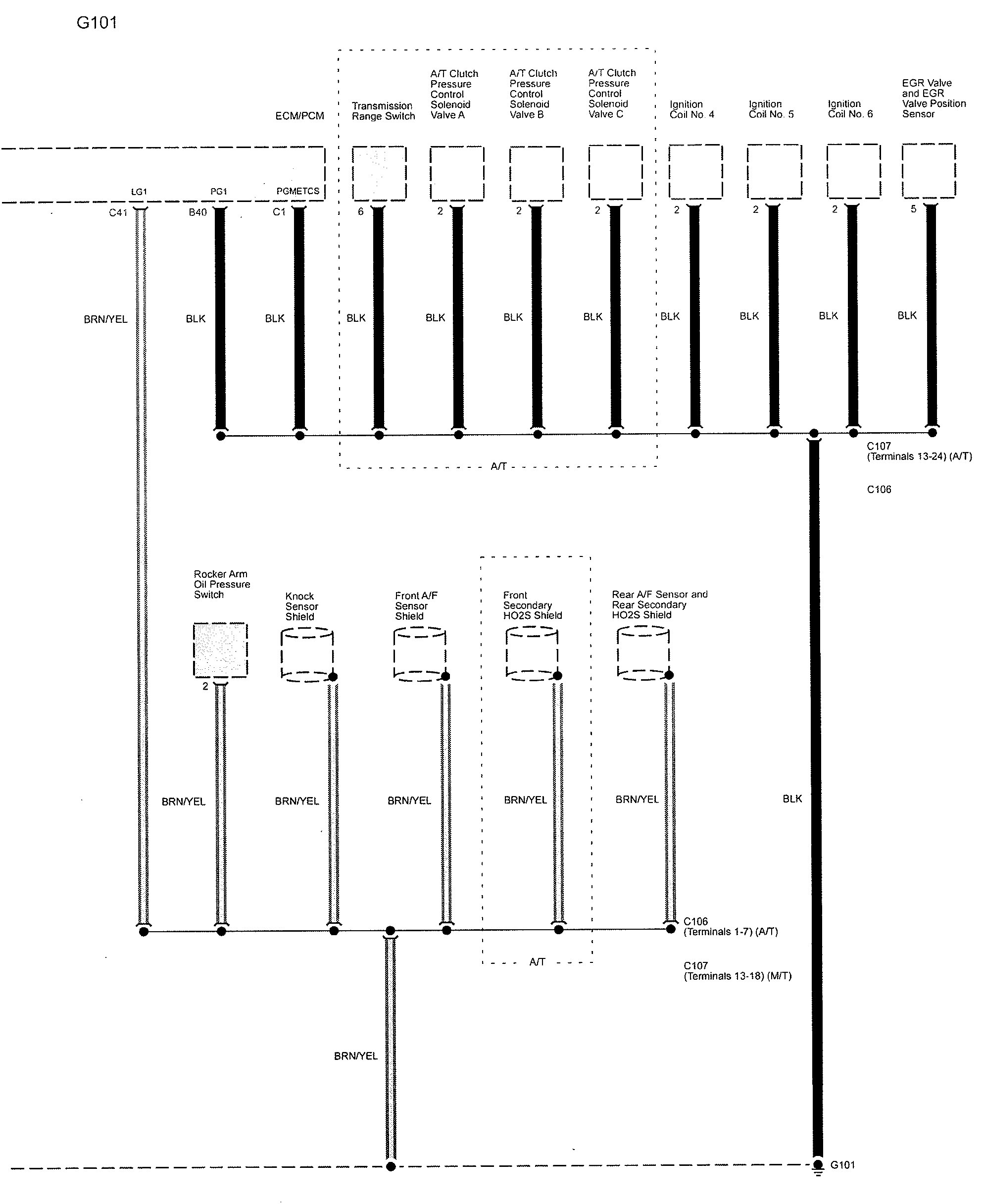

Acura TL - wiring diagram - ground distribution (part 4) — Acura TL – wiring diagram – ground distribution (part 4)

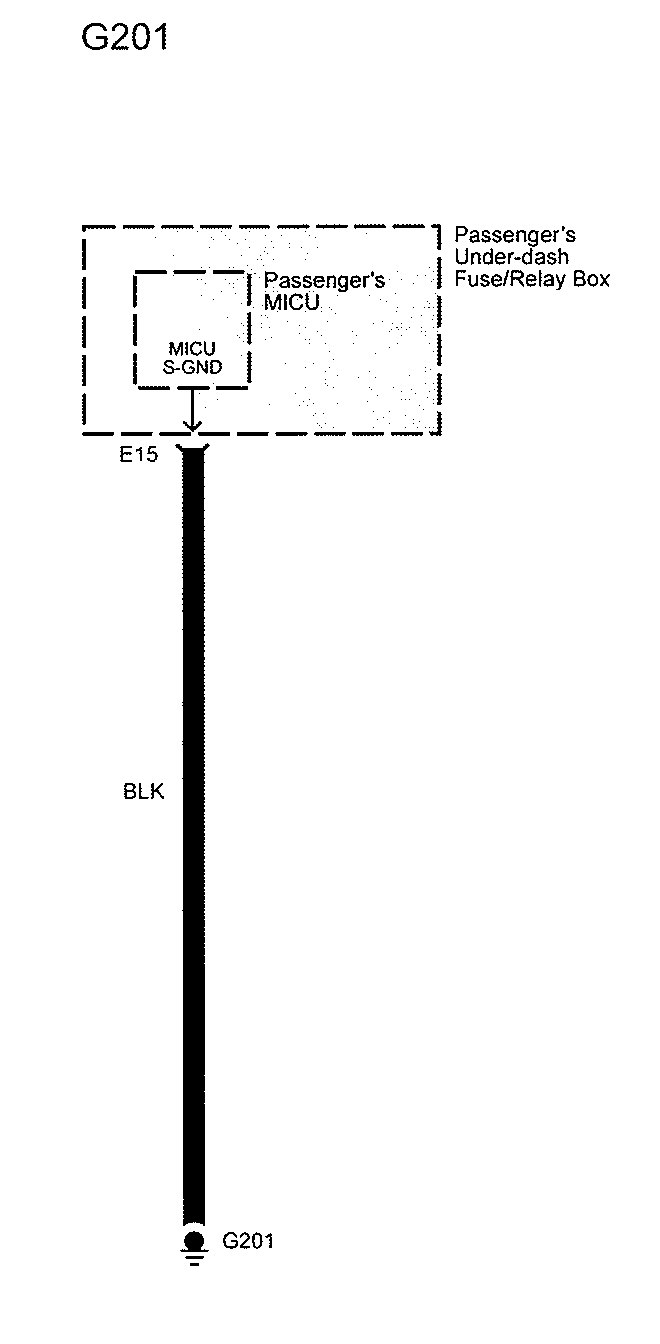

Acura TL - wiring diagram - ground distribution (part 5) — Acura TL – wiring diagram – ground distribution (part 5)

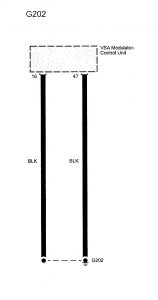

Acura TL - wiring diagram - ground distribution (part 6) — Acura TL – wiring diagram – ground distribution (part 6)

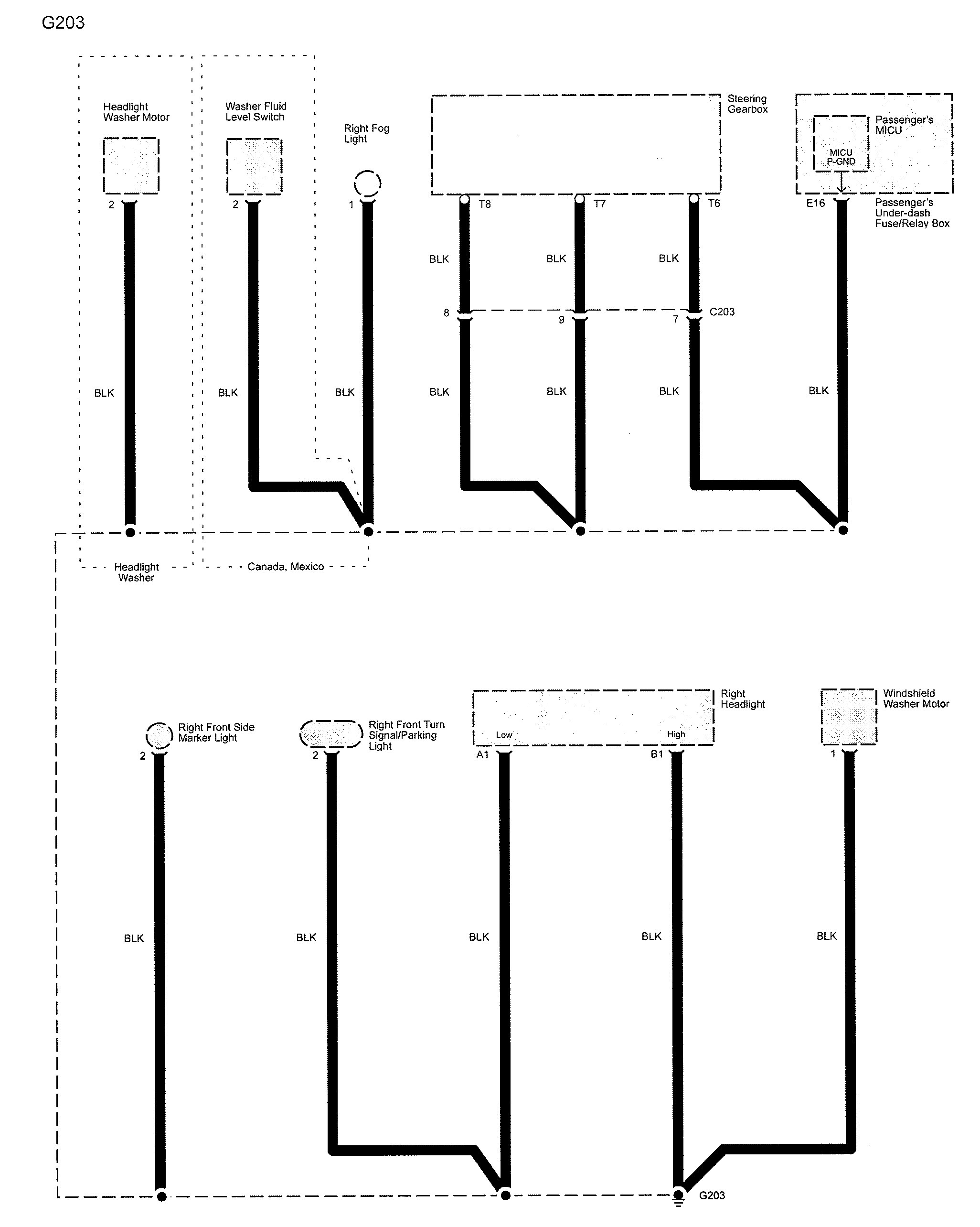

Acura TL - wiring diagram - ground distribution (part 7) — Acura TL – wiring diagram – ground distribution (part 7)

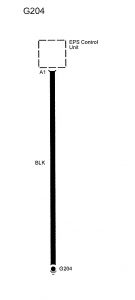

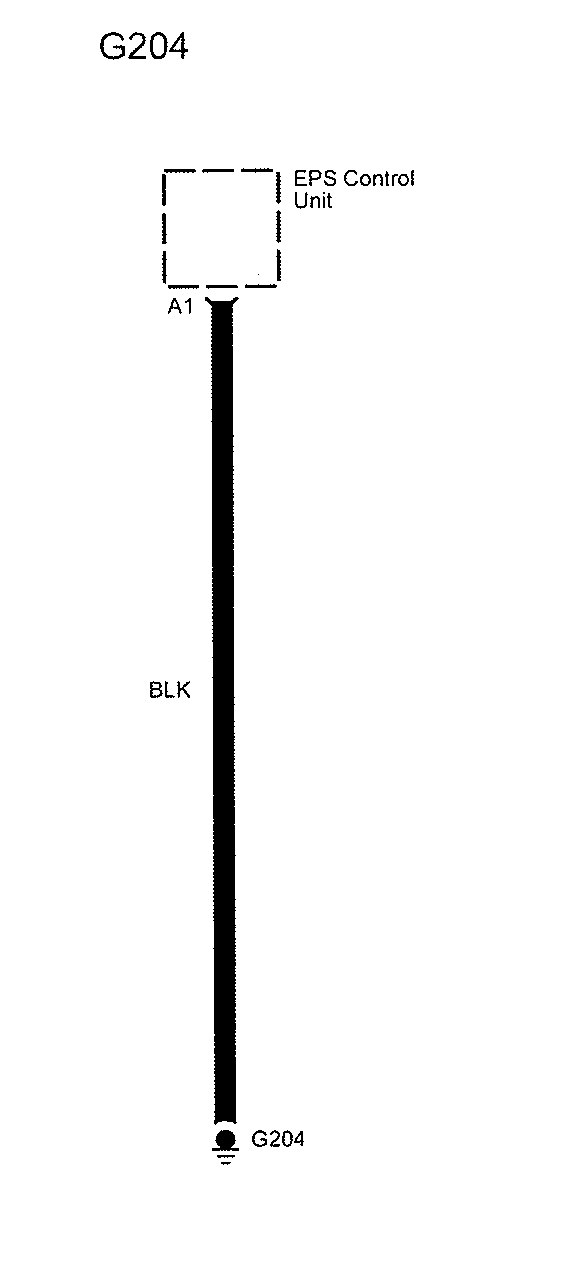

Acura TL - wiring diagram - ground distribution (part 8) — Acura TL – wiring diagram – ground distribution (part 8)

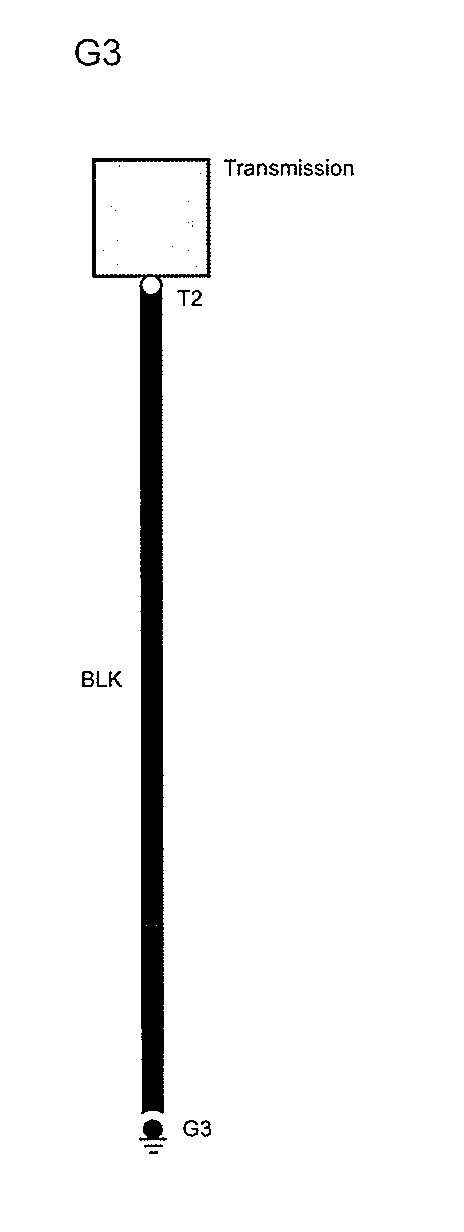

Acura TL - wiring diagram - ground distribution (part 9) — Acura TL – wiring diagram – ground distribution (part 9)

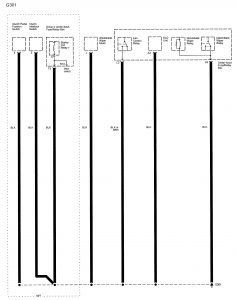

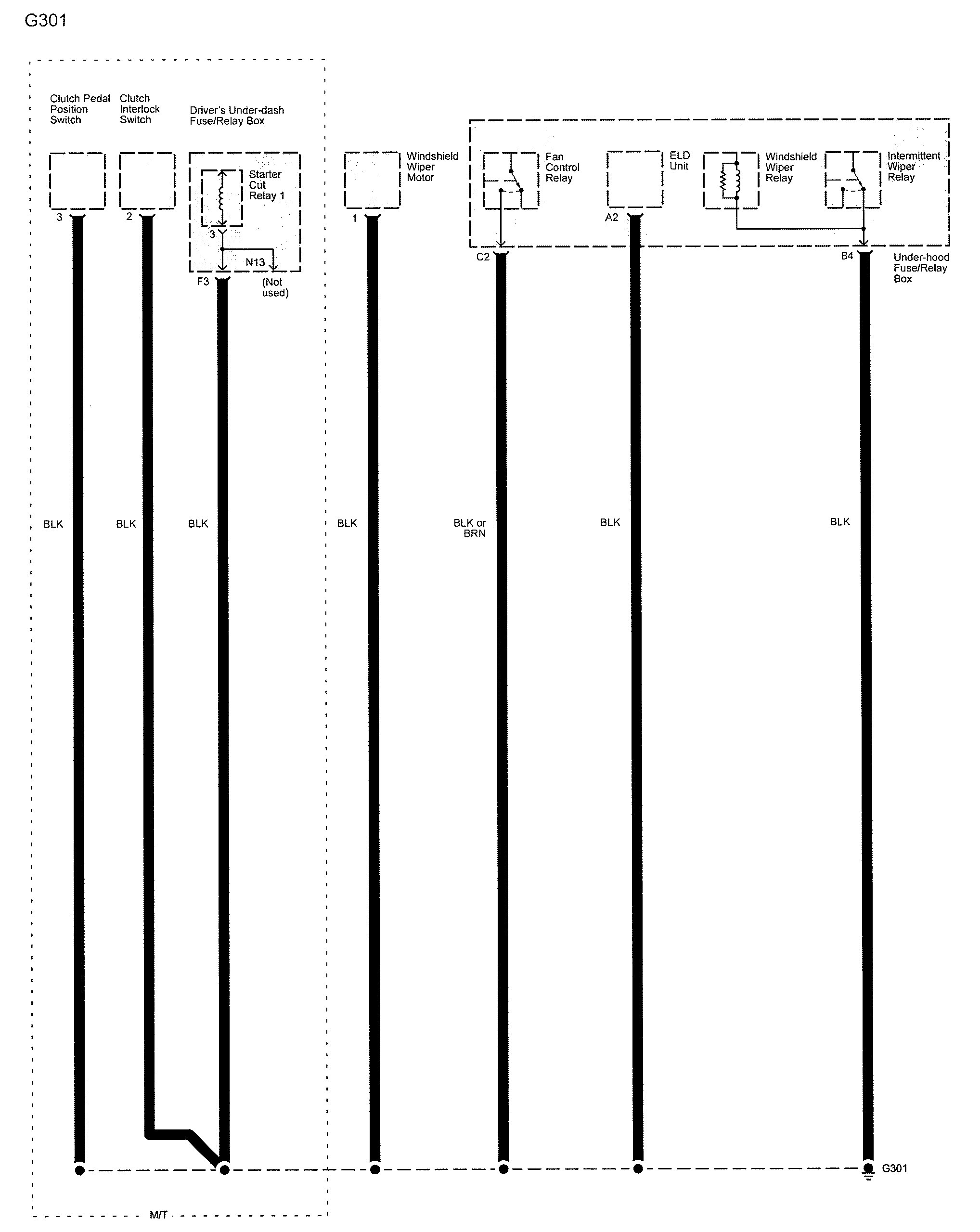

Acura TL - wiring diagram - ground distribution (part 10) — Acura TL – wiring diagram – ground distribution (part 10)

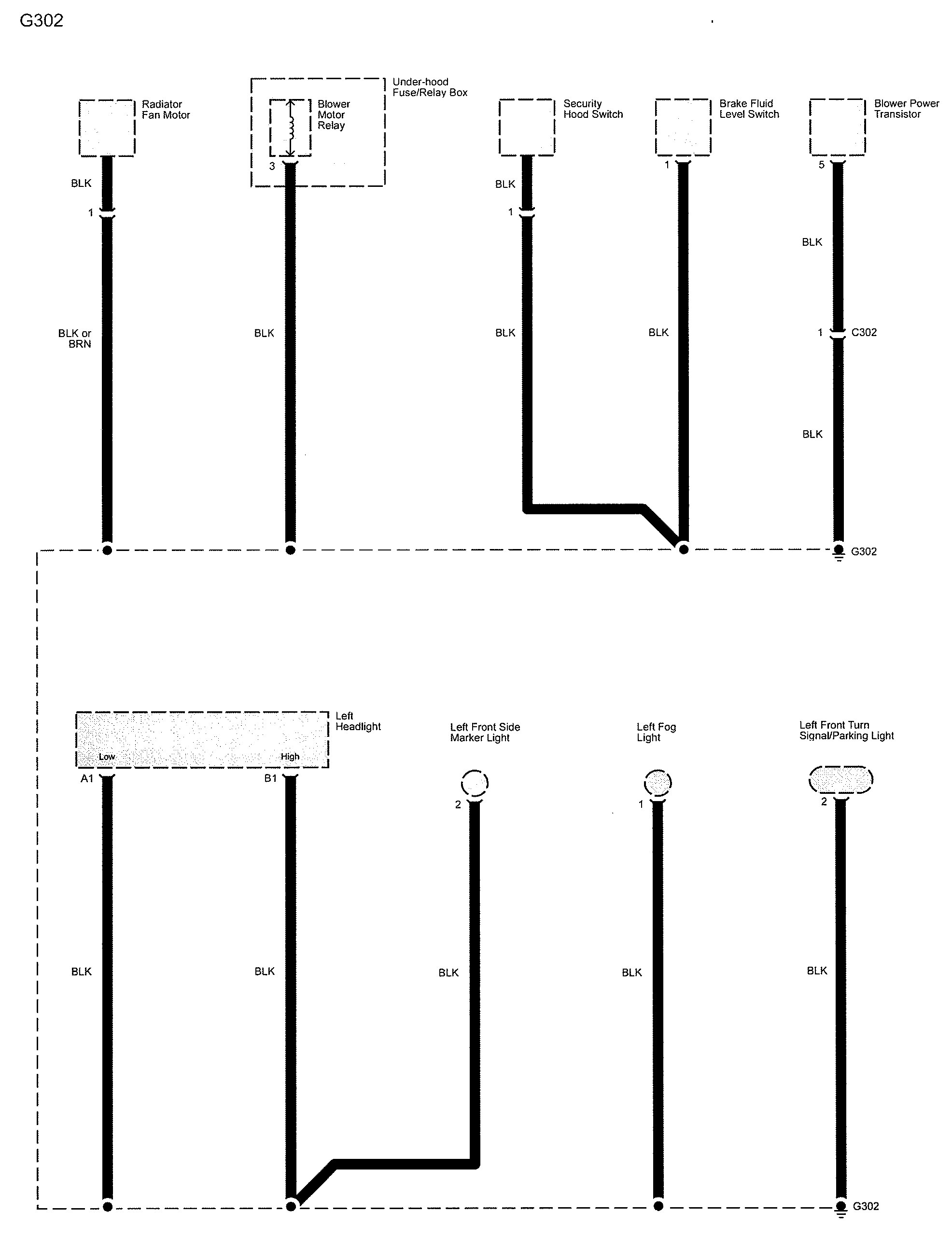

Acura TL - wiring diagram - ground distribution (part 11) — Acura TL – wiring diagram – ground distribution (part 11)

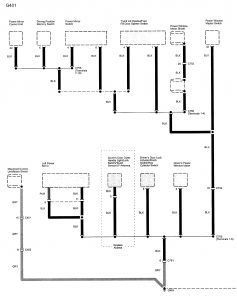

Acura TL - wiring diagram - ground distribution (part 12) — Acura TL – wiring diagram – ground distribution (part 12)

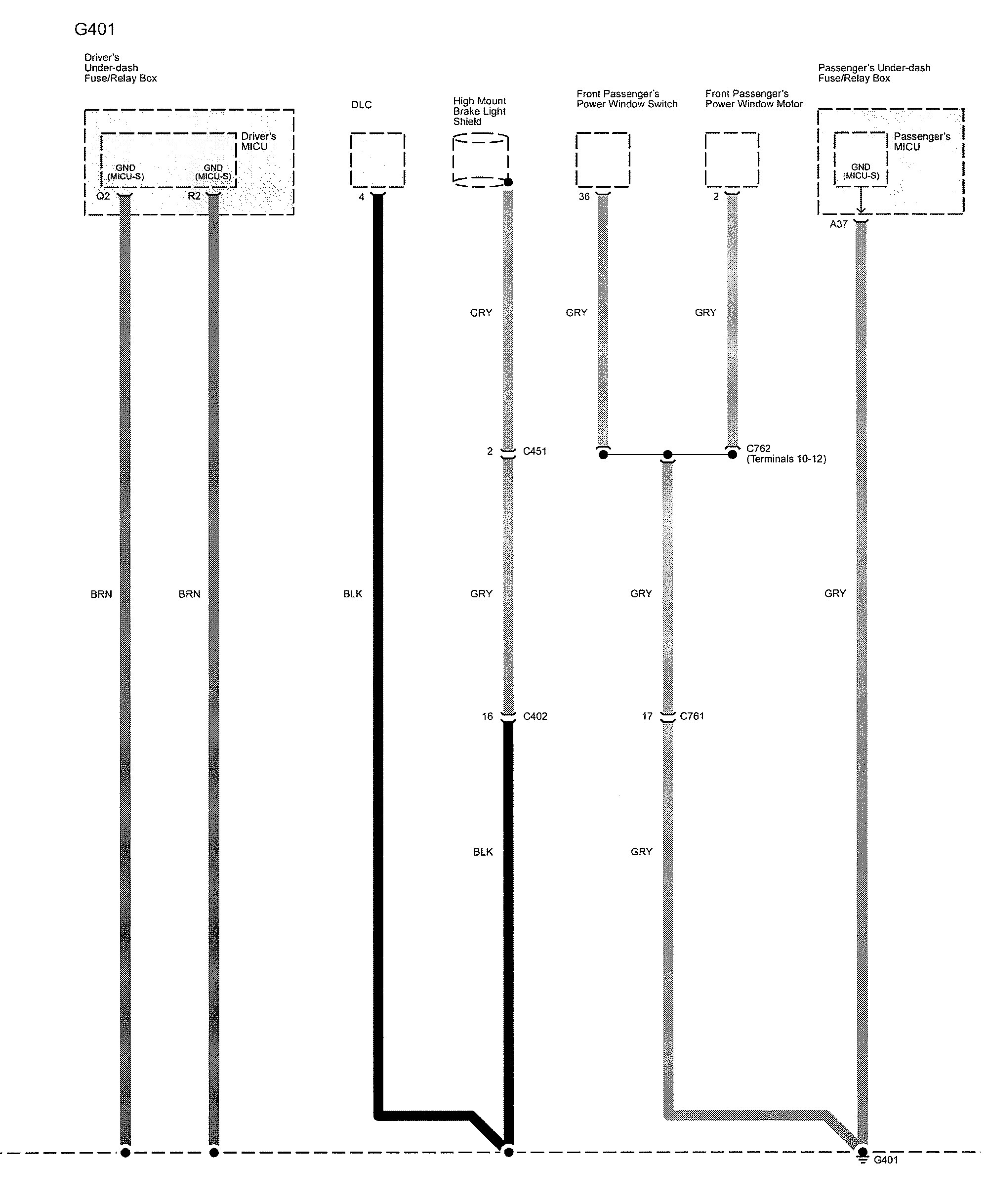

Acura TL - wiring diagram - ground distribution (part 13) — Acura TL – wiring diagram – ground distribution (part 13)

Acura TL - wiring diagram - ground distribution (part 14) — Acura TL – wiring diagram – ground distribution (part 14)

Acura TL - wiring diagram - ground distribution (part 15) — Acura TL – wiring diagram – ground distribution (part 15)

Acura TL - wiring diagram - ground distribution (part 16) — Acura TL – wiring diagram – ground distribution (part 16)

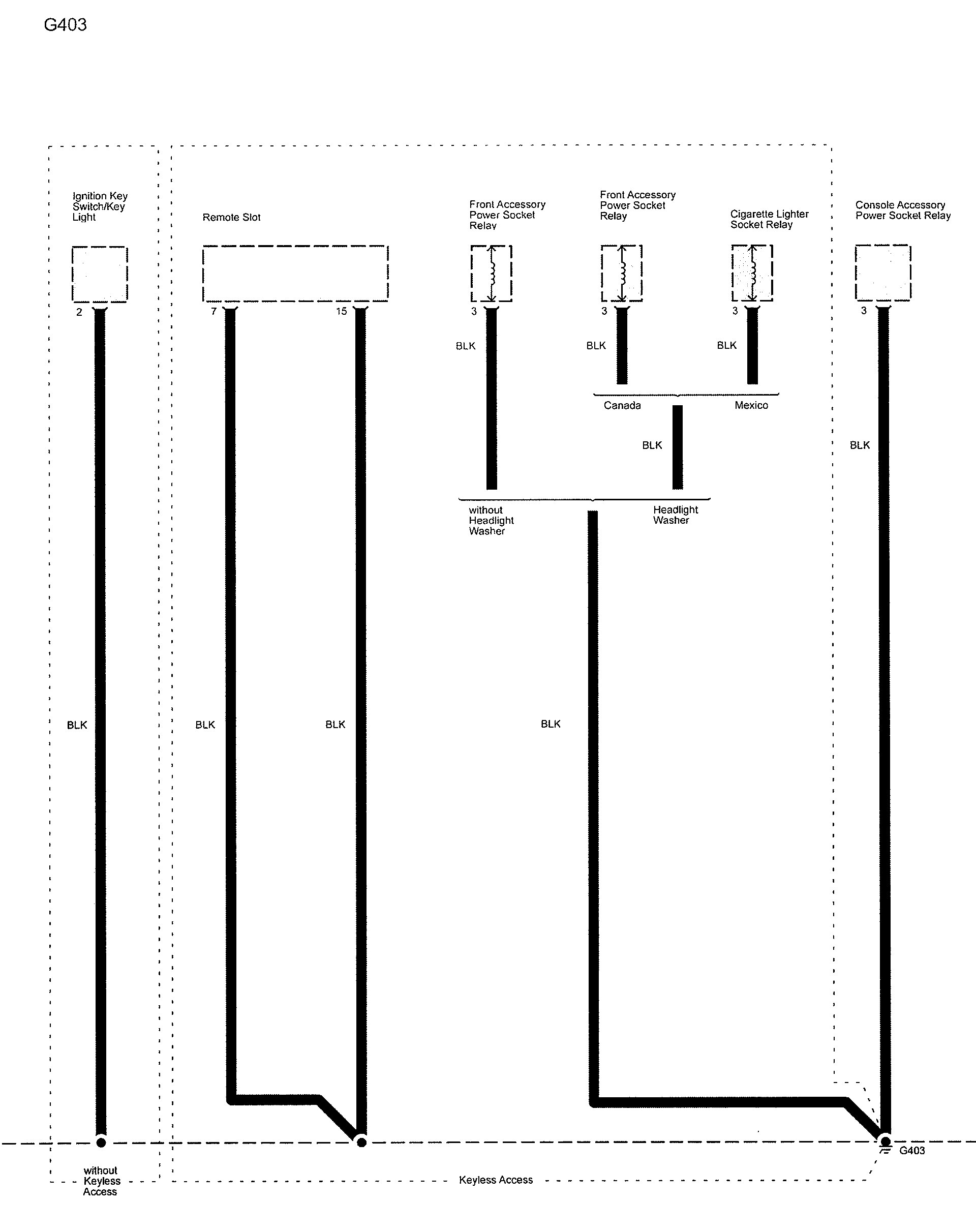

Acura TL - wiring diagram - ground distribution (part 17) — Acura TL – wiring diagram – ground distribution (part 17)

Acura TL - wiring diagram - ground distribution (part 18) — Acura TL – wiring diagram – ground distribution (part 18)

Acura TL - wiring diagram - ground distribution (part 19) — Acura TL – wiring diagram – ground distribution (part 19)

Acura TL - wiring diagram - ground distribution (part 20) — Acura TL – wiring diagram – ground distribution (part 20)

Acura TL - wiring diagram - ground distribution (part 21) — Acura TL – wiring diagram – ground distribution (part 21)

Acura TL - wiring diagram - ground distribution (part 22) — Acura TL – wiring diagram – ground distribution (part 22)

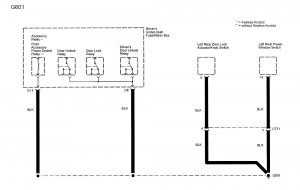

Acura TL - wiring diagram - ground distribution (part 23) — Acura TL – wiring diagram – ground distribution (part 23)

Acura TL - wiring diagram - ground distribution (part 24) — Acura TL – wiring diagram – ground distribution (part 24)

Acura TL - wiring diagram - ground distribution (part 25) — Acura TL – wiring diagram – ground distribution (part 25)

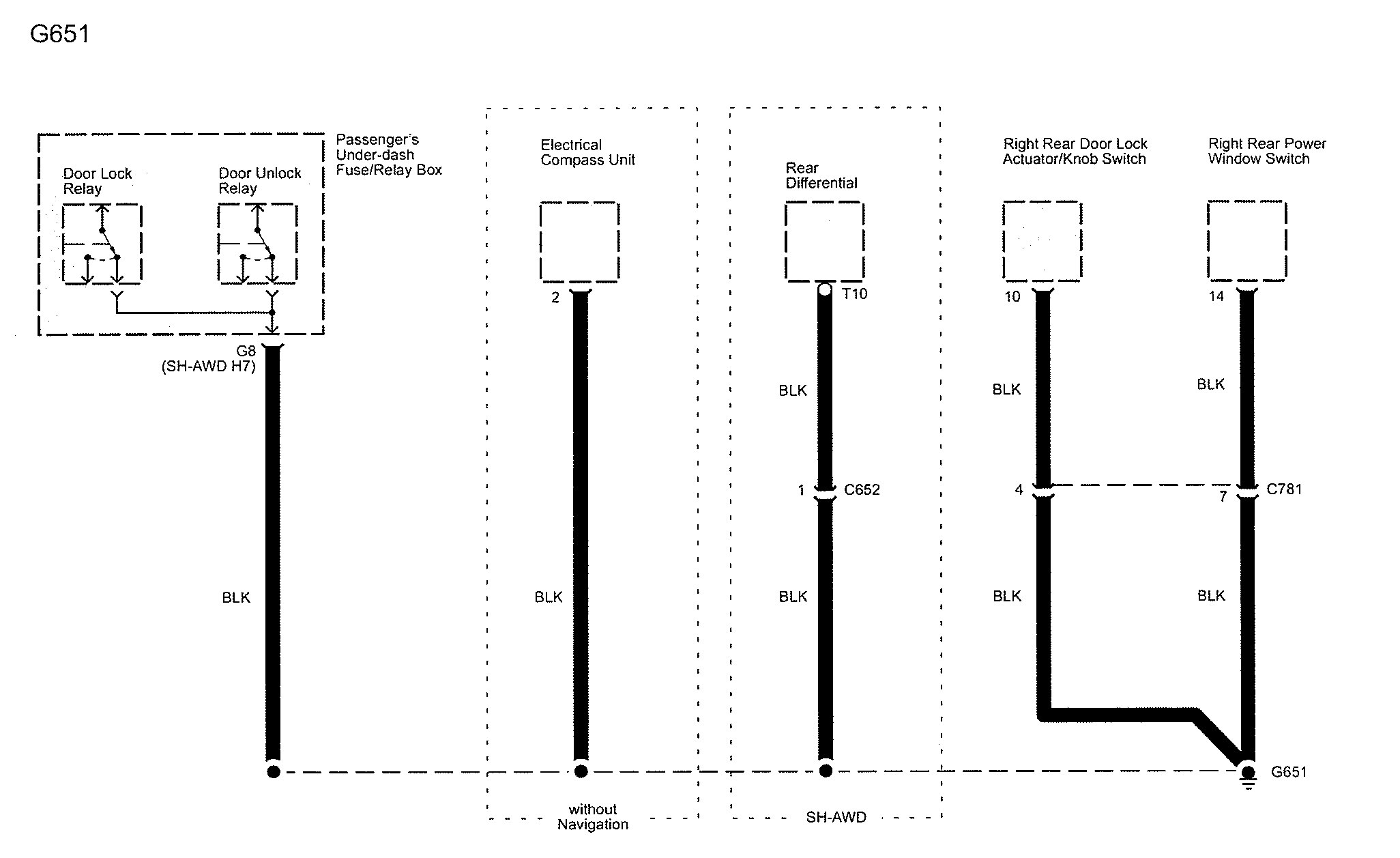

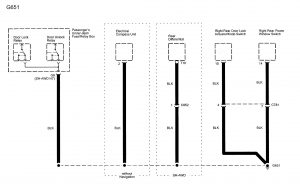

Acura TL - wiring diagram - ground distribution (part 26) — Acura TL – wiring diagram – ground distribution (part 26)

Acura TL - wiring diagram - ground distribution (part 27) — Acura TL – wiring diagram – ground distribution (part 27)

Acura TL - wiring diagram - ground distribution (part 28) — Acura TL – wiring diagram – ground distribution (part 28)

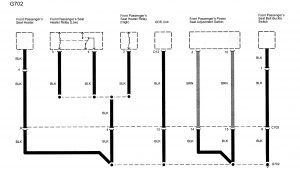

Acura TL - wiring diagram - ground distribution (part 29) — Acura TL – wiring diagram – ground distribution (part 29)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
