Acura TL (2009 – 2010) – wiring diagrams – heated seats

Acura TL (2009 – 2010) – wiring diagrams – heated seats

Year of productions:  2009, 2010

Heated seats

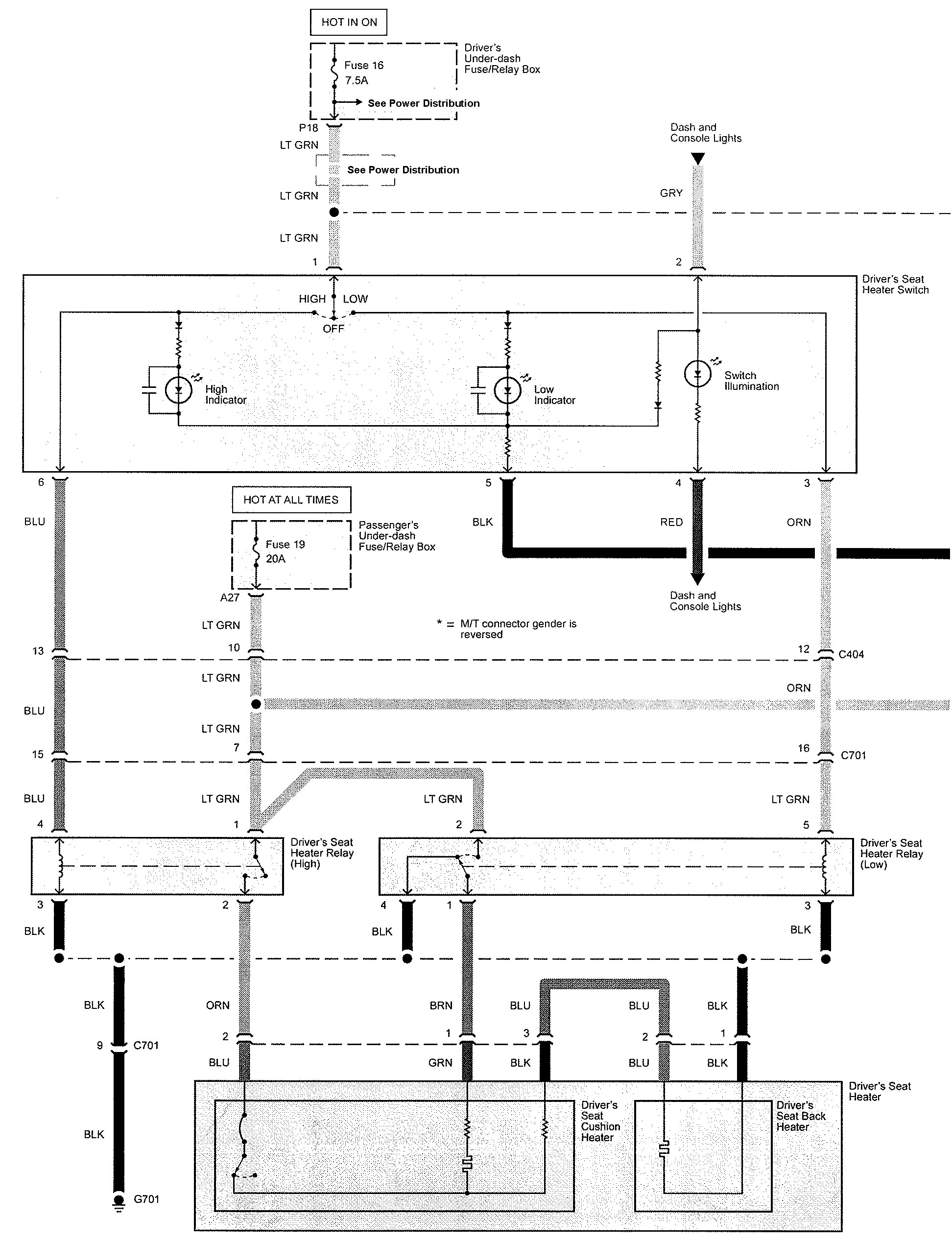

Acura TL - wiring diagram - heated seats (part 1)
Acura TL – wiring diagram – heated seats (part 1)

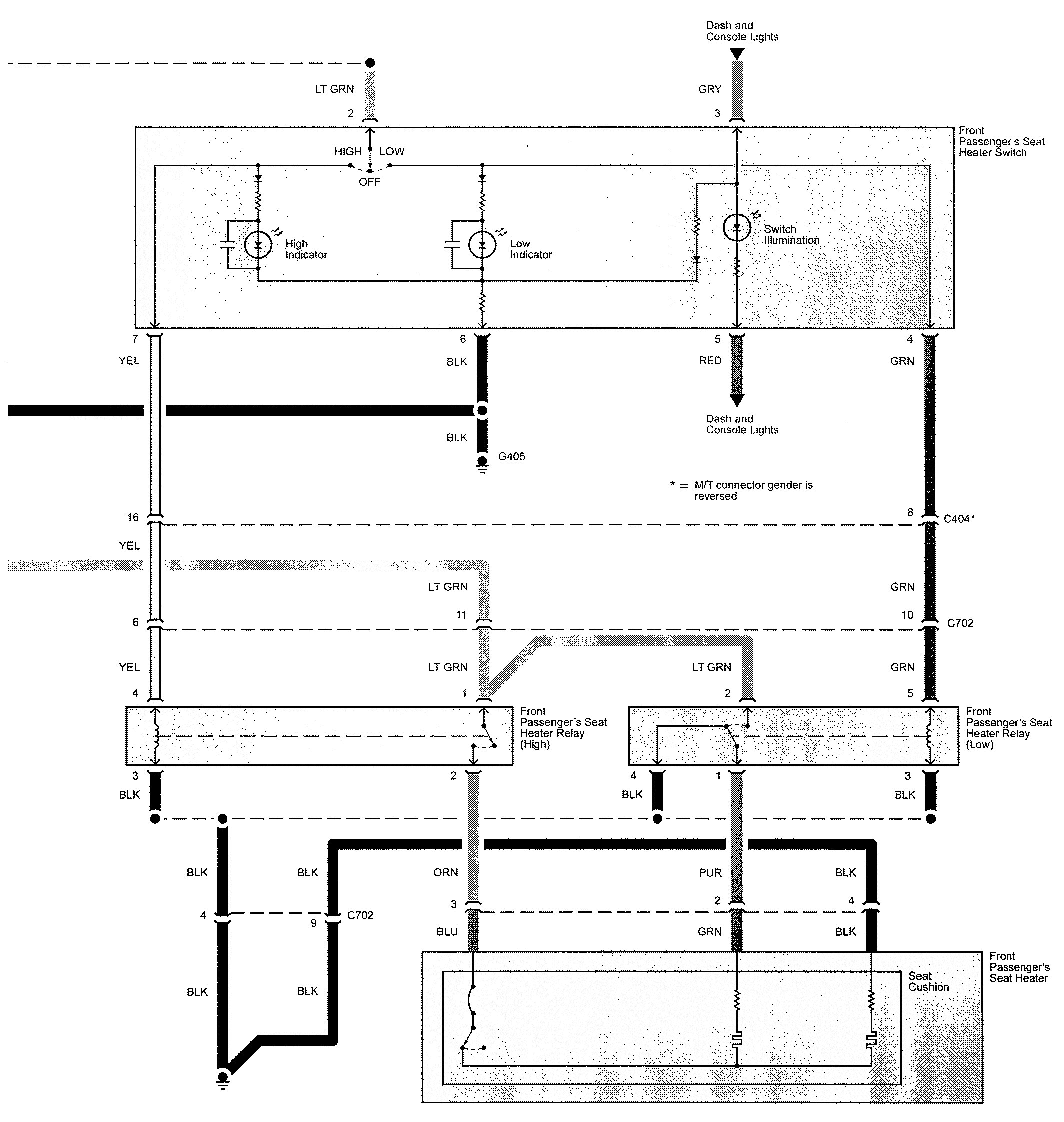

Acura TL - wiring diagram - heated seats (part 2)
Acura TL – wiring diagram – heated seats (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
