Acura TL (2009) – wiring diagrams – ignition

Acura TL (2009) – wiring diagrams – ignition

Year of productions:  2009

Ignition

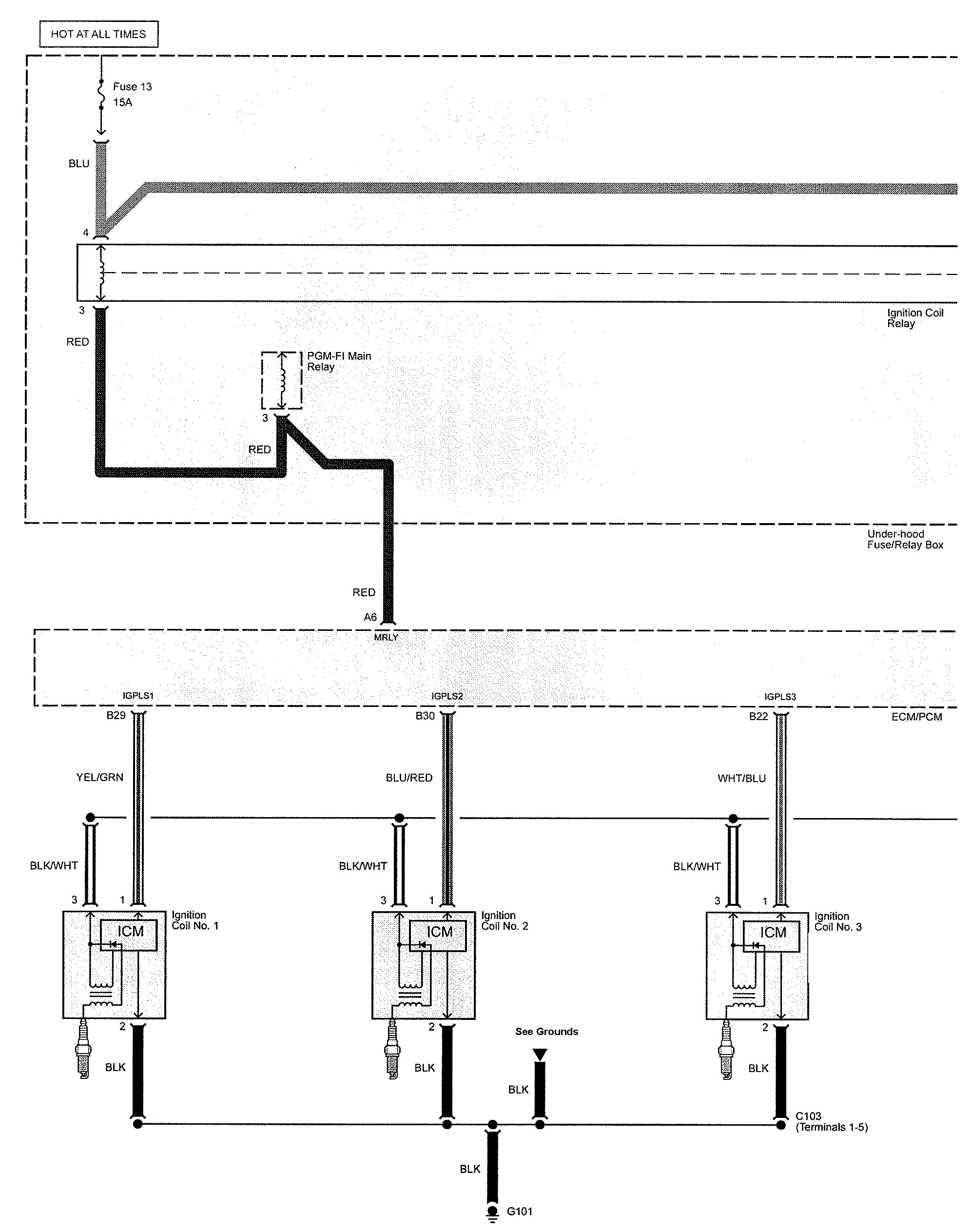

Acura TL - wiring diagram - ignition (part 1)
Acura TL – wiring diagram – ignition (part 1)

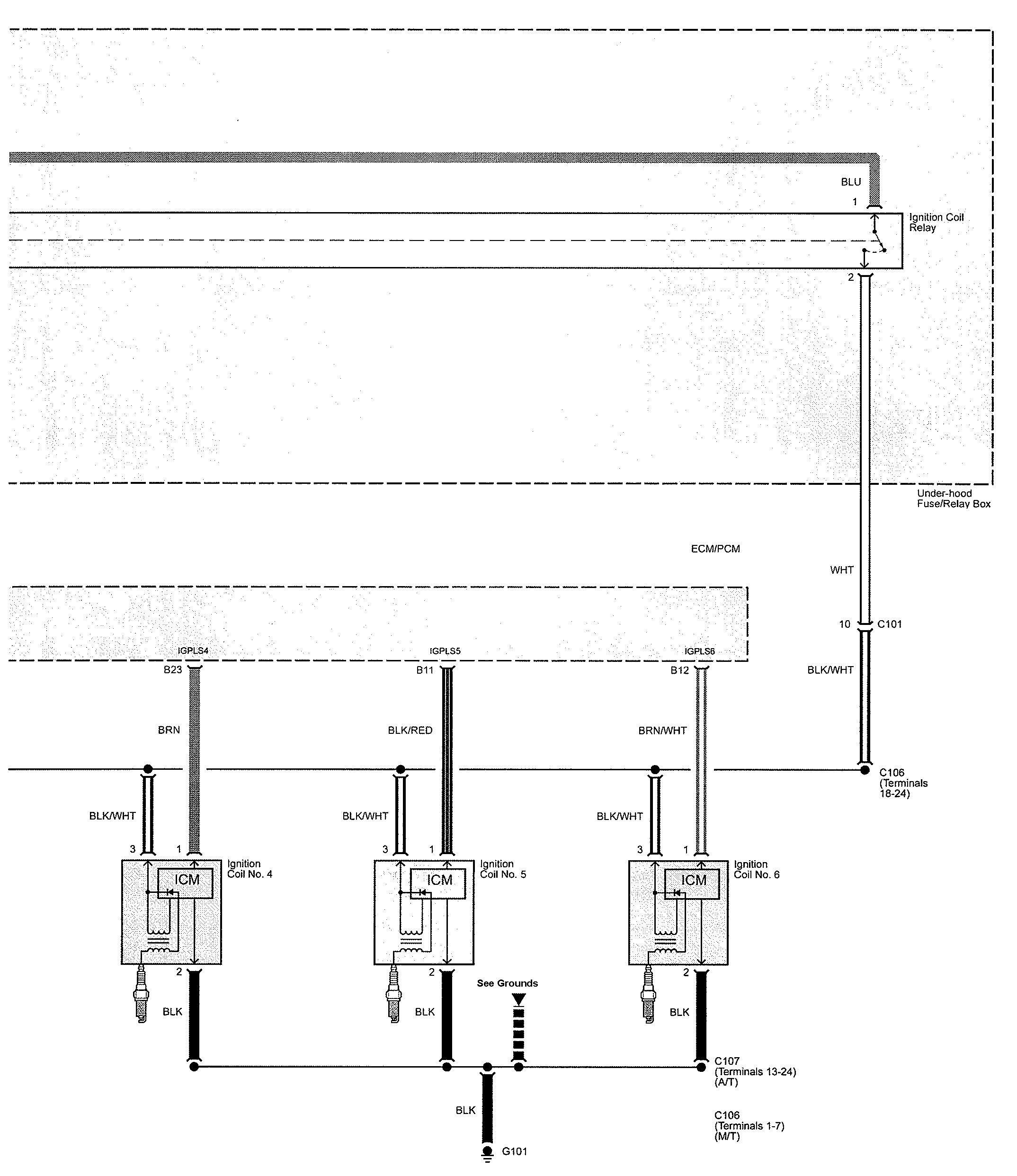

Acura TL - wiring diagram - ignition (part 2)
Acura TL – wiring diagram – ignition (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
