Key interlock

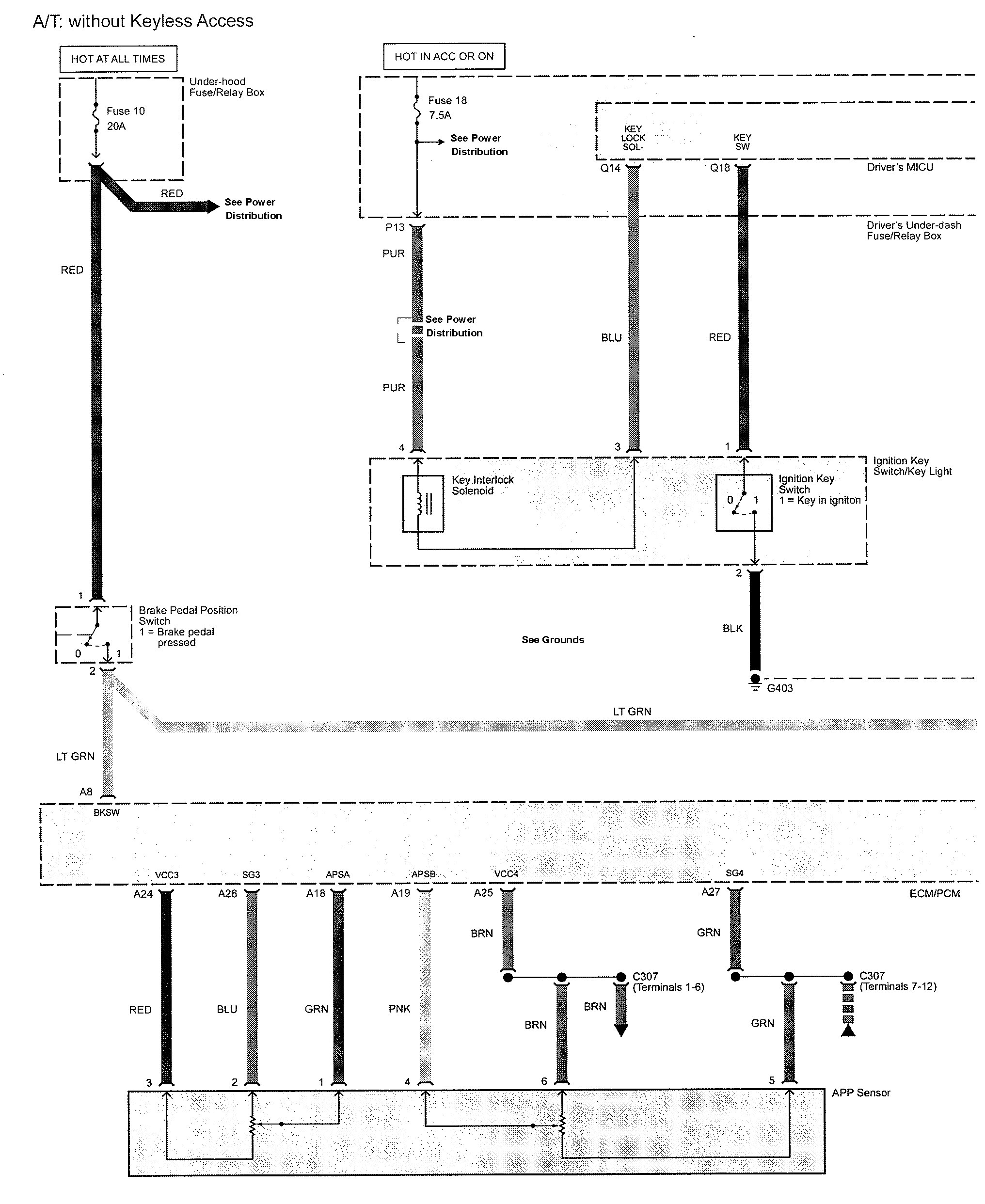

Acura TL - wiring diagram - key interlock (part 1)
Acura TL – wiring diagram – key interlock (part 1)

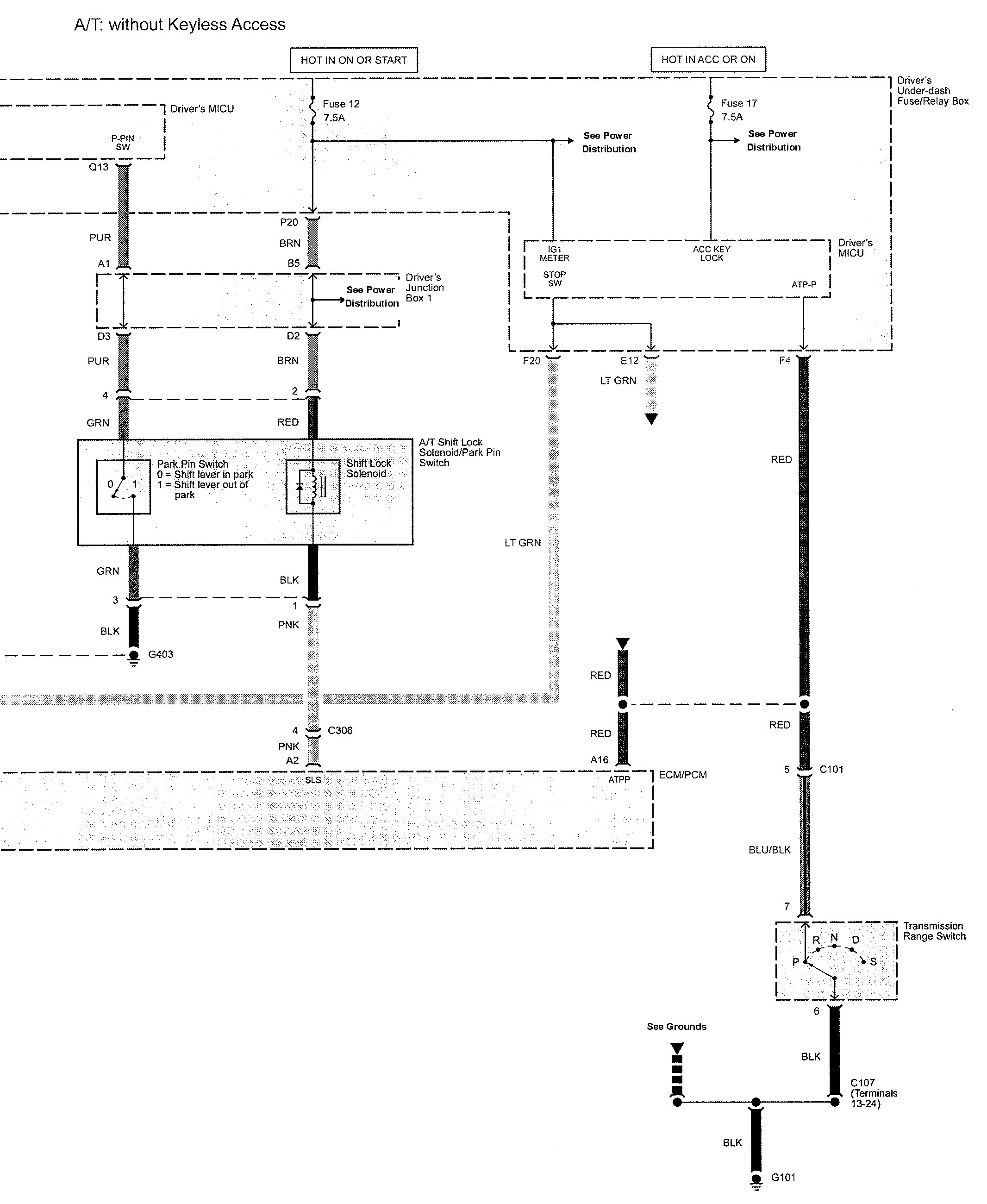

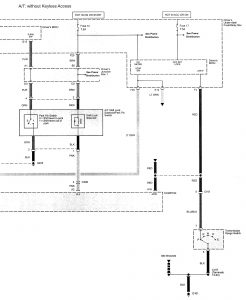

Acura TL - wiring diagram - key interlock (part 2)
Acura TL – wiring diagram – key interlock (part 2)

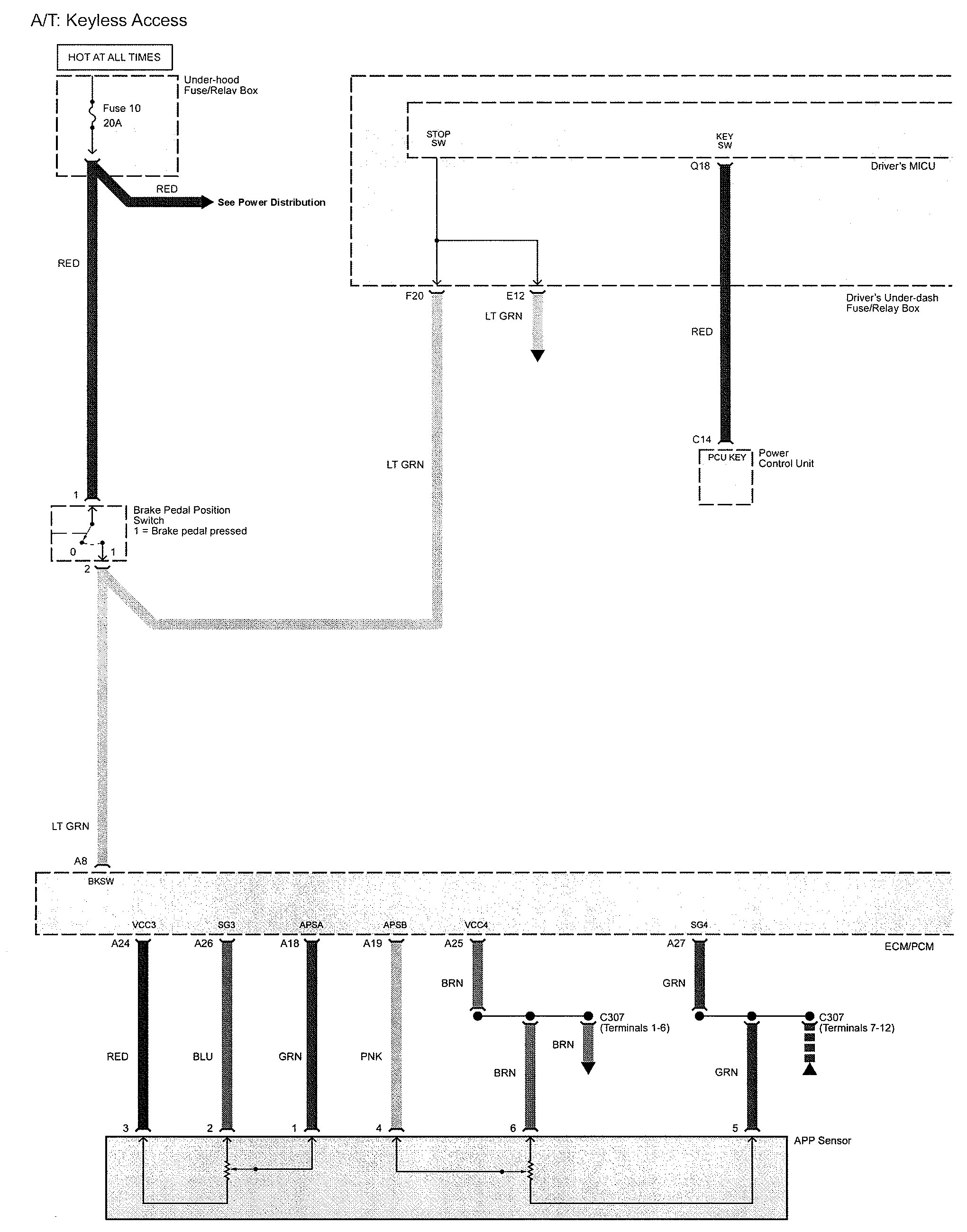

Acura TL - wiring diagram - key interlock (part 3)
Acura TL – wiring diagram – key interlock (part 3)

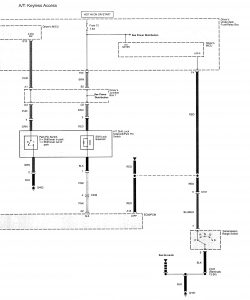

Acura TL - wiring diagram - key interlock (part 4)
Acura TL – wiring diagram – key interlock (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
