Acura TL (2009 – 2010) – wiring diagrams – security/anti-theft

Acura TL (2009 – 2010) – wiring diagrams – security/anti-theft

Year of productions:  2009, 2010

Security/anti-theft

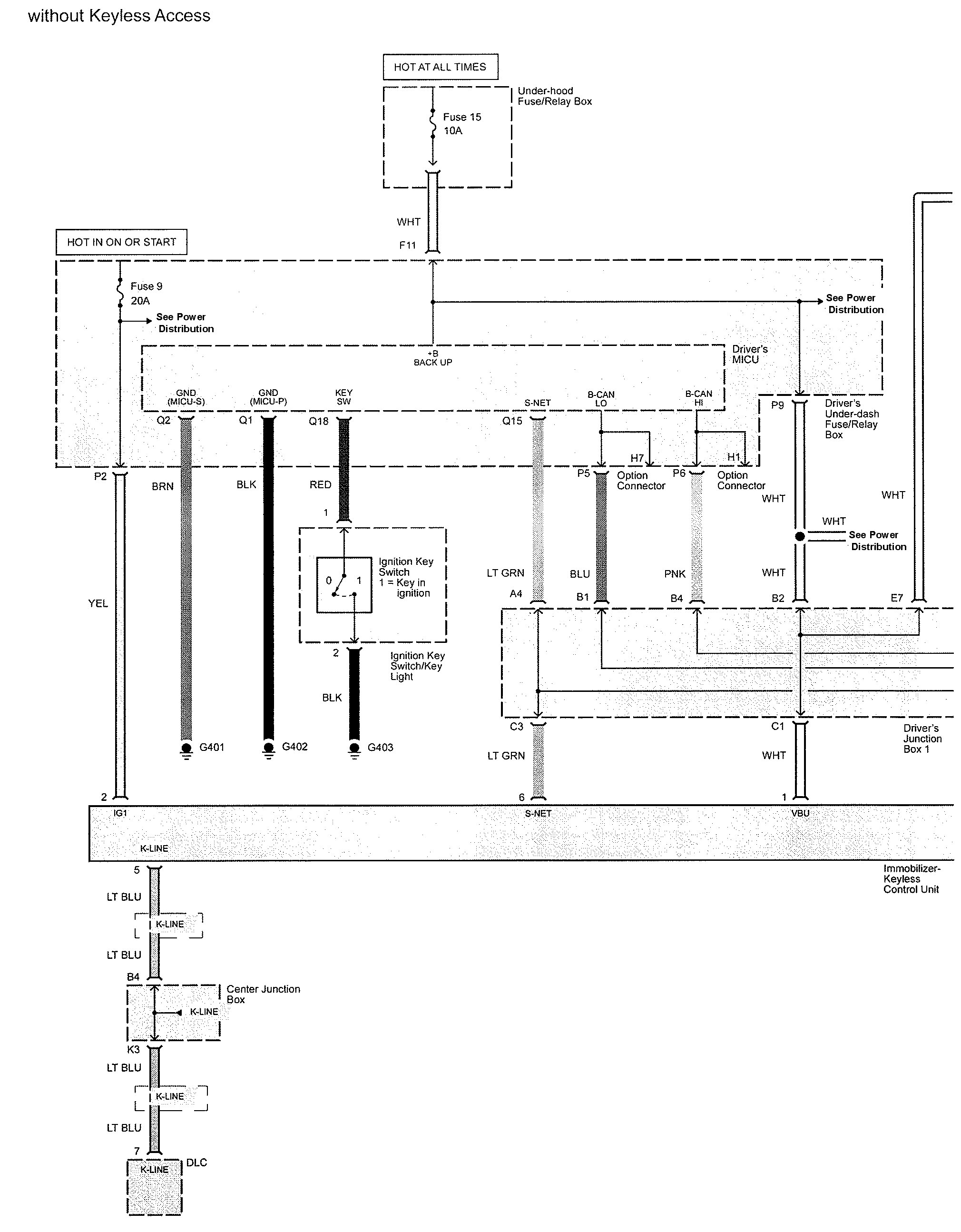

Acura TL - wiring - diagram security/anti-theft (part 1)
Acura TL – wiring –
diagram security/anti-theft (part 1)

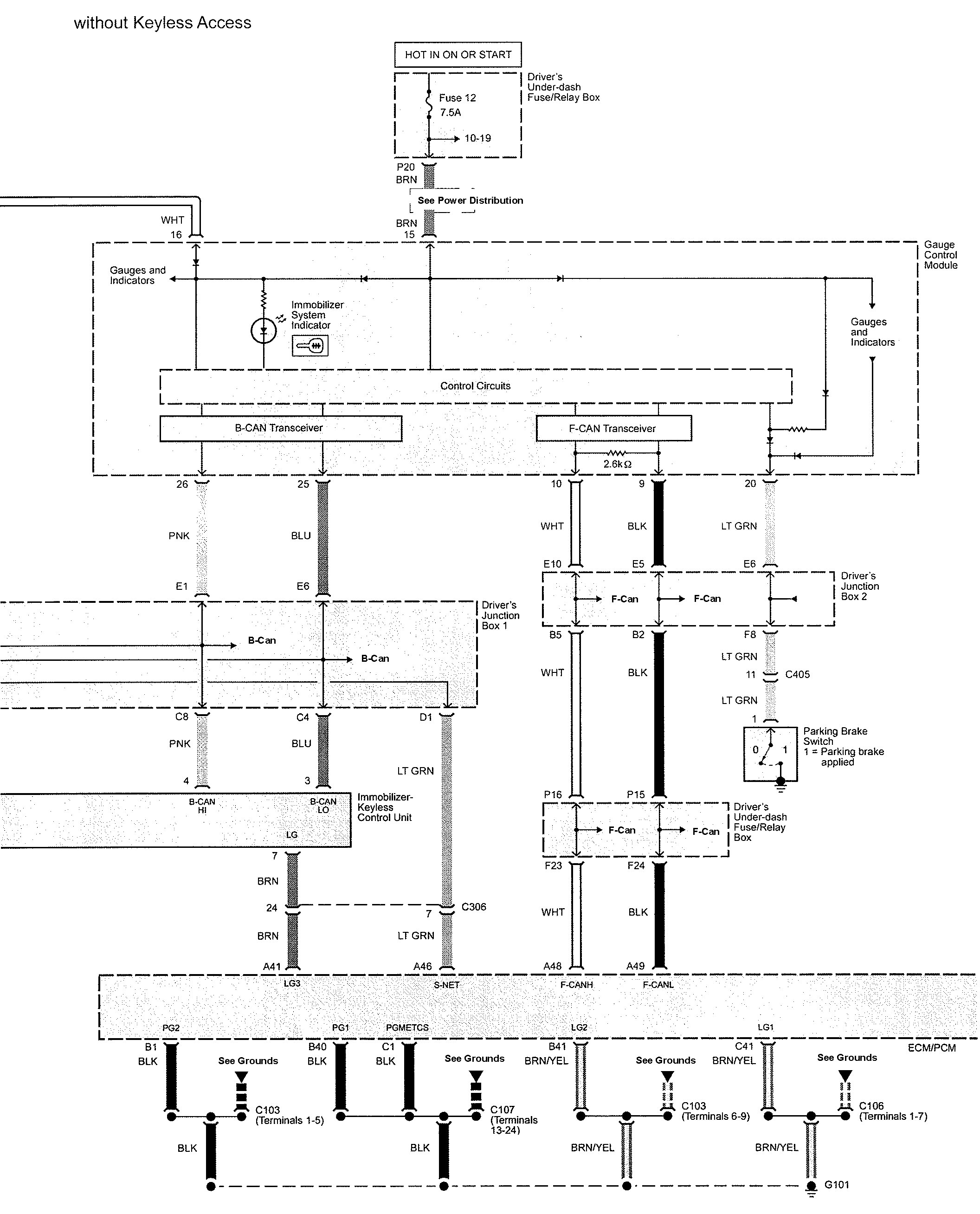

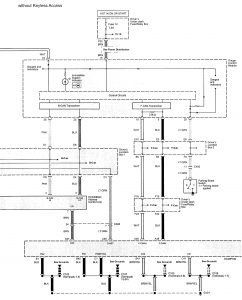

Acura TL - wiring - diagram security/anti-theft (part 2)
Acura TL – wiring –
diagram security/anti-theft (part 2)

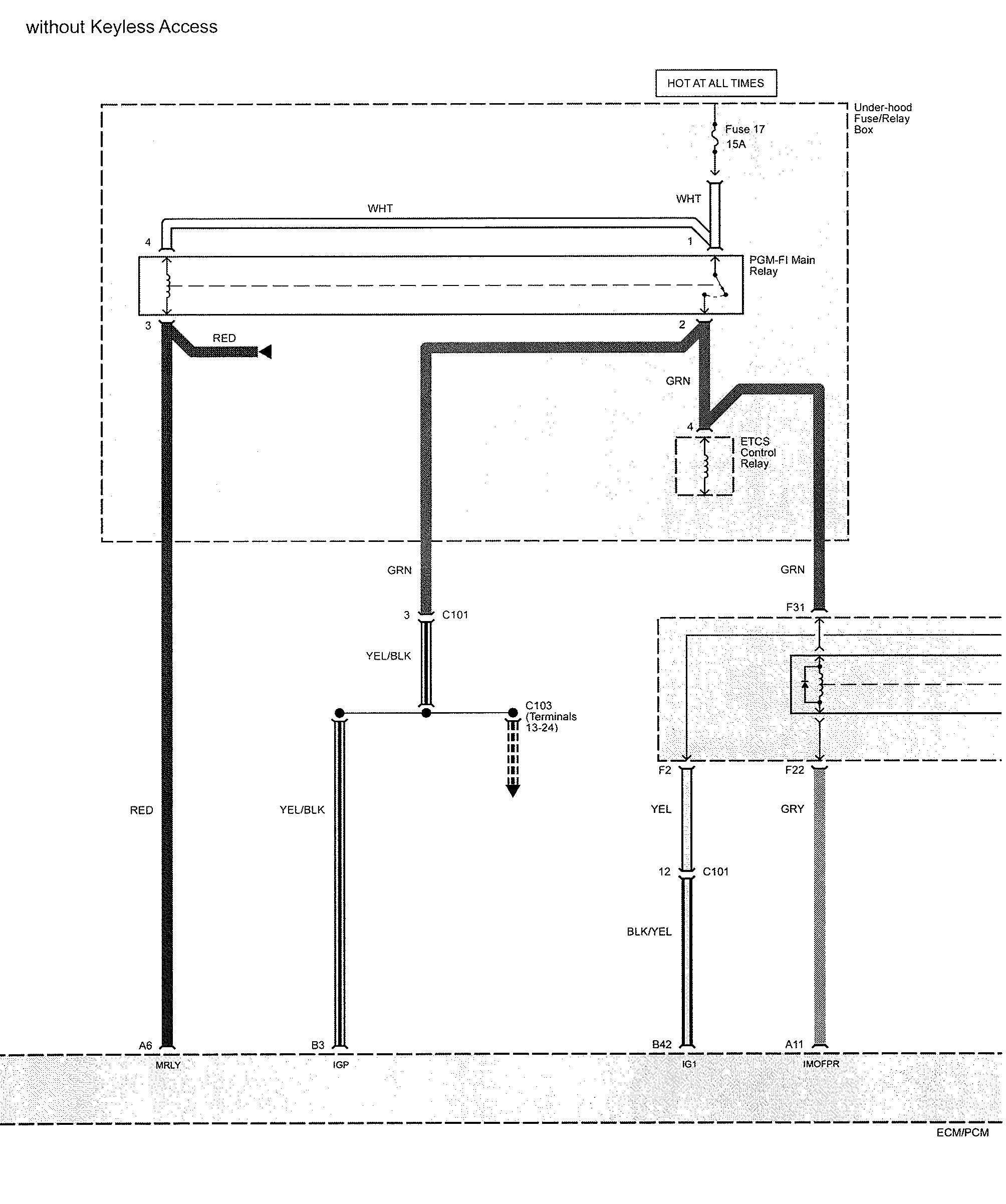

Acura TL - wiring - diagram security/anti-theft (part 3)
Acura TL – wiring –
diagram security/anti-theft (part 3)
Acura TL - wiring - diagram security/anti-theft (part 4)
Acura TL – wiring –
diagram security/anti-theft (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
