Acura TL (2010) – wiring diagrams – audio

Acura TL (2010) – wiring diagrams – audio

Year of productions:  2010

Audio

Version 1

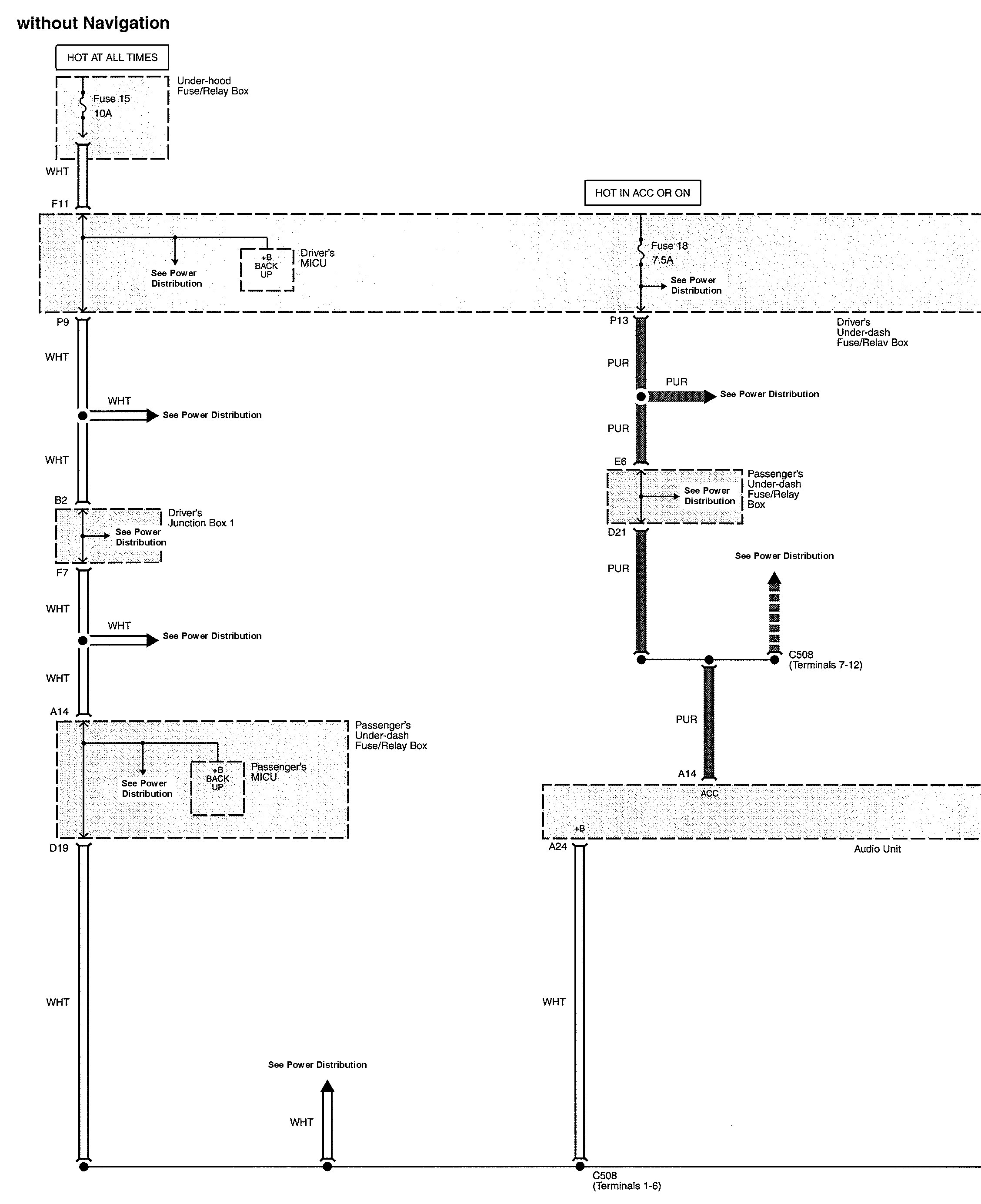

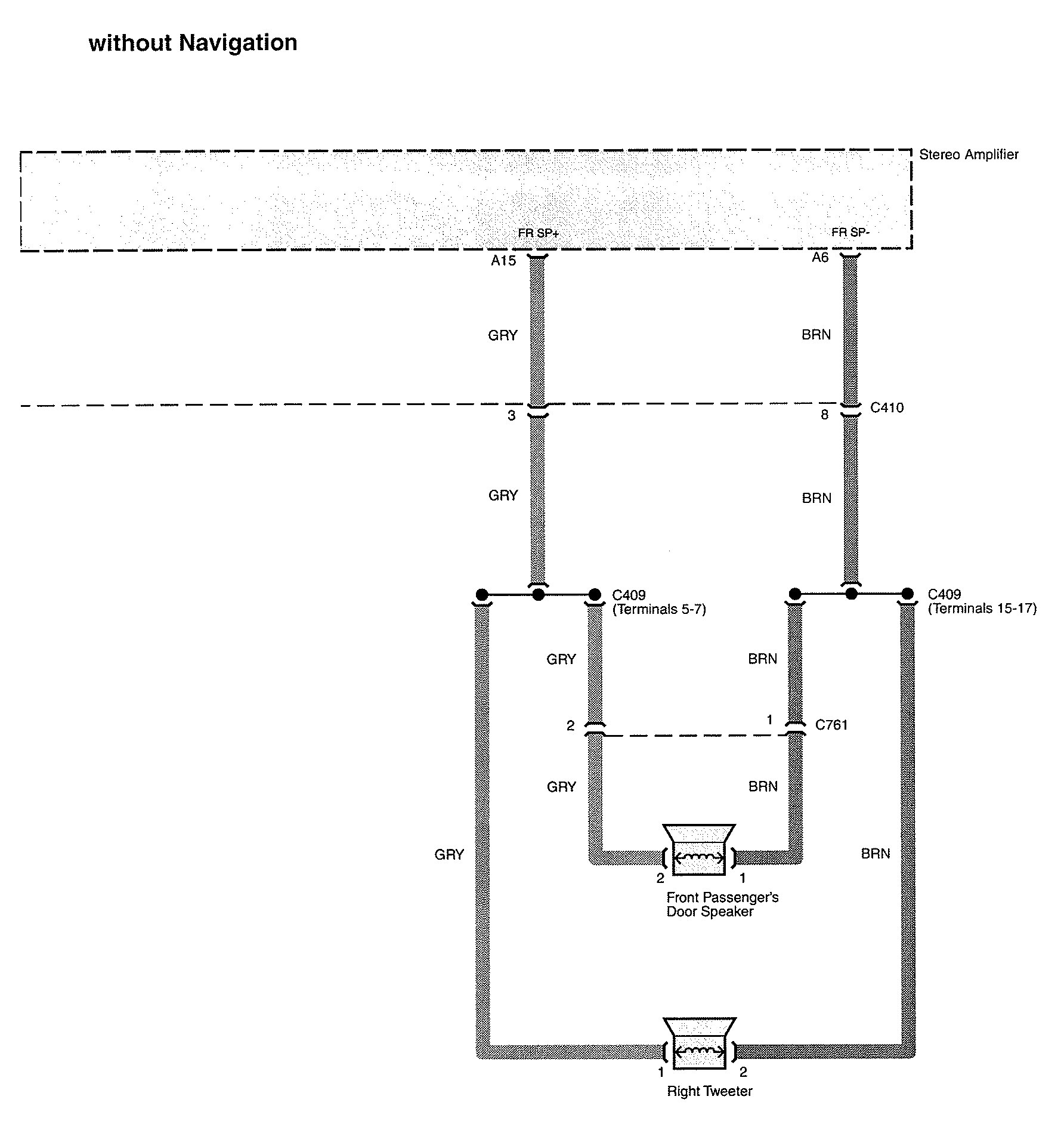

acura TL - wiring diagram -  audio (part 1)

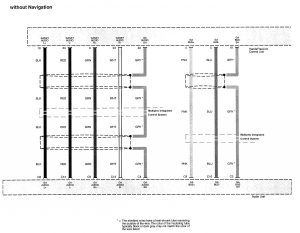

acura TL – wiring diagram –
audio (part 1)

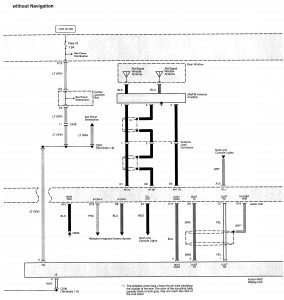

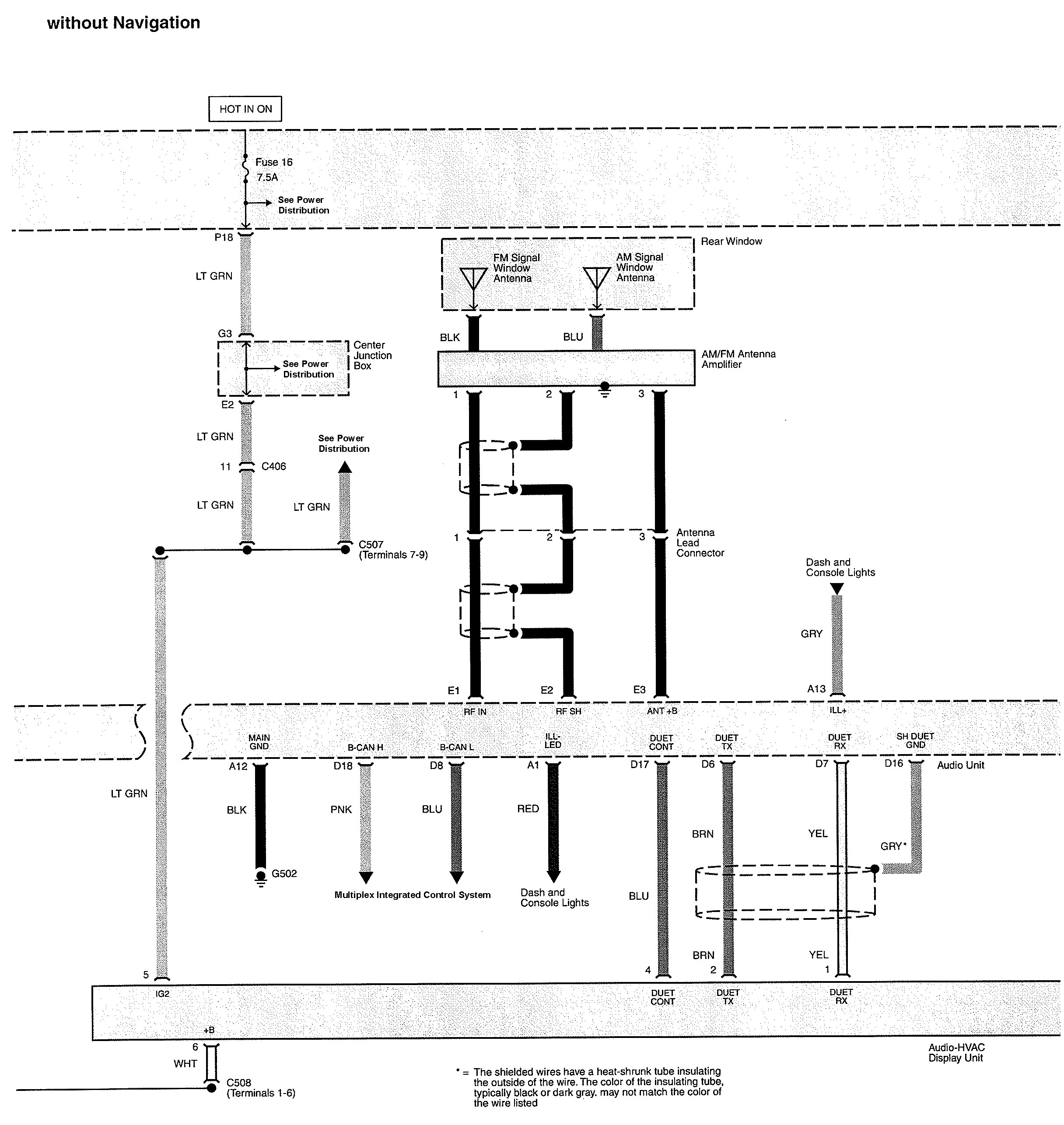

Acura TL - wiring diagram -  audio (part 2)
Acura TL – wiring diagram – audio (part 2)

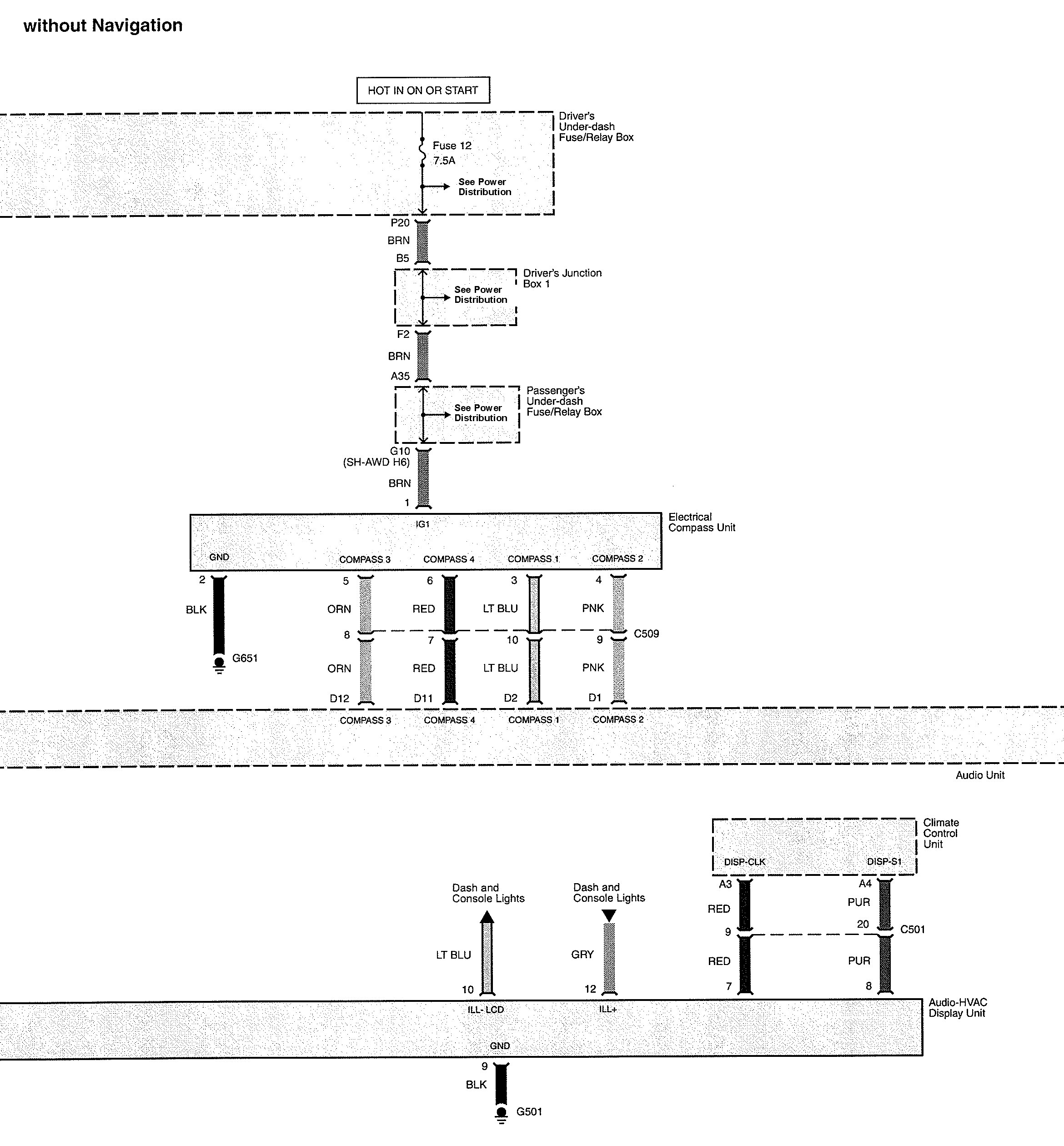

Acura TL - wiring diagram -  audio (part 3)
Acura TL – wiring diagram – audio (part 3)

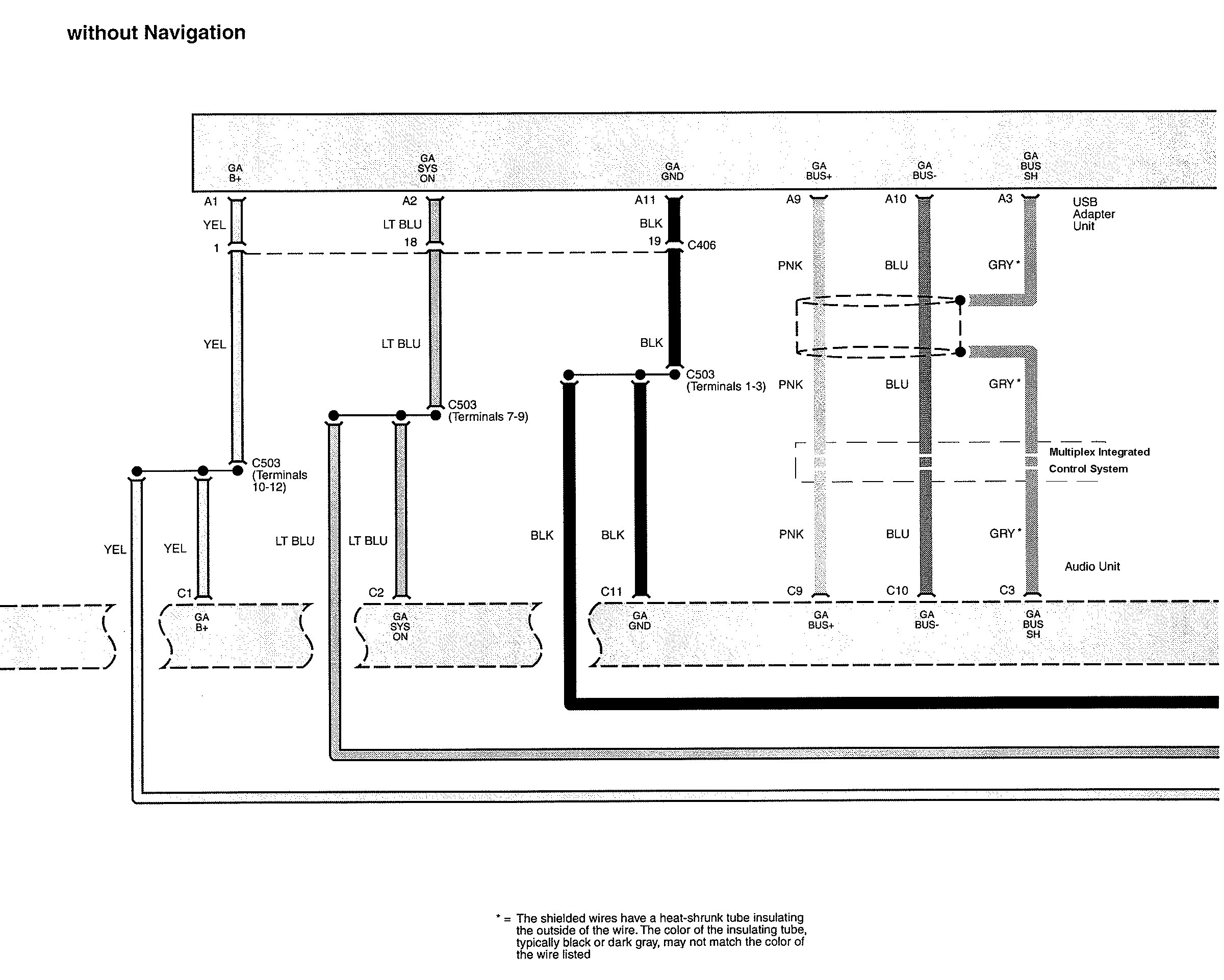

Acura TL - wiring diagram -  audio (part 4)
Acura TL – wiring diagram – audio (part 4)

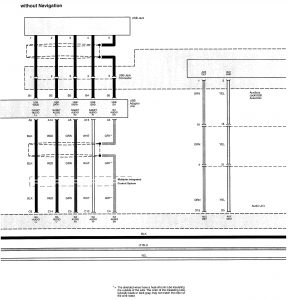

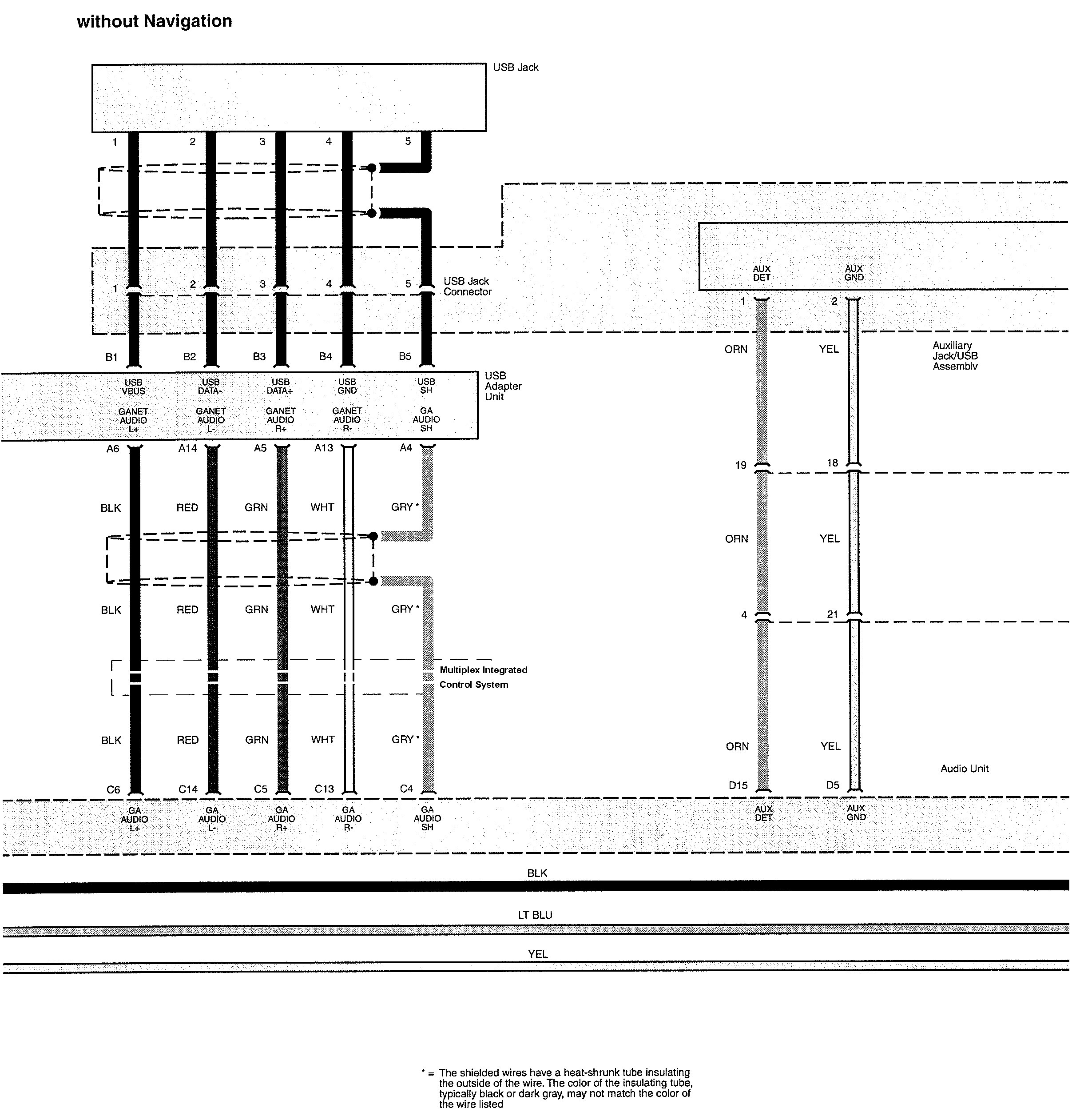

Acura TL - wiring diagram -  audio (part 5)
Acura TL – wiring diagram – audio (part 5)

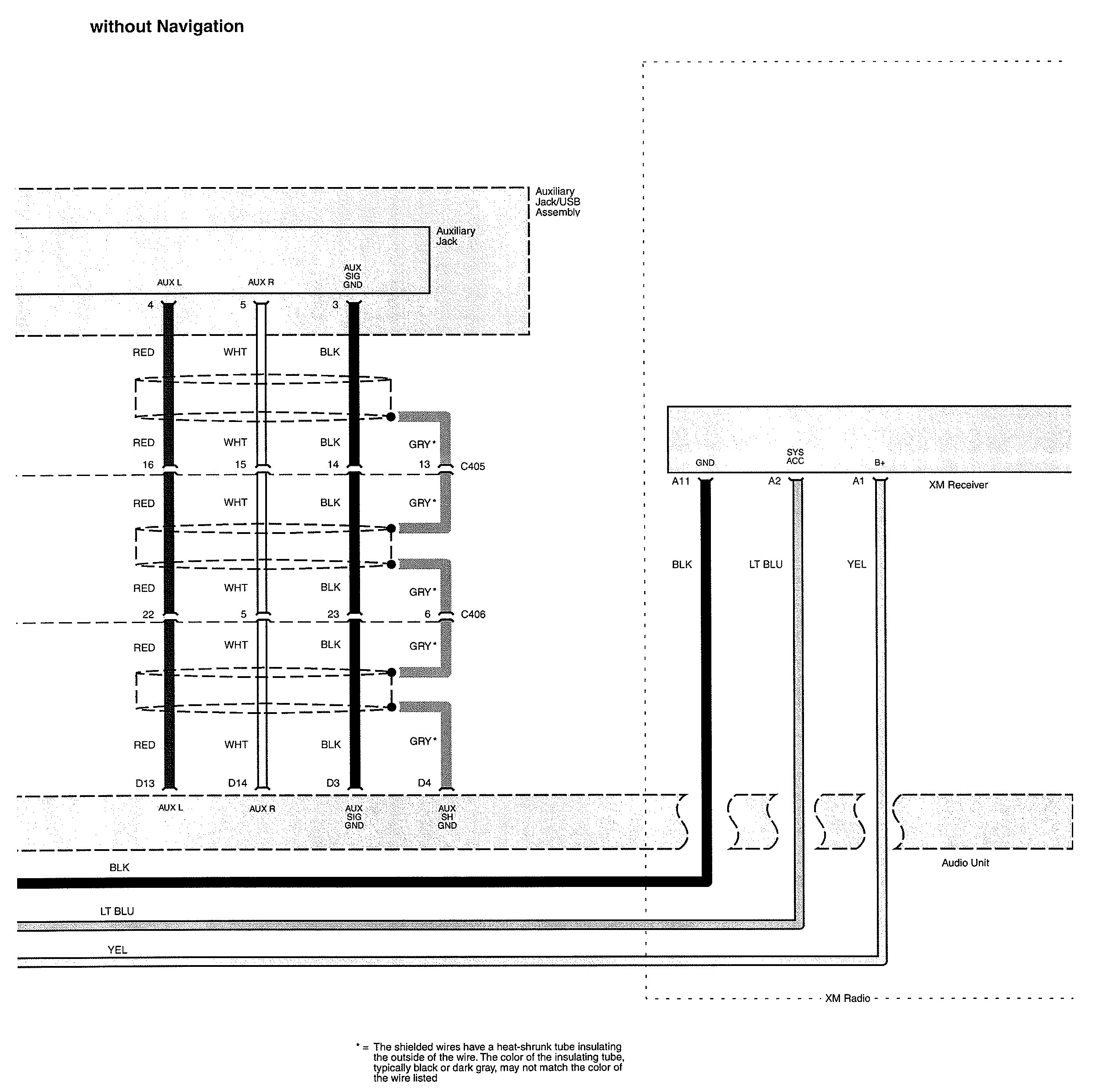

Acura TL - wiring diagram -  audio (part 6)
Acura TL – wiring diagram – audio (part 6)

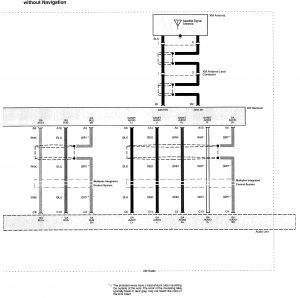

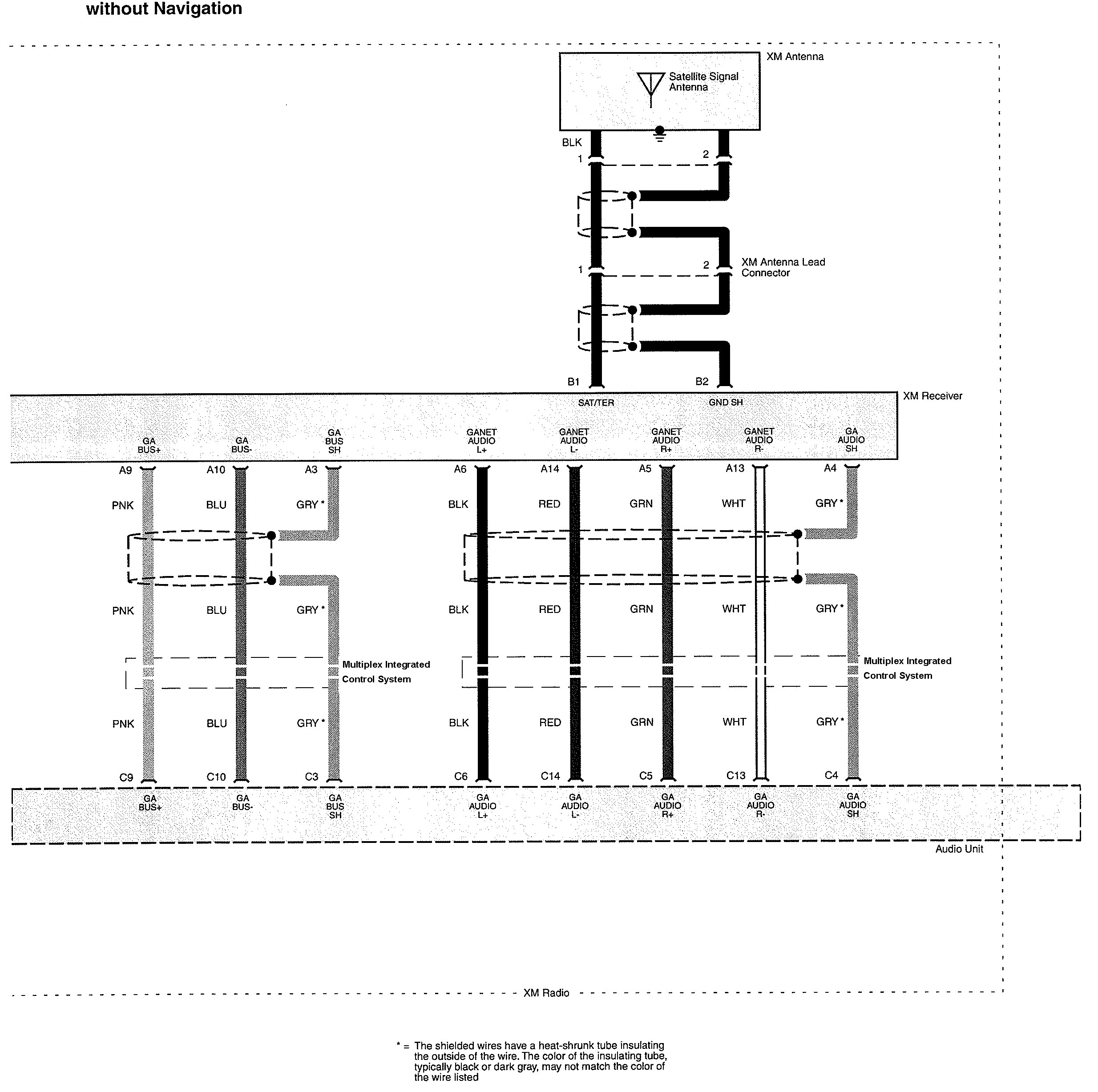

Acura TL - wiring diagram -  audio (part 7)
Acura TL – wiring diagram – audio (part 7)

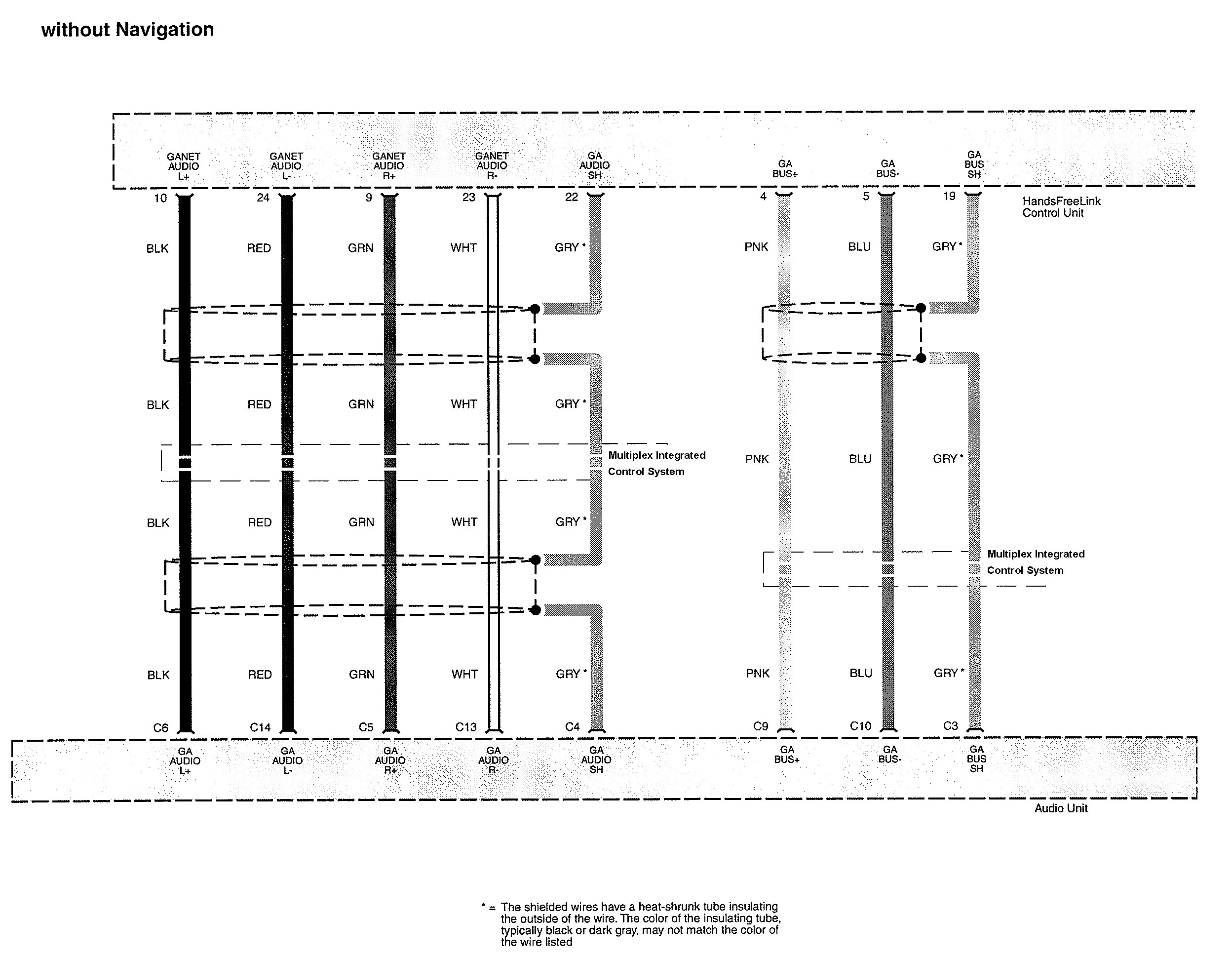

Acura TL - wiring diagram -  audio (part 8)
Acura TL – wiring diagram – audio (part 8)

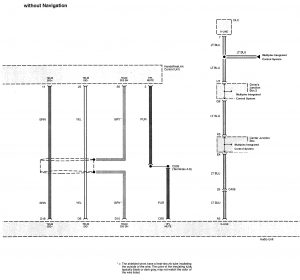

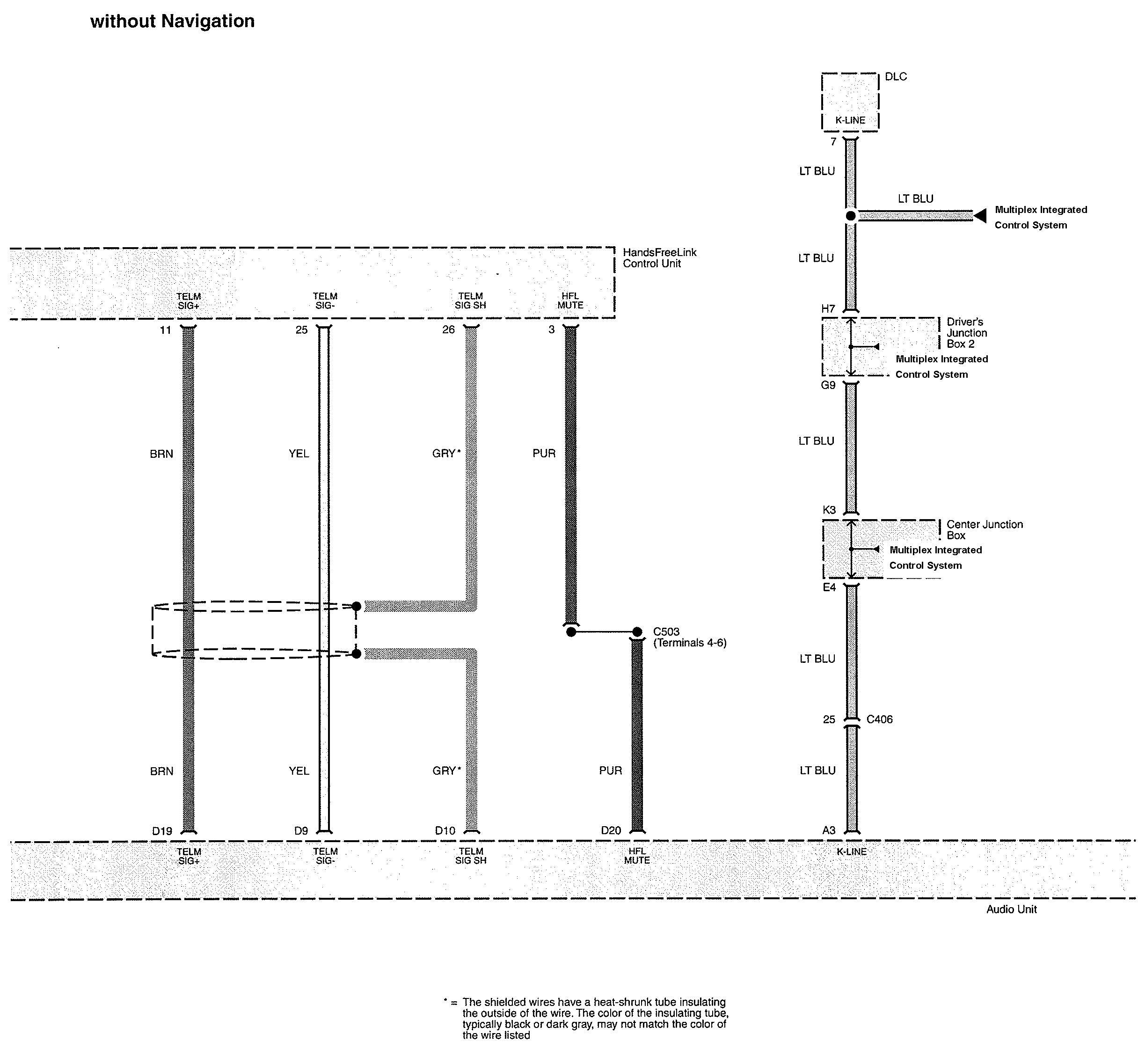

Acura TL - wiring diagram -  audio (part 9)
Acura TL – wiring diagram – audio (part 9)

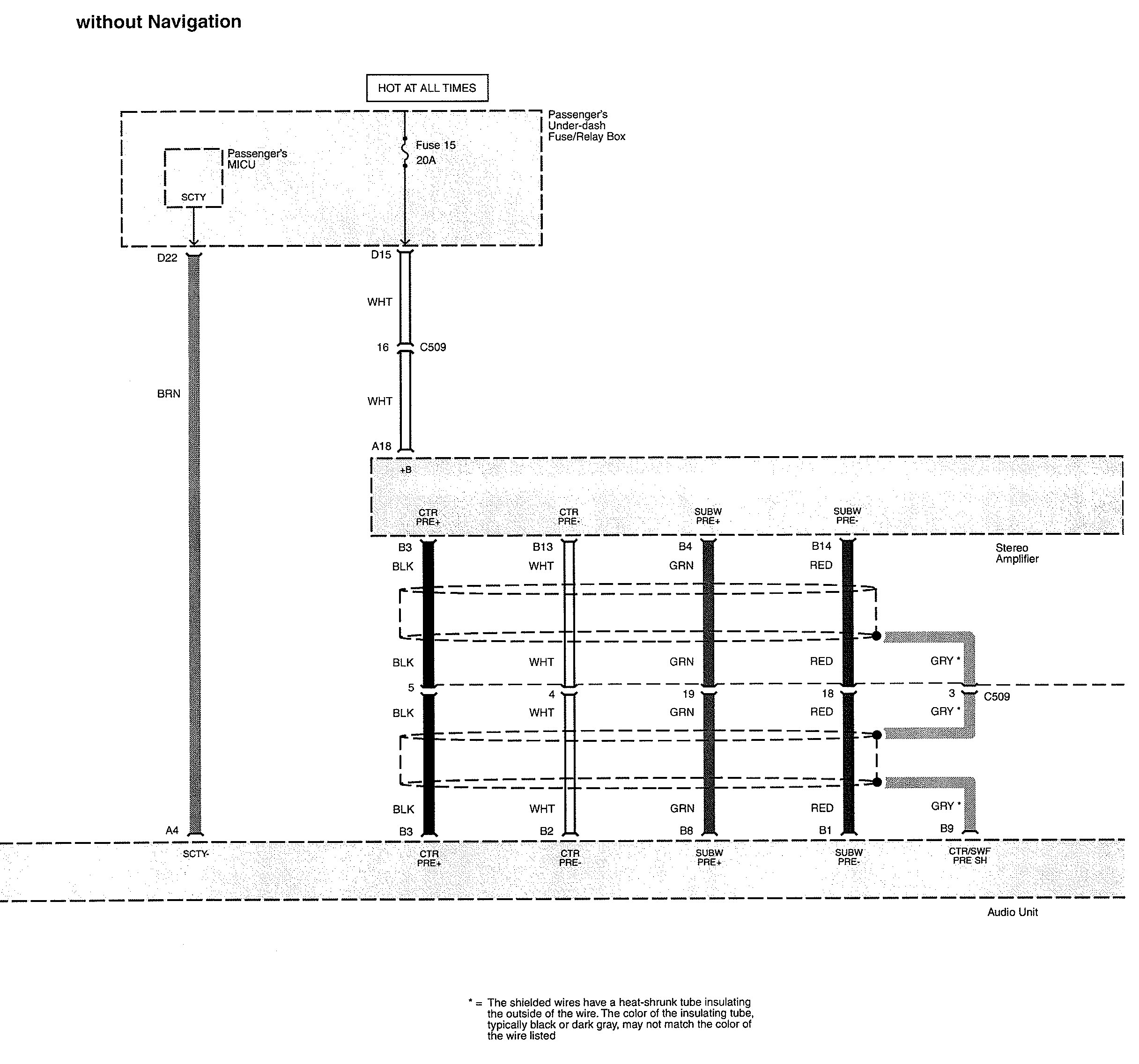

Acura TL - wiring diagram -  audio (part 10)
Acura TL – wiring diagram – audio (part 10)

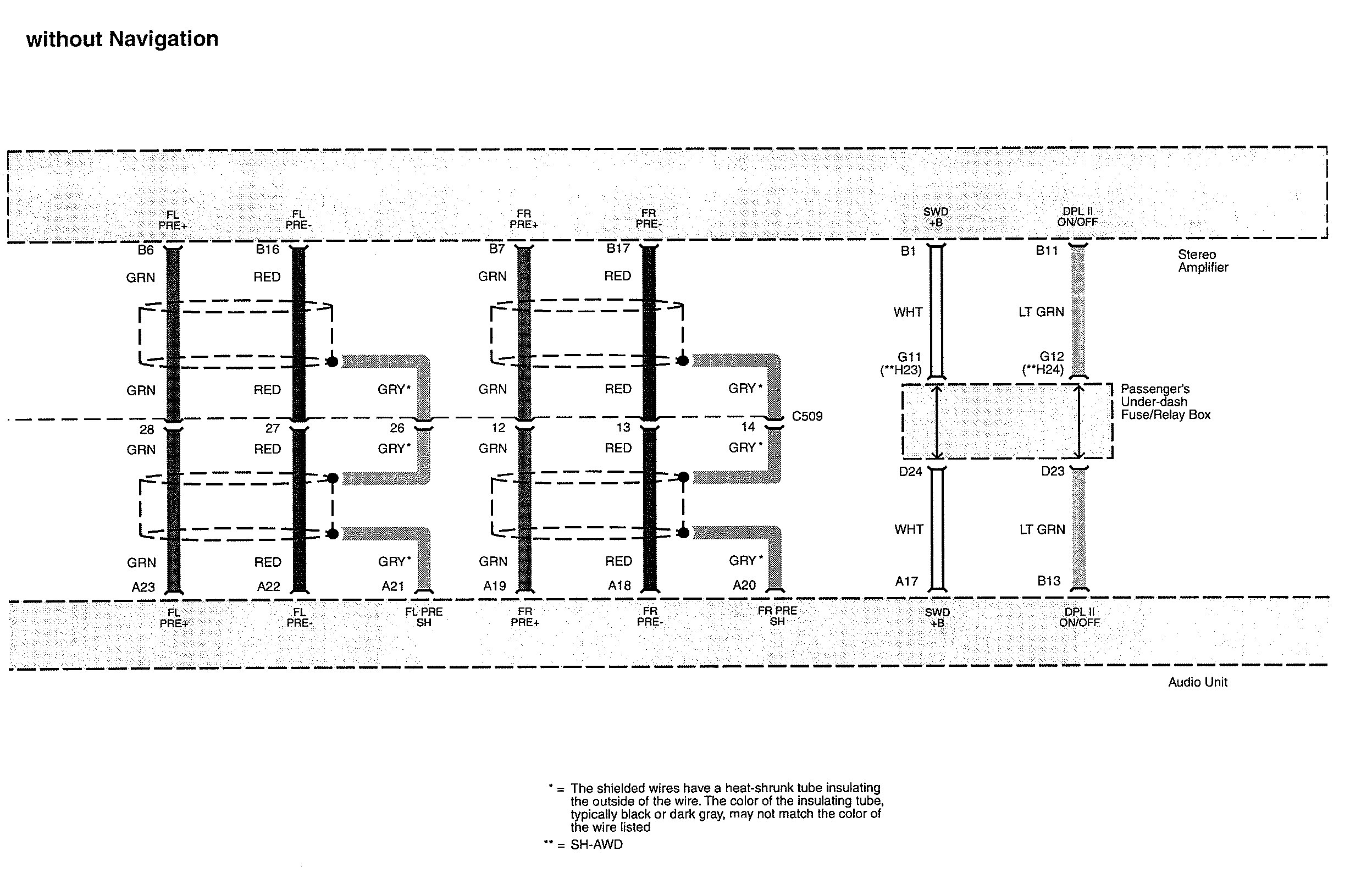

Acura TL - wiring diagram -  audio (part 11)
Acura TL – wiring diagram – audio (part 11)

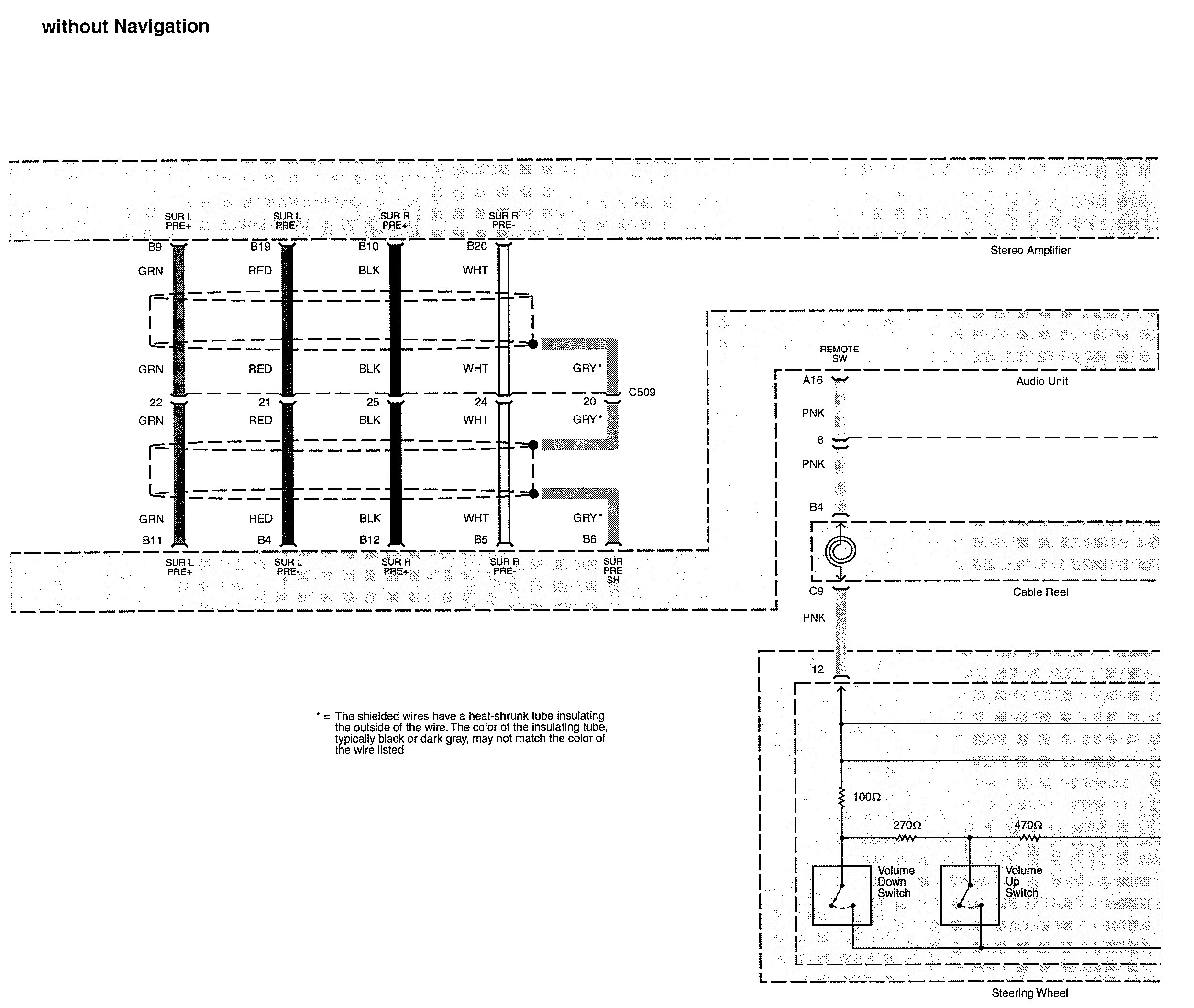

Acura TL - wiring diagram -  audio (part 12)
Acura TL – wiring diagram – audio (part 12)

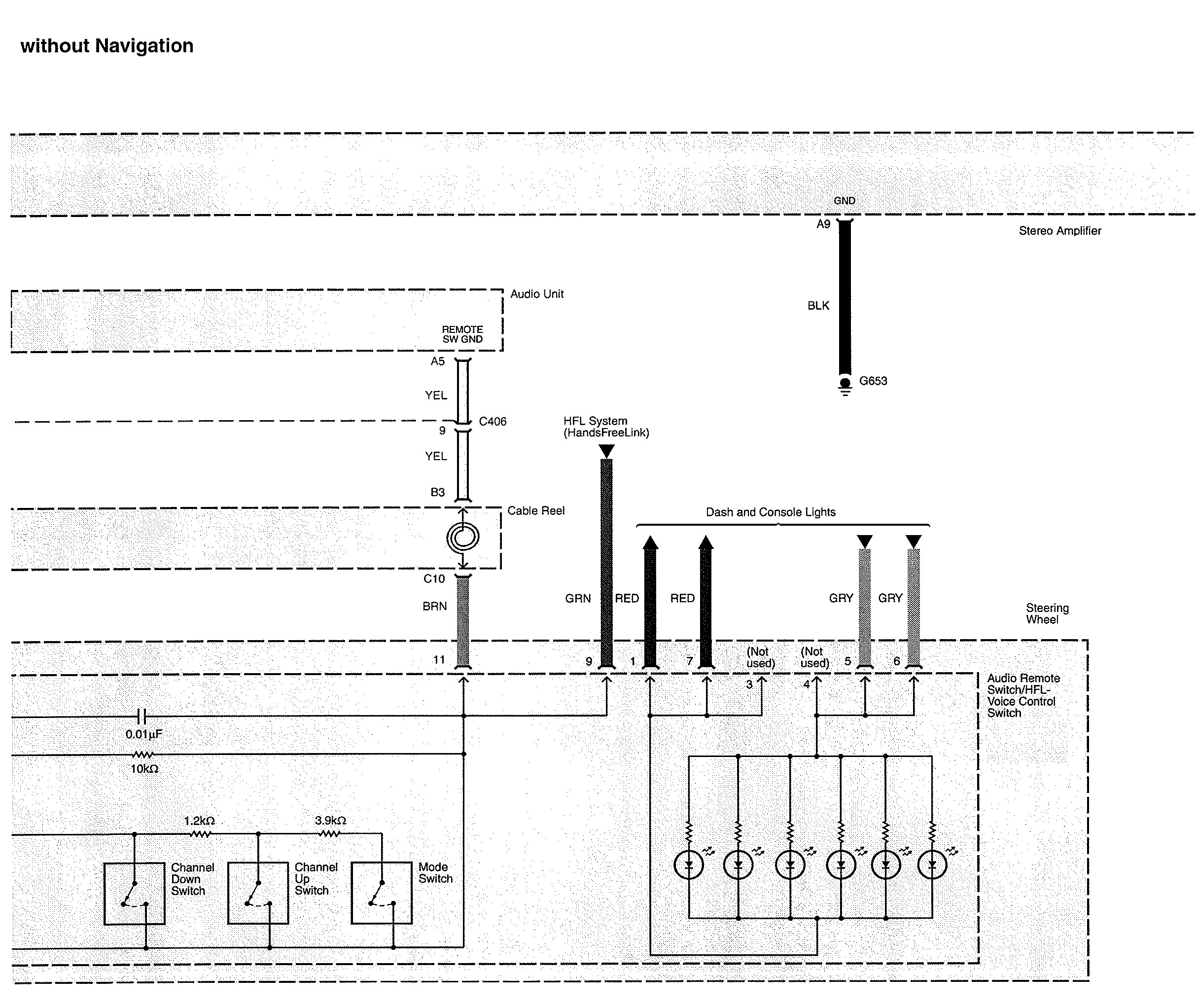

Acura TL - wiring diagram -  audio (part 13)
Acura TL – wiring diagram – audio (part 13)

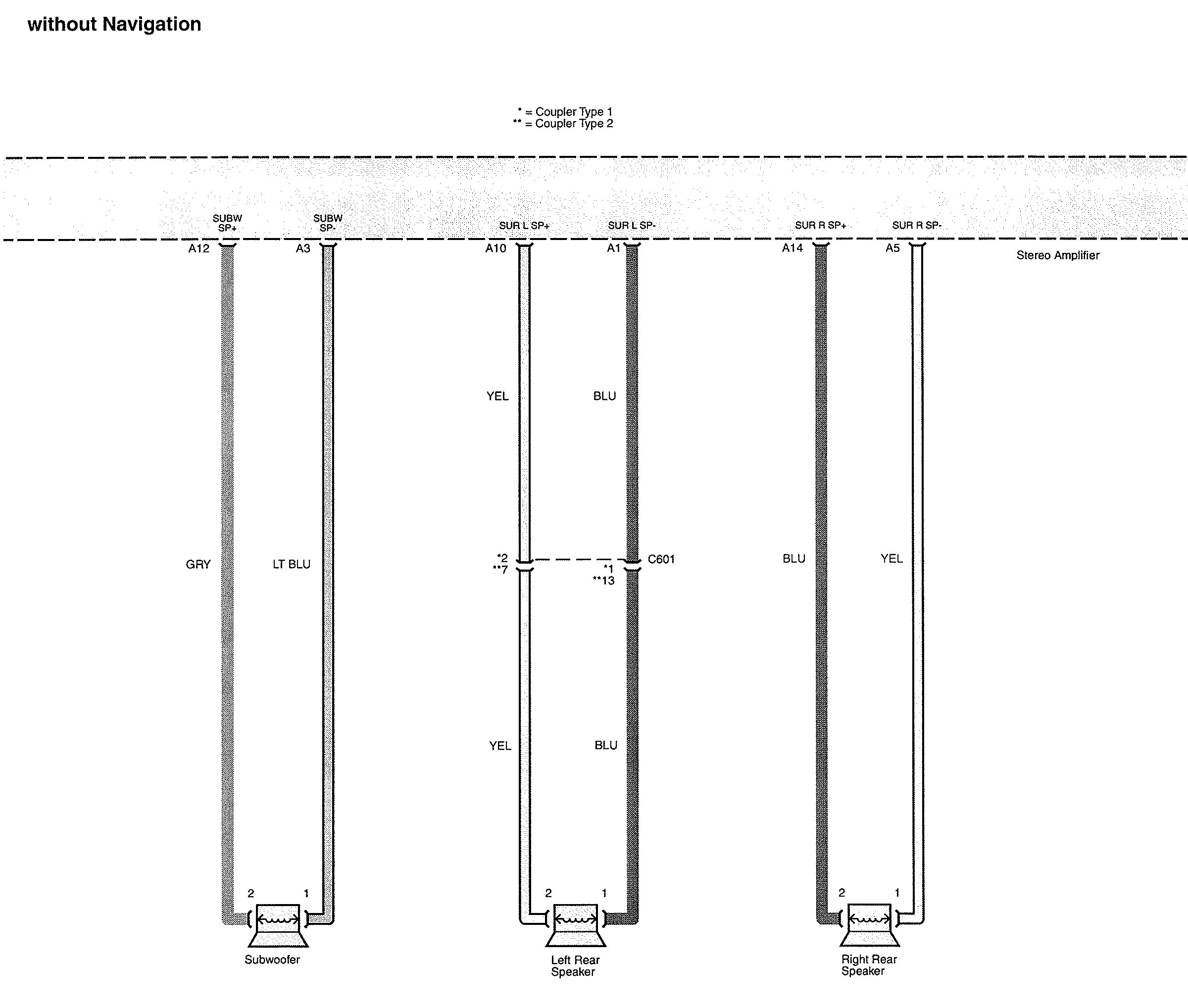

Acura TL - wiring diagram -  audio (part 14)
Acura TL – wiring diagram – audio (part 14)
Acura TL - wiring diagram -  audio (part 15)
Acura TL – wiring diagram – audio (part 15)

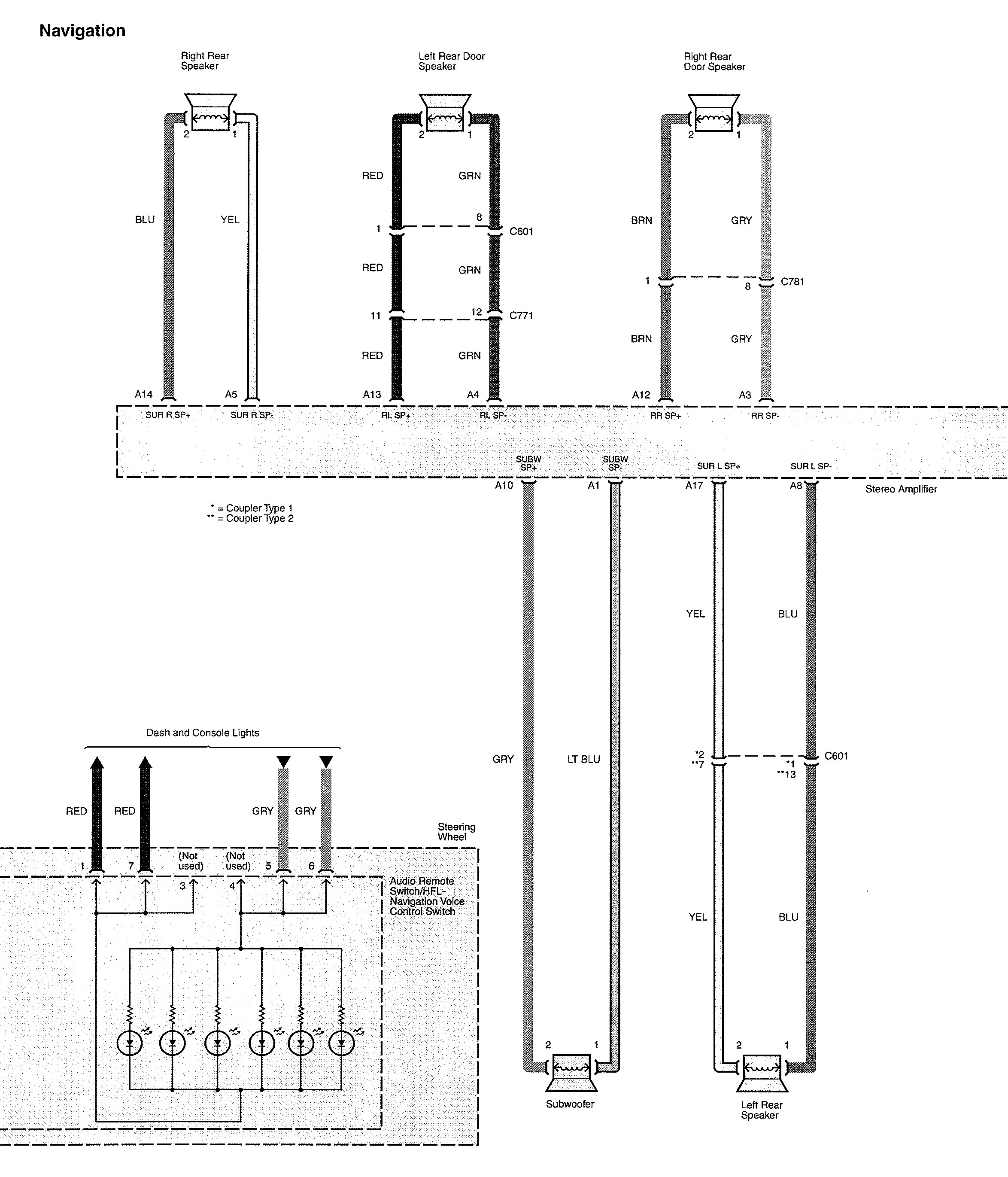

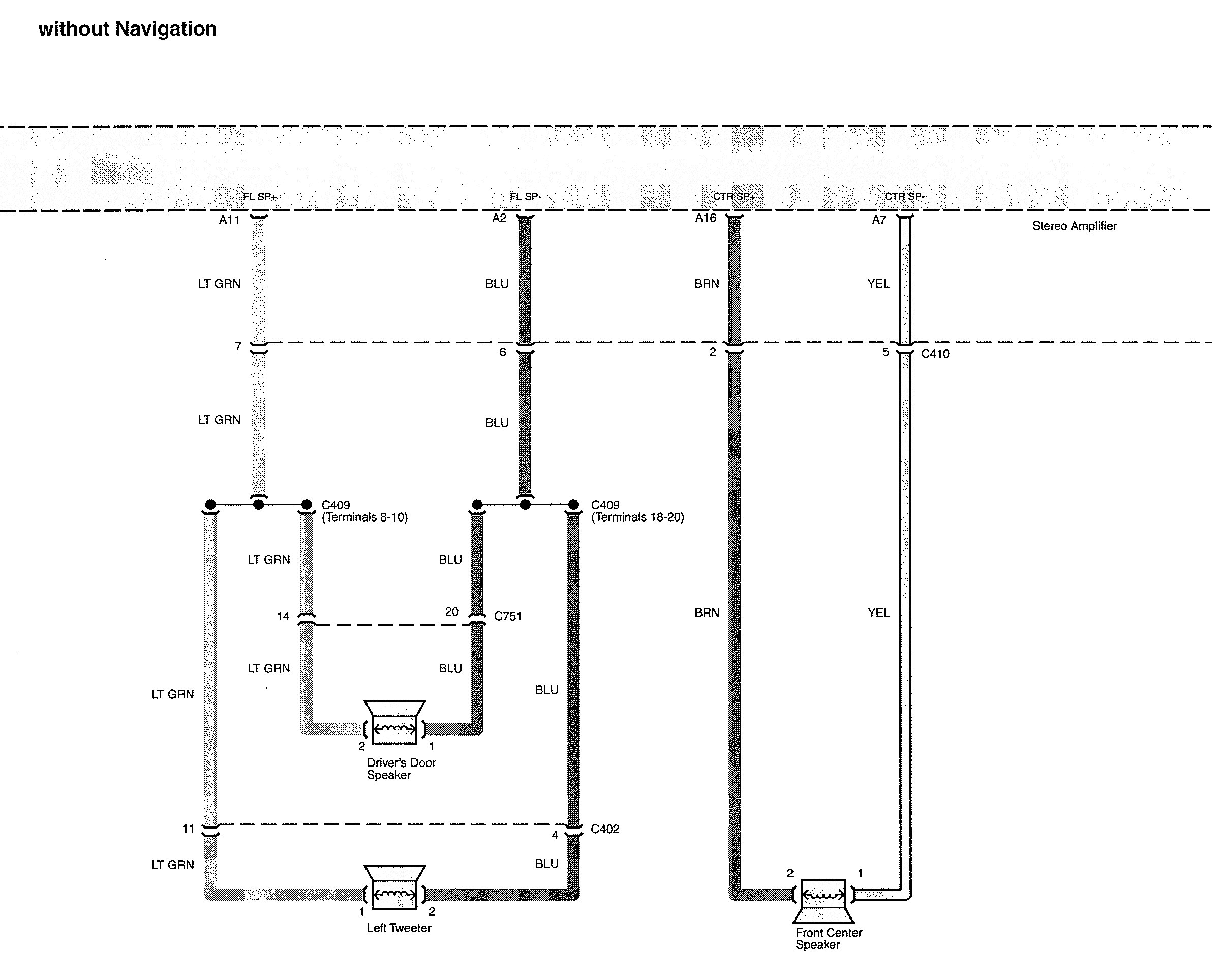

Acura TL - wiring diagram -  audio (part 16)
Acura TL – wiring diagram – audio (part 16)

Version 2

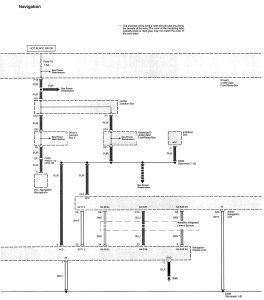

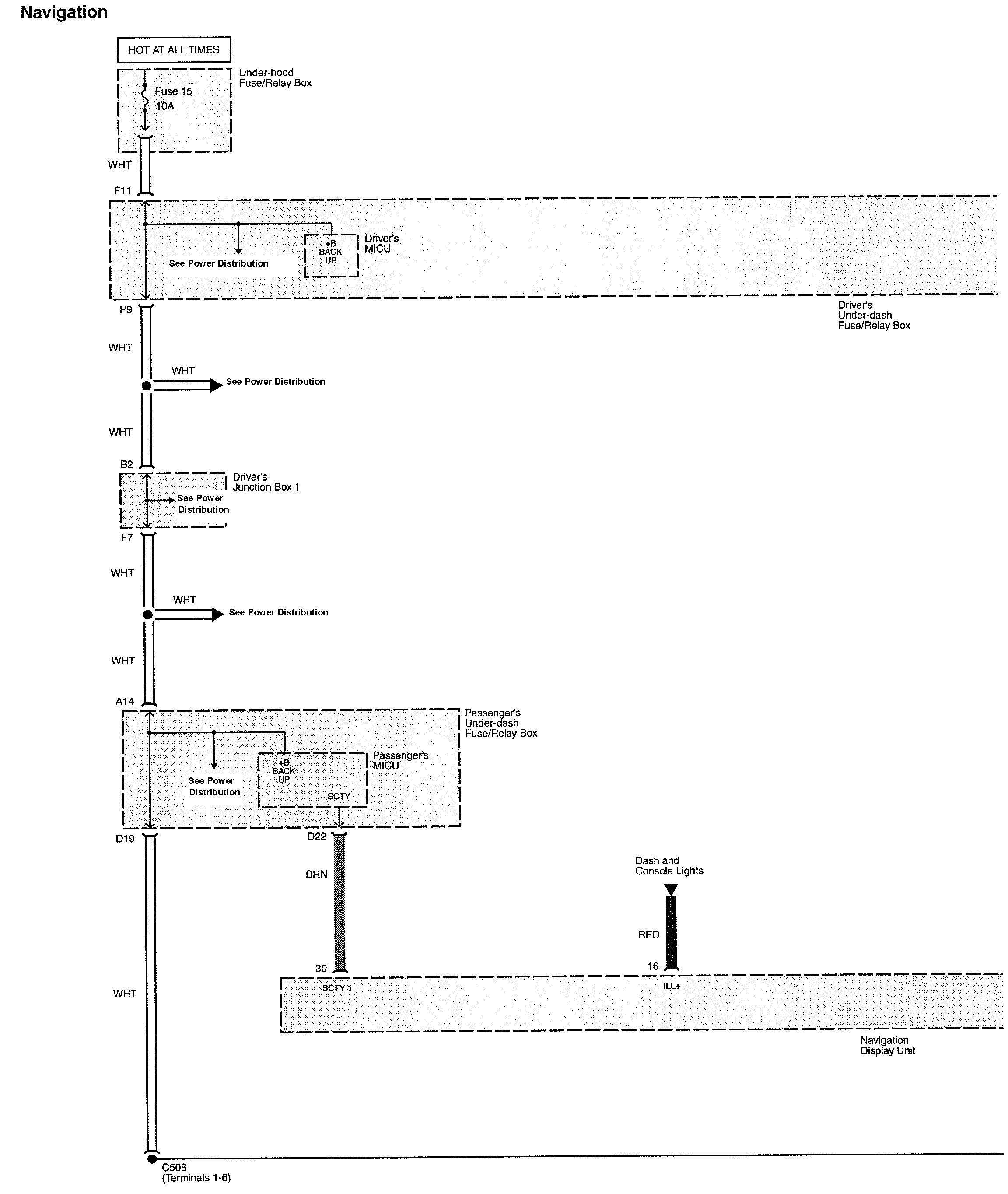

Acura TL - wiring diagram -  audio (part 1)
Acura TL – wiring diagram – audio (part 1)

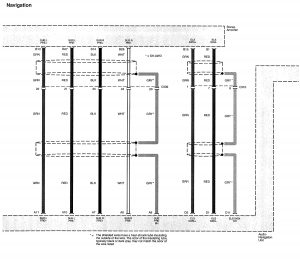

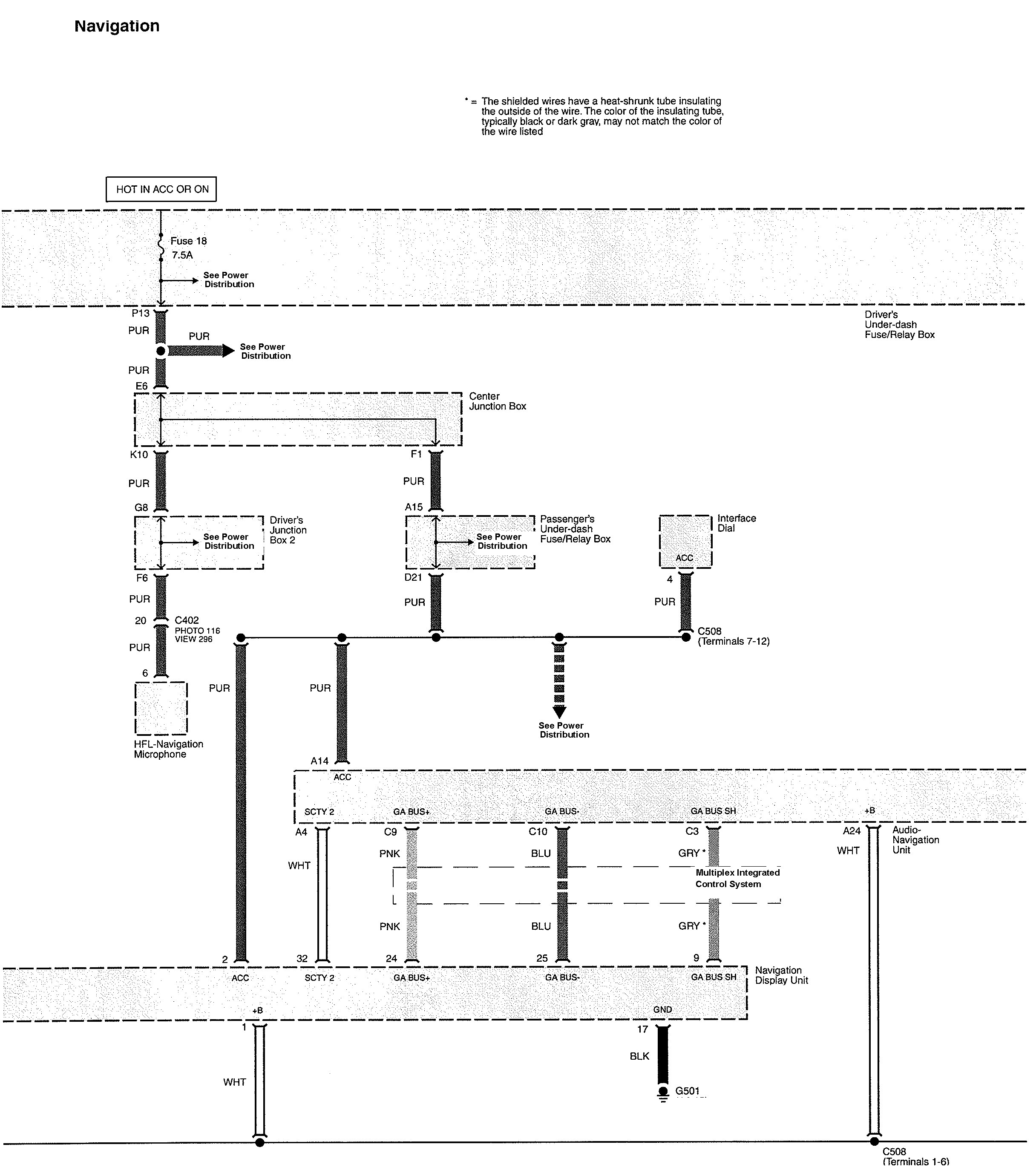

Acura TL - wiring diagram -  audio (part 2)
Acura TL – wiring diagram – audio (part 2)

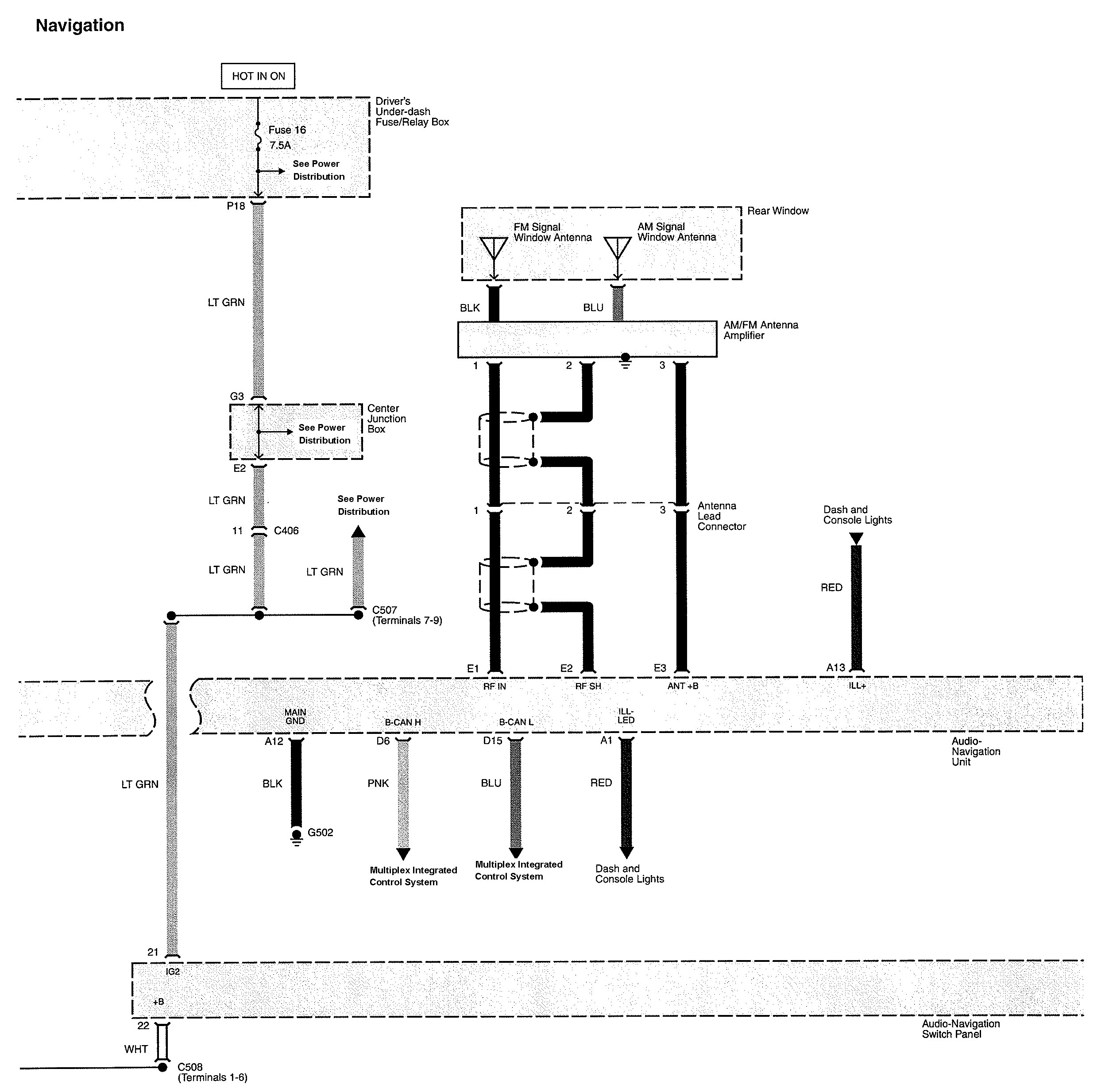

Acura TL - wiring diagram -  audio (part 3)
Acura TL – wiring diagram – audio (part 3)

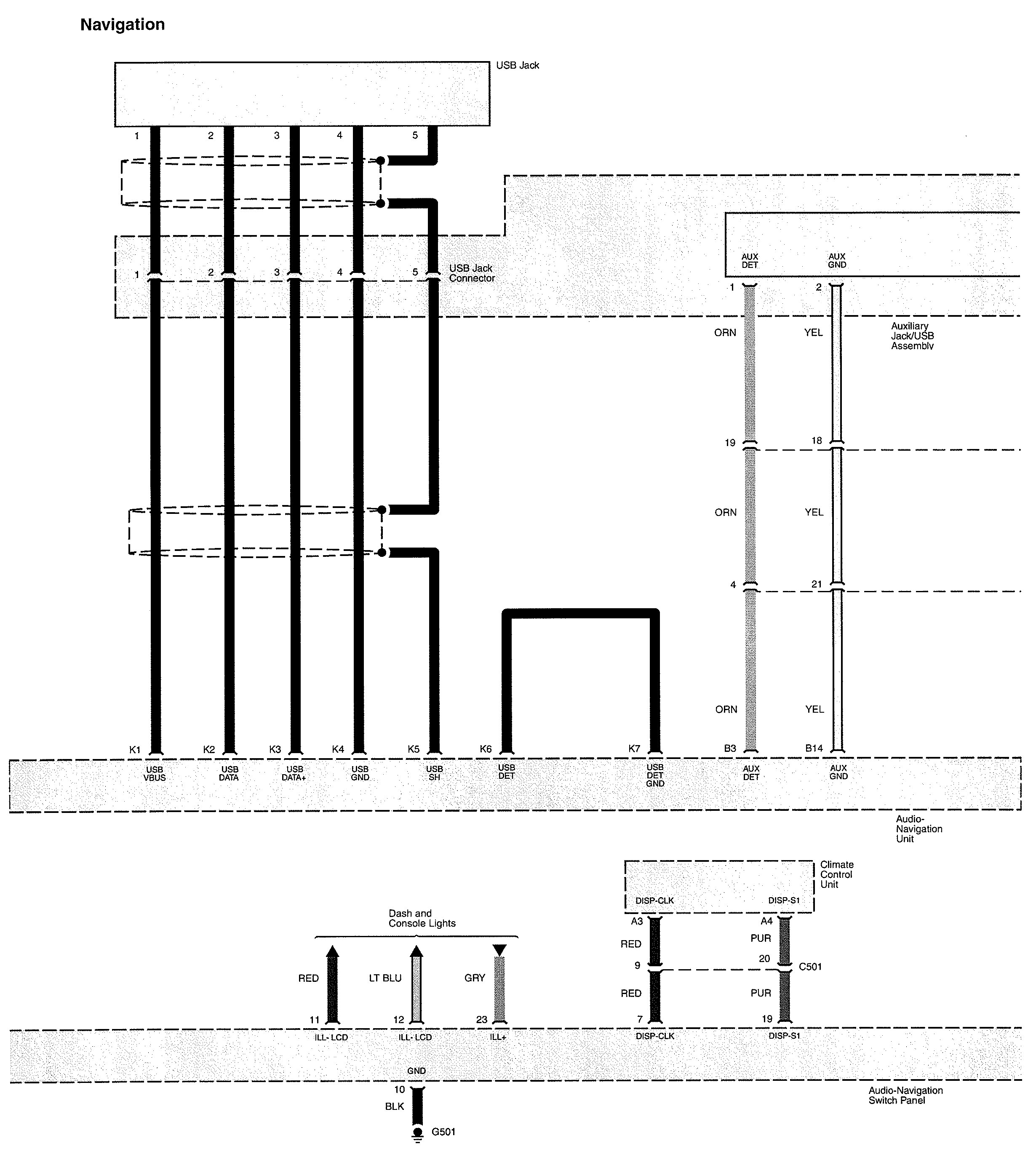

Acura TL - wiring diagram -  audio (part 4)
Acura TL – wiring diagram – audio (part 4)

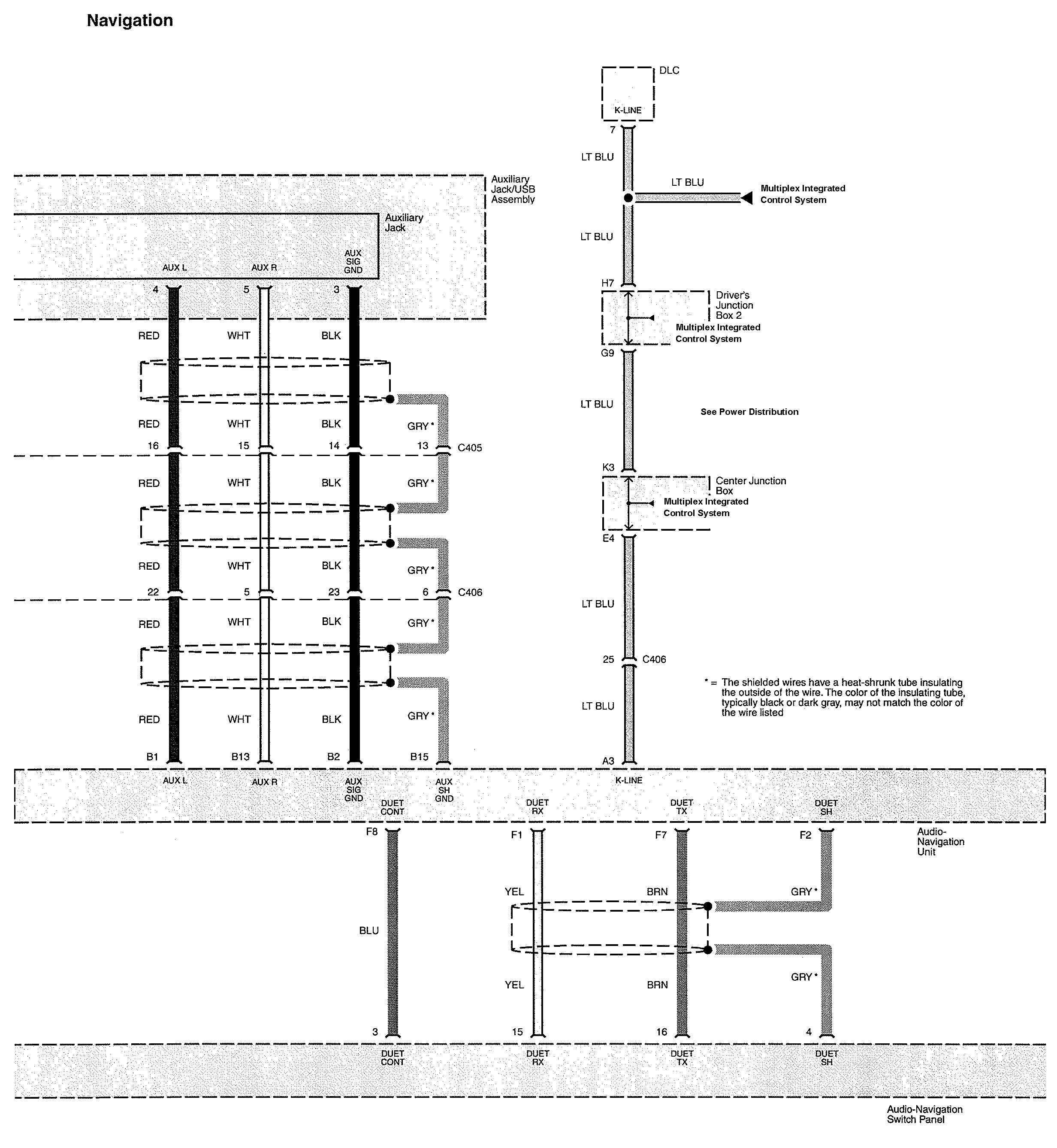

Acura TL - wiring diagram -  audio (part 5)
Acura TL – wiring diagram – audio (part 5)

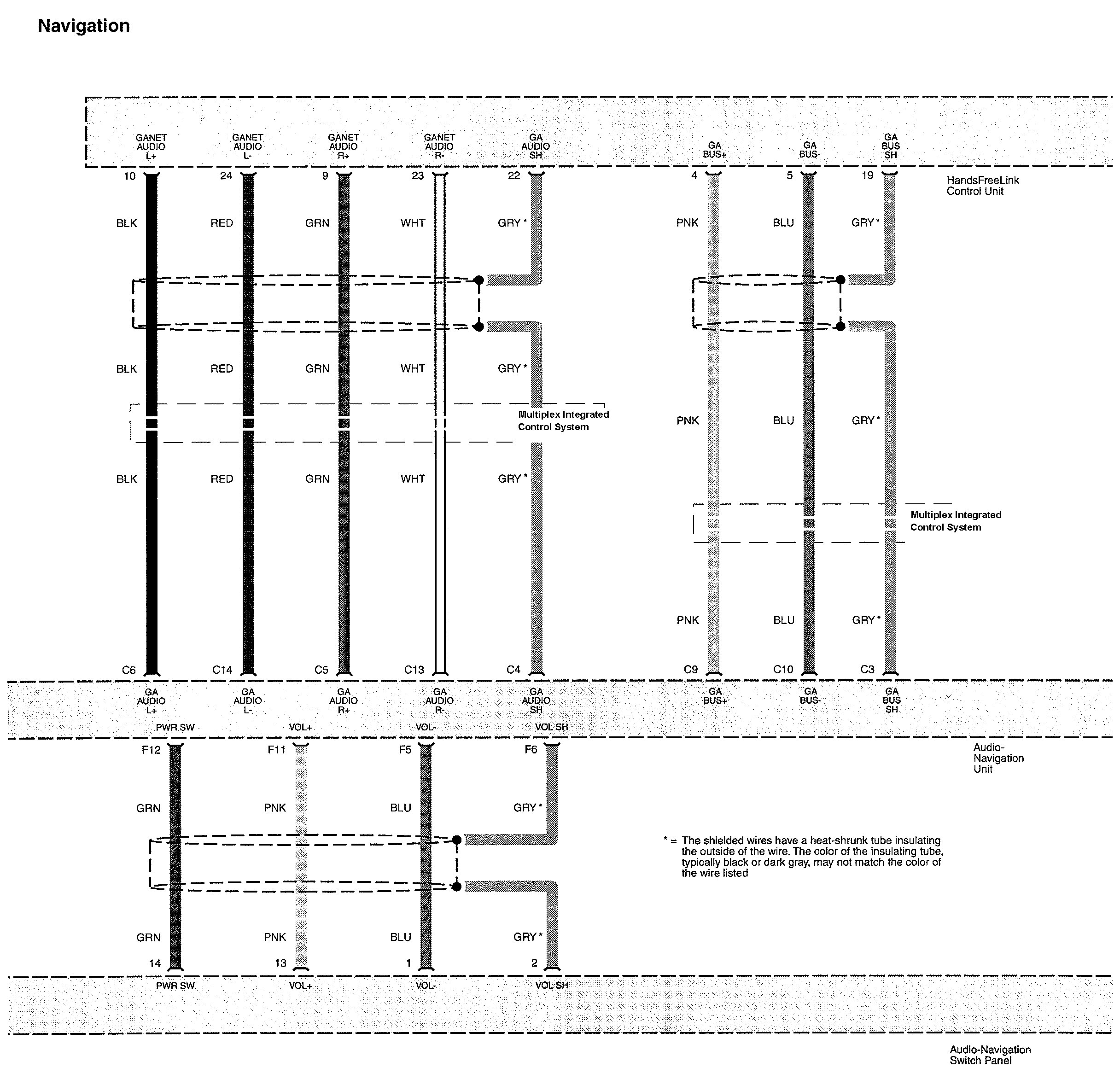

Acura TL - wiring diagram -  audio (part 6)
Acura TL – wiring diagram – audio (part 6)

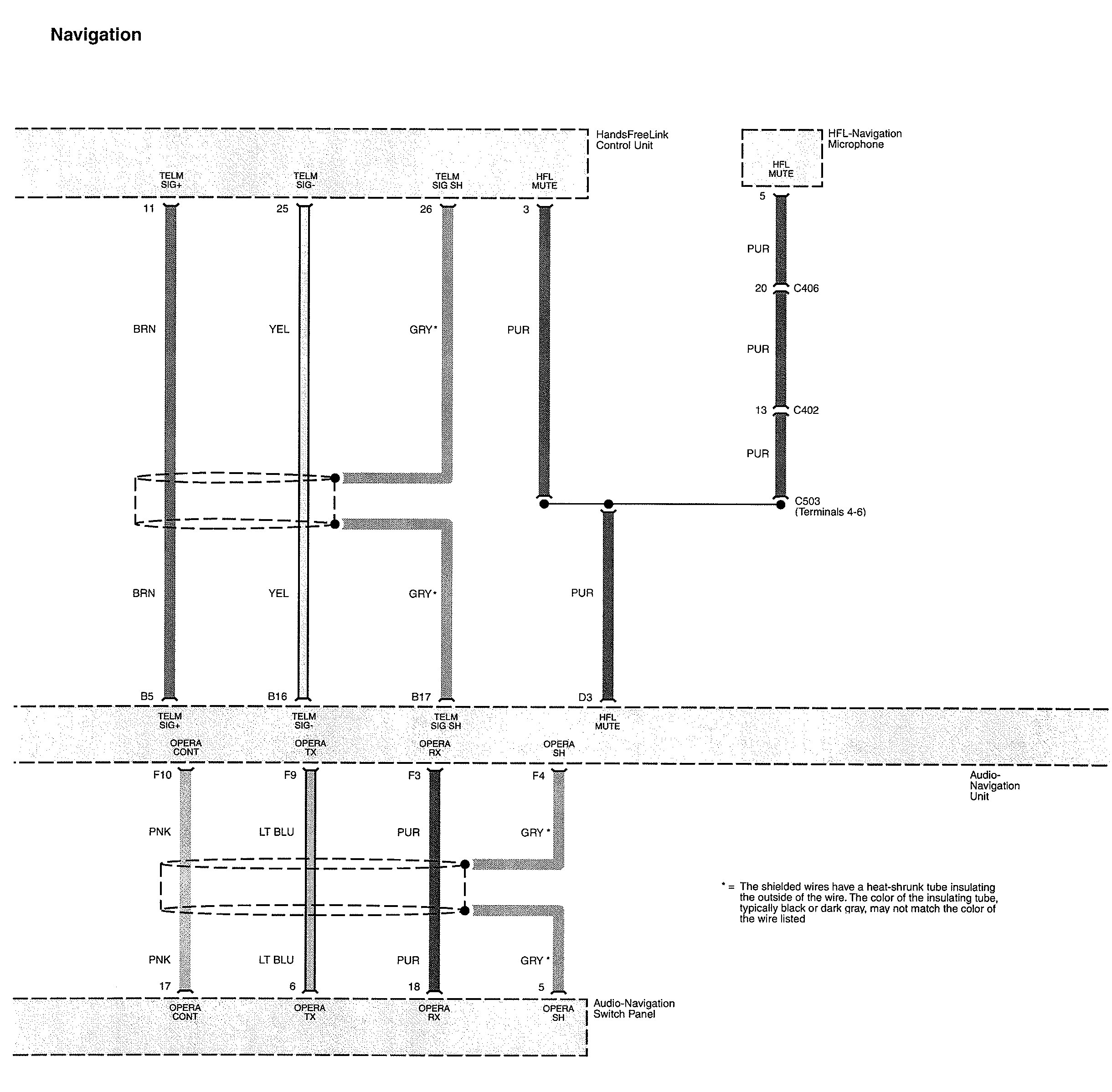

Acura TL - wiring diagram -  audio (part 7)
Acura TL – wiring diagram – audio (part 7)

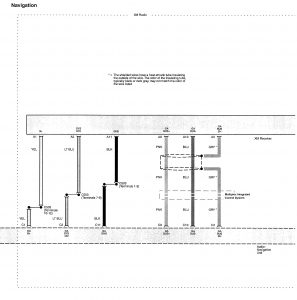

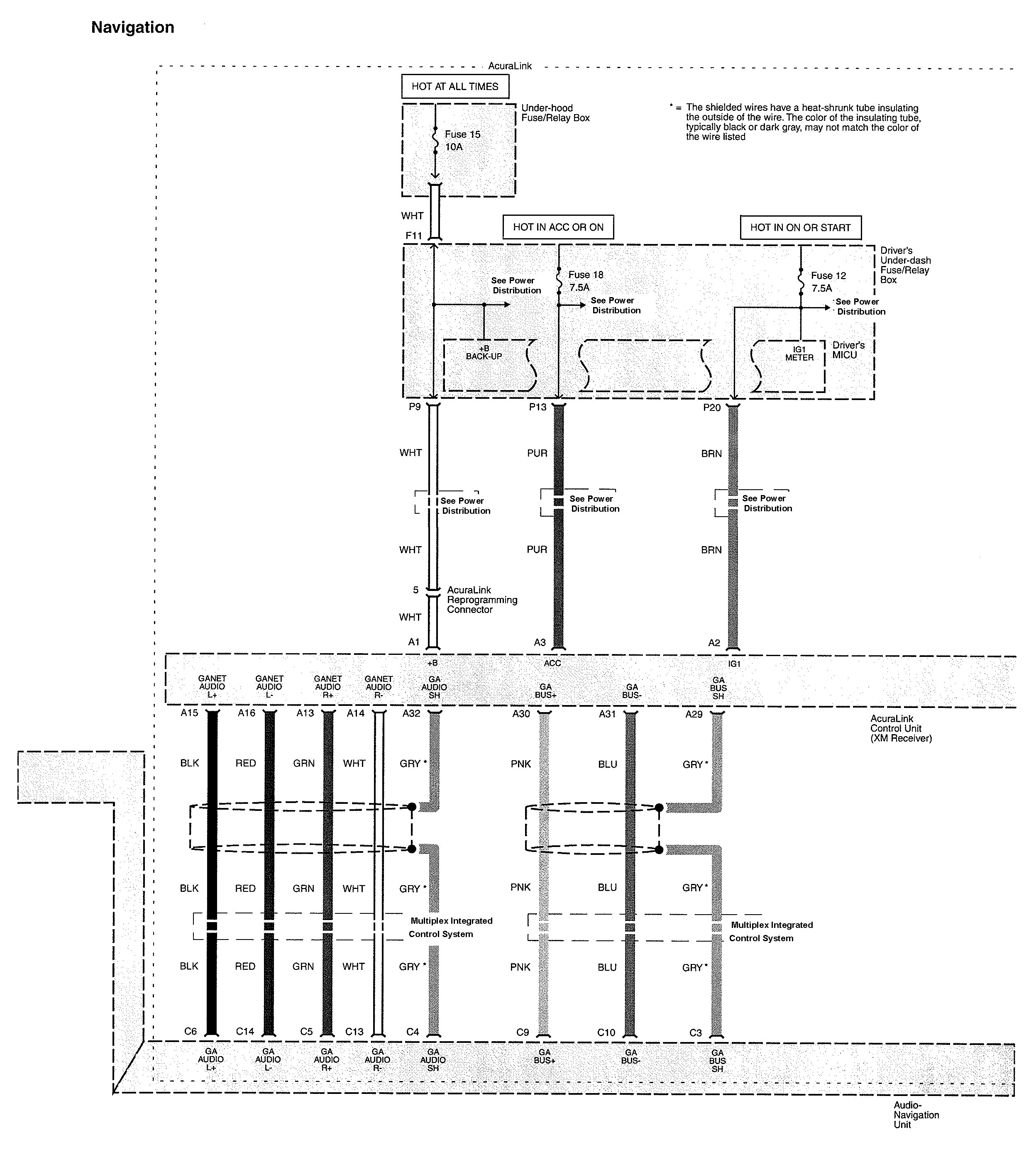

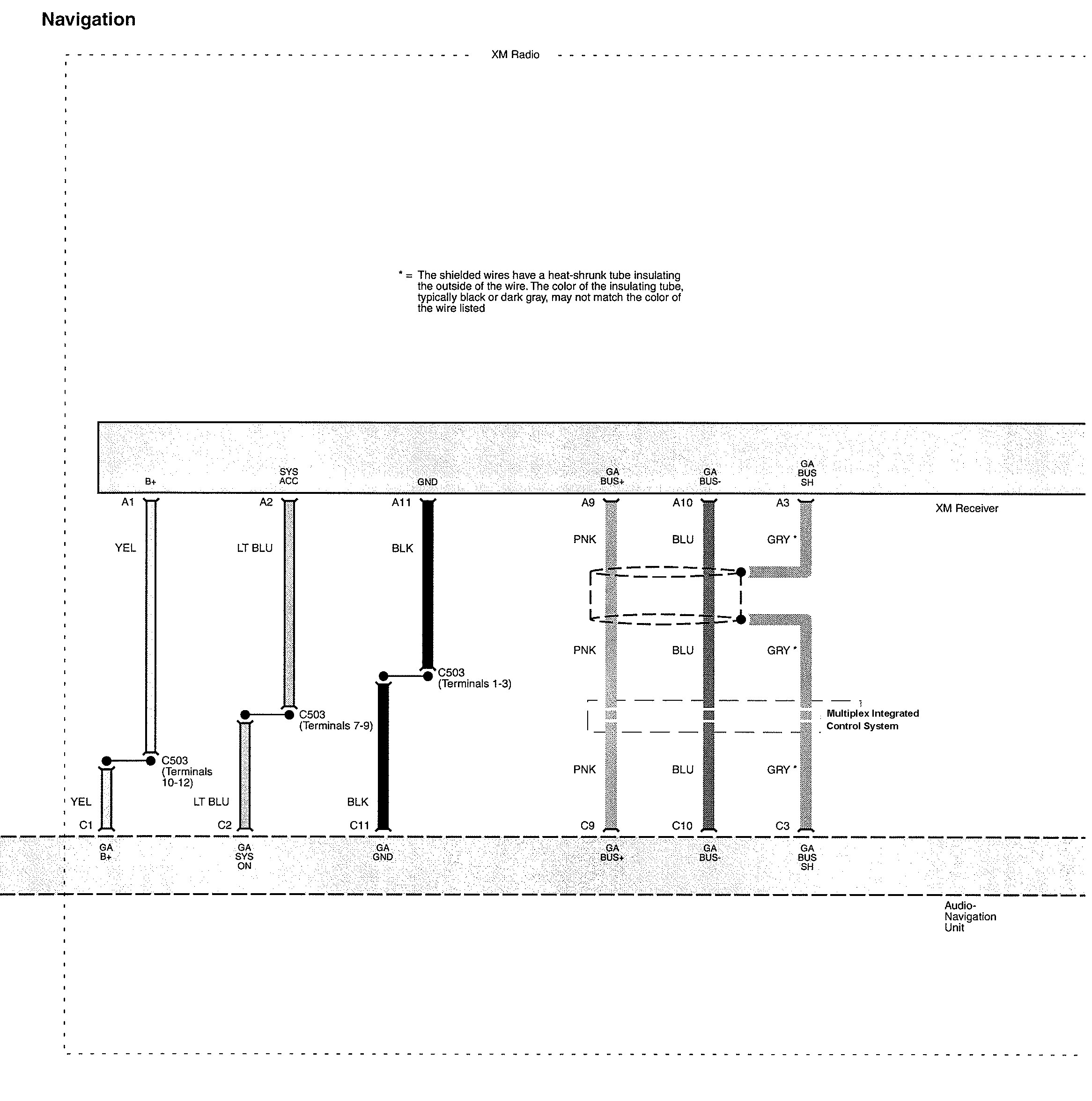

Acura TL - wiring diagram -  audio (part 8)
Acura TL – wiring diagram – audio (part 8)

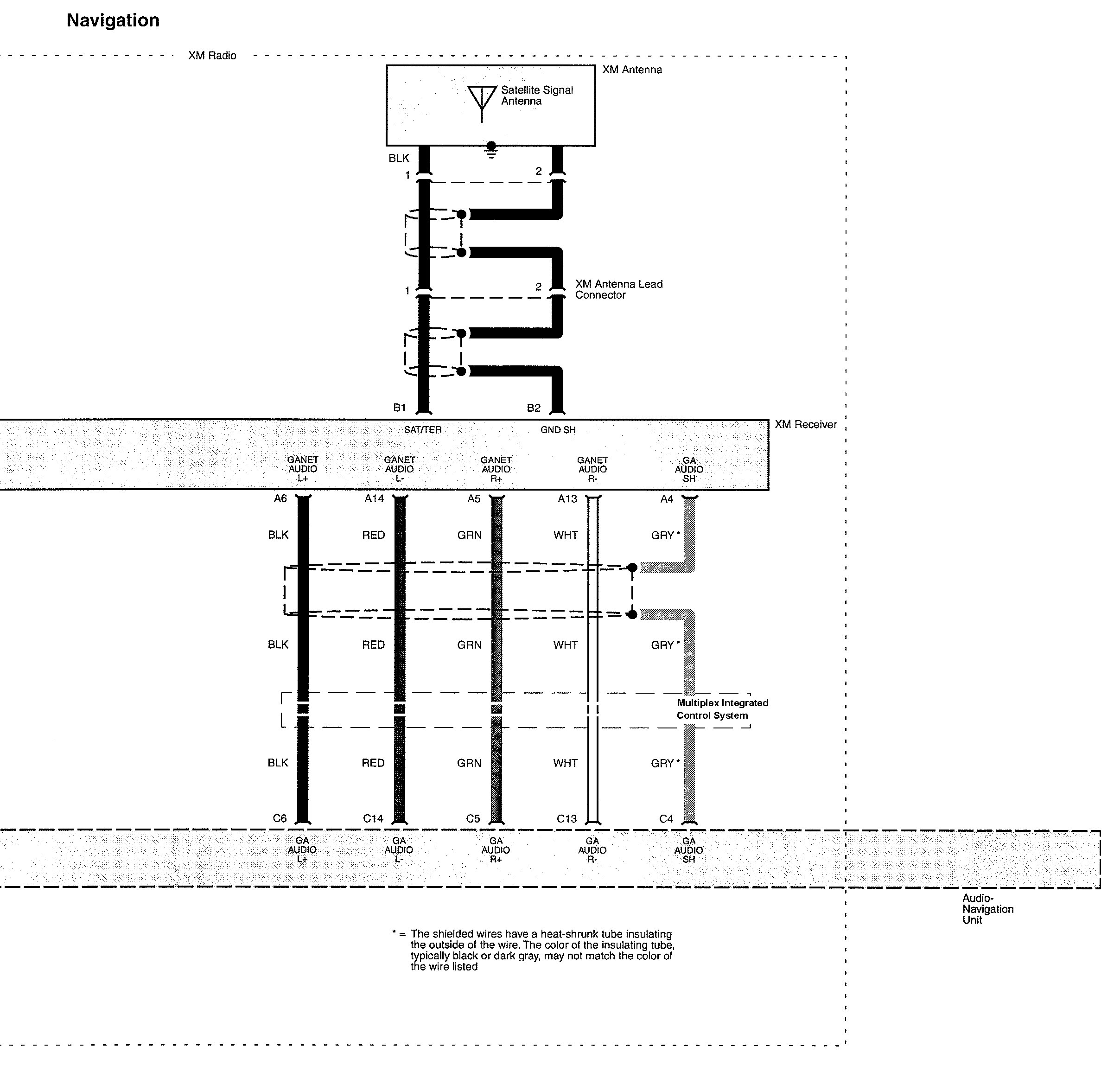

Acura TL - wiring diagram -  audio (part 9)
Acura TL – wiring diagram – audio (part 9)
Acura TL - wiring diagram -  audio (part 10)
Acura TL – wiring diagram – audio (part 10)

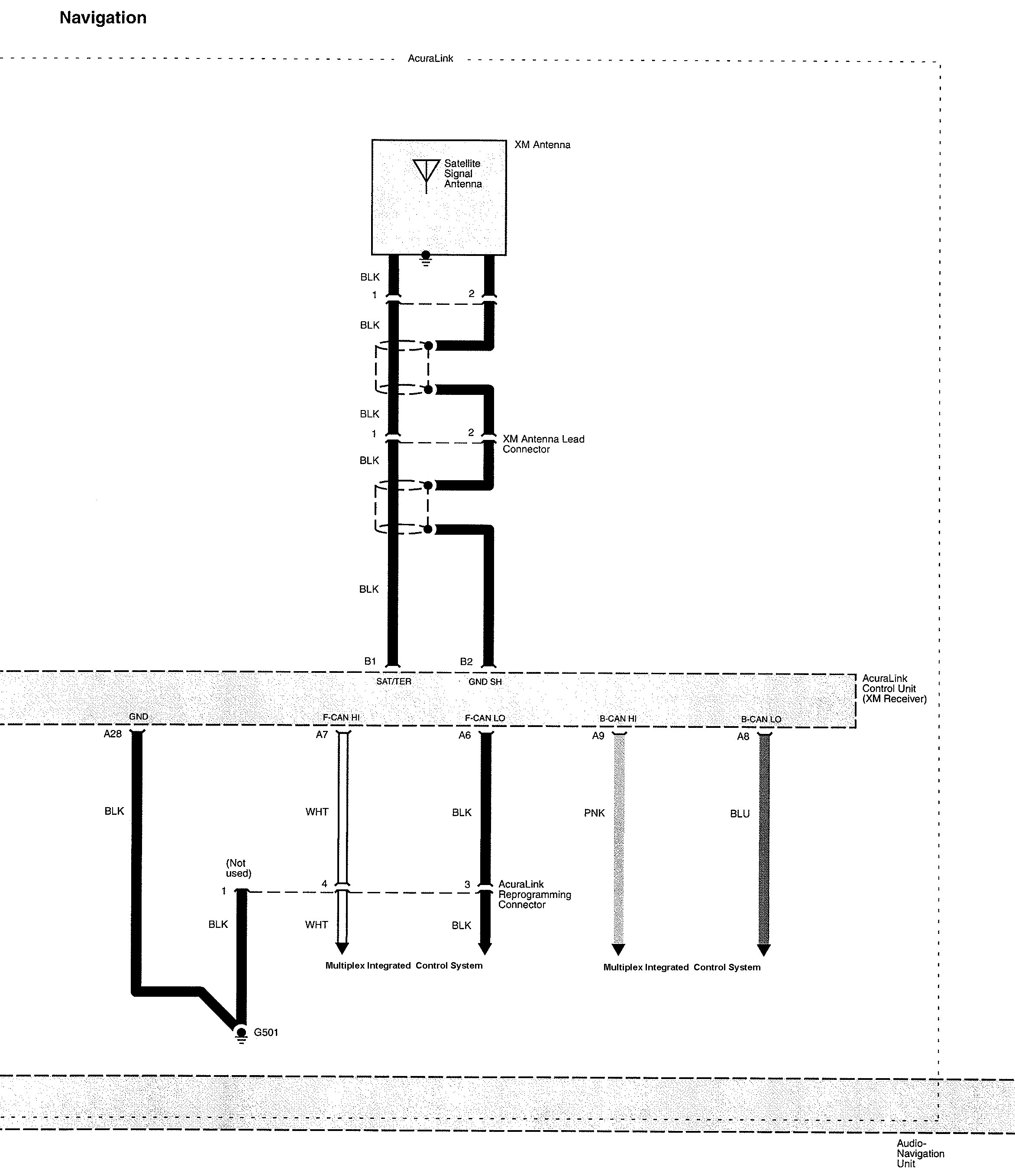

Acura TL - wiring diagram -  audio (part 11)
Acura TL – wiring diagram – audio (part 11)

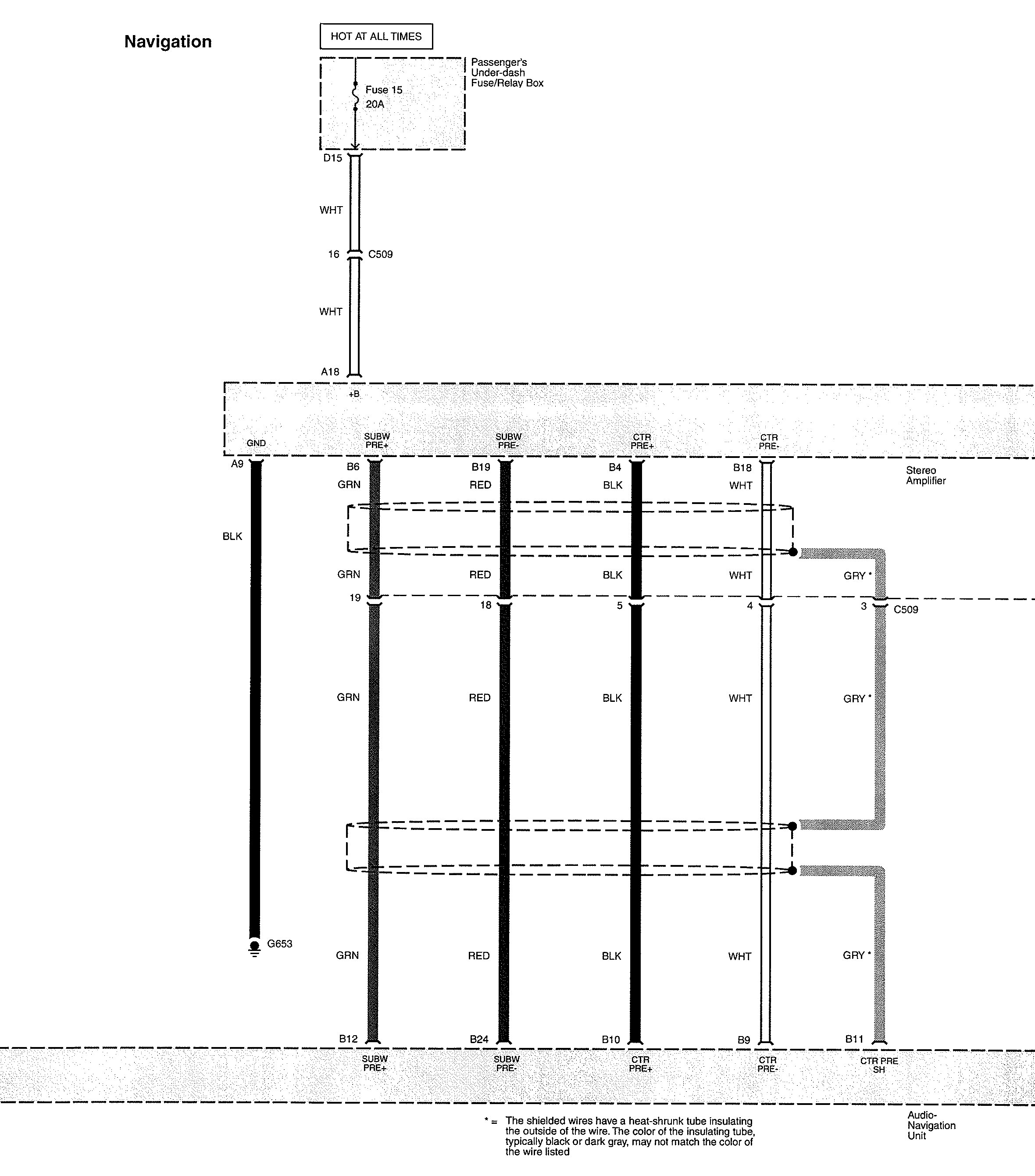

Acura TL - wiring diagram -  audio (part 12)
Acura TL – wiring diagram – audio (part 12)

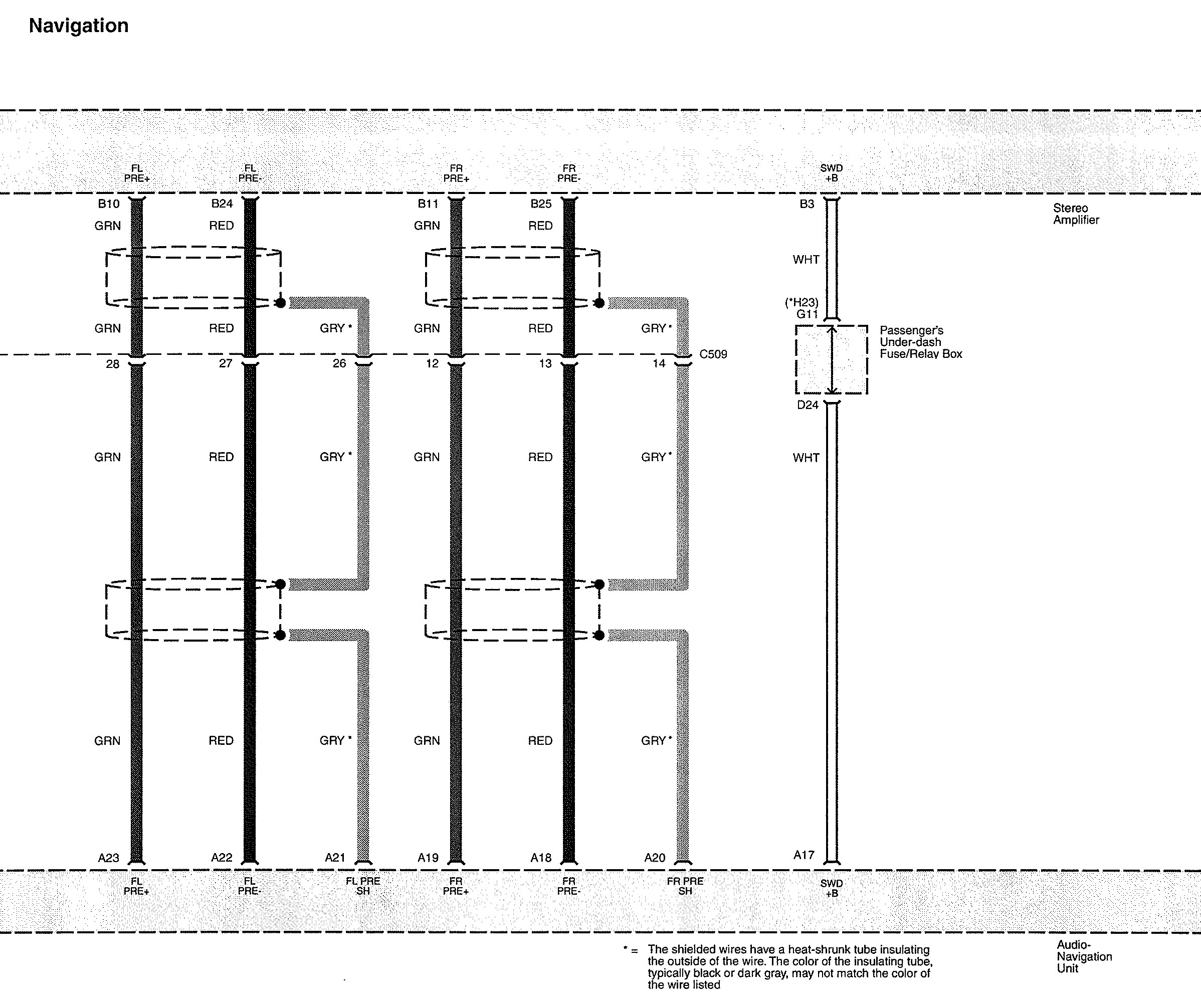

Acura TL - wiring diagram -  audio (part 13)
Acura TL – wiring diagram – audio (part 13)

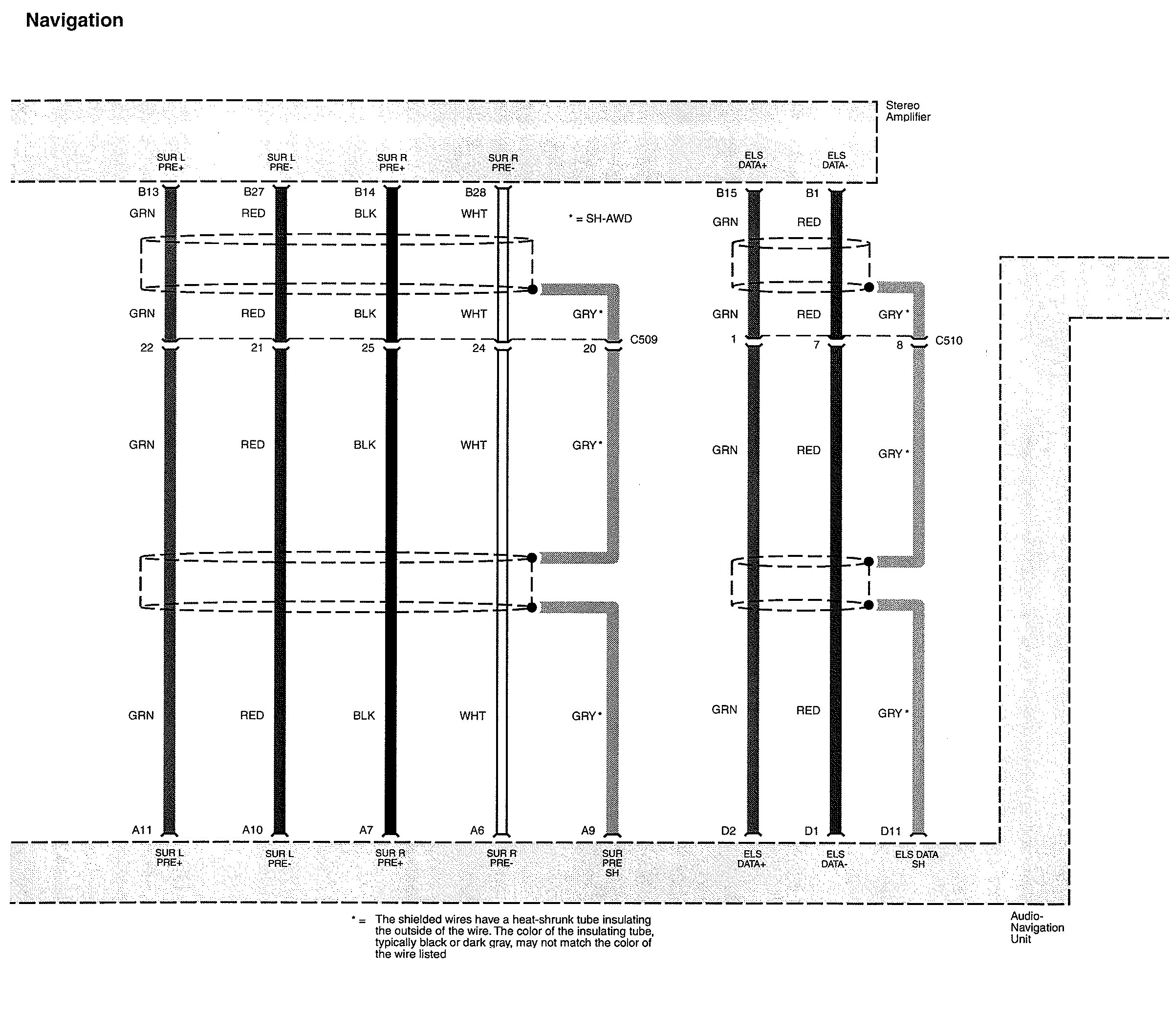

Acura TL - wiring diagram -  audio (part 14)
Acura TL – wiring diagram – audio (part 14)

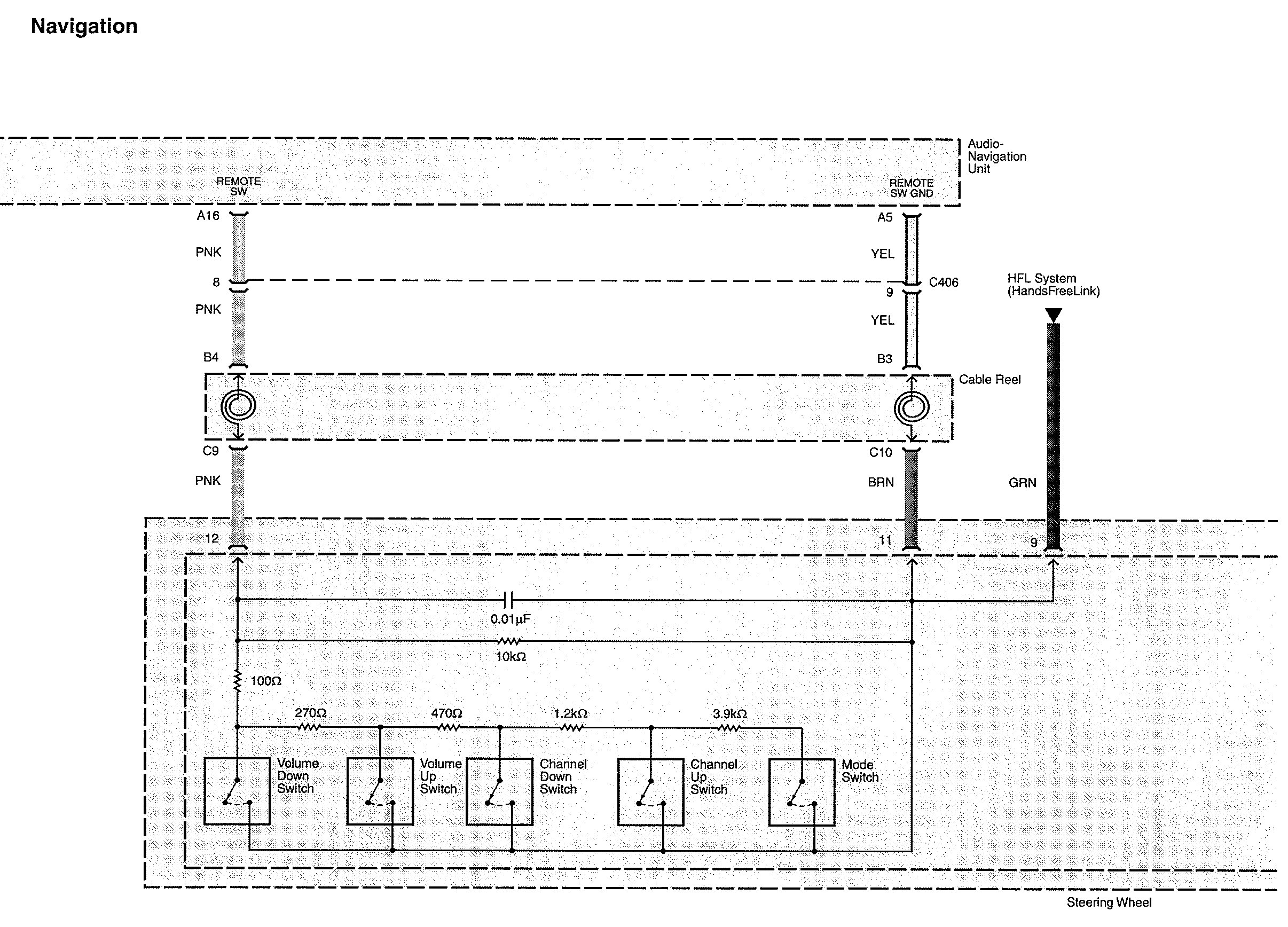

Acura TL - wiring diagram -  audio (part 15)
Acura TL – wiring diagram – audio (part 15)
Acura TL - wiring diagram -  audio (part 16)
Acura TL – wiring diagram – audio (part 16)

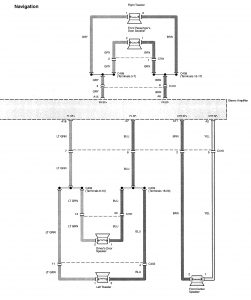

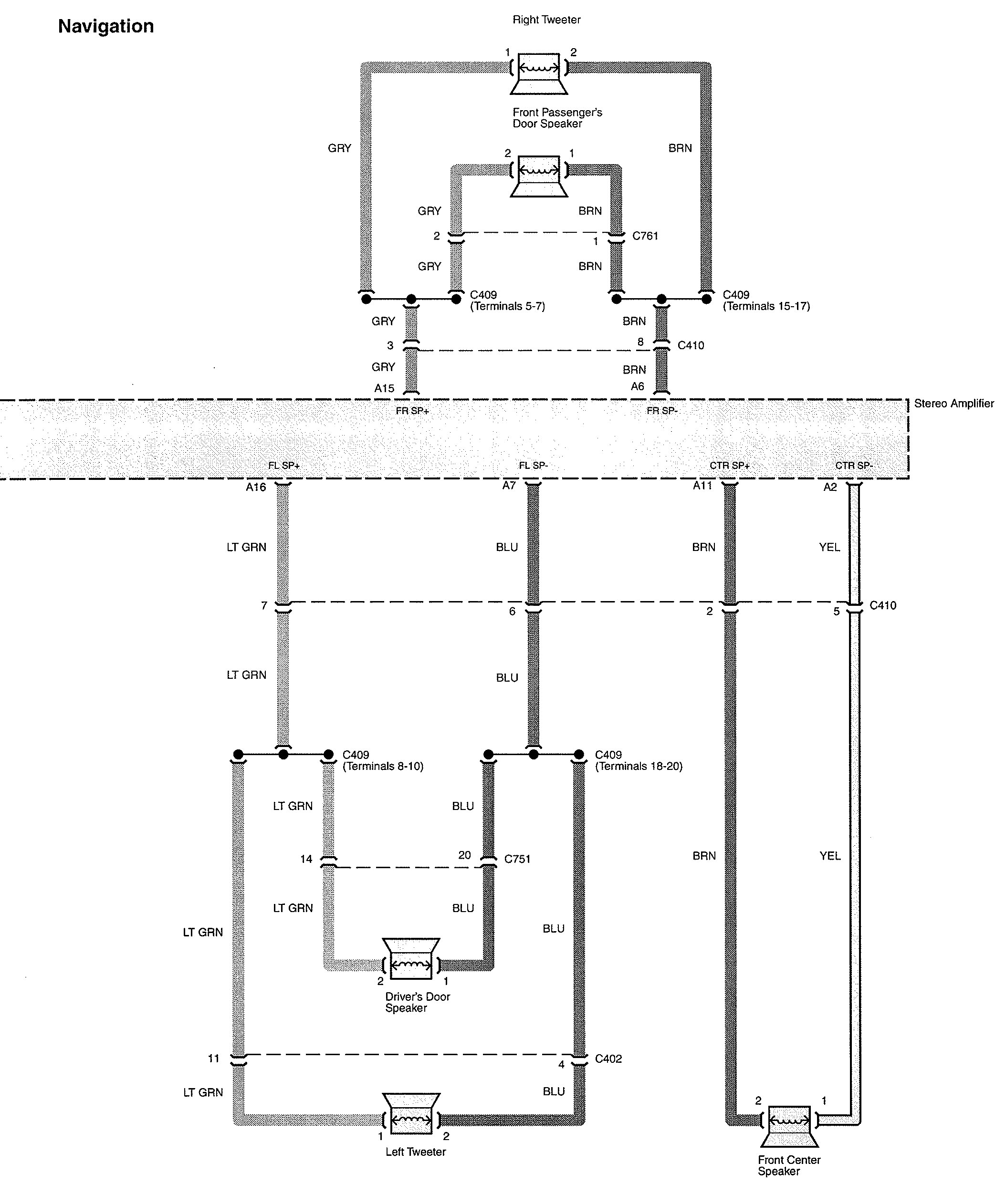

Acura TL - wiring diagram -  audio (part 17)
Acura TL – wiring diagram – audio (part 17)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
