Acura TL (2010) – wiring diagrams – license plate lamp

Acura TL (2010) – wiring diagrams – license plate lamp

Year of productions:  2010

License plate lamp

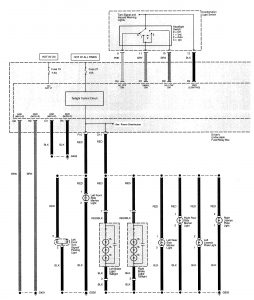

Acura TL - wiring diagram - license plate lamp (part 1)
Acura TL – wiring diagram – license plate lamp (part 1)

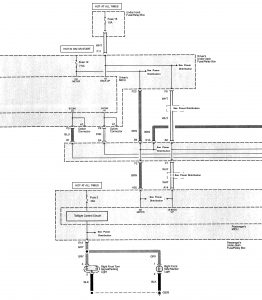

Acura TL - wiring diagram - license plate lamp (part 2)
Acura TL – wiring diagram – license plate lamp (part 2)

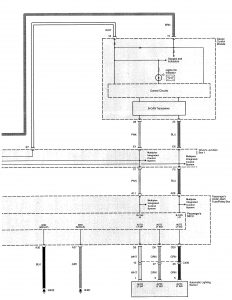

Acura TL - wiring diagram - license plate lamp (part 3)
Acura TL – wiring diagram – license plate lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
