Acura TL (2010) – wiring diagrams – starting

Acura TL (2010) – wiring diagrams – starting

Year of productions:  2010

Starting

Version 1

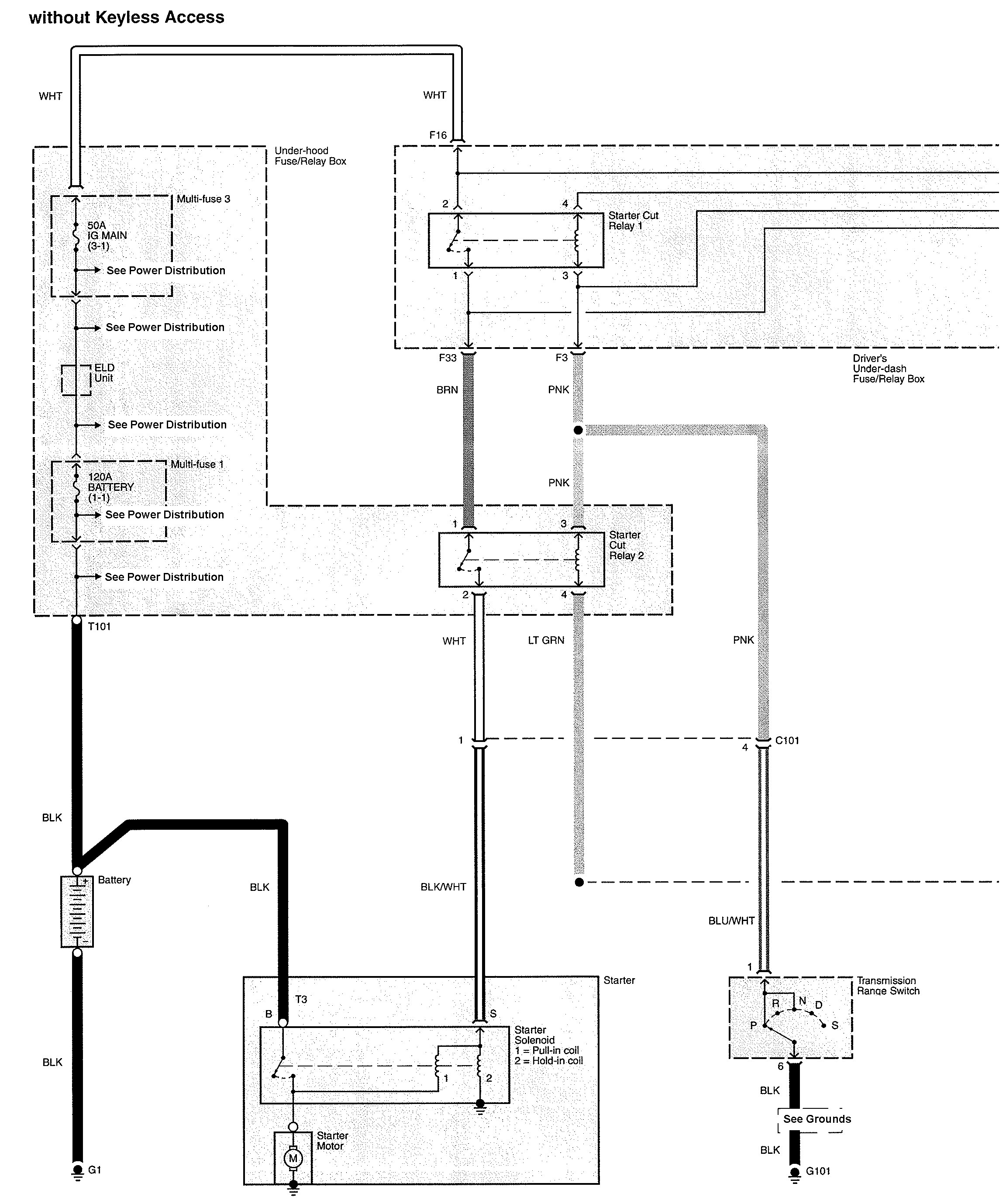

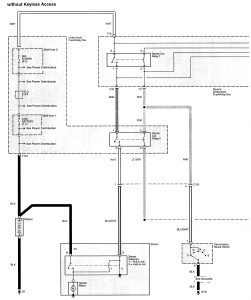

Acura TL - wiring diagram - starting (part 1)
Acura TL – wiring diagram – starting (part 1)

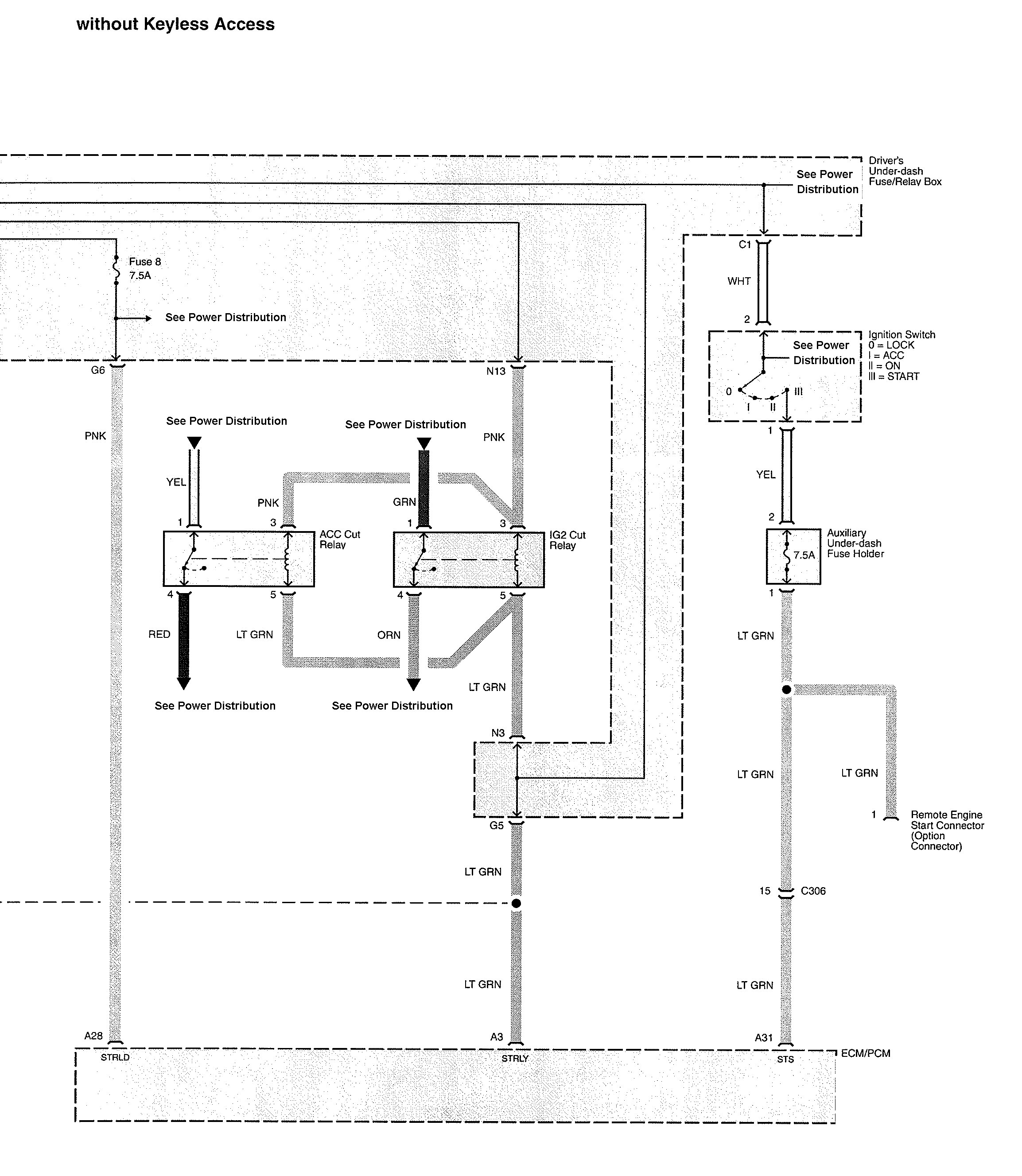

Acura TL - wiring diagram - starting (part 2)
Acura TL – wiring diagram – starting (part 2)

Version 2

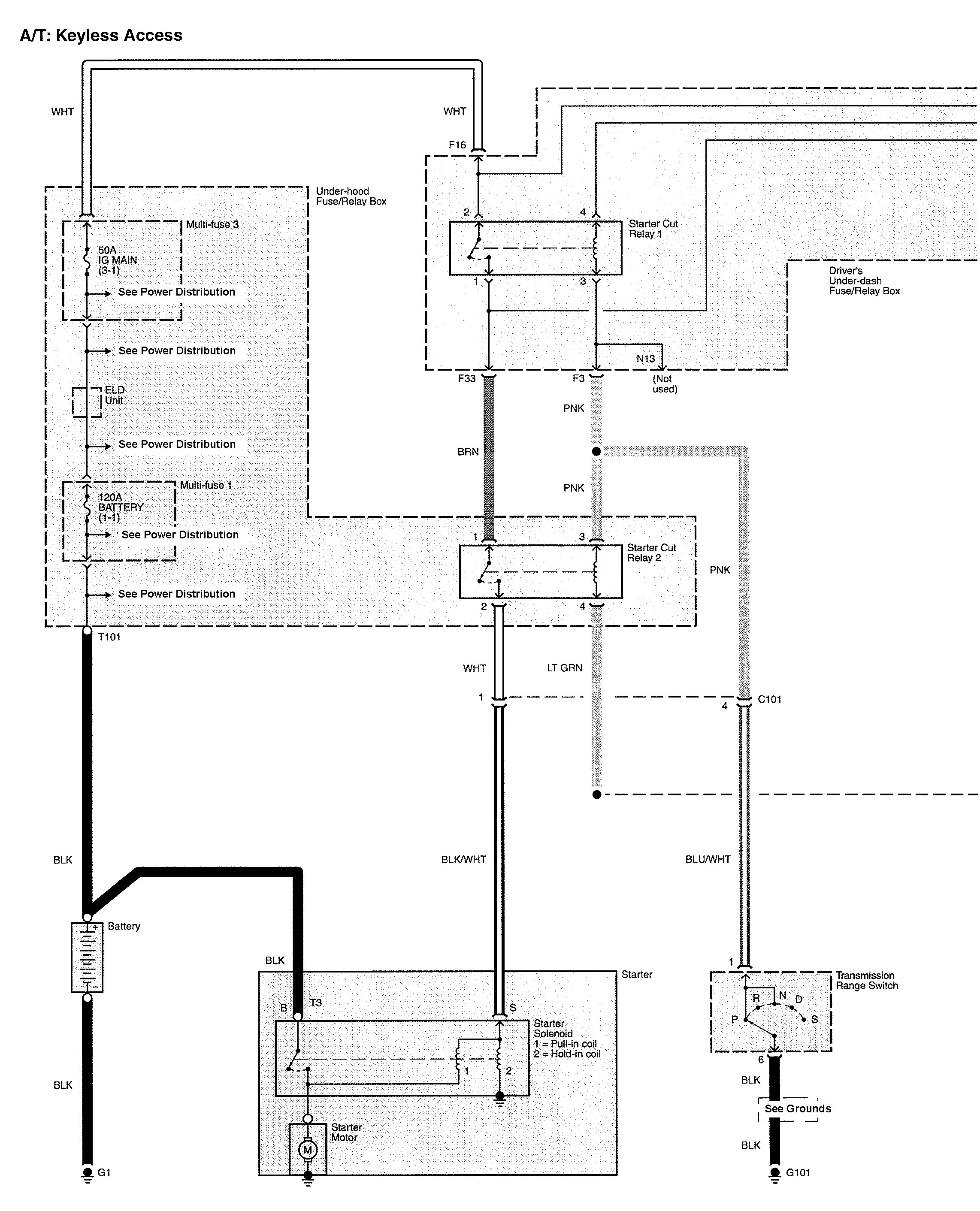

Acura TL - wiring diagram - starting (part 1)
Acura TL – wiring diagram – starting (part 1)

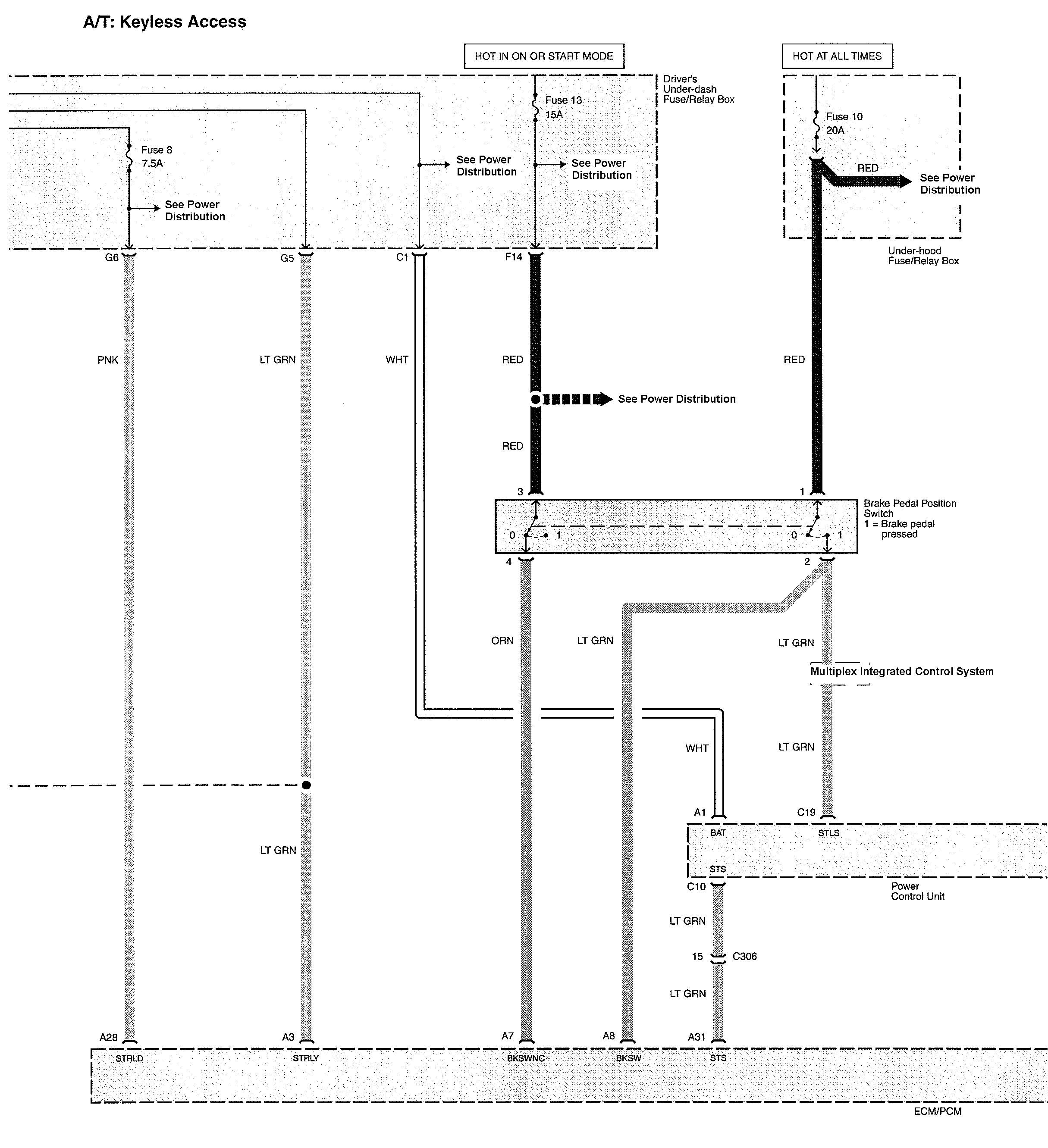

Acura TL - wiring diagram - starting (part 2)
Acura TL – wiring diagram – starting (part 2)

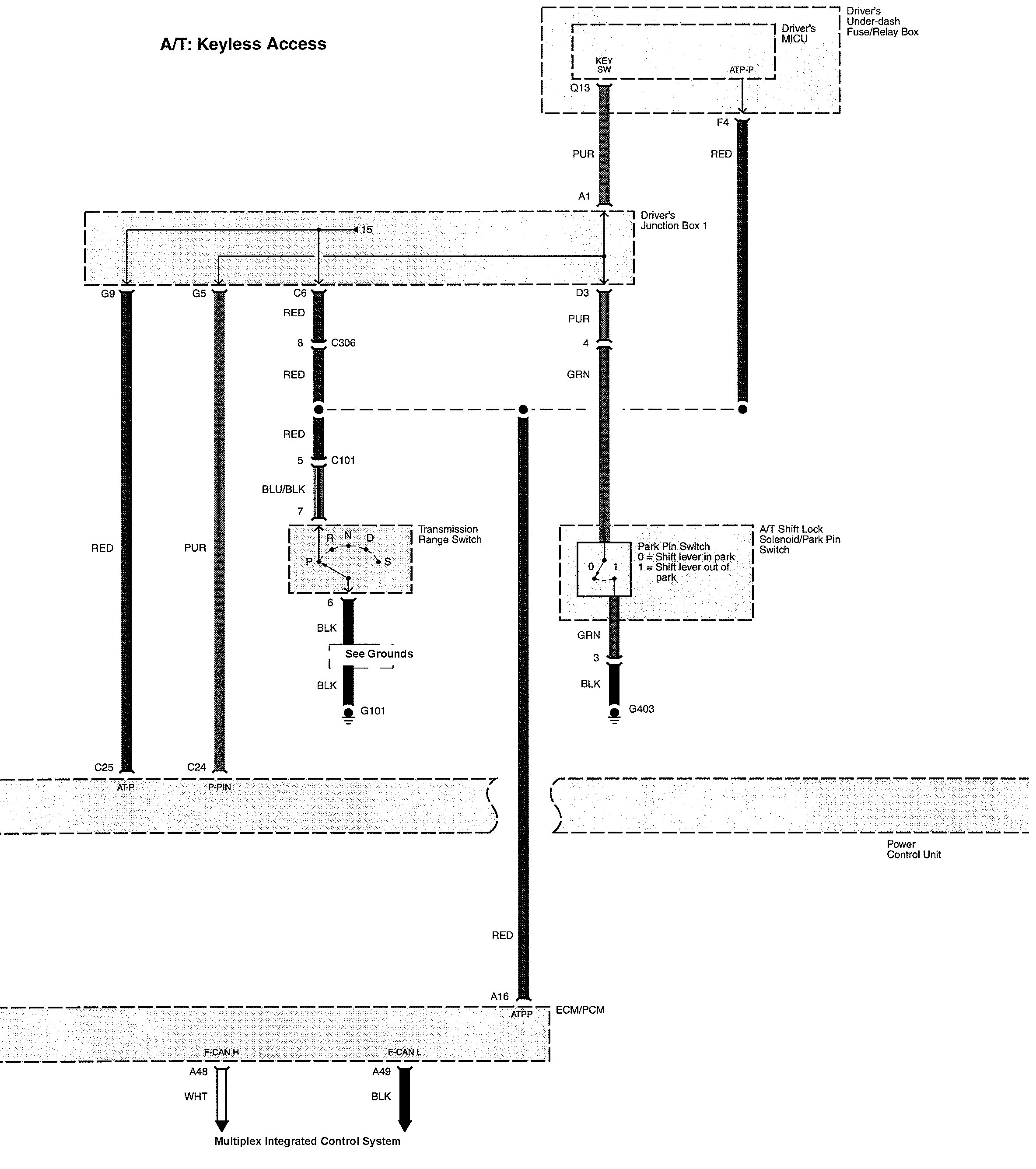

Acura TL - wiring diagram - starting (part 3)
Acura TL – wiring diagram – starting (part 3)

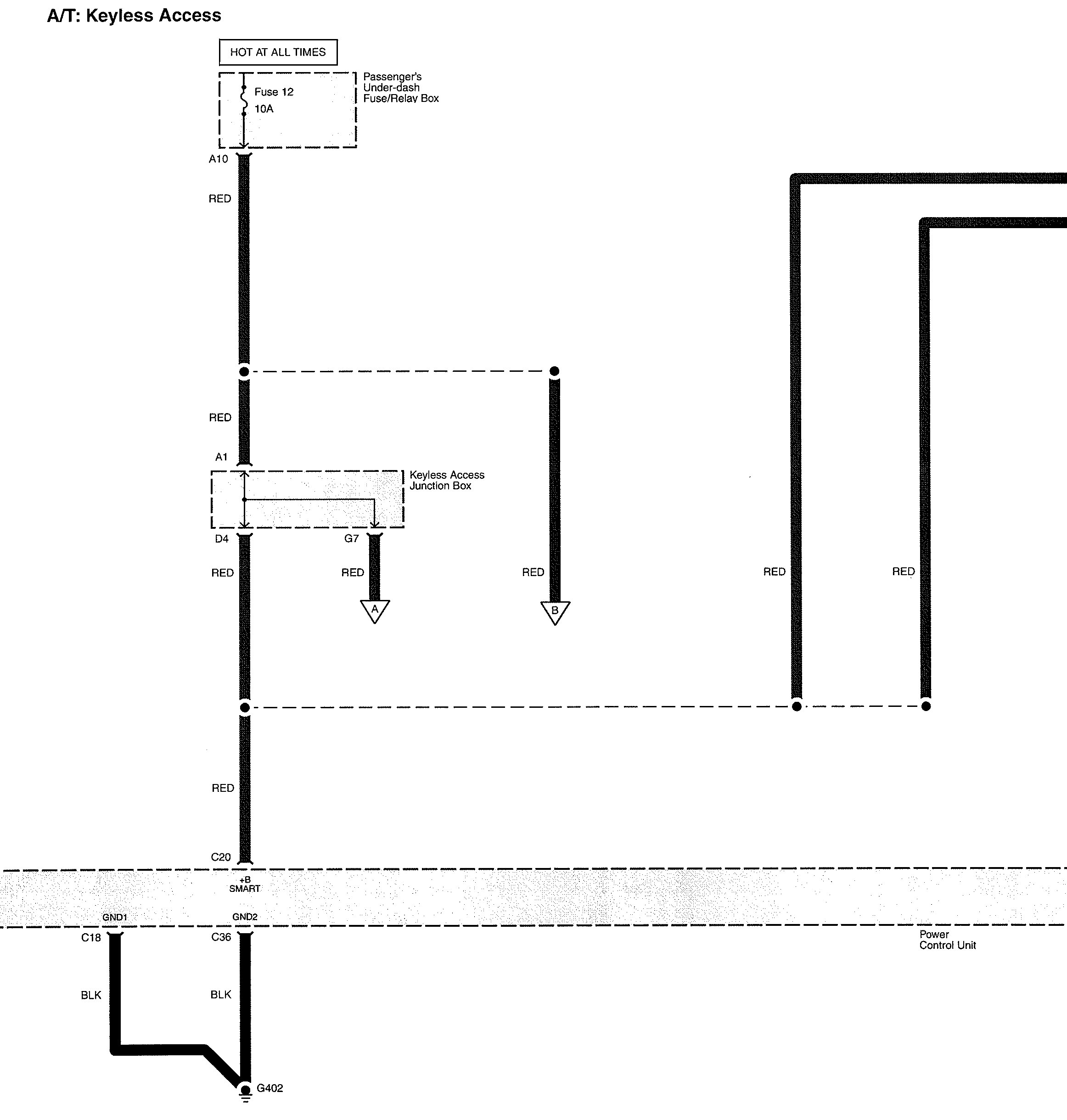

Acura TL - wiring diagram - starting (part 4)
Acura TL – wiring diagram – starting (part 4)

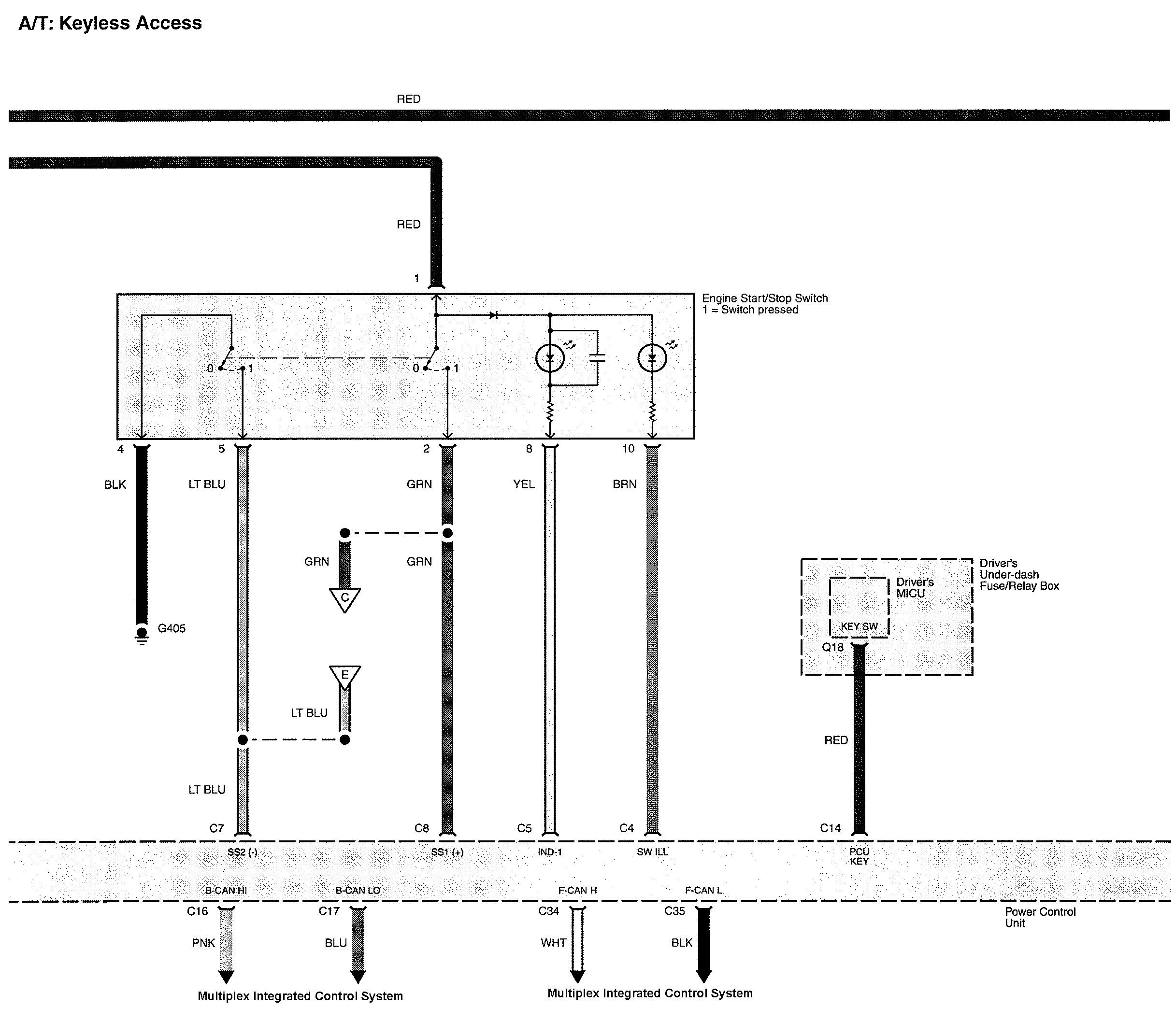

Acura TL - wiring diagram - starting (part 5)
Acura TL – wiring diagram – starting (part 5)

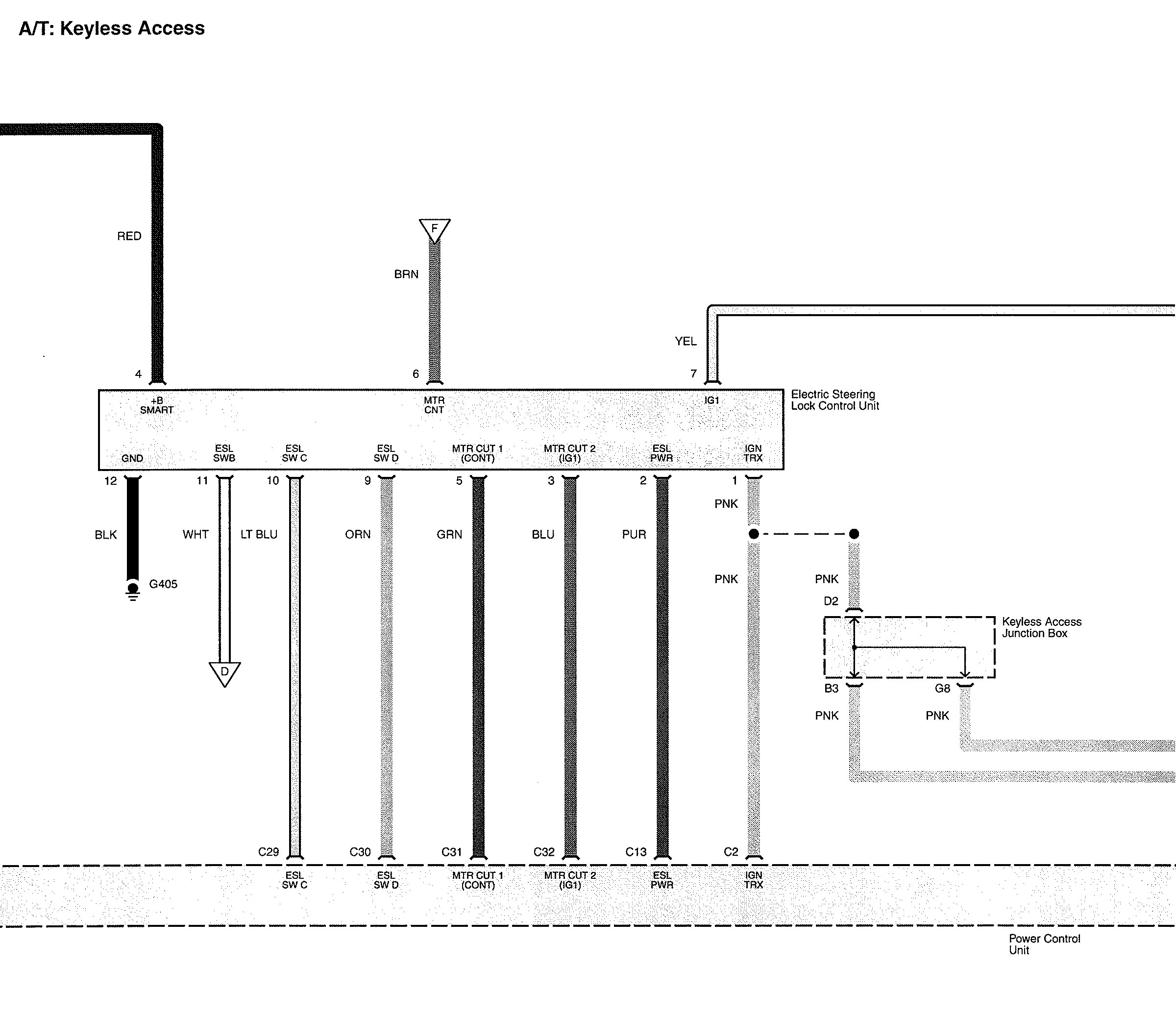

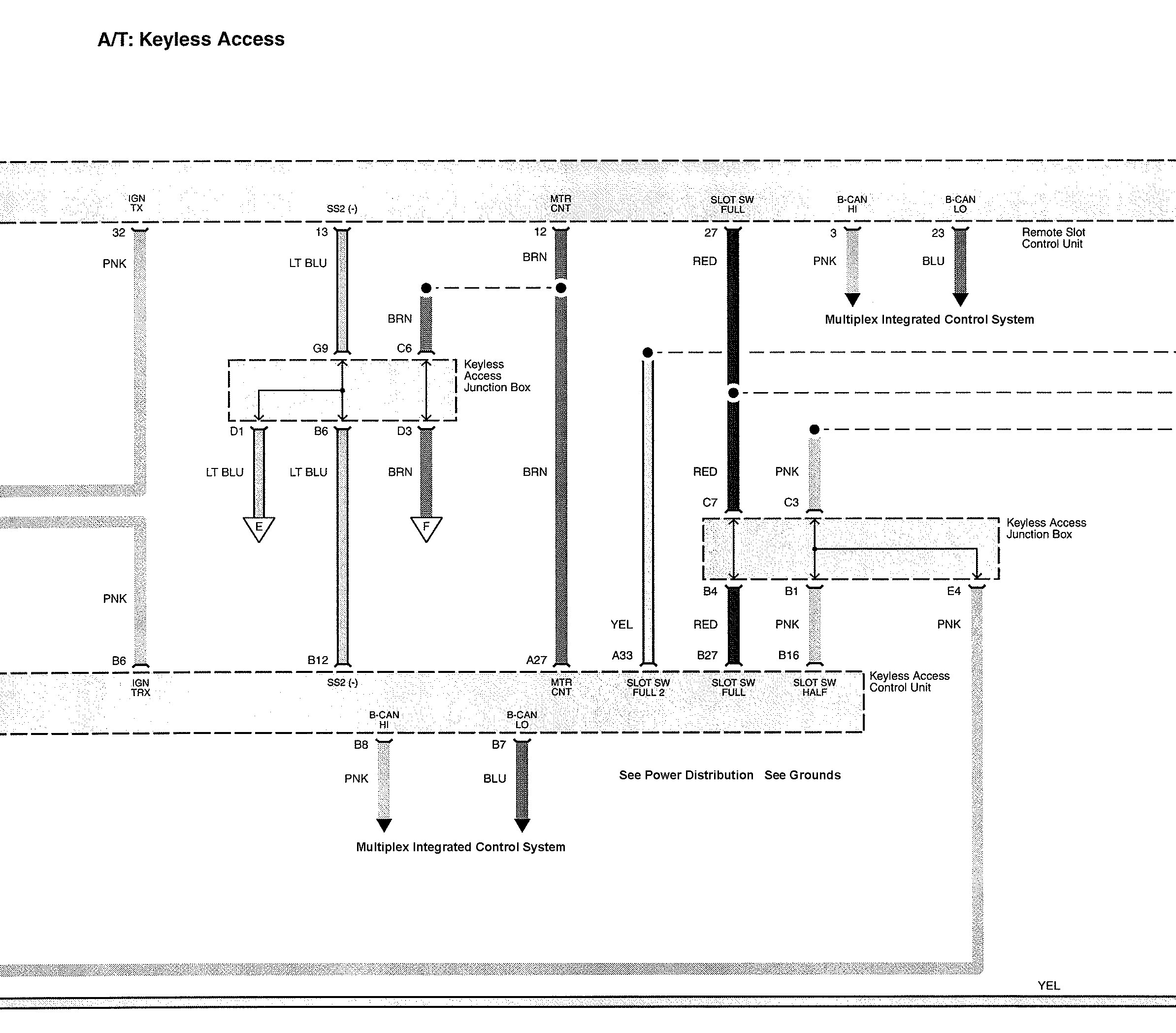

Acura TL - wiring diagram - starting (part 6)
Acura TL – wiring diagram – starting (part 6)

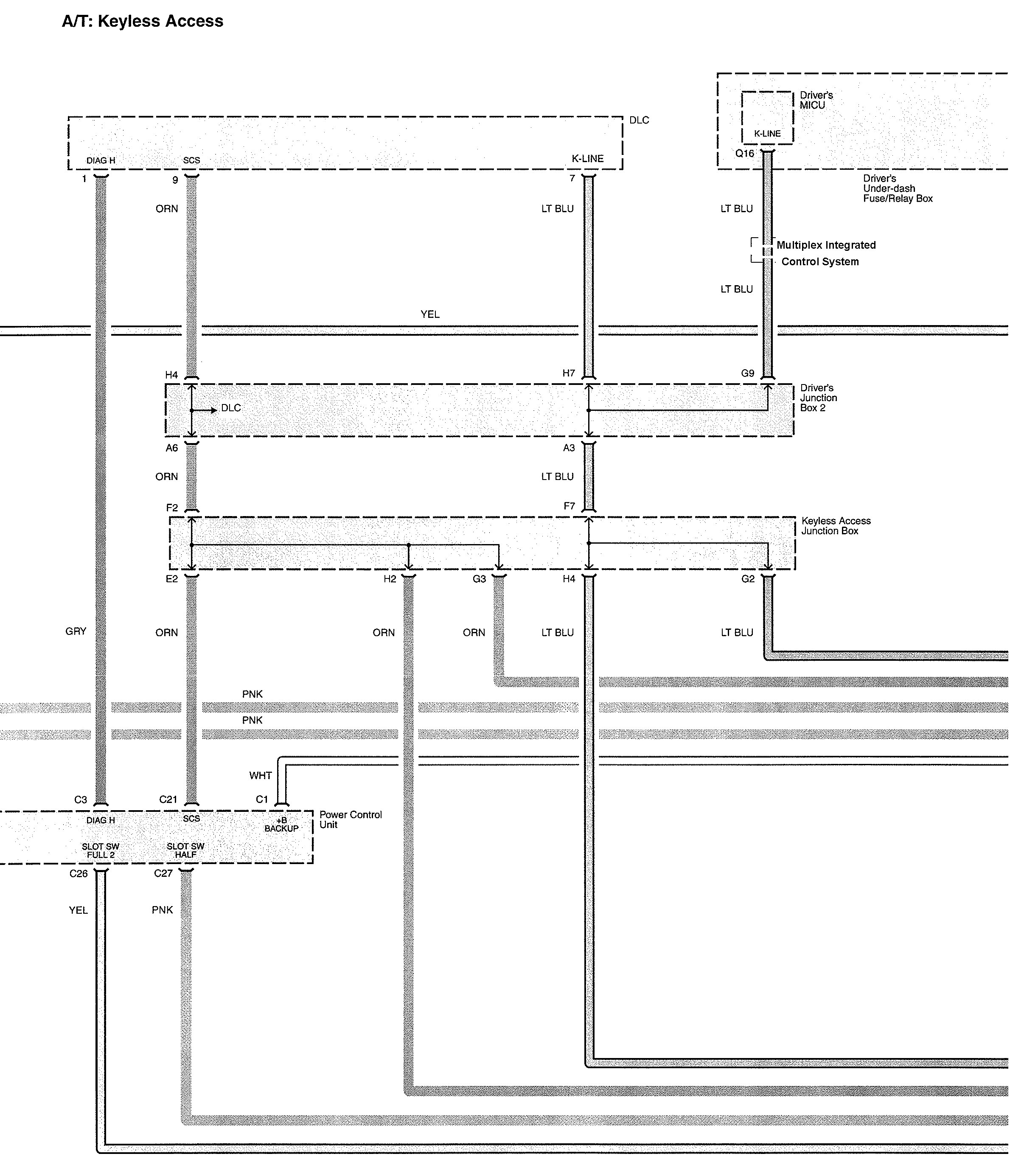

Acura TL - wiring diagram - starting (part 7)
Acura TL – wiring diagram – starting (part 7)

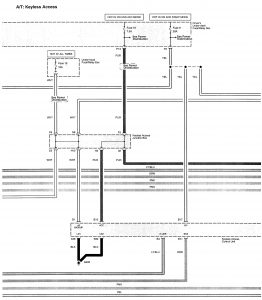

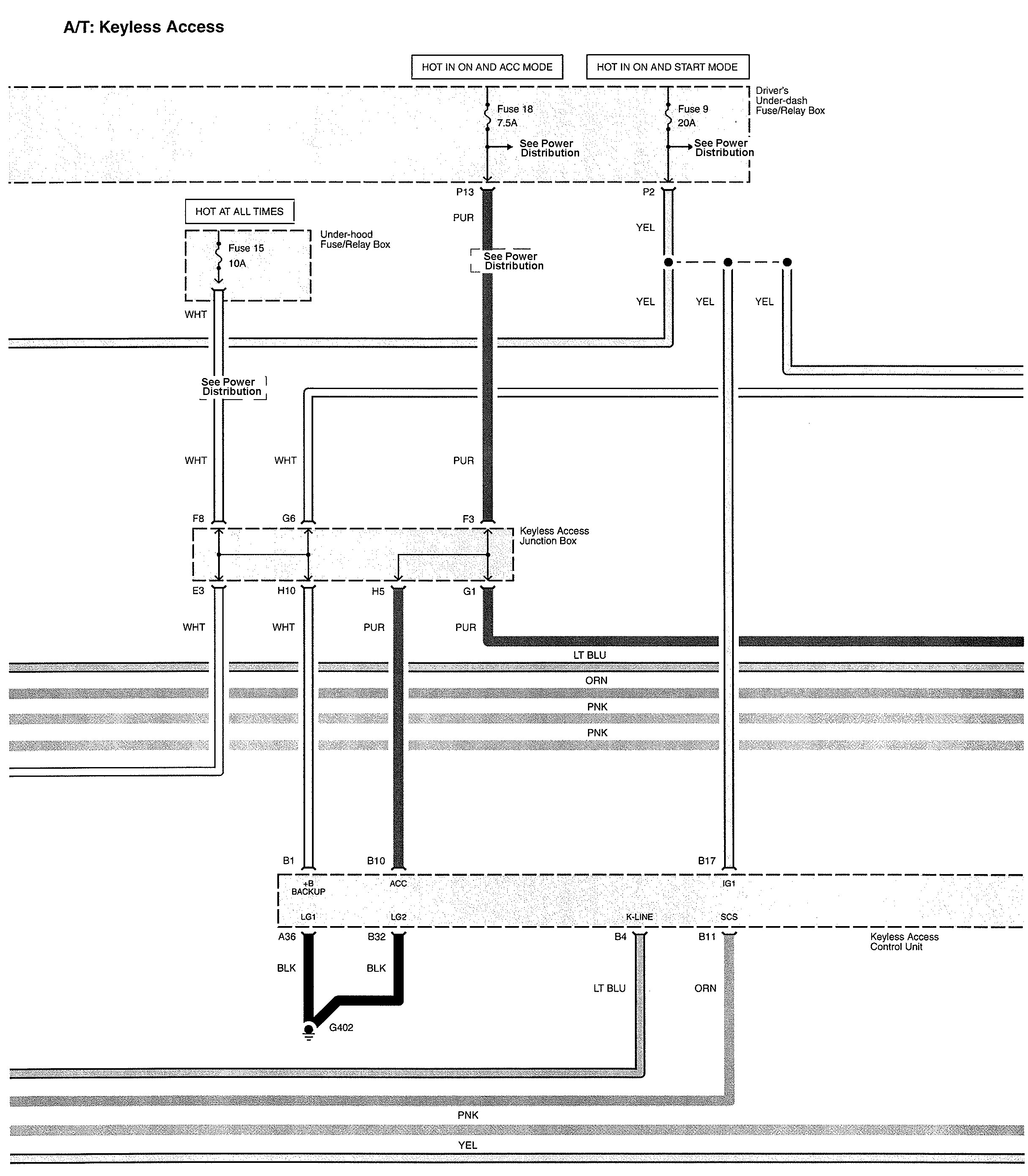

Acura TL - wiring diagram - starting (part 8)
Acura TL – wiring diagram – starting (part 8)

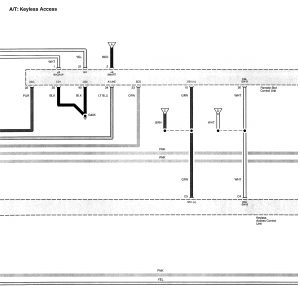

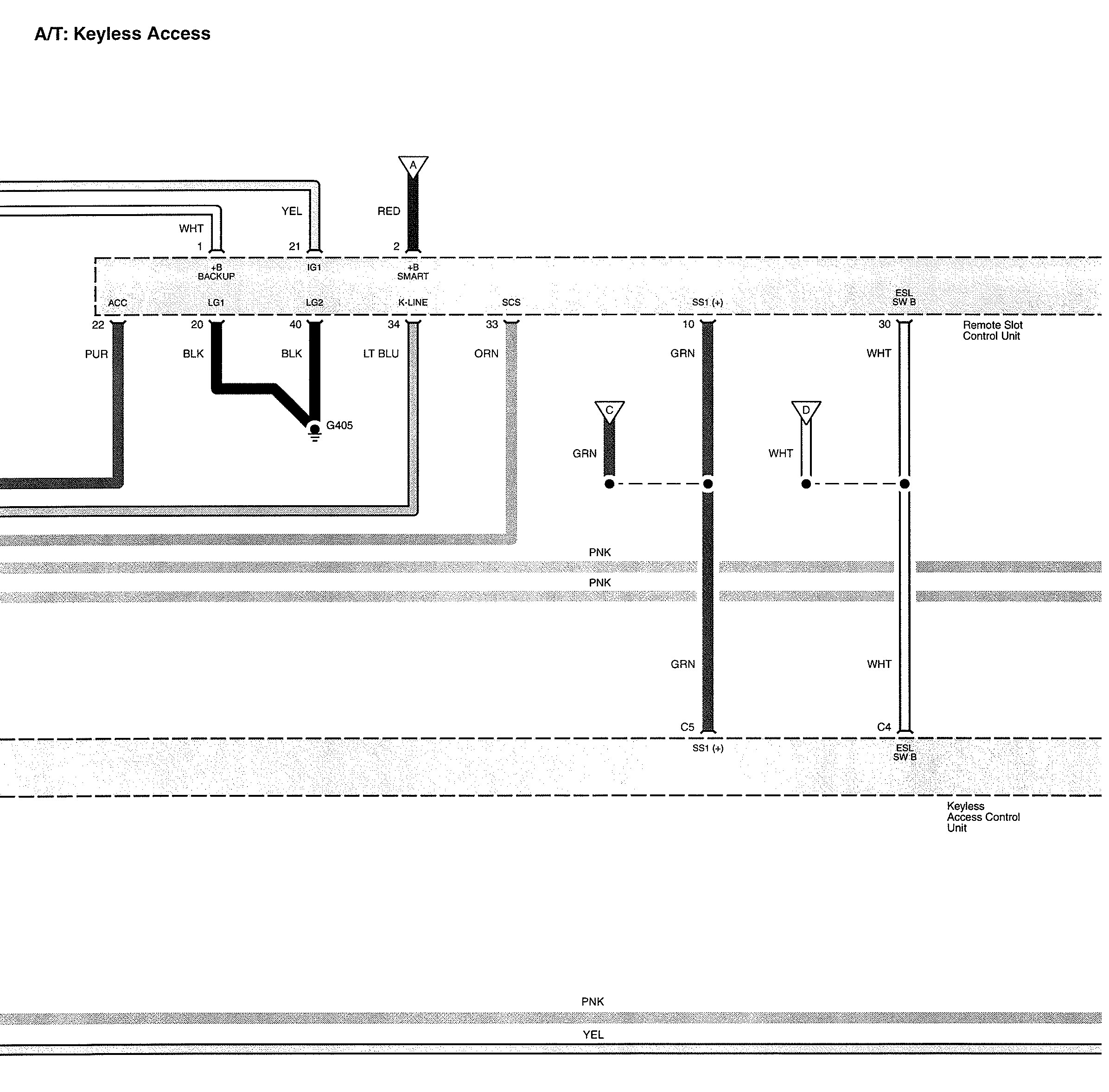

Acura TL - wiring diagram - starting (part 9)
Acura TL – wiring diagram – starting (part 9)
Acura TL - wiring diagram - starting (part 10)
Acura TL – wiring diagram – starting (part 10)

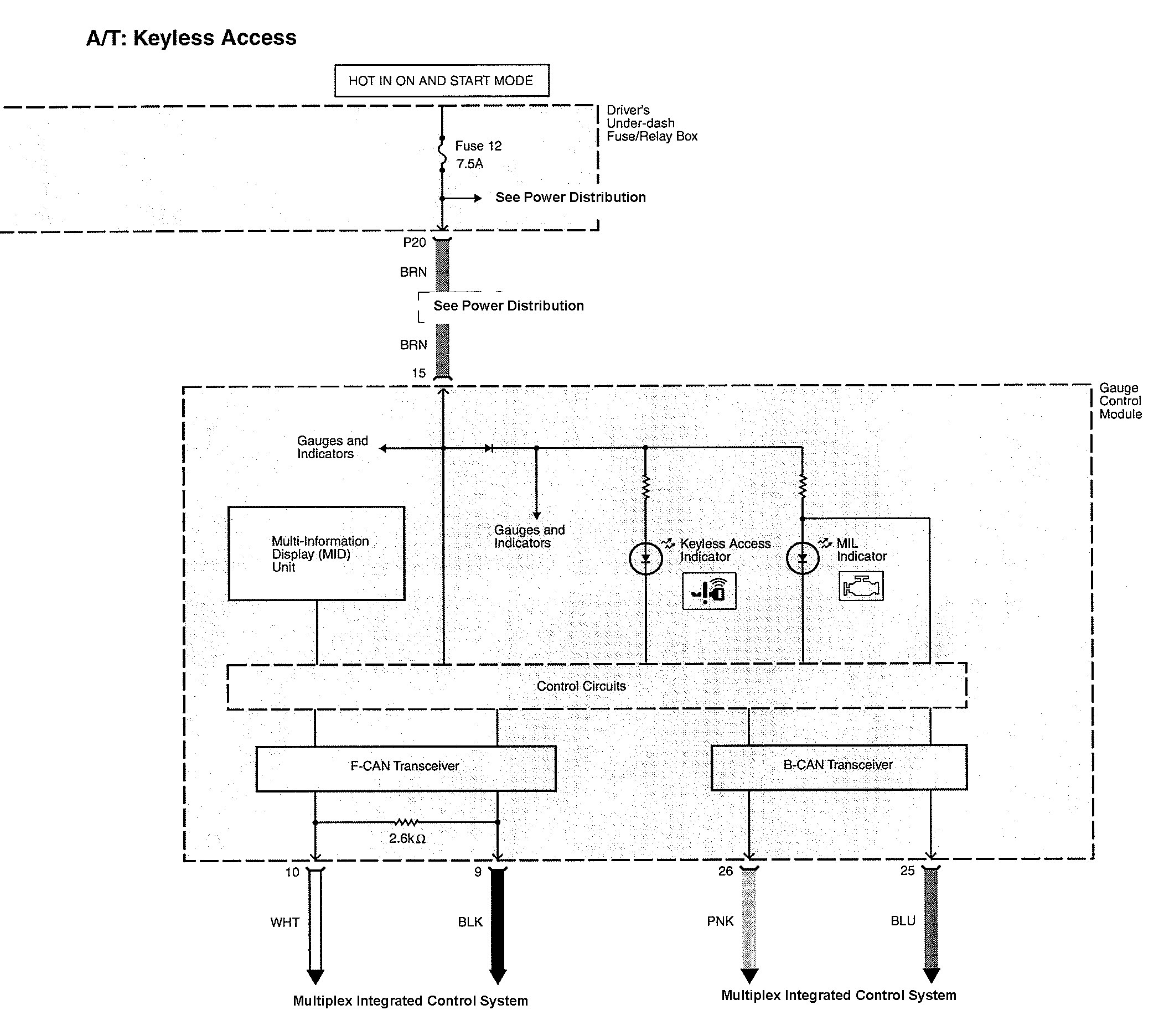

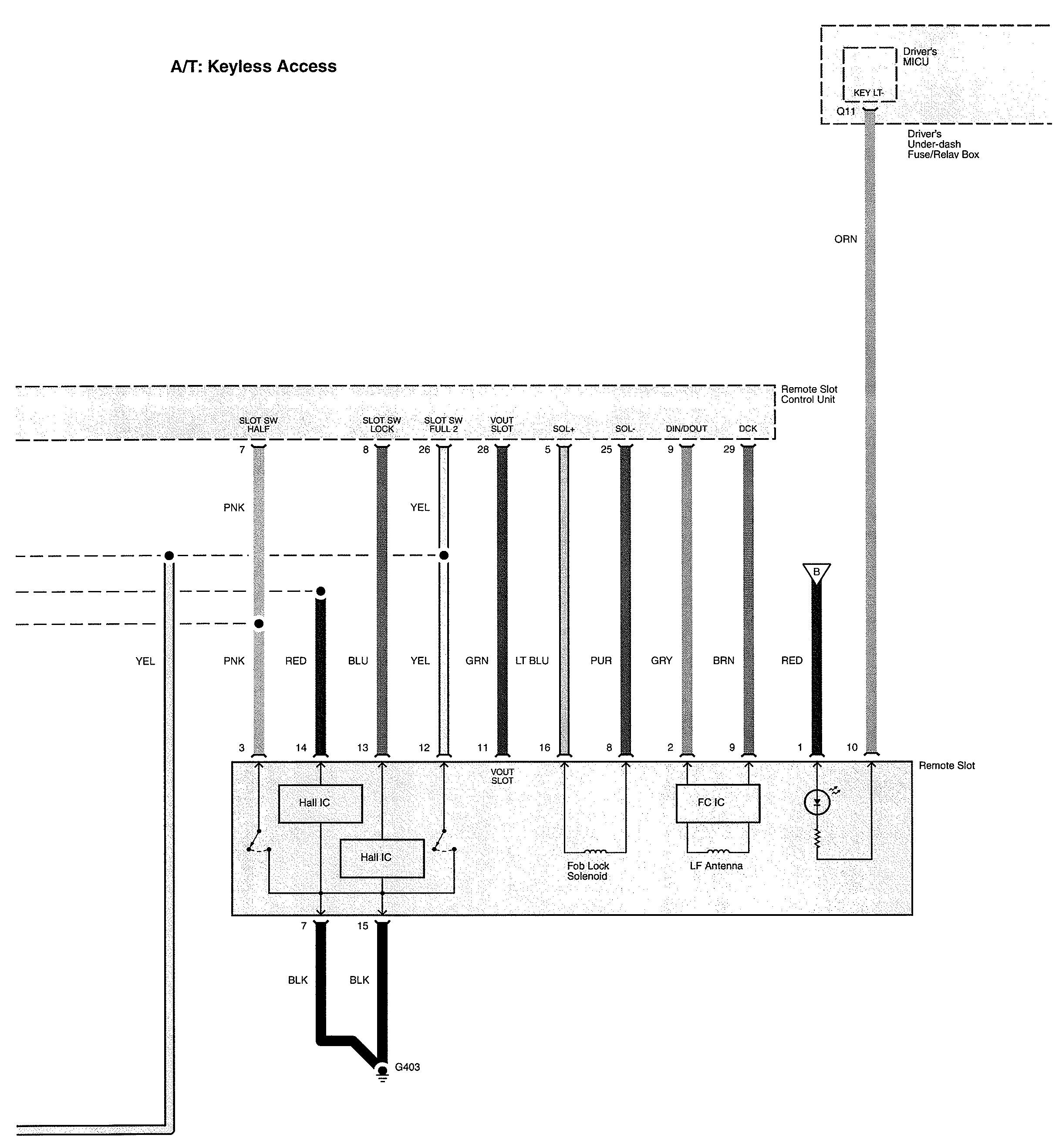

Acura TL - wiring diagram - starting (part 11)
Acura TL – wiring diagram – starting (part 11)
Acura TL - wiring diagram - starting (part 12)
Acura TL – wiring diagram – starting (part 12)

Version 3

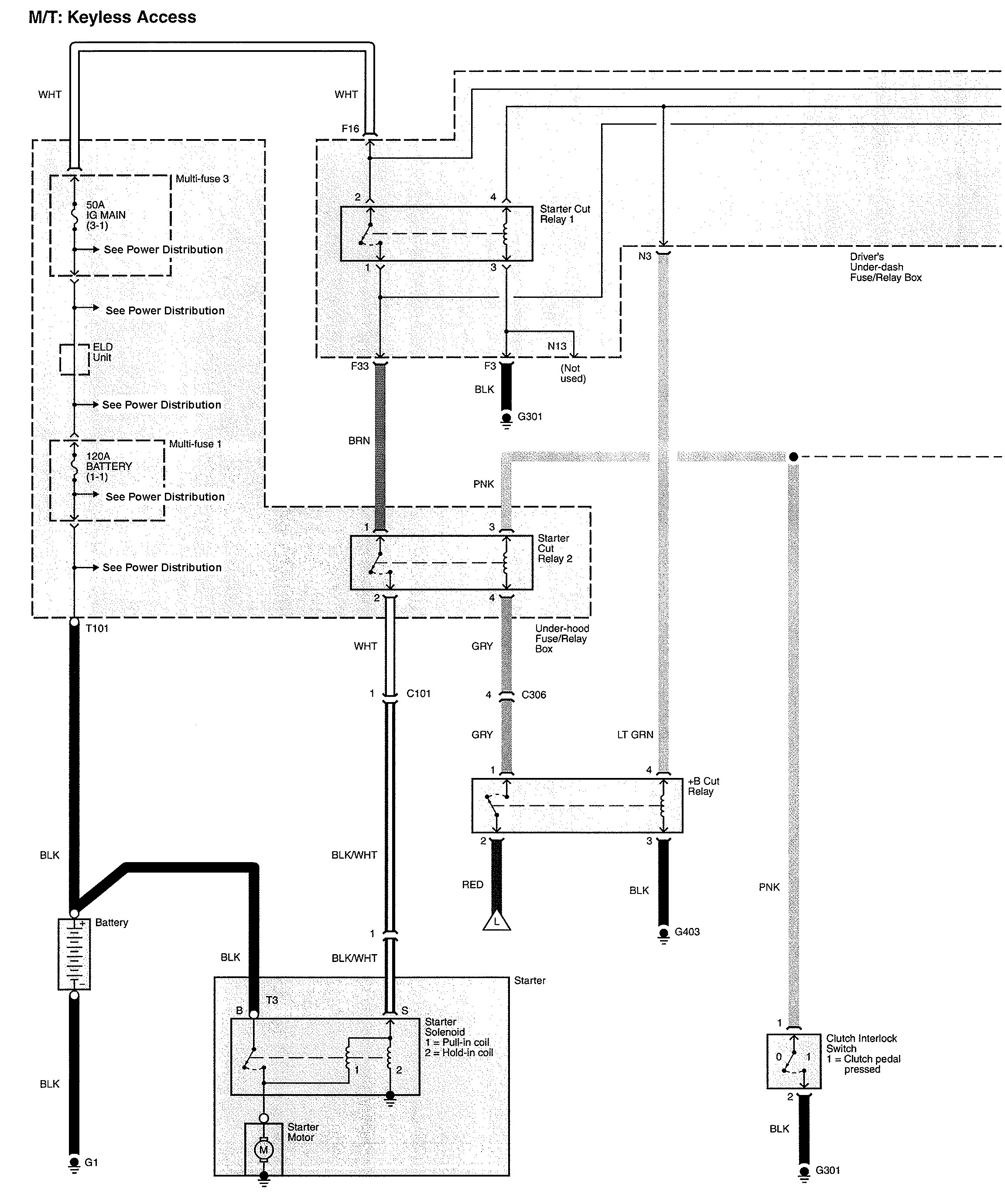

Acura TL - wiring diagram - starting (part 1)
Acura TL – wiring diagram – starting (part 1)

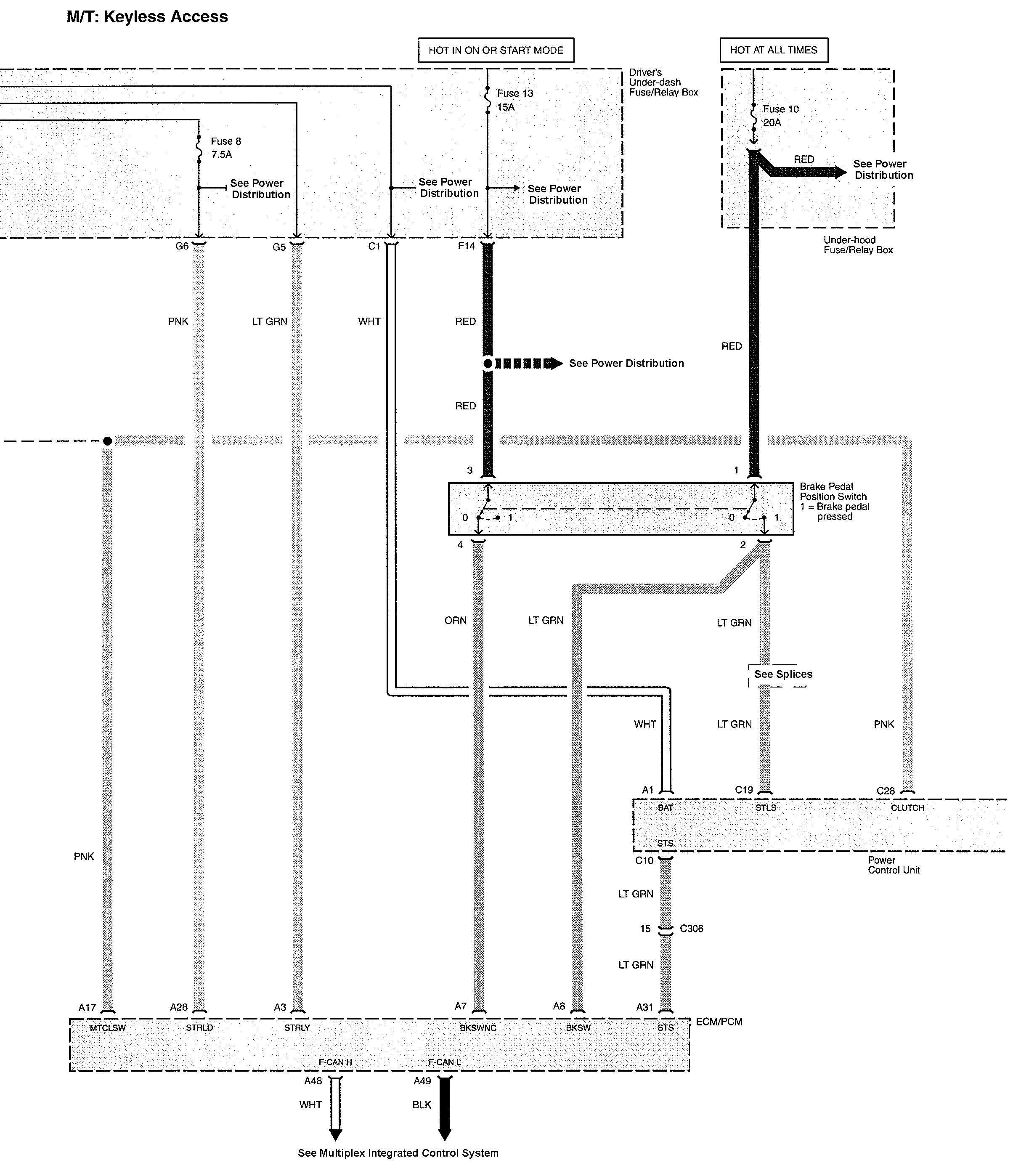

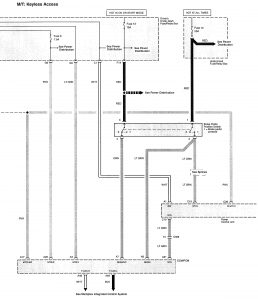

Acura TL - wiring diagram - starting (part 2)
Acura TL – wiring diagram – starting (part 2)

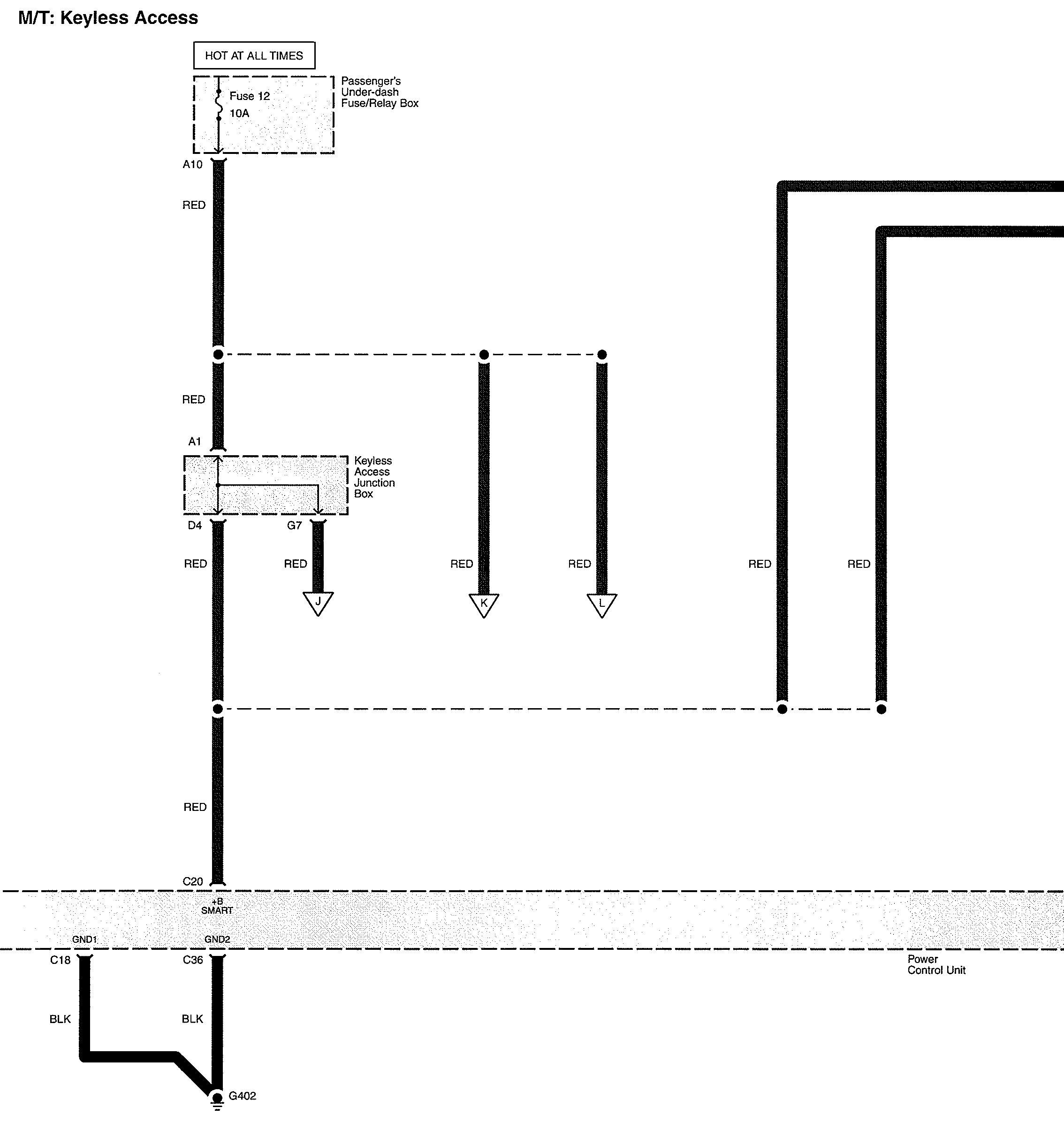

Acura TL - wiring diagram - starting (part 3)
Acura TL – wiring diagram – starting (part 3)

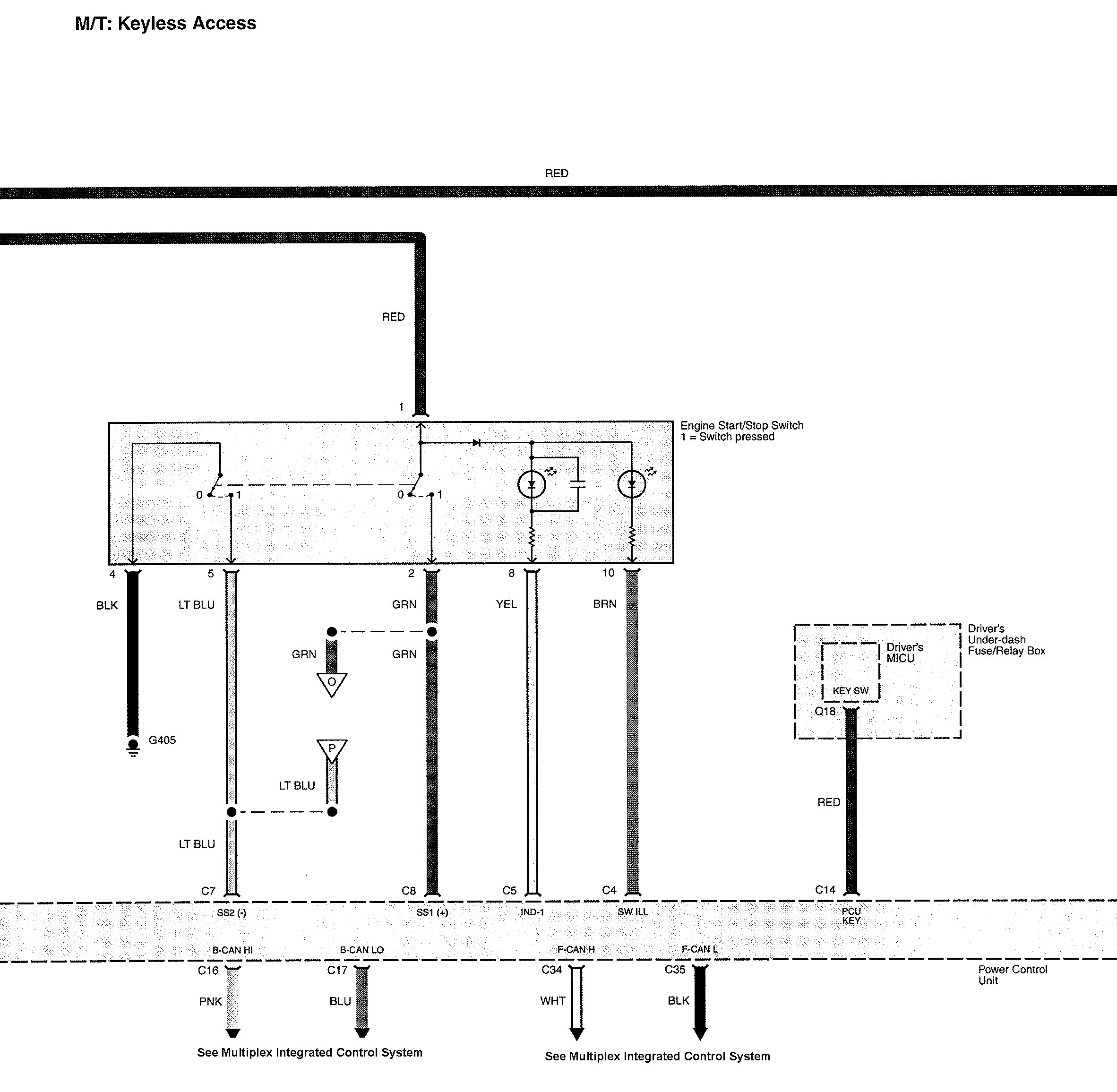

Acura TL - wiring diagram - starting (part 4)
Acura TL – wiring diagram – starting (part 4)

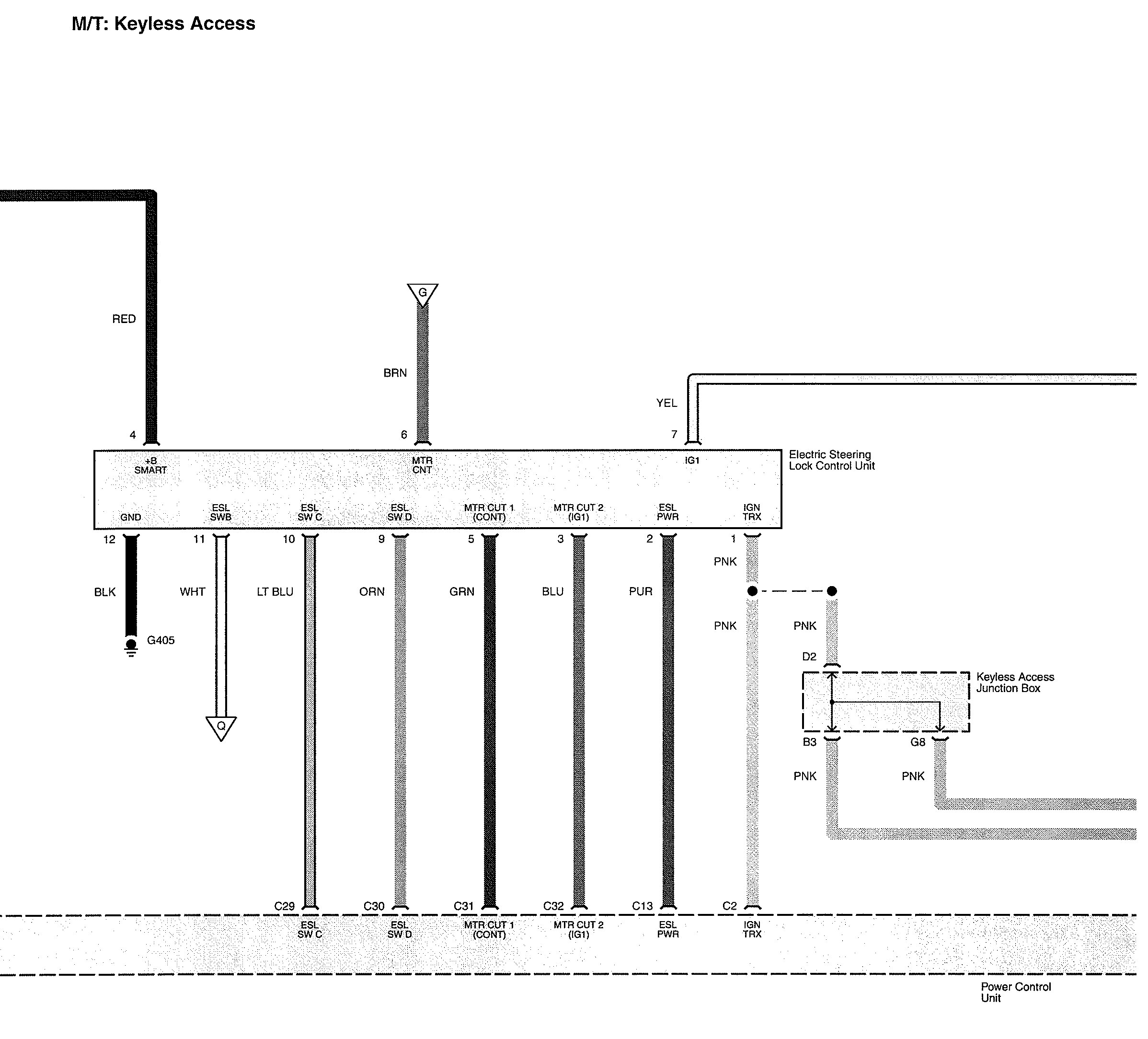

Acura TL - wiring diagram - starting (part 5)
Acura TL – wiring diagram – starting (part 5)

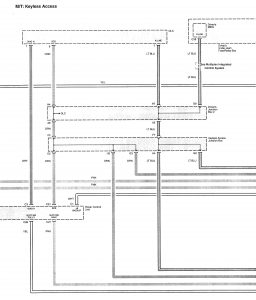

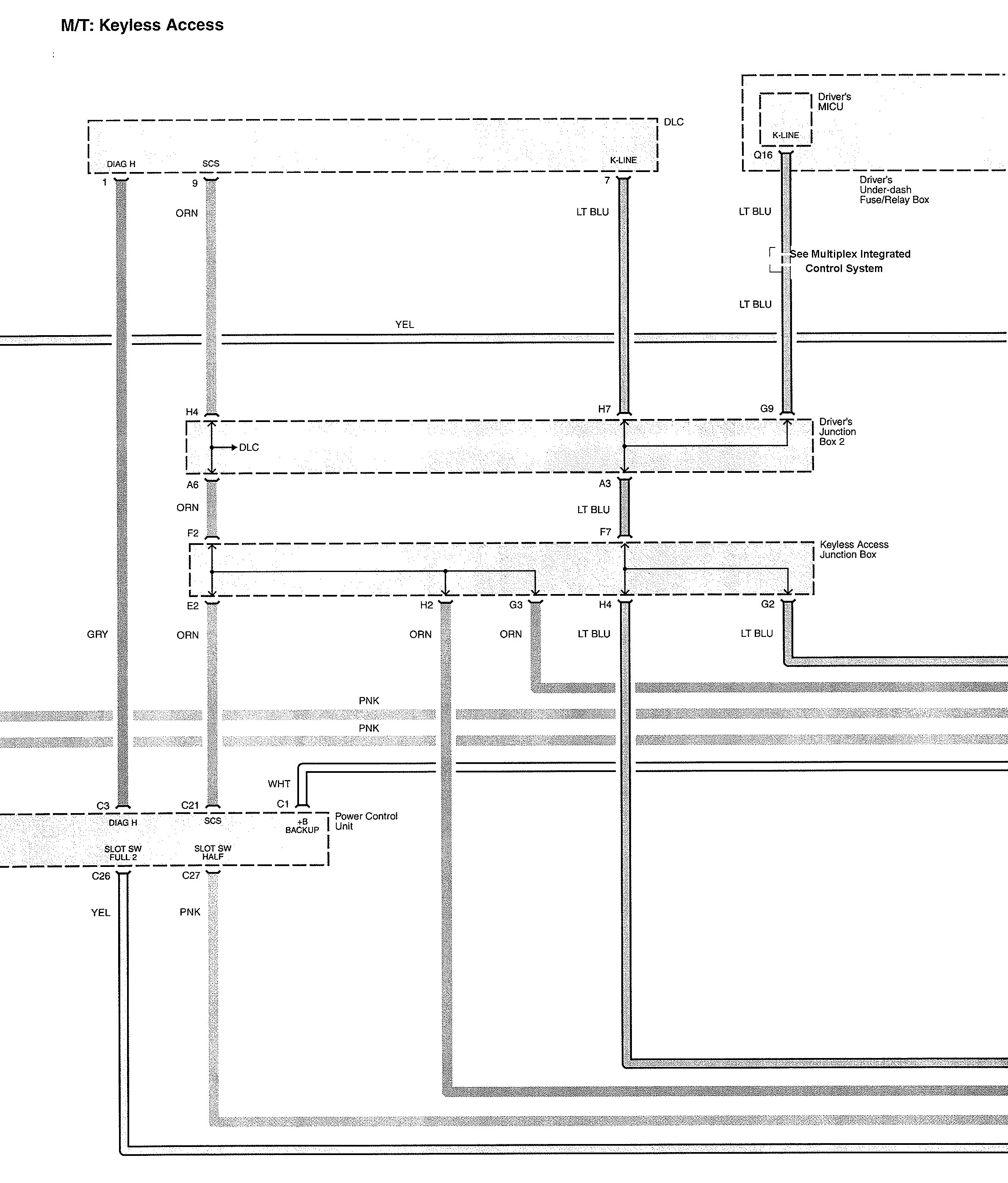

Acura TL - wiring diagram - starting (part 6)
Acura TL – wiring diagram – starting (part 6)

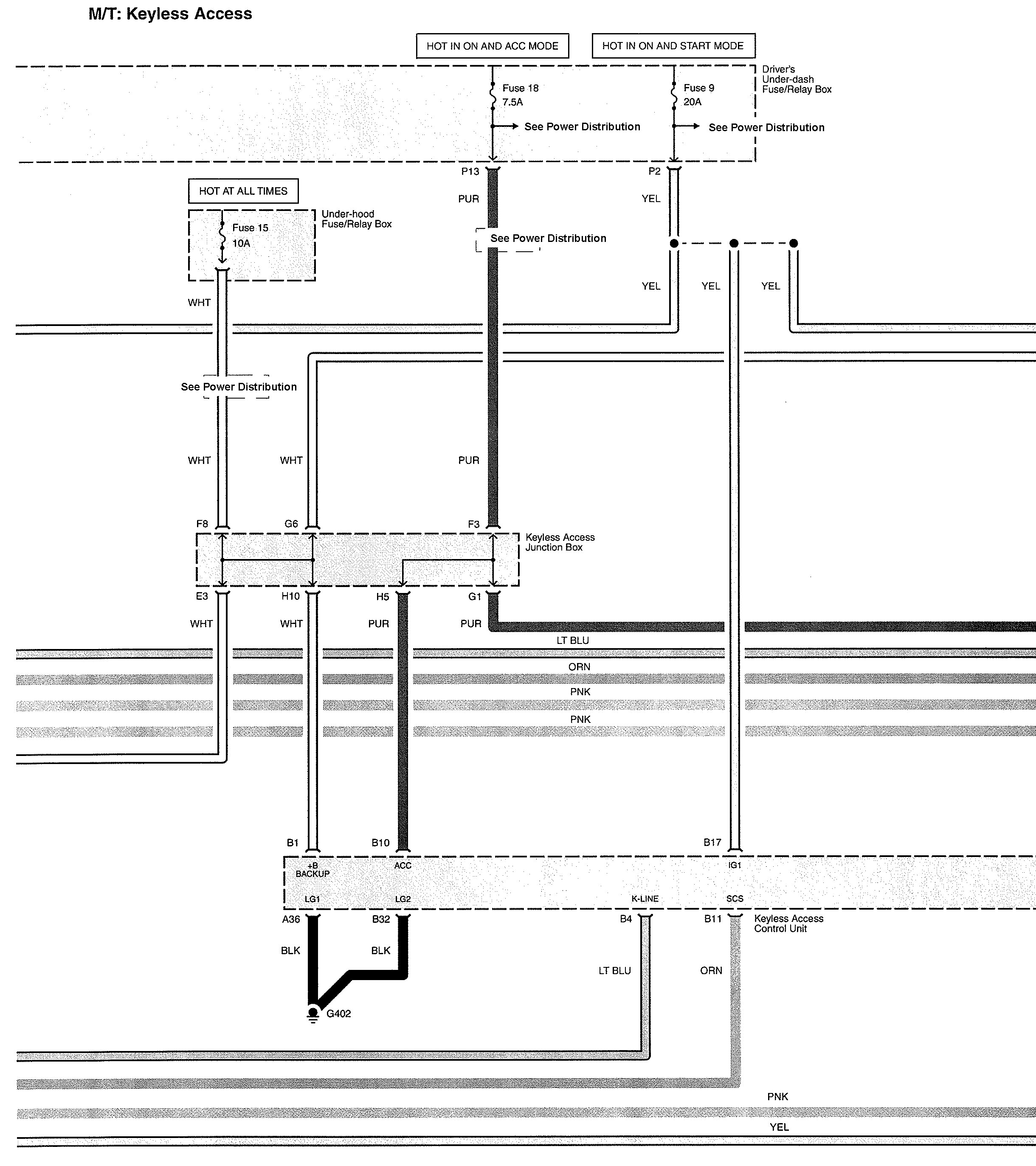

Acura TL - wiring diagram - starting (part 7)
Acura TL – wiring diagram – starting (part 7)

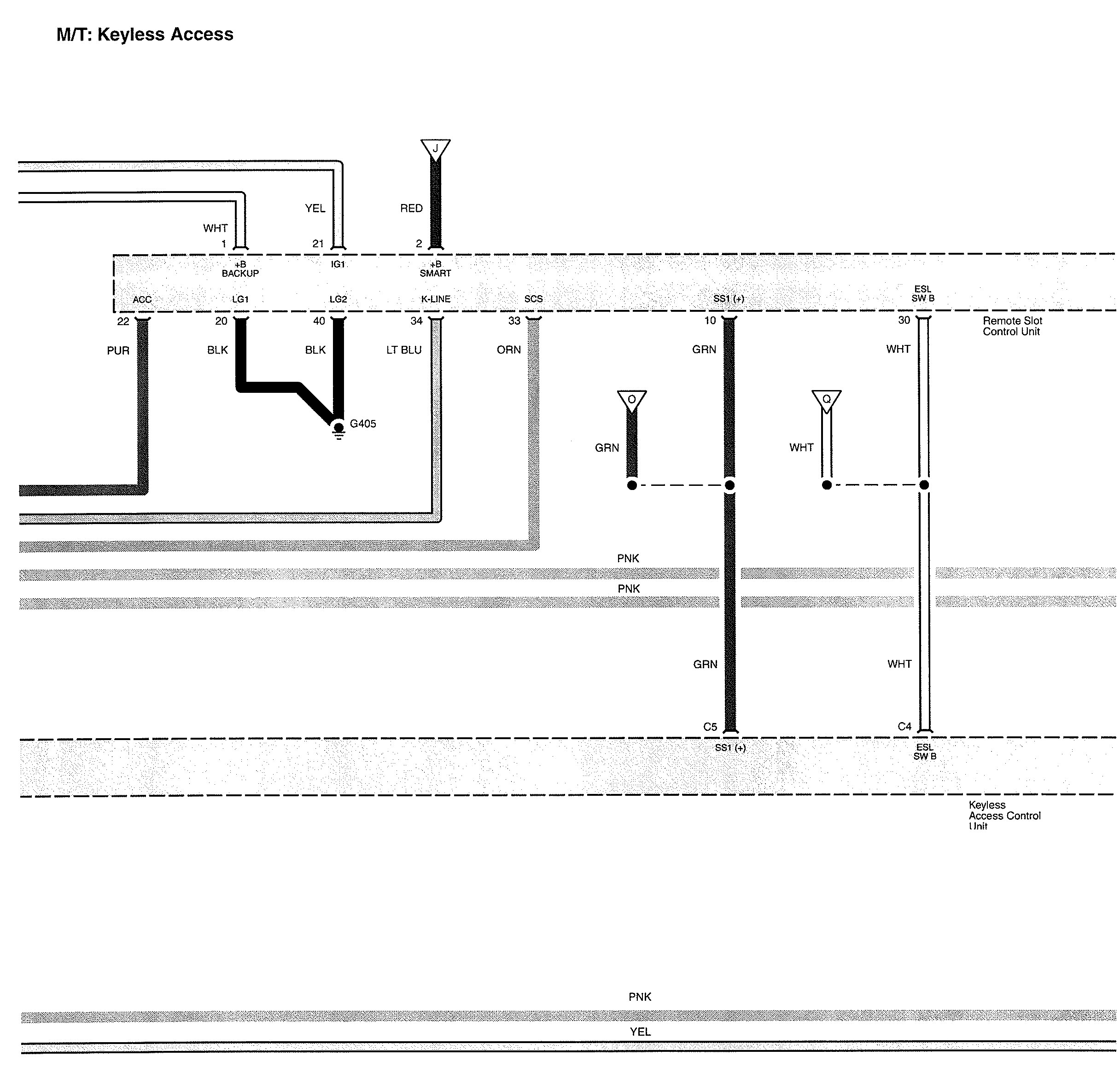

Acura TL - wiring diagram - starting (part 8)
Acura TL – wiring diagram – starting (part 8)

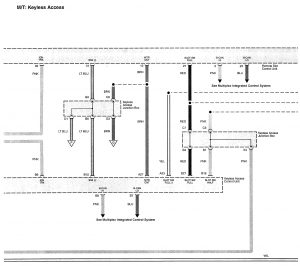

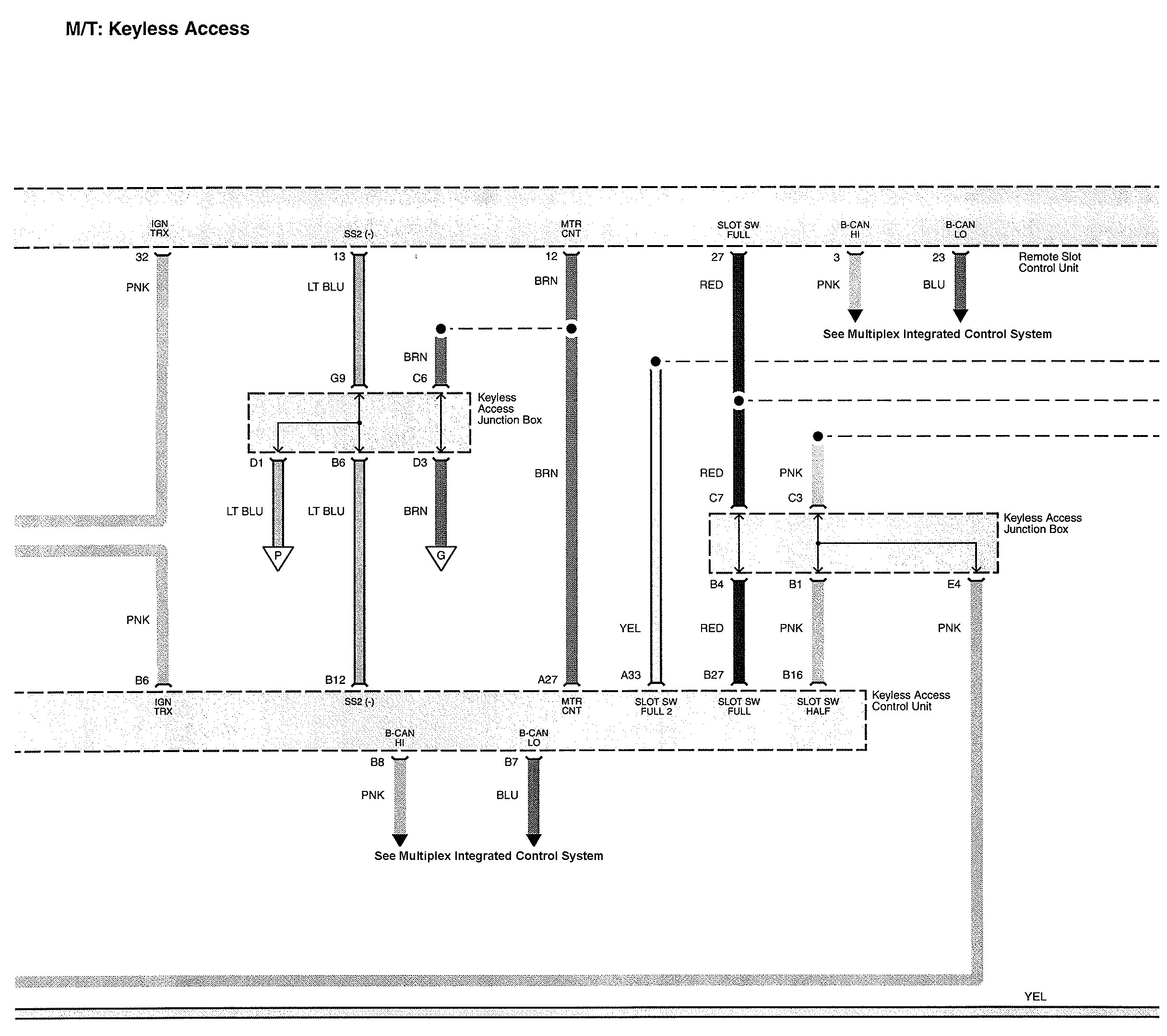

Acura TL - wiring diagram - starting (part 9)
Acura TL – wiring diagram – starting (part 9)

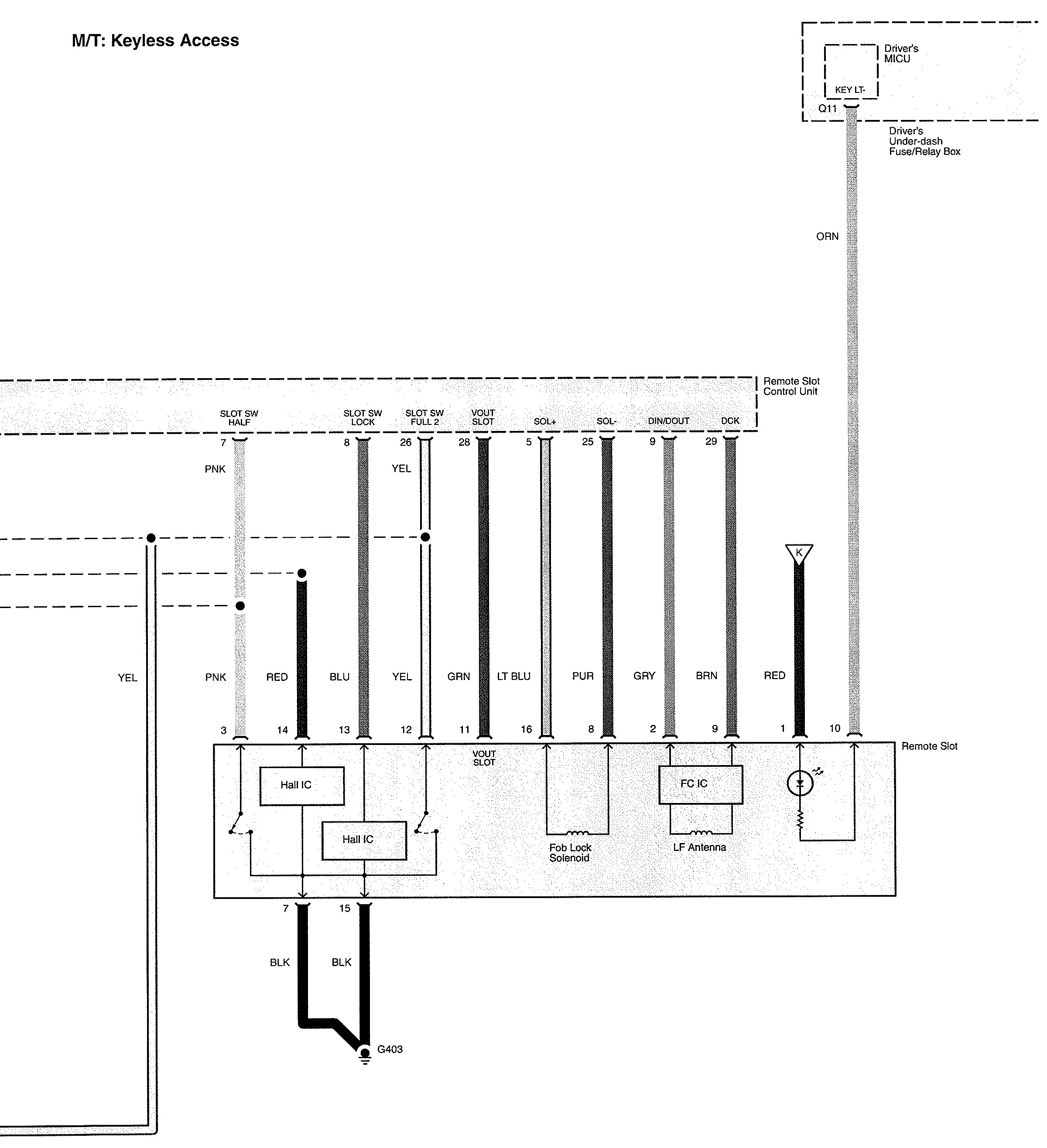

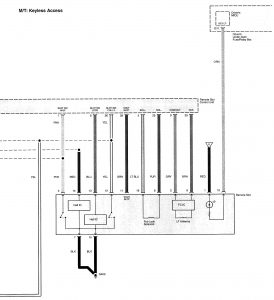

Acura TL - wiring diagram - starting (part 10)
Acura TL – wiring diagram – starting (part 10)

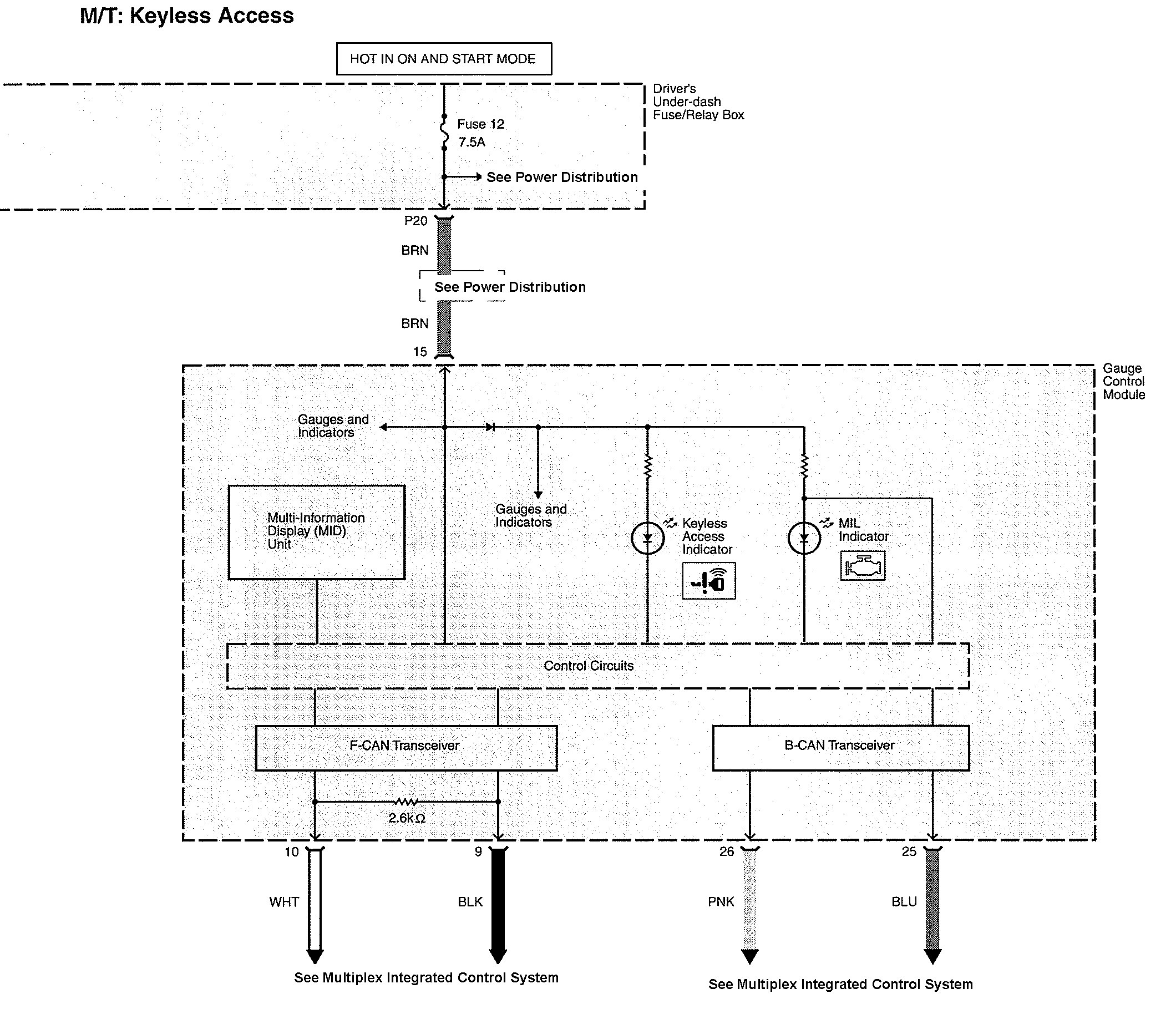

Acura TL - wiring diagram - starting (part 11)
Acura TL – wiring diagram – starting (part 11)

Version 4

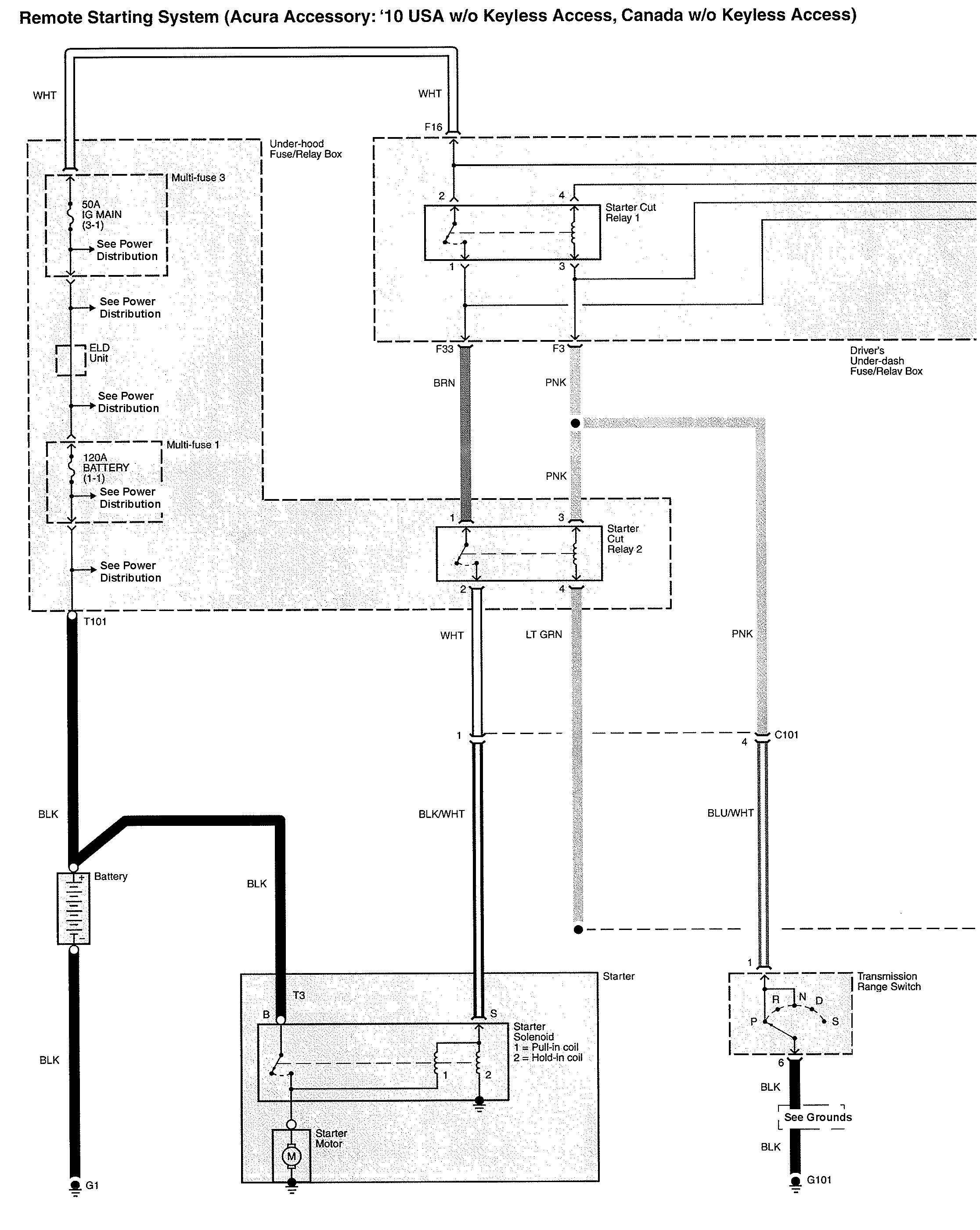

Acura TL - wiring diagram - starting (part 1)
Acura TL – wiring diagram – starting (part 1)

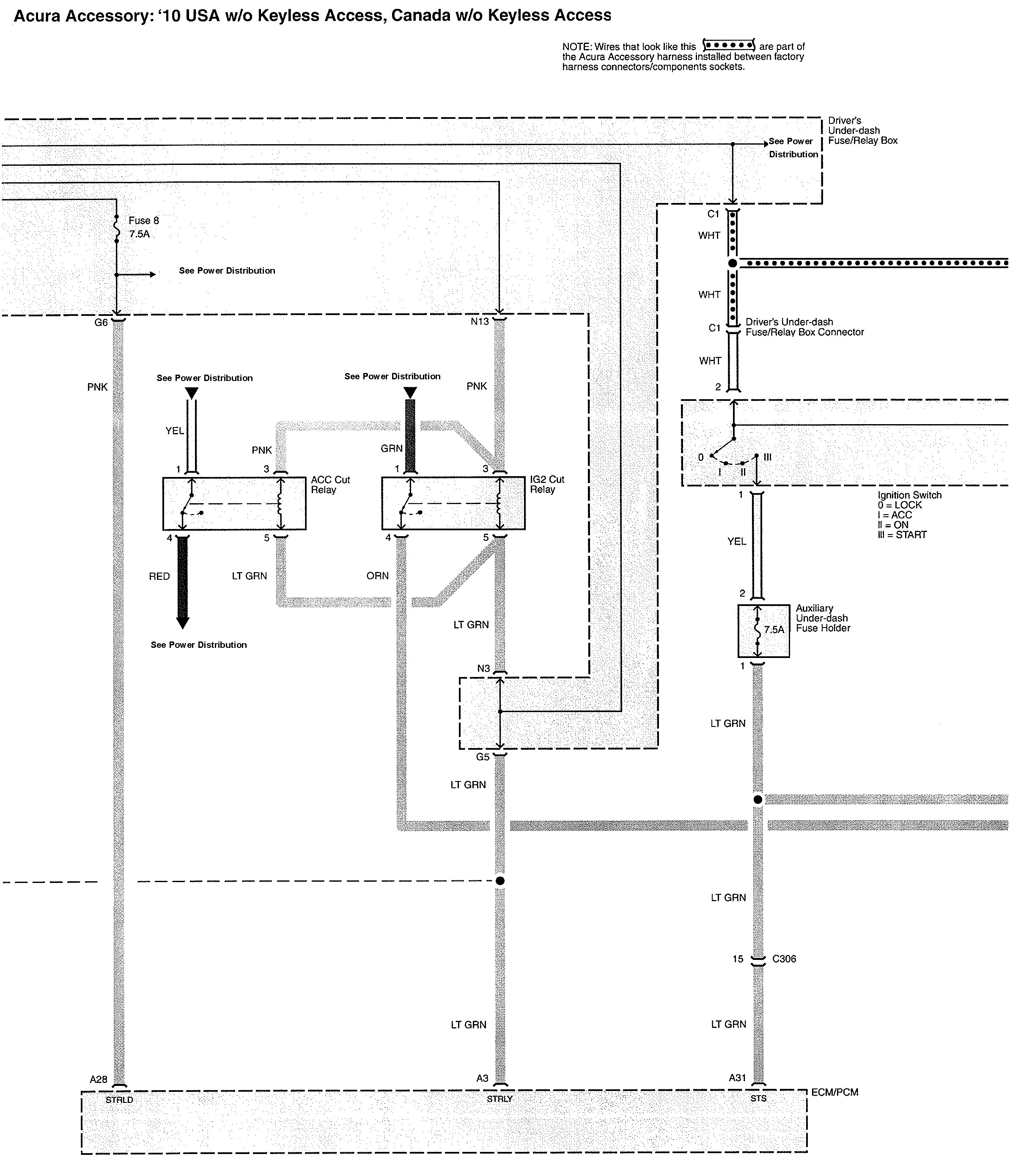

Acura TL - wiring diagram - starting (part 2)
Acura TL – wiring diagram – starting (part 2)
Acura TL - wiring diagram - starting (part 3)
Acura TL – wiring diagram – starting (part 3)

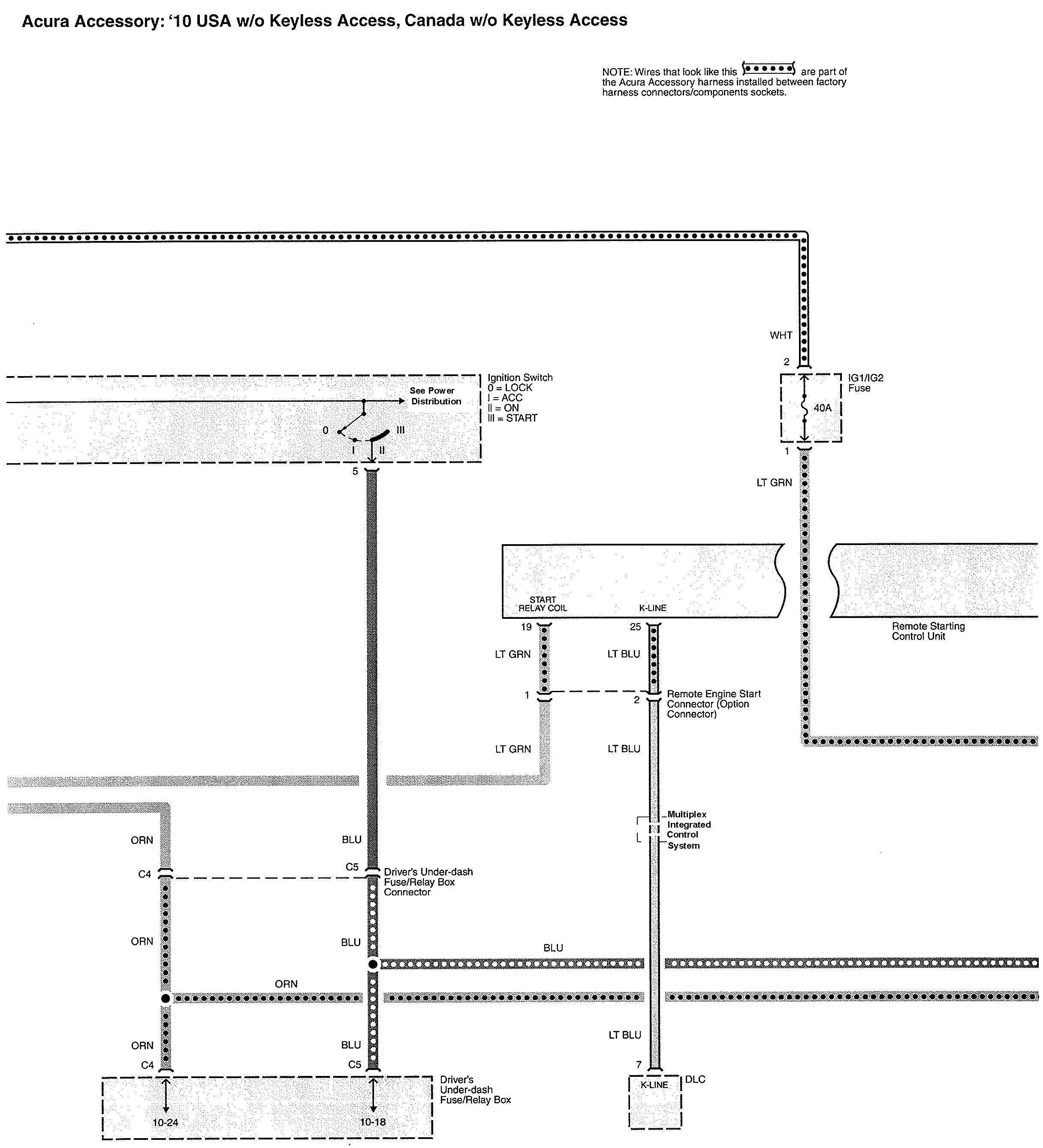

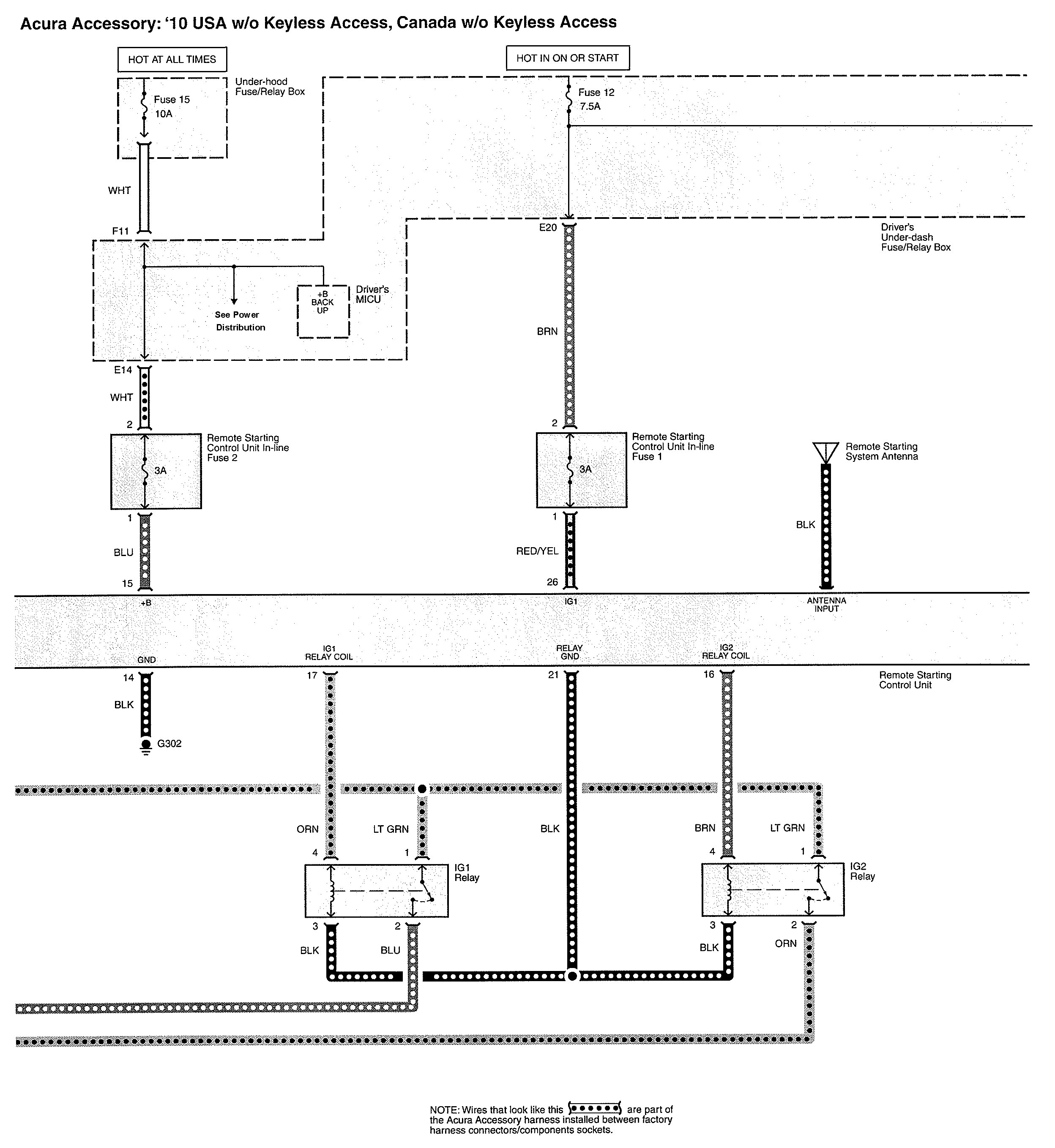

Acura TL - wiring diagram - starting (part 4)
Acura TL – wiring diagram – starting (part 4)

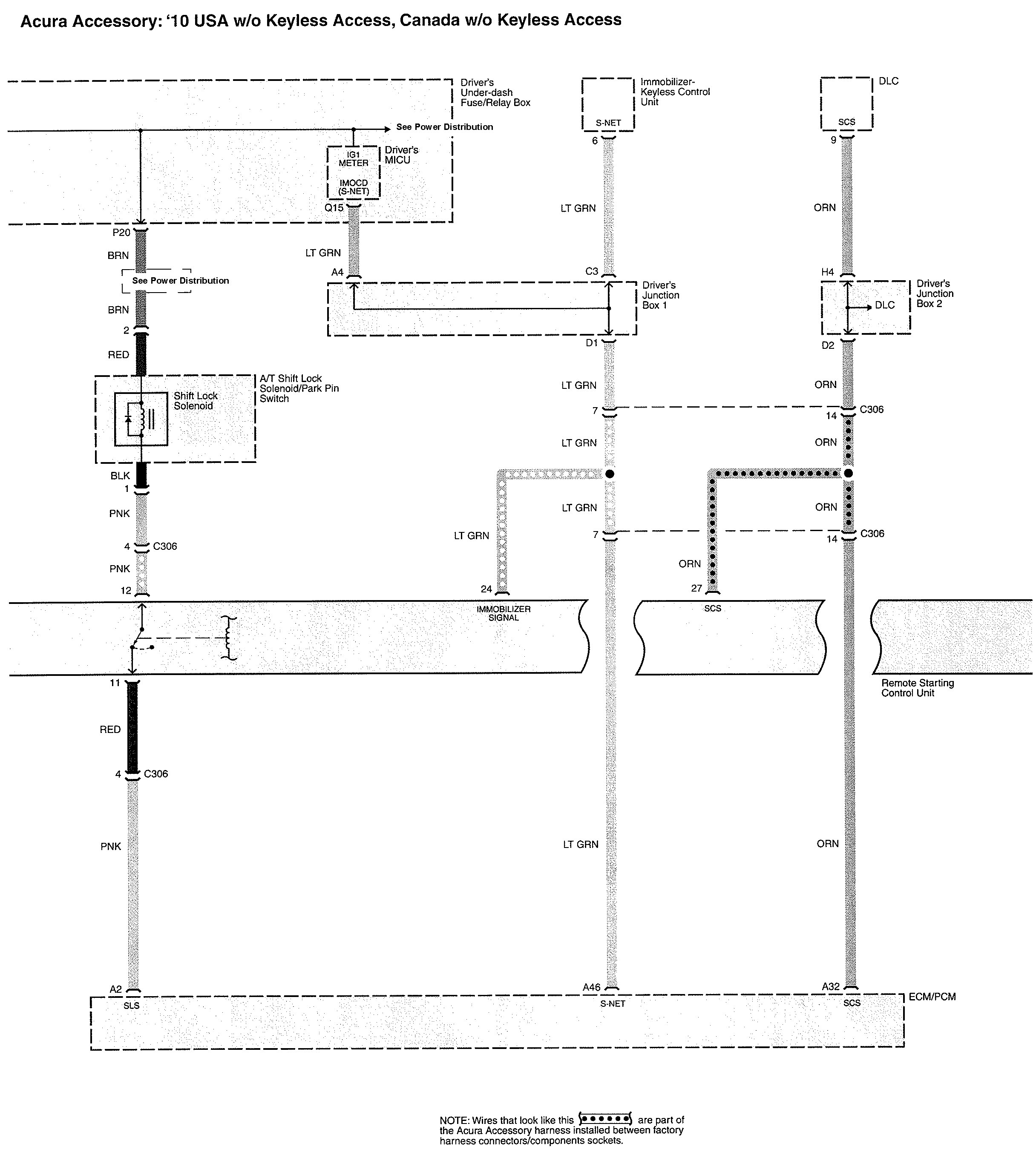

Acura TL - wiring diagram - starting (part 5)
Acura TL – wiring diagram – starting (part 5)

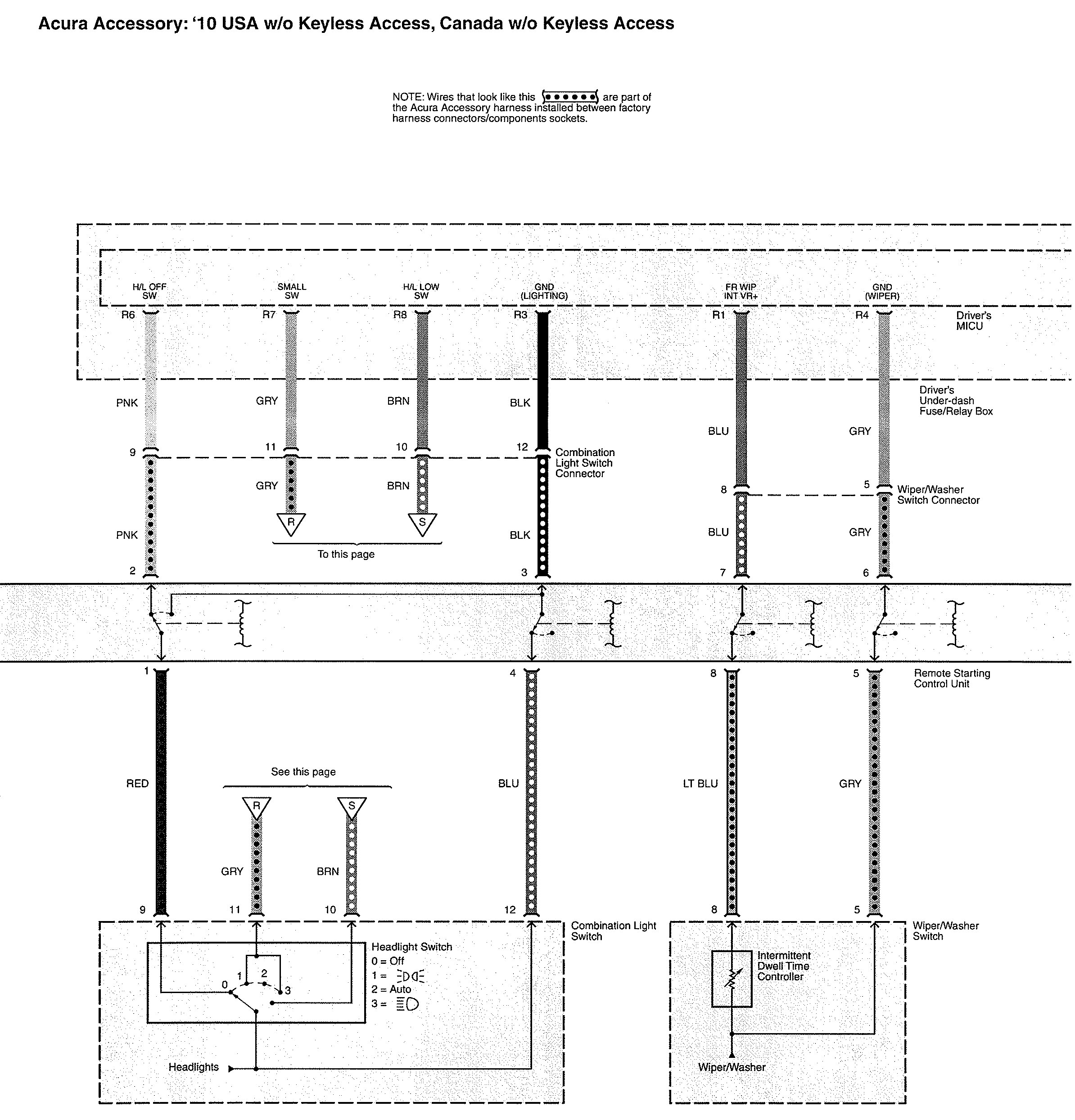

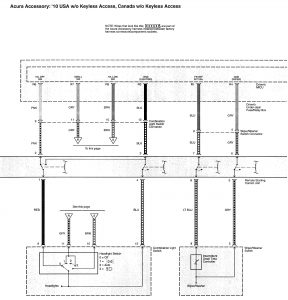

Acura TL - wiring diagram - starting (part 6)
Acura TL – wiring diagram – starting (part 6)

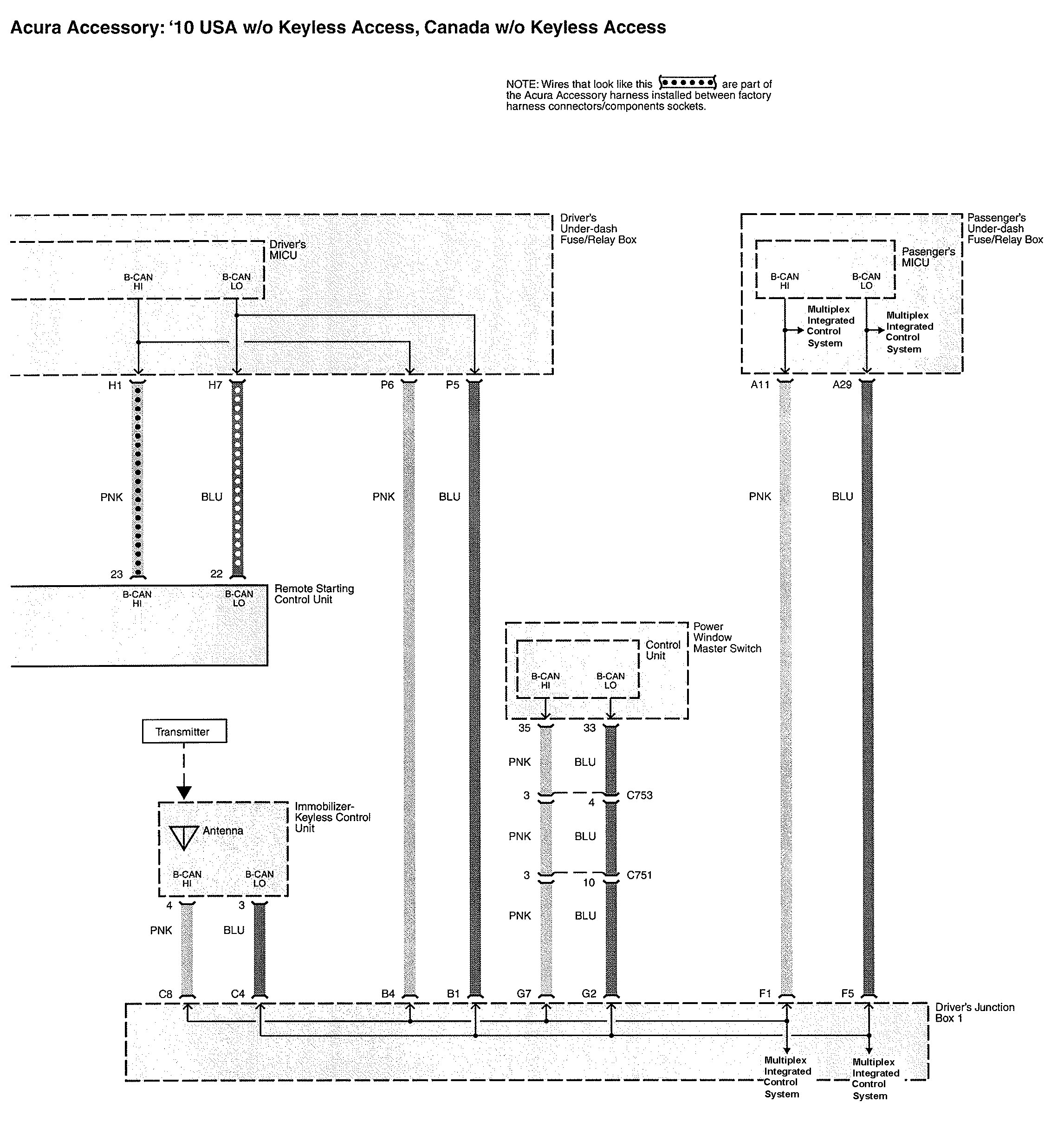

Acura TL - wiring diagram - starting (part 7)
Acura TL – wiring diagram – starting (part 7)

Version 5

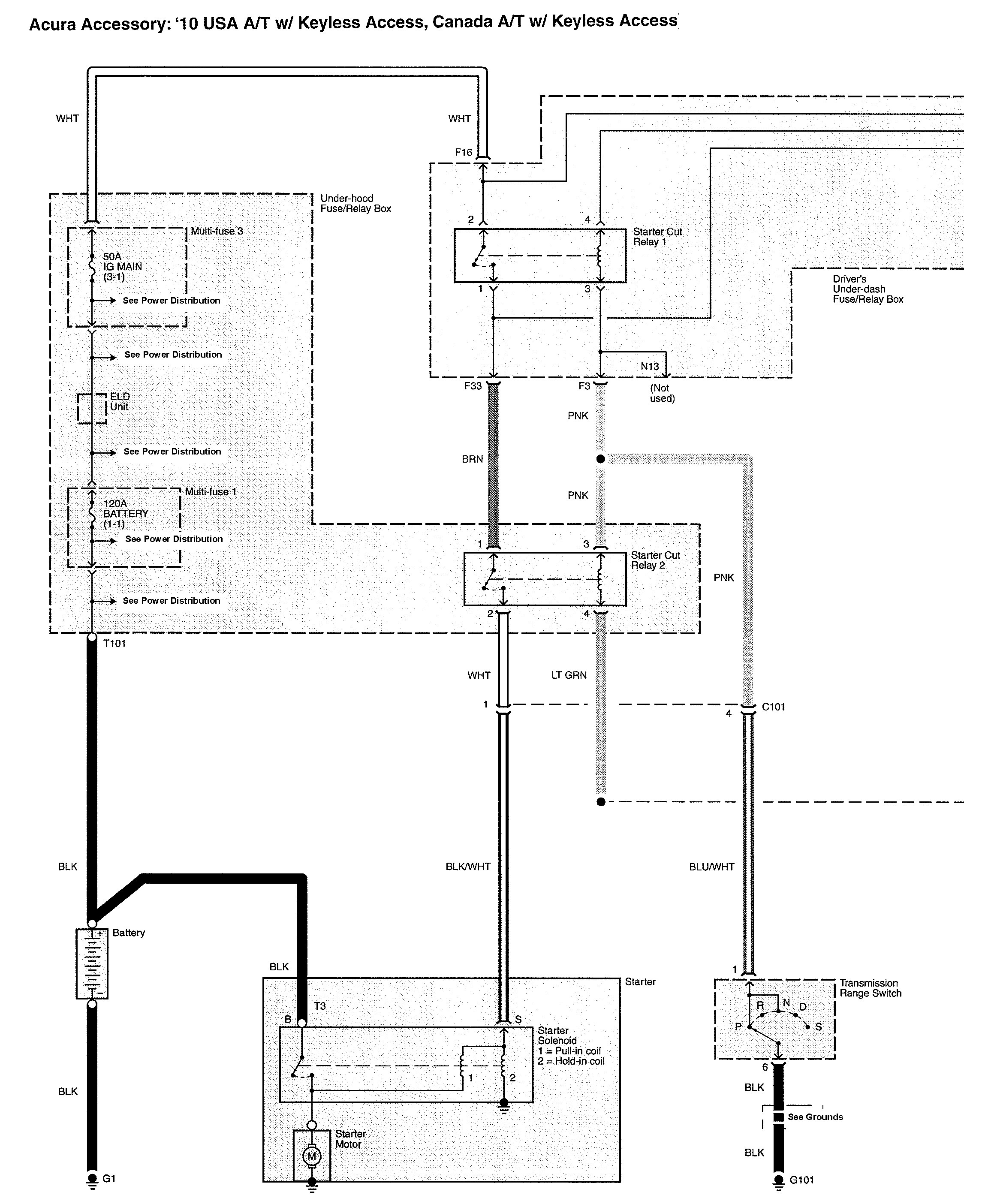

Acura TL - wiring diagram - starting (part 1)
Acura TL – wiring diagram – starting (part 1)

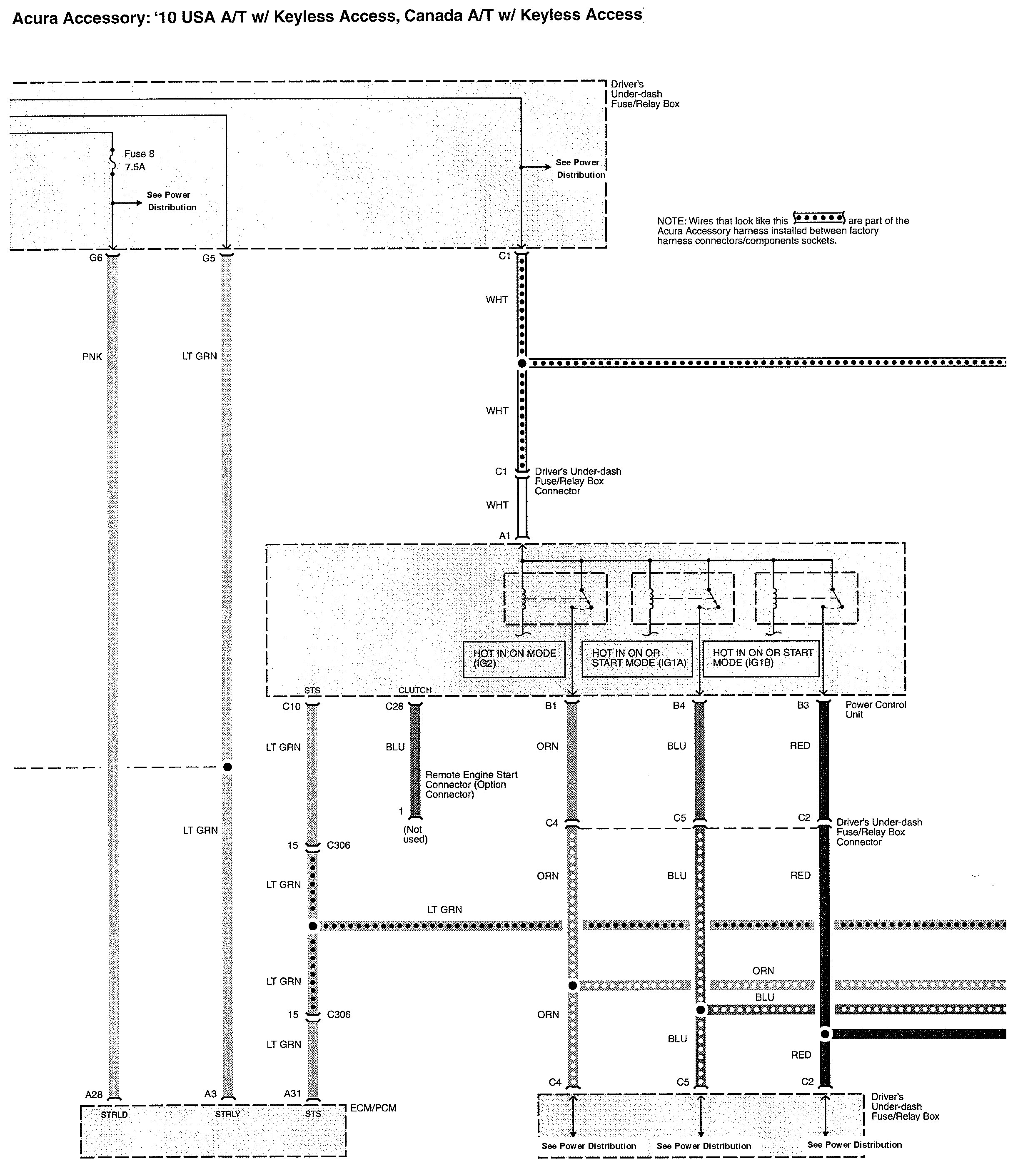

Acura TL - wiring diagram - starting (part 2)
Acura TL – wiring diagram – starting (part 2)

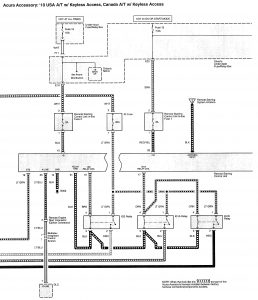

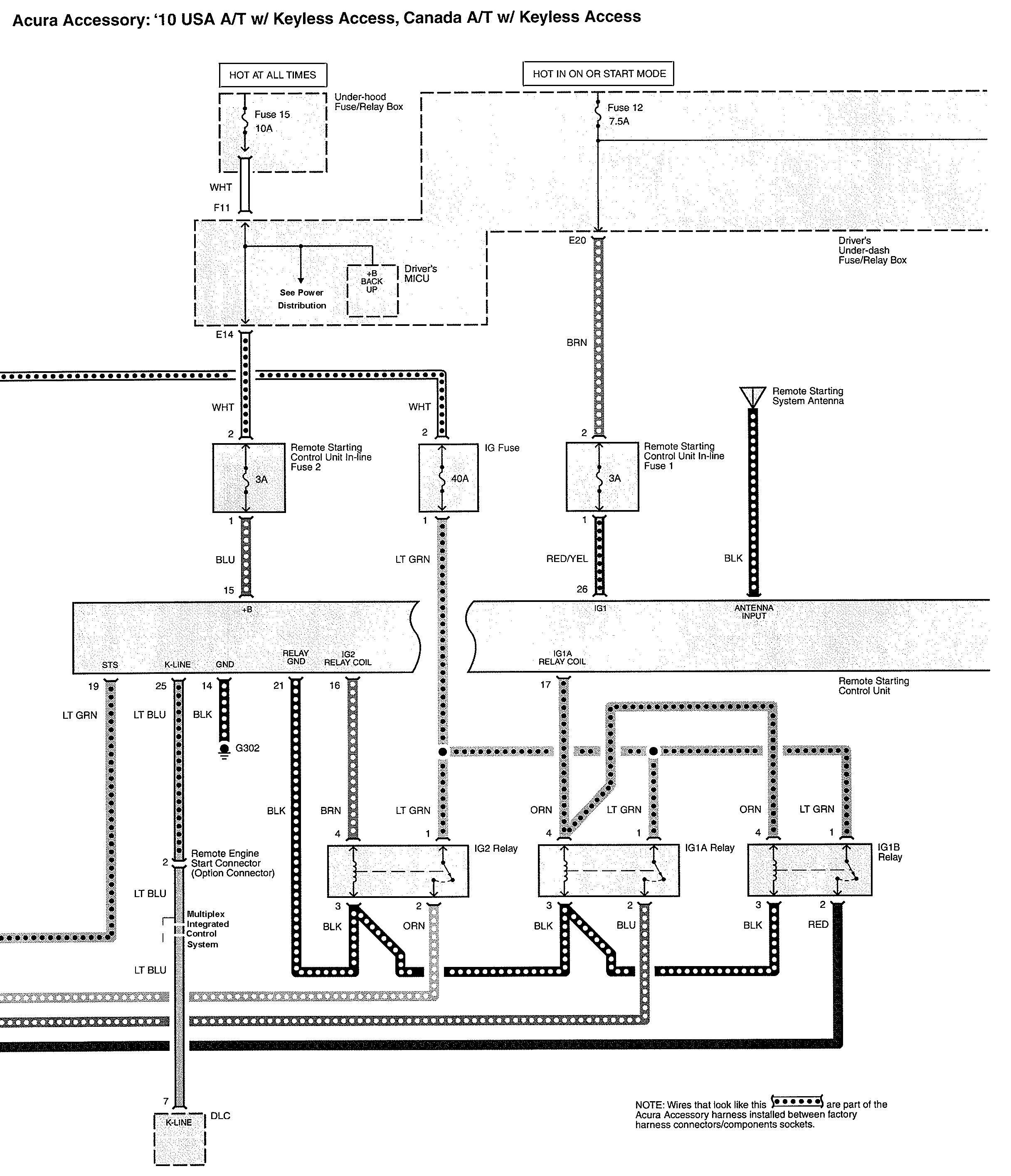

Acura TL - wiring diagram - starting (part 3)
Acura TL – wiring diagram – starting (part 3)

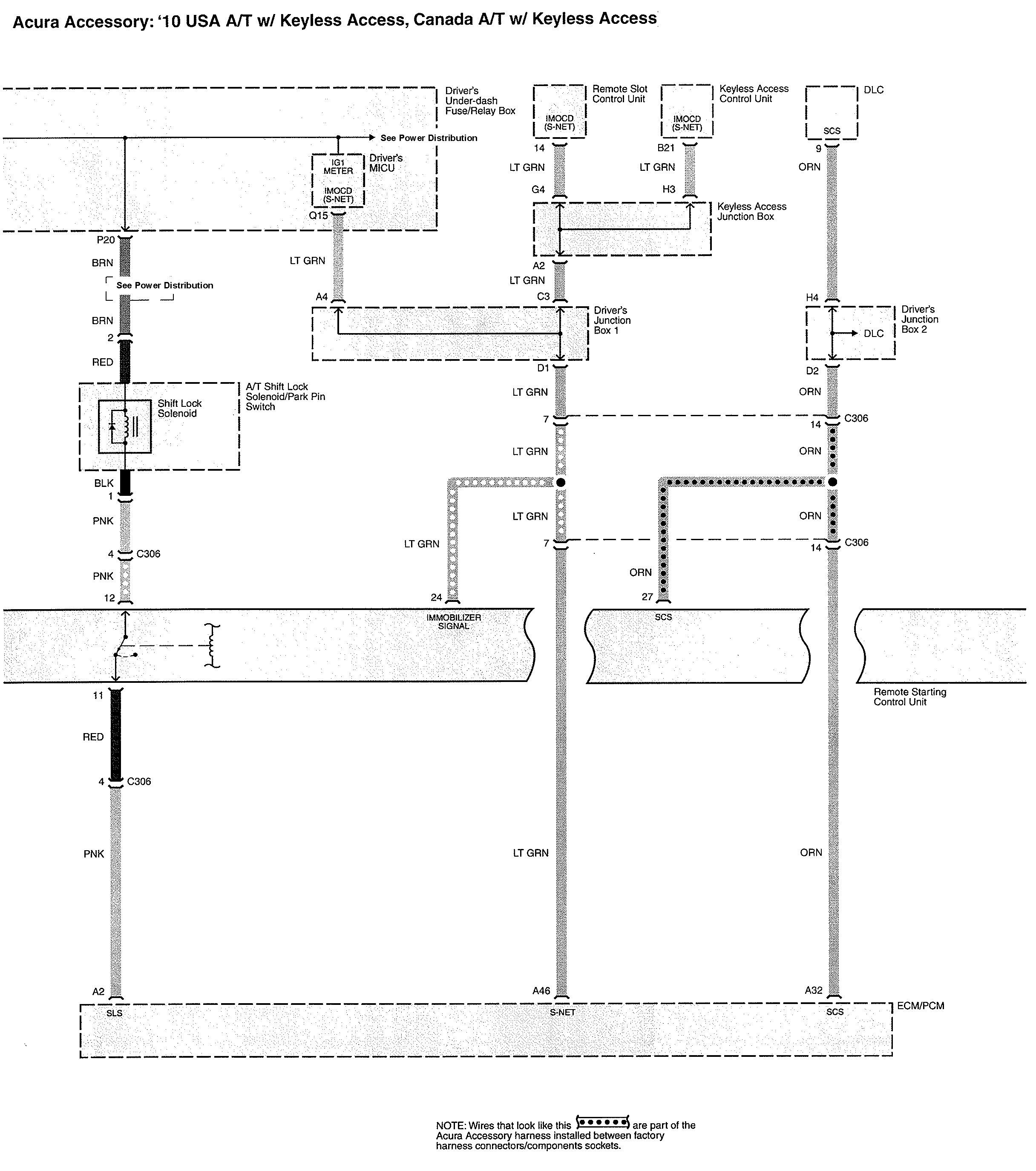

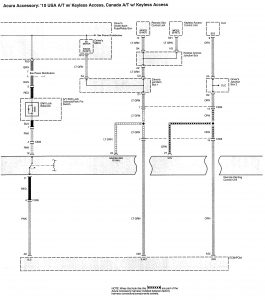

Acura TL - wiring diagram - starting (part 4)
Acura TL – wiring diagram – starting (part 4)

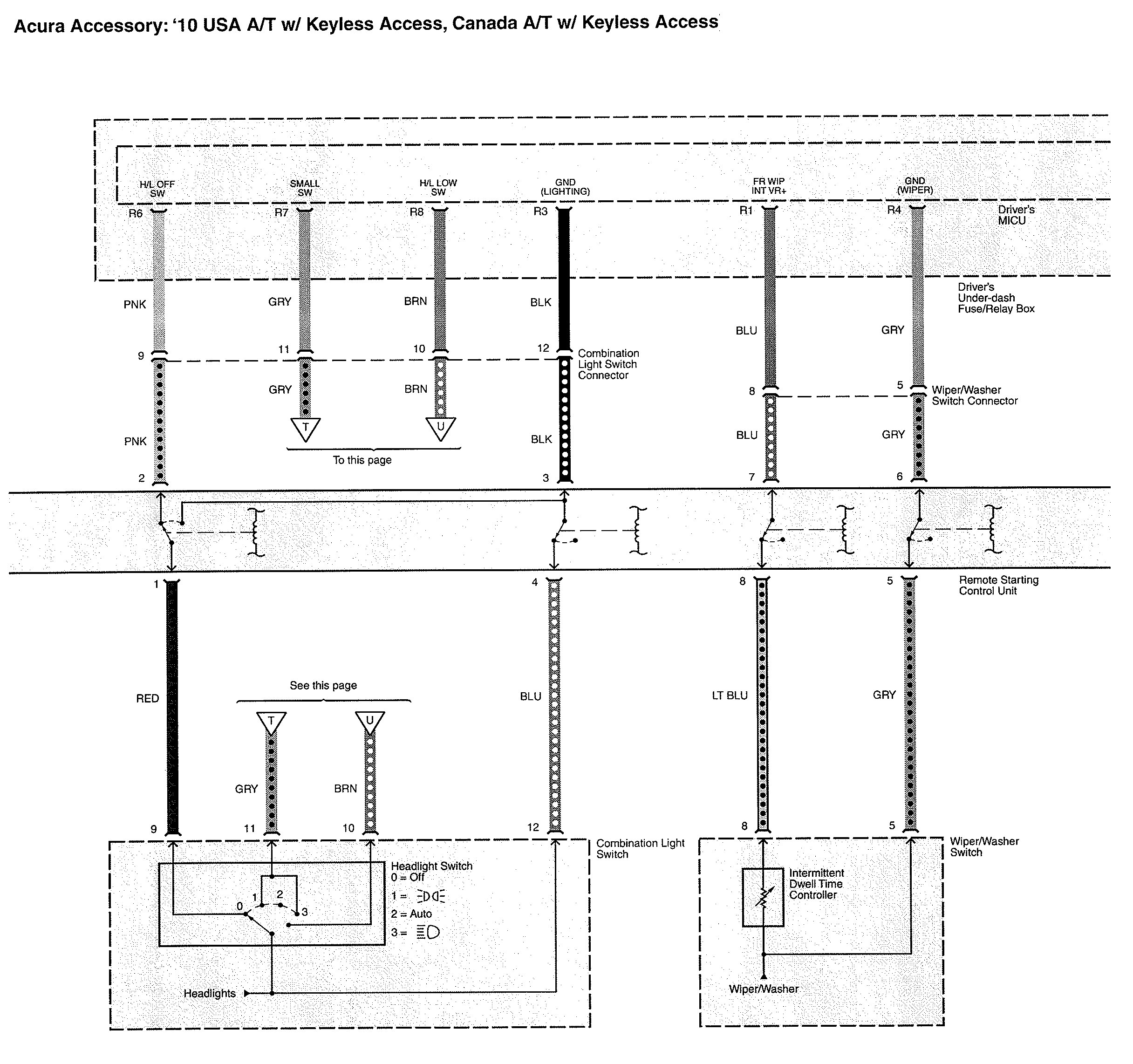

Acura TL - wiring diagram - starting (part 5)
Acura TL – wiring diagram – starting (part 5)

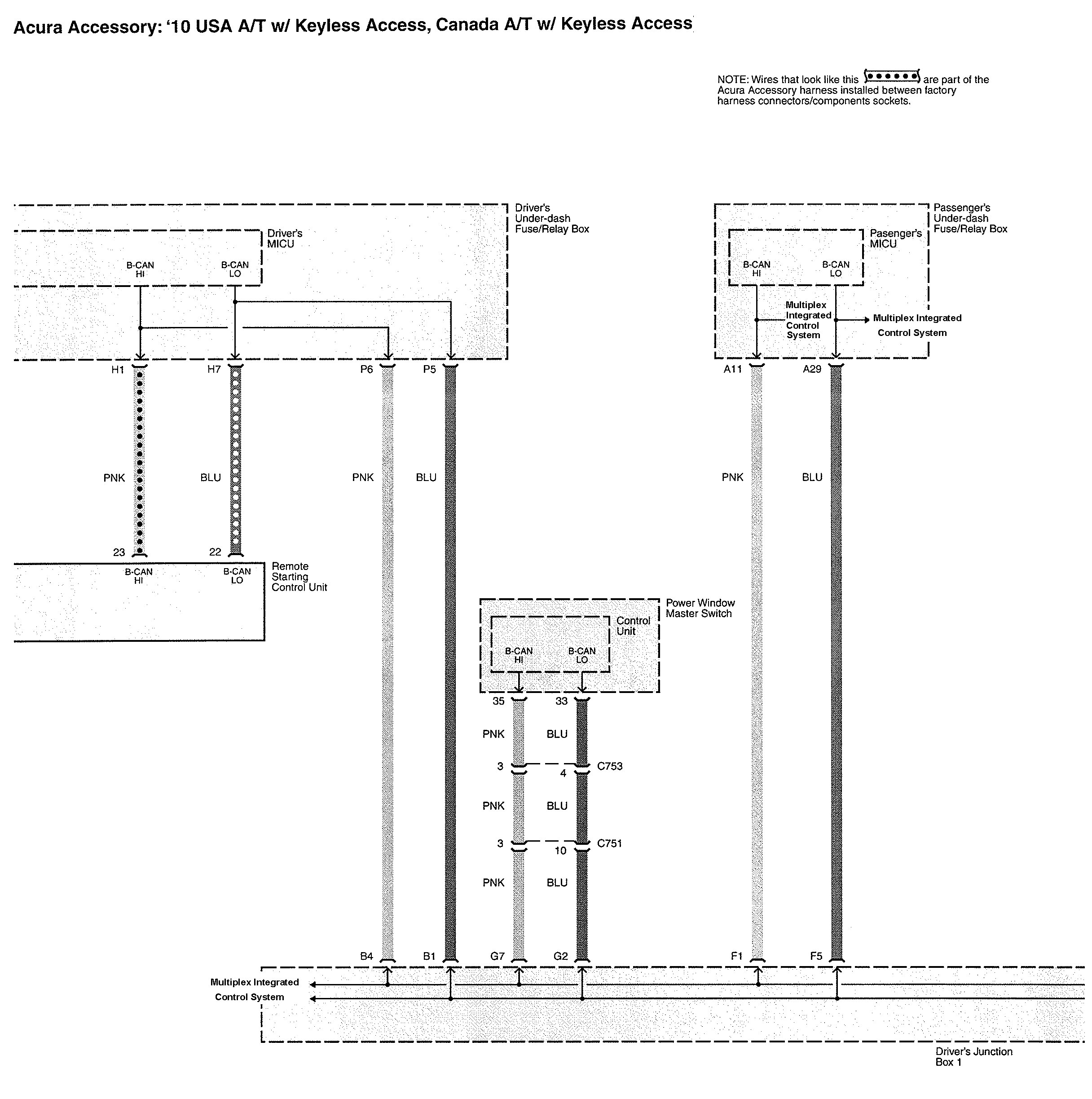

Acura TL - wiring diagram - starting (part 6)
Acura TL – wiring diagram – starting (part 6)

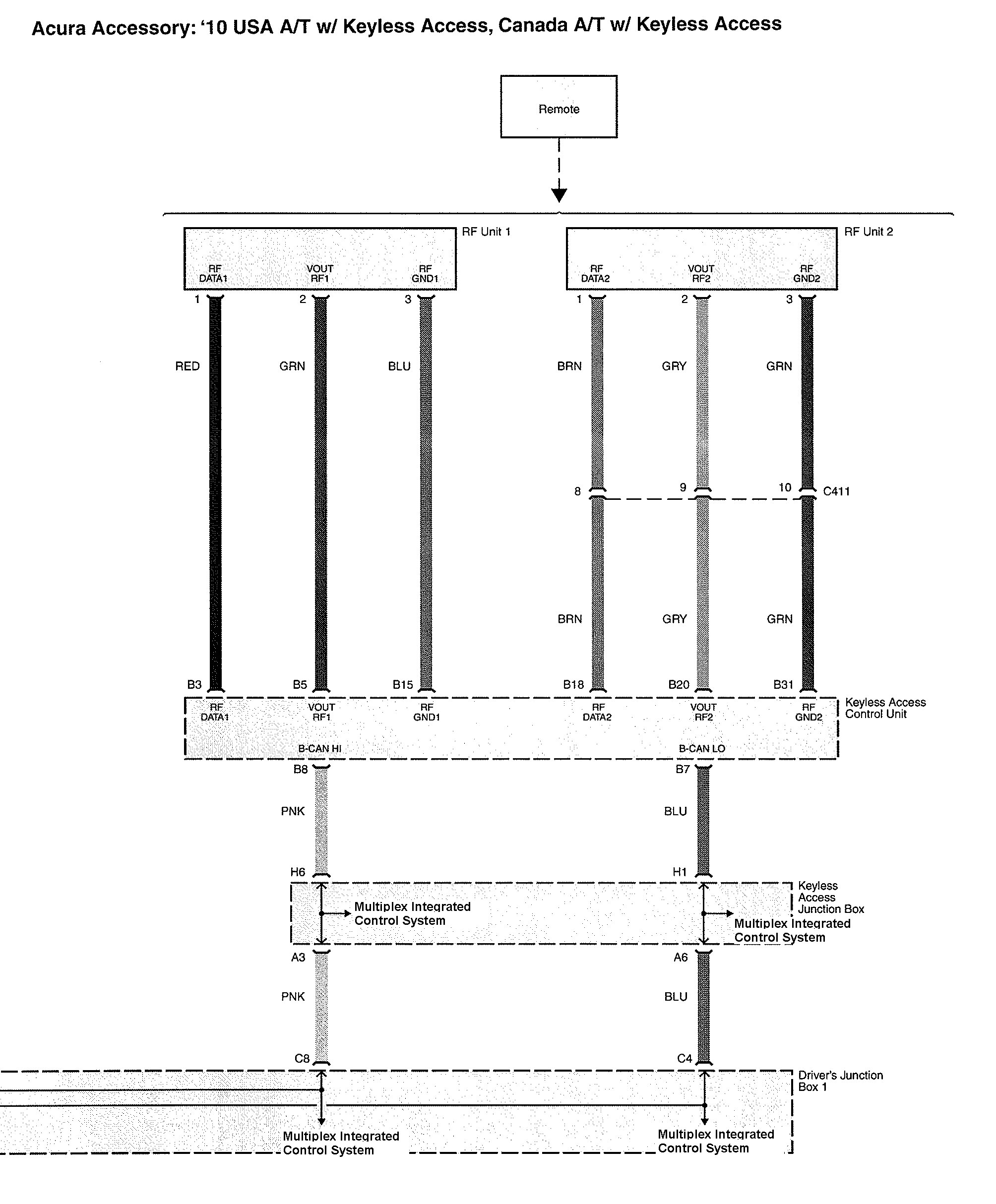

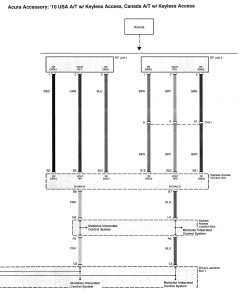

Acura TL - wiring diagram - starting (part 7)
Acura TL – wiring diagram – starting (part 7)

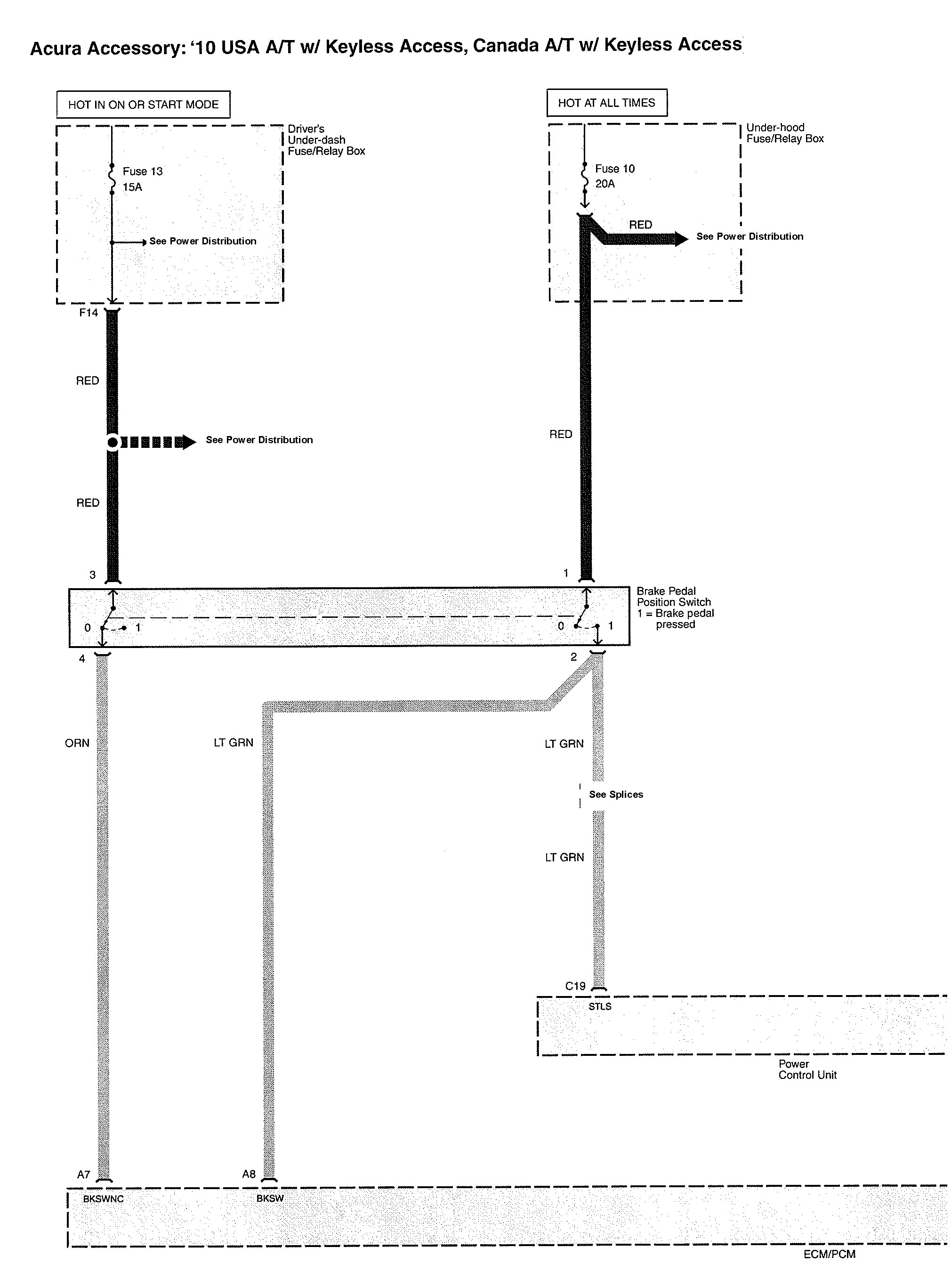

Acura TL - wiring diagram - starting (part 8)
Acura TL – wiring diagram – starting (part 8)

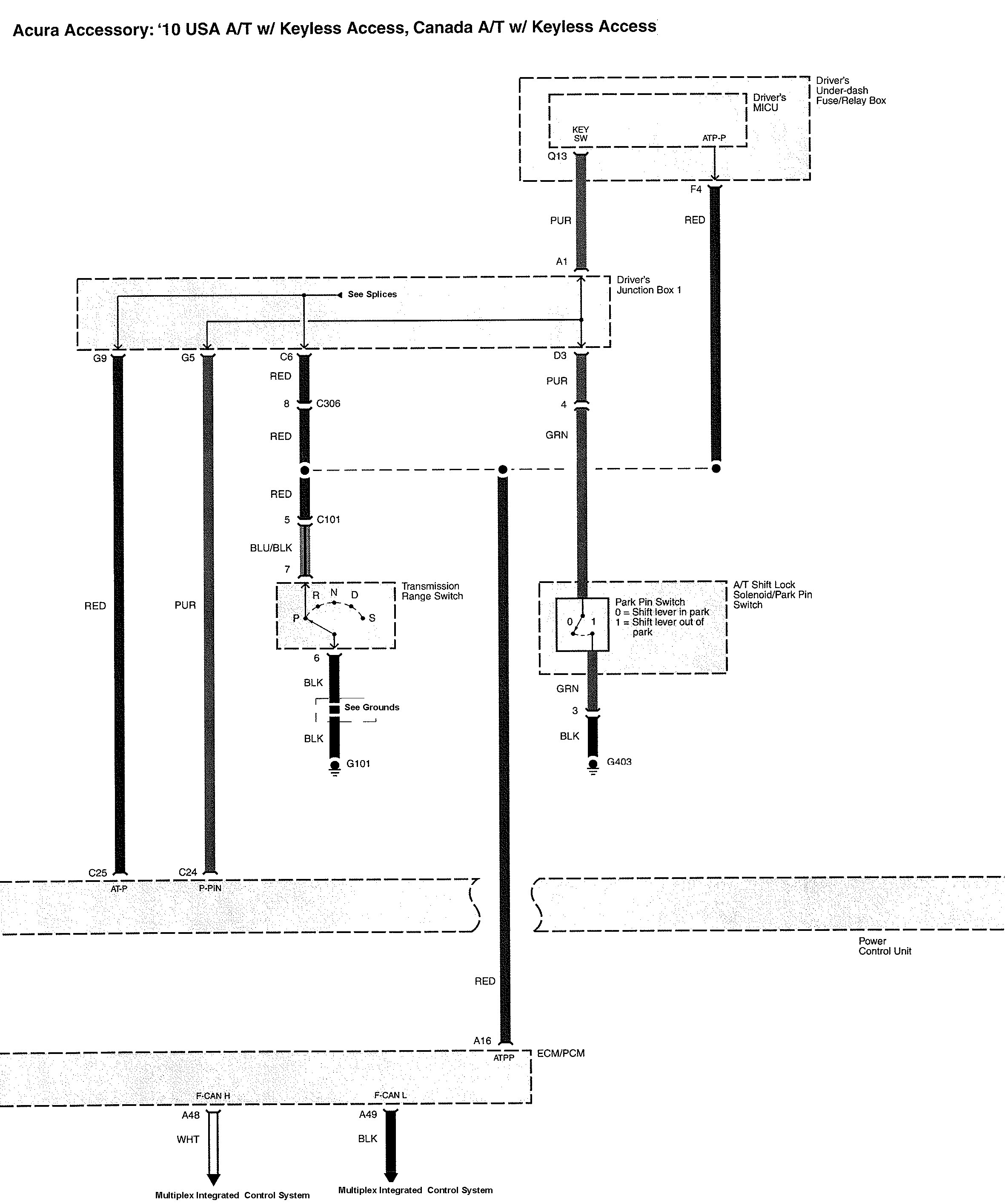

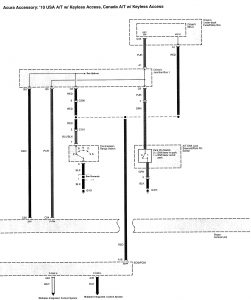

Acura TL - wiring diagram - starting (part 9)
Acura TL – wiring diagram – starting (part 9)

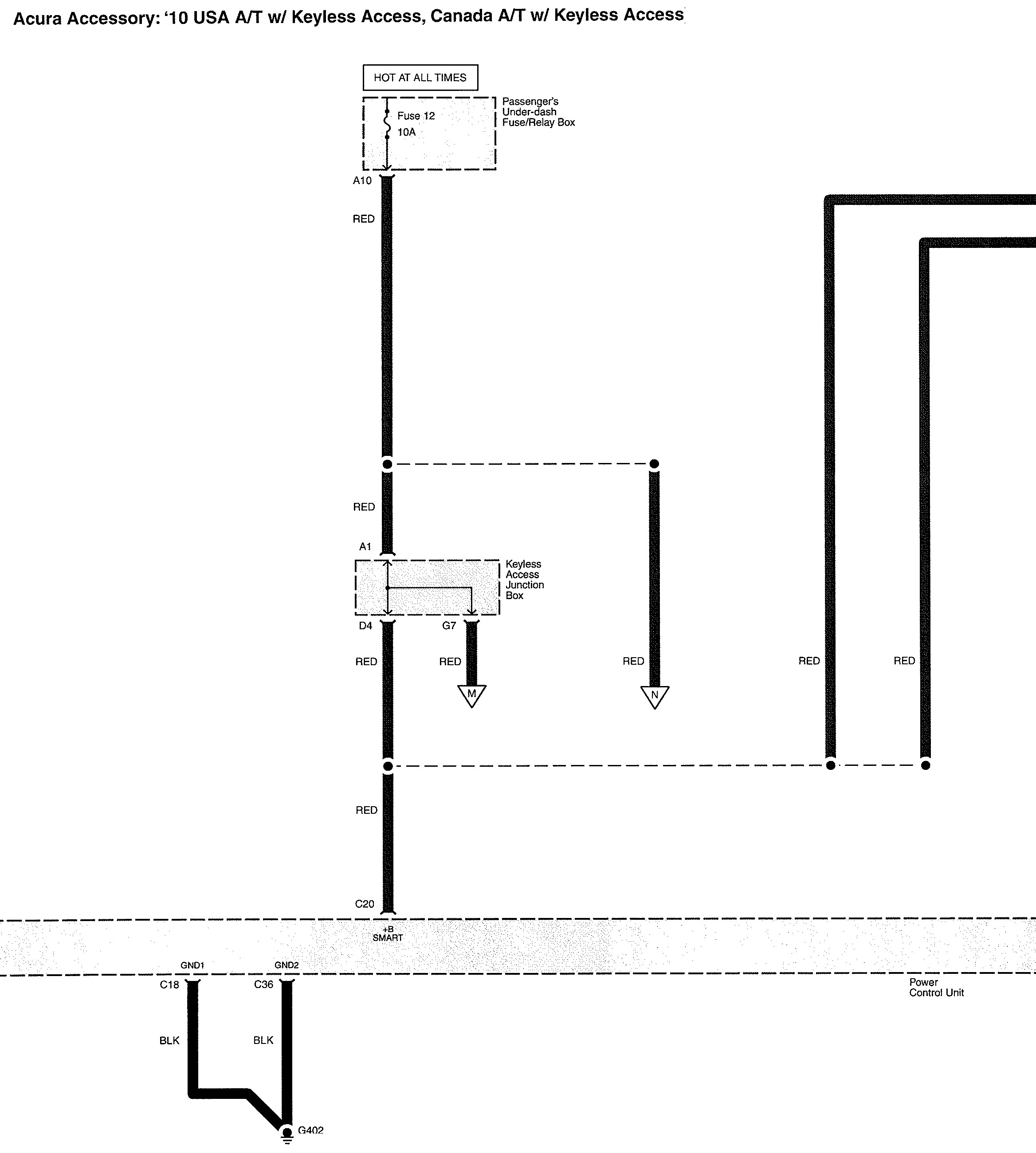

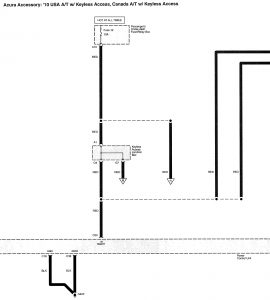

Acura TL - wiring diagram - starting (part 10)
Acura TL – wiring diagram – starting (part 10)

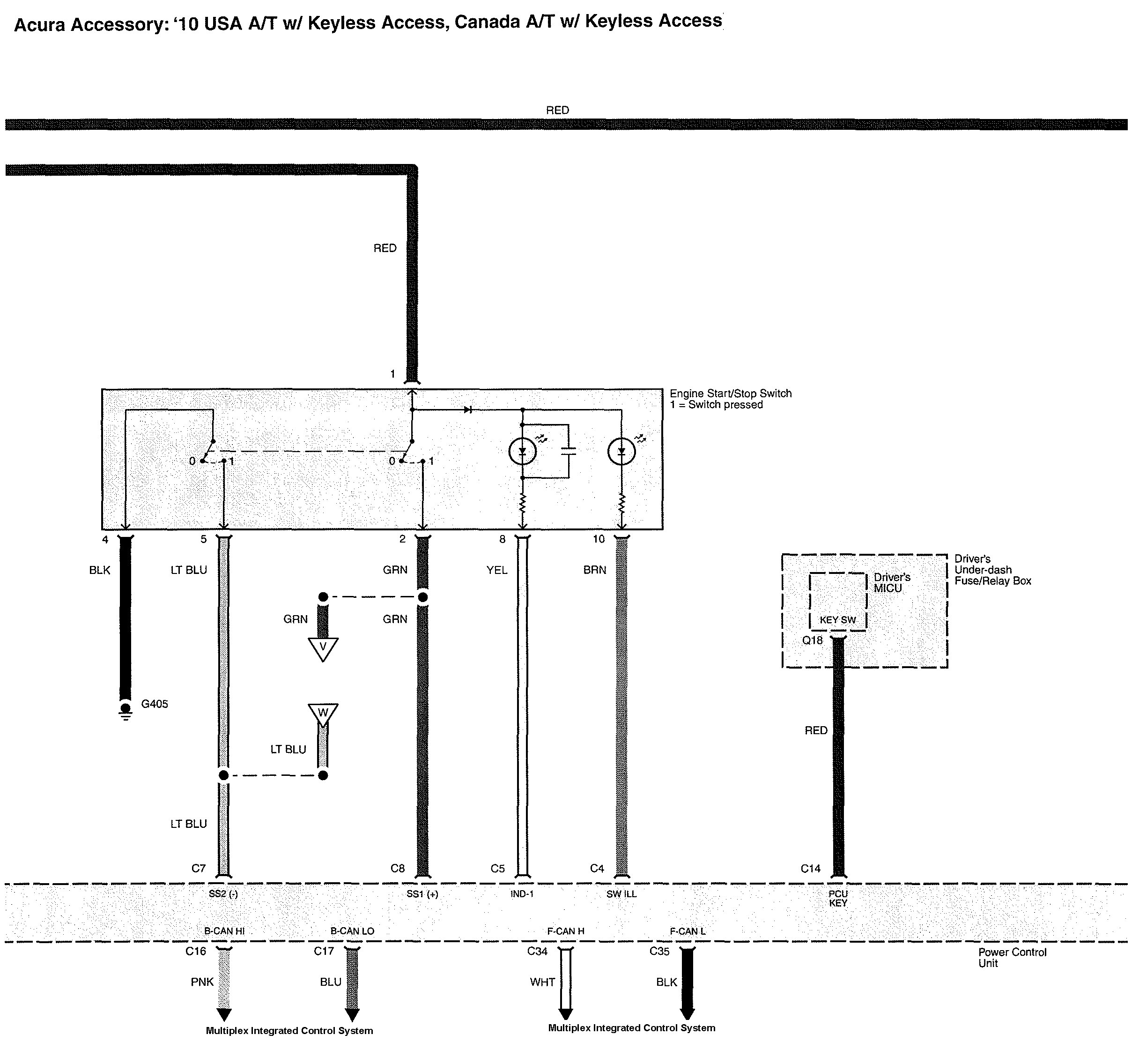

Acura TL - wiring diagram - starting (part 11)
Acura TL – wiring diagram – starting (part 11)

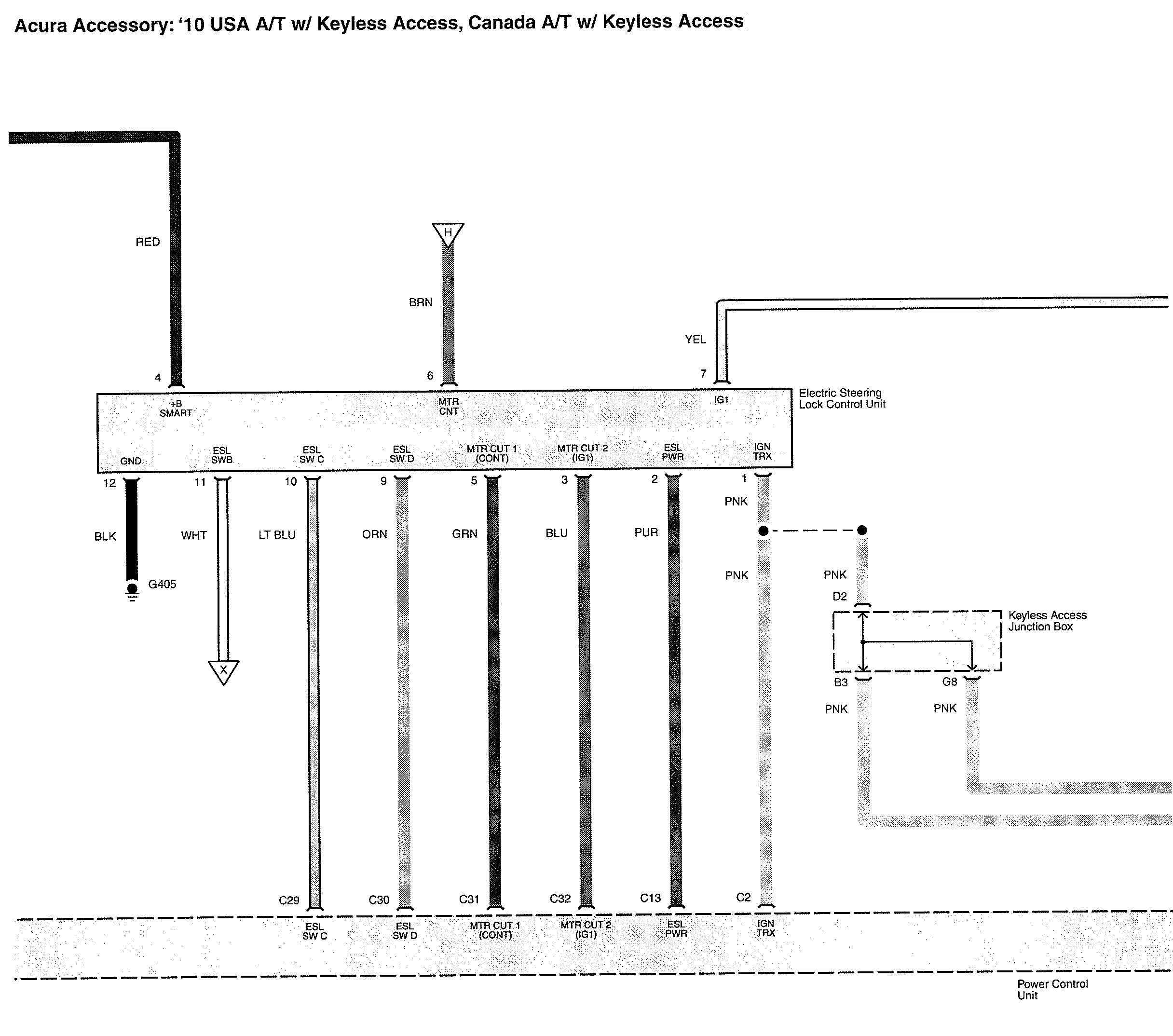

Acura TL - wiring diagram - starting (part 12)
Acura TL – wiring diagram – starting (part 12)

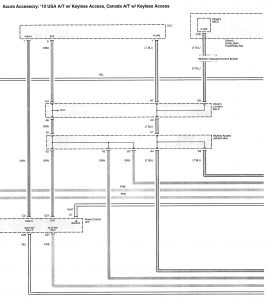

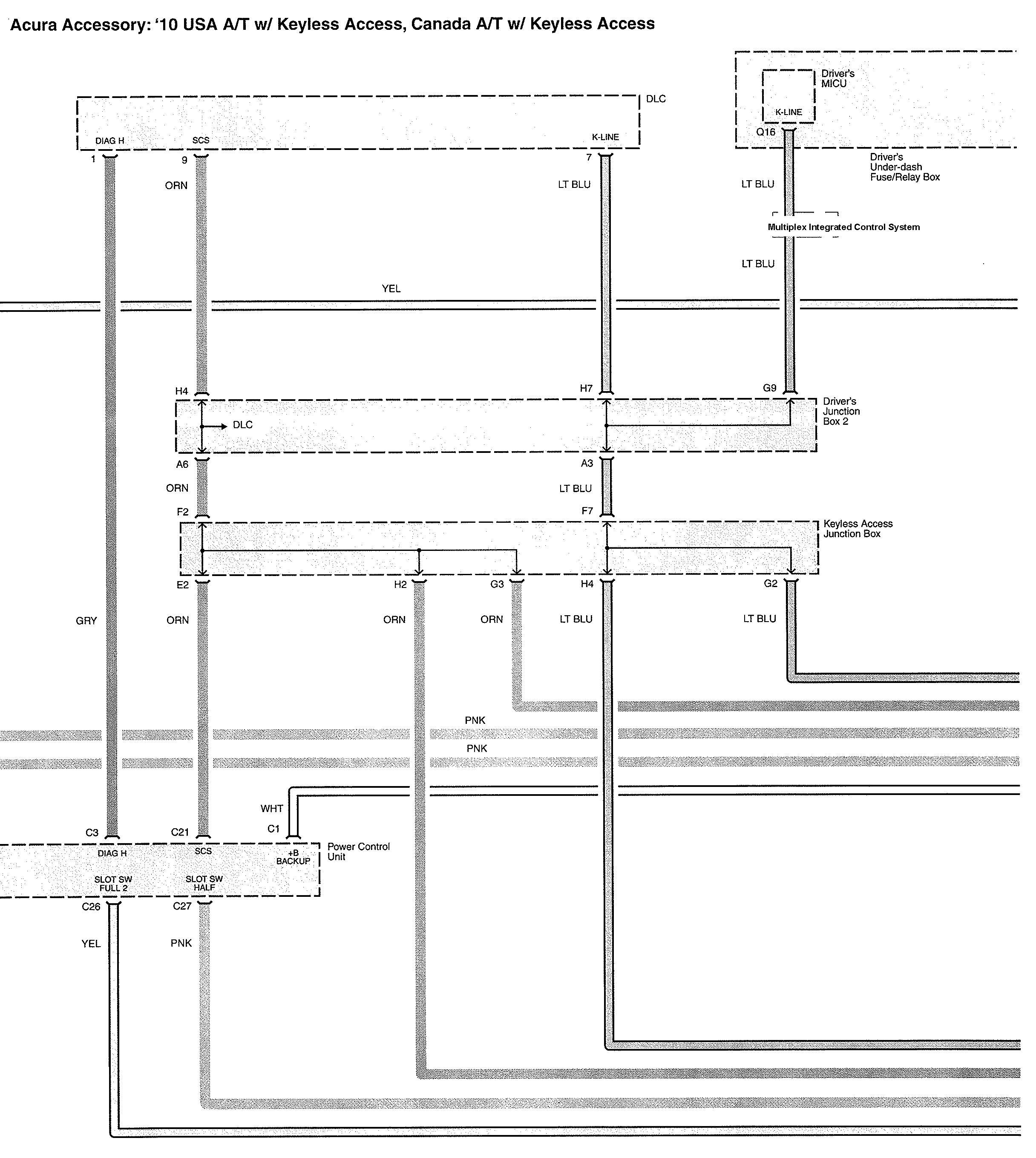

Acura TL - wiring diagram - starting (part 13)
Acura TL – wiring diagram – starting (part 13)

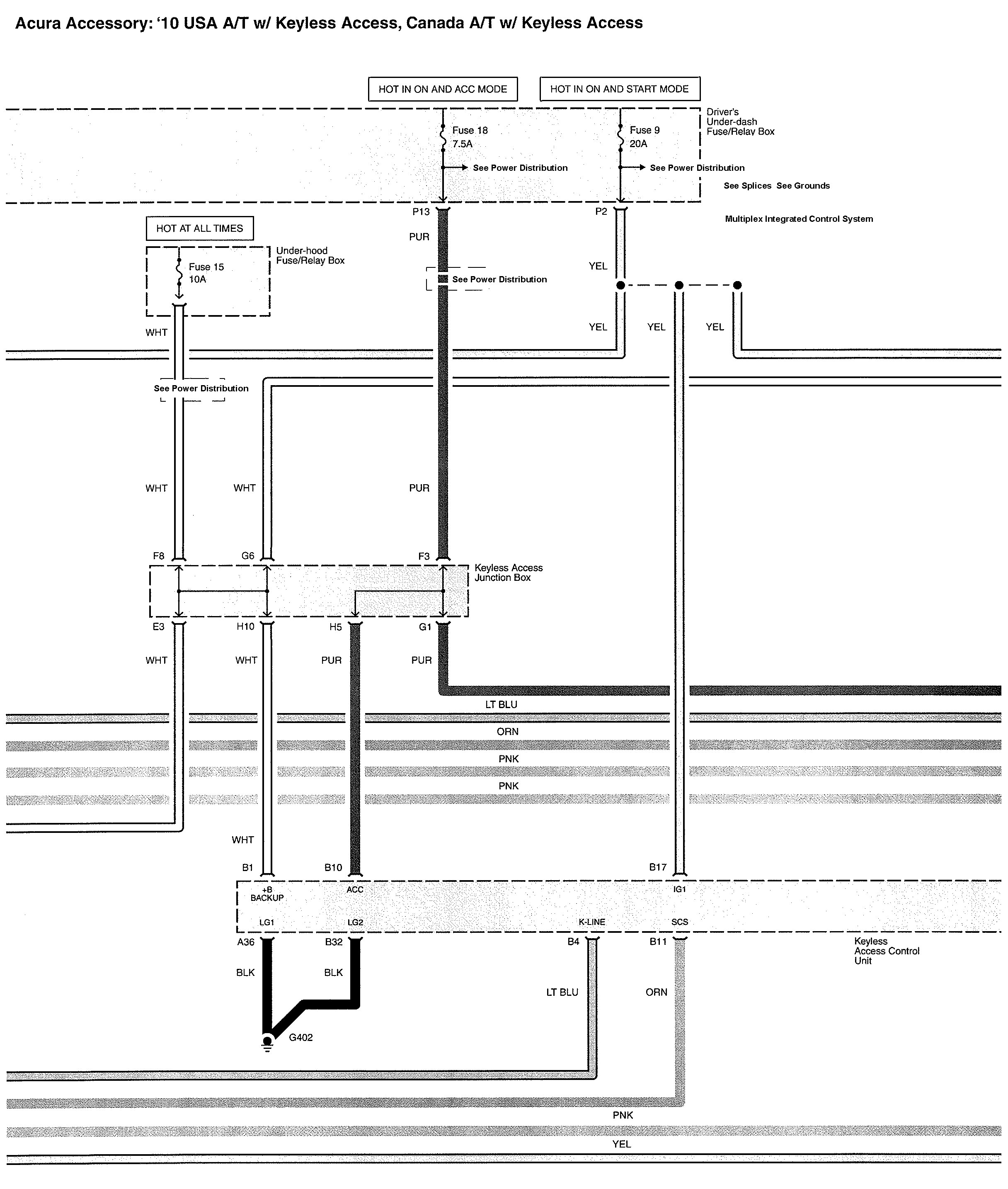

Acura TL - wiring diagram - starting (part 14)
Acura TL – wiring diagram – starting (part 14)

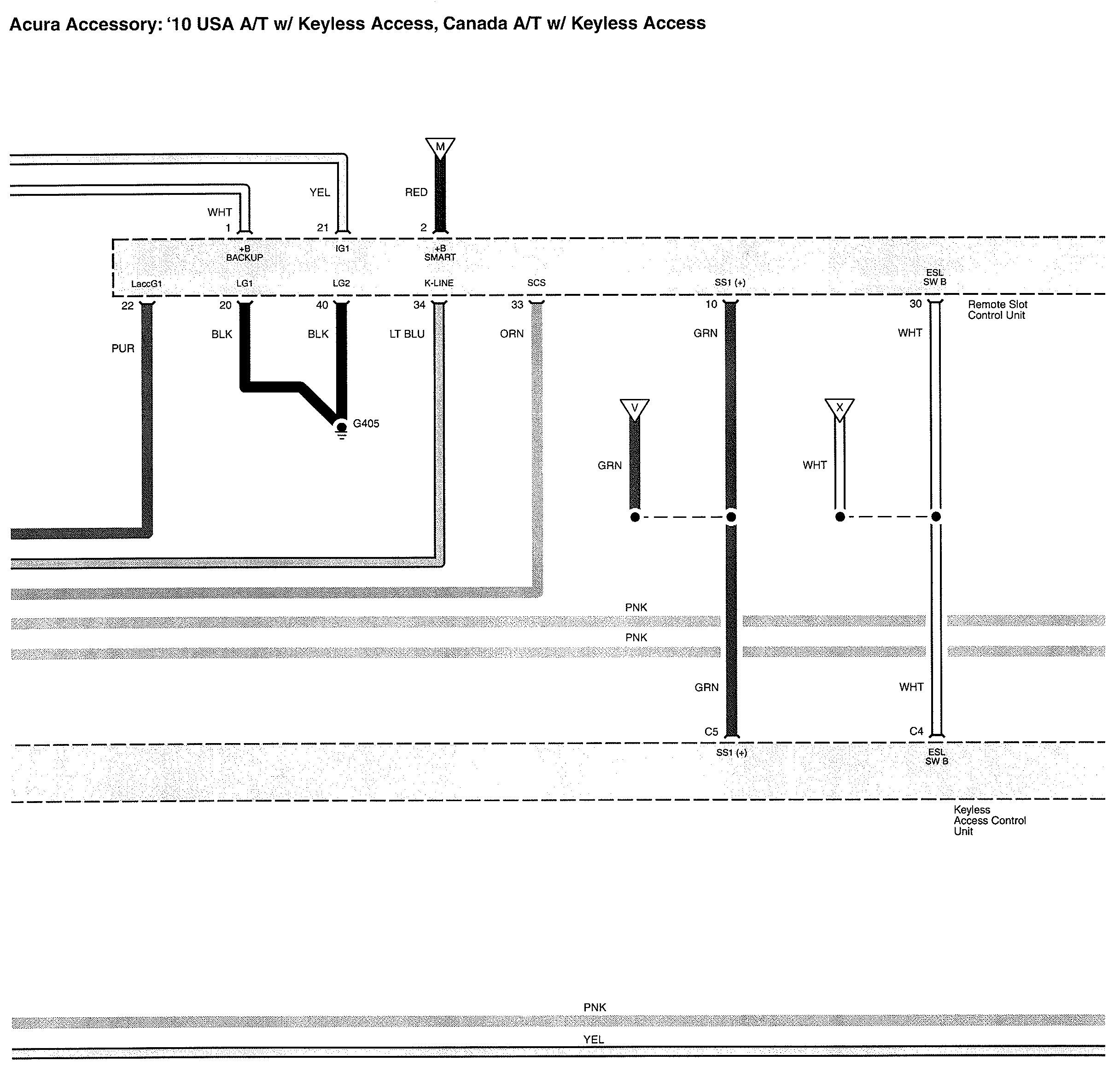

Acura TL - wiring diagram - starting (part 15)
Acura TL – wiring diagram – starting (part 15)

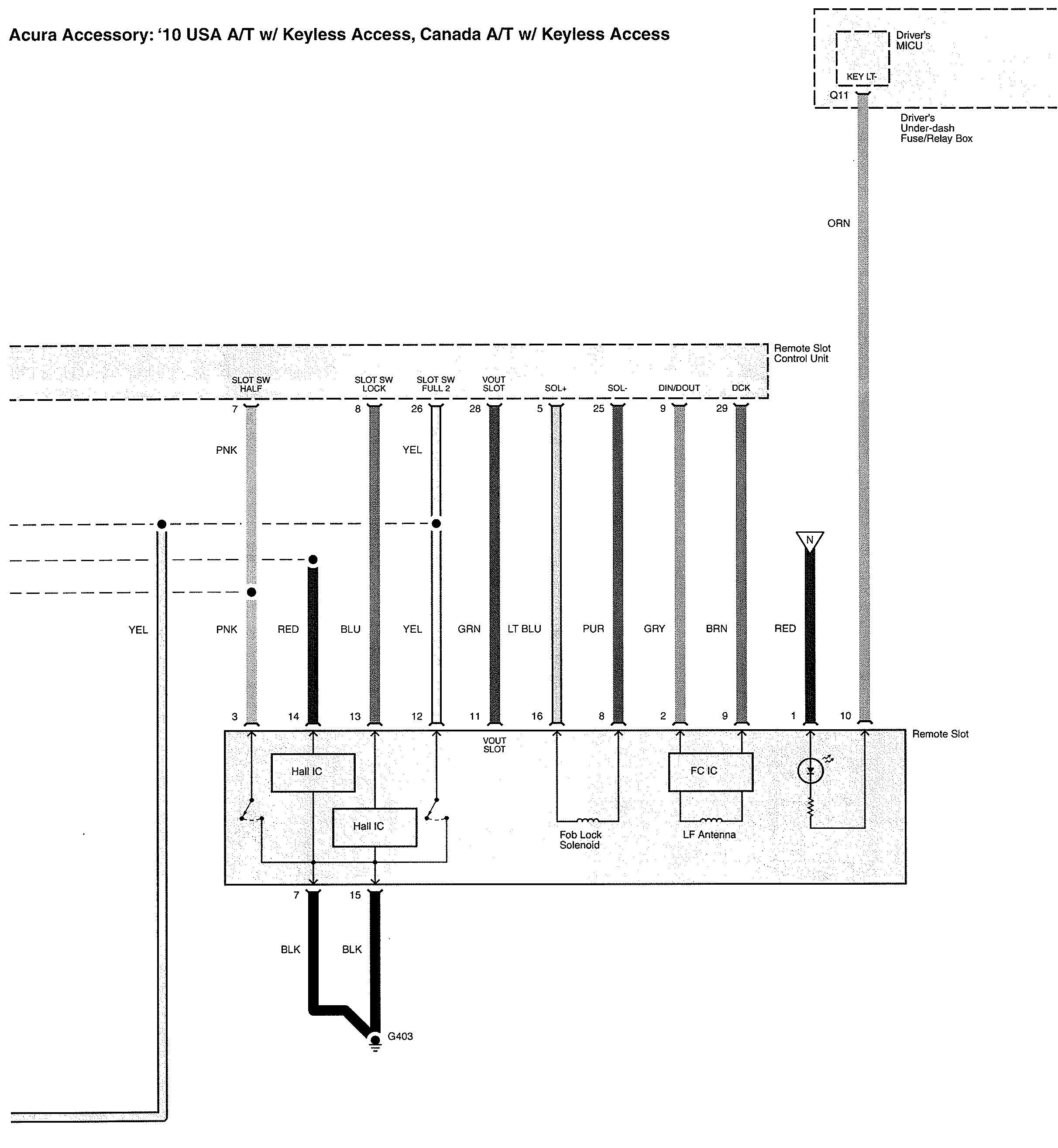

Acura TL - wiring diagram - starting (part 16)
Acura TL – wiring diagram – starting (part 16)

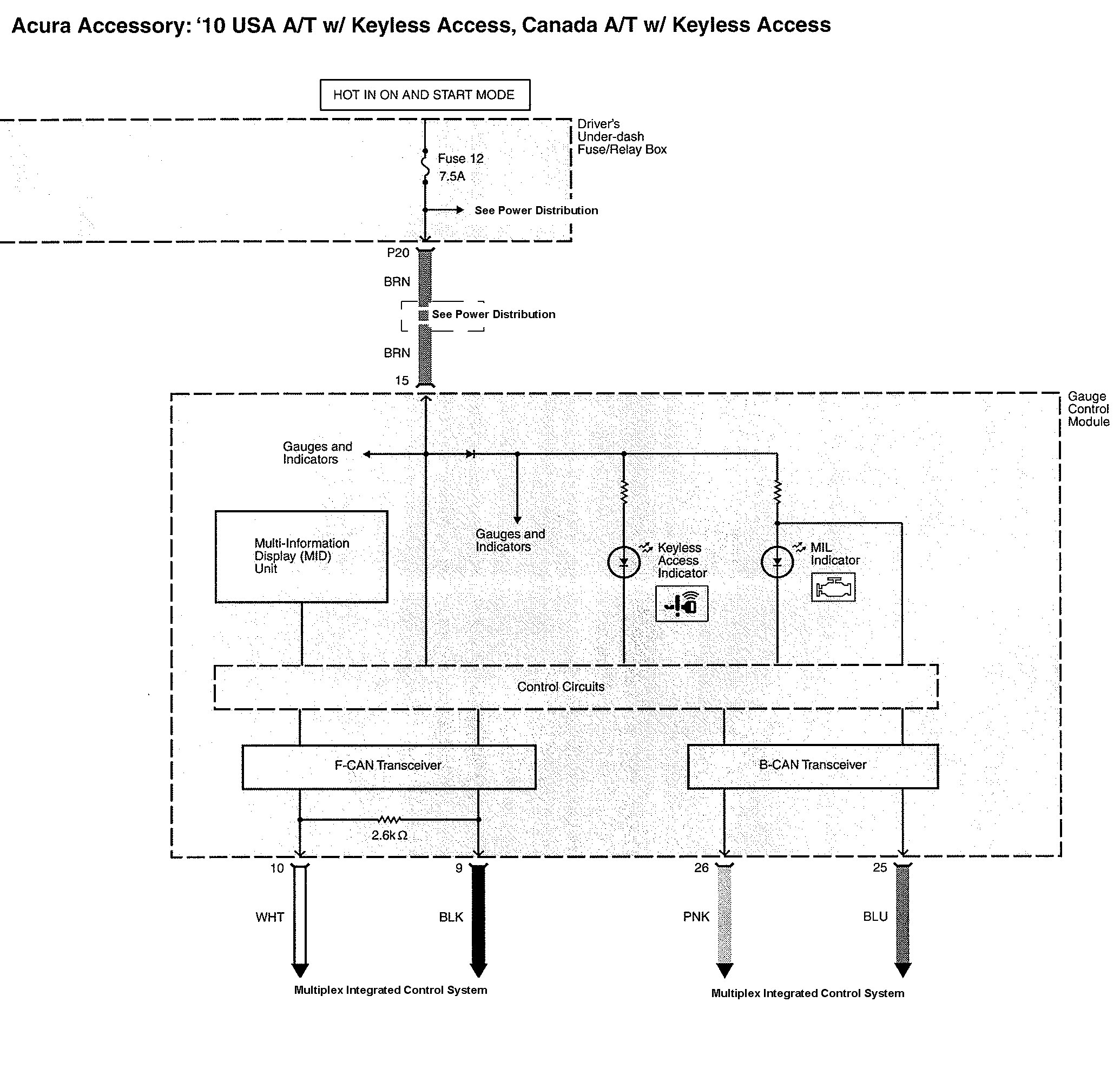

Acura TL - wiring diagram - starting (part 17)
Acura TL – wiring diagram – starting (part 17)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
