Acura TL (2011) – wiring diagrams – exterior lighting

14 August 2017 admin Acura, TL 0

Acura TL (2011) – wiring diagrams – exterior lighting

Year of productions:  2011

Exterior lamp

Headlights

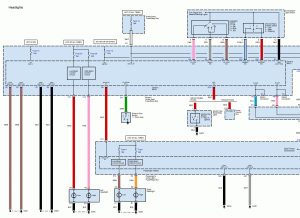

Acura TL - wiring diagram - exterior lamp - headlamps (part 1)
Acura TL – wiring diagram – exterior lamp –
headlamps (part 1)

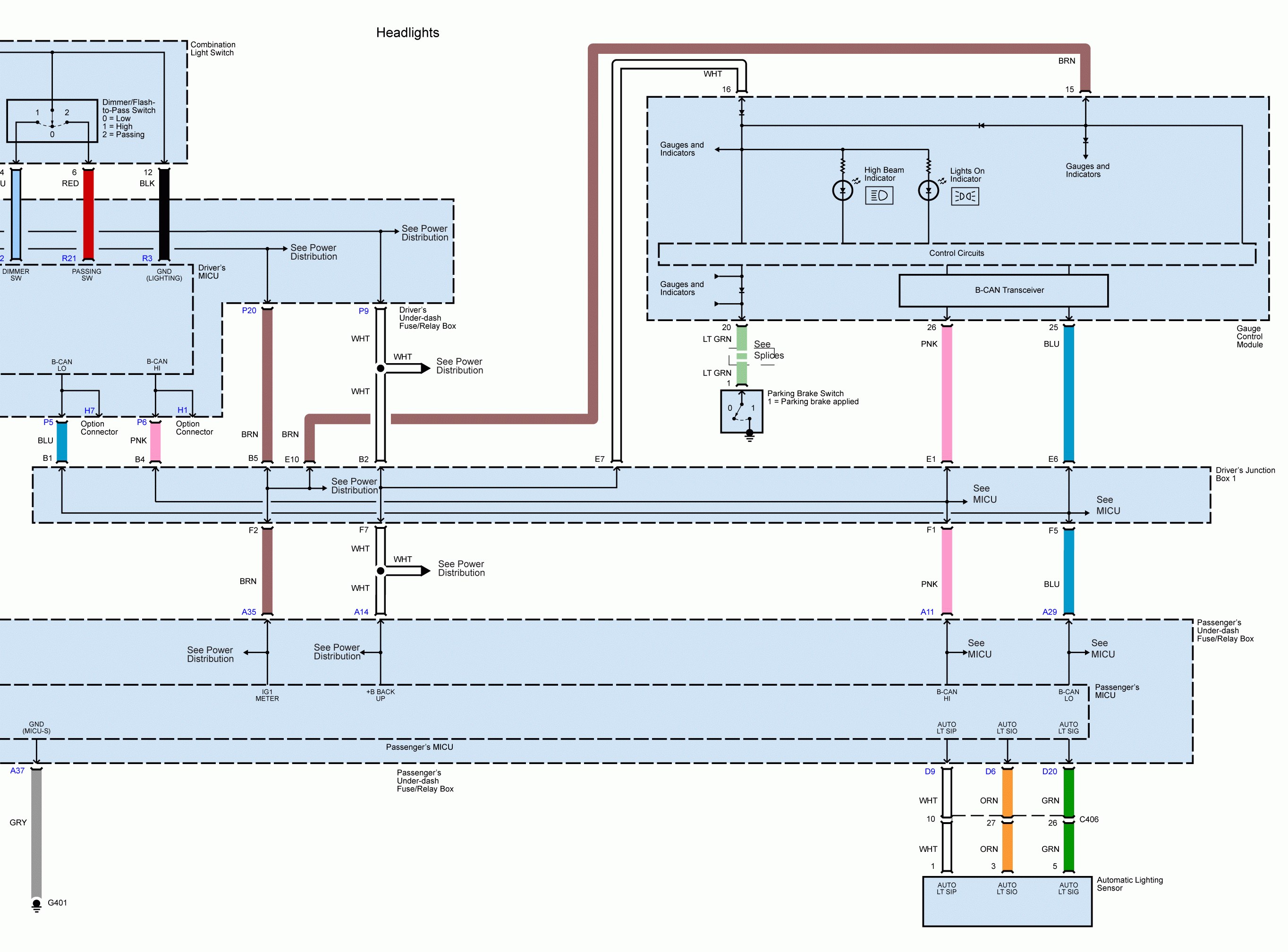

Acura TL - wiring diagram - exterior lamp - headlamps (part 2)
Acura TL – wiring diagram – exterior lamp –
headlamps (part 2)

Back up lights (A/T)

Acura TL - wiring diagram - exterior lamps - back up lights (A/T)
Acura TL – wiring diagram – exterior lamps – back up lights (A/T)

Back up lights (M/T)

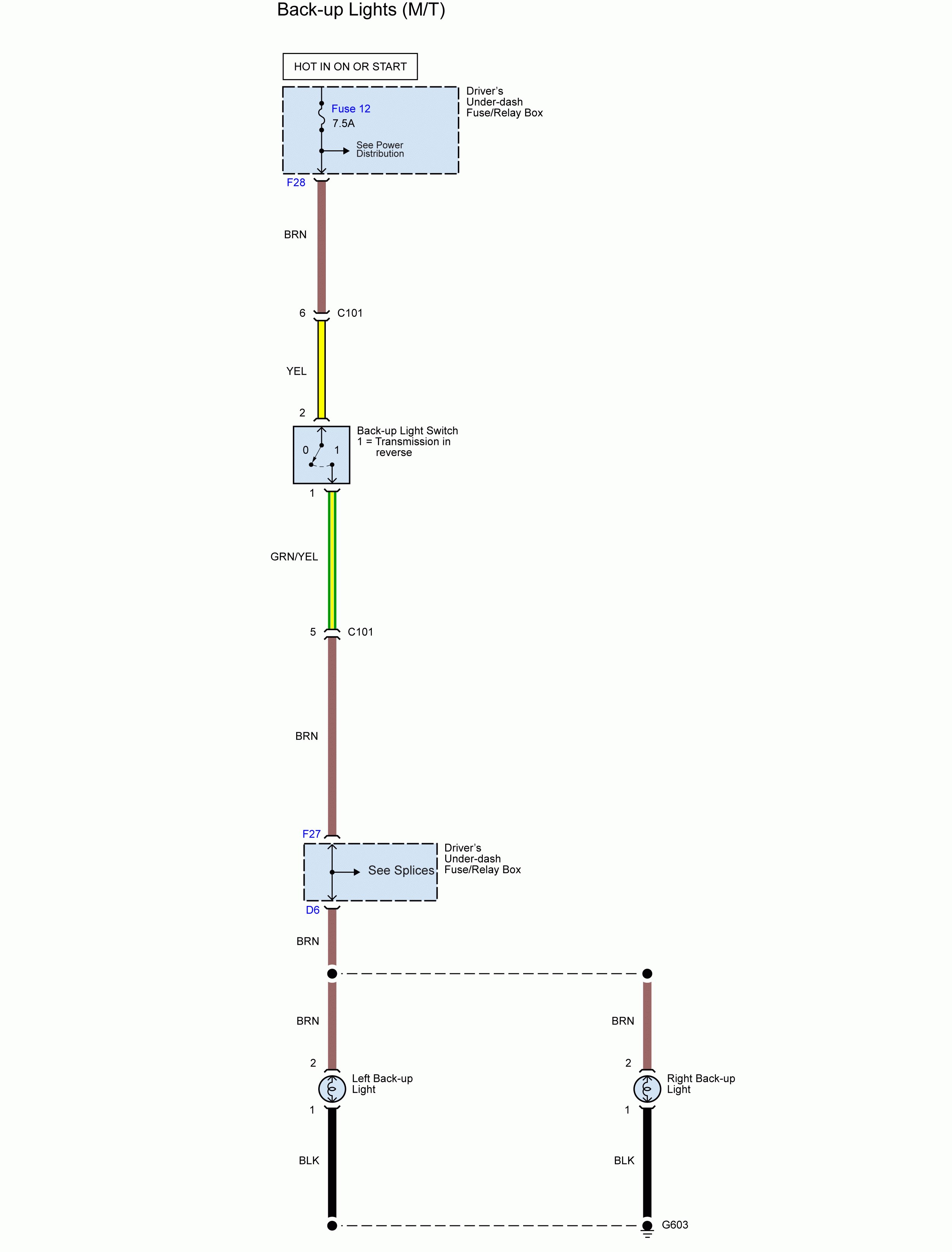

Acura TL - wiring diagram - exterior lamps - back up lights (M/T)
Acura TL – wiring diagram – exterior lamps – back up lights (M/T)

Brake lights

Acura TL - wiring diagram - exterior lamp - brake lights
Acura TL – wiring diagram – exterior lamp – brake lights

Fog lights

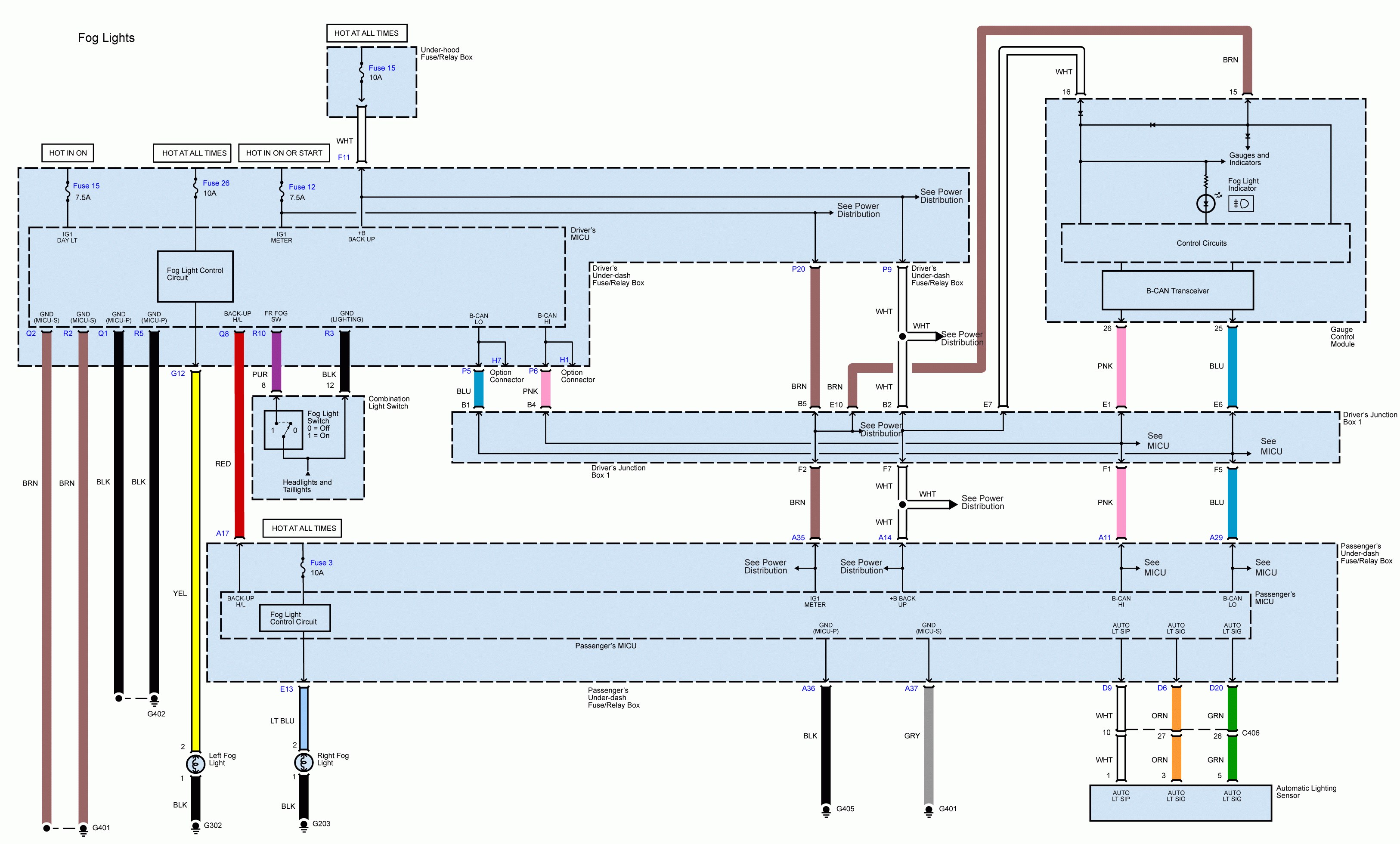

Acura TL - wiring diagram - exterior lamp - fog lights
Acura TL – wiring diagram – exterior lamp – fog lights

License lamp, parking side marker lights and taillights

Acura TL - wiring diagram - exterior lamp - license lamp, parking side marker lights and taillights (part 1)
Acura TL – wiring diagram – exterior lamp – license lamp, parking side marker lights and taillights (part 1)
Acura TL - wiring diagram - exterior lamp - license lamp, parking side marker lights and taillights (part 2)
Acura TL – wiring diagram – exterior lamp – license lamp, parking side marker lights and taillights (part 2)

Turn signal and hazard warning lights

Acura TL - wiring diagram - exterior lamp - turn signal and hazard warning lights
Acura TL – wiring diagram – exterior lamp – turn signal and hazard warning lights



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
