Acura TL (2011) – wiring diagrams – fuse panel

Year of productions:  2011

Fuse panel

Driver’s under dash

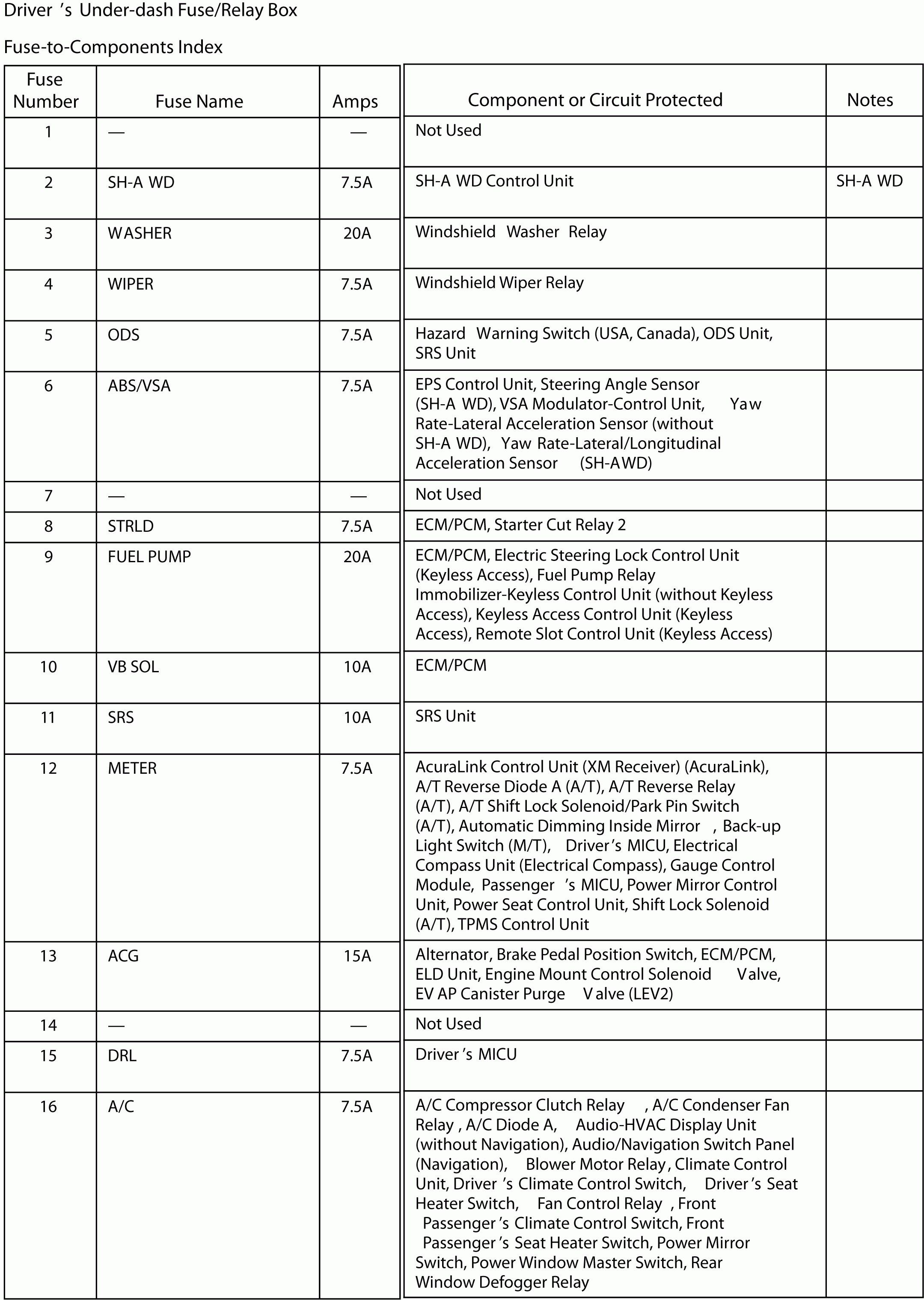

Acura TL - wiring diagram - fuse box - driver's under dash (part 1)
Acura TL – wiring diagram – fuse box – driver’s under dash (part 1)

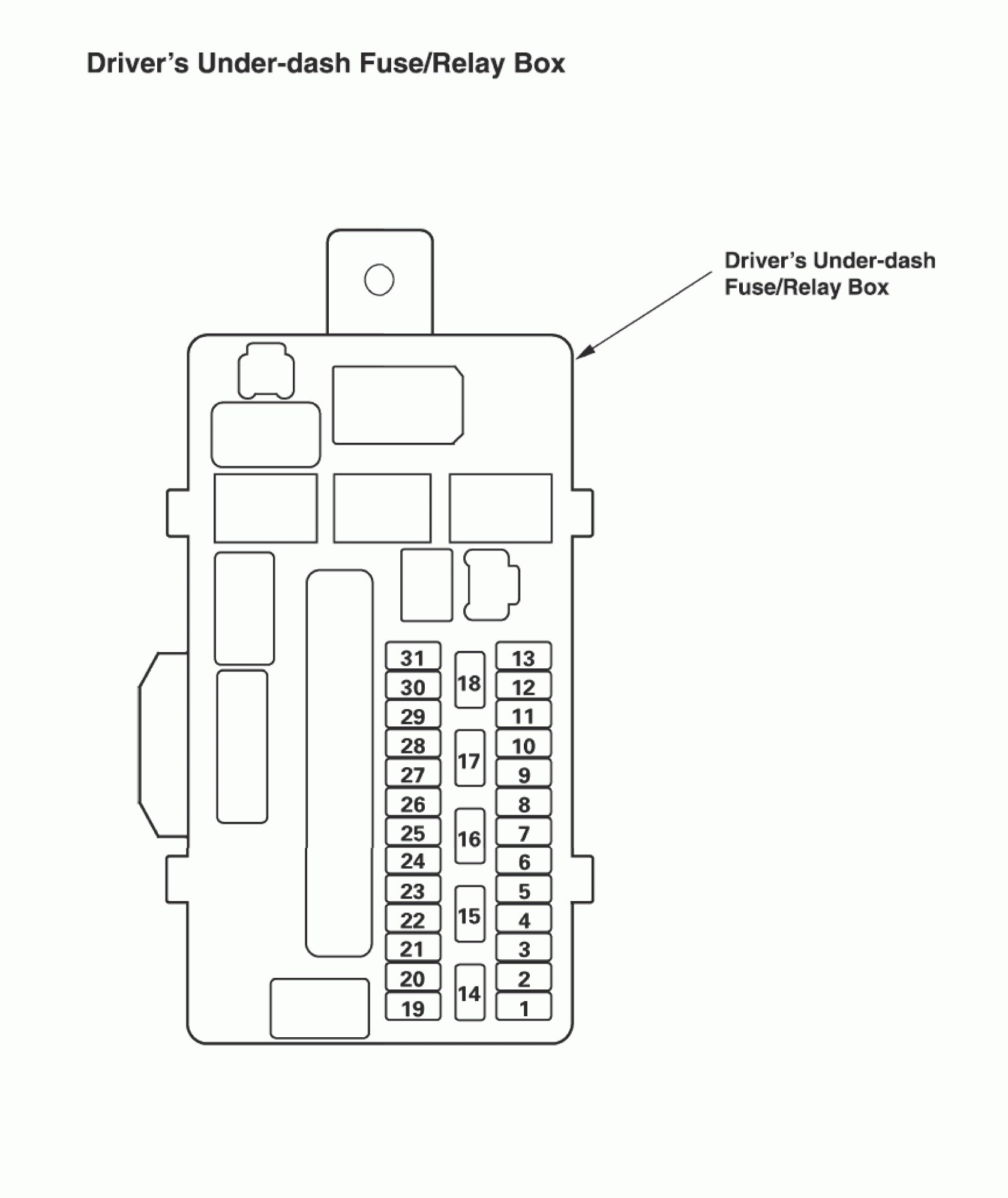

Acura TL - wiring diagram - fuse box - driver's under dash (part 2)
Acura TL – wiring diagram – fuse box – driver’s under dash (part 2)

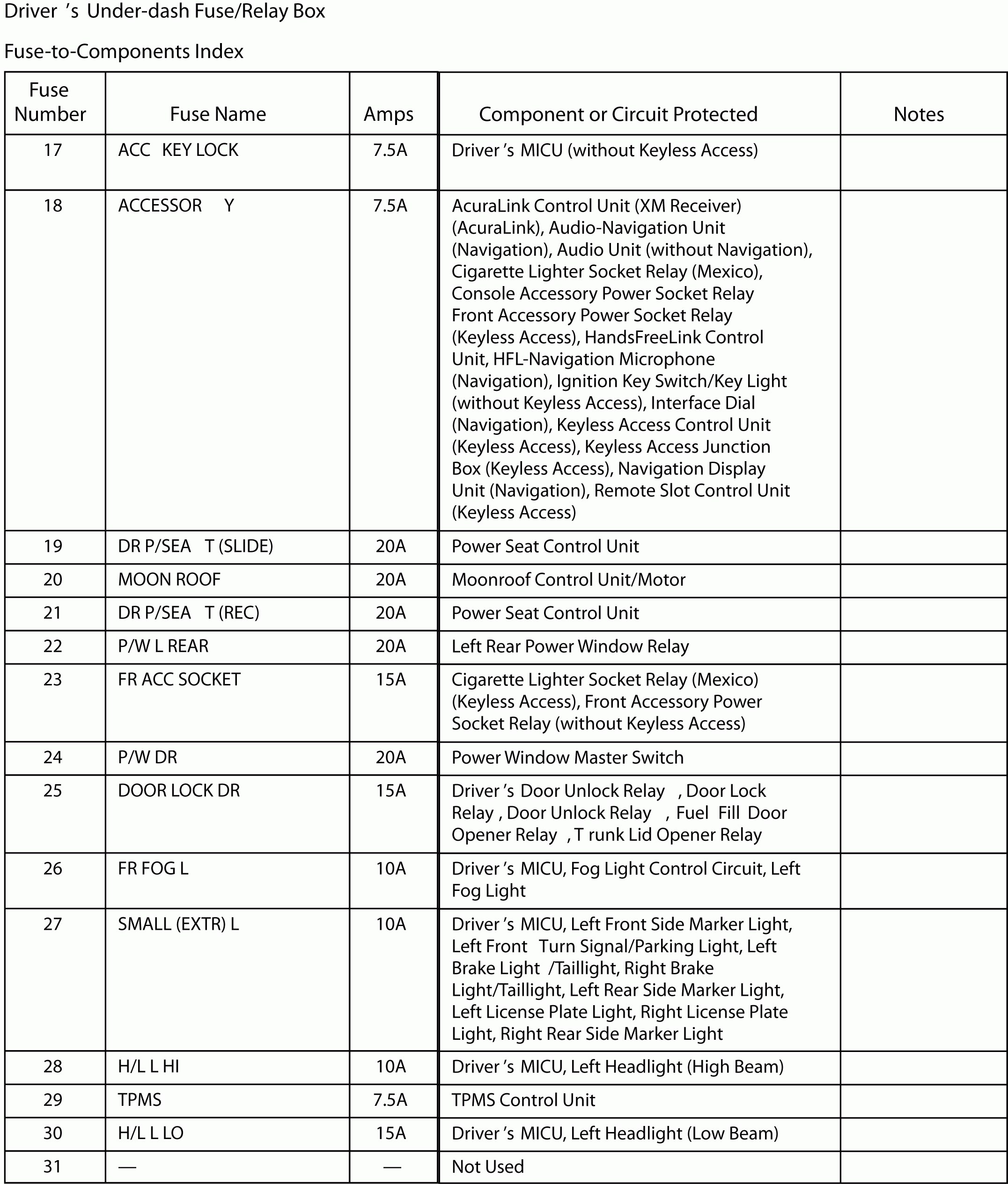

Acura TL - wiring diagram - fuse box - driver's under dash (part 3)
Acura TL – wiring diagram – fuse box – driver’s under dash (part 3)

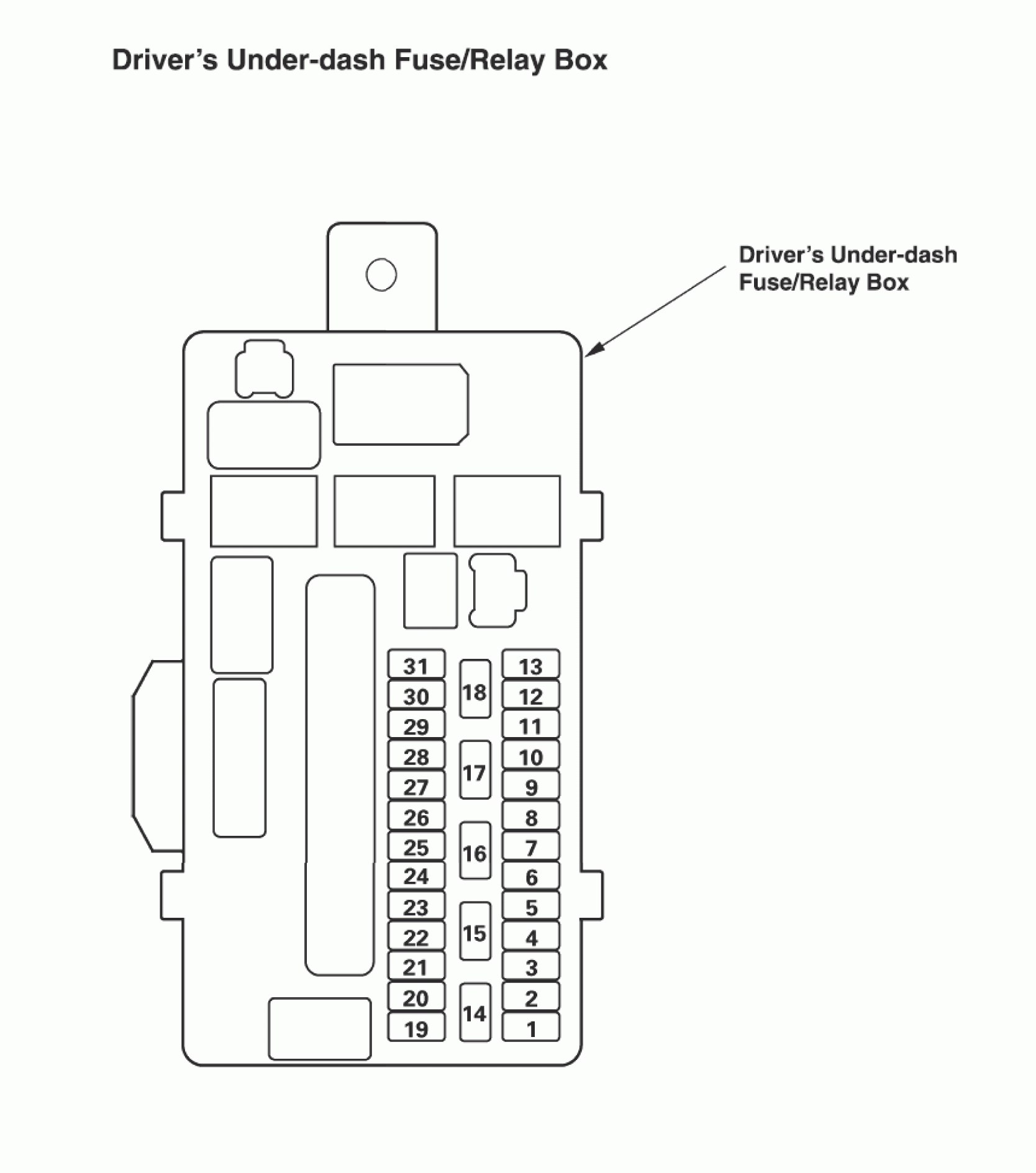

Acura TL - wiring diagram - fuse box - driver's under dash (part 4)
Acura TL – wiring diagram – fuse box – driver’s under dash (part 4)

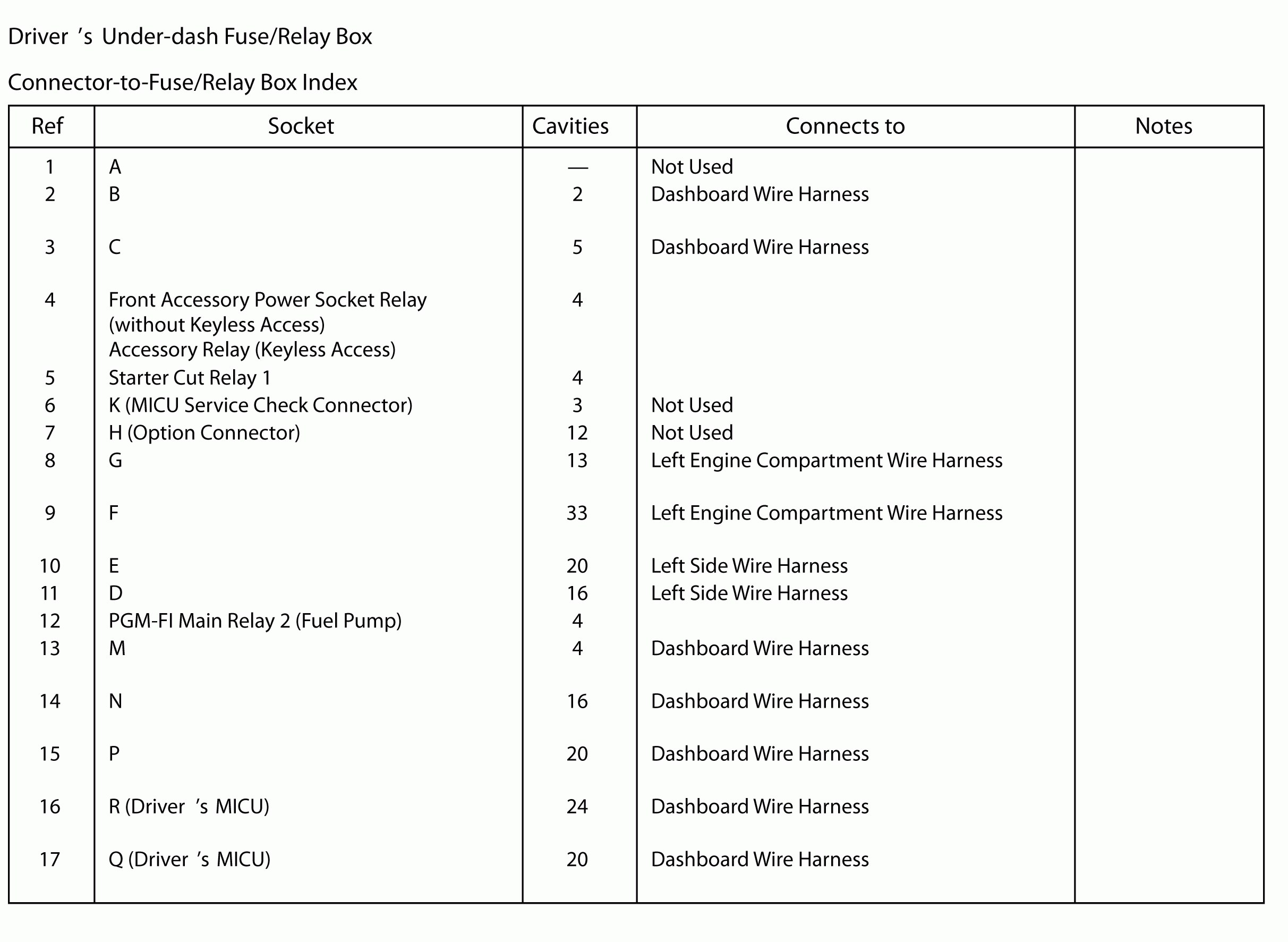

Acura TL - wiring diagram - fuse box - driver's under dash (part 5)
Acura TL – wiring diagram – fuse box – driver’s under dash (part 5)

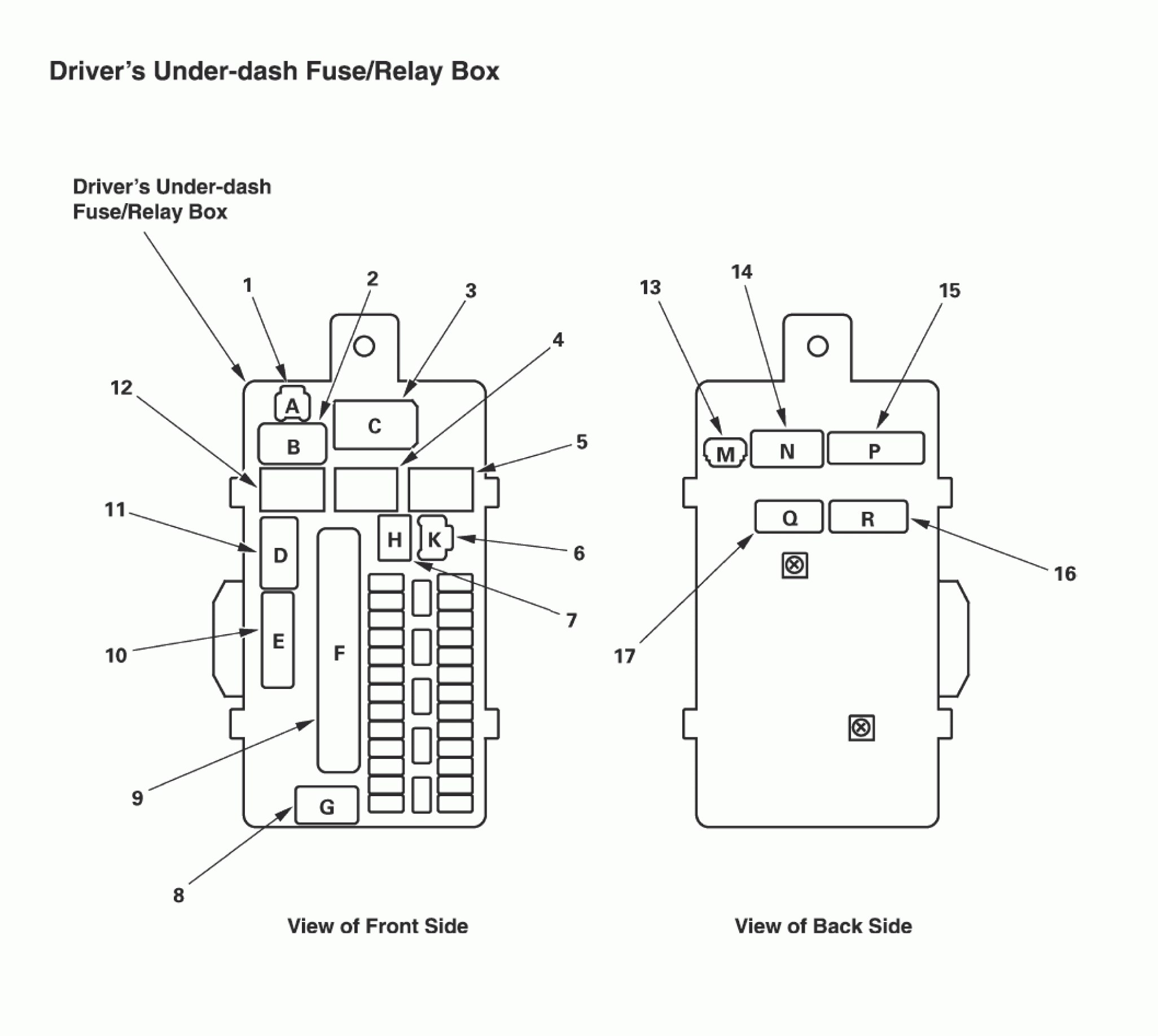

Acura TL - wiring diagram - fuse box - driver's under dash (part 6)
Acura TL – wiring diagram – fuse box – driver’s under dash (part 6)

Passenger’s under dash

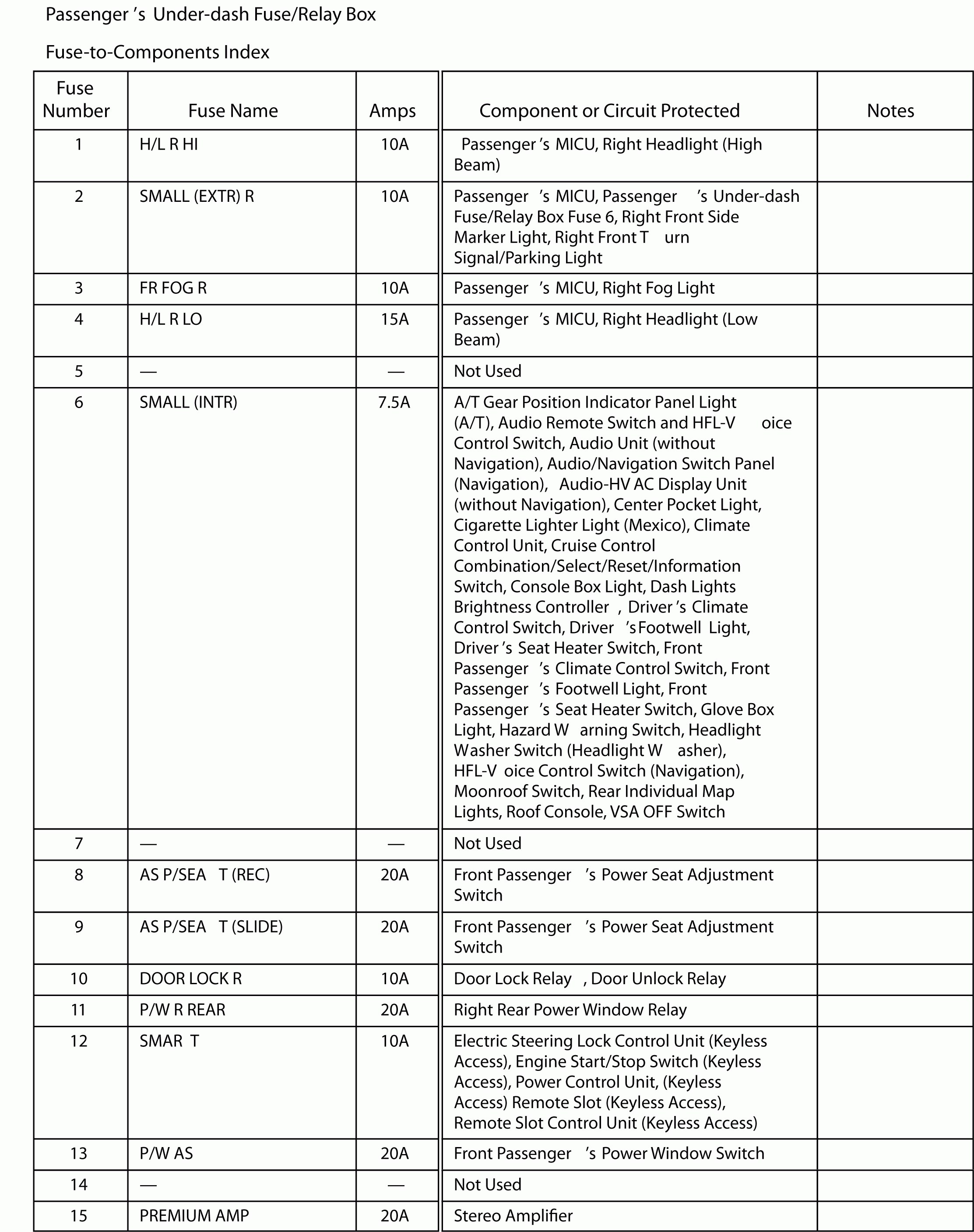

Acura TL - wiring diagram - fuse box - passenger's under dash (part 1)
Acura TL – wiring diagram – fuse box – passenger’s under dash (part 1)

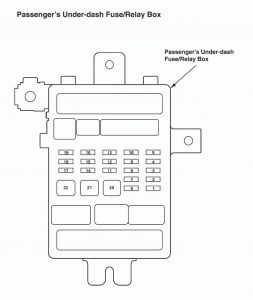

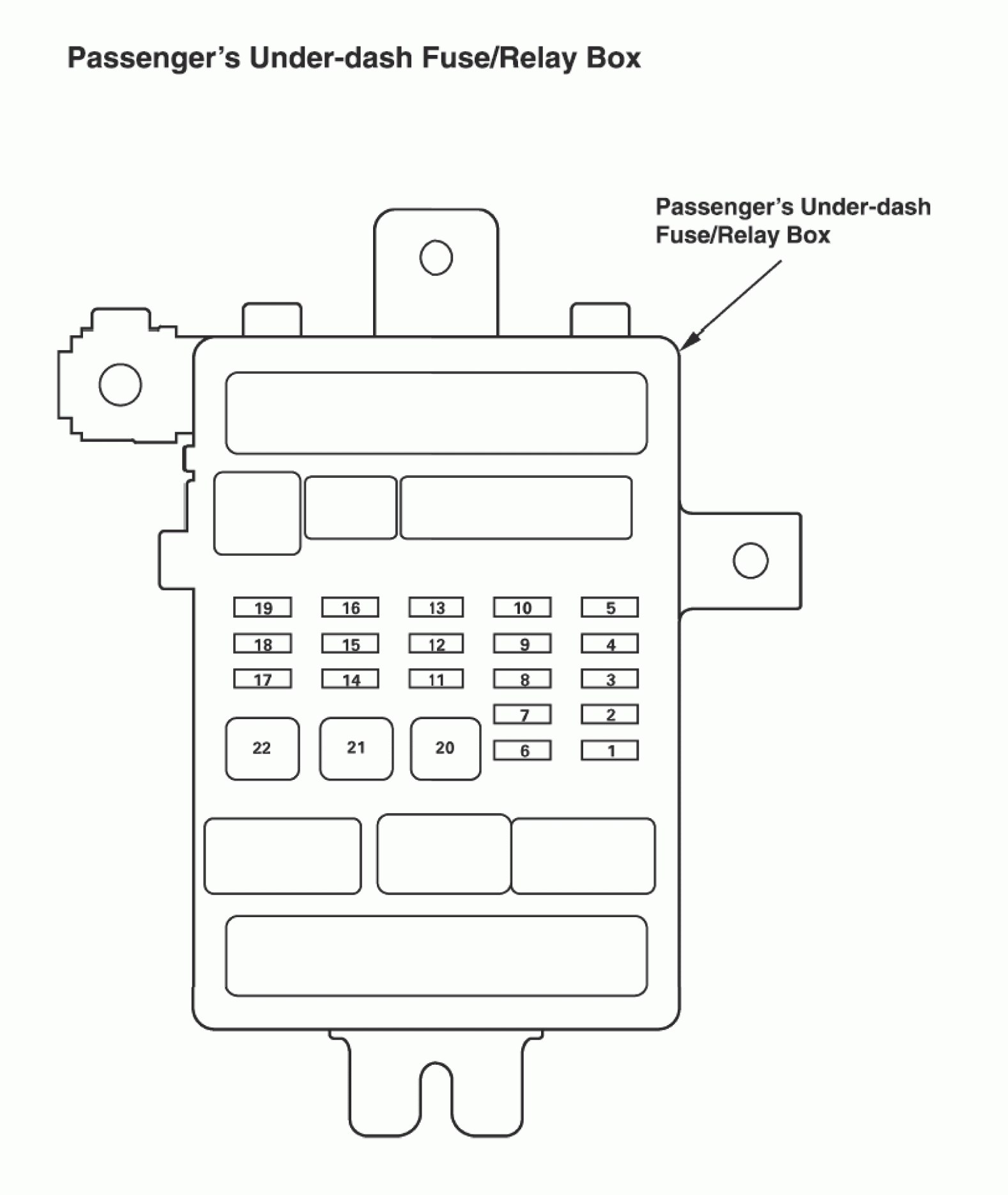

Acura TL - wiring diagram - fuse box - passenger's under dash (part 2)
Acura TL – wiring diagram – fuse box – passenger’s under dash (part 2)

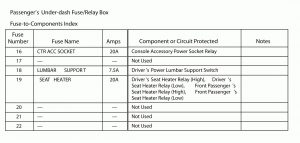

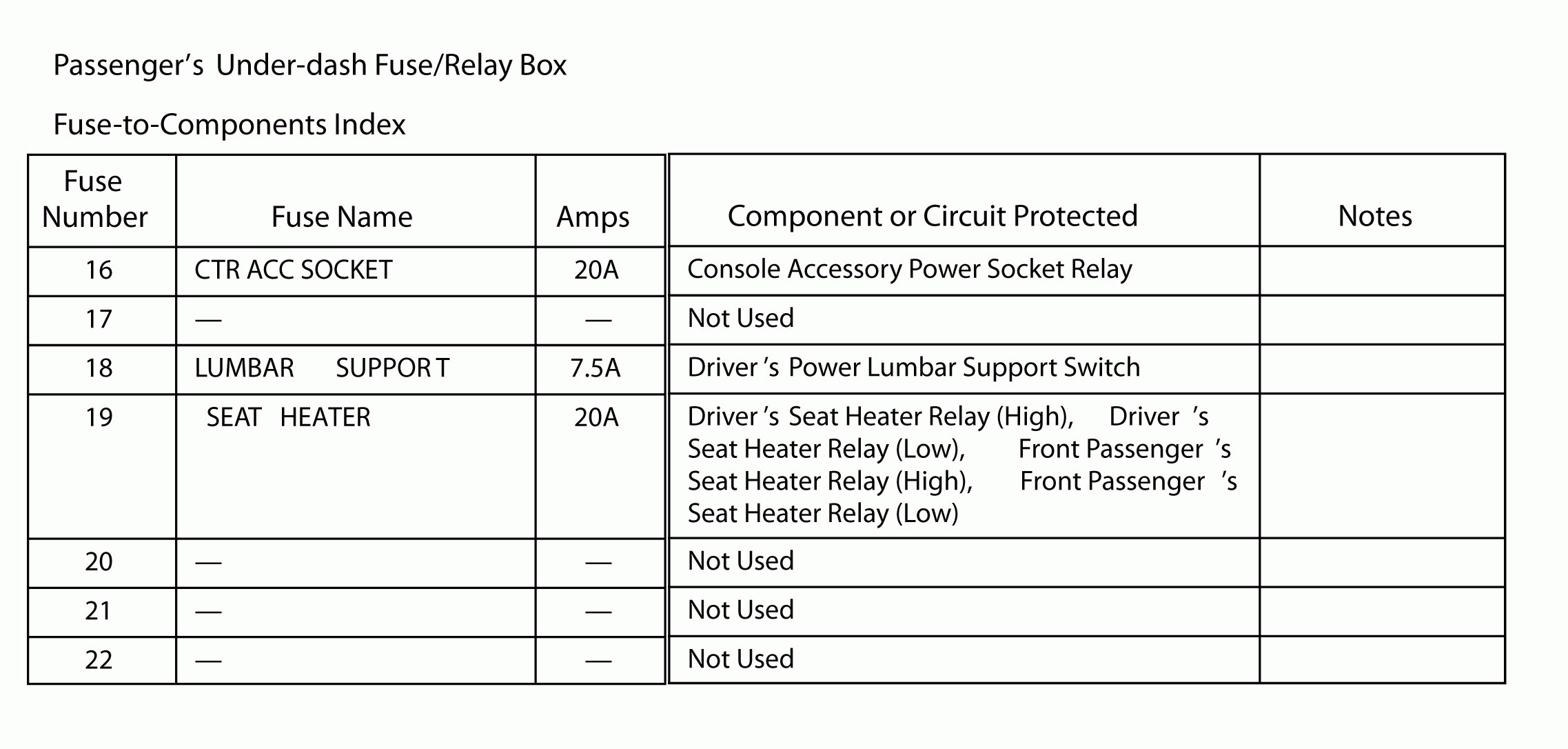

Acura TL - wiring diagram - fuse box - passenger's under dash (part 3)
Acura TL – wiring diagram – fuse box – passenger’s under dash (part 3)

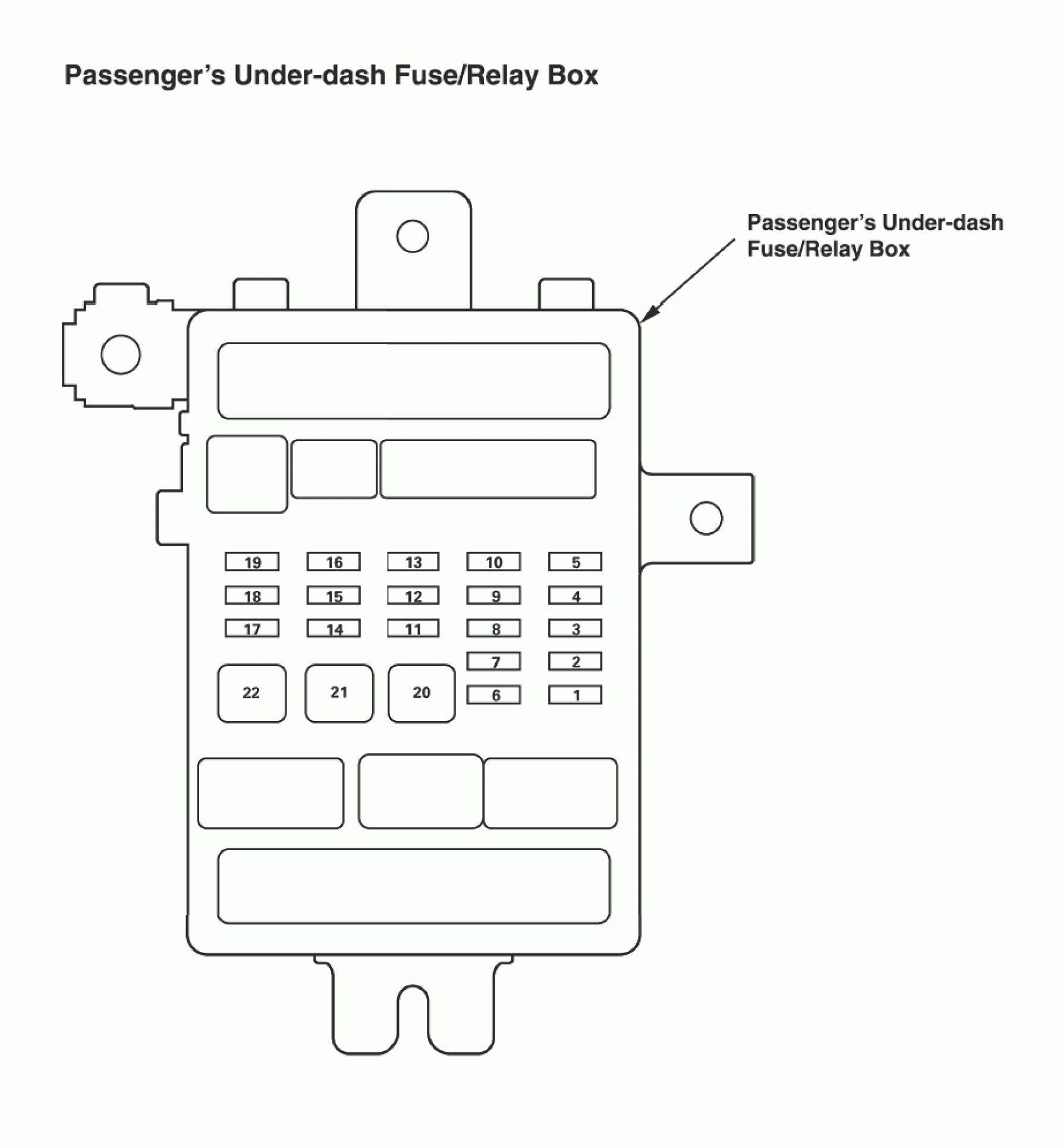

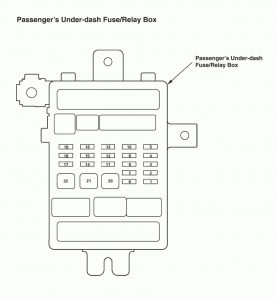

Acura TL - wiring diagram - fuse box - passenger's under dash (part 4)
Acura TL – wiring diagram – fuse box – passenger’s under dash (part 4)

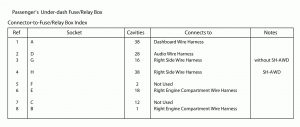

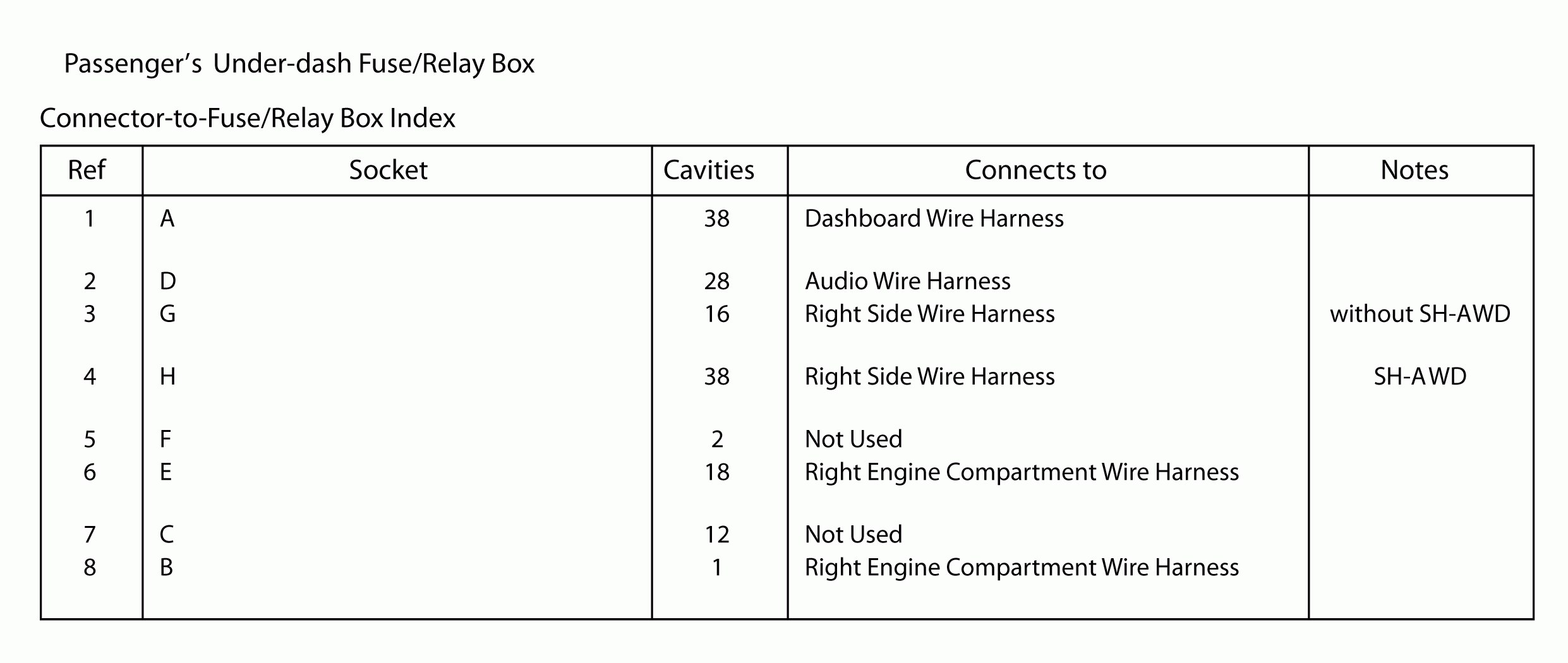

Acura TL - wiring diagram - fuse box - passenger's under dash (part 5)
Acura TL – wiring diagram – fuse box – passenger’s under dash (part 5)

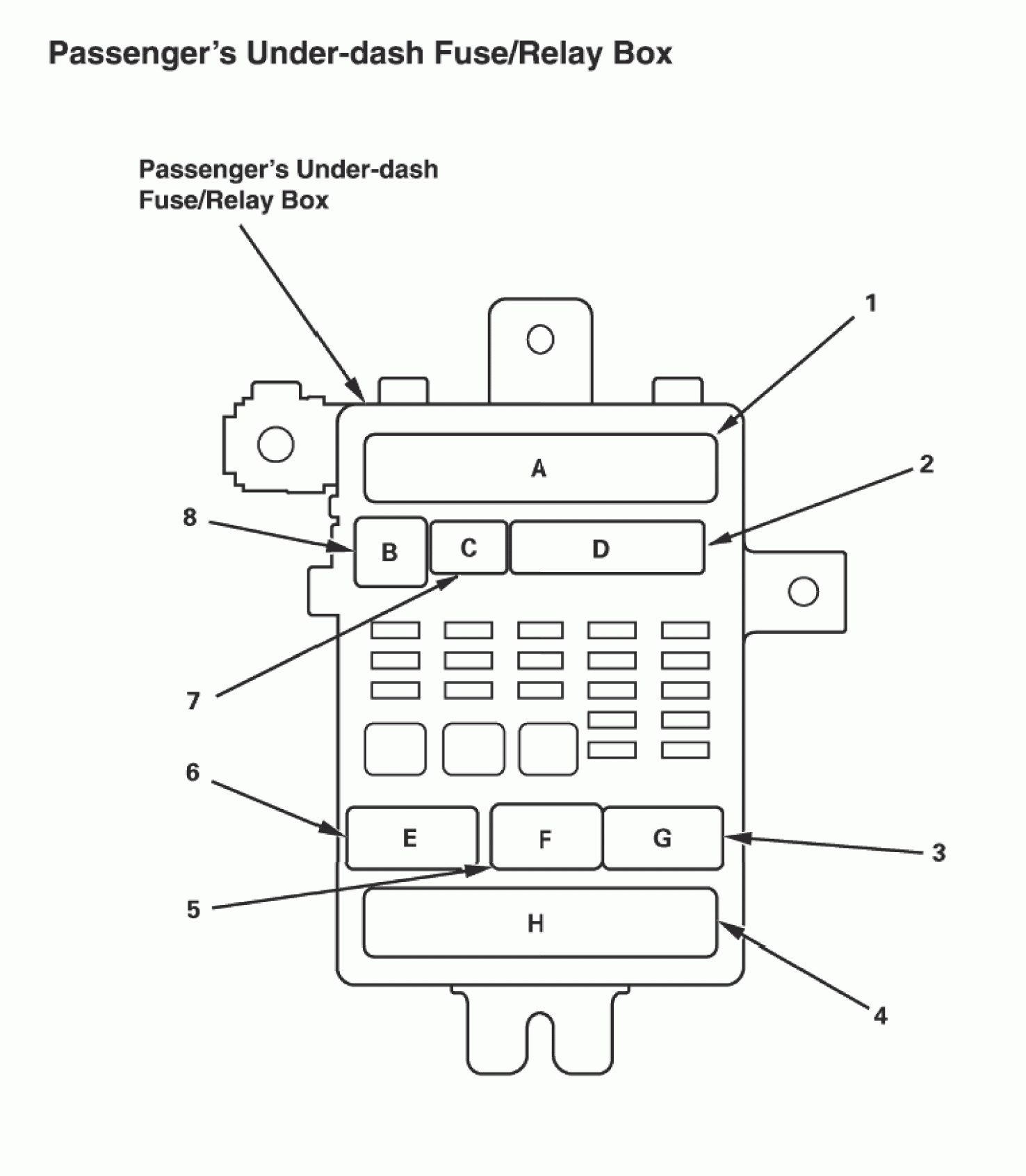

Acura TL - wiring diagram - fuse box - passenger's under dash (part 6)
Acura TL – wiring diagram – fuse box – passenger’s under dash (part 6)

Under hood

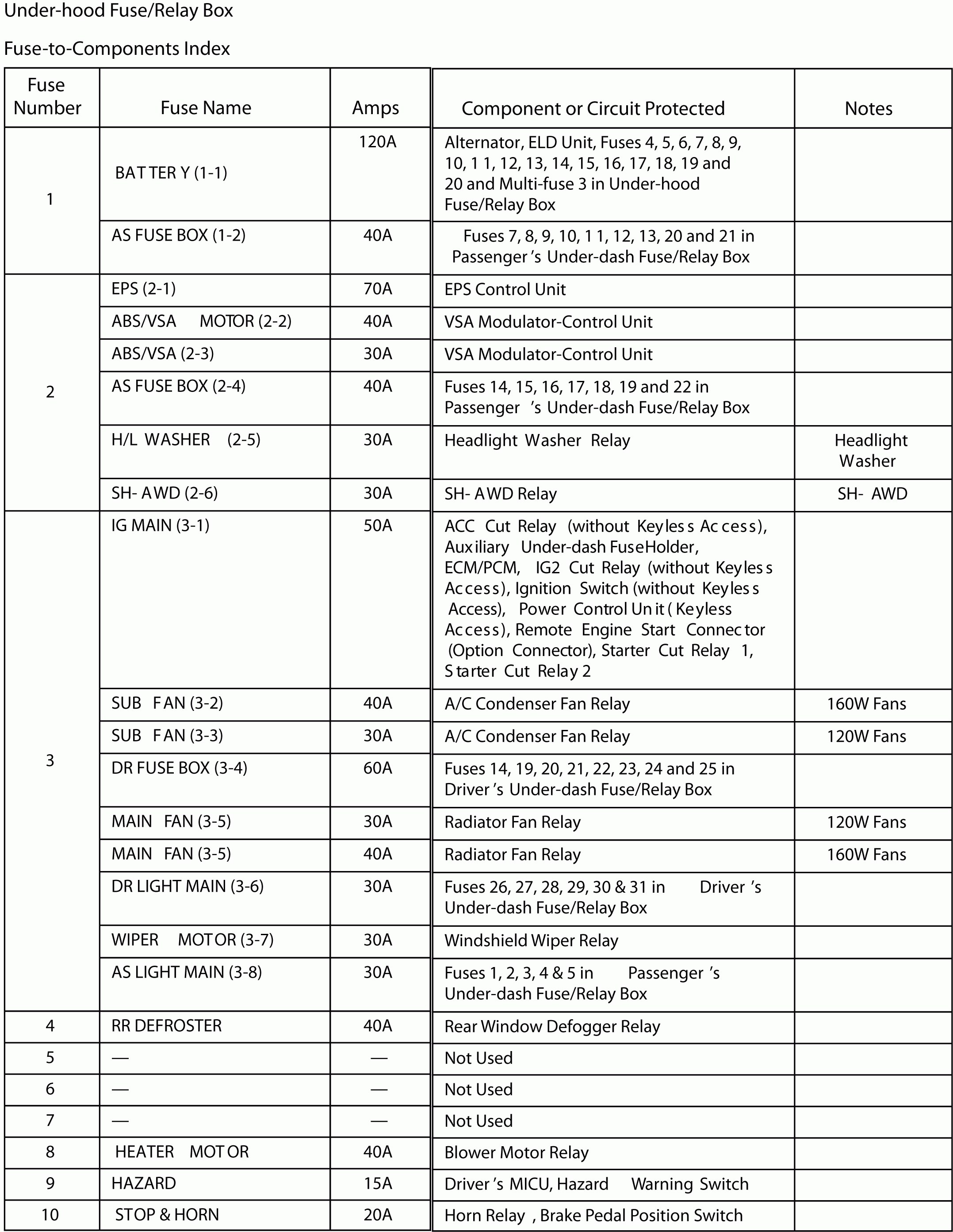

Acura TL - wiring diagram - fuse box - under hood (part 1)
Acura TL – wiring diagram – fuse box – under hood (part 1)

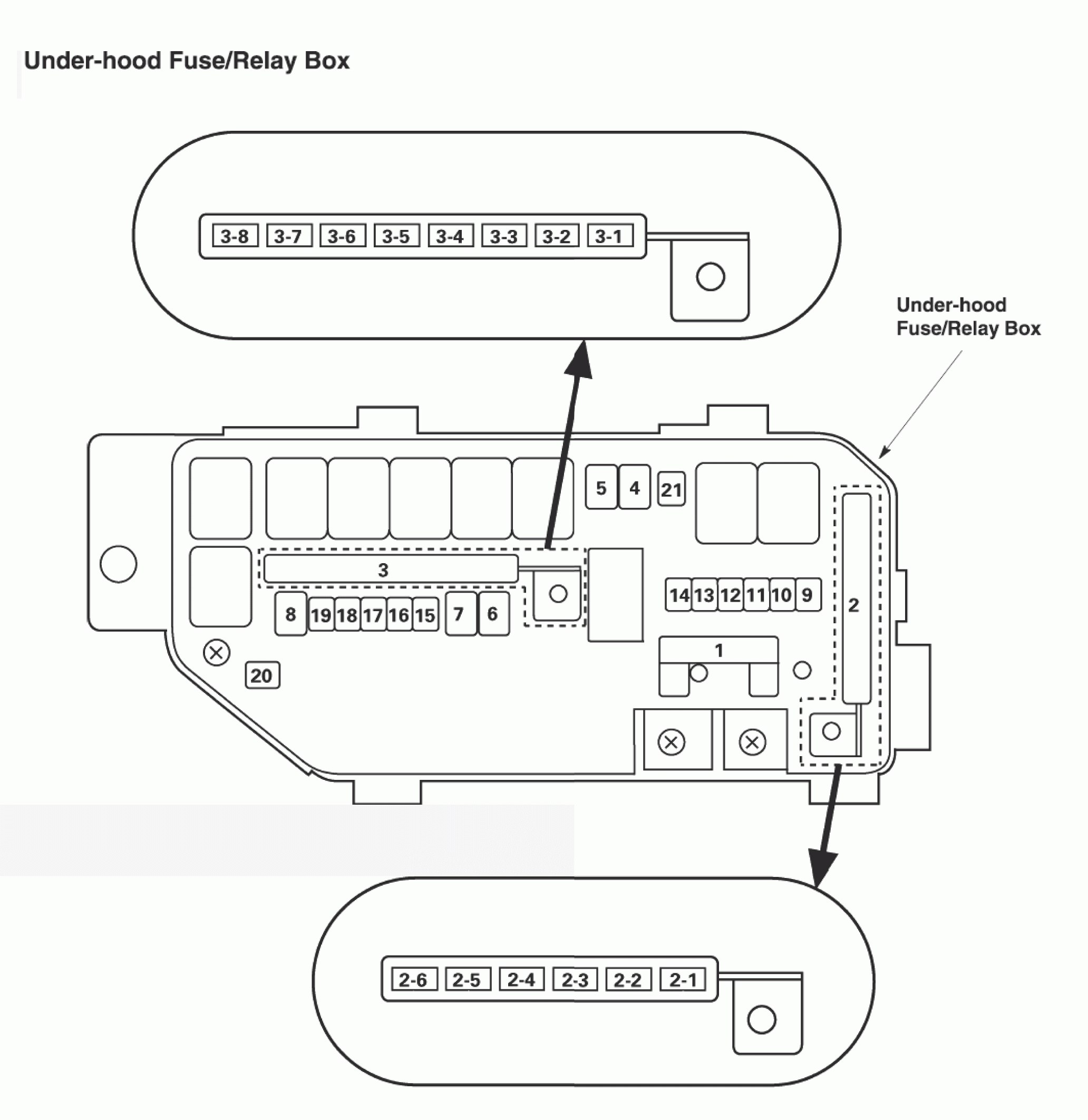

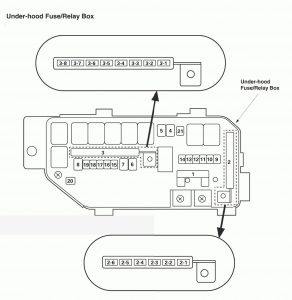

Acura TL - wiring diagram - fuse box - under hood (part 2)
Acura TL – wiring diagram – fuse box – under hood (part 2)

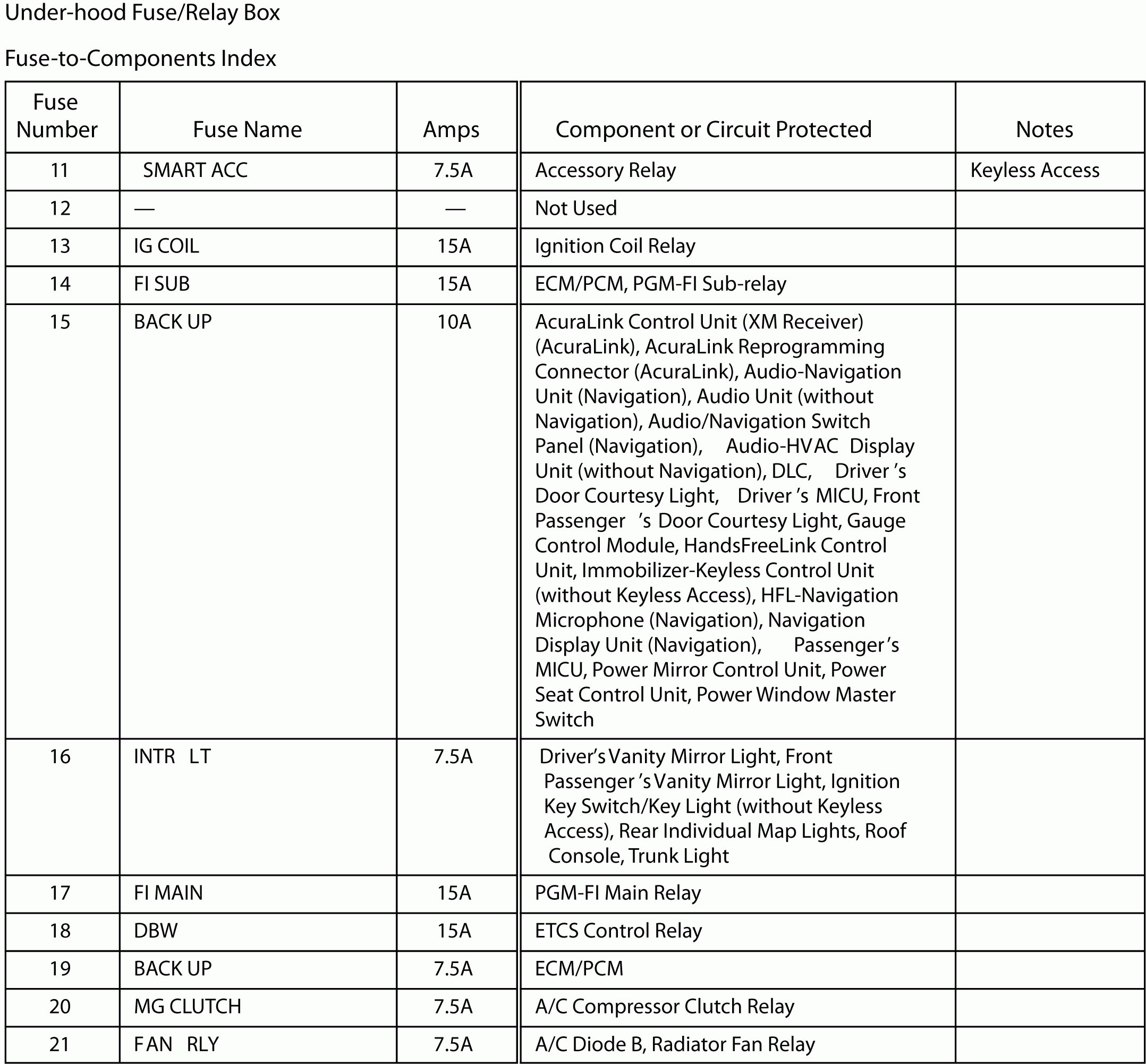

Acura TL - wiring diagram - fuse box - under hood (part 3)
Acura TL – wiring diagram – fuse box – under hood (part 3)

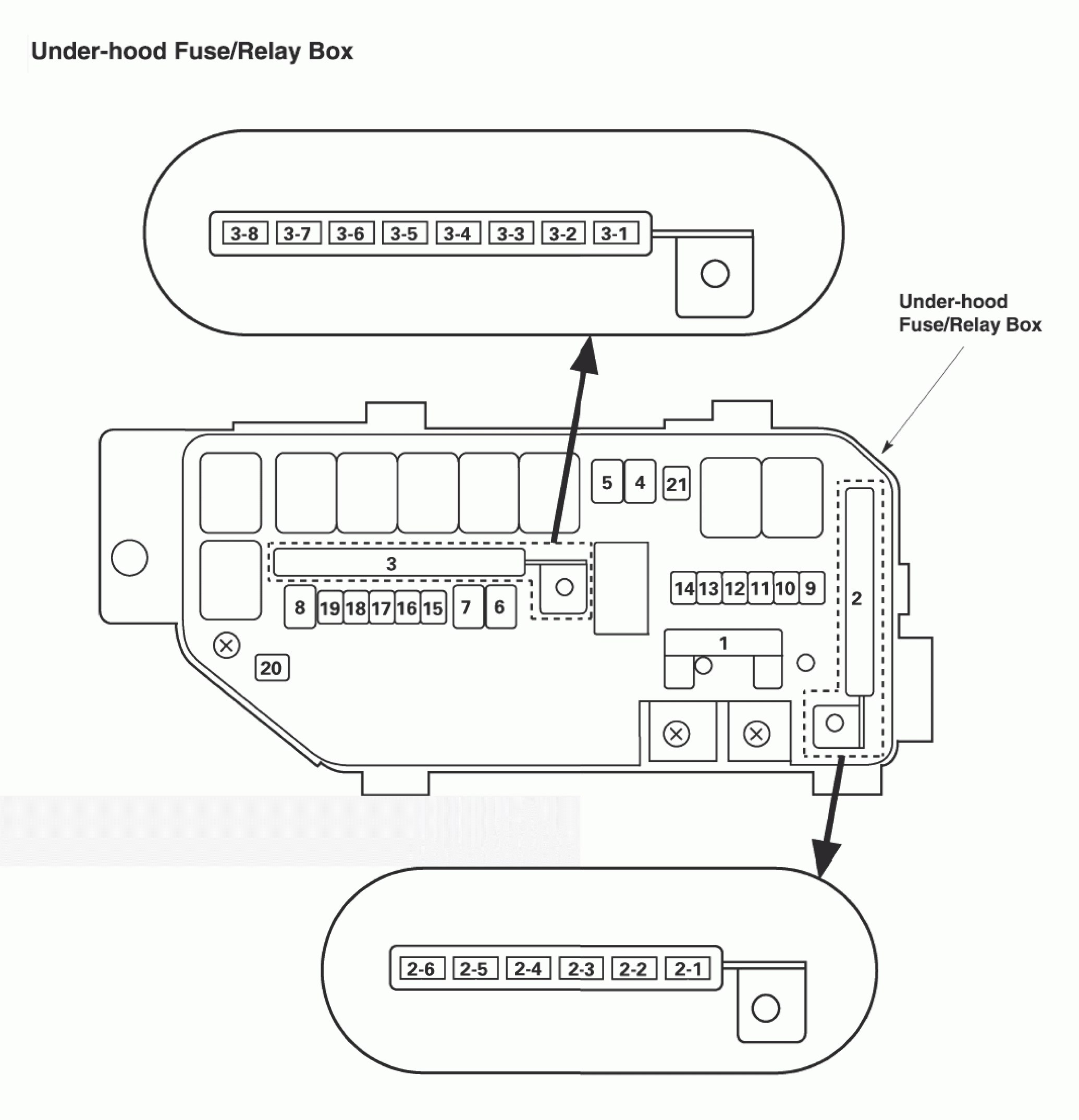

Acura TL - wiring diagram - fuse box - under hood (part 4)
Acura TL – wiring diagram – fuse box – under hood (part 4)

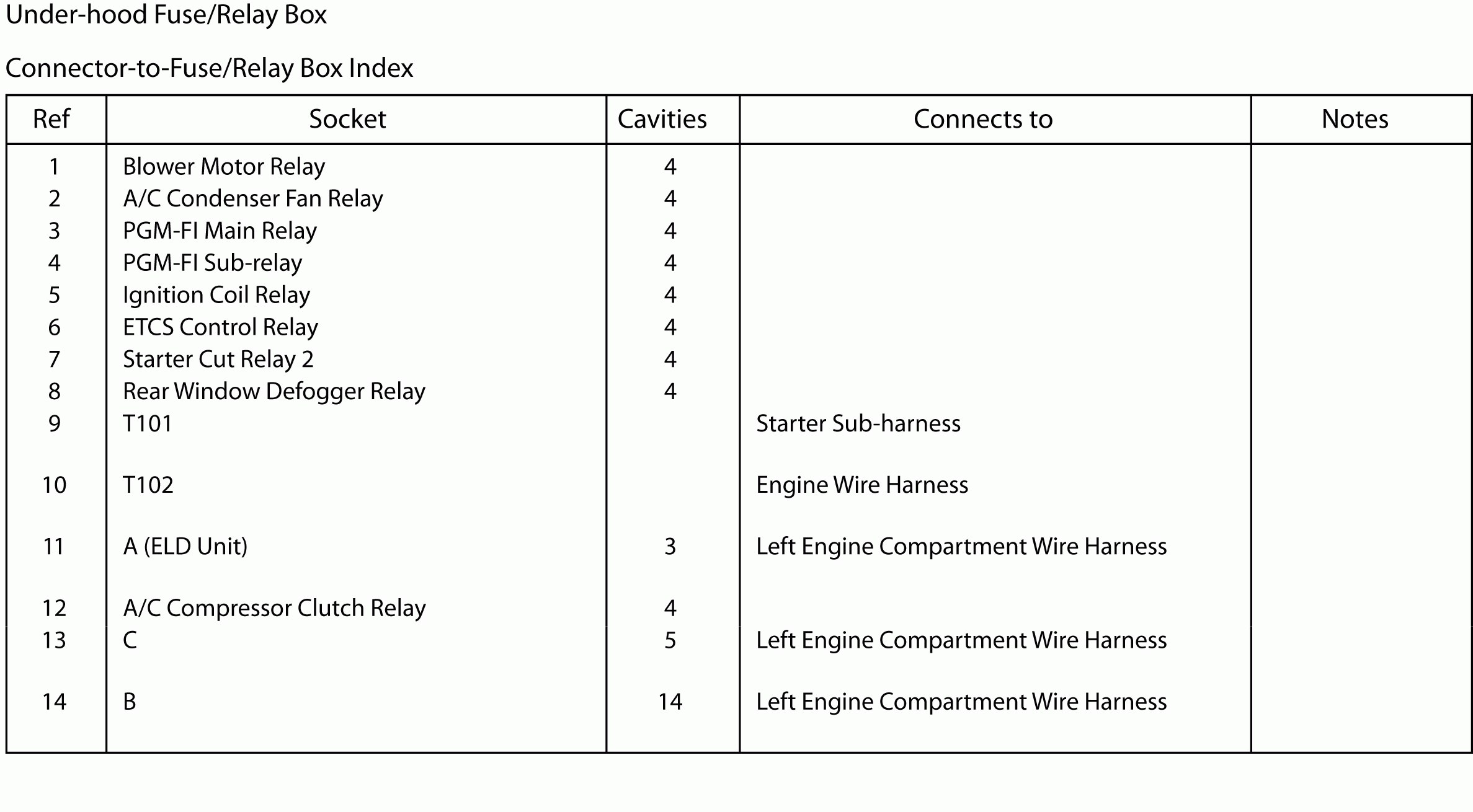

Acura TL - wiring diagram - fuse box - under hood (part 5)
Acura TL – wiring diagram – fuse box – under hood (part 5)
Acura TL - wiring diagram - fuse box - under hood (part 6)
Acura TL – wiring diagram – fuse box – under hood (part 6)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
