Acura TL (2011) – wiring diagrams – HVAC controls

Acura TL (2011) – wiring diagrams – HVAC controls

Year of productions:  2011

HVAC controls

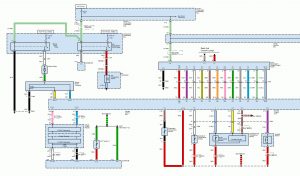

Acura TL - wiring diagram - HVAC controls (part 1)
Acura TL – wiring diagram – HVAC controls (part 1)

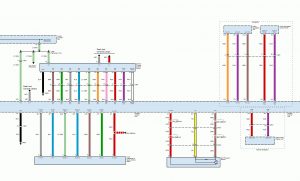

Acura TL - wiring diagram - HVAC controls (part 2)
Acura TL – wiring diagram – HVAC controls (part 2)
Acura TL - wiring diagram - HVAC controls (part 3)
Acura TL – wiring diagram – HVAC controls (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
