Acura TL (2011) – wiring diagrams – ignition

Acura TL (2011) – wiring diagrams – ignition

Year of productions:  2011

Ignition

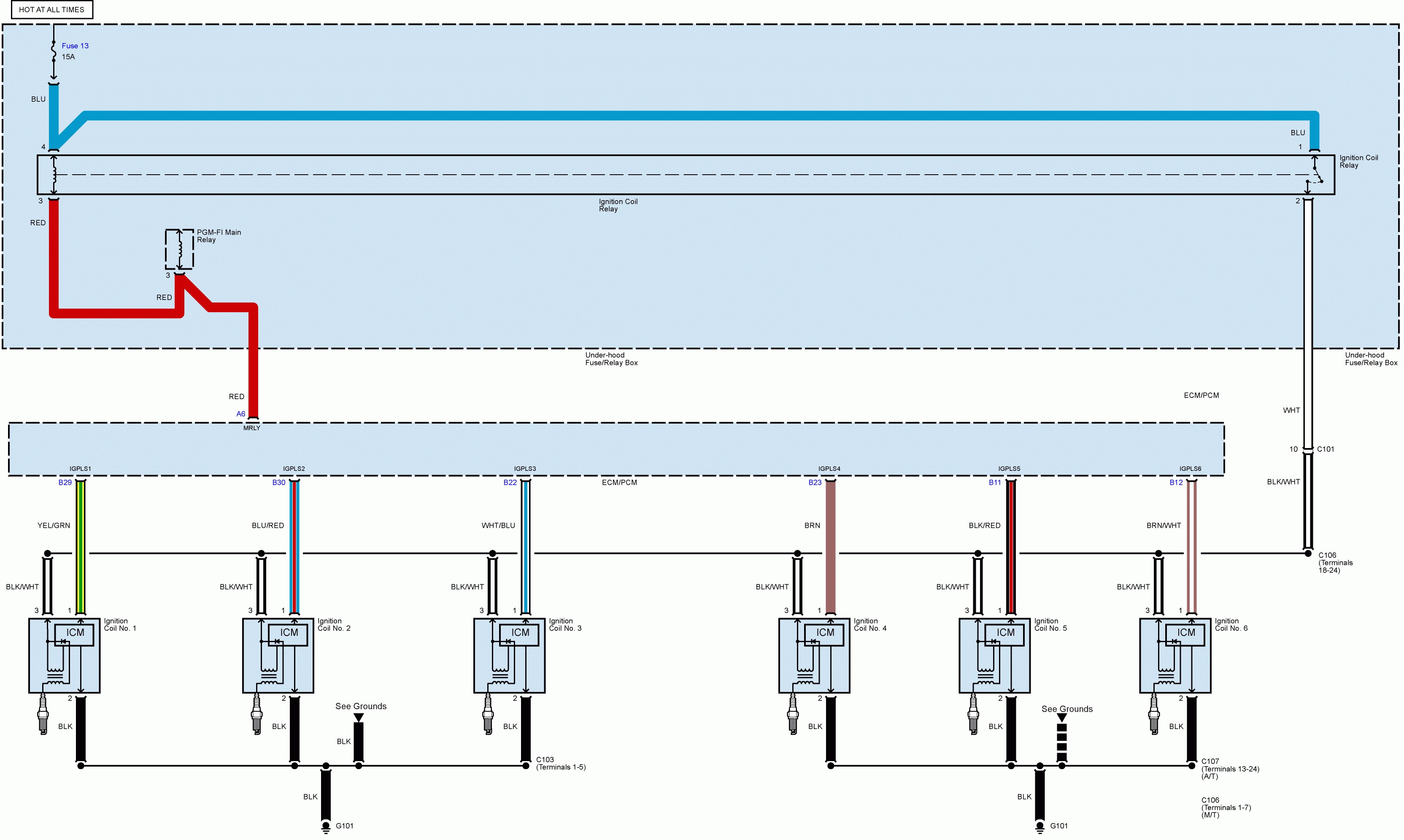

Acura TL - wiring diagram - ignition
Acura TL – wiring diagram – ignition

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
