Acura TL (2011 – 2014) – wiring diagrams – splice

Year of productions: 2011, 2012, 2013, 2014

Version 1 – A/T Park Position Circuit (A/T)

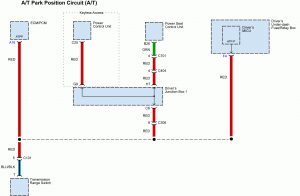

Acura TL - wiring diagram - splice A/T park position circuit — Acura TL – wiring diagram – splice A/T park position circuit

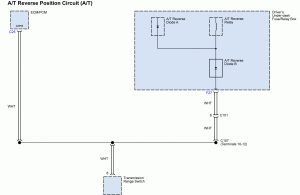

Version 2 – A/T Reverse Position Circuit (A/T)

Acura TL - wiring diagram - splice - A/T reverse position circuit (A/T) — Acura TL – wiring diagram – splice – A/T reverse position circuit (A/T)

Version 3 – Back Up Lamps Circuit (A/T)

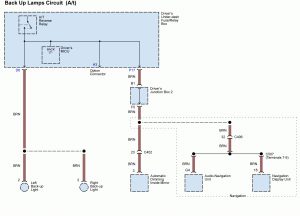

Acura TL - wiring diagram - splice - back up lamps circuit (A/T) — Acura TL – wiring diagram – splice – back up lamps circuit (A/T)

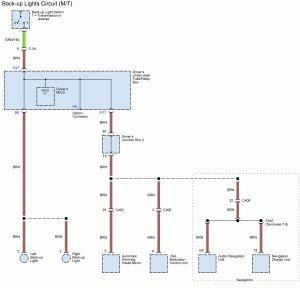

Version 4 – Back-up Lights Circuit (M/T)

Acura TL - wiring diagram - splice - back up lights circuit (M/T) — Acura TL – wiring diagram – splice – back up lights circuit (M/T)

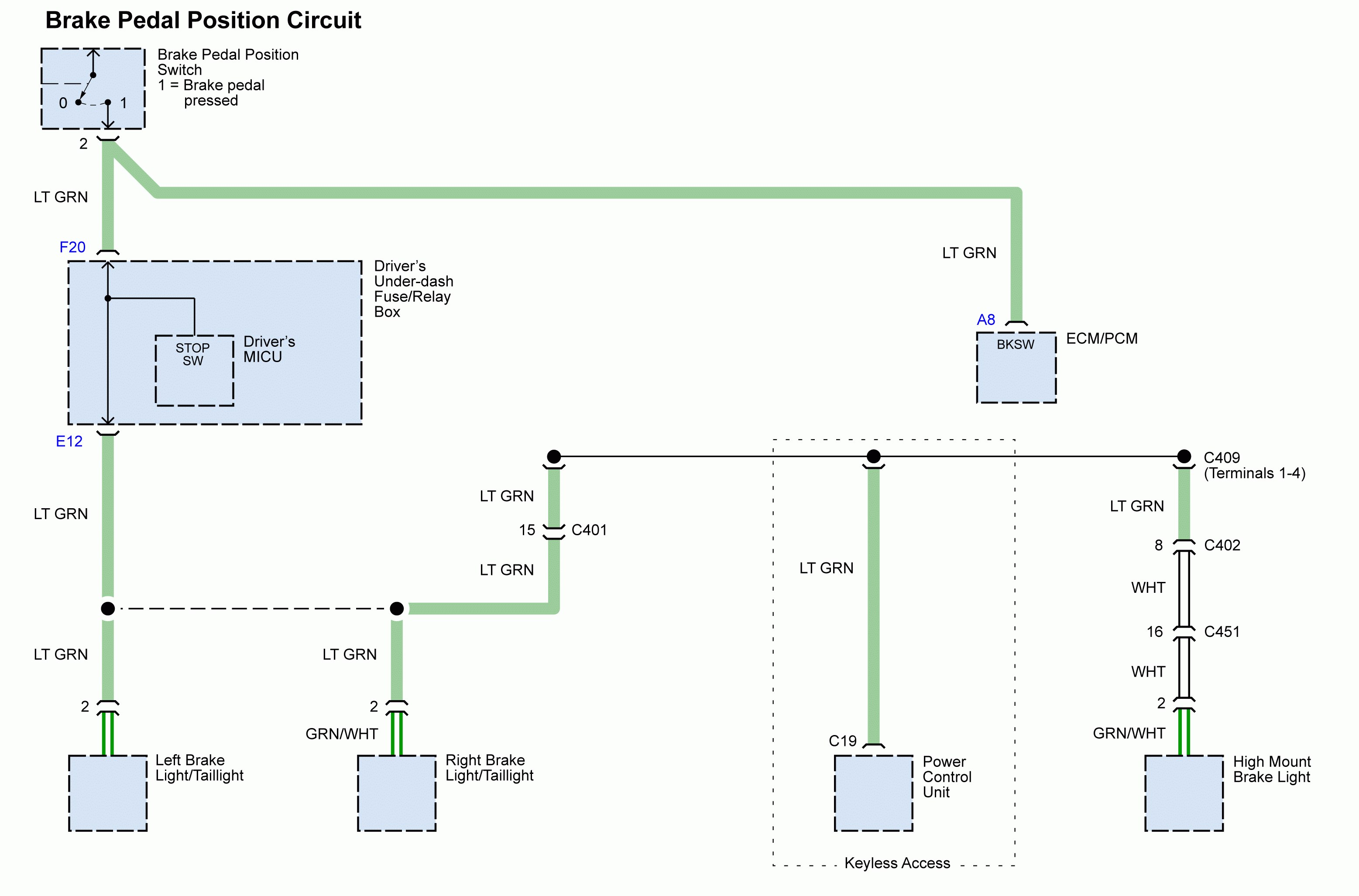

Version 5 – Brake Pedal Position Circuit

Acura TL - wiring diagram - splice - brake pedal position circuit — Acura TL – wiring diagram – splice – brake pedal position circuit

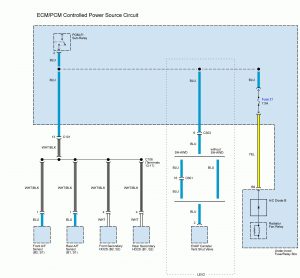

Version 6 – ECM/PCM Controlled Power Source Circuit

Acura TL - wiring diagram - splice - ECM/PCM controlled power source circuit — Acura TL – wiring diagram – splice – ECM/PCM controlled power source circuit

Version 7 – ECM/PCM Relays Control Circuit

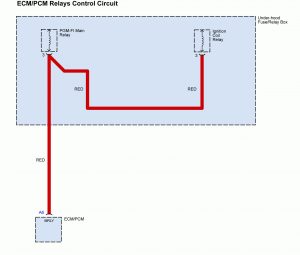

Acura TL - wiring diagram - splice - ECM/PCM relays control circuit — Acura TL – wiring diagram – splice – ECM/PCM relays control circuit

Version 8 – Engine Speed Pulse Circuit

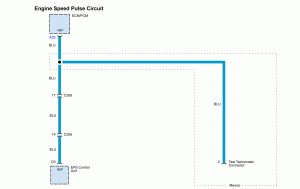

Acura TL - wiring diagram - splice - engine speed pulse circuit — Acura TL – wiring diagram – splice – engine speed pulse circuit

Version 9 – Ground for Climate Control Sensors Circuit

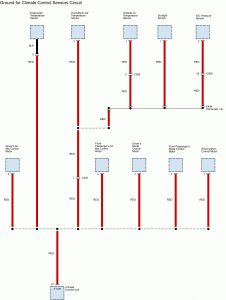

Acura TL - wiring diagram - splice - ground for climate control sensors circuit — Acura TL – wiring diagram – splice – ground for climate control sensors circuit

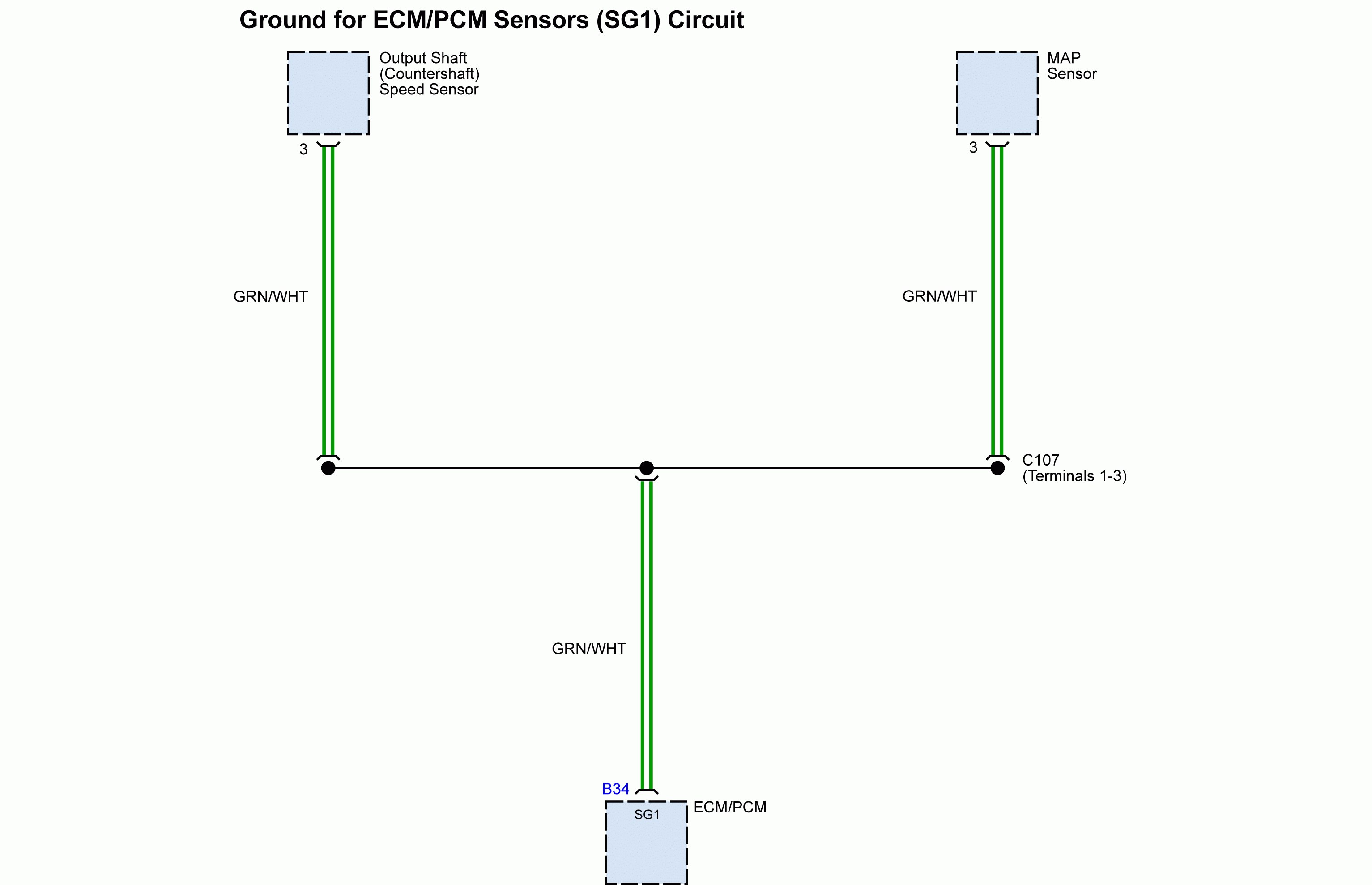

Version 10 – Ground for ECM/PCM Sensors (SG1) circuit

Acura TL - wiring diagram - splice - ground for ECM/PCM sensors (SG1) circuit — Acura TL – wiring diagram – splice – ground for ECM/PCM sensors (SG1) circuit

Version 11 – Ground for ECM/PCM Sensors (SG2) circuit

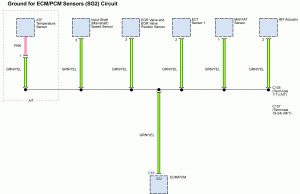

Acura TL - wiring diagram - splice - ground for ECM/PCM sensors (SG2) circuit — Acura TL – wiring diagram – splice – ground for ECM/PCM sensors (SG2) circuit

Version 12 – Ground for ECM/PCM Sensors (SG4) circuit

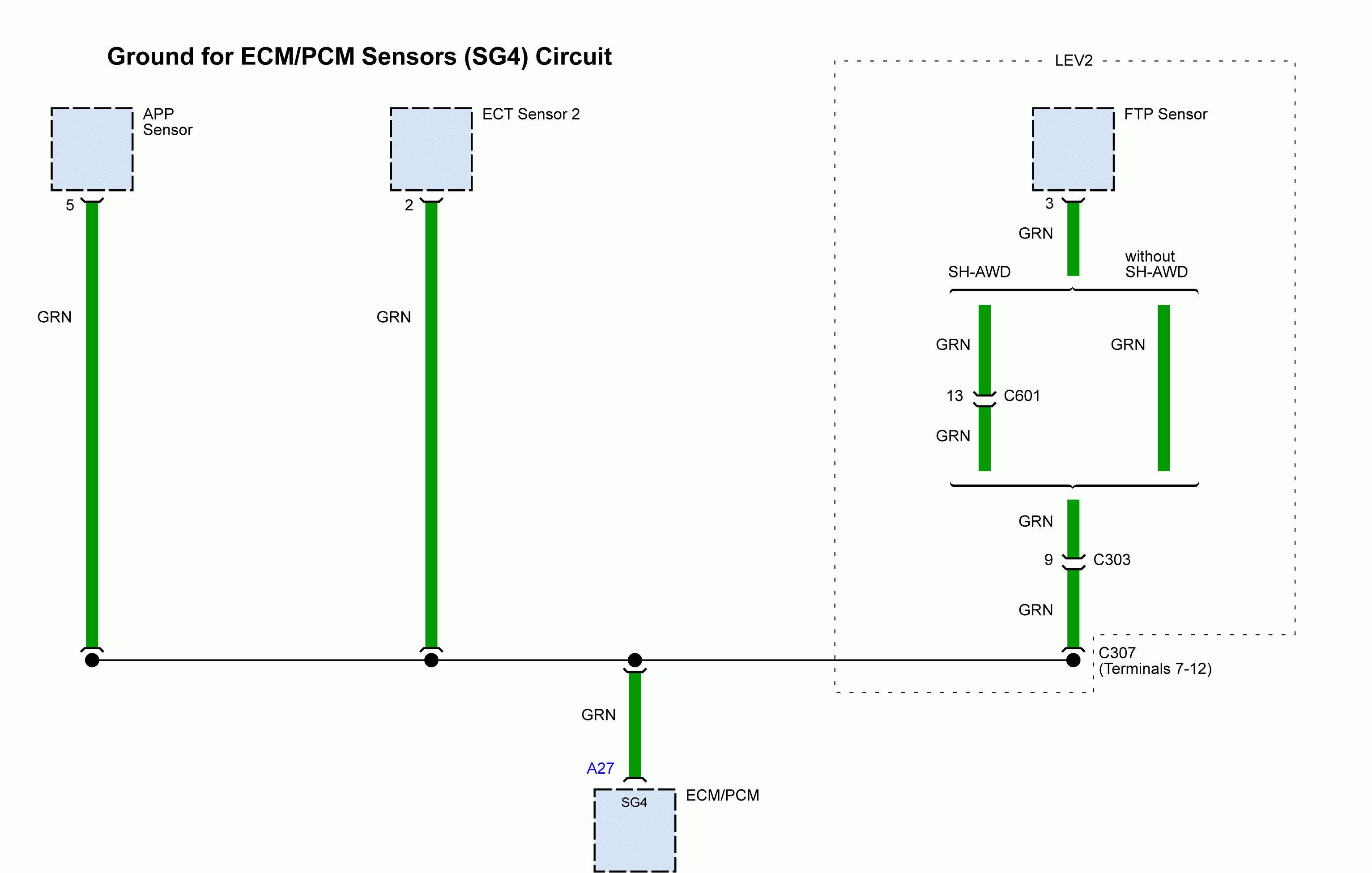

Acura TL - wiring diagram - splice - ground for ECM/PCM sensors (SG4) circuit — Acura TL – wiring diagram – splice – ground for ECM/PCM sensors (SG4) circuit

Version 13 – Ground for ECM/PCM Sensors (SG6) circuit

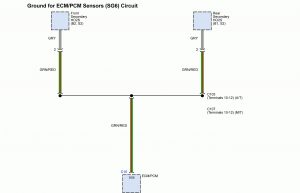

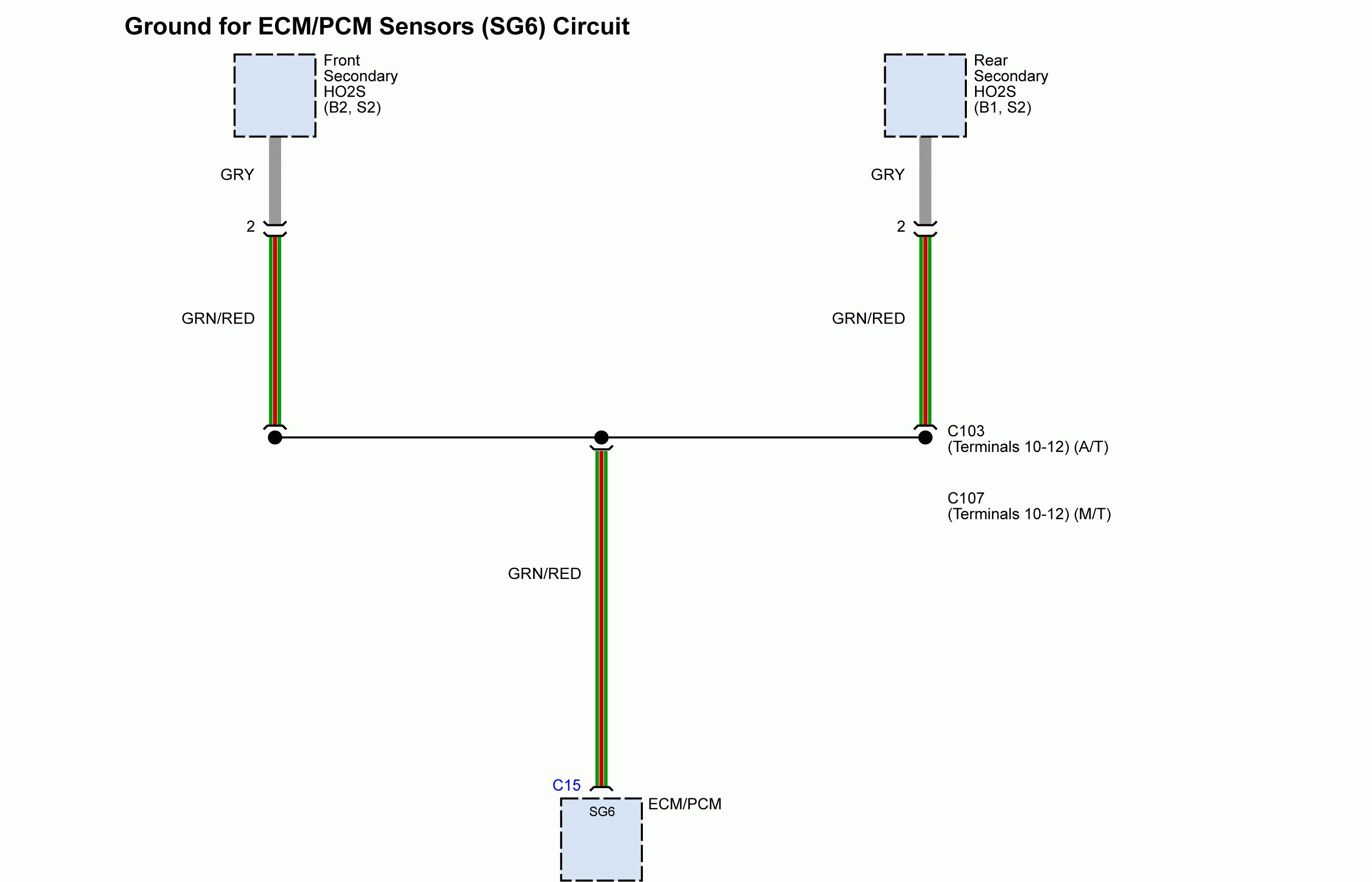

Acura TL - wiring diagram - splice - ground for ECM/PCM sensors (SG6) circuit — Acura TL – wiring diagram – splice –
ground for ECM/PCM sensors (SG6) circuit

Version 14 – Illumination (Negative) Circuit -LEDs

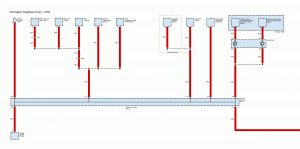

Acura TL - wiring diagram - splice - illumination negative circuit LEDs (part 1) — Acura TL – wiring diagram – splice – illumination (negative) circuit LEDs (part 1)

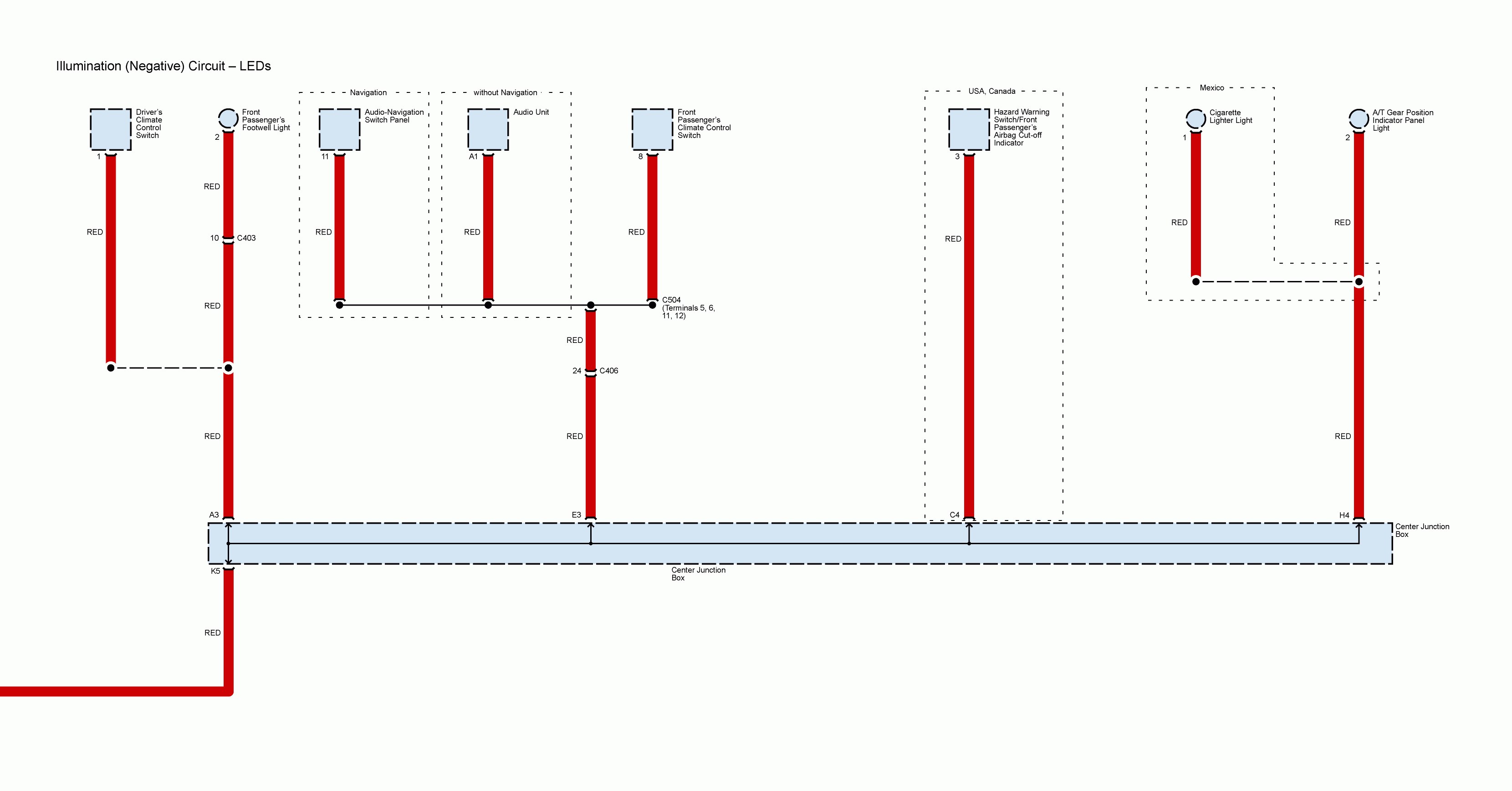

Acura TL - wiring diagram - splice - illumination (negative) circuit LEDs (part 2) — Acura TL – wiring diagram – splice – illumination (negative) circuit LEDs (part 2)

Version 15 – Illumination (Positive) Circuit

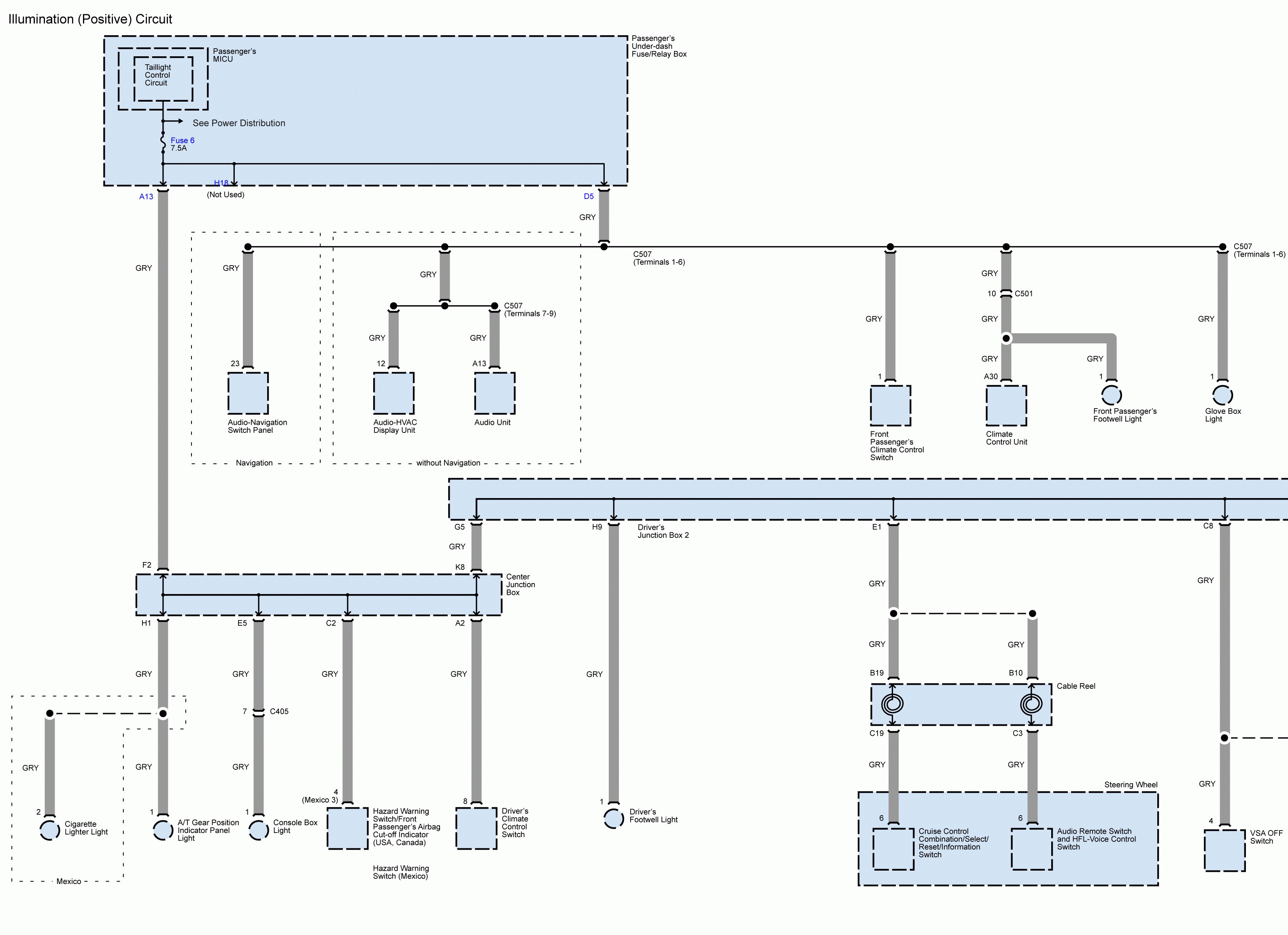

Acura TL - wiring diagram - splice - illumination (positive) circuit (part 1) — Acura TL – wiring diagram – splice –
illumination (positive) circuit (part 1)

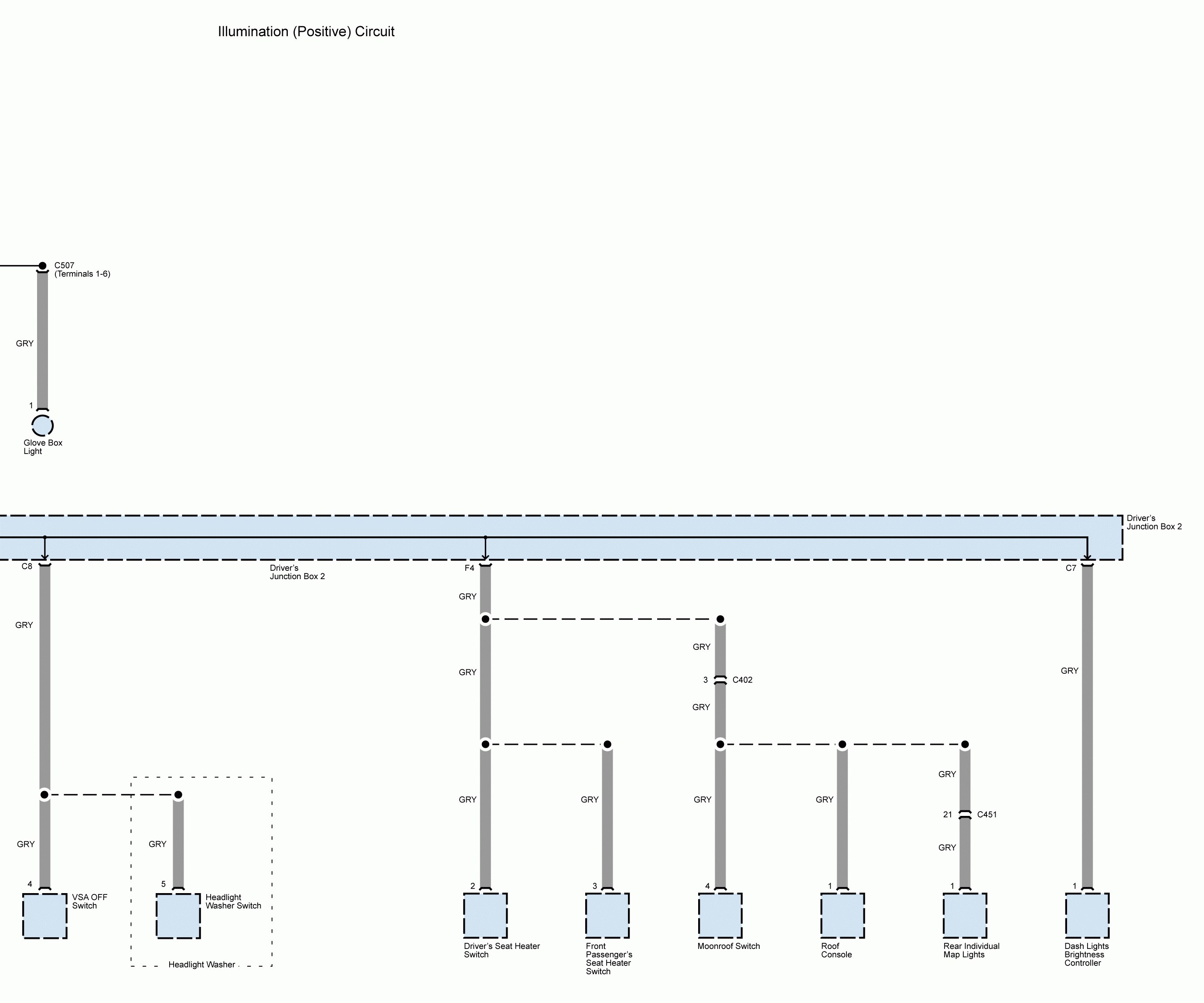

Acura TL - wiring diagram - splice - illumination (positive) circuit (part 2) — Acura TL – wiring diagram – splice –
illumination (positive) circuit (part 2)

Version 16 – Left Turn Signal Circuit

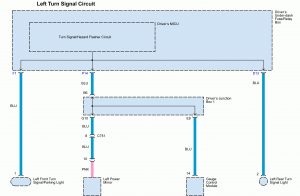

Acura TL - wiring diagram - splice - left turn signal circuit (part 1) — Acura TL – wiring diagram – splice – left turn signal circuit (part 1)

Acura TL - wiring diagram - splice - left turn signal circuit (part 2) — Acura TL – wiring diagram – splice – left turn signal circuit (part 2)

Version 17 – Parking Brake Position Circuit

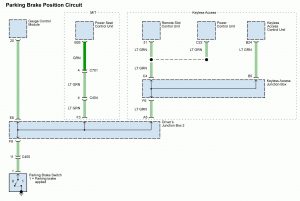

Acura TL - wiring diagram - splice - parking brake position circuit — Acura TL – wiring diagram – splice – parking brake position circuit

Version 18 – Power source for ECM/PCM Circuit

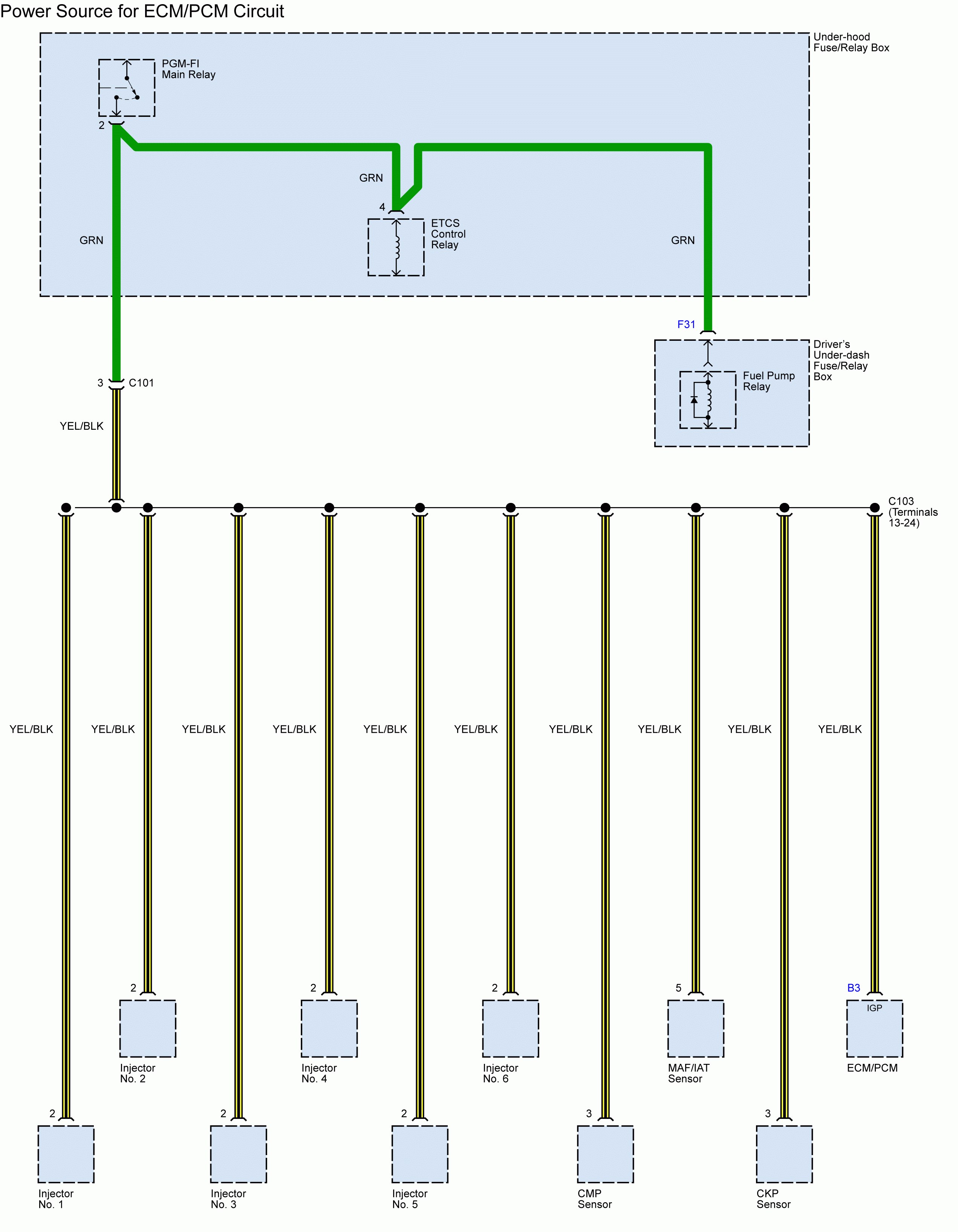

Acura TL - wiring diagram - splice - power source for ECM/PCM circuit — Acura TL – wiring diagram – splice – power source for ECM/PCM circuit

Version 19 – Reference Voltage for Climate Control Sensor Circuit

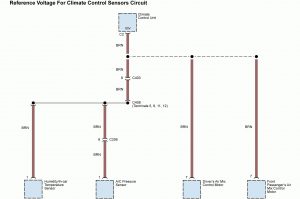

Acura TL - wiring diagram - splice - reference voltage for climate control sensor circuit — Acura TL – wiring diagram – splice –
reference voltage for climate control sensor circuit

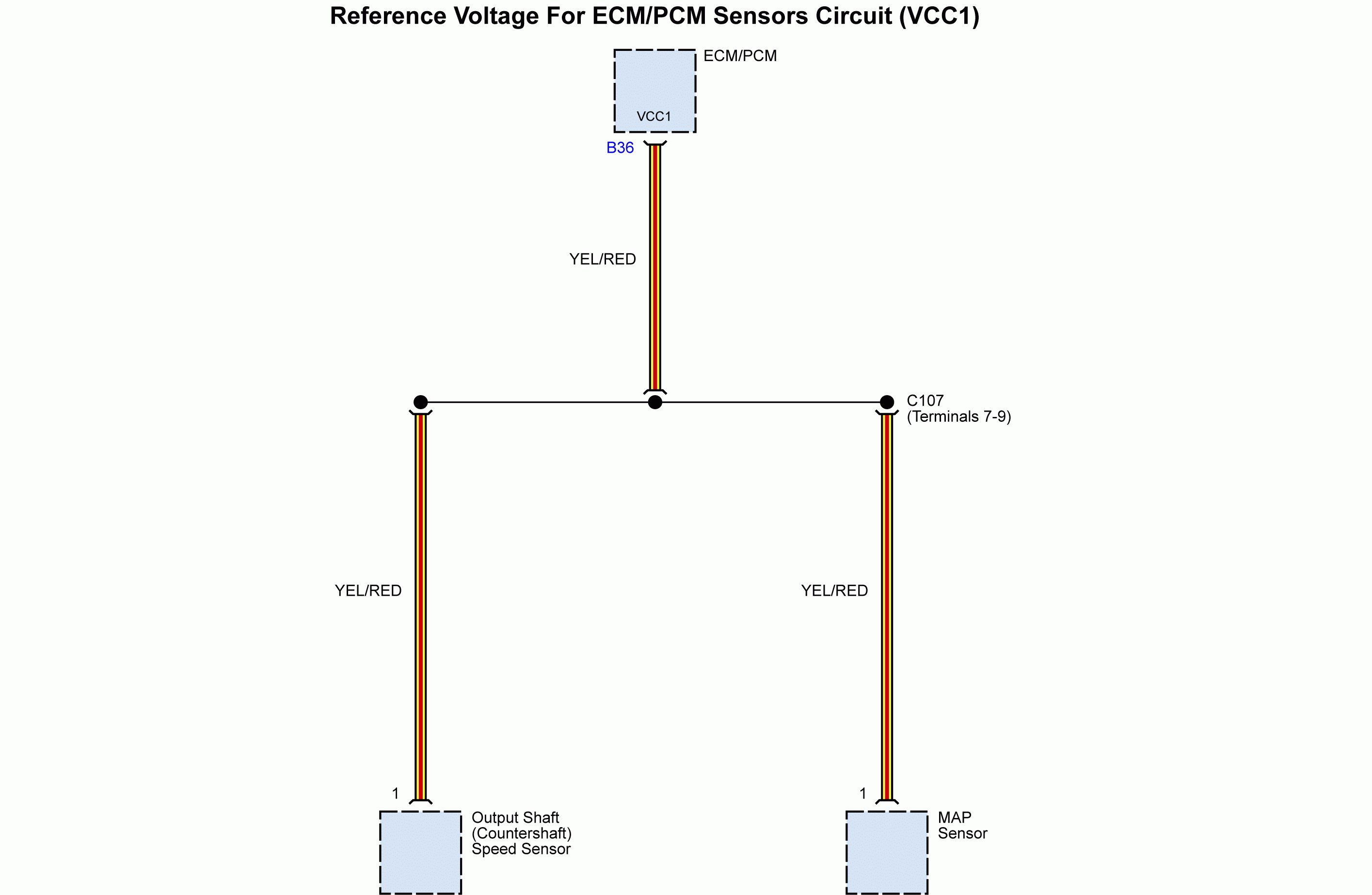

Version 20 – Reference Voltage for ECM/PCM Sensor Circuit (VCC1)

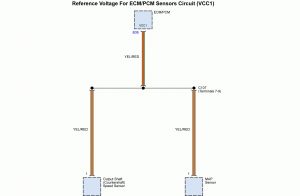

Acura TL - wiring diagram - splice reference voltage for ECM/PCM sensor circuit (VCC1) — Acura TL – wiring diagram – splice reference voltage for ECM/PCM sensor circuit (VCC1)

Version 21 – Reference Voltage for ECM/PCM Sensor Circuit (VCC2)

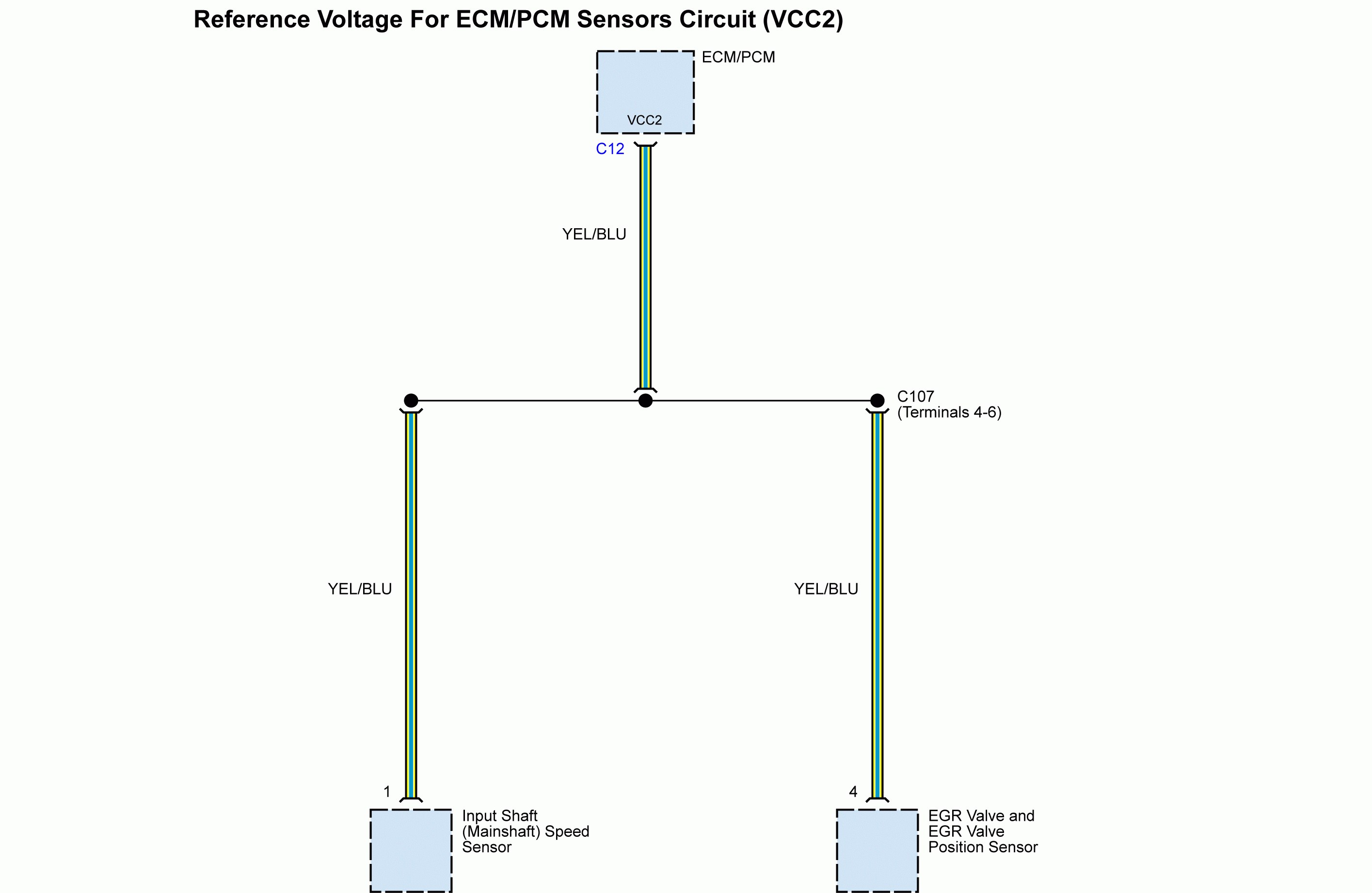

Acura TL - wiring diagram - splice reference voltage for ECM/PCM sensor circuit (VCC2) — Acura TL – wiring diagram – splice reference voltage for ECM/PCM sensor circuit (VCC2)

Version 22 – Reference Voltage for ECM/PCM Sensor Circuit (VCC4)

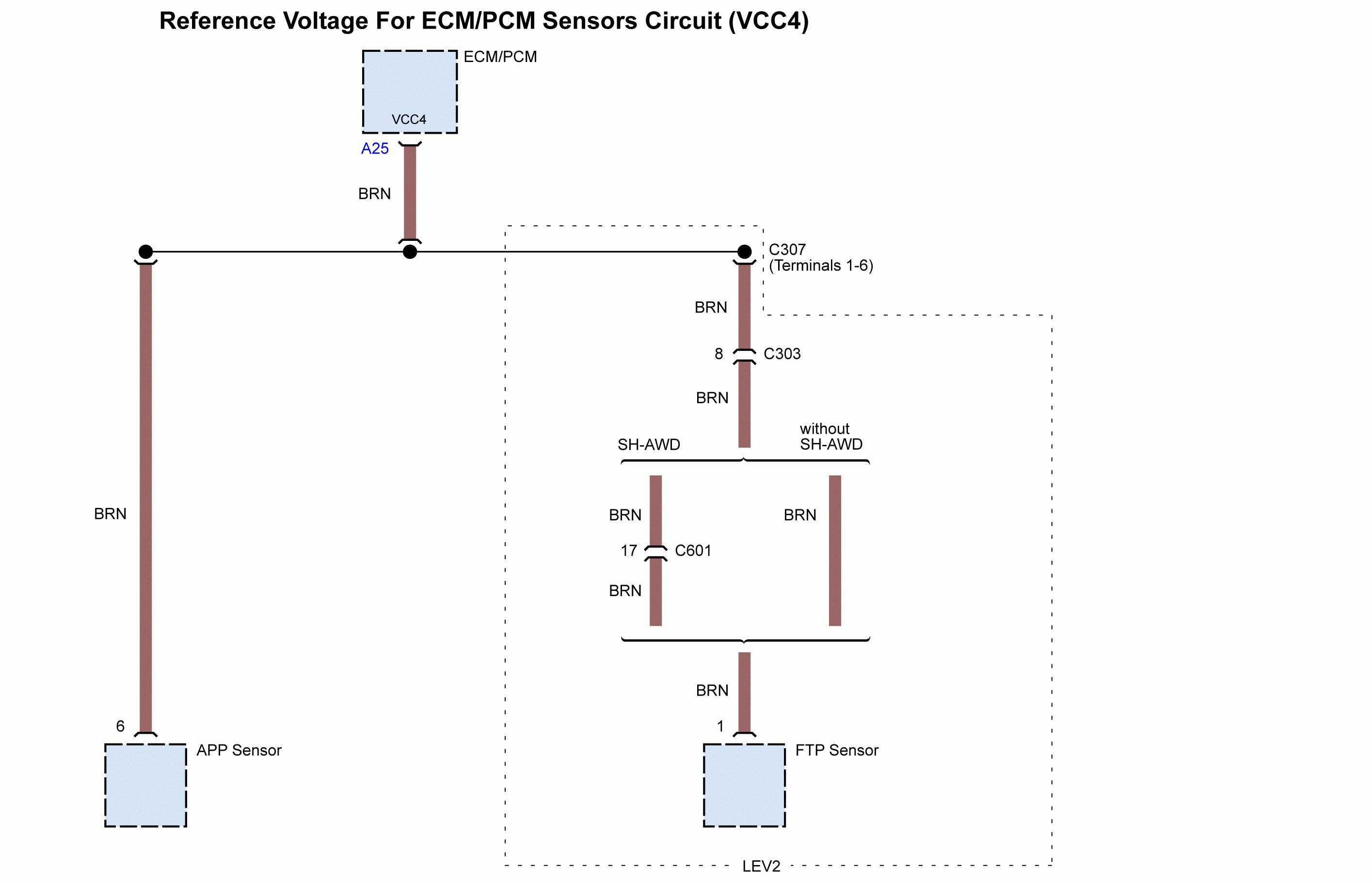

Acura TL - wiring diagram - splice reference voltage for ECM/PCM sensor circuit (VCC4) — Acura TL – wiring diagram – splice reference voltage for ECM/PCM sensor circuit (VCC4)

Version 23 – Switch Illumination Circuit

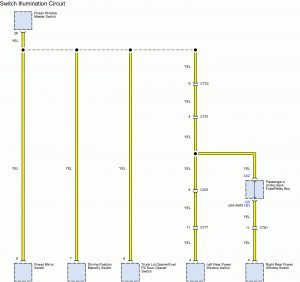

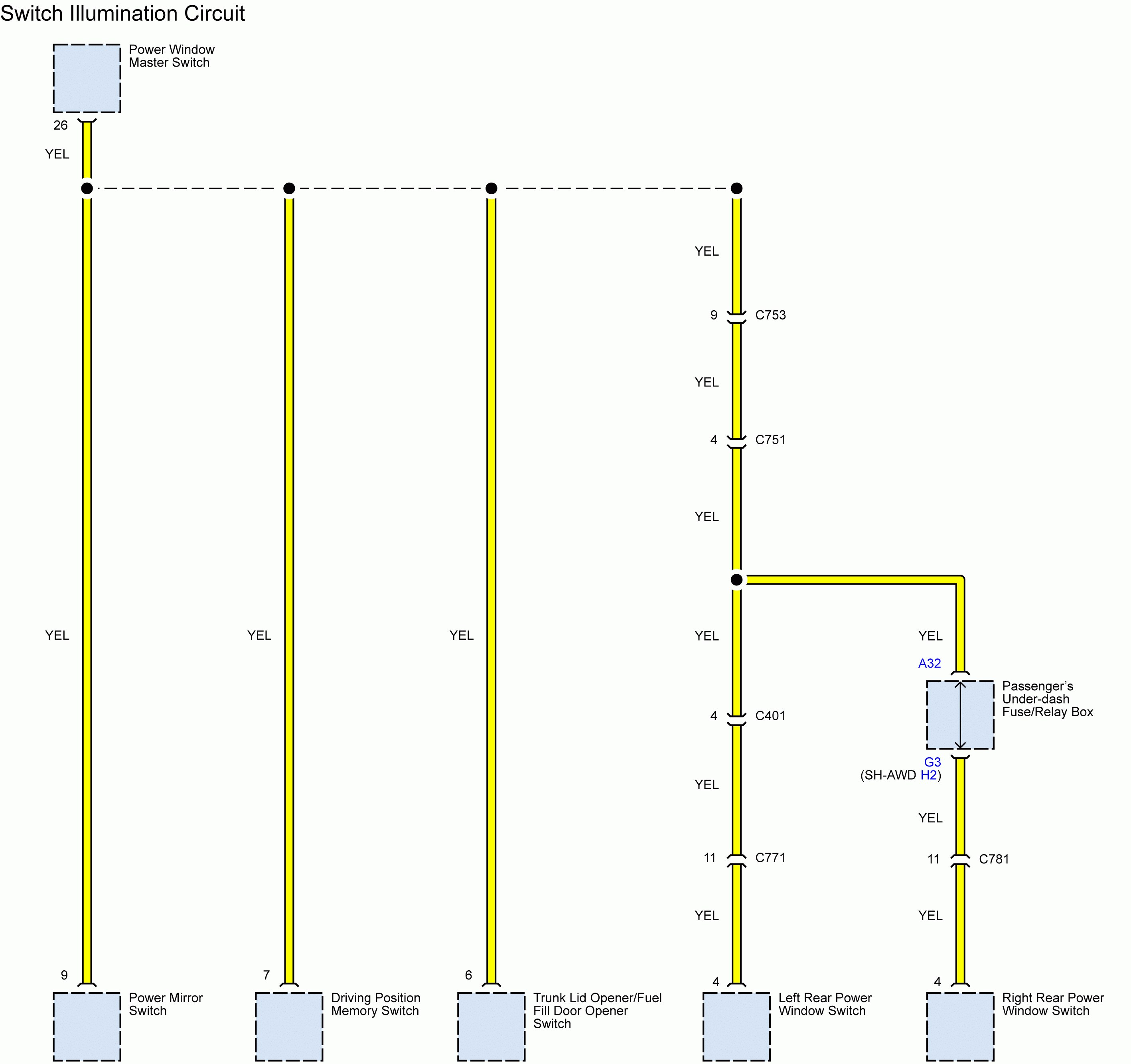

Acura TL - wiring diagram - splice - switch illumination circuit — Acura TL – wiring diagram – splice – switch illumination circuit

Version 24 – Trunk Switch Position Circuit

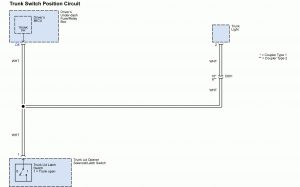

Acura TL - wiring diagram - splice - trunk switch position circuit — Acura TL – wiring diagram – splice – trunk switch position circuit
