Acura Vigor (1994) – wiring diagrams – headlamps

Acura Vigor (1994) – wiring diagrams – headlamps

Year of productions:  1994

Headlamps

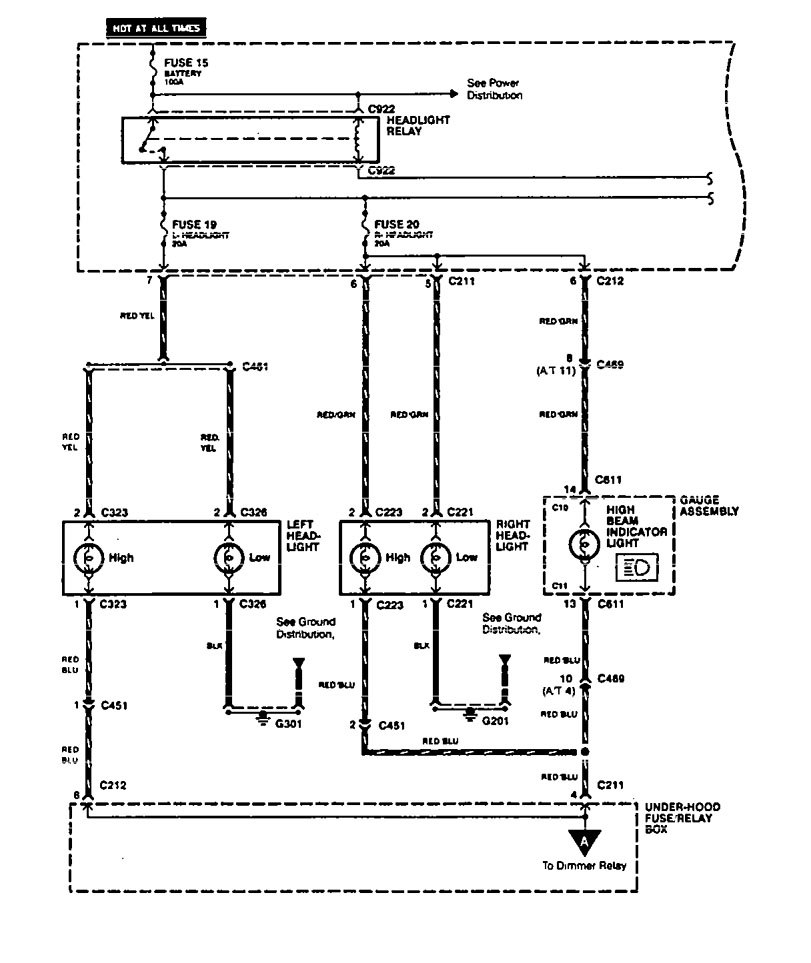

Acura Vigor – wiring diagram – headlamps (part 1)

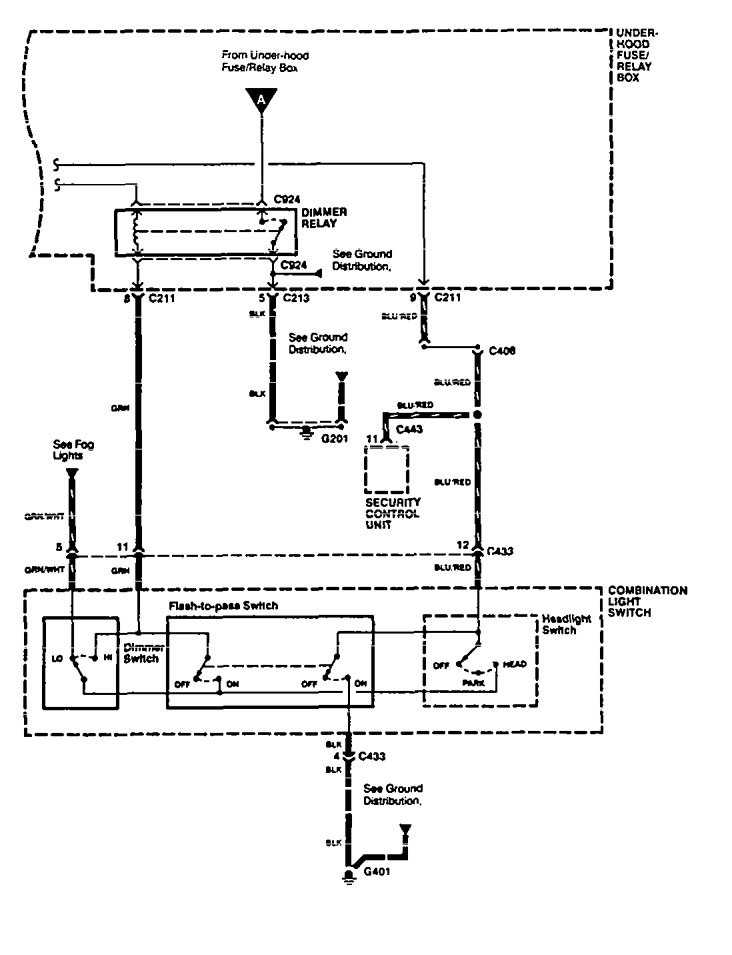

Acura Vigor – wiring diagram – headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
