Year of production: 2018
Passenger Side Control unit
| Function | Fuse | Ampere rating [A} |
| Front power window (driver’s side) | F33 | 25 |
| Front power window (passenger side) | F34 | 25 |
| Supply for Information and Entertainment system, Climate Control system, alarm, power door mirror folding, EOBD system, USB port | F36 | 15 |
| Safe Lock device (driver side door unlock – if equipped), doors unlock, central lock | F38 | 20 |
| Windshield washer pump | F43 | 20 |
| Rear left power window | F47 | 25 |
| Rear right power window | F48 | 25 |
| Heater rear window coil | F94 | 15 |

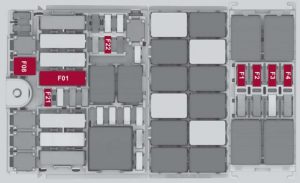

Luggage compartment control unit allocation
luggage compartment
| Function | Fuse | Ampere rating [A] |
| Receiver module (TTM/TTEBM) | F01 | 40 |
| Hi-Fi system | F08 | 30 |
| I-Drive / USB Socket / AUX / USB Charger | F21 | 10 |
| KL15/a 12V Power socket in the luggage compartment | F22 | 20 |
| Trailer light control unit power supply (+30) | F1 | 20 |
| Trailer light control unit power supply (+30) | F2 | 15 |
| Trailer socket (only EMEA) (+30) | F3 | 10 |
| Tow bar (+15) | F4 | 10 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
