AMC Pacer (1975 – 1979) – fuse box diagram

AMC Pacer (1975 – 1979) – fuse box diagram

Year of production: 2001, 2002, 2003, 2004, 2005, 2006

Type 1

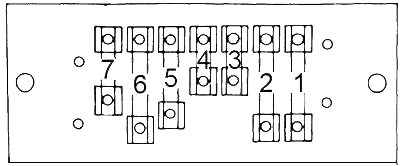

AMC Pacer - fuse box diagram - type 1
AMC Pacer – fuse box diagram – type 1
No.
A
Protected Component
1 20 Turn signal, back-up lights, radio, windshield washer
2 20 Blower motor, air conditioner clutch
3 4 Interlock module circuit, headlight warning buzzer, oil light indicator, park brake, brake failure circuit
4 4 Panel illumination lights
5 14 Interlock module circuit, windshield wiper, park, tail, license and side marker lights
6 20 Stop light and hazard warning flasher
7 9 Dome, courtesy, glove box, trunk and cargo lights, clock

Type 2

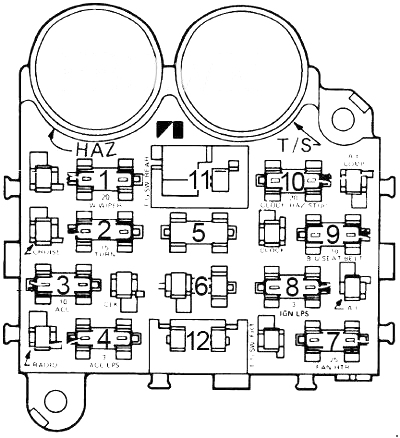

AMC Pacer - fuse box diagram - type 2
AMC Pacer – fuse box diagram – type 2
No.
A
Protected Component
1 10 Parking lights, key/headlight warning buzzer
2 15 Hazard warning, stoplights
3 10 Clock; dome and trunk lights
4 3 Cluster illumination
5  –
6 10 Radio, cigar lighter
7 25 Heater/A/C blower motor, A/C clutch
8 7.5 Gauges, Seat belt warning
9 20 Turn signals, backup lights, windshield washers
10  –
11 30 Power windows
12 25 Heated rear window

Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 8.25 amp. circuit breaker for windshield wipers and 4.5 amp. breaker for tail gate window wiper, both located at left side of brake support bracket.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
