Year of production: 1987

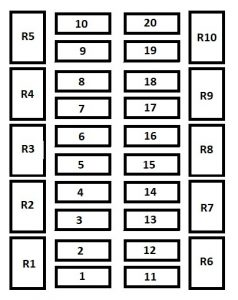

Under-bonnet fuse box LHD
| Numer | Ampere rating [A] | Function |
| 1 | 10 | LH Main beam |
| 2 | 10 | LH Inner main beam |
| 3 | 10 | RH Main beam |
| 4 | 10 | RH Inner main beam |
| 5 | 15 | Spot lamps |
| 6 | 15 | Front fog lamp |
| 7 | 20 | Engine fans high |
| 8 | 15 | Engine fans low |
| 9 | 25 | Front A/C Unit |
| 10 | 15 | Rear A/C Unit |
| 11 | 3 | Alternator, Ignition |
| 12 | 25 | Lamp wash motor |
| 13 | 15 | Door locks |
| 14 | 20 | Horns |
| 15 | 10 | Inhibit relay, interior lamps |
| 16 | 20 | HR Screen |
| 17 | 15 | Cigar Lighter |
| 18 | 10 | Spare |
| 19 | 15 | Spare |
| 20 | 25 | Spare |
| R1 | Air/Cond | |
| R2 | Inner H Lamps | |
| R3 | Fog lamps | |
| R4 | Front W Lift | |
| R5 | Starter motor | |
| R6 | H/R Screen | |
| R7 | Rear W Lift | |
| R8 | Spare | |
| R9 | Spot lamps | |
| R10 | Speed lock | |

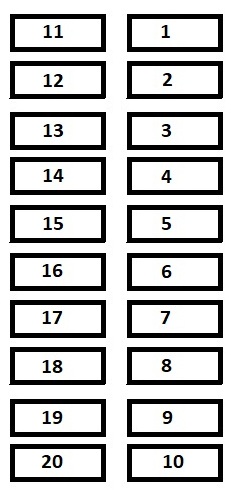

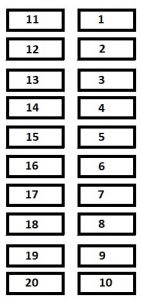

Console-mounted fusebox
| Number | Ampere rating [A] | Function |
| 1 | 10 | LH DIP Beam |
| 2 | 10 | RH DIP Beam |
| 3 | 10 | LH Side tail lamps |
| 4 | 10 | RH Side tail lamps |
| 5 | 20 | LHF W/Lift SW/S |
| 6 | 20 | RHF W/Lift SW/S |
| 7 | 20 | LHF W/Lift SW |
| 8 | 20 | RHF Seat motor |
| 9 | 15 | LH Seat motor |
| 10 | 15 | RH Seat motor |
| 11 | 15 | Wiper motor |
| 12 | 10 | Stop/reverse lamps |
| 13 | 10 | Indicators hazard |
| 14 | 5 | Instrumentation |
| 15 | 5 | Memory |
| 16 | 20 | Fuel injection |
| 17 | 20 | Fuel injection |
| 18 | 15 | Alarm |
| 19 | 15 | Spare |
| 20 | 20 | Spare |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
