Year of production: 2016

Instrument panel

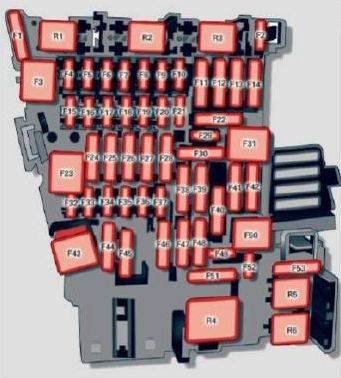

Audi A3 - wiring diagram - fuse box diagram - instrument panel
Audi A3 – wiring diagram – fuse box diagram – instrument panel
Number Equipment
F1 Engine components
F2 Seat adjustment
F3 Hydraulic pump cover (Cabriolet)
F4 MM controls, MMI-components
F5 Gateway
F6 Selector lever (automatic transmission)
F7 Climate/heating control, selector lever (automatic transmission), parking heater, rear window heater relay coil
F8 Diagnosis, electromechanical parking brake switch, light switch , rain and light sensor, interior lighting communication box (Plug-in hybrid drive*) anti-theft alarm system
F9 Steering column switch module
F10 Display
F11 Reversible driver’s side safety belt tensioners
F12 MMI area
F13 Adaptive dampers control module/ service plug (Plug-in hybrid drive”)
F14 Climate control system blower
F15 Electronic steering column lock
F16 MMI area
F17 Instrument cluster
F18 Rearview camera
F19 Convince key system control module, tank system
F20 Tank system
F21
F22
F23 Exterior lighting, heated washer fluid nozzles
F24 Panorama sunroof/ power top control modu le, power top latch (Cabriolet)
F25 Door/driver’s side doors (for example power windows)
F26 Seat heating
F27 Sound-amplifier
F28 Power top control module, electronics (Cabriolet)
F29 Interior lights
F30
F31 Exterior lighting
F32 Driver assistance systems
F33 Airbag
F34 Button illumination, coils for upper cabin heating relay (Cabriolet) and socket relay, interior sound, reversing light switch, ternperature sensor
F35 Function lighting, diagnosis, headlight range control system, air quality sensor, automatic dimming rearview mirror
F36 Right cornering light/ right LED-headlight
F37 Left cornering light/ left LED-head light
F38 High-voltage battery (Plug-in hybrid drive*)
F39 Door/front passenger’s side doors (for example, power windows)
F40 Sockets
F41 Reversible front passenger’s side safety belt tensioners
F42 Central locking components, windshield washer system
F43 Headlights , lighting
F44 All wheel drive
F45
F46
F47 Rear window wiper
F48 Outer noise amplifier (Plug-in hybrid drive*)
F49 Starter, clutch sensor, headlight relay coil, high-voltage battery (Plug-in hybrid drive*)
F50
F51
F52
F53 Rear window defogger



Engine compartment

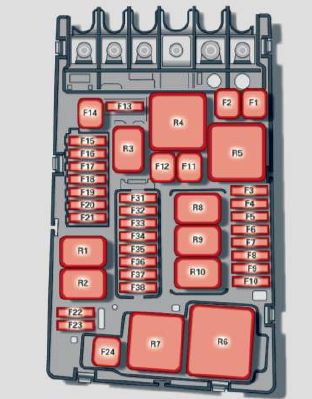

Audi A3 – wiring diagram – fuse box diagram – engine compartment
Number Equipment
F1 ESC control module
F2 ESC control module
F3 Engine control module (gasoline/diesel)
F4 Engine cooling, engine components, auxiliary heater coil relay (1+2), secondary air injection pump relay
F5 Engine components, tank system
F6 Brake light sensor
F7 Engine components, water pumps
F8 Oxygen sensor
F9 Engine components, exhaust door, glow time control module, SULEV valve
F10 Fuel injectors, fuel control module
F11 Auxiliary heater heating element2
F12 Auxiliary heater heating element3
F13 Automatic transmission control module
F14
F15 Horn
F16 Ignition coil/ power electronics (Plug-in hybrid drive*)
F17 ESC contro l module, engine control module
F18 Terminal 30 (reference voltage)
F19 Windshield wipers
F20 Horn
F21
F22 Terminal SO diagnosis
F23 Starter
F24 Auxiliary heater heating element 1, brake booster (Plug-in hybrid drive*)
F25
F26
F27
F28
F29
F30
F31 Vacuum pump/water pump (Plug-in hybrid drive*)
F32 LED headlights
F33 Brake booster memory (Plug-in hybrid drive*)
F34 Brake booster memory (Plug-in hybrid drive*)
F34 Relay (Plug-in hybrid drive*)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
