Audi A5 (2014 – 2017) – fuse box diagram
Year of production: 2014, 2015, 2016, 2017
Instrument panel (driver’s side)

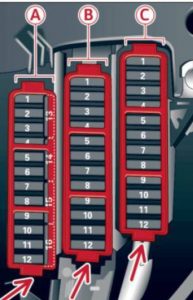

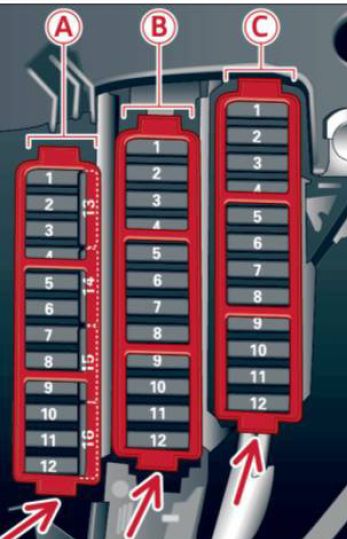

Audi A5 – wiring diagram – fuse box diagram – left cocpit Fuse panel A (black)
Number
Electric equipment
Ampere rattings [A]
1
Dynamic steering
5
2
Electronic Stabilization Control (module)
5
3
A/C system pressure sensor, electromechanical parking brake, Homelink, automatic dimming interior rear view mirror, air quality/outside air sensor, Electronic Stabilization Control (button)
5
4
—
—
5
Sound actuator
5
6
Headlight range control/head light (cornering light)
5/7,5
7
Headlight (cornering light)
7,5
8
Control modules (electromechanical parking brake, shock absorber, quattro sport), DCDC converter
5
9
Adaptive cruise control
5
10
Shift gate/clutch sensor
5
11
Side assist
5
12
Headlight range control, parking system
5
13
Airbag
5
14
Rear wiper (allroad)
15
15
Auxiliary fuse (instrument panel)
10
16
Auxiliary fuse terminal 15 (engine area)
40
Fuse panel B (brown)
Number
Electric equipment
Ampere rattings [A]
1
—
—
2
Brake light sensor
5
3
Fuel pump
25
4
Clutch sensor
5
5
Left seat heating with/without seat ventilation
15/30
6
Electronic Stabilization Control (electric)
5
7
Horn
15
8
Front left door (window regulator, central locking, mirror, switch, lighting)
30
9
Windshield wiper motor
30
10
Electronic Stabilization Control (valves)
25
11
Two-door models: rear left window regulator, Four-door models: rear left door (window regulator, central locking, switch, lighting)
30
12
Rain and light sensor
5
Fuse panel C (red)
Number
Electric equipment
Ampere rattings [A]
1
—
—
2
—
—
3
Lumbar support
10
4
Dynamic steering
35
5
Interior lighting (Cabriolet)
5
6
Windshield washer system, headlight washer system
35
7
Vehicle electrical system control module 1
20
8
Vehicle electrical system control module 1
30
9
Left rear window regulator motor (Cabriolet)/sunroof
7,5/20
10
Vehicle electrical system control module 1
30
11
Right rear window regulator (Cabriolet)/sun shade motor
7,5/20
12
Anti-theft alarm warning system
5
Instrument panel (right)

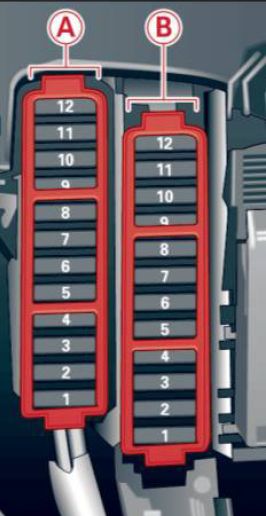

Audi A5 – wiring diagram – fuse box diagram – right cocpit Fuse carrier A (black)
Number
Electric equipment
Ampere rattings [A]
1
—
—
2
—
—
3
—
—
4
—
—
5
Steering column switch module
5
6
—
—
7
Terminal 15 diagnostic connector
5
8
Gateway (Databus diagnostic interface)
5
9
Supplementary heater
5
10
—
—
11
—
—
12
—
—
Fuse panel B (brown)
Number
Electric equipment
Ampere rattings [A]
1
CD-/DVD player
5
2
Wi-Fi
5
3
MMI/Radio
5/20
4
Instrument cluster
5
5
Gateway (instrument cluster control module)
5
6
Ignition lock
5
7
Light switch
5
8
Climate control system blower
40
9
Steering column lock
5
10
Climate control system
10
11
Terminal 30 diagnostic connector
10
12
Steering column switch module
5
Luggage compartment

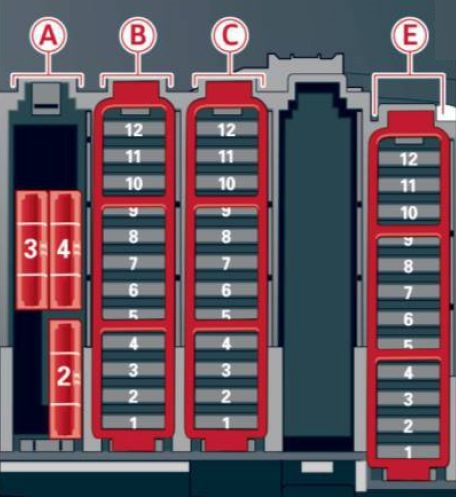

Audi A5 – wiring diagram – fuse box diagram – luggage compartment Fuse panel A (black)
Number
Electric equipment
Ampere rattings [A]
1
—
30
2
Rear window heater (Cabriolet)
30
3
Power top latch (Cabriolet)
30
4
Power top hydraulics (Cabriolet)
50
Fuse panel B (black)
Number
Electric equipment
Ampere rattings [A]
1
Luggage compartment lid control module (all road) / Power top control module (Cabriolet)
30/10
2
Retractable rear spoiler (RS 5 Coupe)
10
3
—
—
4
—
—
5
Electromechanical parking brake
5
6
Electronic damping control
15
7
Electromechanical parking brake
30
8
Rear exterior lighting
30
9
Quattro Sport
35
10
Rear exterior lighting
30
11
Central locking
20
12
Terminal 30
5
Fuse panel C (brown)
Number
Electric equipment
Ampere rattings [A]
1
Luggage compartment lid control module (allroad)
30
2
12-volt socket, cigarette lighter
20
3
DCDC converter path 1
40
4
DCDC converter path 2, DSP amplifier, radio
40
5
Right upper cabin heating (Cabriolet)
30
6
—
—
7
Electromechanical parking brake
30
8
—
—
9
Right front door (window regulator, central locking, mirror, switch, lighting)
30
10
Left upper cabin heating (Cabriolet)
30
11
Two-door models : rear right window regu lator, Four-door models : rear right door (window regulator, central locking, switch , lighting)
30
12
Cell phone prep
5
Fuse panel E (black)
Number
Electric equipment
Ampere rattings [A]
1
Right front seat heating
15
2
—
—
3
—
—
4
MMI
7,5
5
Radio
5
6
Rear view camera
5
7
Rear window heater (allroad)
30
8
Rear Seat Entertainment
5
9
—
—
10
—
—
11
—
—
12
—
—
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
