Audi TT (2001) – fuse box diagram
Year of production: 2001

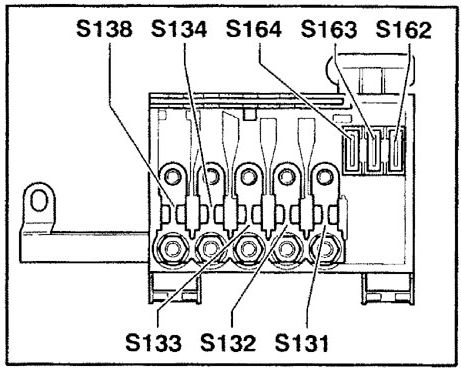

Fuses box
| № |
Description |
| S131 | Safety fuse 1 (Secondary Air Injection (AIR) Pump Motor) |
| S132 | Safety fuse 2 (Engine Control Module) |
| S133 | Safety fuse 3 (Coolant Fan) |
| S134 | Safety fuse 4 (Passenger Compartment) |
| S138 | Safety fuse 5 (Generator (GEN)) |
| S162 | Fuse-1-in fuse bracket/battery (pump) |
| S163 | Fuse-2-in fuse bracket/battery (valves) |
| S164 | Fuse-3-in fuse bracket/battery (Coolant Fan) |
| № |
Description |
| 2 | Lamp Control Module |
| 3 | Lamp Control Module |
| 4 | Fog Light Relay |
| 5 | Starting Interlock Relay |
| 7 | Brake Light Disable Relay (ESP) |
| 10 | Rear Window Defogger Relay |
| 12 | Control Module for Mirror fold-away Function |
| 13 | Coolant Circulation Pump Relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
