BMW X3 (F25; 2011 – 2017) – fuse box diagram
Year of production: 2011, 2012, 2013, 2014, 2015, 2016, 2017
Fuse box in the glove compartment
| № | A |
|---|---|
| 1 | 5 |
| 2 | 5 |
| 3 | 5 |
| 4 | 5 |
| 5 | 10 |
| 7 | 30 |
| 8 | 30 |
| 9 | 30 |
| 10 | 10 |
| 11 | 7,5 |
| 12 | 5 |
| 13 | 5 |
| 14 | 15 |
| 15 | 20 |
| 16 | 40 |
| 17 | 30 |
| 18 | 30 |
| 19 | 20 |
| 20 | 20 |
| 21 | 30 |
| 22 | 30 |
| 23 | 5 |
| 24 | 10 |
| 25 | 5 |
| 26 | 5 |
| 26 | 5 |
| 27 | 5 |
| 28 | — |
| 29 | — |
| 31 | 5 |
| 32 | 7,5 |
| 33 | 5 |
| 34 | 5 |
| 35 | 15 |
| 36 | 30 |
| 37 | 30 |
| 38 | 40 |
| 39 | — |
| 40 | 30 |
| 41 | — |
| 42 | 30 |
| 43 | 5 |
| 44 | 5 |
| 45 | — |
| 46 | 10 |
| 47 | 5 |
| 48 | 5 |
| 50 | 30 |
| 51 | 30 |
| 52 | 30 |
| 53 | 30 |
| 54 | 20 |
| 55 | 20 |
| 56 | 5 |
| 57 | — |
| 58 | 5 |
| 59 | — |
| 60 | 5 |
| 61 | 20 |
| 62 | 10 |
| 63 | 10 |
| 64 | 7,5 |
| 65 | 15 |
| 66 | 7,5 |
| 67 | 10 |

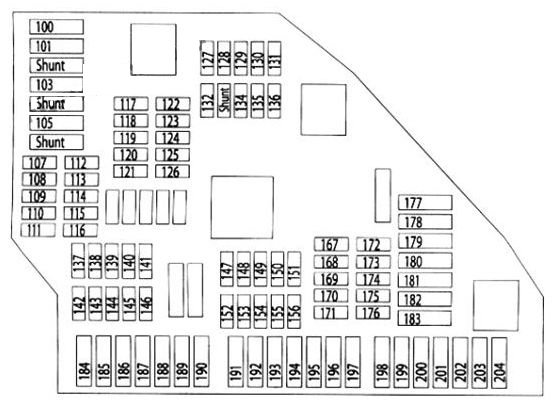

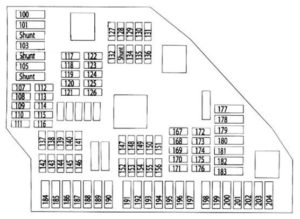

Luggage compartment
| № | A |
|---|---|
| 100 | 20 |
| 101 | 40 |
| 103 | 20 |
| 105 | 30 |
| 107 | — |
| 108 | — |
| 109 | — |
| 110 | 5 |
| 111 | — |
| 112 | — |
| 113 | — |
| 114 | — |
| 115 | 5 |
| 116 | 7,5 |
| 117 | 5 |
| 118 | 5 |
| 119 | 15 |
| 120 | 5 |
| 121 | 5 |
| 122 | — |
| 123 | — |
| 124 | — |
| 125 | 5 |
| 126 | 15 |
| 127 | — |
| 128 | — |
| 129 | — |
| 130 | — |
| 131 | — |
| 132 | 5 |
| 133 | — |
| 134 | — |
| 135 | — |
| 136 | — |
| 137 | — |
| 138 | — |
| 139 | 5 |
| 140 | — |
| 141 | 5 |
| 142 | 20 |
| 143 | 15 |
| 144 | 15 |
| 145 | 20 |
| 146 | — |
| 147 | — |
| 148 | 20 |
| 149 | — |
| 150 | — |
| 151 | — |
| 152 | — |
| 153 | 5 |
| 154 | 5 |
| 155 | 15 |
| 156 | — |
| 167 | — |
| 168 | — |
| 169 | 5 |
| 170 | 5 |
| 171 | — |
| 172 | — |
| 173 | — |
| 174 | — |
| 175 | 20 |
| 176 | 15 |
| 177 | — |
| 178 | — |
| 179 | — |
| 180 | — |
| 181 | — |
| 181 | — |
| 182 | — |
| 183 | — |
| 184 | 20 |
| 185 | 30 |
| 186 | 20 |
| 187 | 20 |
| 188 | 20 |
| 189 | 20 |
| 190 | 30 |
| 191 | — |
| 192 | — |
| 193 | — |
| 194 | — |
| 195 | — |
| 196 | — |
| 197 | — |
| 198 | 30 |
| 199 | 30 |
| 200 | 40 |
| 201 | 20 |
| 202 | — |
| 203 | 30 |
| 204 | — |

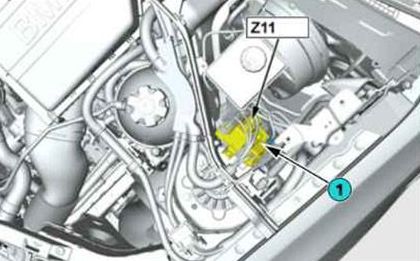

Power Distribution Module
The variants of the fuse layout, which you can find near the fuse box in the luggage compartment of your car.
Assignment of the fuses
| Symbol | Number |
 |
33, 34, 35, 40, 43, 115, 132, 169, 185, 190 |
 |
|
 |
8, 13, 24, 33, 39, 43, 45, 60 |
 |
19,100, 145, 146, 148 |
 |
8, 10, 13, 25, 31, 43, 45, 47, 118, 119, 120, 121, 170, 190 |
 |
38, 56, 103, 190 |
 |
8, 32 |
 |
34, 47, 118, 201 |
 |
37, 40, 63, 64, 66 |
  |
8, 13, 16, 24, 66, 101, 141 |
 |
10, 13, 16, 66, 141, 154 |
 |
125 |
 |
58 |
 |
8, 45 |
 |
33, 46, 121, 137 |
 |
8, 62 |
 |
2, 8, 14, 15, 32, 38, 56 |
 |
7, 8, 9, 17, 18, 32 |
 |
31, 186, 187, 188, 189 |
 |
31, 32, 52, 53, 67 |
 |
|
| OBD | 3 |
 |
121 |
 |
|
 |
8, 51 ,55 |
 |
203 |
 |
8 |
 |
44, 48, 142, 175 |
 |
5, 13, 48, 66 |
 |
34, 37, 45, 47 |
 |
8, 12, 13, 26 |
 |
8, 11, 31, 44 |
 |
35 |
 |
139, 184 |
 |
35, 46 |
 |
13, 31, 43, 44, 105, 118, 120, 126, 170, 185, 190 |
 |
|
 |
|
| 60, 169, 198, 199 | |
 |
139 |
 |
8, 36 |
 |
8, 36 |
 |
153, 155, 200 |
 |
58, 61 |
 |
4, 23, 27, 117 |
 |
61, 100 |
 |
58, 61 |
 |
1, 54, 65, 143, 144, 171, 176 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
