Buick Century (1986) – wiring diagrams – HVAC controls
Year of productions: 1986
HVAC controls

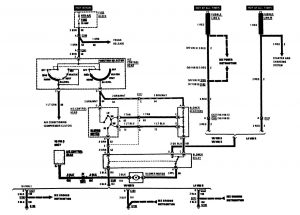

Version 1

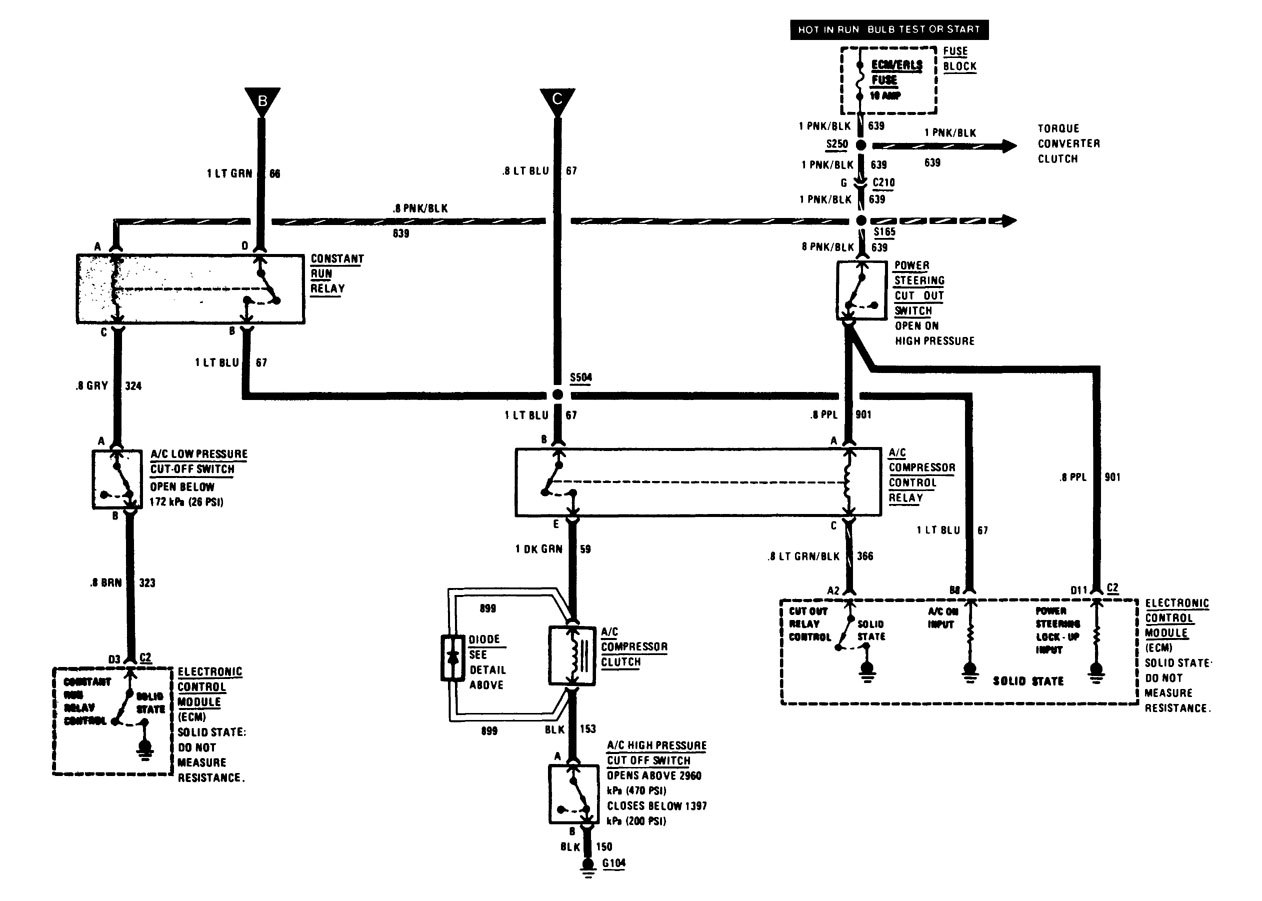

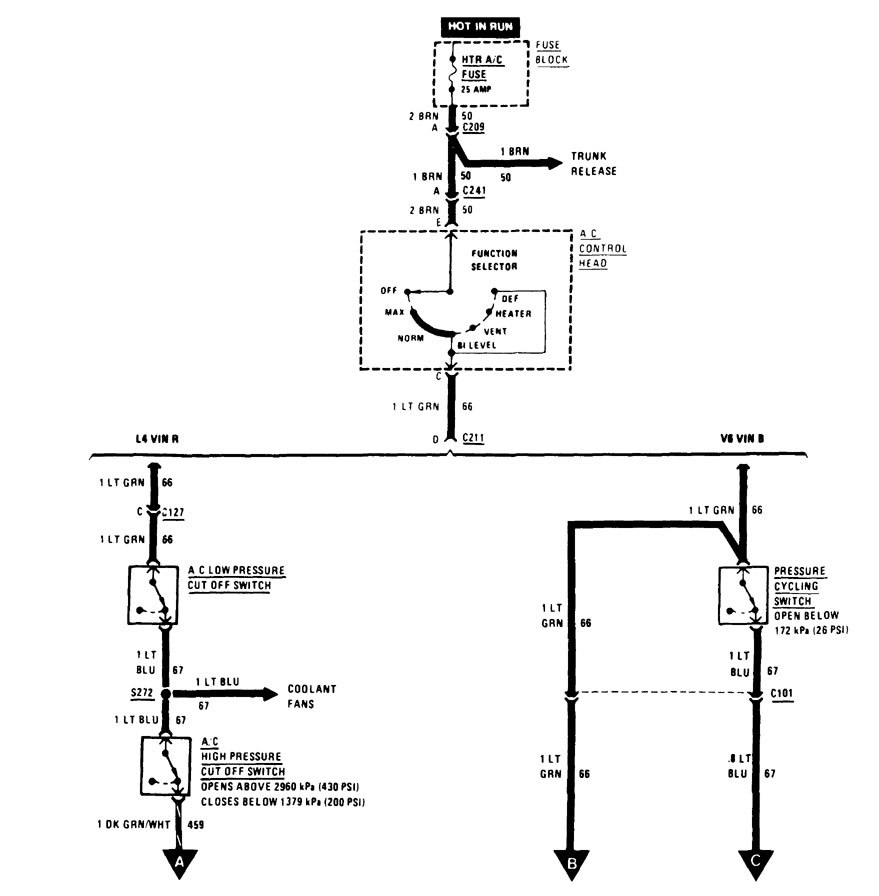

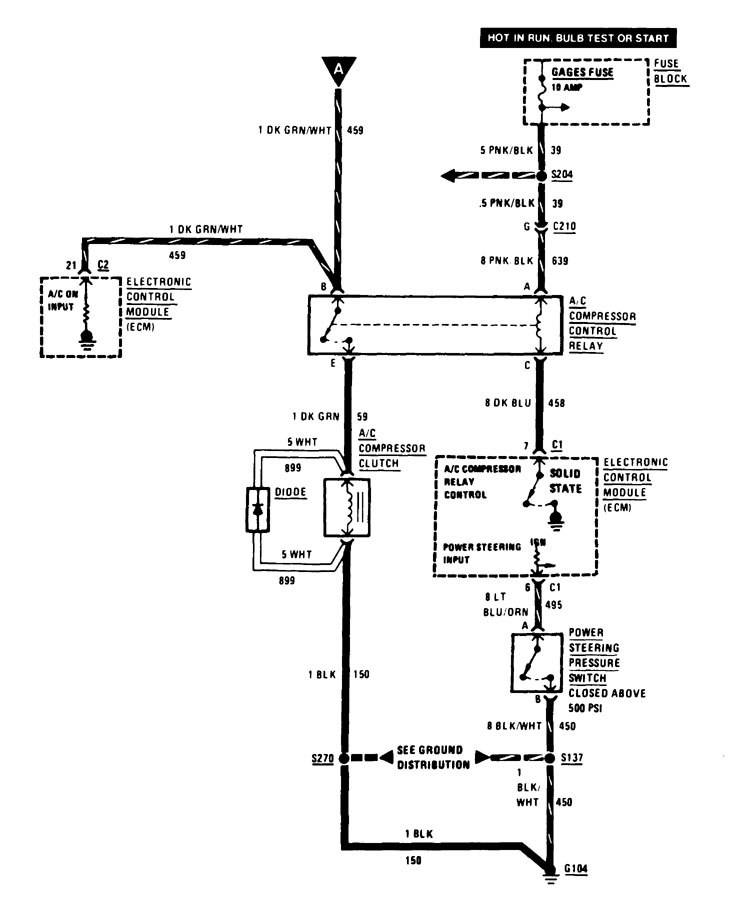

Version 2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
