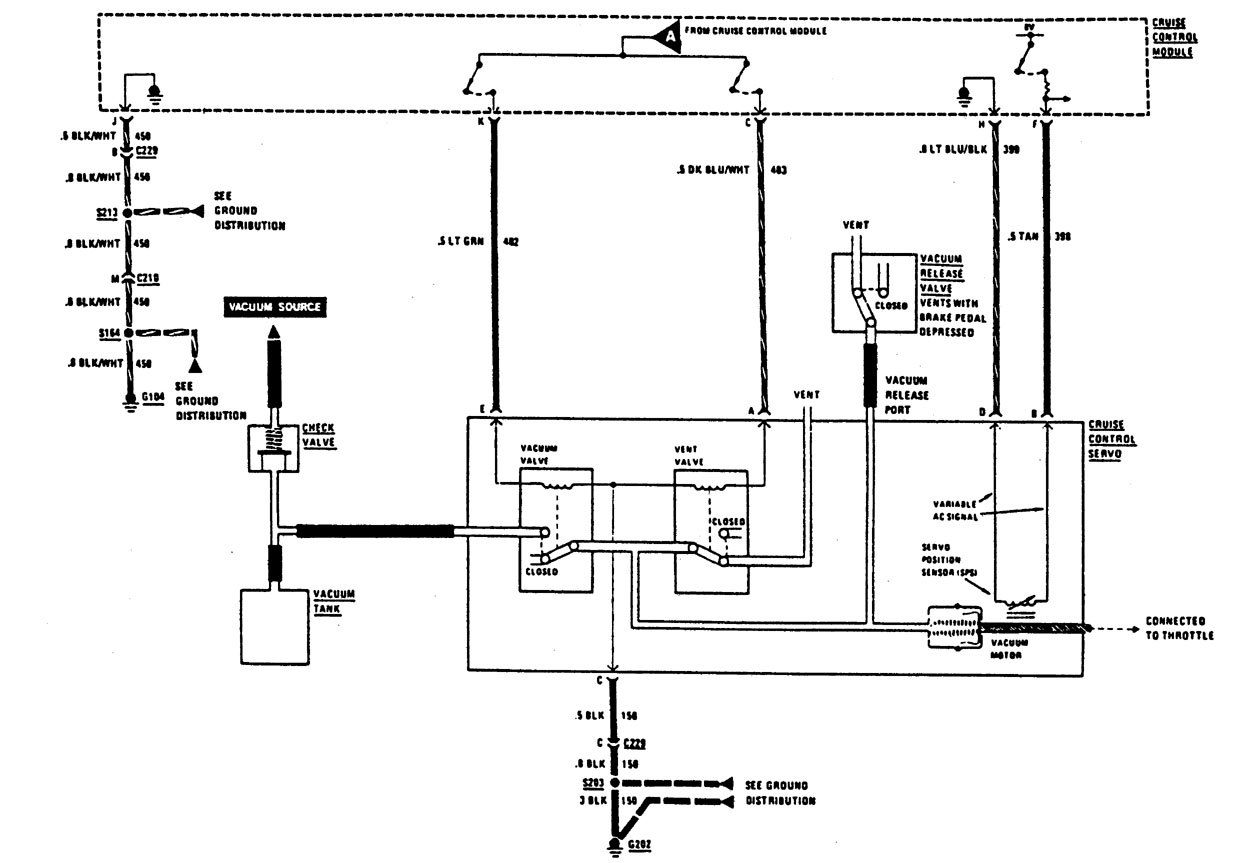

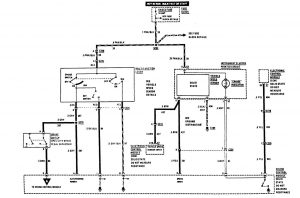

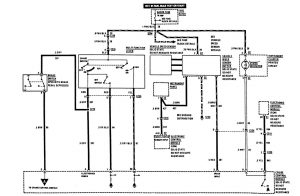

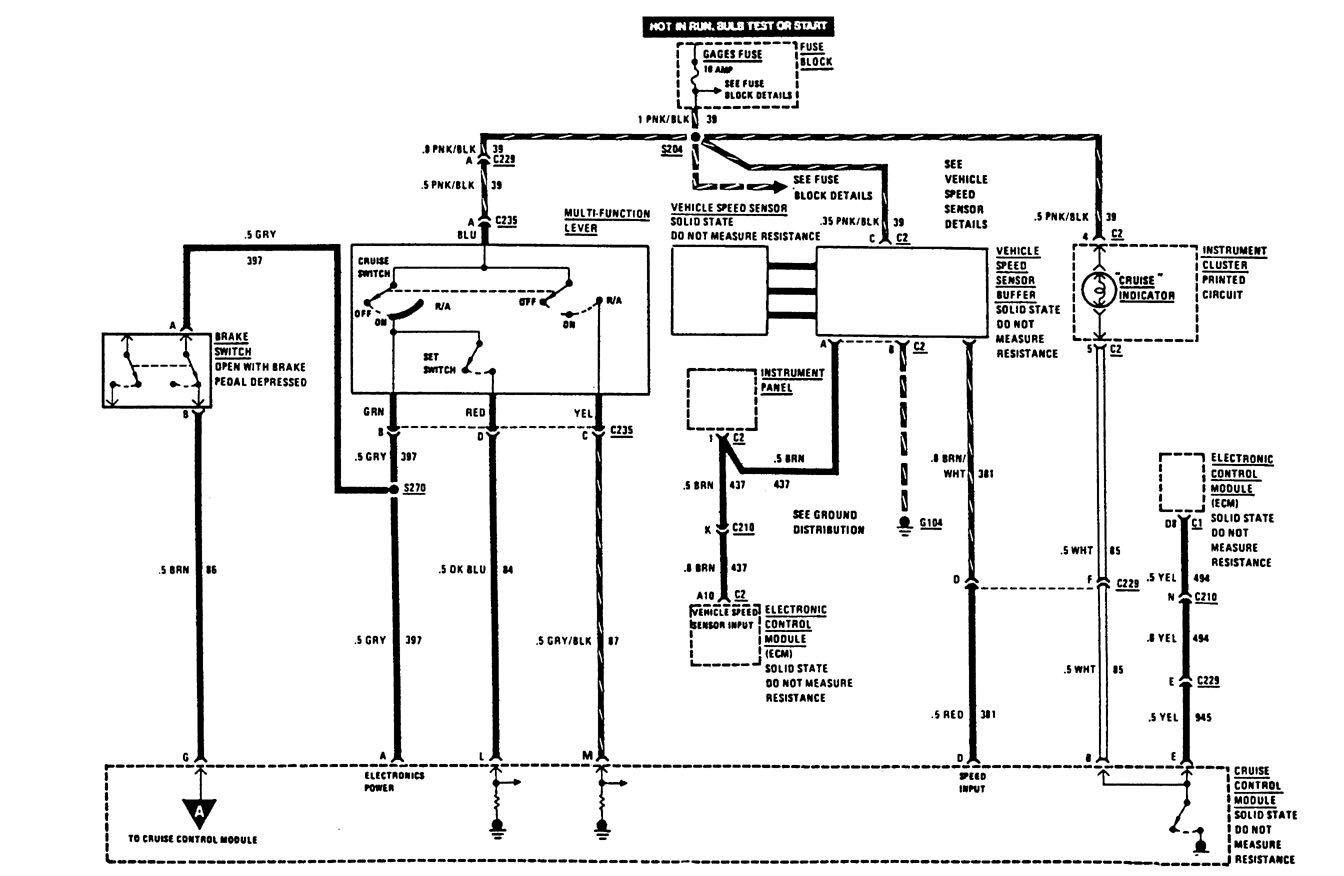

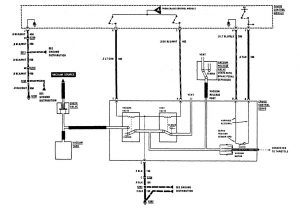

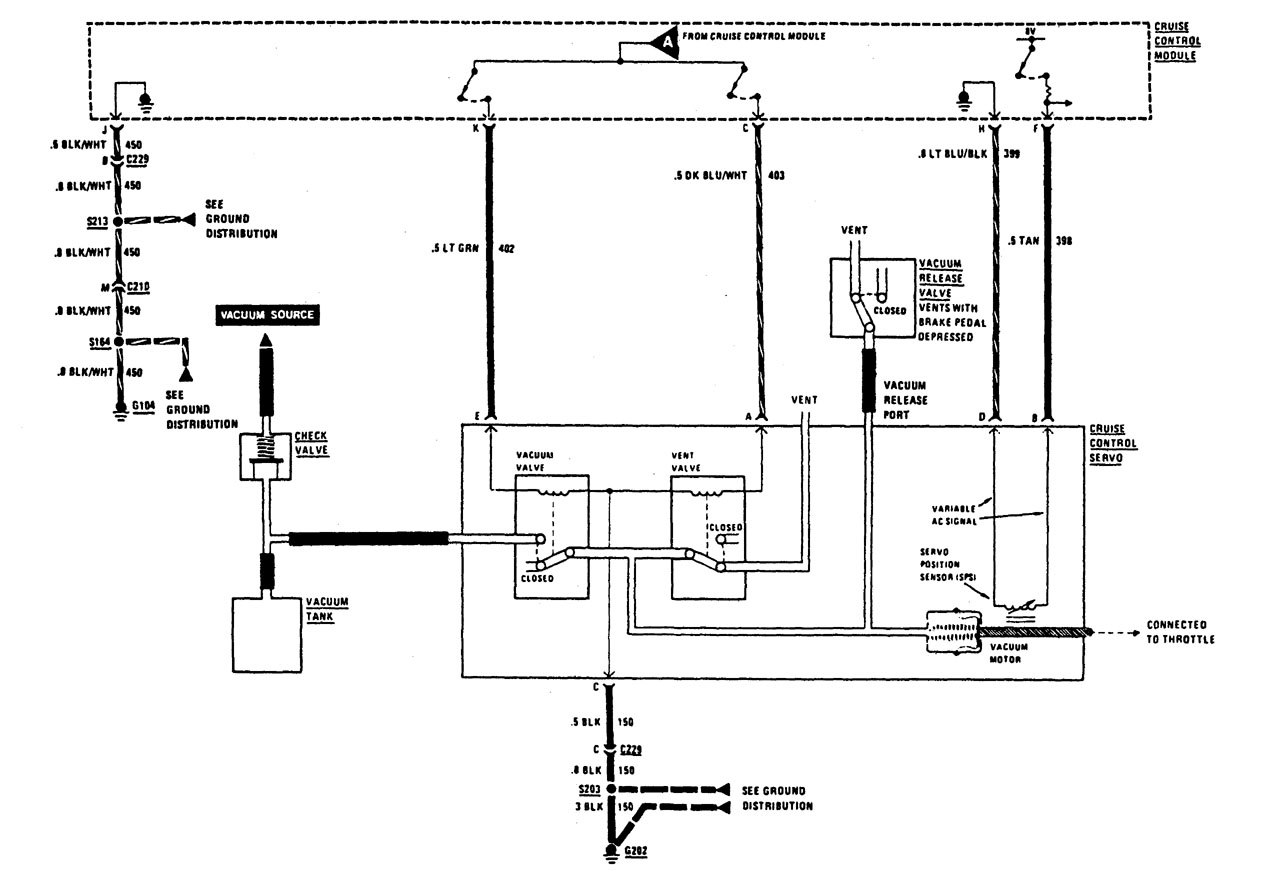

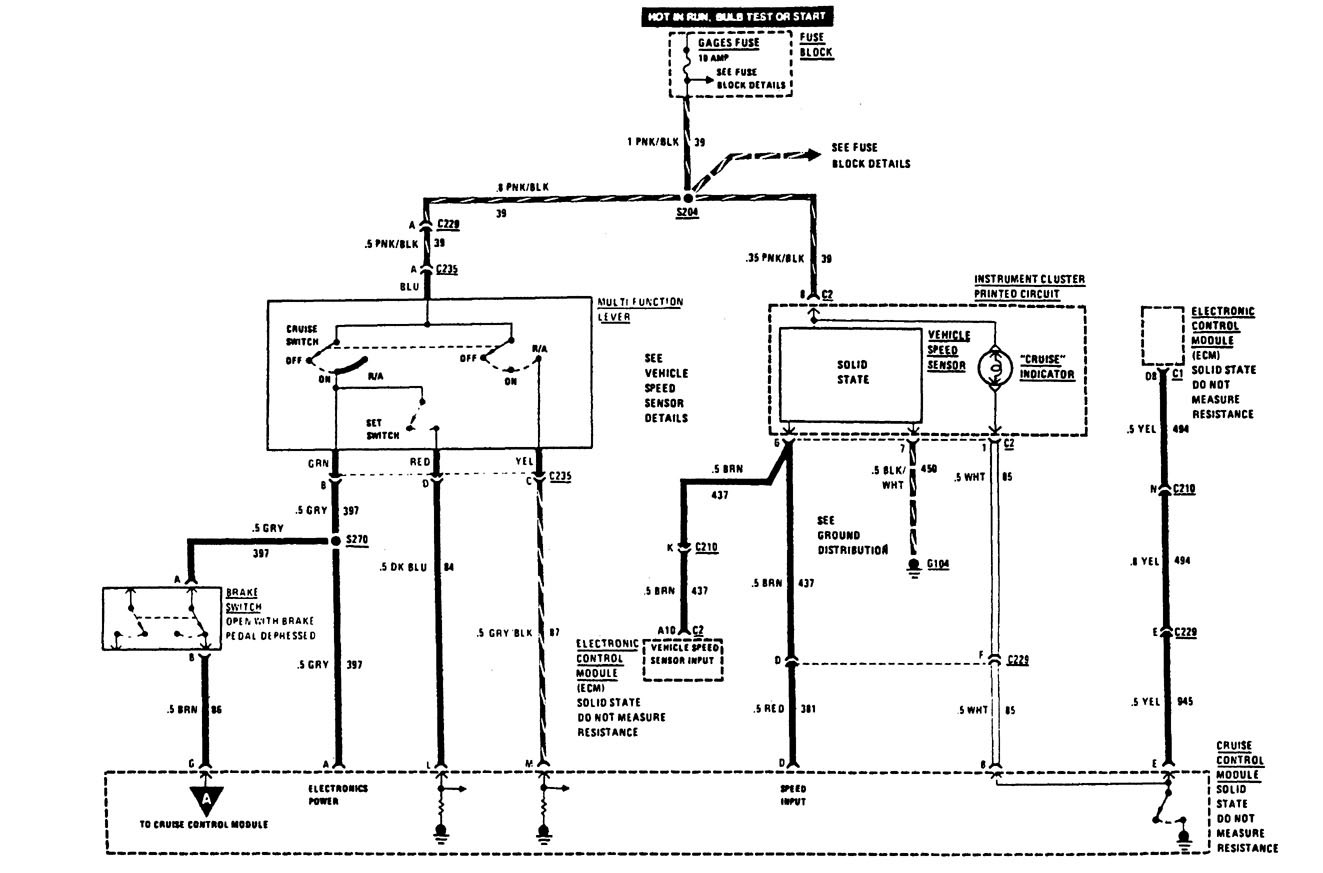

Buick Century (1987) – wiring diagrams – speed control

Volvo 850 (1995) – wiring diagrams – brake controls Year of productions:  1995 Brake controls WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura NSX (2005) – wiring diagrams – warning lamps Year of productions:  2005 Warning lamps Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]

Acura TL (2008) – wiring diagrams – instrument panel lamp Year of productions:  2008 Instrument panel lamp WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
