Year of productions:  1988

Instrumentation

Version 1

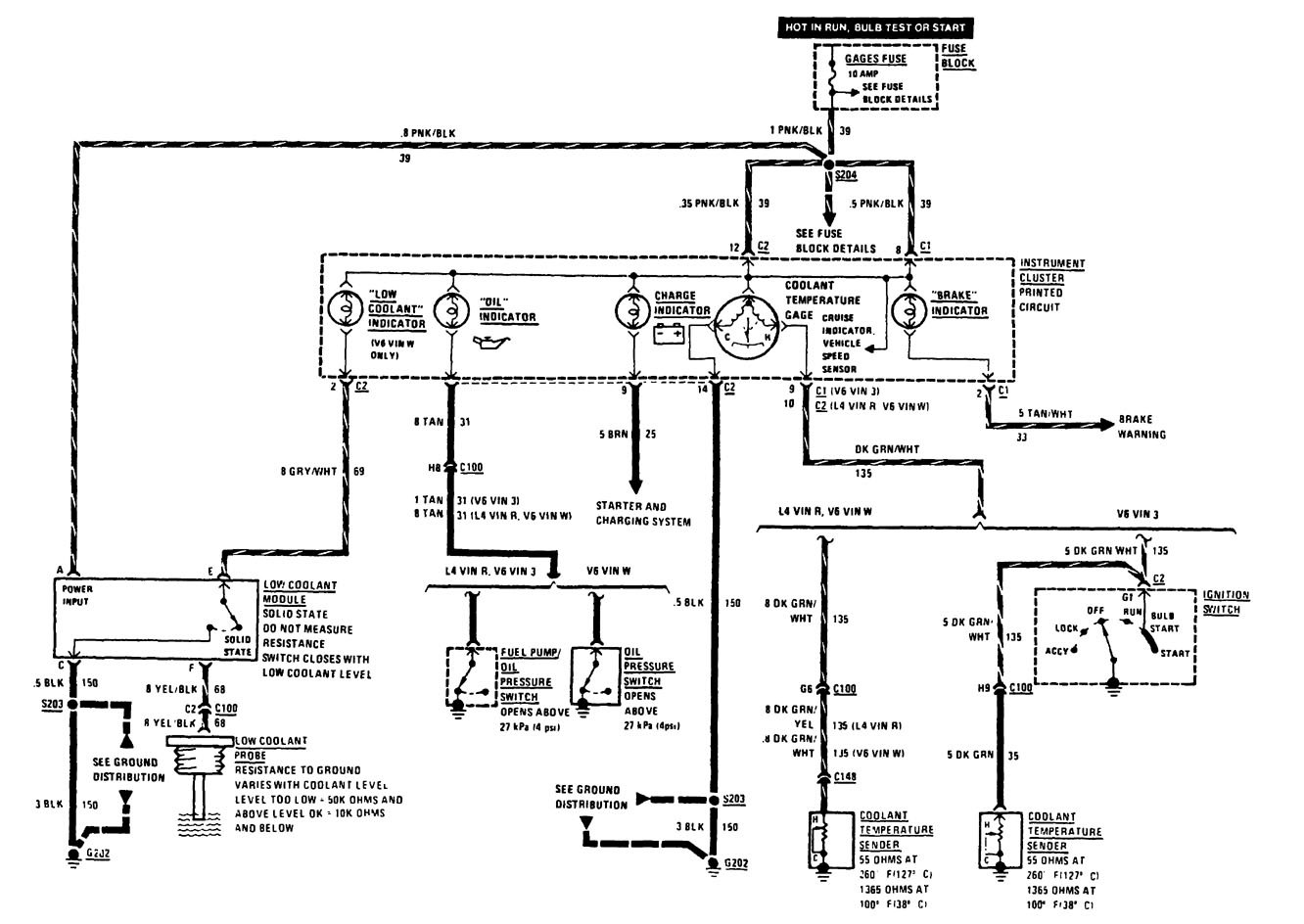

Buick Century – wiring diagrams –
instrumentation (part 1)

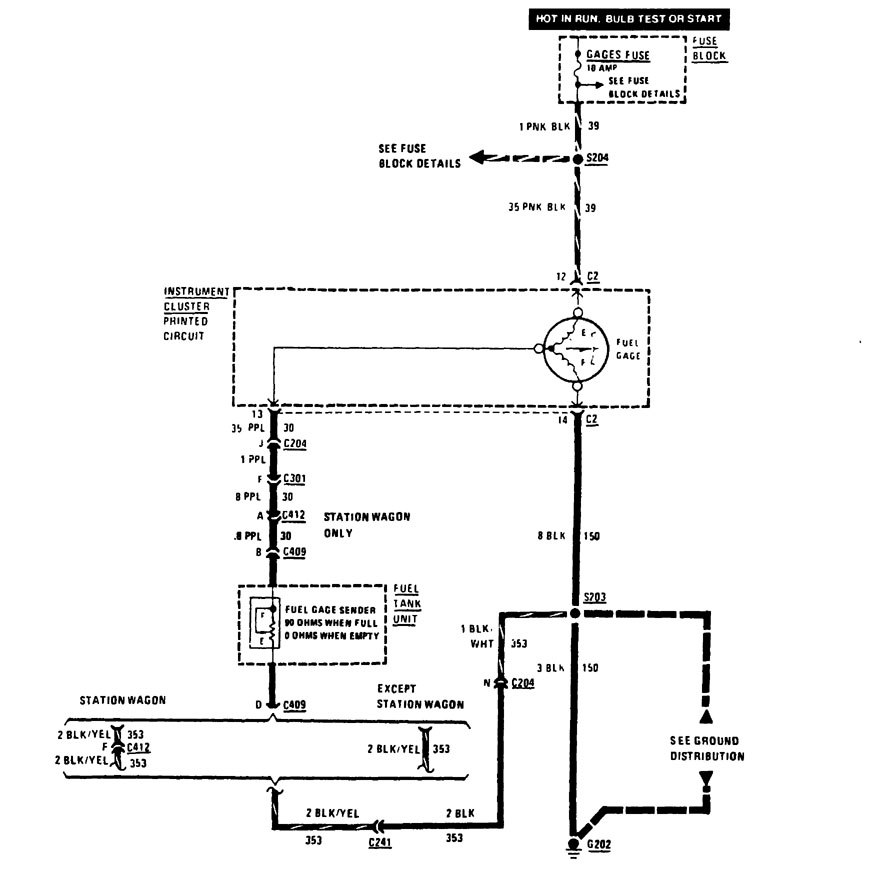

Buick Century – wiring diagrams –
instrumentation (part 2)

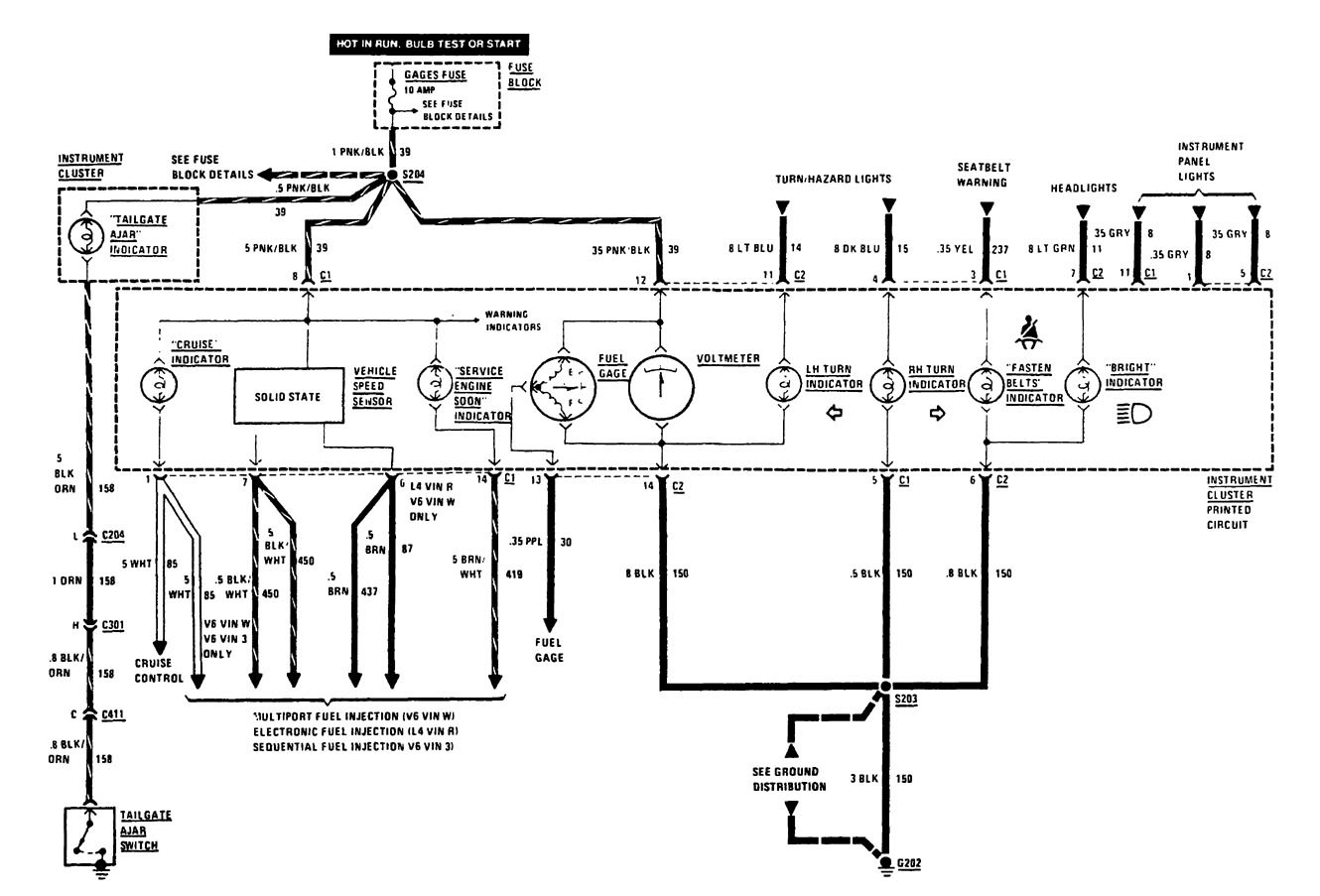

Buick Century – wiring diagrams –
instrumentation (part 3)

Version 2

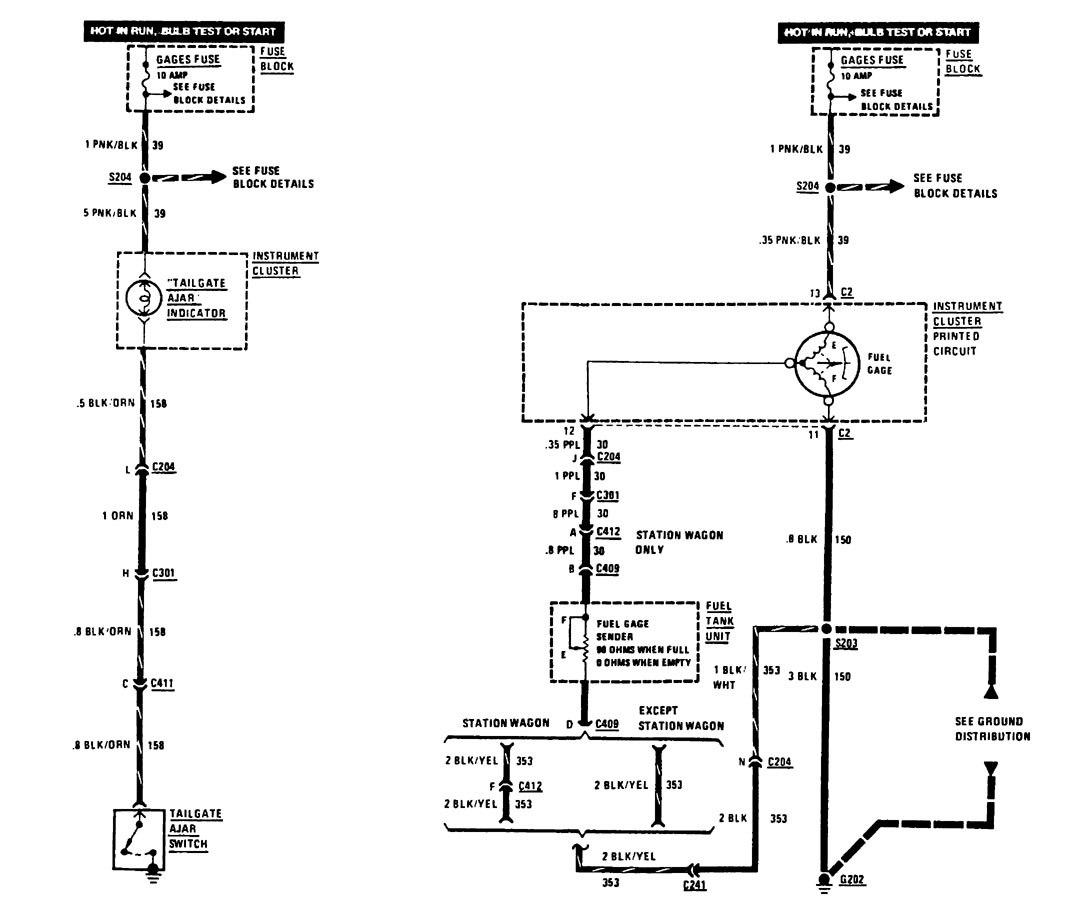

Buick Century – wiring diagrams –
instrumentation (part 1)

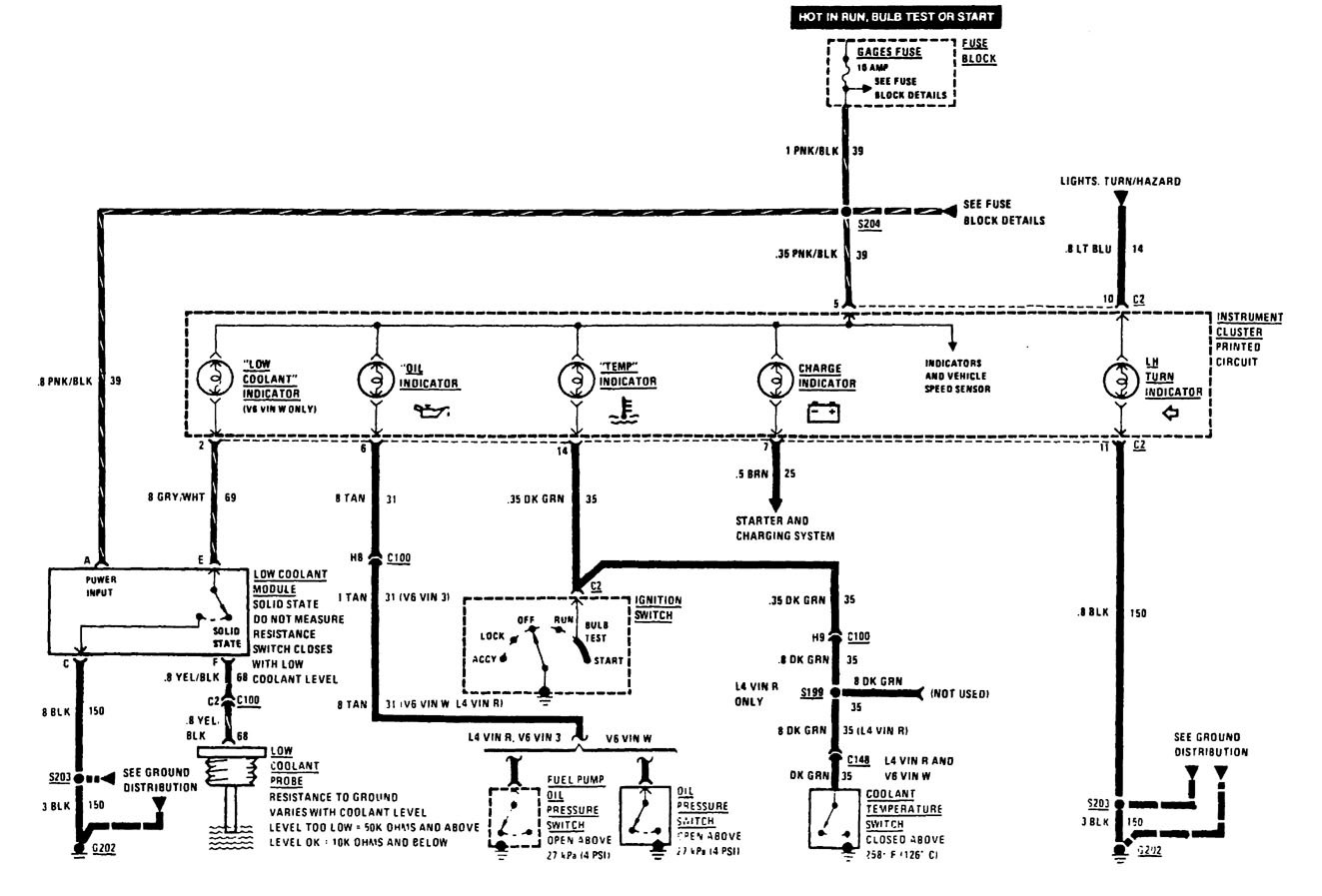

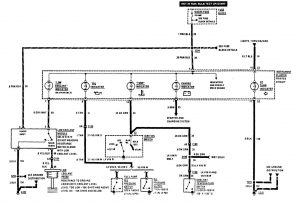

Buick Century – wiring diagrams –
instrumentation (part 2)

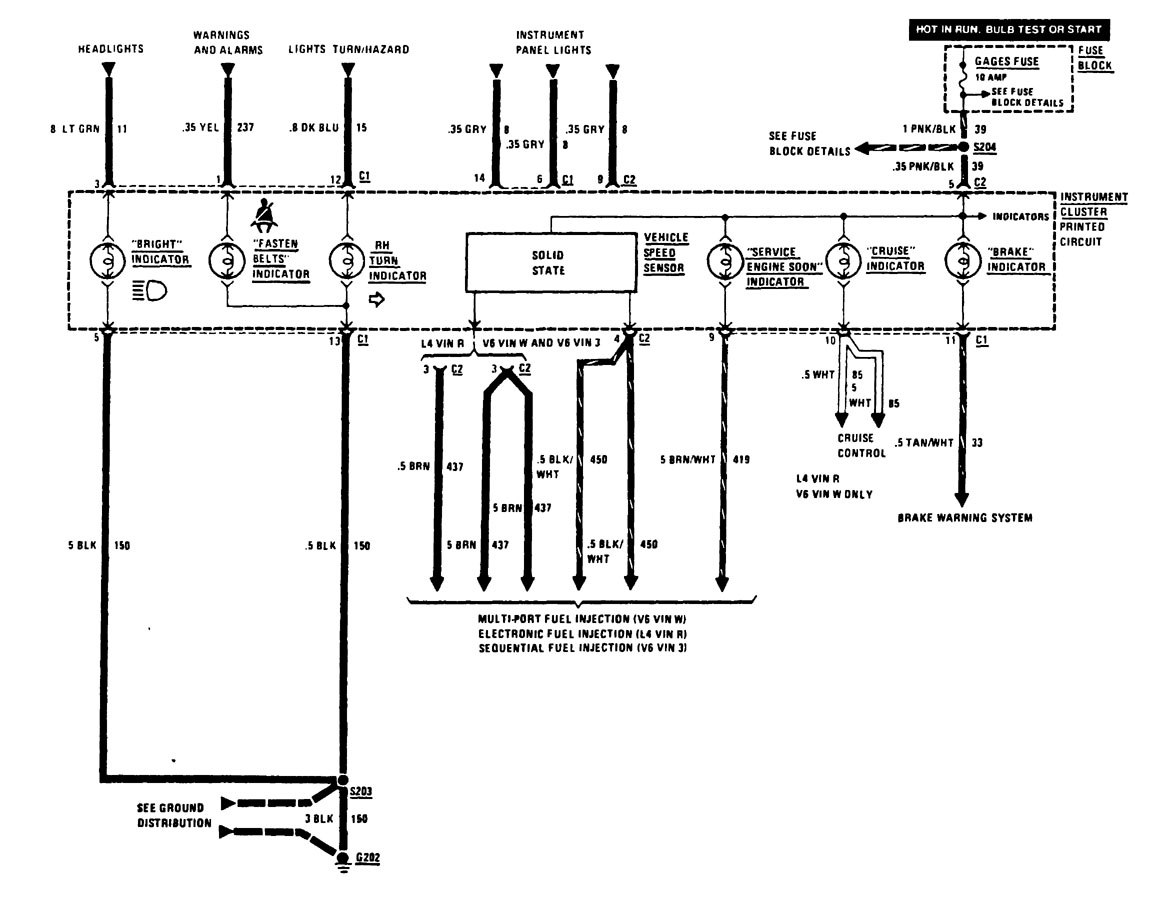

Buick Century – wiring diagrams –
instrumentation (part 3)

Version 3

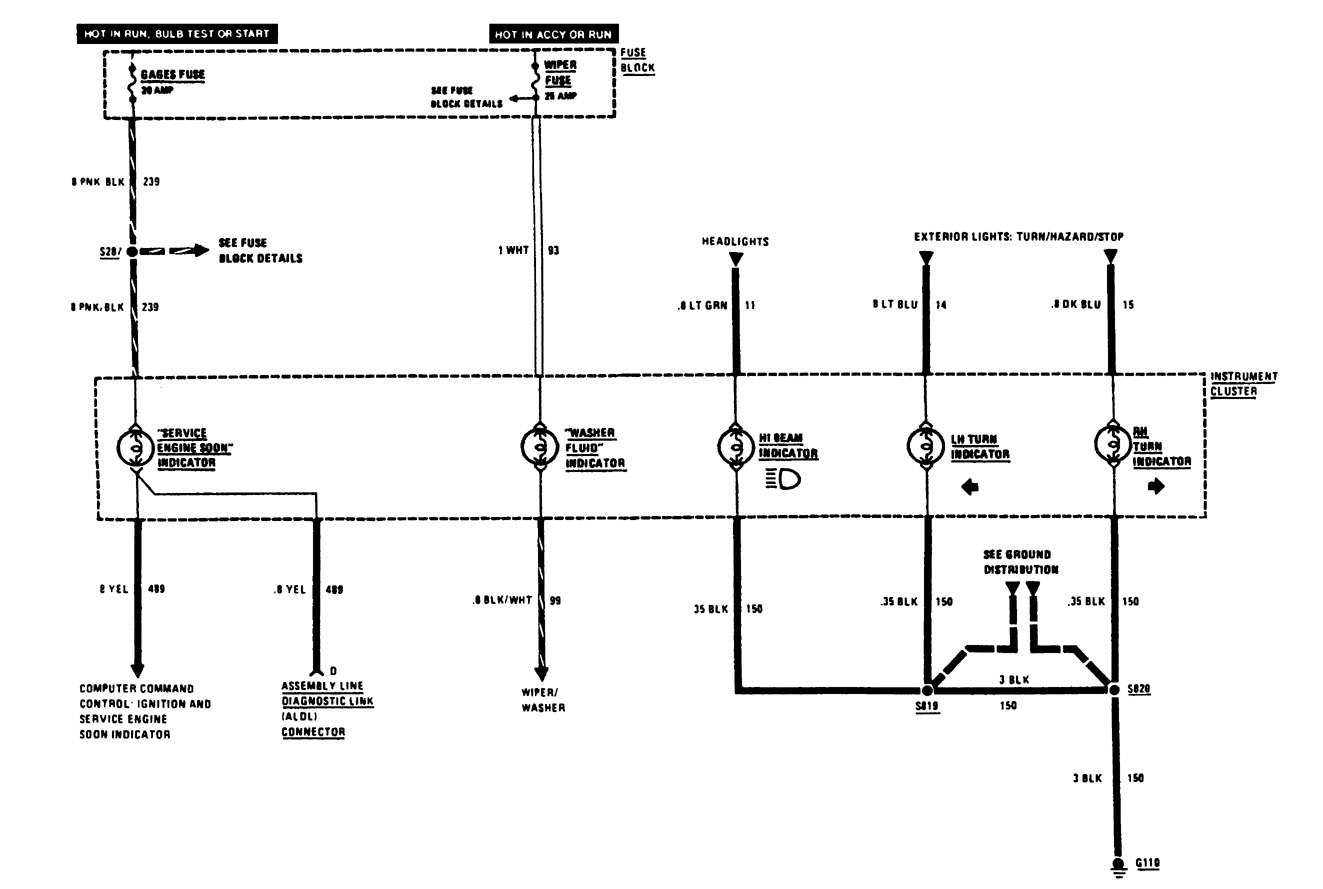

Buick Century – wiring diagrams –
instrumentation (part 1)

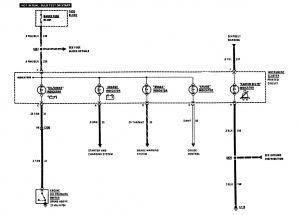

Buick Century – wiring diagrams –
instrumentation (part 2)

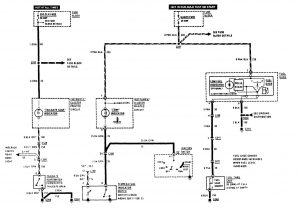

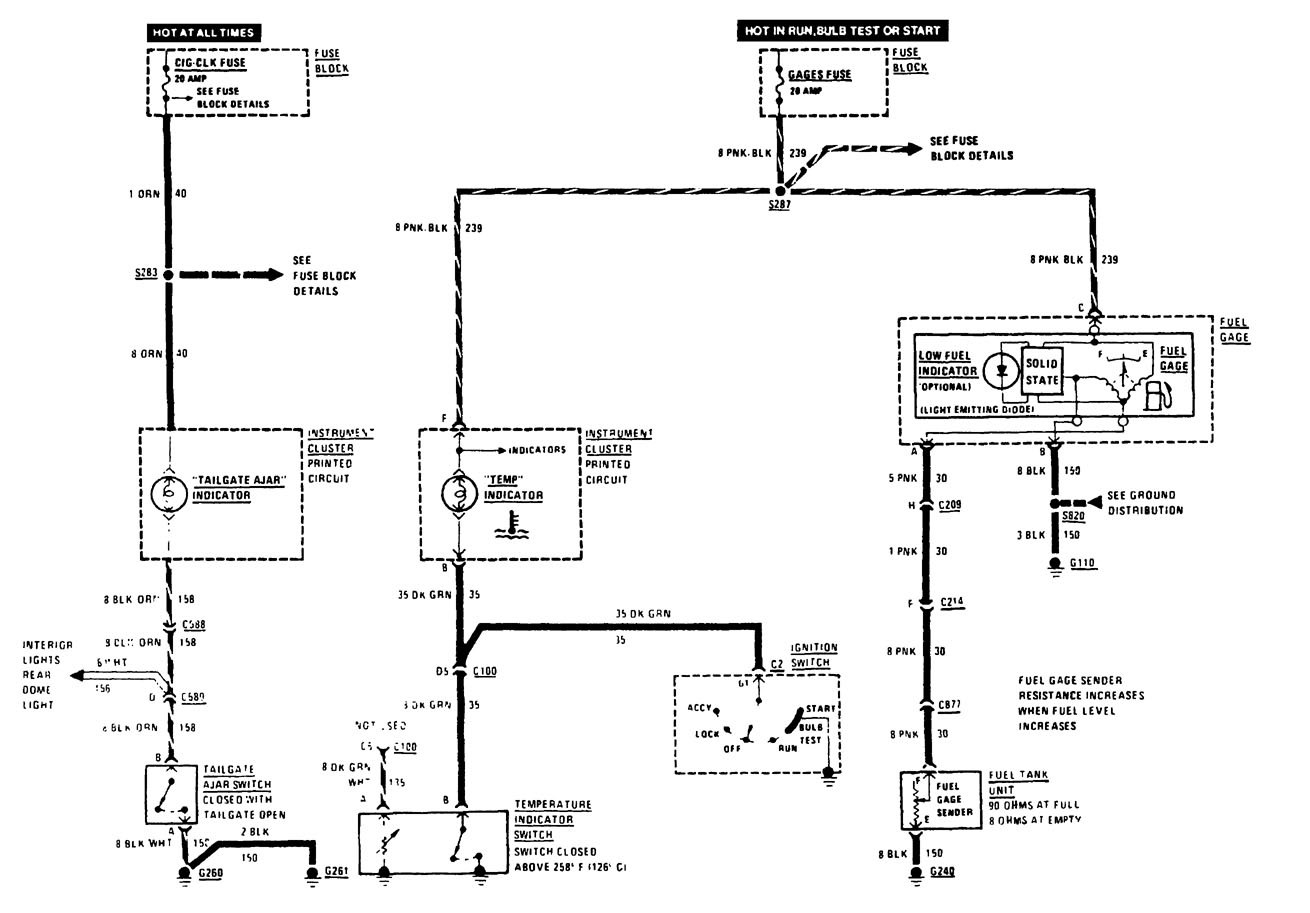

Buick Century – wiring diagrams –
instrumentation (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
