Buick Century (1990 – 1991) – wiring diagrams – headlamps

Buick Century (1990 – 1991) – wiring diagrams – headlamps

Year of productions:  1990, 1991

Headlamps

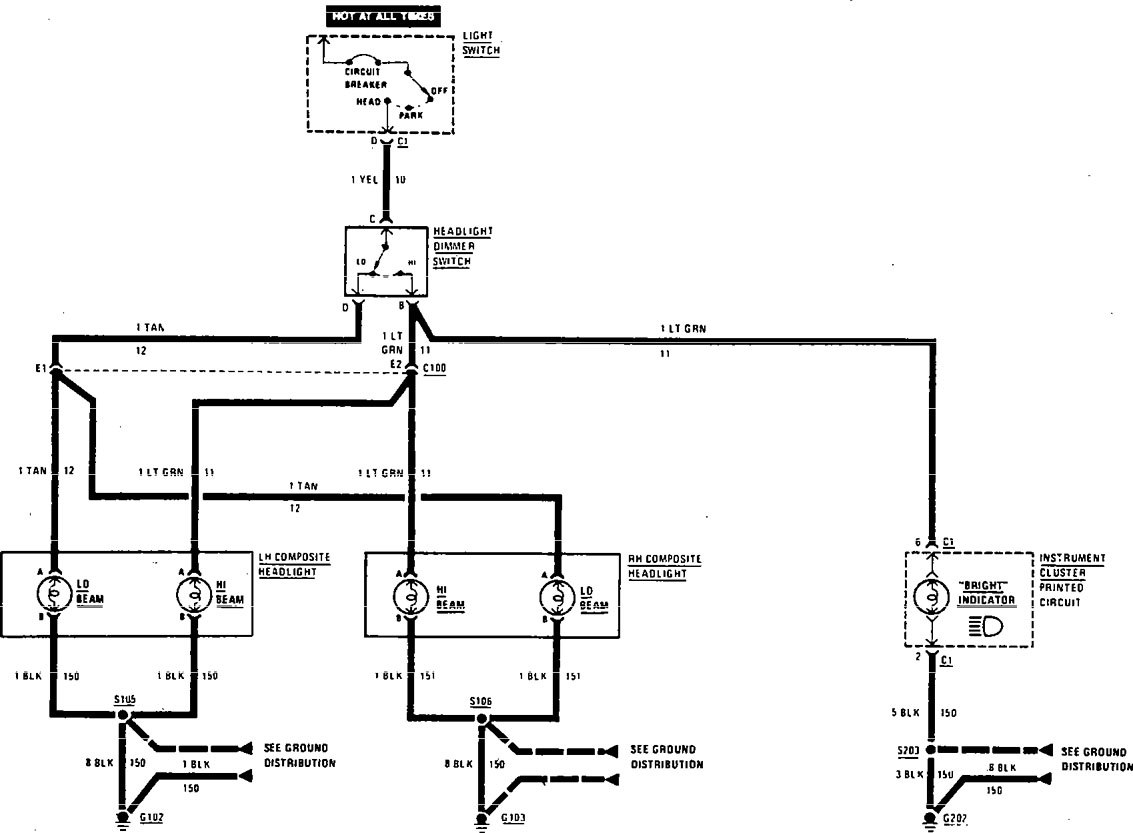

Buick Century – wiring diagram – headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
