Year of productions:  1991

Instrumentation

Version 1

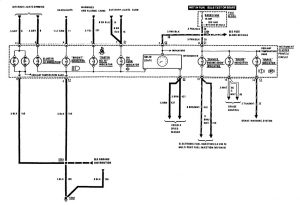

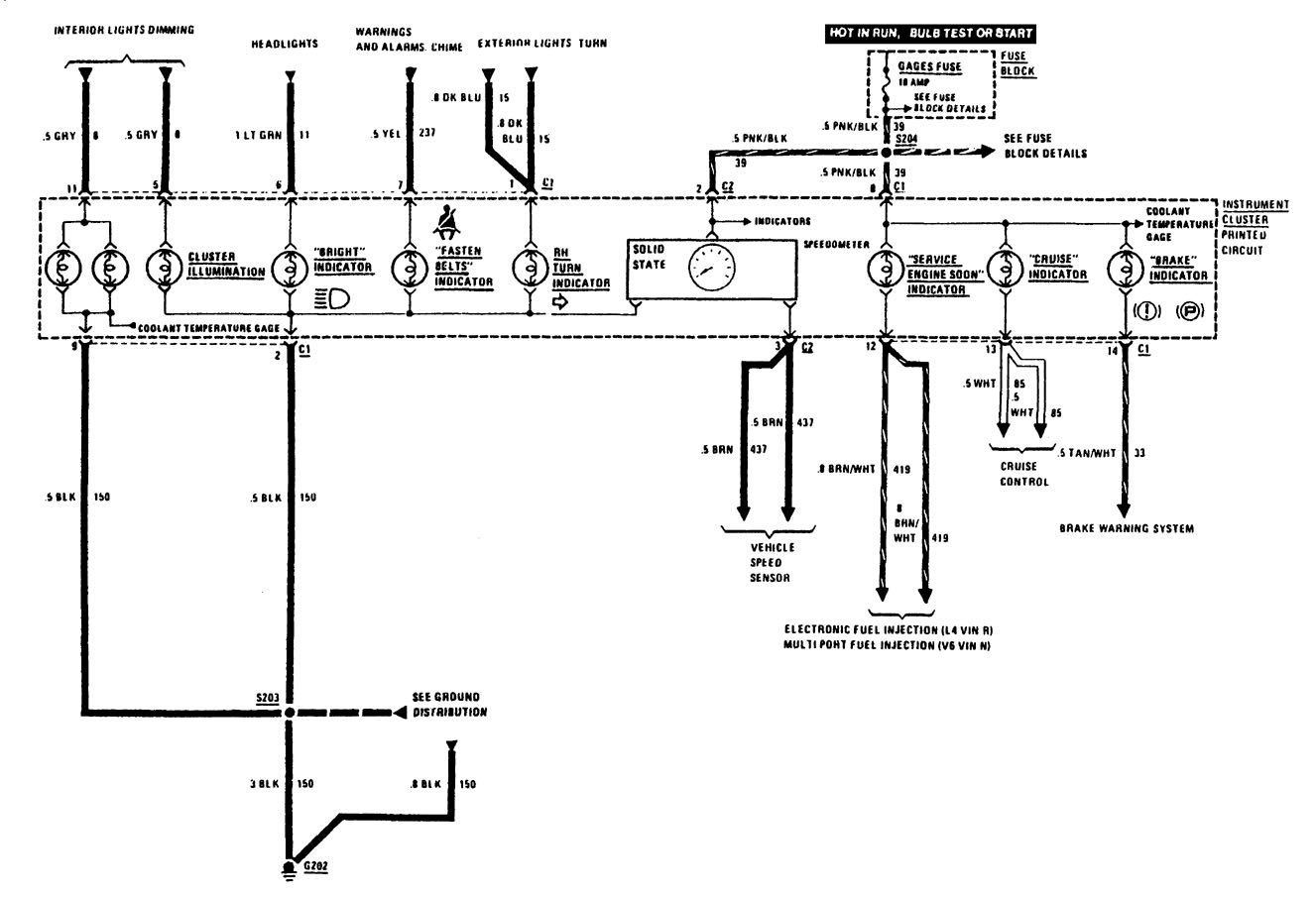

Buick Century – wiring diagram – instrumentation (part 1)

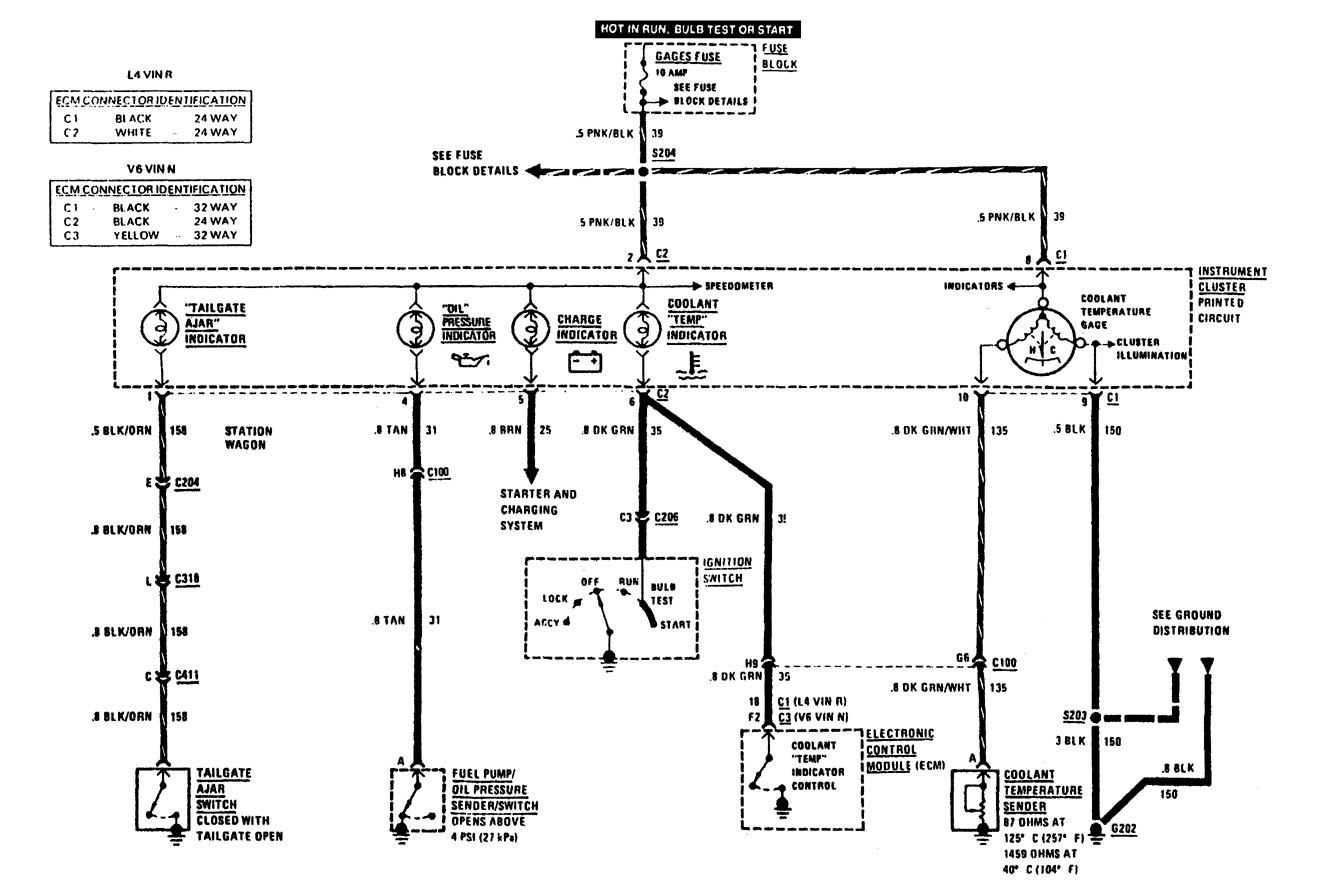

Buick Century – wiring diagram – instrumentation (part 2)

Version 2

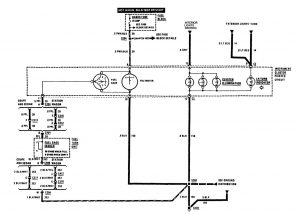

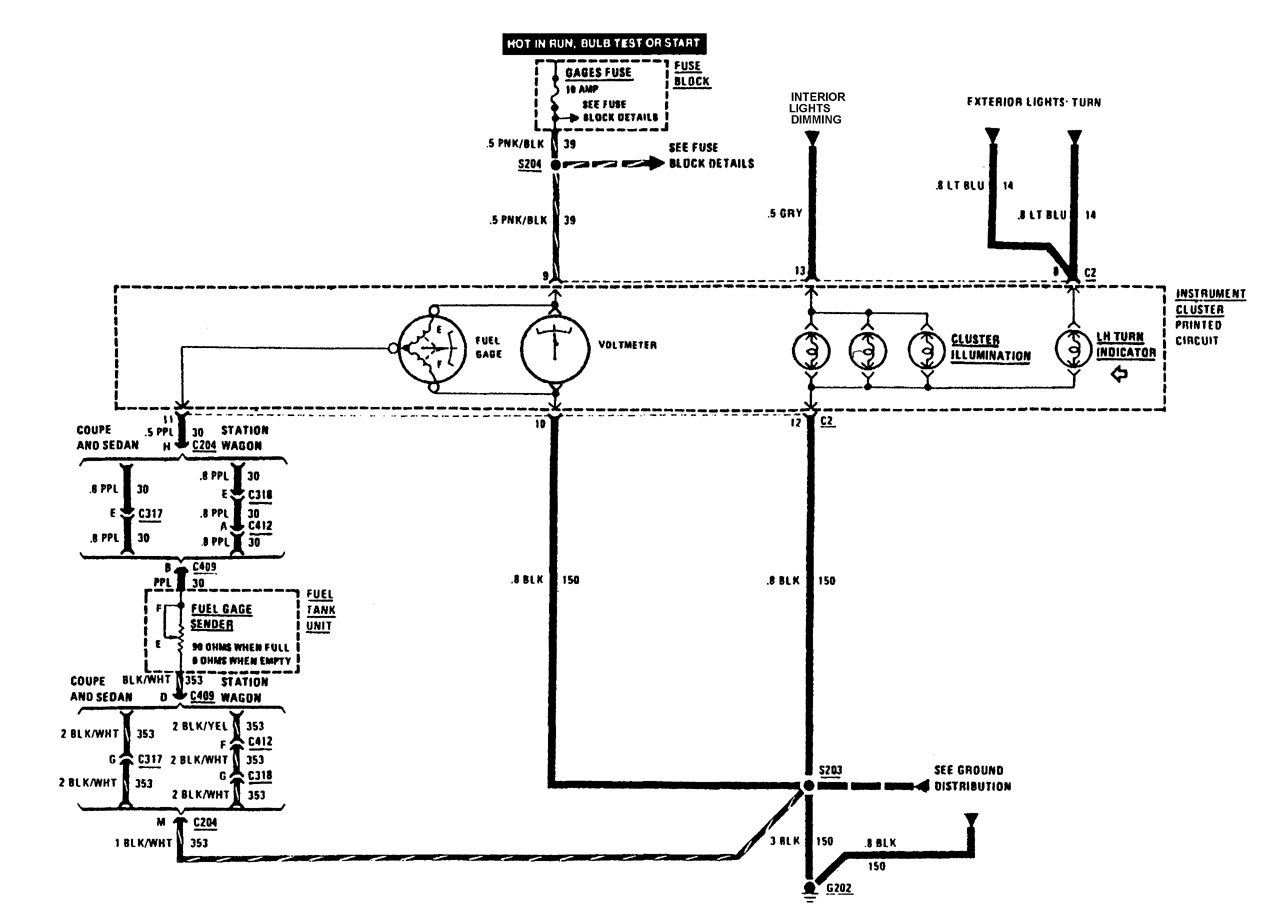

Buick Century – wiring diagram – instrumentation (part 1)

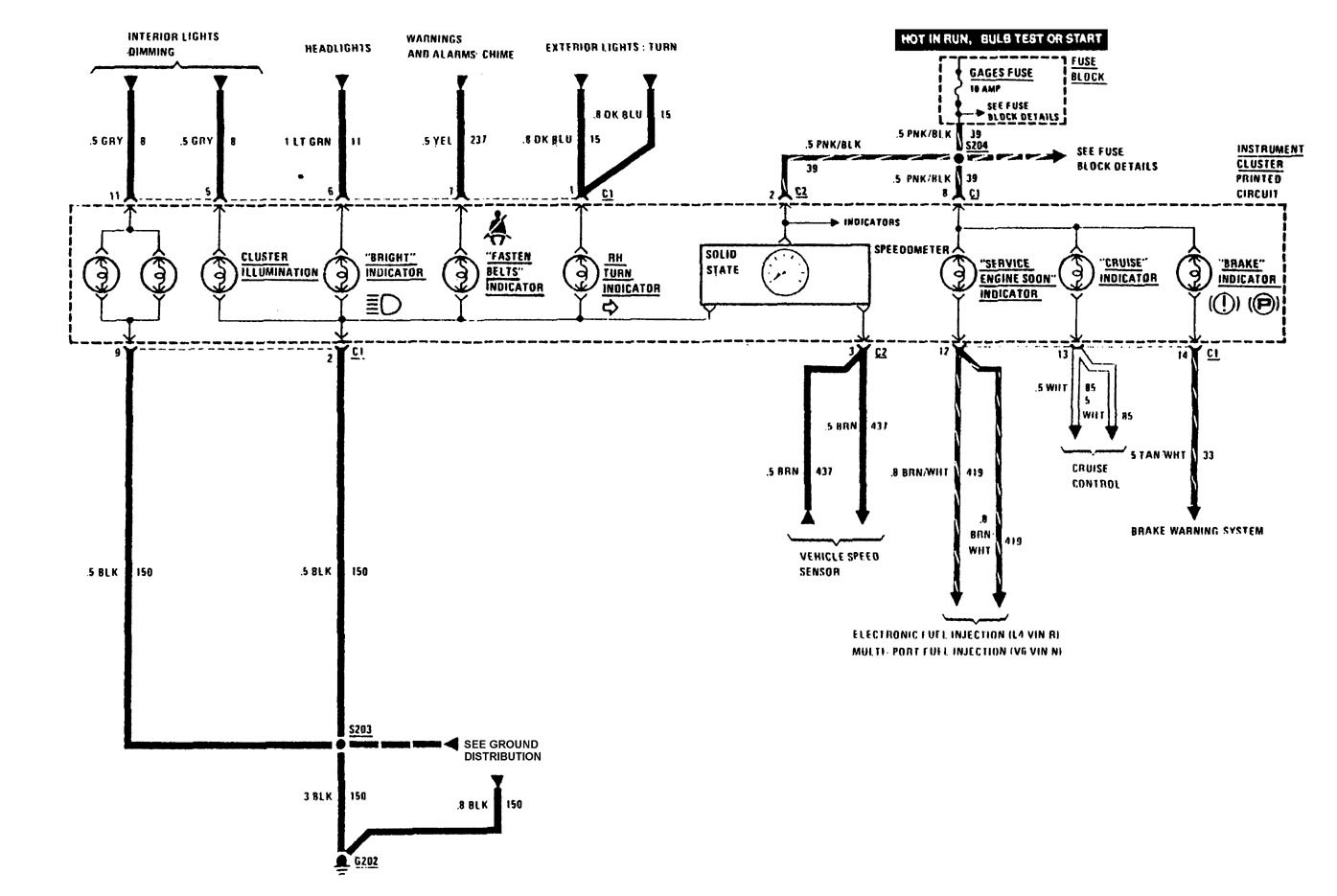

Buick Century – wiring diagram – instrumentation (part 2)

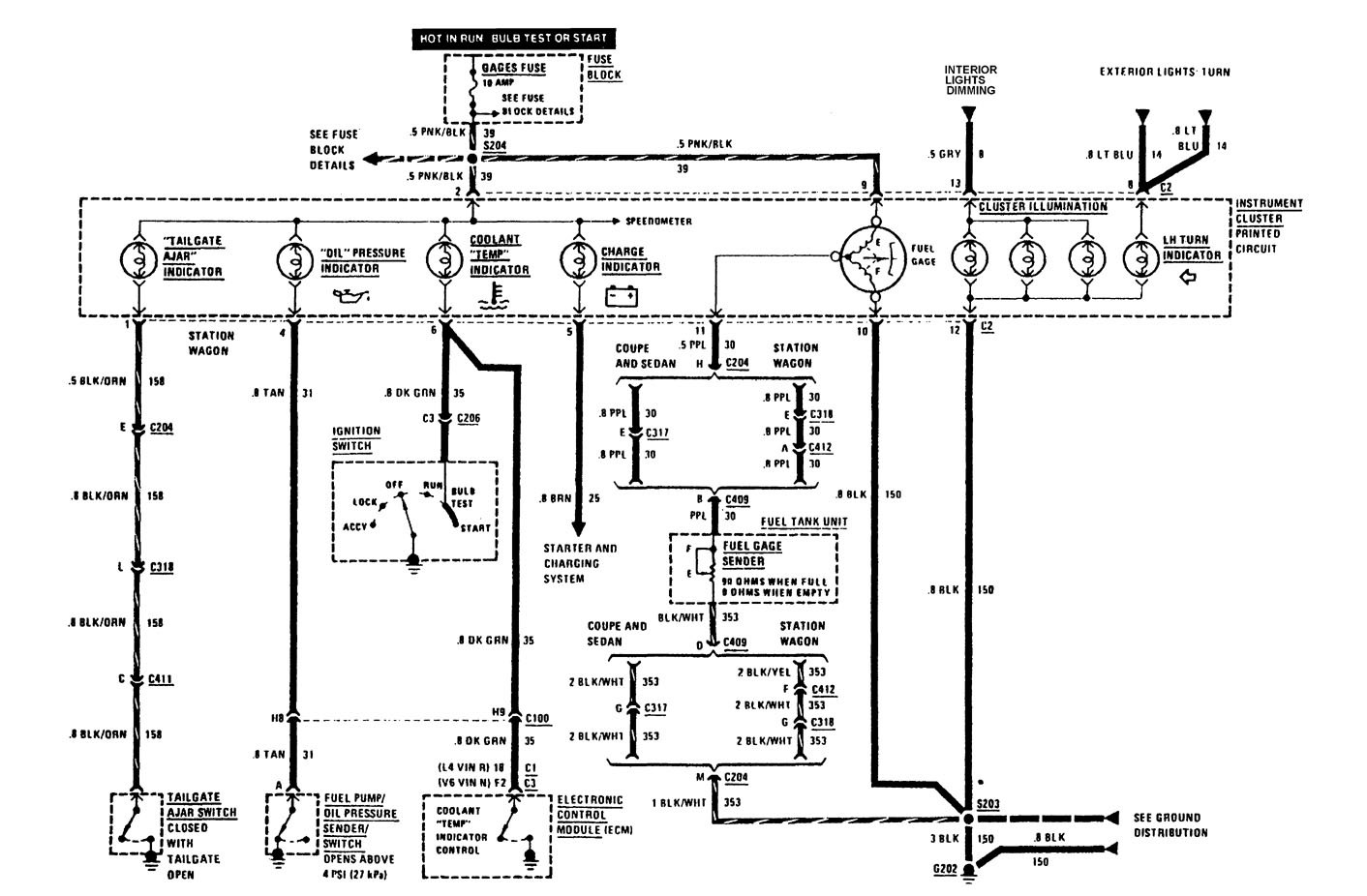

Buick Century – wiring diagram – instrumentation (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
