Buick Century (1991) – wiring diagrams – power distribution
Year of productions: 1991
Power distribution

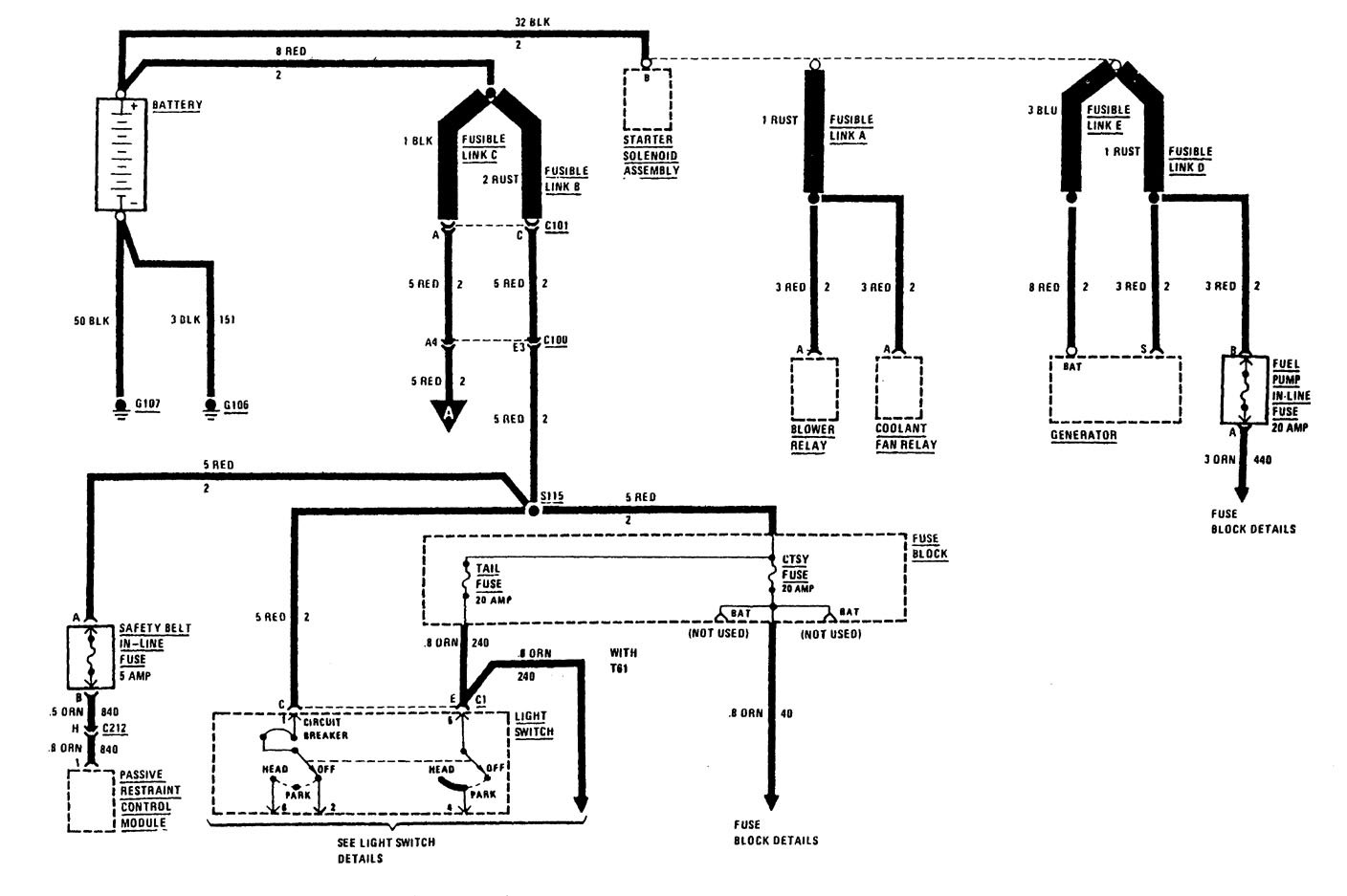

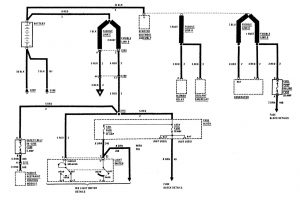

Version 1

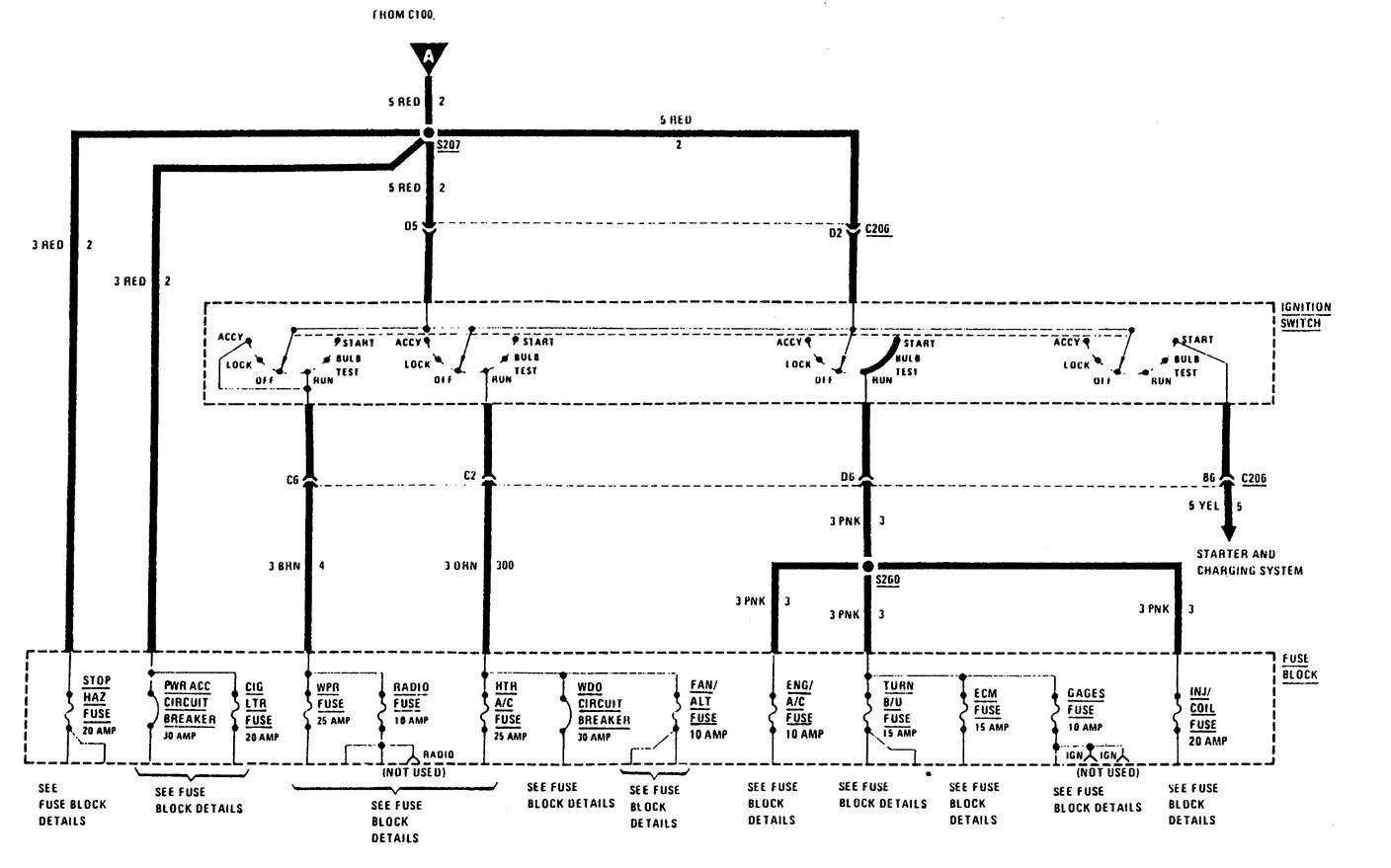

Version 2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
