Year of production: 2008, 2009
Instrument panel fuse block
The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle. Pull down on the cover to access the fuse block.

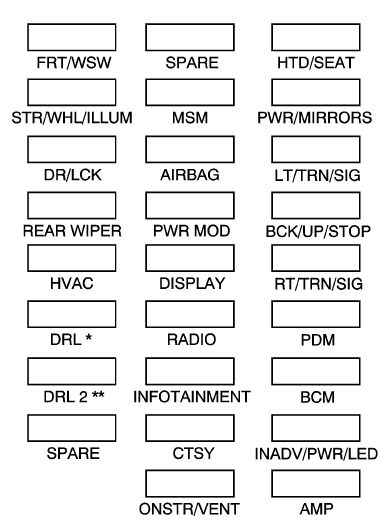

Fuse side
| Fuses | Usage |
| FRT/WSW | Front Windshield Wiper |
| SPARE | Spare |
| HTD/SEAT | Front Heated Seats |
| STR/WHL/ILLUM | Steering Wheel Illumination |
| MSM | Memory Seat Module |
| PWR/MIRRORS | Power Mirrors |
| DR/LCK | Door Locks |
| AIRBAG | Airbag System |
| LT/TRN/SIG | Driver Side Turn Signal |
| REAR WIPER | Rear Window Wiper |
| PWR MOD | PassKey Module, Body Control Module |
| BCK/UP/STOP | Back-up Lamps, Stoplamps |
| HVAC | Climate Control System |
| DISPLAY | Display |
| RT/TRN/SIG | Passenger Side Turn Signal |
| DRL* | Daytime Running Lamps |
| RADIO | Radio |
| PDM | Power Mirrors, Liftgate Release |
| DRL 2** | Not used |
| INFOTAINMENT | Infotainment System |
| BCM | Body Control Module |
| SPARE | Spare |
| CTSY | Dome Lamps |
| INADV/PWR/LED | Interior Lamps |
| ONSTR/VENT | Emissions |
| AMP | Audio Amplifier |

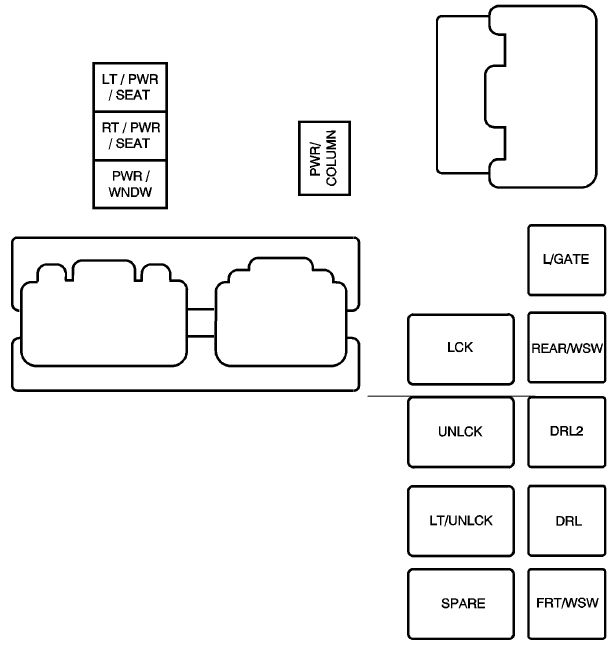

Relay side
| Relays | Usage |
| LT/PWR/SEAT | Driver Side Power Seat Relay |
| RT/PWR/SEAT | Passenger Side Power Seat Relay |
| PWR/WNDW | Power Windows Relay |
| PWR/COLUMN | Power Steering Column Relay |
| L/GATE | Liftgate Relay |
| LCK | Power Lock Relay |
| REAR/WSW | Rear Window Washer Relay |
| UNLCK | Power Unlock Relay |
| DRL2 | Daytime Running Lamps 2 Relay |
| LT/UNLCK | Driver Side Unlock Relay |
| DRL | Daytime Running Lamps Relay |
| SPARE | Spare |
| FRT/WSW | Front Windshield Washer Relay |

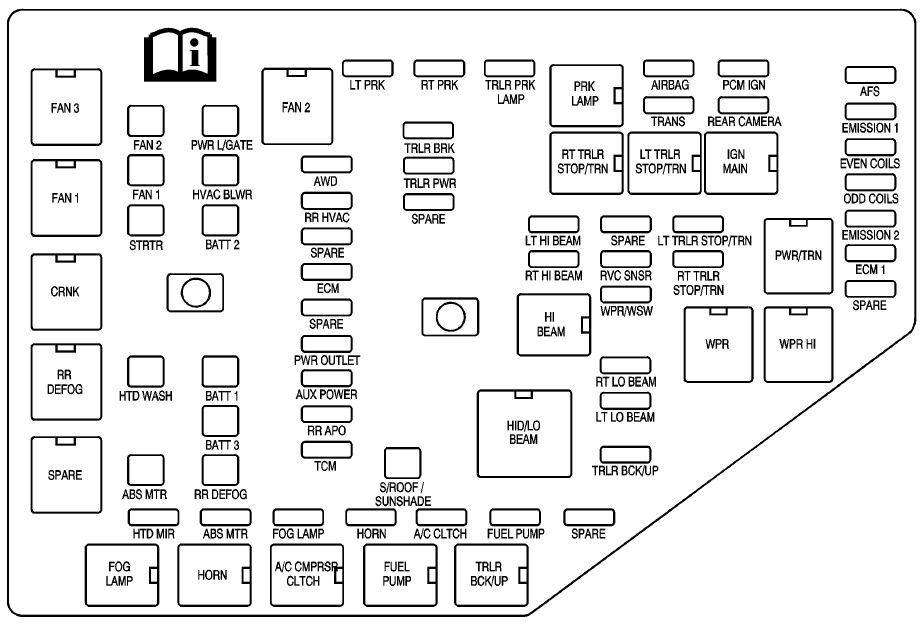

Underhood fuse block
| Fuses | Usage |
| LT PRK | Left Parking Lamp |
| RT PRK | Right Parking Lamp |
| TRLR PRK LAMP | Trailer Parking Lamps |
| AIRBAG | Airbag System |
| PCM IGN | Powertrain Control Module Ignition |
| AFS | Adaptive Forward Lighting System |
| TRANS | Transmission |
| REAR CAMERA | Rear camera |
| EMISSION 1 | Antilock Brakes System 2 |
| TRLR BRK | Trailer Brake |
| AWD | All-Wheel-Drive System |
| TRLR PWR | Trailer Power |
| EVEN COILS | Even Injector Coils |
| SPARE | Spare |
| ODD COILS | Odd Injector Coils |
| SPARE | Spare |
| LT HI BEAM | Left High-Beam Headlamp |
| SPARE | Spare |
| LT TRLR STOP/TRN | Trailer Left Stoplamp and Turn Signal |
| EMISSION 2 | Emission 2 |
| ECM | Engine Control Module |
| RT HI BEAM | Right High-Beam Headlamp |
| RVC SNSR | Regulated Voltage Control Sensor |
| RT TRLR STOP/TRN | Trailer Right Stoplamp and Turn Signal |
| ECM 1 | Engine Control Module 1 |
| SPARE | Spare |
| WPR/WSW | Windshield Wiper/Washer |
| SPARE | Spare |
| PWR OUTLET | Power Outlet |
| AUX POWER | Auxiliary Power |
| RT LO BEAM | Right Low-Beam Headlamp |
| RR APO | Rear Accessory Power Outlet |
| LT LO BEAM | Left Low-Beam Headlamp |
| TCM | Transmission Control Module |
| TRLR BCK/UP | Trailer Back-up Lamps |
| HTD MIR | Heated Outside Rearview Mirror |
| ABS MTR | Antilock Brake System Motor |
| FOG LAMP | Fog Lamps |
| HORN | Horn |
| A/C CLTCH | Air Conditioning Clutch |
| FUEL PUMP | Fuel Pump |
| SPARE | Spare |
| J-Case Fuses | Usage |
| FAN 2 | Cooling Fan 2 |
| PWR L/GATE | Power Liftgate |
| FAN 1 | Cooling Fan 1 |
| HVAC BLWR | Climate Control System Blower |
| STRTR | Starter |
| BATT 2 | Battery 2 |
| HTD WASH | Heated Windshield Washer System |
| BATT 1 | Battery 1 |
| BATT | Battery 3 |
| ABS MTR | Antilock Brake System Motor |
| RR DEFOG | Rear Defogger |
| S/ROOF/SUNSHADE | Sunroof, Sunshade |
| Relays | Usage |
| FAN 3 | Cooling Fan 3 |
| FAN 2 | Cooling Fan 2 |
| PRK LAMP | Park lamp |
| FAN 1 | Cooling Fan 1 |
| RT TRLR STOP/TRN | Trailer Right Stoplamp and Turn Signal |
| LT TRLR STOP/TRN | Trailer Left Stoplamp and Turn Signal |
| IGN | Ignition Main |
| CRNK | Switched Power |
| PWR/TRN | Powertrain |
| HI BEAM | High-Beam Headlamps |
| WPR | Windshield Wiper |
| WPR HI | Windshield Wiper High Speed |
| RR DEFOG | Rear Window Defogger |
| HID/LO BEAM | High Intensity Discharge (HID) Low-Beam Headlamps |
| SPARE | Spare |
| FOG LAMP | Fog lamp |
| HORN | Horn |
| A/C CMPRSR CLTCH | Air Conditioning Compressor Clutch |
| FUEL PUMP | Fuel pump |
| TRLR BCK/UP | Trailer Back-up Lamps |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
