Buick Skyhawk (1975 – 1980) – fuse box diagram

1 January 2021 admin Buick, Skyhawk 0

Buick Skyhawk (1975 – 1980) – fuse box diagram

Year of production: 1975, 1976, 1977, 1978, 1979, 1980

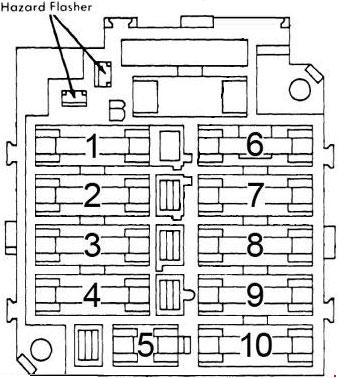

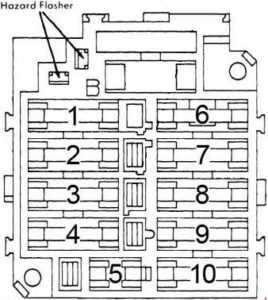

Fuse box diagram

Buick Skyhawk (1975 - 1980) - fuse box diagram
Buick Skyhawk (1975 – 1980) – fuse box diagram
No. A Circuit Protected
1 30 Electric fuel pump
2 20 Clock, cigar lighter, courtesy light
3 20 Tail lights
4 20 Stop lights, hazard warning
5 4 Instrument illumination
6 25 Heater and air conditioner
7 20 Turn signals, back-up lights
8 10 Gauges
9 10 Radio, TCS solenoid
10 25 Windshield wiper and washer
Circuit Breaker:
  • Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits.
  • Windshield Wiper — Integral with windshield wiper motor.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
