Buick Skylark (1975 – 1979) – fuse box diagram
Year of production: 1975, 1976, 1977, 1978, 1979

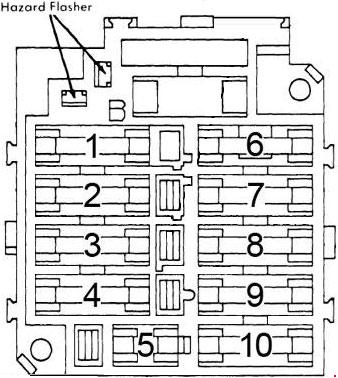

Fuse box diagram
| No. | A | Circuit Protected |
| 1 | 30 | Power Accessory |
| 2 | 20 | Clock, cigar lighter, courtesy light |
| 3 | 20 | Tail lights |
| 4 | 20 | Stop lights, hazard warning |
| 5 | 4 | Instrument illumination |
| 6 | 25 | Heater and air conditioner |
| 7 | 20 | Turn signals, back-up lights |
| 8 | 10 | Gauges |
| 9 | 10 | Radio, TCS solenoid |
| 10 | 25 | Windshield wiper and washer |
Circuit Breaker:
|
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
